ColorTM1637 digital tube
Description

SPECIFICATIONS

Brand Name: NullLab

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Supply Voltage: 6-16V

Type: Logic ICs

is_customized: Yes


Overview

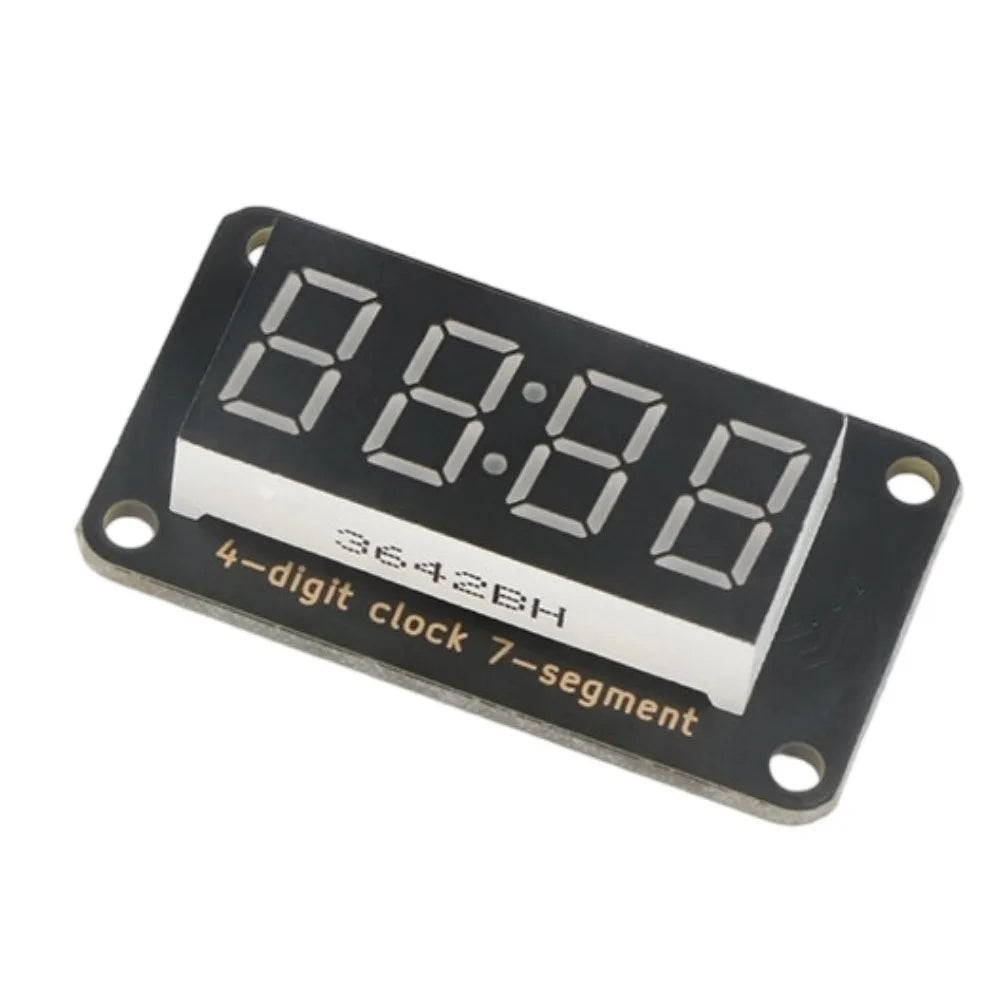

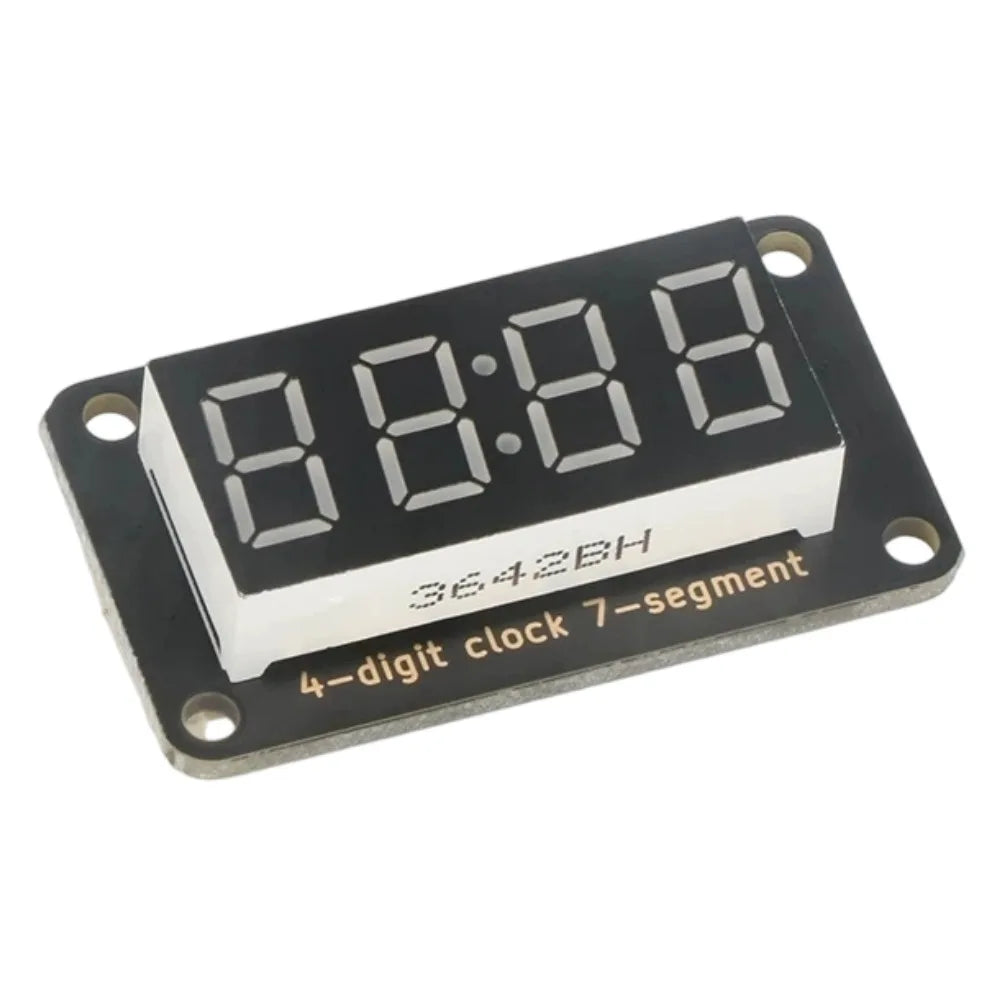

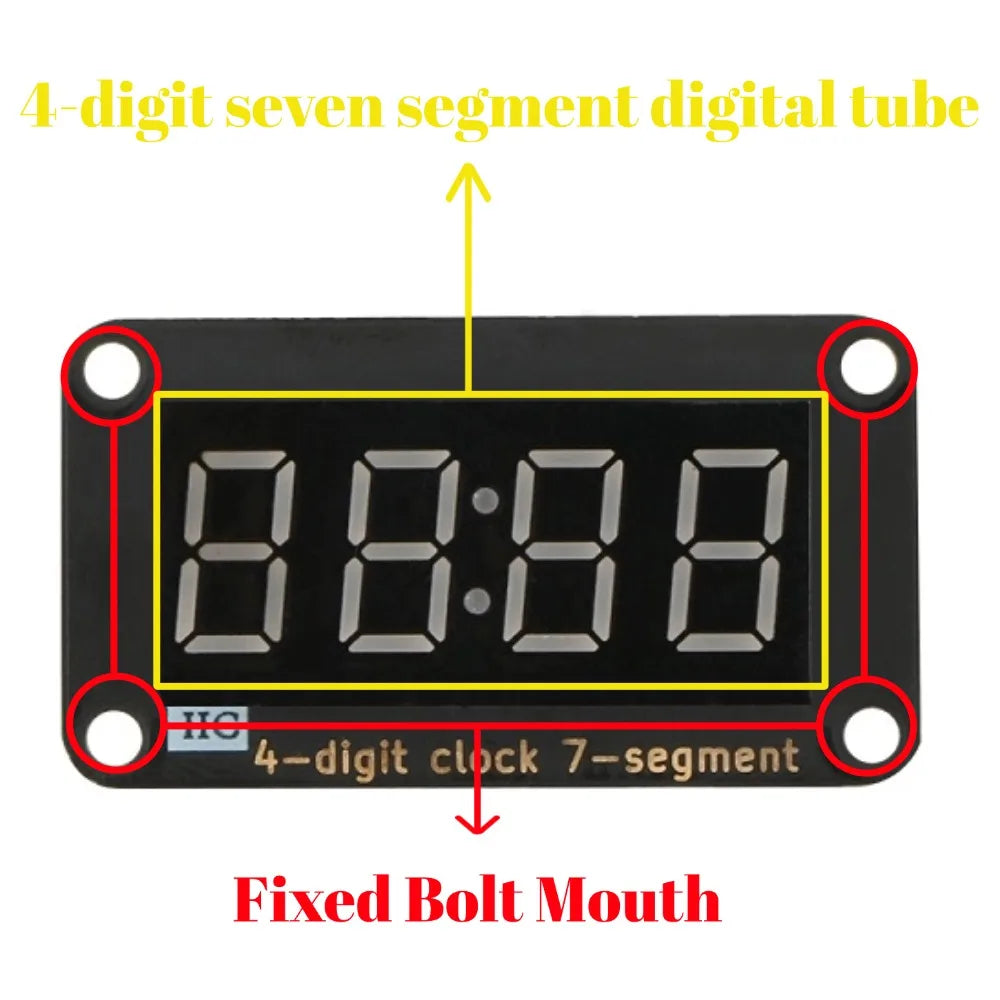

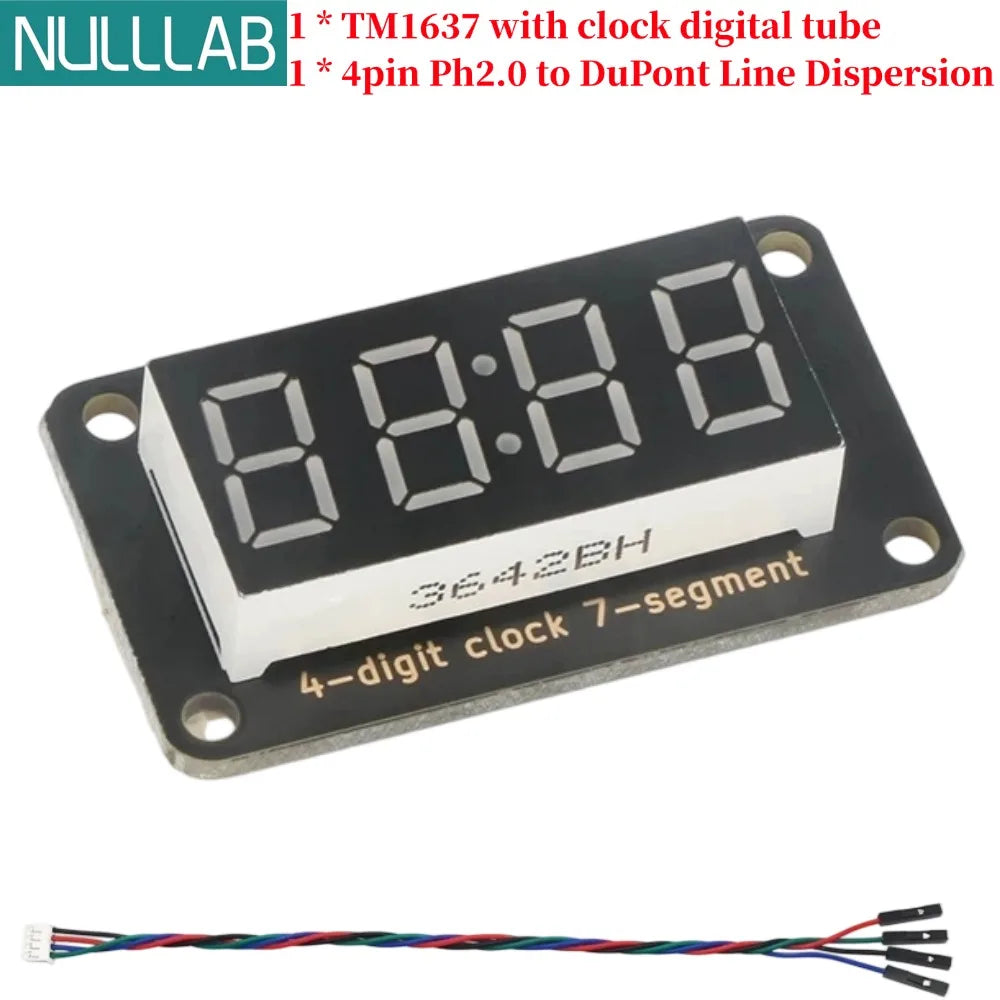

The 4-digit 7-segment digital tube consists of a 12 pin 4-digit 7-segment common anode digital tube and a control chip TM1637. This module adopts a gold-plated process for a more beautiful appearance, and also uses an anti reverse insertion interface for safer operation. The uppercase letter I on one side of the socket indicates that the module uses IIC protocol communication, and the icon symbol of the digital tube on the other side. This product can be applied to time display, odometer display, and other devices that require displaying numbers.


Schematic Diagram

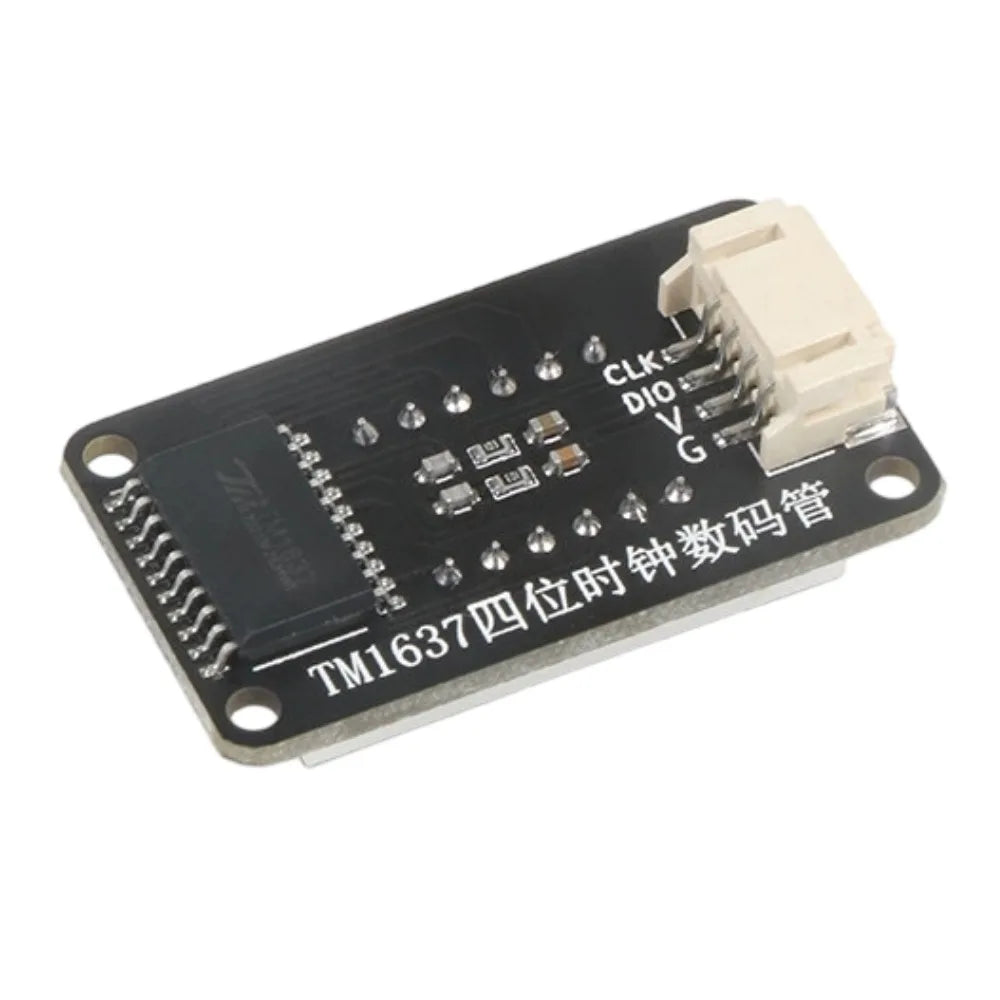

Module Parameters


Pin name

description

G

GND ground wire

V

5V power supply pin

DIO

data pin

CLK

clock pin

  • 1. Power supply voltage: 5V

  • 2. Connection method: 4PIN anti reverse DuPont wire

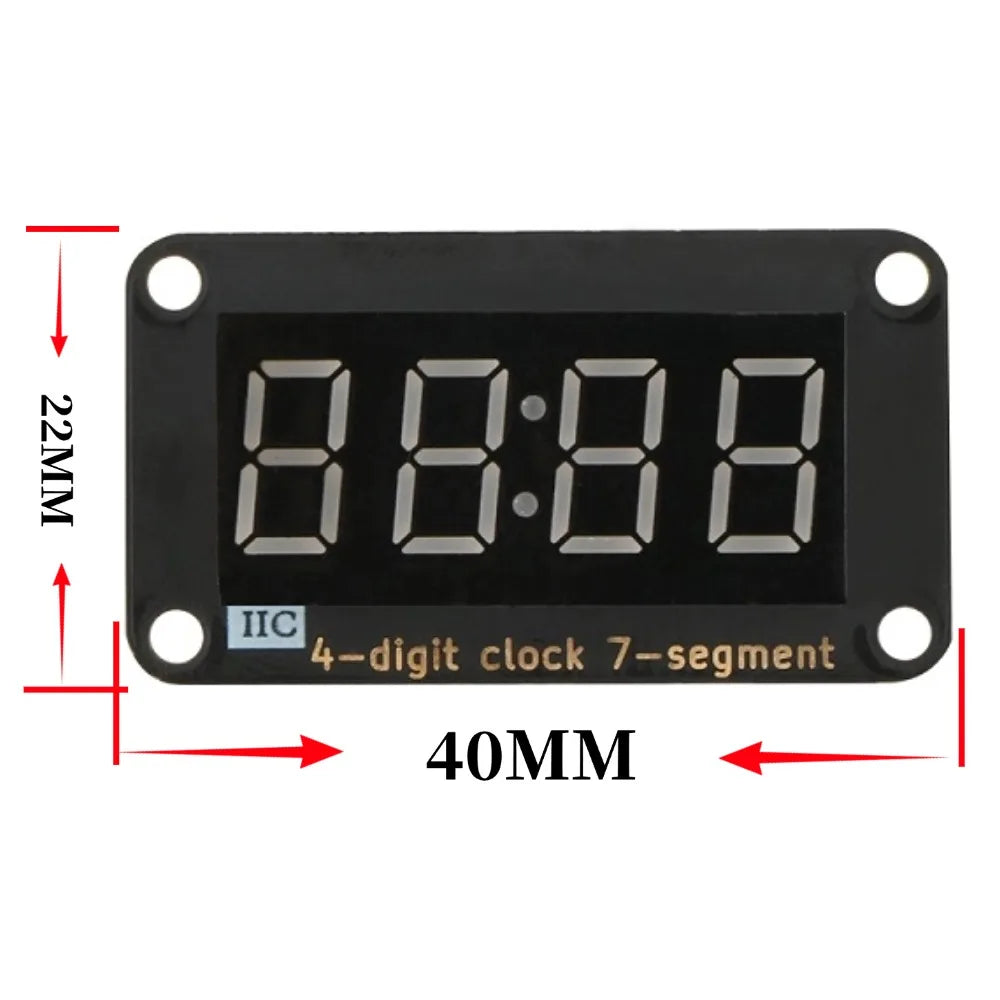

  • 3. Module size: 4 * 2.1cm

  • 4. Installation method: M3 screws compatible with LEGO socket for fixation
