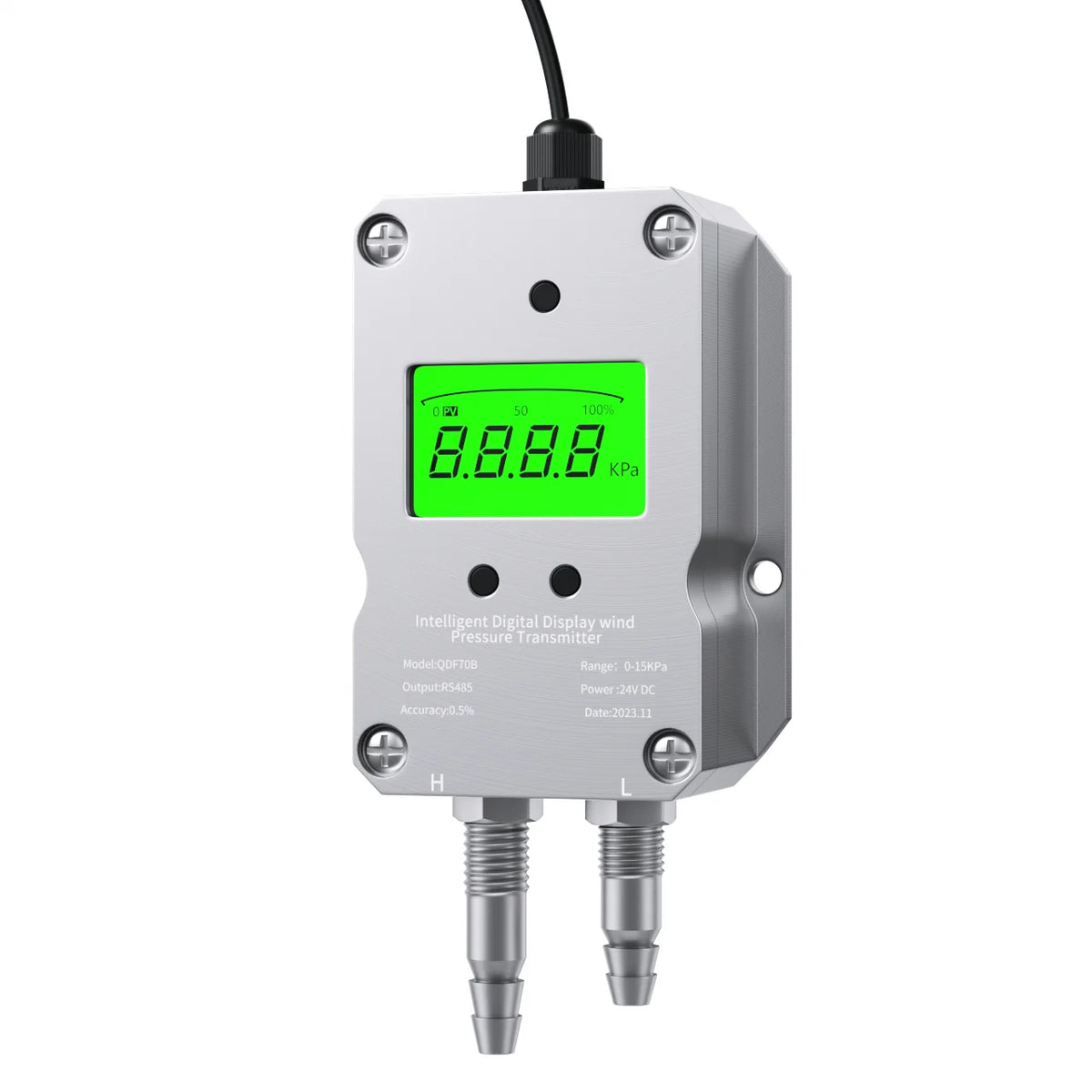

0-3Kpa to RS485 Micro Differential Pressure Transducer 0-50Kpa to 4-20mA 0-10V RS485 Wind Air Pressure Transmitter Sensor
4-20mA / -200-200Pa
$192.78
Sale price
$192.78
Regular price
$0.00
Skip to product information
0-3Kpa to RS485 Micro Differential Pressure Transducer 0-50Kpa to 4-20mA 0-10V RS485 Wind Air Pressure Transmitter Sensor
$192.78
Sale price
$192.78
Regular price
$0.00
Description

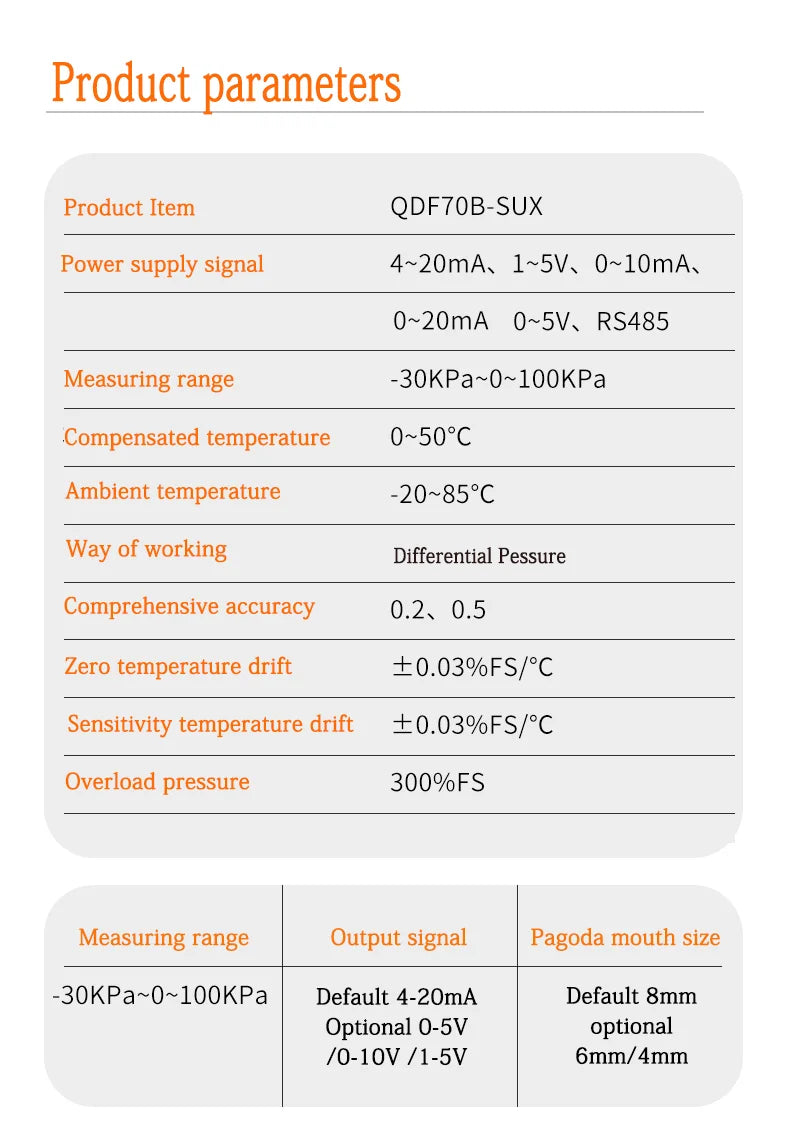

SPECIFICATIONS
Battery Included: no
Brand Name: Vadias
Certification: CE,FCC,RoHS

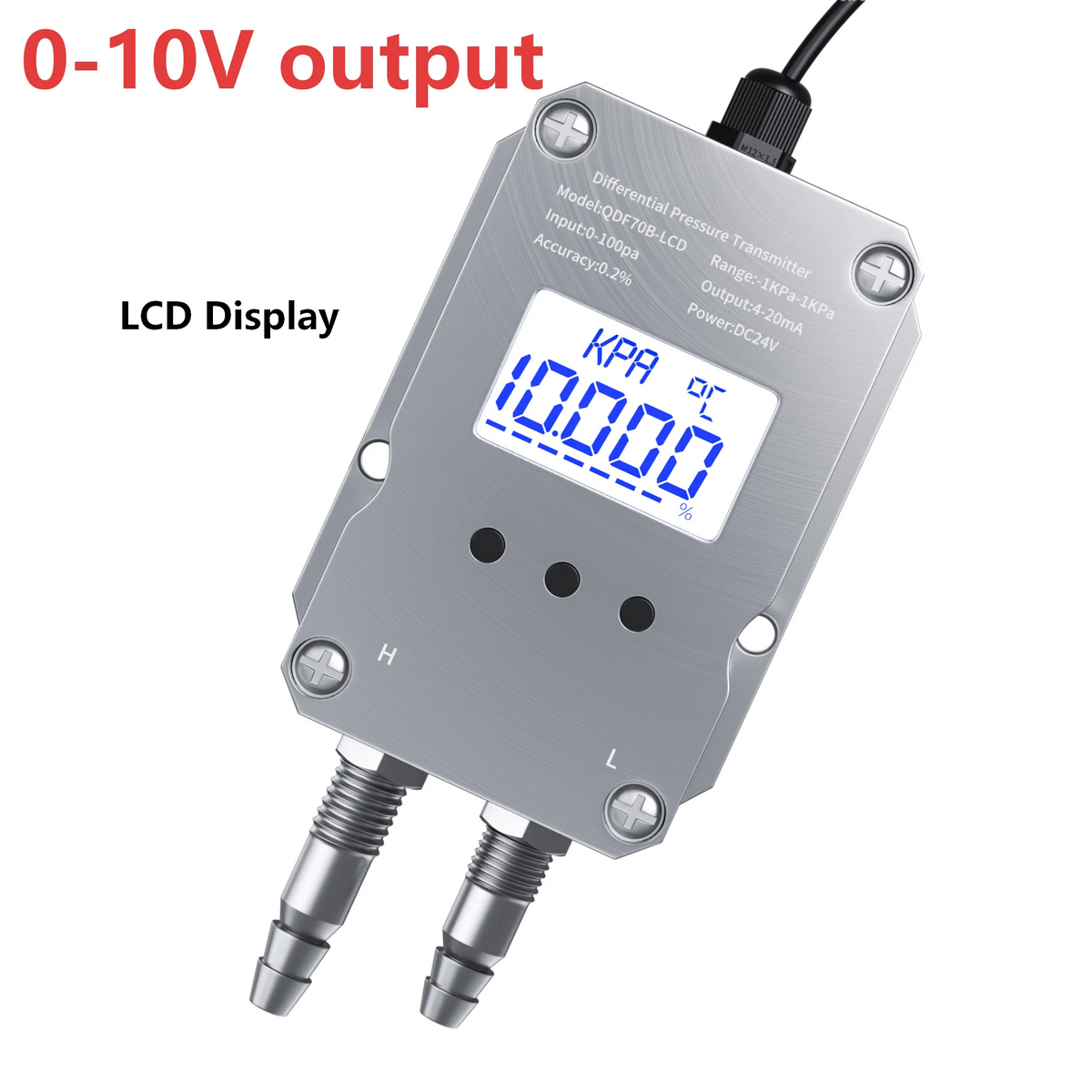

Display: LCD
Feature 1: -200-200Pa to RS485 Differential Pressure Sensor
Feature 10: -10-10Kpa to 4-20mA Differential Pressure Sensor
Feature 2: 0-20Kpa to 4-20mA Differential Pressure Transmitter
Feature 3: 0-50pa to 4-20mA Differential Pressure Sensor
Feature 4: 0-5Kpa to RS485 Differential Pressure Transmitter
Feature 5: 0-30Kpa to RS485 Air Differential Pressure Sensor
Feature 6: 0-200pa to 4-20mA Differential Pressure Sensor
Feature 7: 0-3Kpa to 4-20mA Air Differential Pressure Transmitter
Feature 8: 0-1Kpa to RS485 Differential Pressure Transmitter
Feature 9: 0-10Kpa to RS485 Differential Pressure Transmitter
High-concerned chemical: none

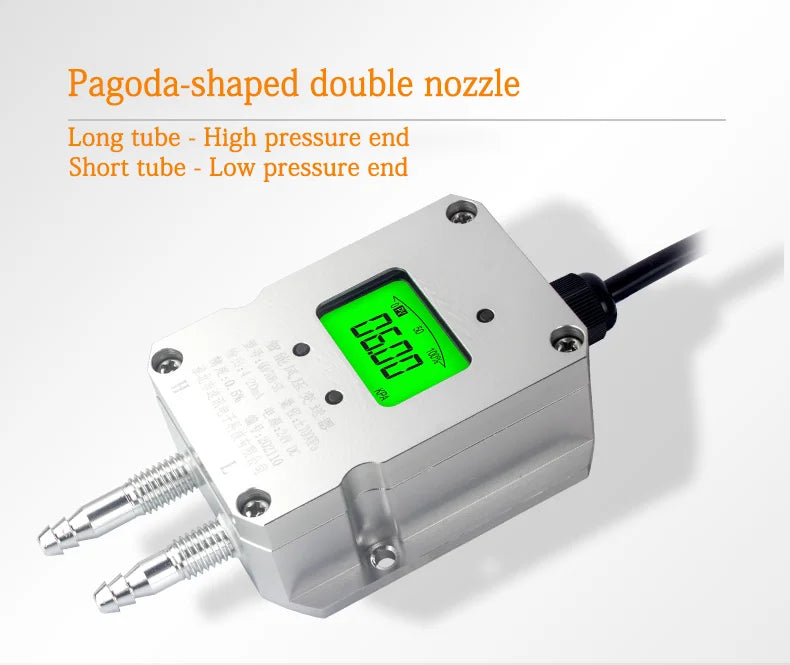

Installation: Pagoda Head
Max Measuring Range: 59 Bar & Under

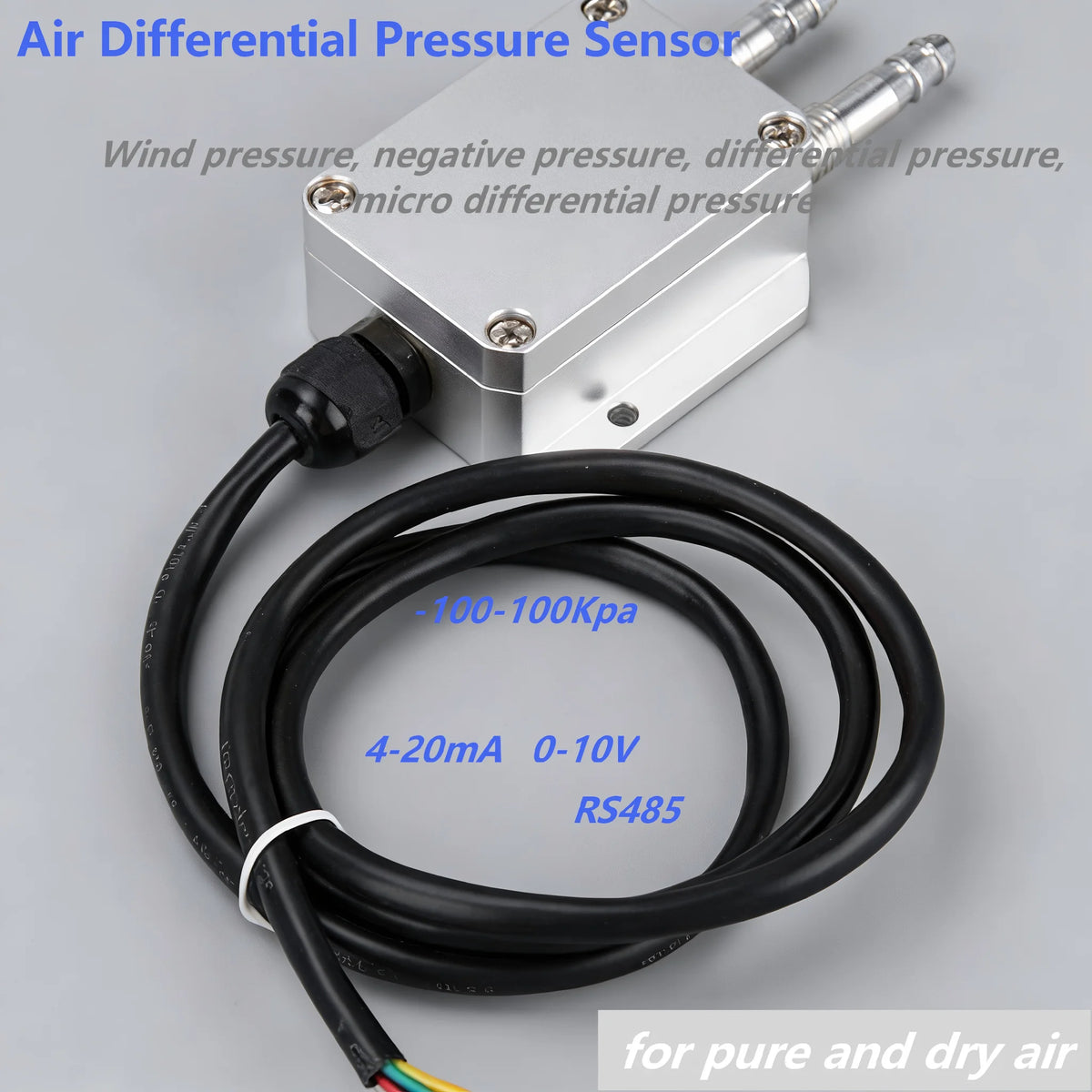

Medium: Air,pure and dry gas
Model Number: QDF70B/QDX50D-LCD
Origin: Mainland China
Output Signal: 4-20mA, 0-10V, 0-5V,RS485
Power Supply: DC24V, DC12V, DC12-30V,

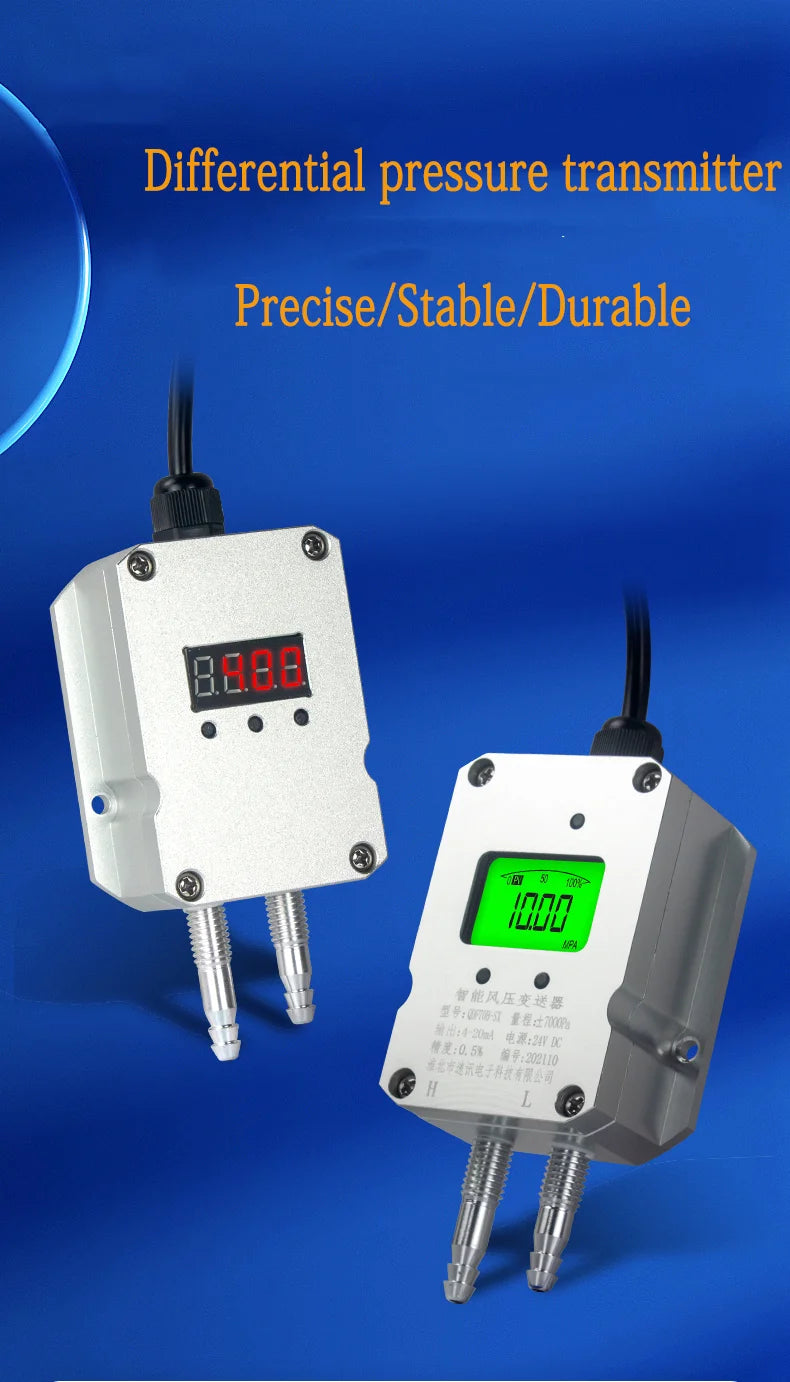

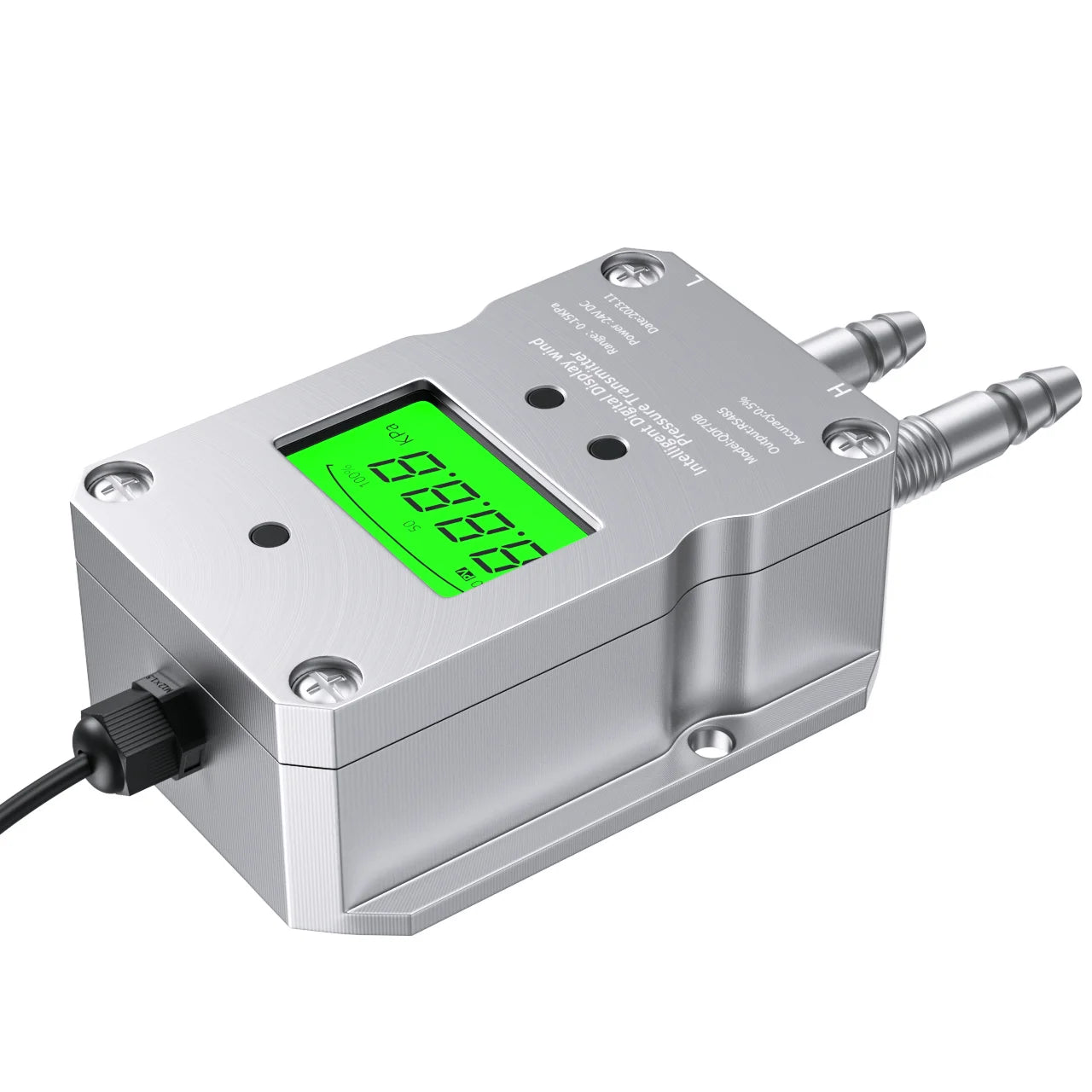

Product Name: LCD Differential Pressure Transmitter
Range: -100Kpa-0-100Kpa
Semi-finishedproduct: No
For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.
Our sales team will reply to you within 24 hours with detailed quotations and support.
Thank you for your inquiry!
Notes:
Default Power Supply:DC24V
Range:-100Kpa~0~100Kpa customized,if you need any range that is not list,pls leave a message.
If you need other parameters, please contact me online .
And pls let me know themeasuring range, output signal, power supply, thread size.
We will do it according to your special request .
Introduction:

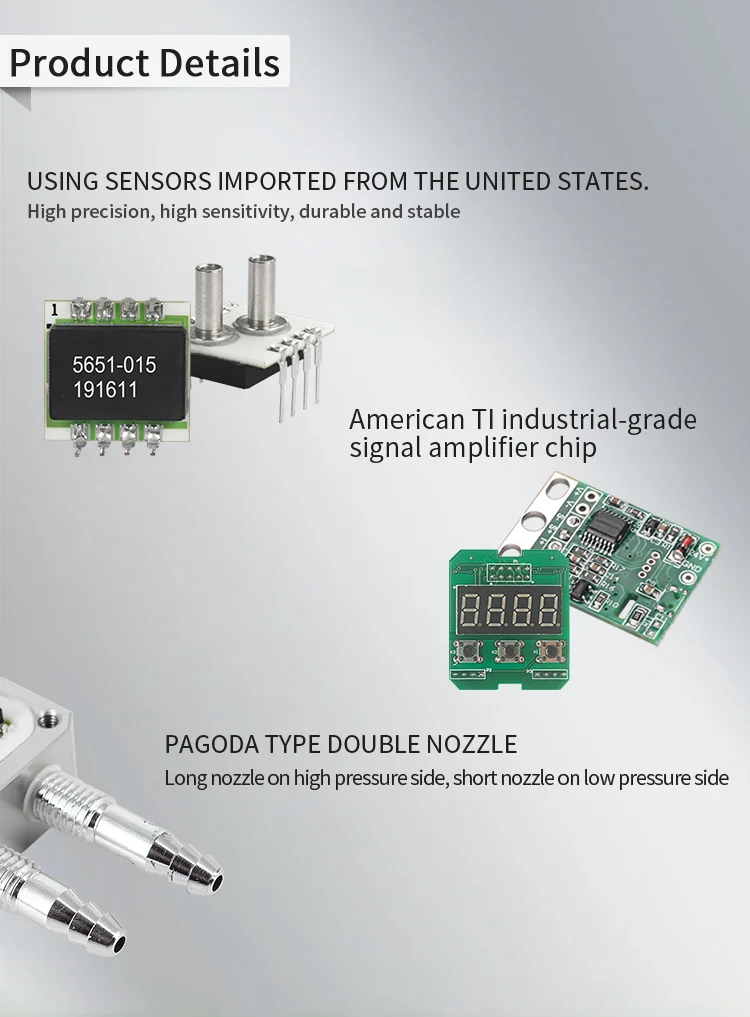

<1>. This differential air pressure transmitter, adopting the imported high-precision, high stability micro-pressure chip.

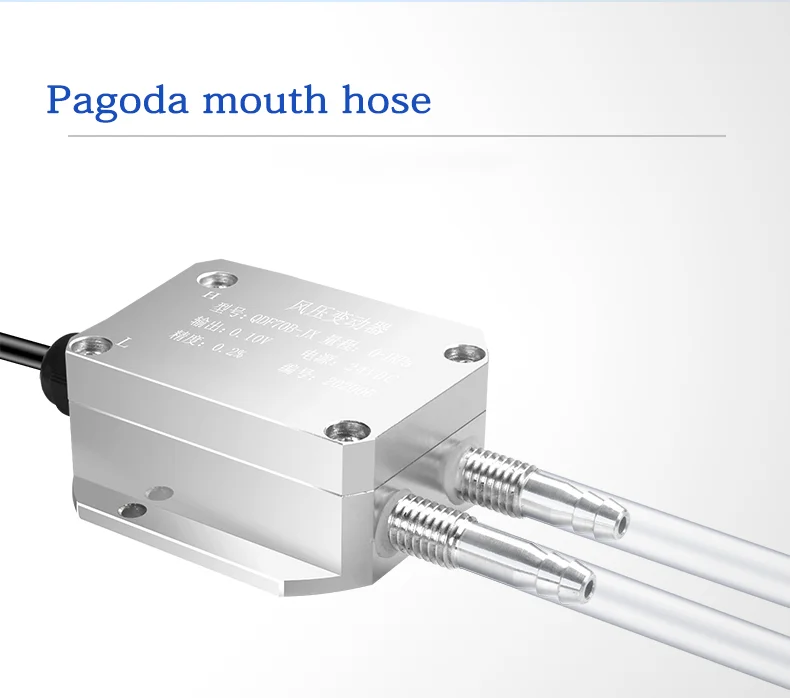

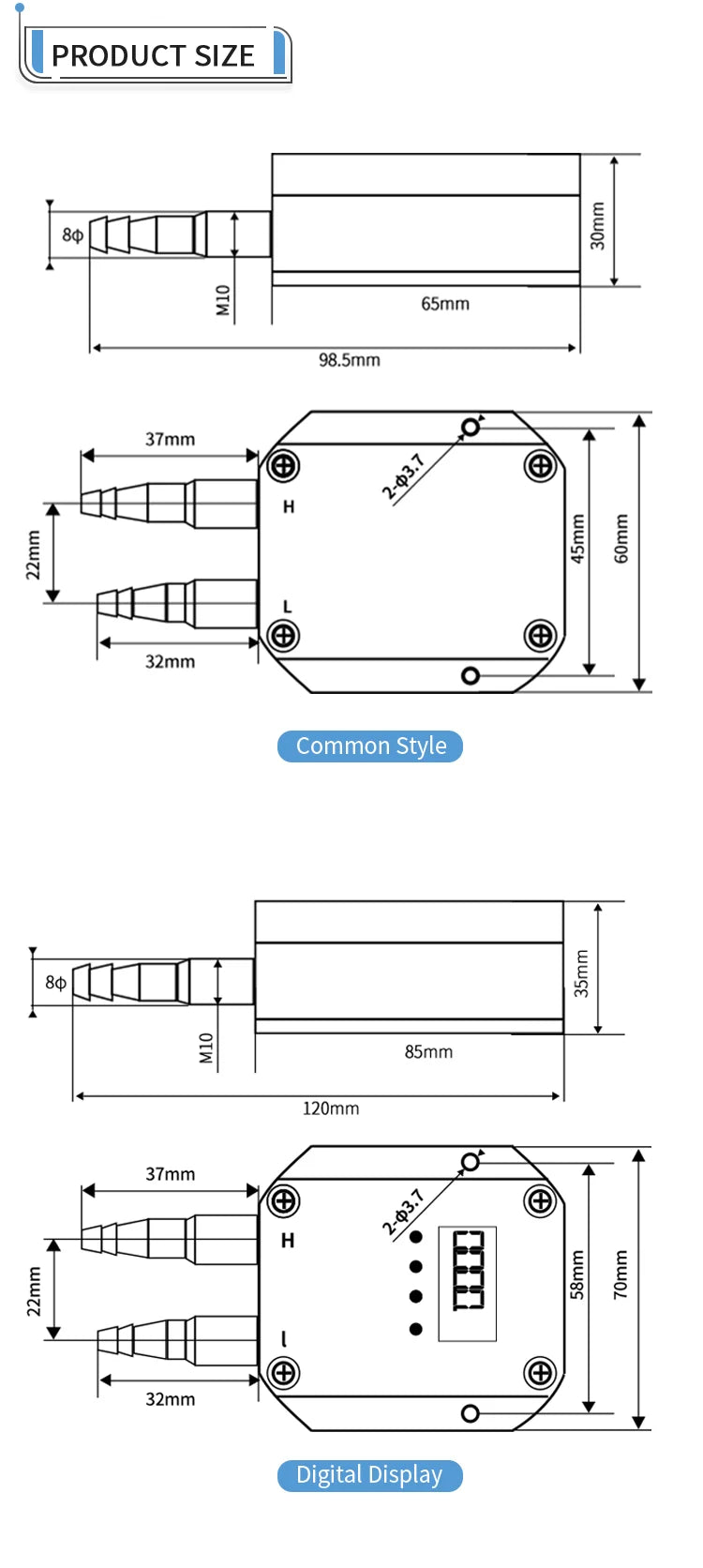

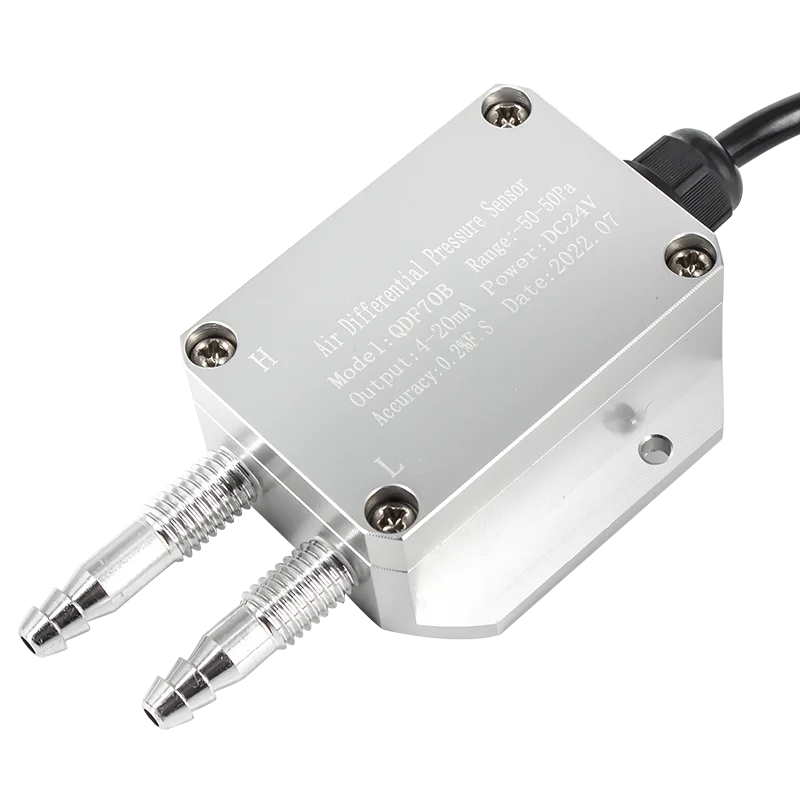

<2>. The shell is aluminum alloy structure. The two pressure interfaces are M10 screw thread and cock structure. (Customer can choose the size of pressure interfaces.) It can be directly installed on the measuring pipe or connected by the pressure pipe, easy to install and use.
<3>. Milli voltage, standard voltage, current, frequency signal output are available to choose.
<4>. The transmitter is widely used in petroleum, chemical industry, metallurgy, electric power and other fields. It effectively control in power and coal industries, such as boiler ventilation and underground ventilation.
FEATURES:
◆ CE conformity
◆ High precision silicon piezoresistive core
◆ Small size, convenient to install and operate

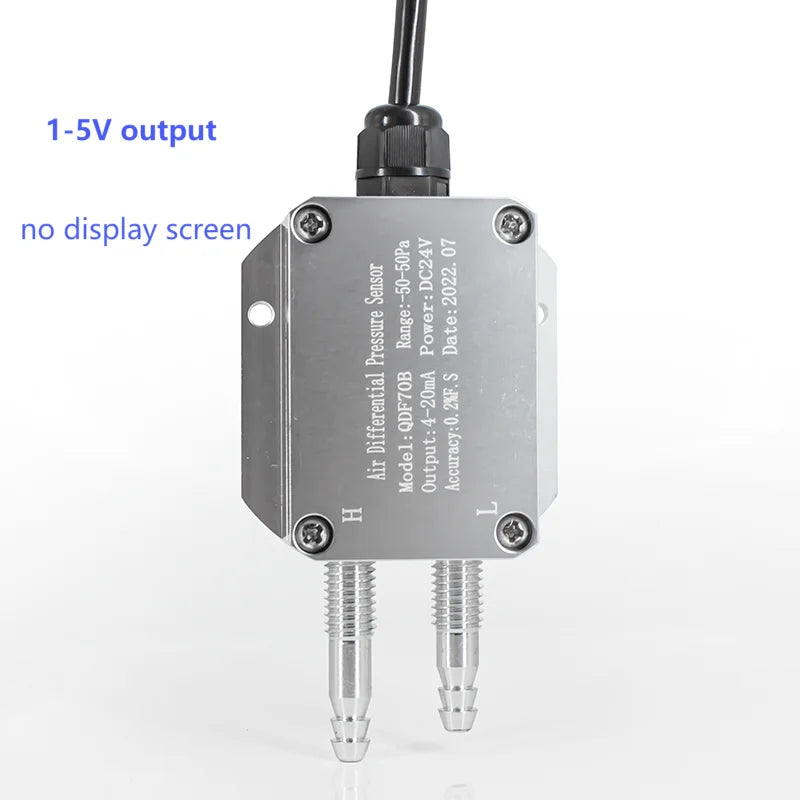

◆ 4-20mA, 1-5V, 0-5V, 0-10V, RS485 various voltage output
◆ Anti-Humidity and water proof IP65 Enclosure
◆ Provide OEM, flexible customization
Application:
It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.

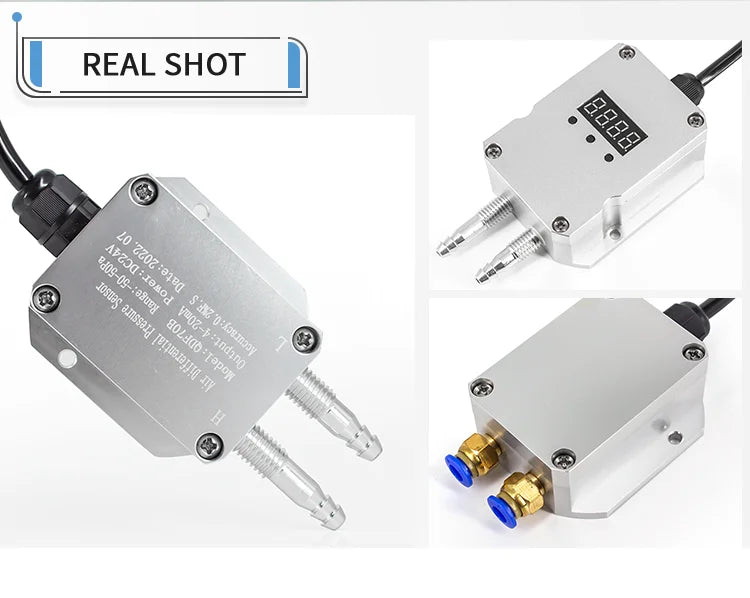

Products Presentation
