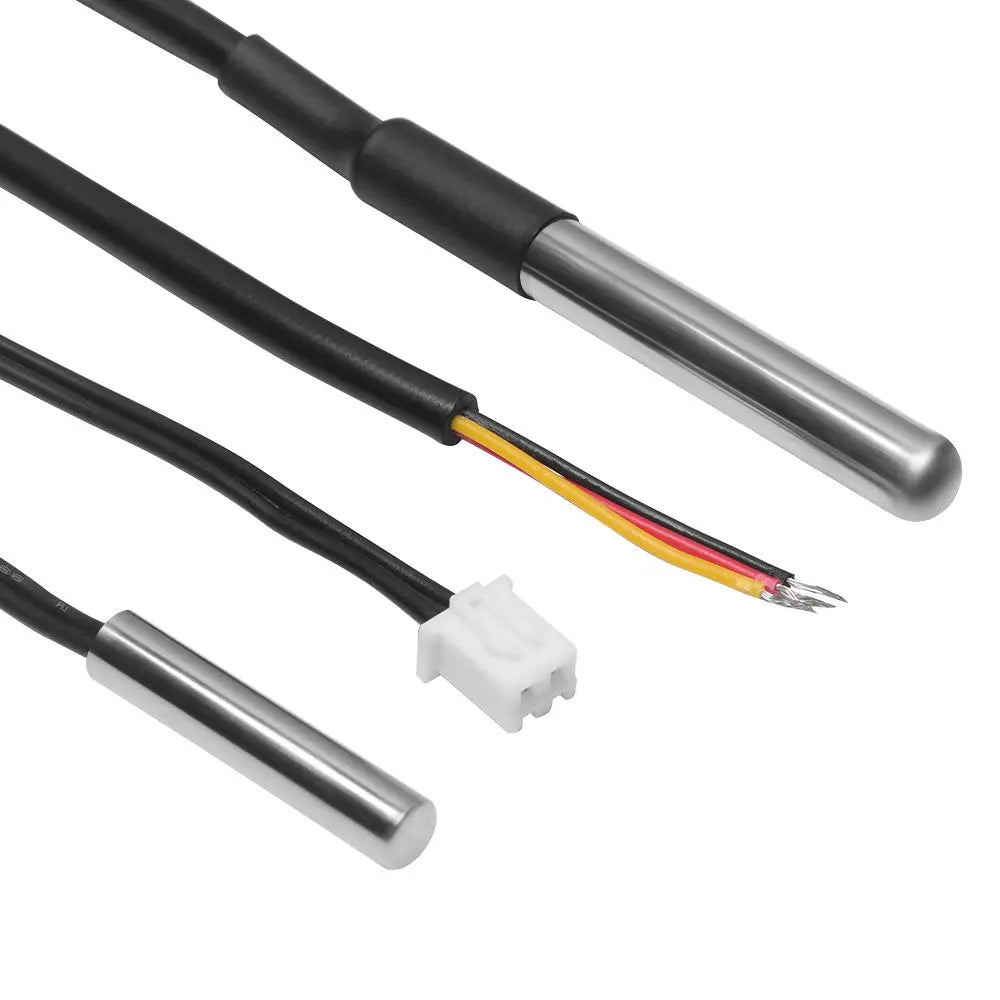

SPECIFICATIONS

100%Brand New and High Quality
Stainless steel sheath and waterproof

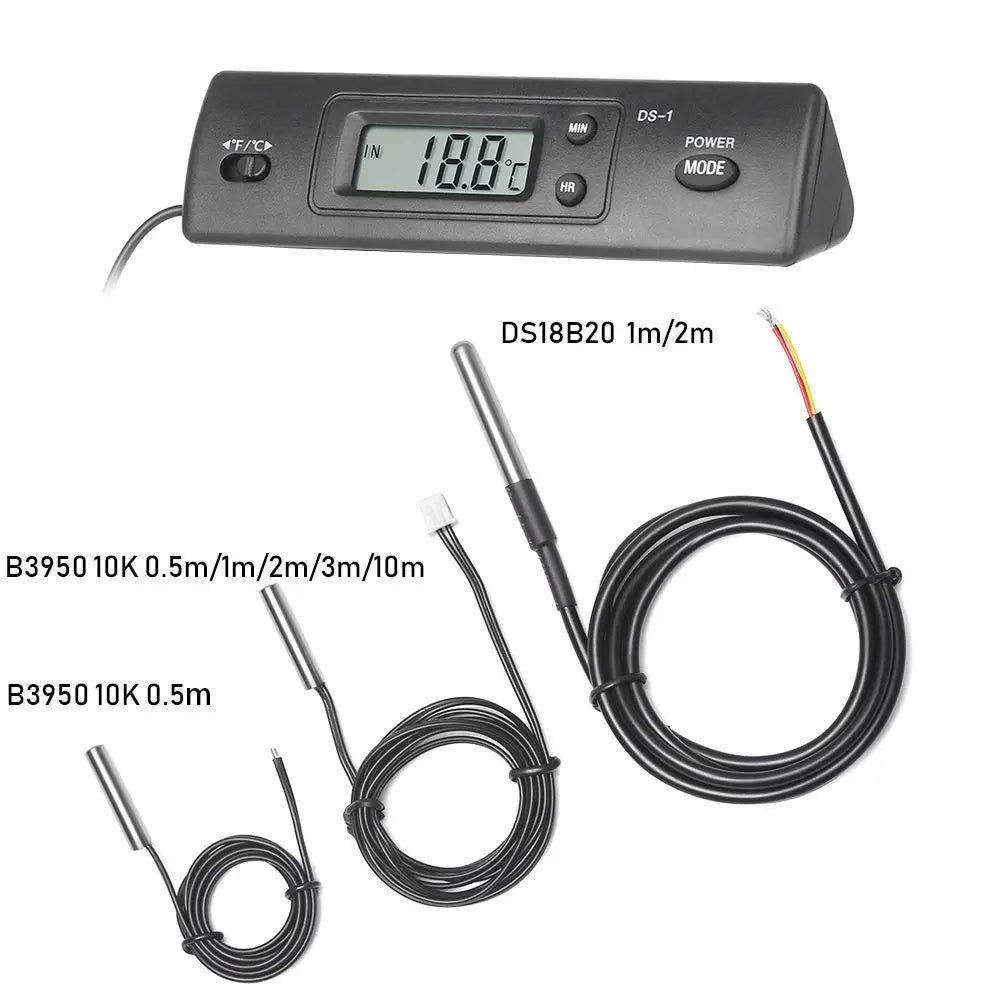

Style:DS18B20/B3950 10K
Size:0.5/1/2/3/5/10m
Quantity:1pc

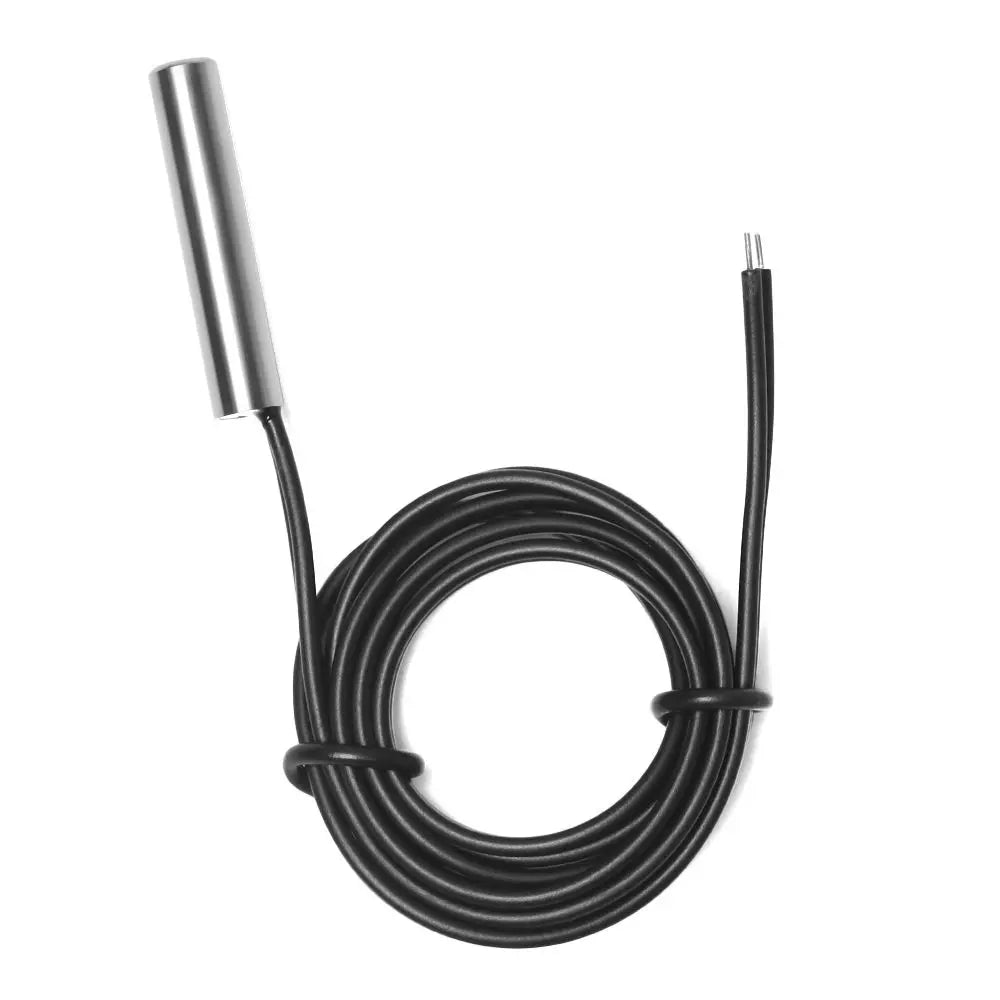

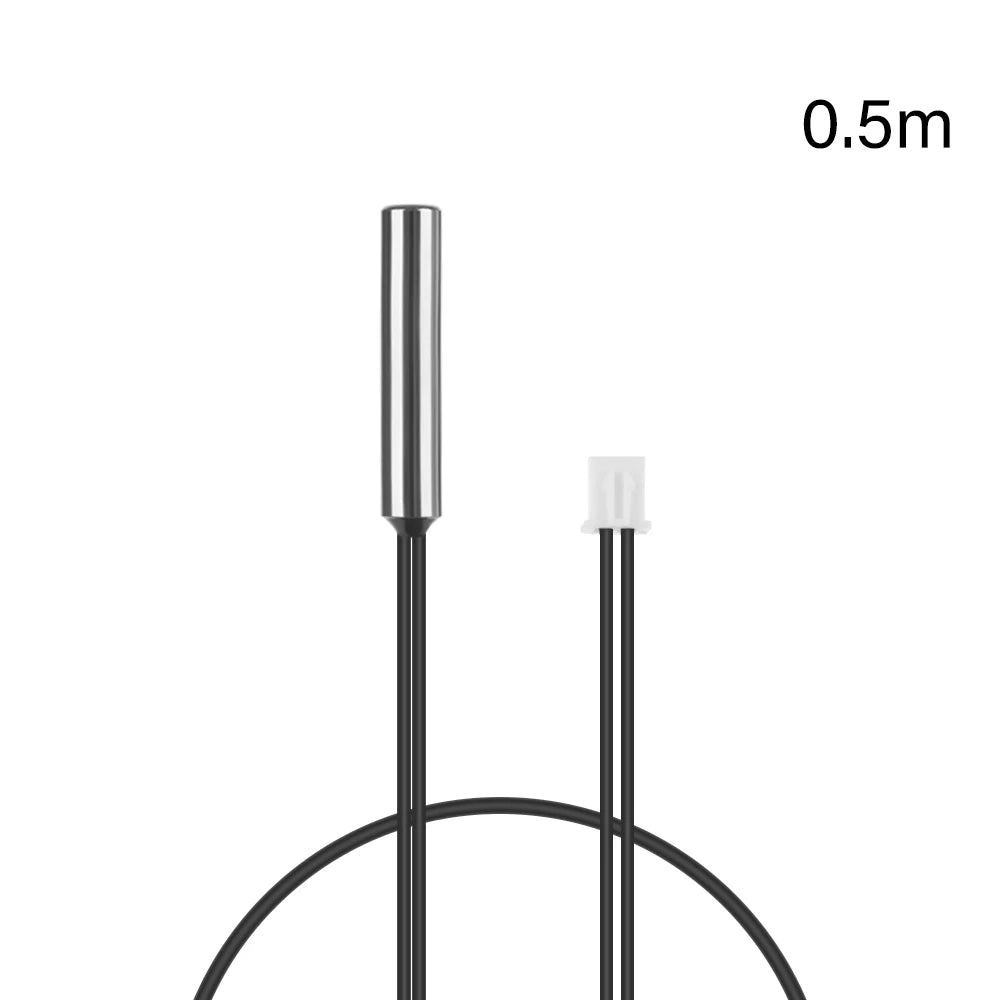

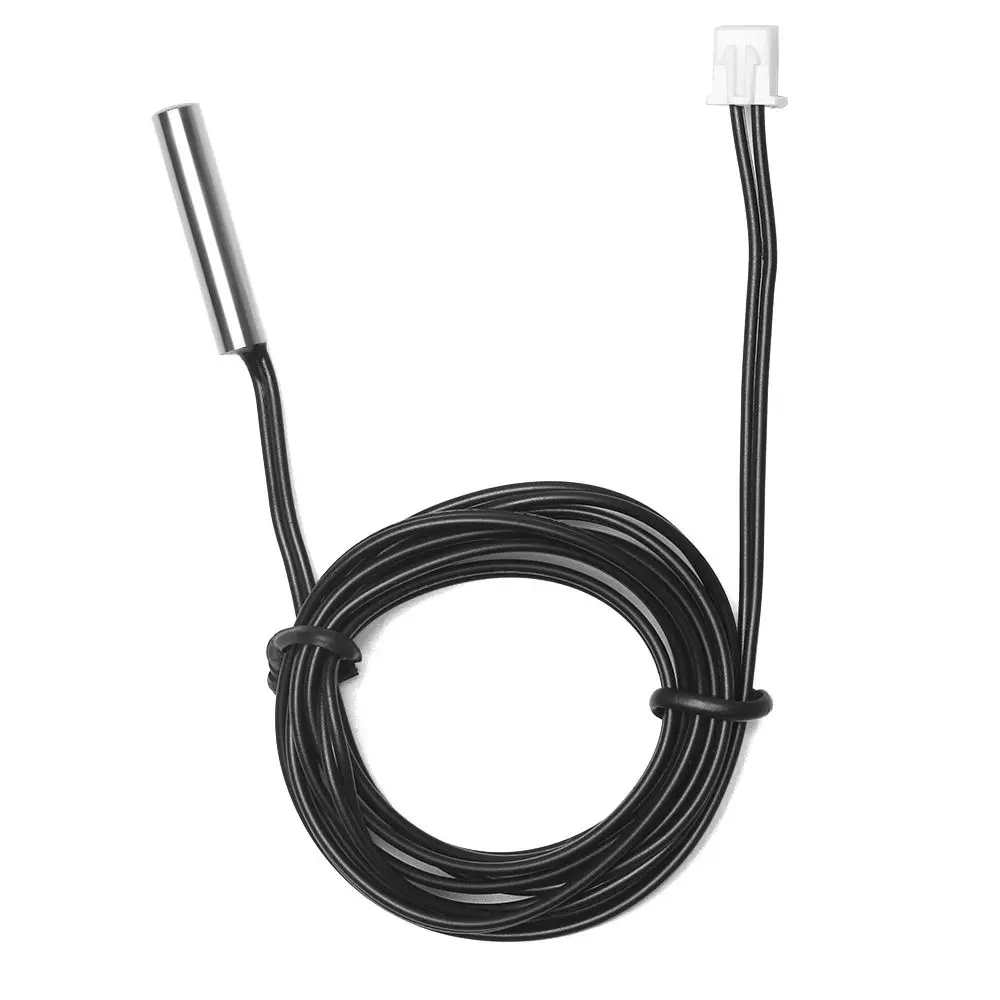

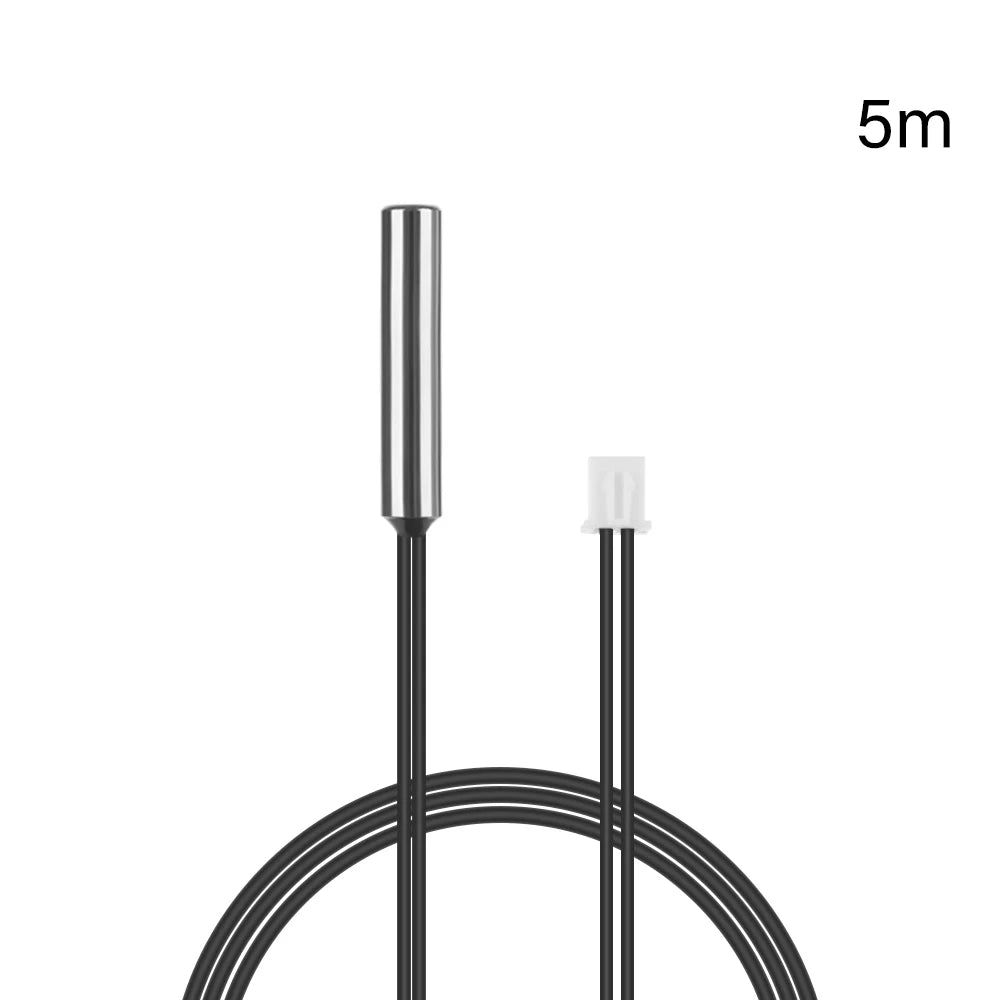

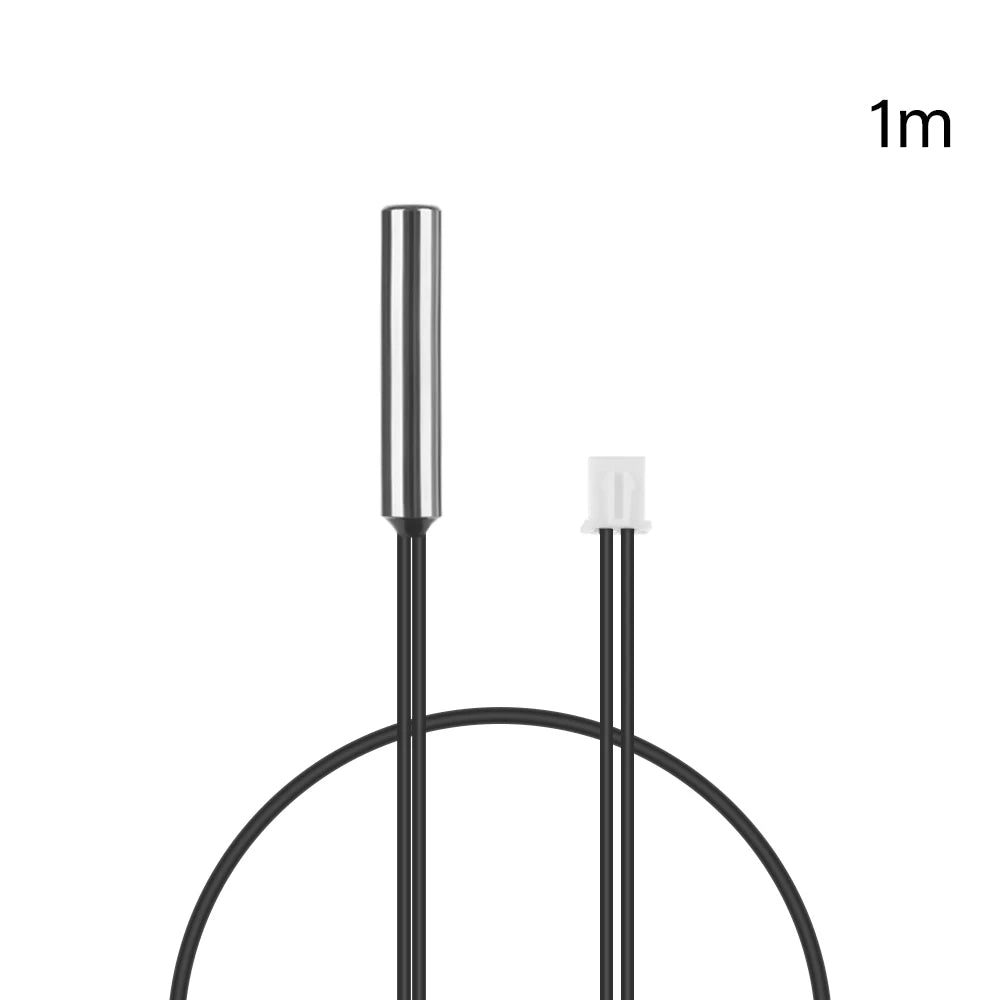

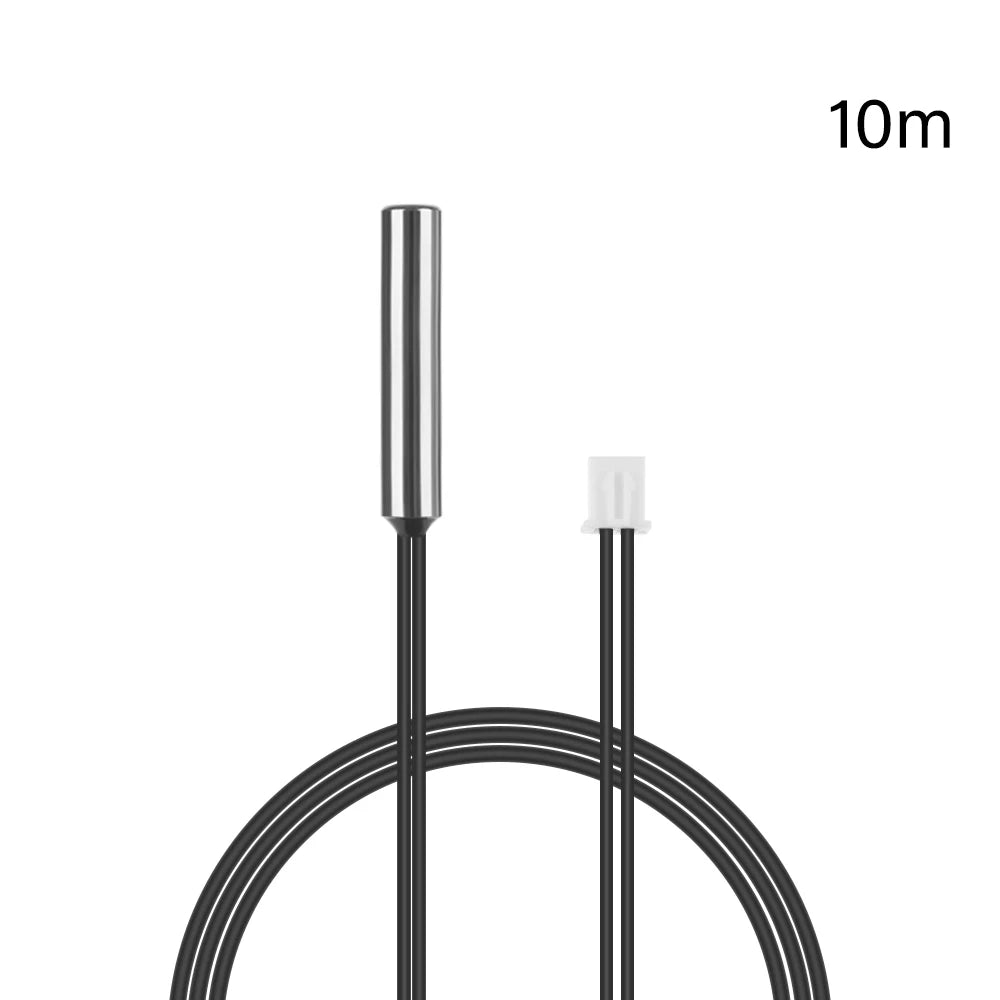

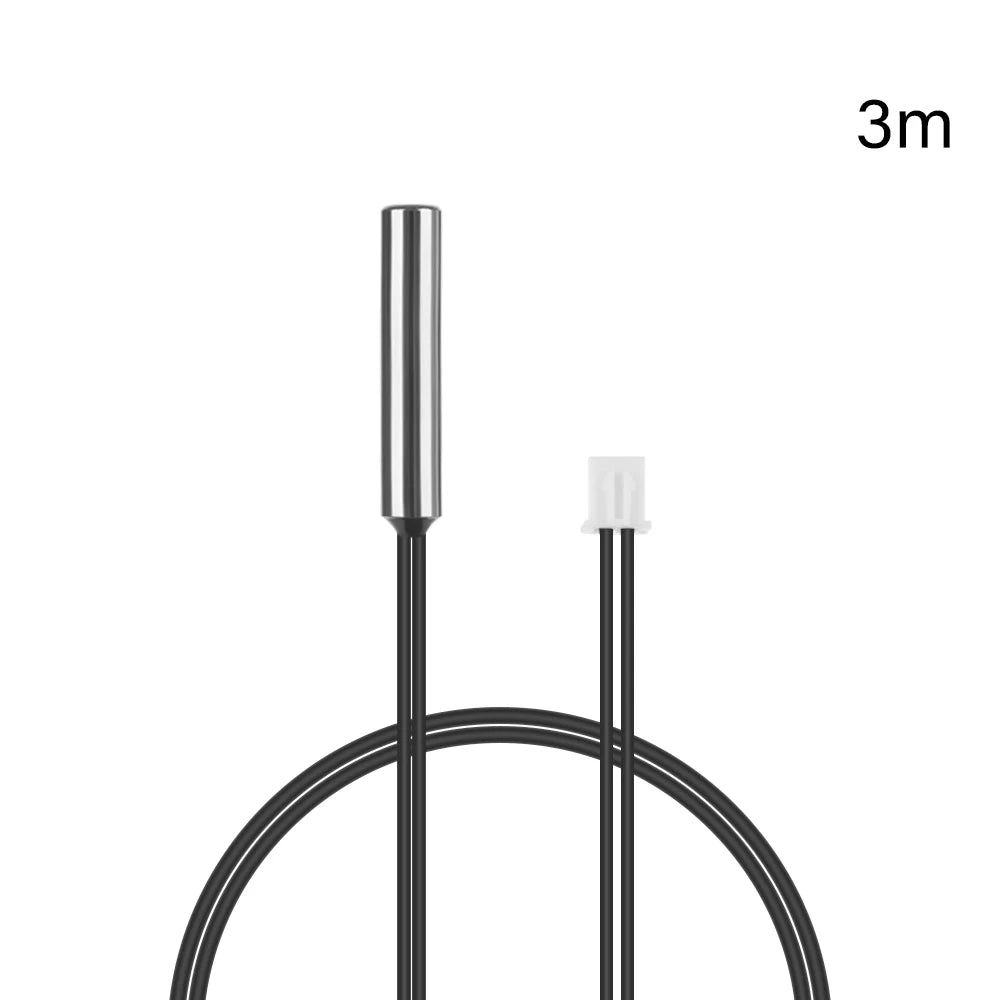

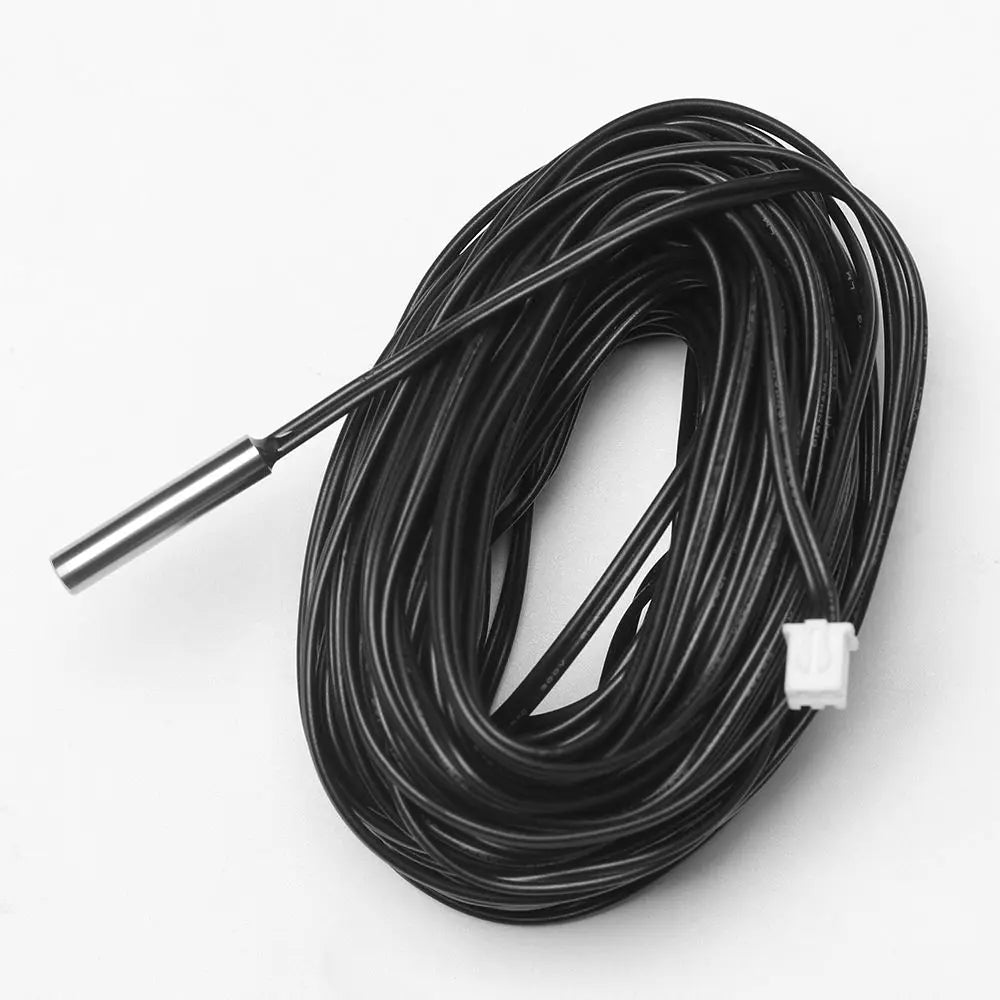

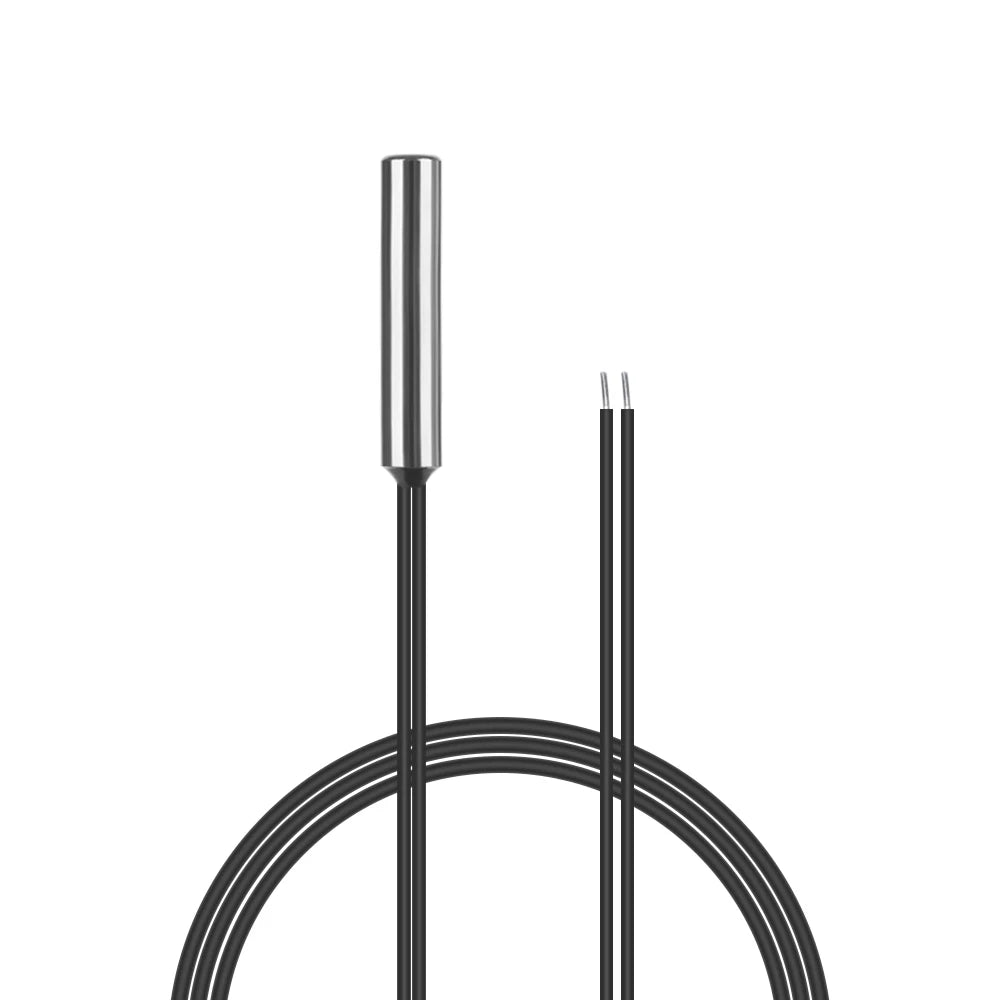

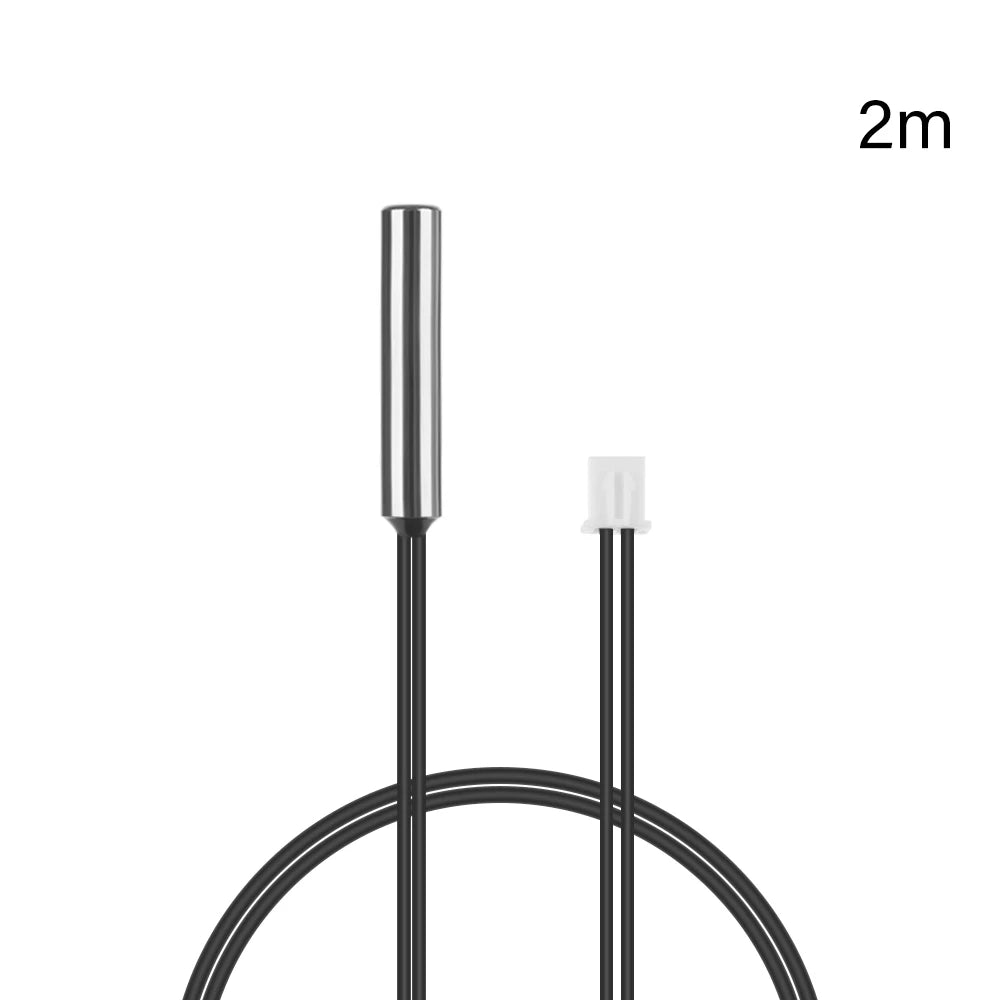

10K 1% B3950 Waterproof
Features:
1.Measurement range: -20 to 105 °C
2.Length of wire: 0.5/1/2/3/5/10m
3.Size of probe: 5 x 25 mm
4.Output 2 wires
5.Type: NTC 10k±1% B3950
6.measure environmental temperatures using ADC and this 10k NTC LINK
7.Resistance to temperature conversion table LINK
8.B-constant : 3380K -/+ 1%
9.Typical Dissipation Constant 5mW/ °C
10.Probe insulation: >100MOhm
11.Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
12.Stress sustain: 9.8N (1kgF) for 1 minute no deformation

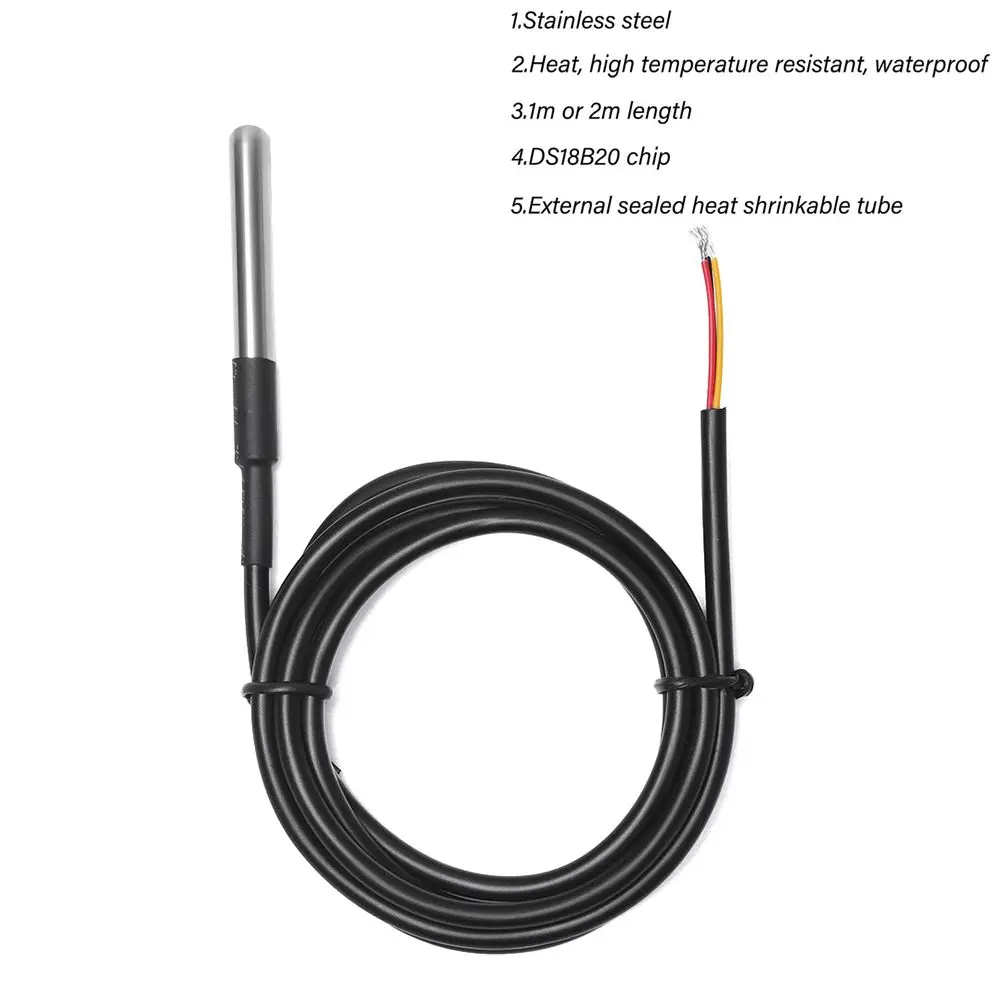

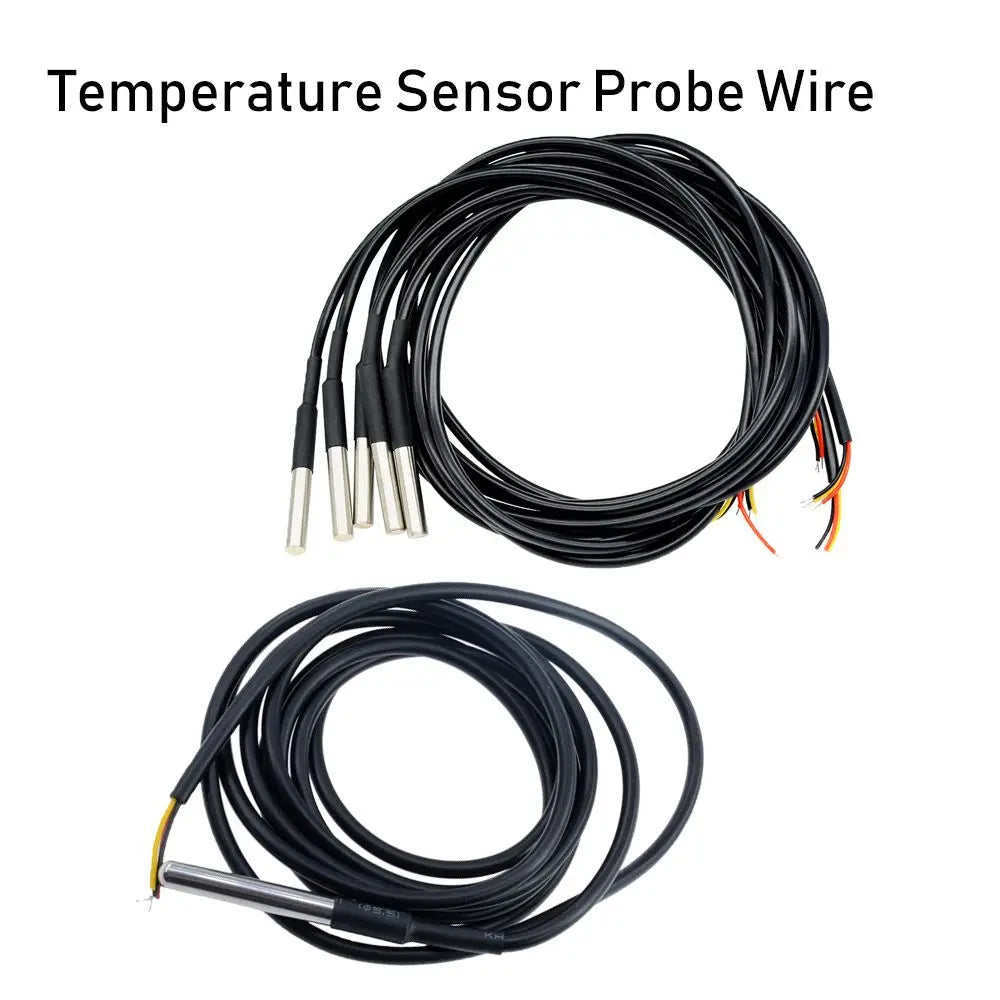

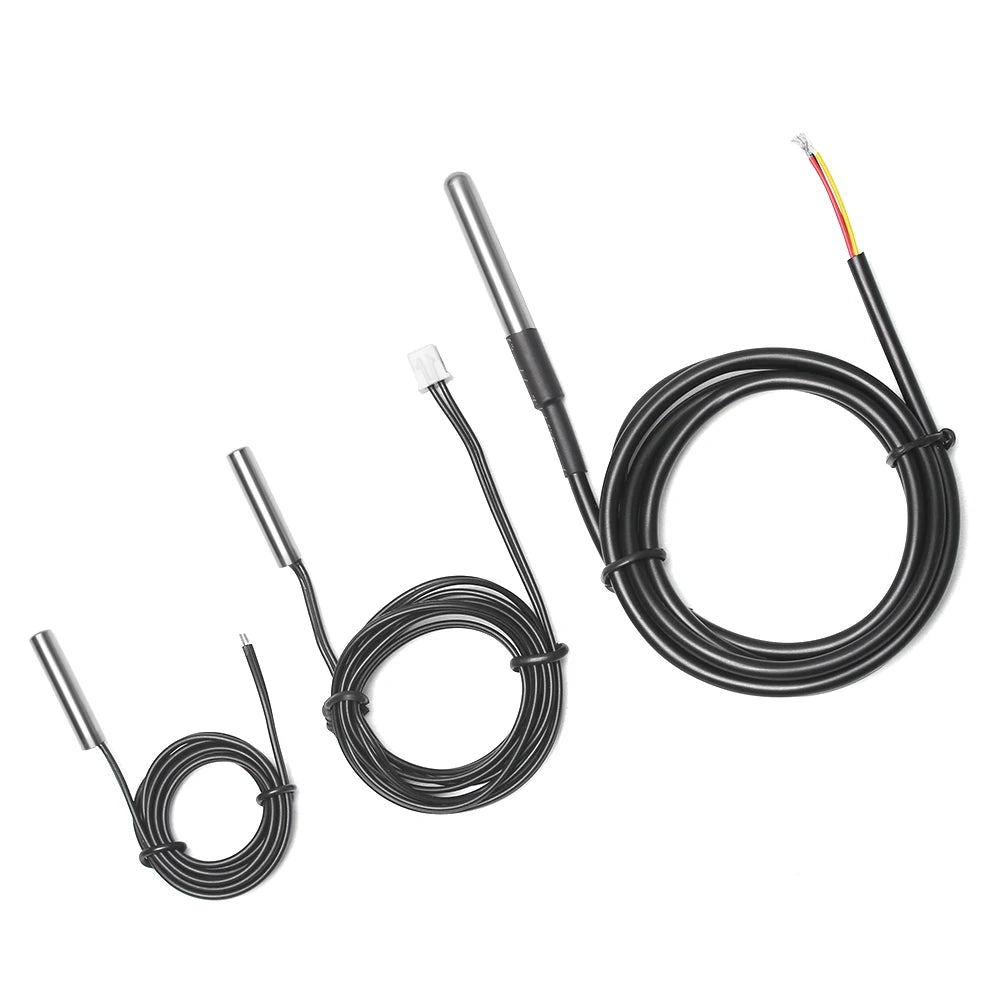

1M DS18B20:
Features:
1.The probe the temperature sensor DS18B20 chip

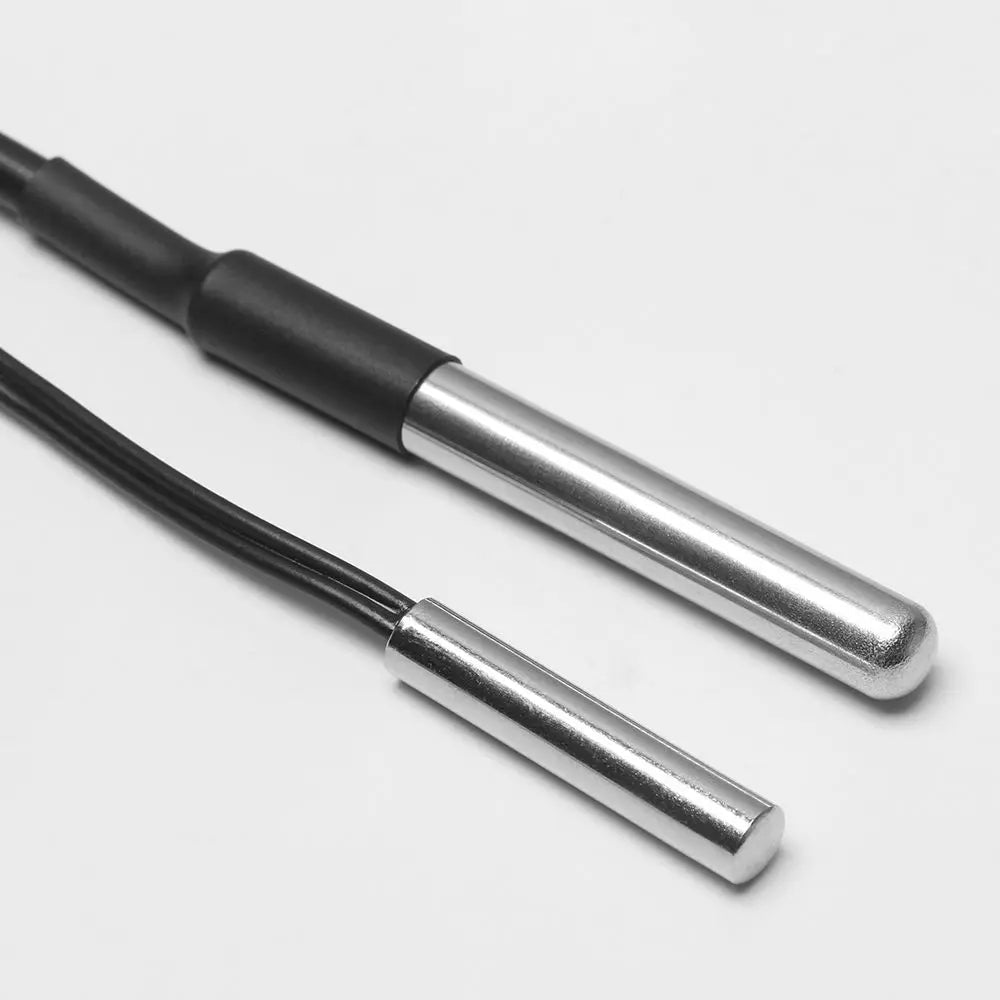

2.High quality stainless steel tube encapsulation waterproof moistureproof prevent rust
3.Stainless steel shell 6*50mm
4.Power supply range: 3.0V to 5.5V
5.Operating temperature range: -55°C to +125°C (-67°F to +257°F)
6.Storage temperature range: -55°C to +125°C (-67°F to +257°F)
7.Accuracy over the range of -10°C to +85°C: ±0.5°C.
8.No other components, unique single bus interface

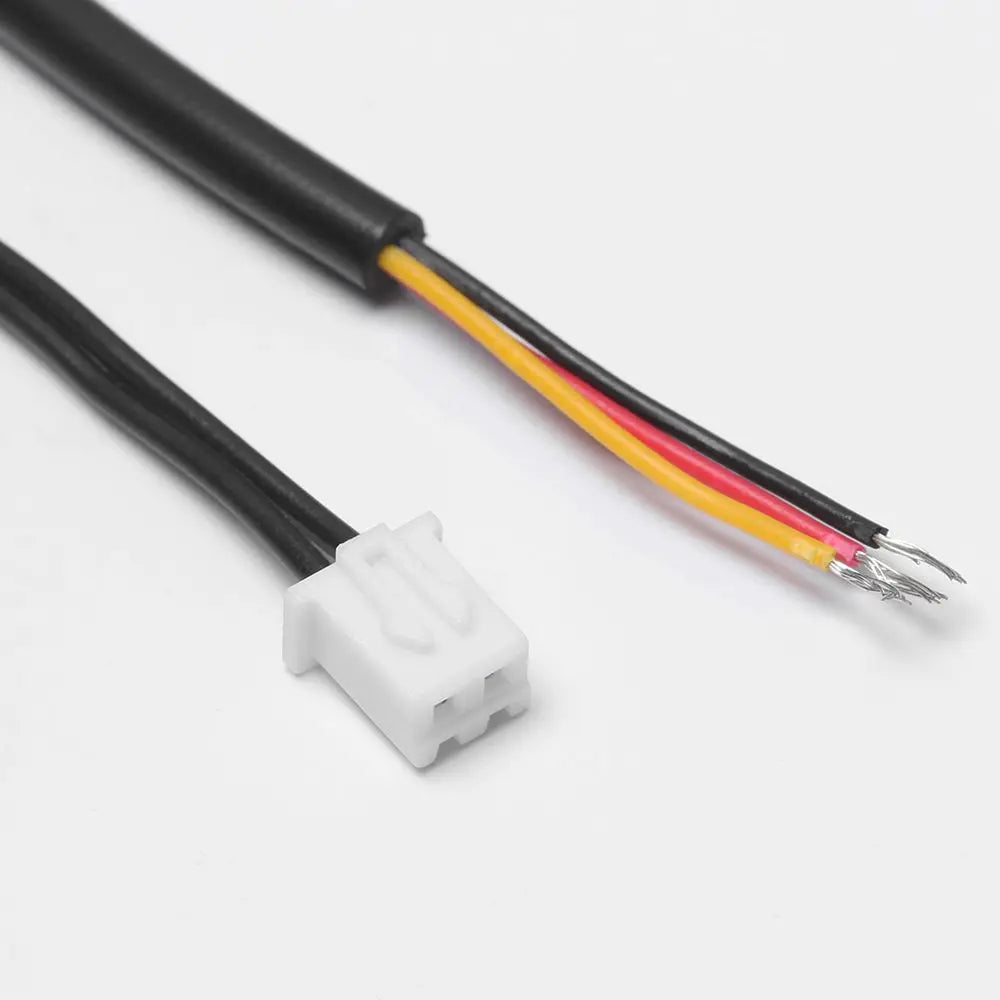

9.Output lead: red (VCC), yellow(DATA) , black(GND)
10.Cable length: 100m

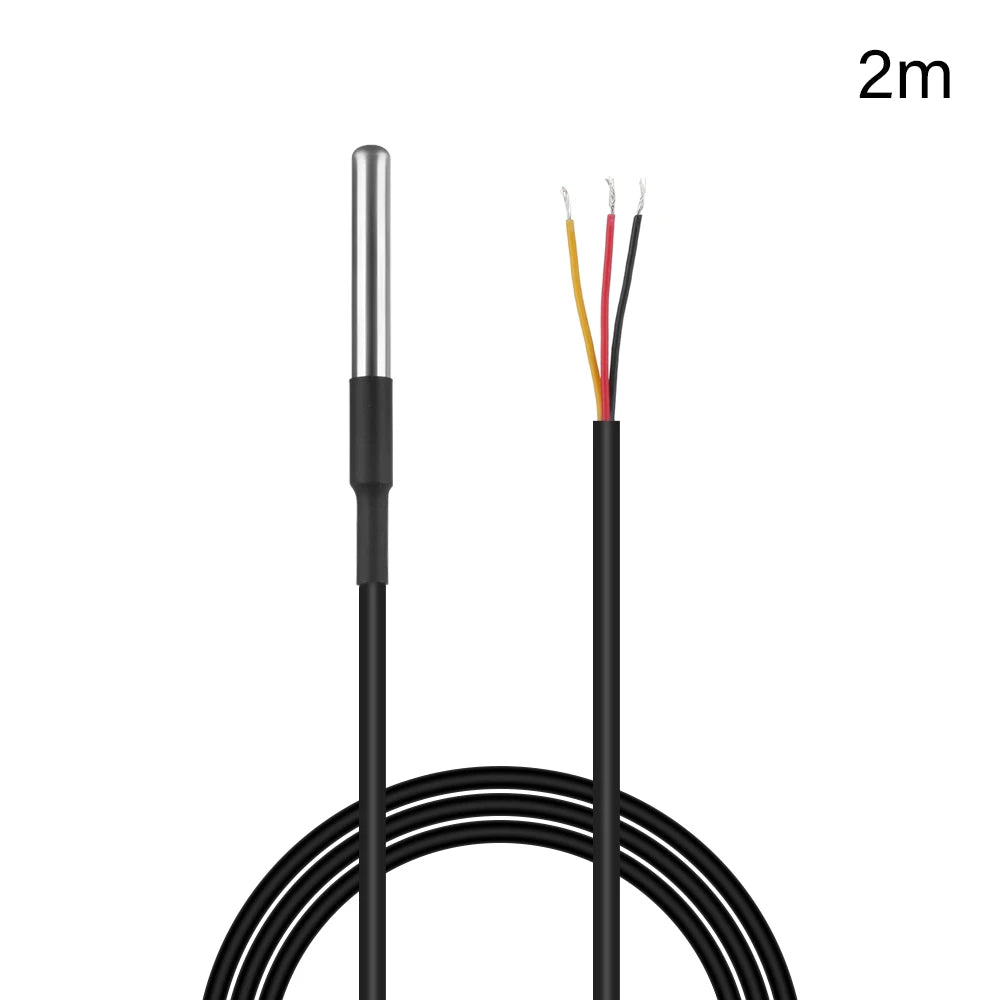

2M DS18B20
Features:
1.Here is a DS18B20 chip,three fine copper wire temperature sensor
2.High quality stainless steel tube encapsulation waterproof moistureproof prevent rust
3.Stainless steel tube size:Approx.6*50mm(Diameter*Length)
4.Cable lengthApprox.2m
5.9 ~ 12 adjustable resolution
6.Power supply range:3.0V-5.5V
7.Operating temperature range: -55°C ~ +125°C (-67°F - +257°F)
8.Storage temperature range: -55°C ~ +125°C (-67°F - +257°F)
9.Accuracy over the range of -10°C ~ +85°C: ±0.5°C.
10.No other components, unique single bus interface
11.Output lead:red (VCC), yellow(DATA) , black(GND)
Package Include:1pc Thermal Cable

Notice:
1.Transition: 1cm=10mm=0.39inch.
2.Please allow 1-2cm error due to manual measurement and make sure you do not mind before ordering.
3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
