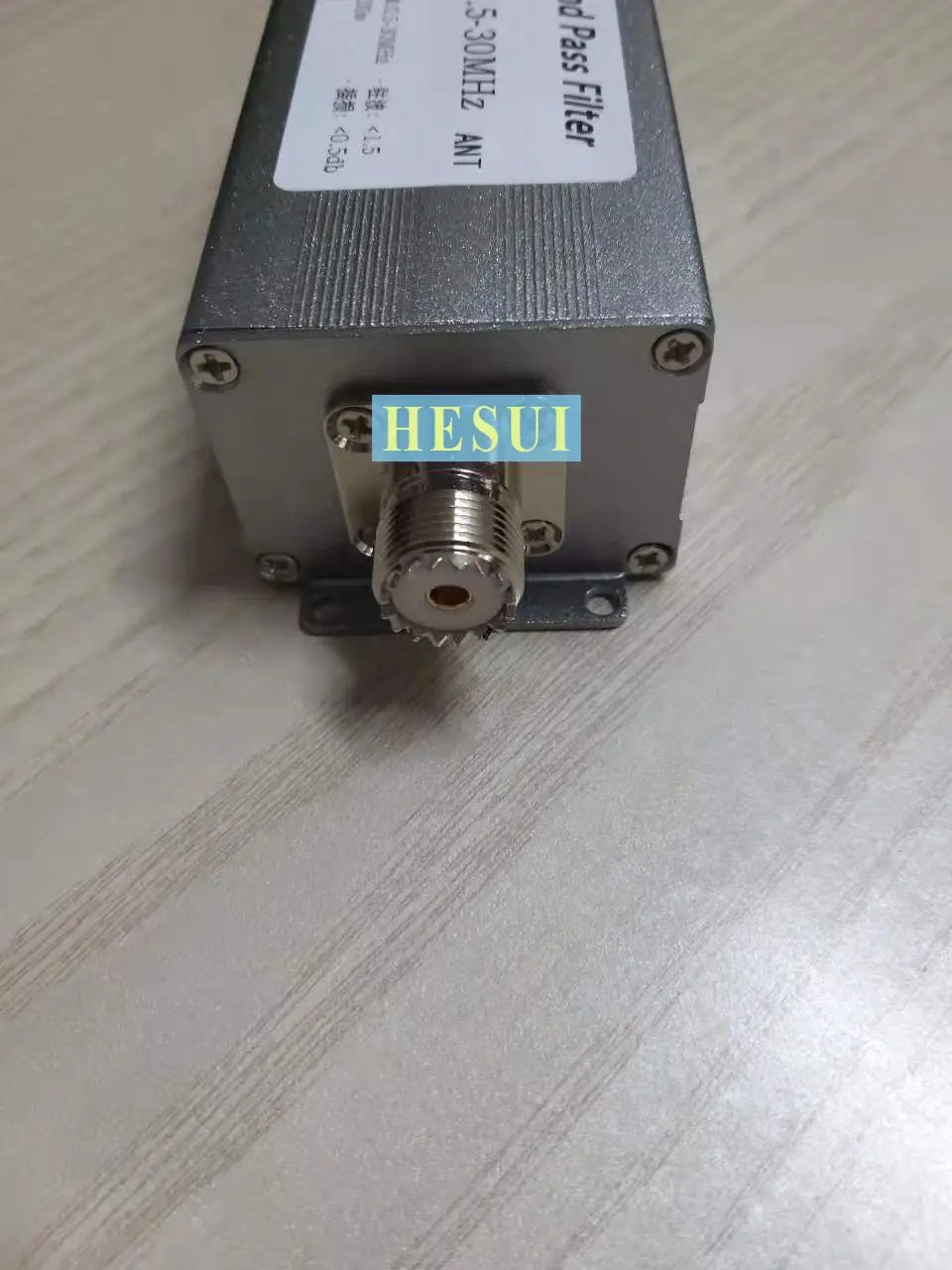

0.5-30 MHz Bandpass Filter, Filter, Bandpass, Covers Medium Wave, Covers Short Wave
$265.73
Sale price
$265.73
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Type: LC Filter

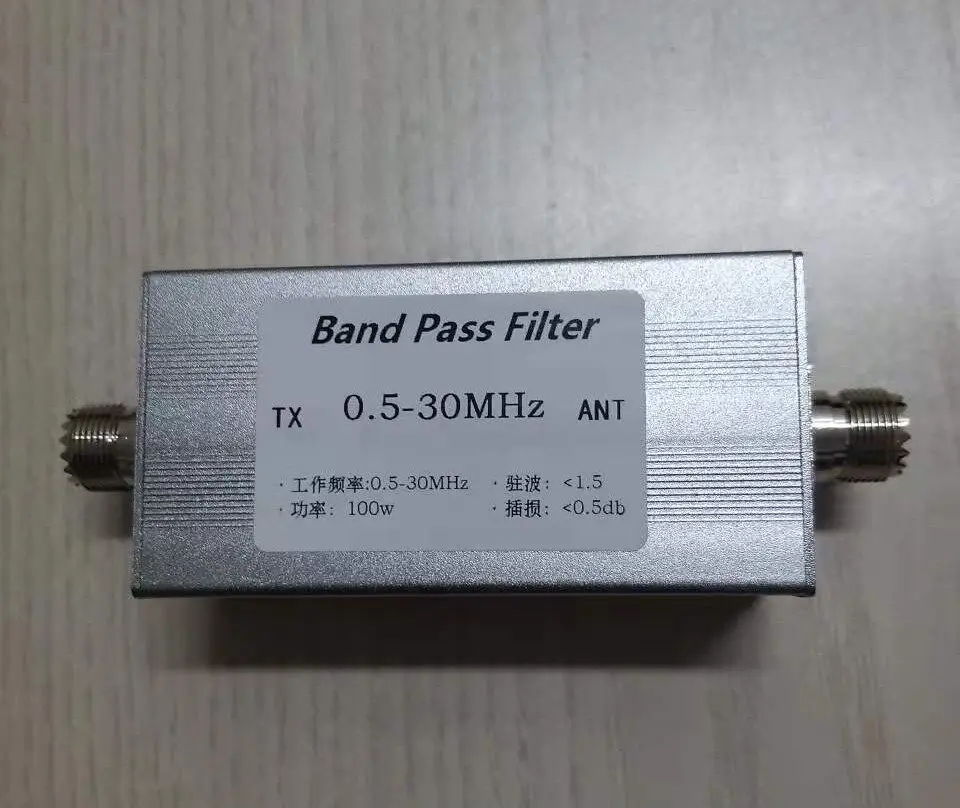

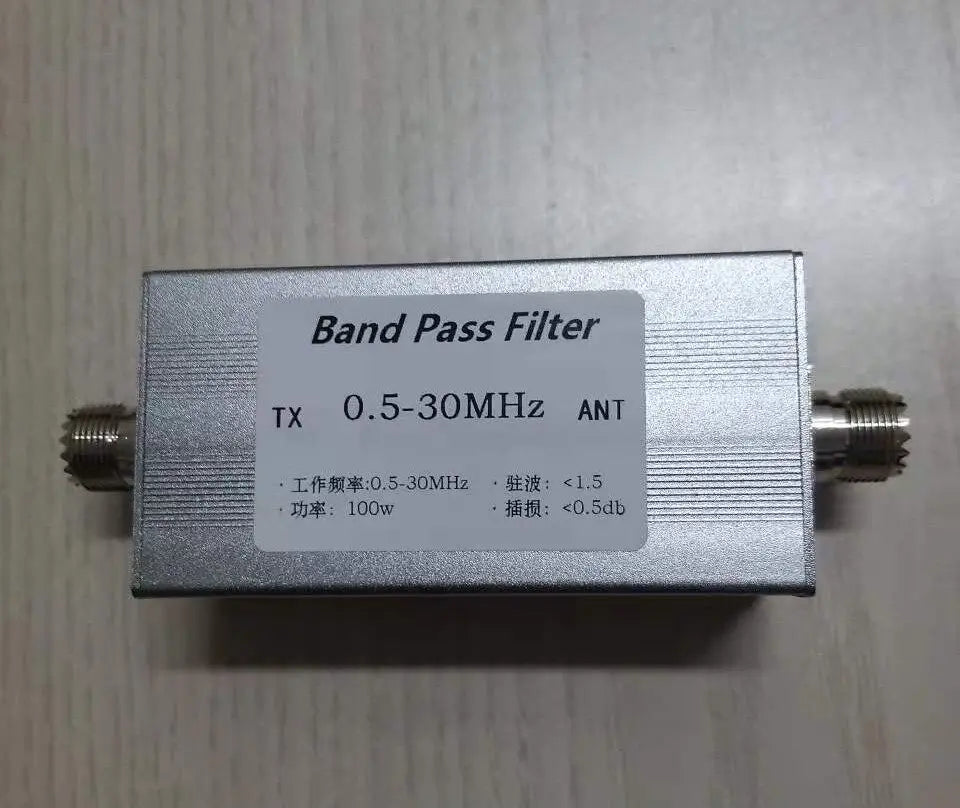

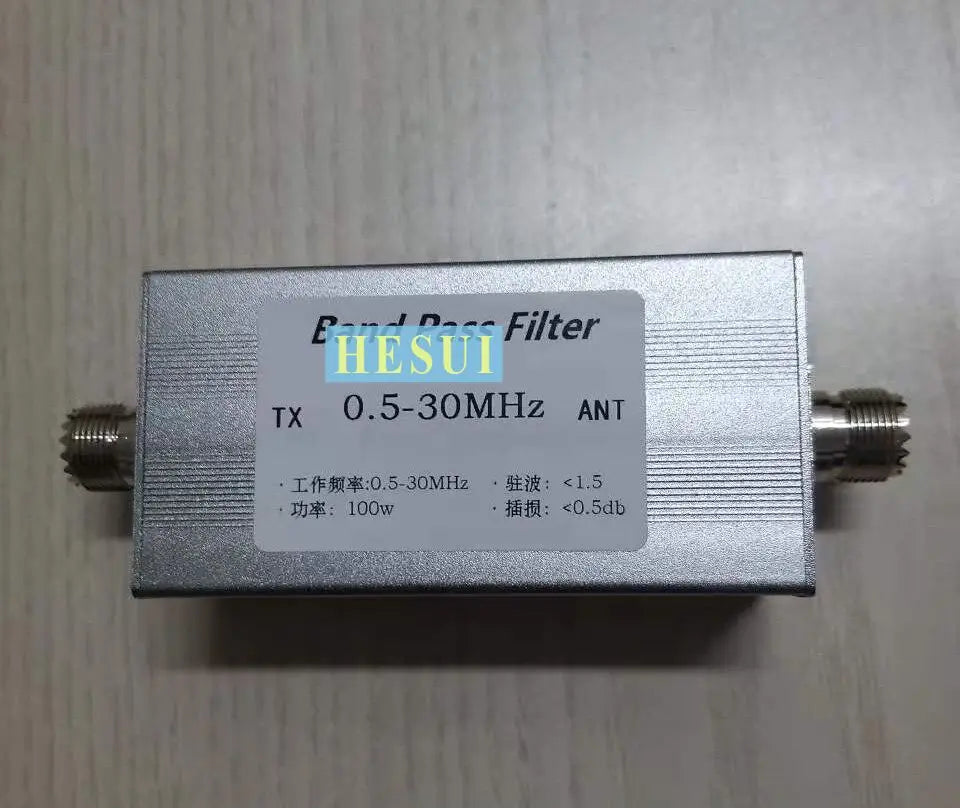

Short-wave bandpass filter (BPF): BPF-O.5-30
1. Please refer to the above information for detailed technical parameters (can also be customized 1.8-30 MHz or 3.5-30 MHz or 7-30MHz)
2. Input impedance: 50 ohms; Output impedance: 50 ohms.
3. Passable bandwidth is 500-30.000 MHz
4. Insertion loss: less than 0.5db
5. Power: 10OW (SSBCW AM FM) higher power can be customized.
6. Standing wave: less than 1.5

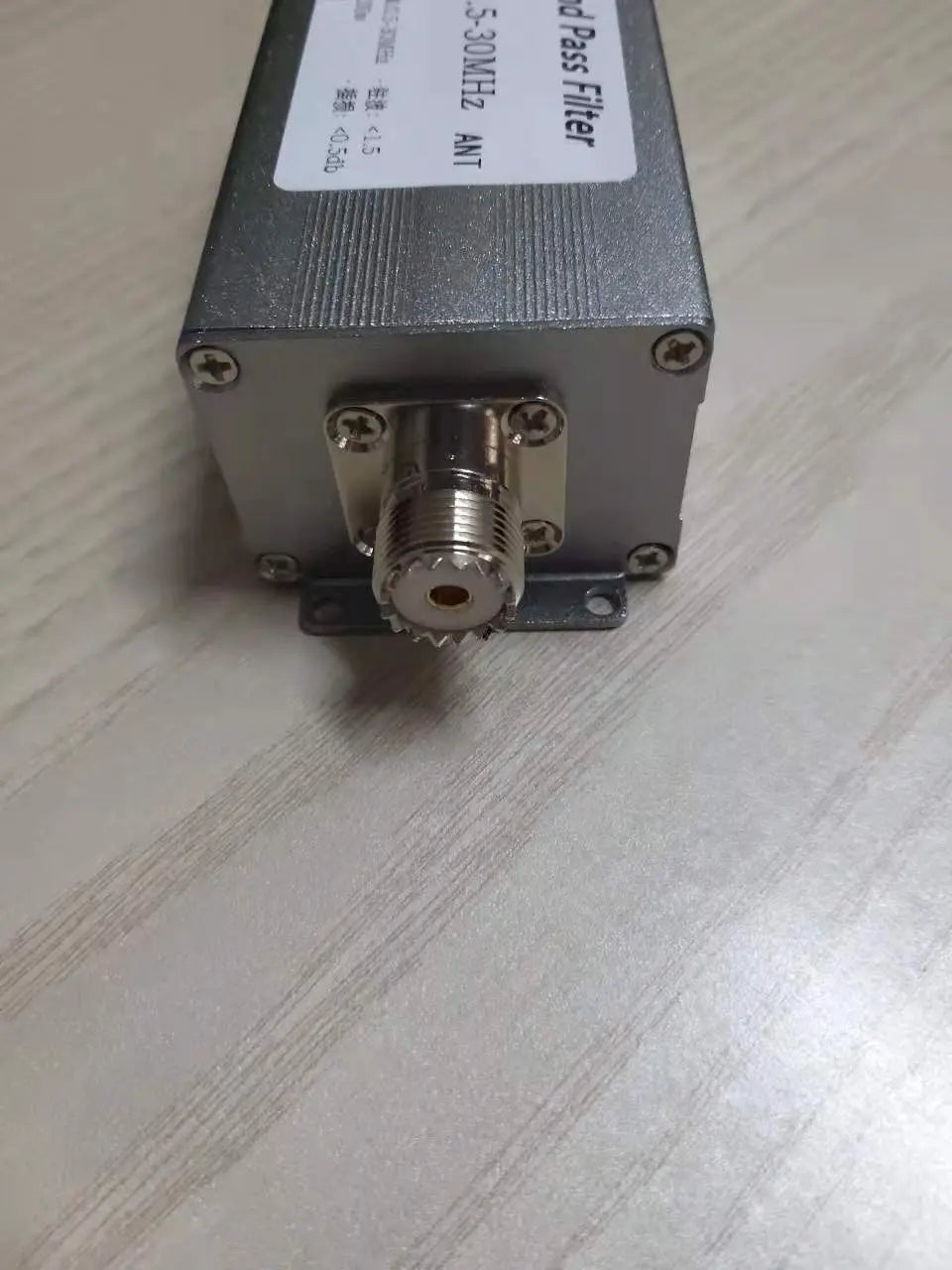

7. Interface: SL16-F (M Block)
8. Outer size: 140 * 53 * 38mm (mounting hole size: 34 * 110mm)
9. Net weight: 240 grams

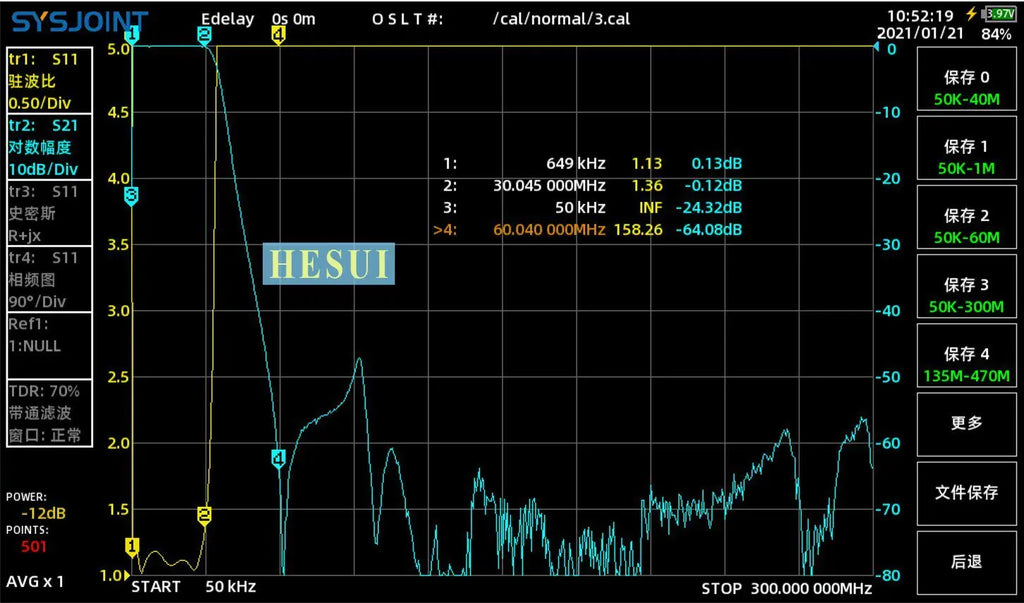

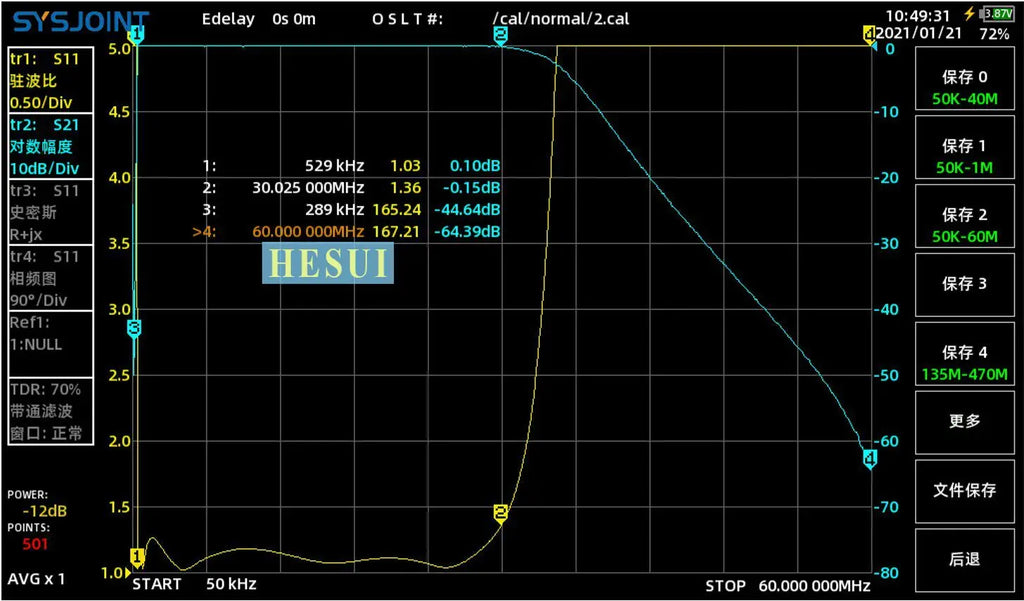

After IC-718 radio and diamond SX-600 power meter test, the input power to this bandpass filter is 125W and the output is 110W-115W.
(Slightly different depending on the band)
