Description

SPECIFICATIONS

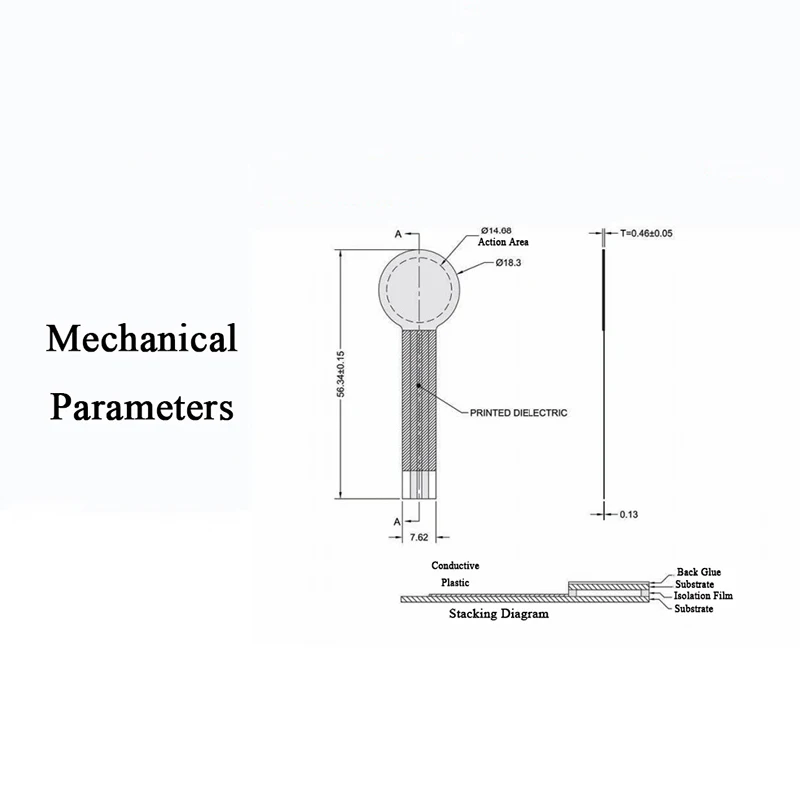

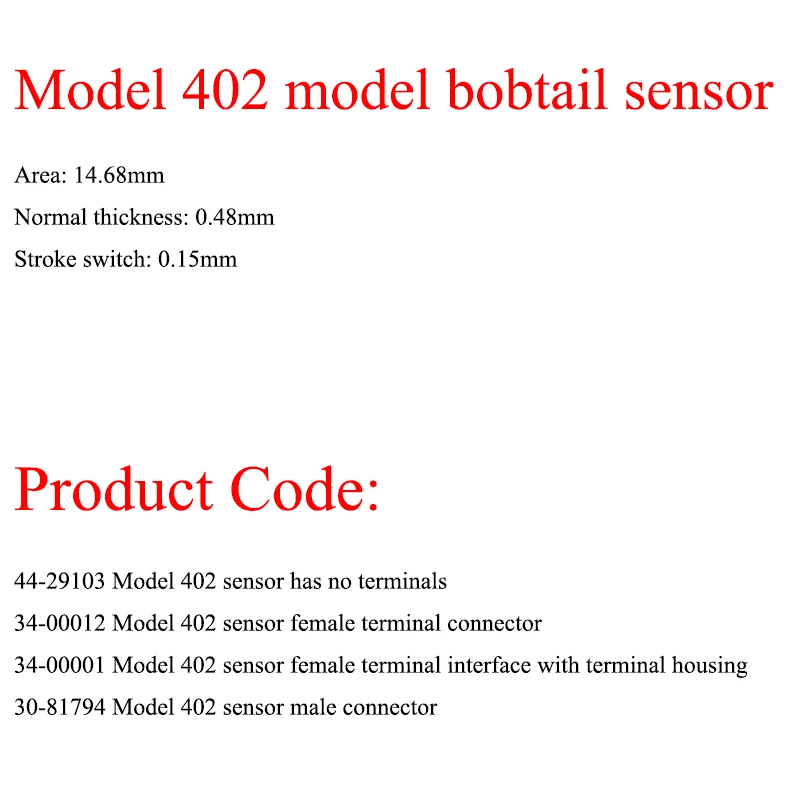

Action Area: About 14.68mm

Applicable Pressure Range: 100g-10kg

Battery Included: no

Brand Name: NONE

Capacity: 100g-10kg

Certification: NONE

Conventional Thickness: About 0.48mm

Diameter: About 13mm

FSR: Force Sensing Resistor

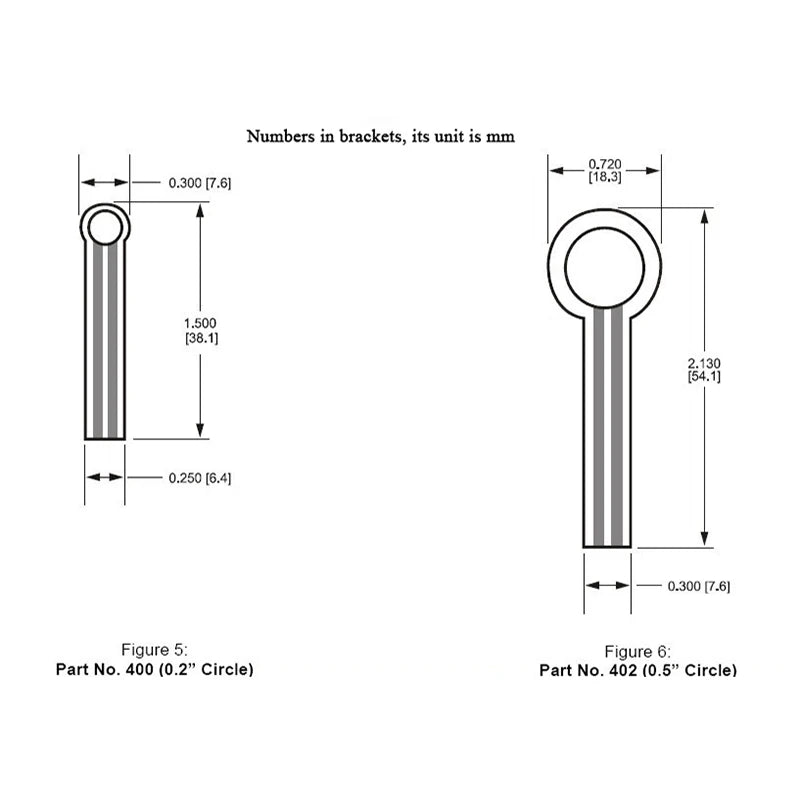

FSR 402: 0.5" Circle with Solderable Tabs

High-concerned chemical: none

Limit Switch: About 0.15mm

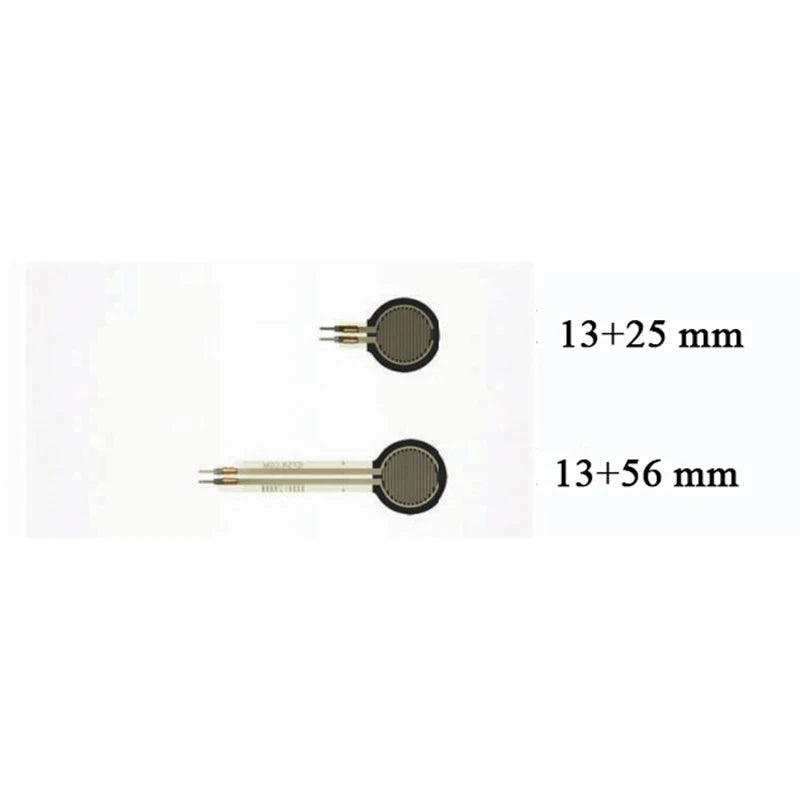

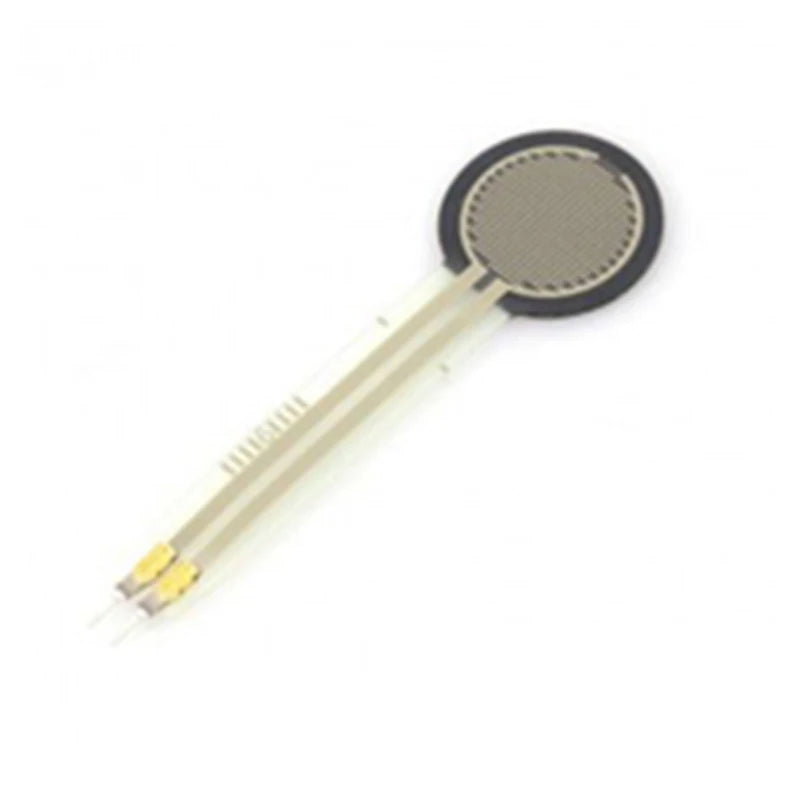

Long Tail: About 56mm

Model Number: FSR 402

Origin: Mainland China

Semi-finishedproduct: No

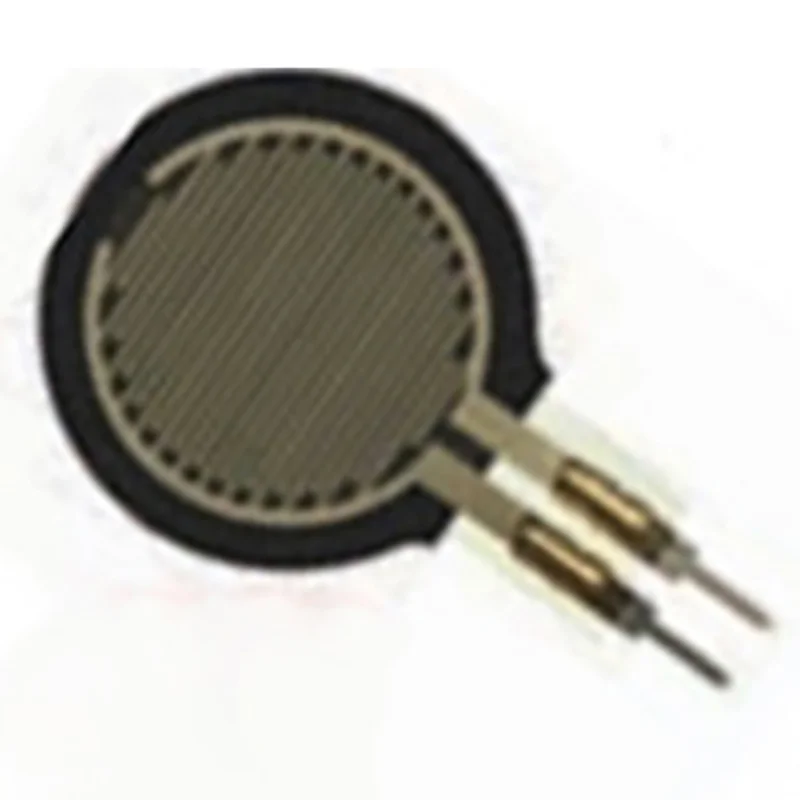

Short Tail: About 25mm

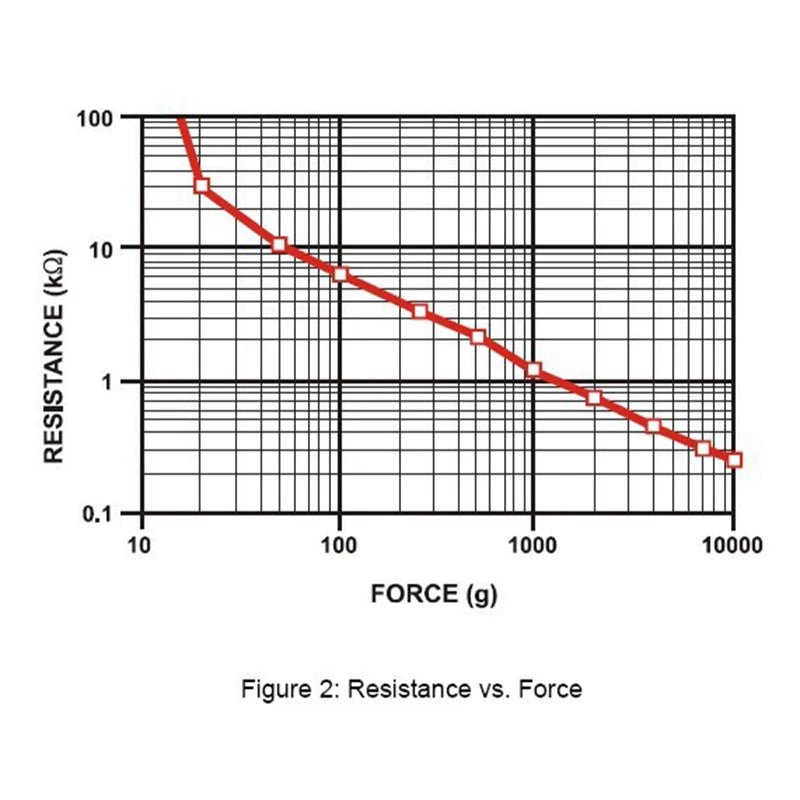

1.This is pressure sensor. The pressure applied to the area of the FSR sensor film can be converted into a change in resistance value to obtain pressure information. The higher the pressure, the lower the resistance. It can be applied to biped robots, spider robots, and other applications where the pressure is between 100g and 10kg. There is glue on the back of the FSR sensor. The item can be attached to the detected part by simply peeling the glue off, which is very easy to use. However, since the pressure detection is not very accurate, it is not recommended to use it on the occasion where accurate pressure detection is required.

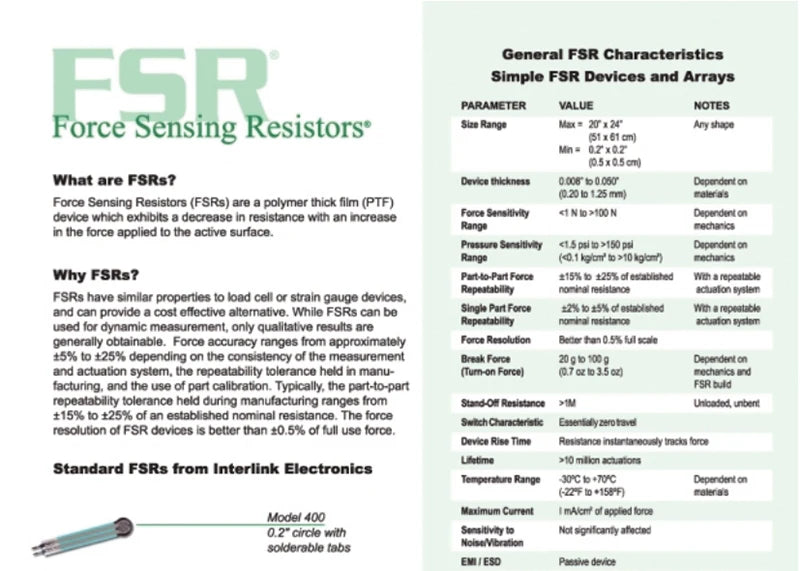

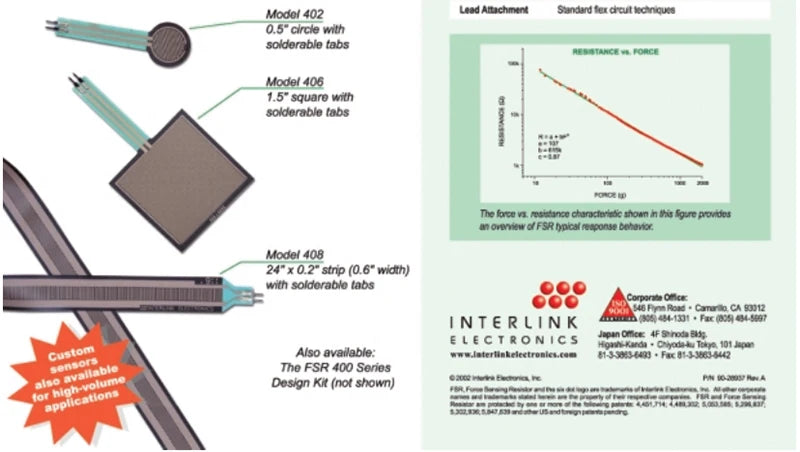

2.Data Sheet:
http://www.sparkfun.com/datasheets/Sensors/Pressure/fsrguide.pdf
