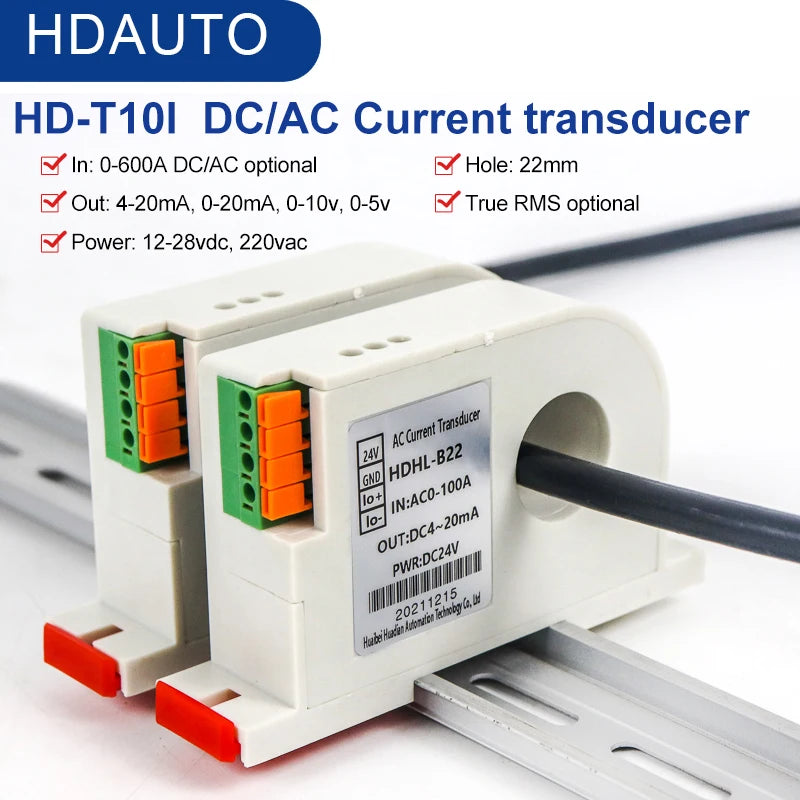

SPECIFICATIONS

Brief Description:

HD-T10I series AC/DC current transmitter adopts the Hall principle, which directly converts AC high-current signals from industrial sites into standard analog signals, and the input and output signals have a linear relationship.

   No transformer is needed, and the three terminals of input, output and power are reliably isolated.

Product model example:

HD-T10I-A-B-1-A: 22mm diameter, input DC 0-100A, output 4-20mA, power supply DC 12-28V

Mainly technical parameters:

Input:

Input current range: 0-600AAC/DC

Frequency range: 40-60HZ

Output:

Output signal: 4-20mA, 0-20mA, 0-10V, etc.

Output load resistance: RL≤500Ω (when the output is a current signal)

               RL≥10KΩ (when the output is a voltage signal)

Basic parameters:

Power supply: DC12V / 24V / 220V, AC220V

Rated power consumption: ≤1W (DC24V power supply, at 20mA output)

Basic accuracy: ≤0.2% F.S.

Temperature drift: 0.2% F.S./℃ (-30 ℃ ~ + 85 ℃)

Response time: ≤10ms (0-90%) (TYP)

Insulation strength: 3000V AC / 1min (between input, output and power)

Operating temperature range: -30 ℃ ~ + 85 ℃

Electromagnetic compatibility: in accordance with GB / T 18268.1 (IEC61326-1)

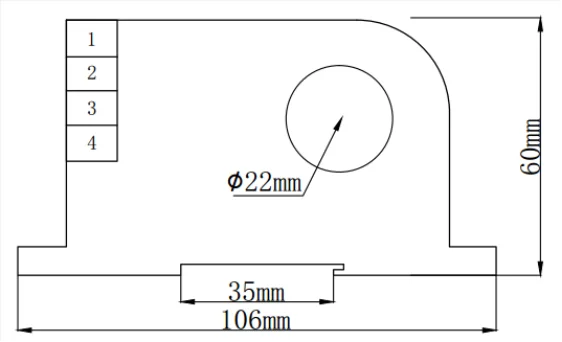

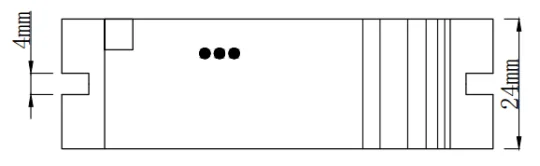

Size:

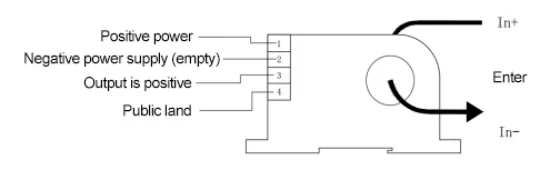

Wiring diagram:

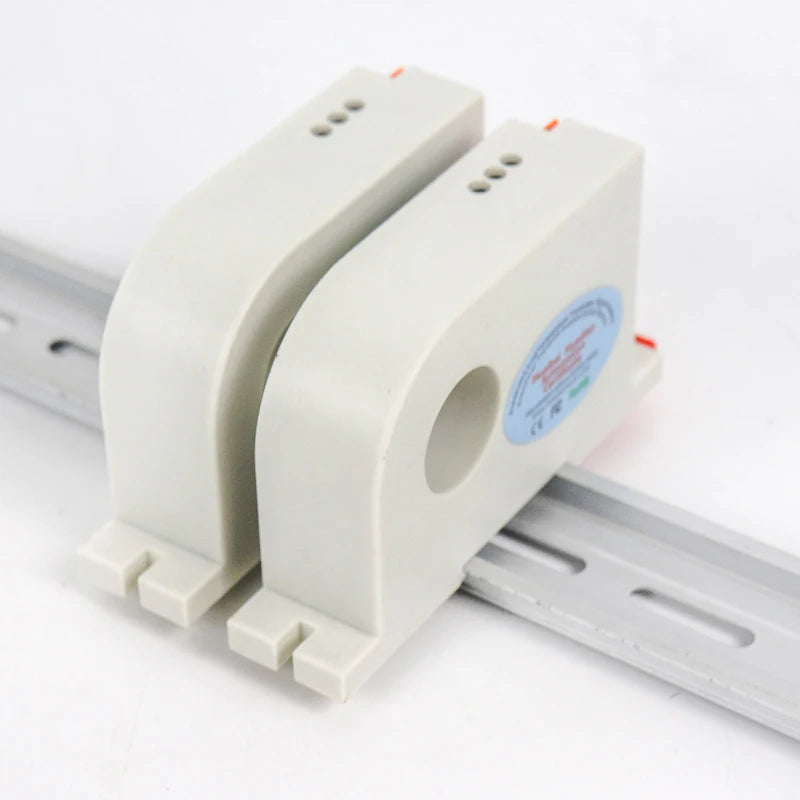

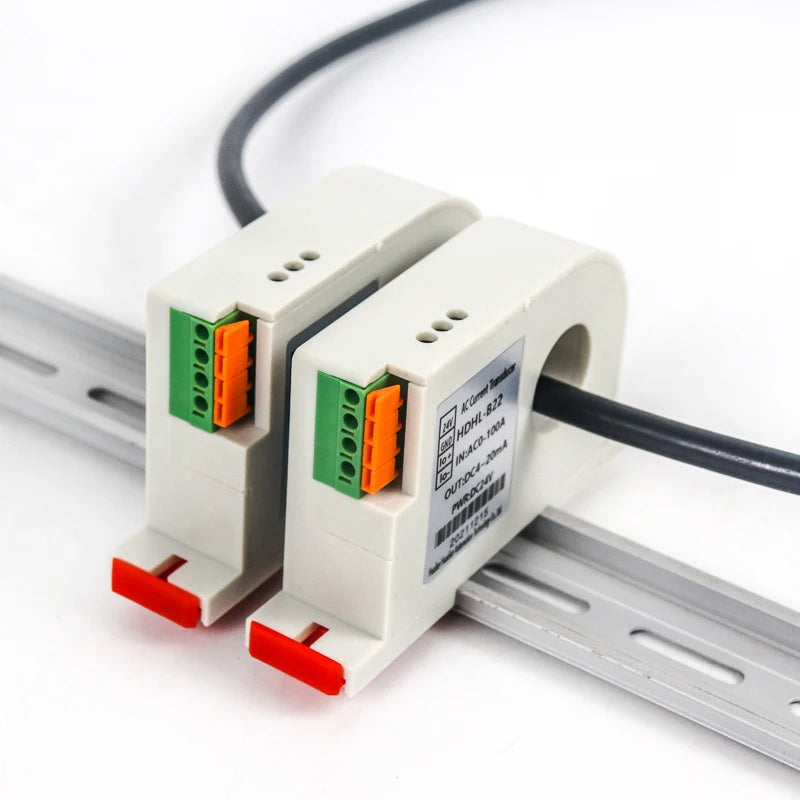

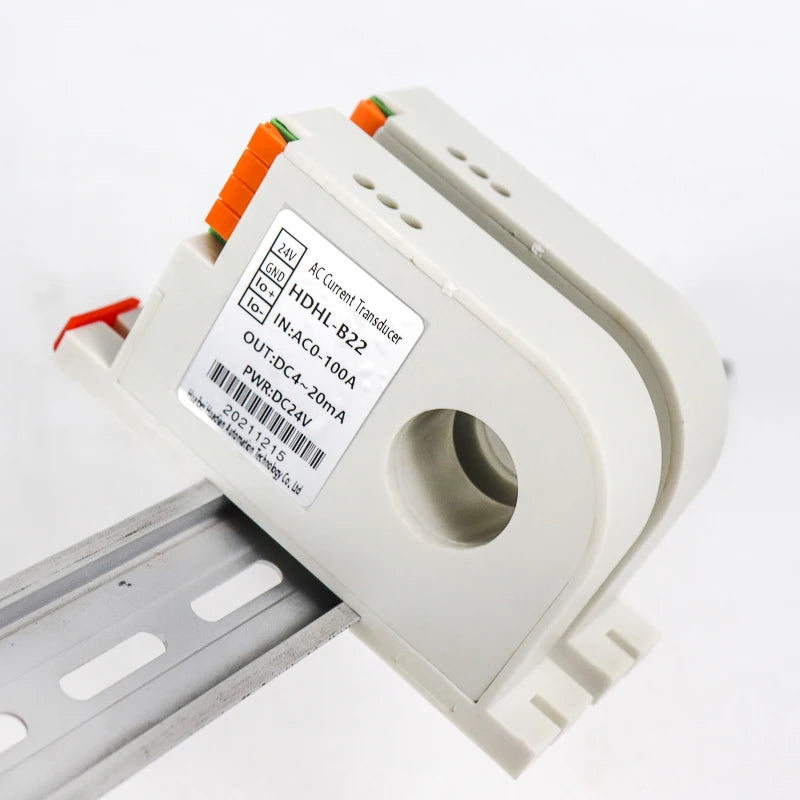

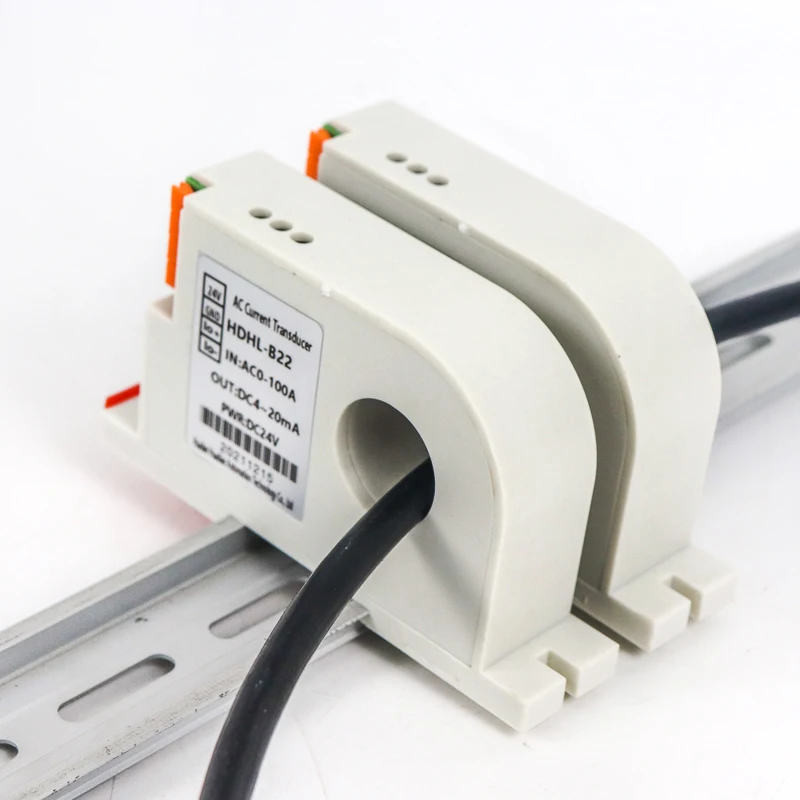

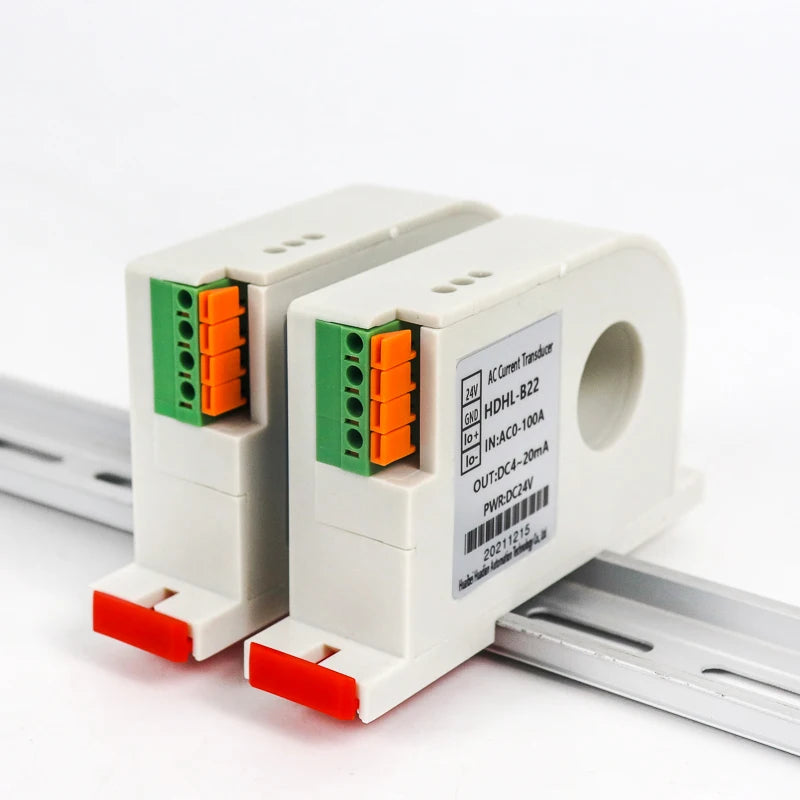

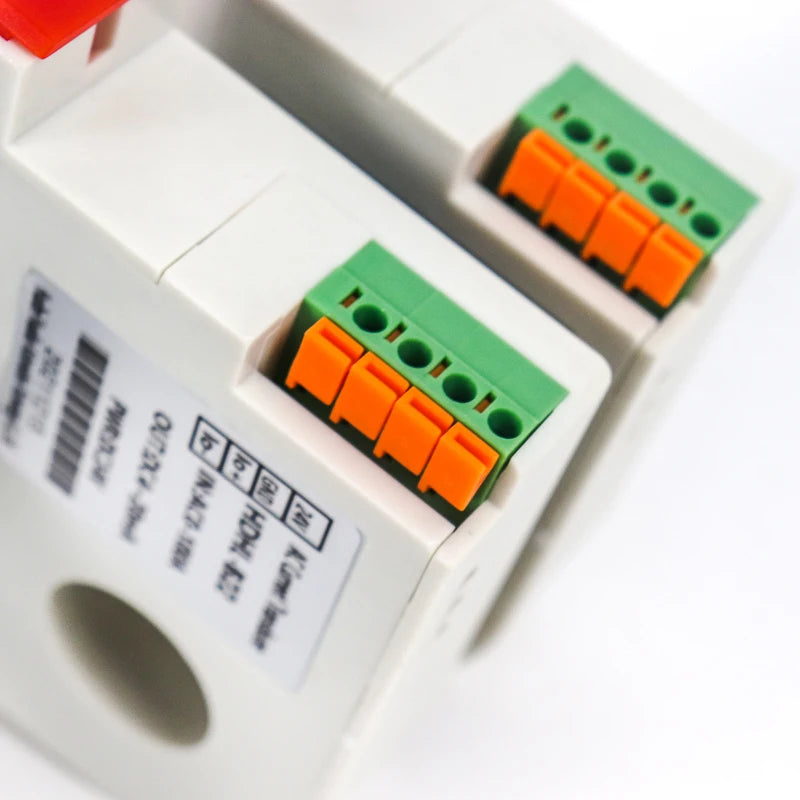

More pictures for your reference:
