Description

SPECIFICATIONS

Accuracy: 0.5% F.S

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Compensation temperature: -10Deg.C-70Deg,C

Electrical connections: Hessmann

High-concerned chemical: none

Long-term stability: ±0.03%F.S/Deg.C

Max Measuring Range: 59 Bar & Under

Measuring medium: Oil,water,gas etc

Measuring range: 0...10kpa...100kpa-6Mpa

Model Number: HDP702-12345

Origin: Mainland China

Output signal: 4-20mA,1-5v,0-10v,0-10V etc

Overload pressure: 200%F.S.

Power supply: 5-30VDC

Process connection: M20*1.5

Product name: differential pressure transmitter

Semi-finishedproduct: No

Shell Protection: IP65

Structural materials: Full stainless steel

Warranty period: 12 months

Way of working: Differential pressure

Working temperature: -40Deg.C-80Deg.C

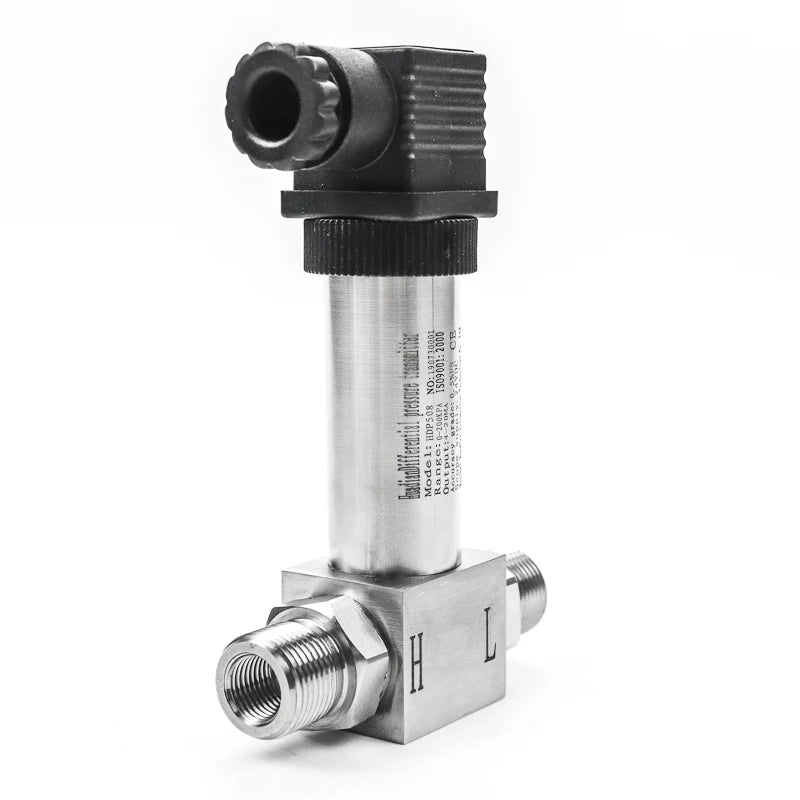

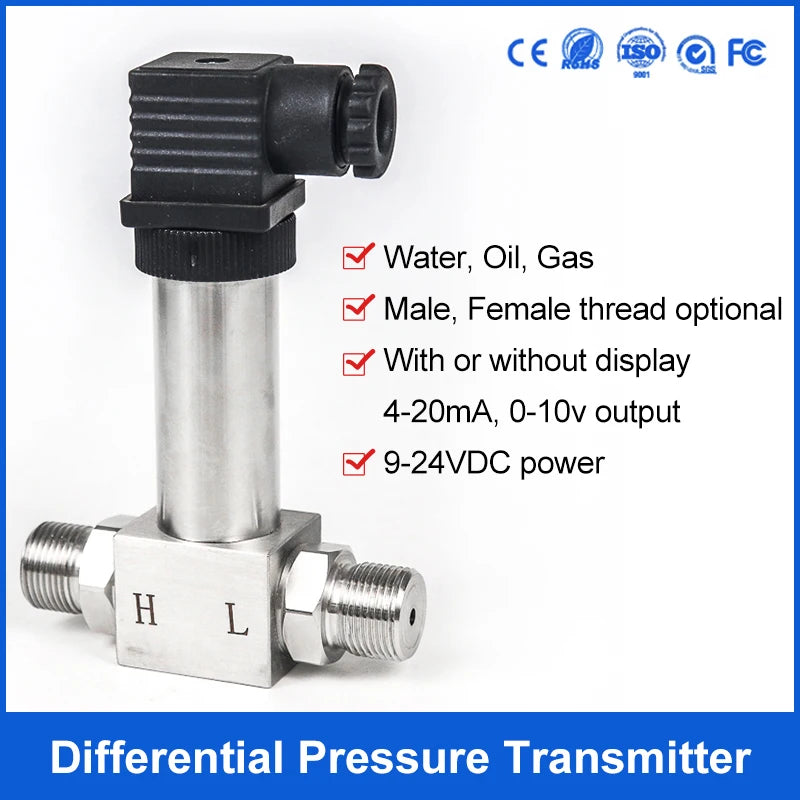

0-5Kpa Differential Pressure Transmitter With 4-20mA Output signal Pressure Sensor

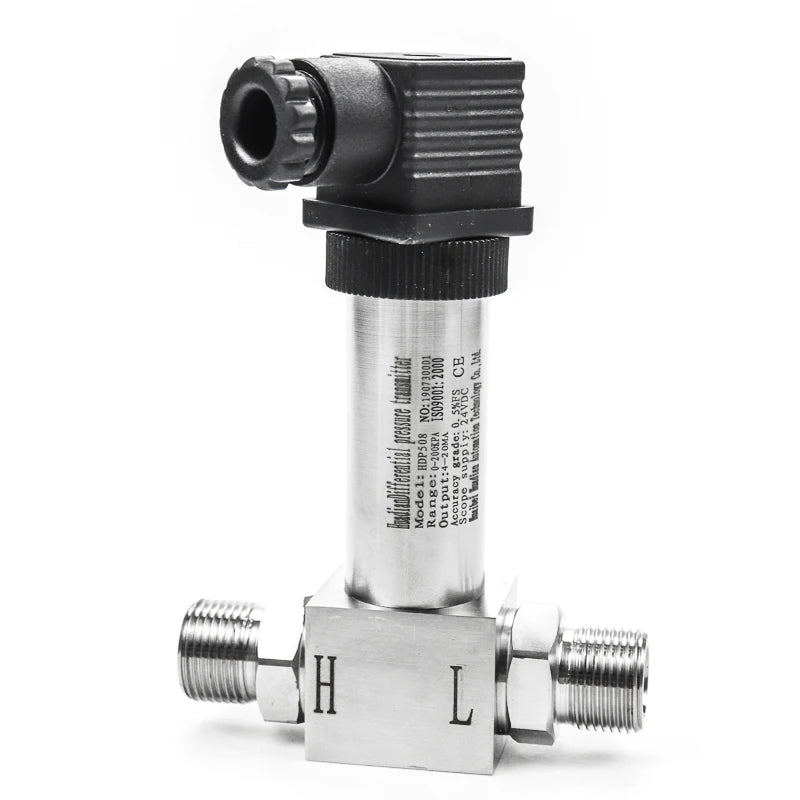

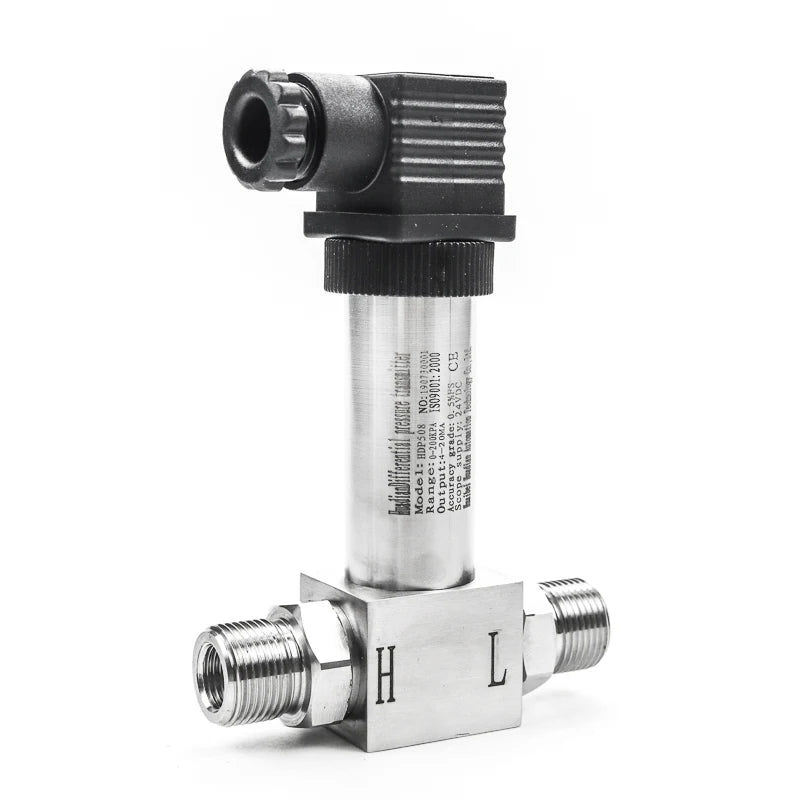

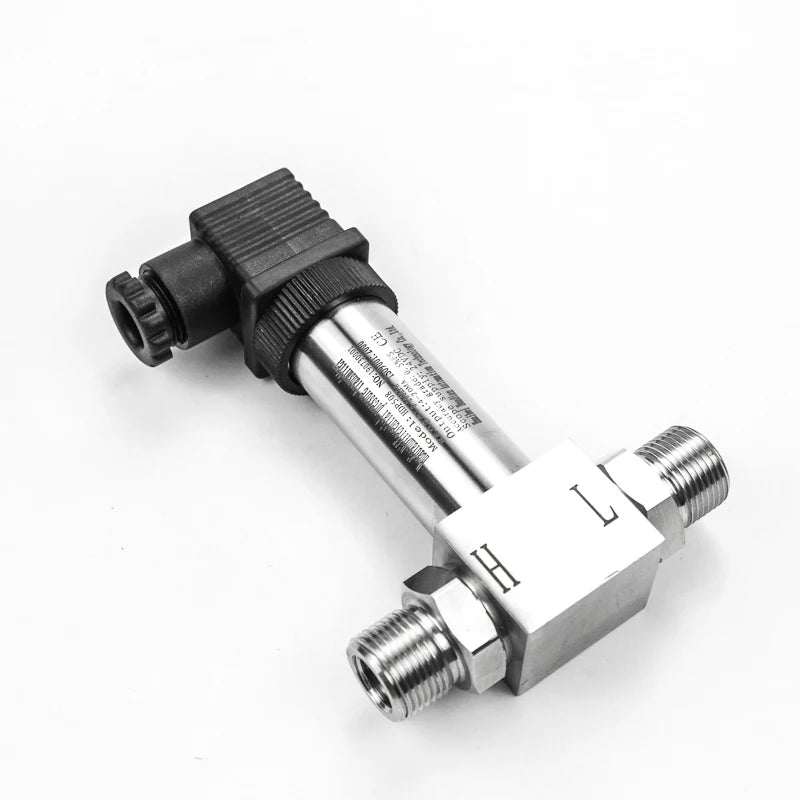

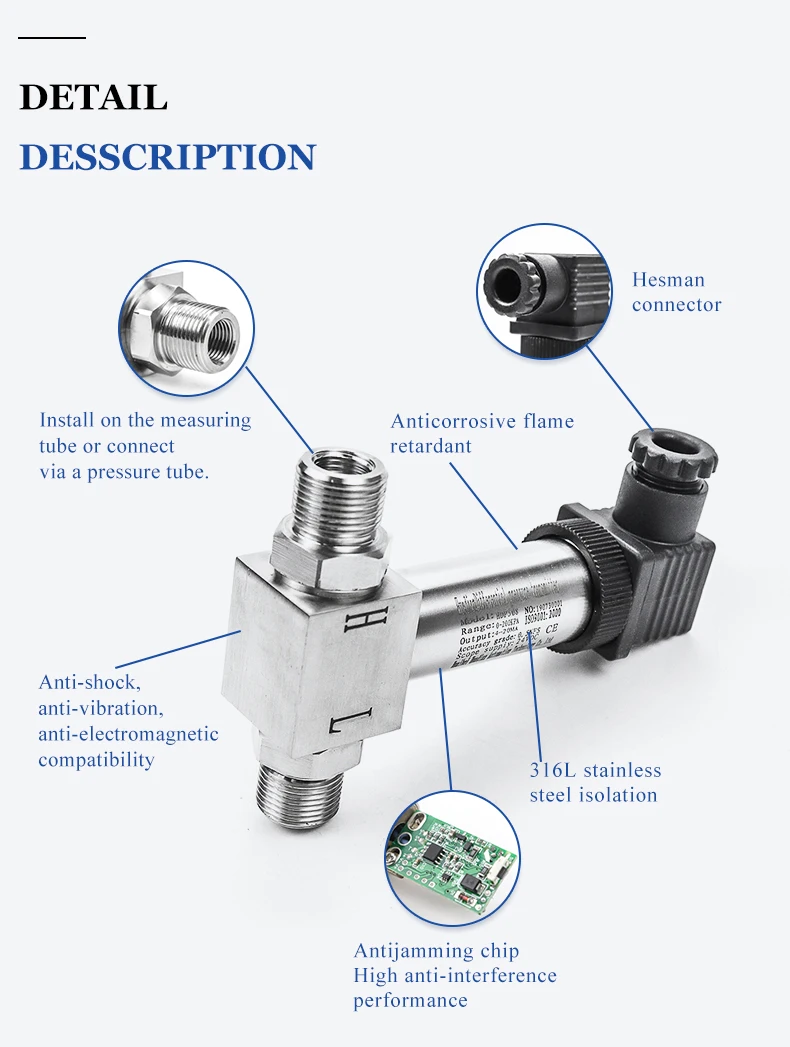

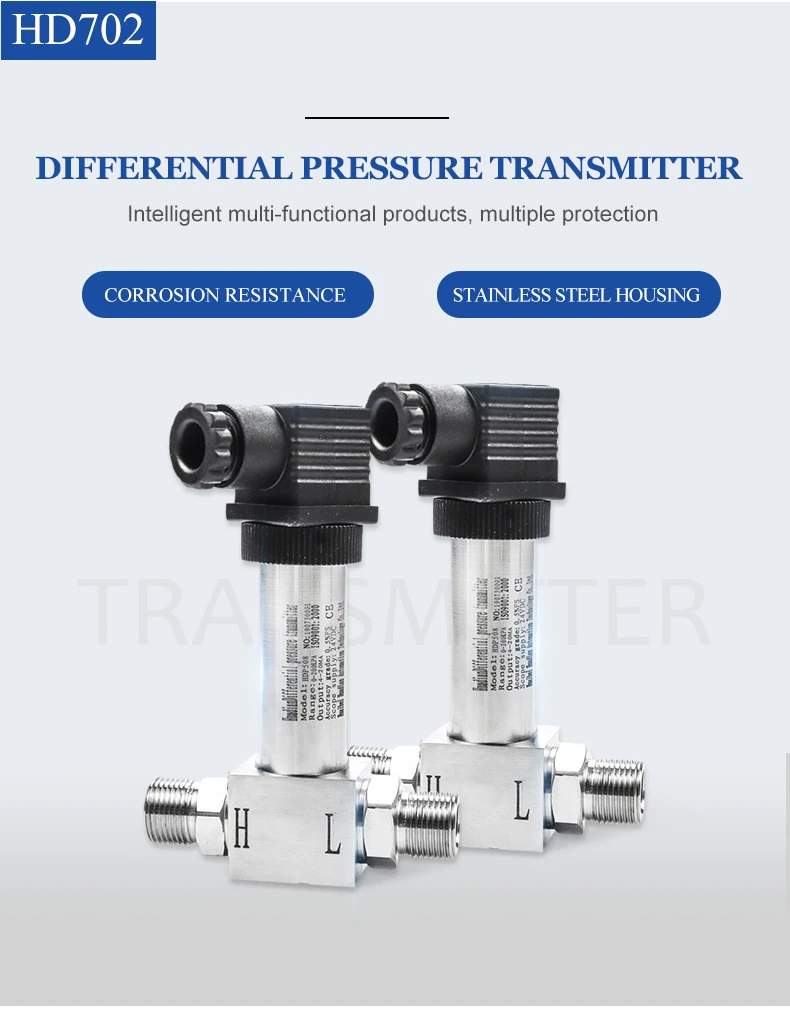

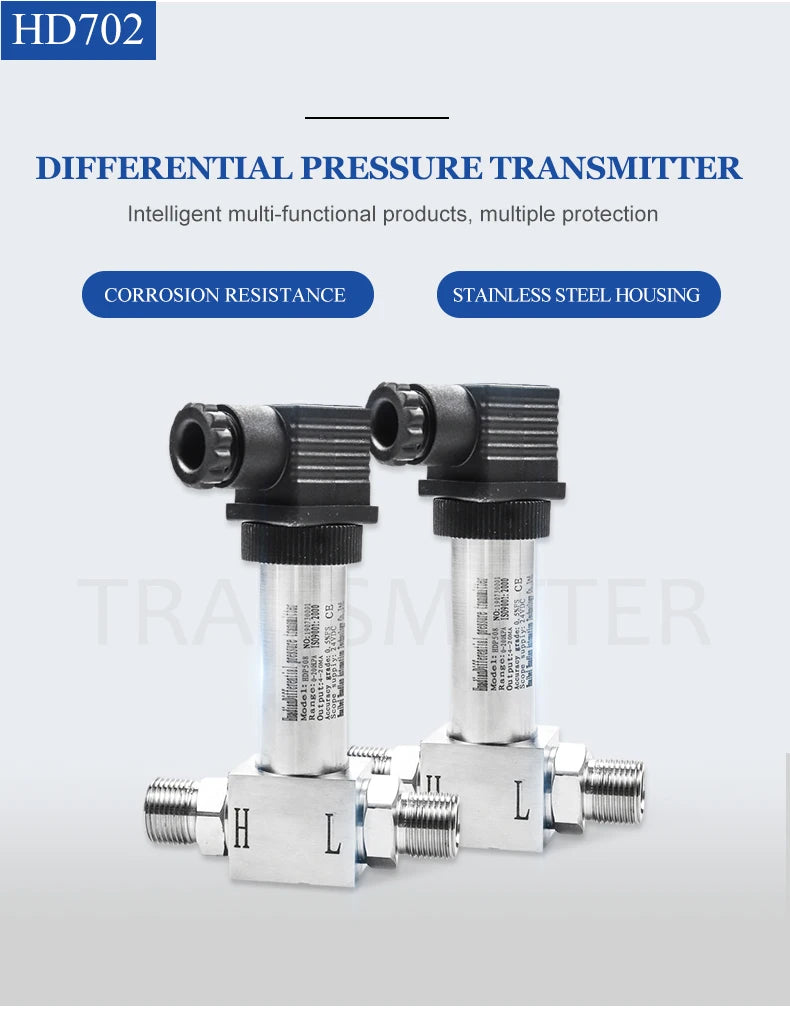

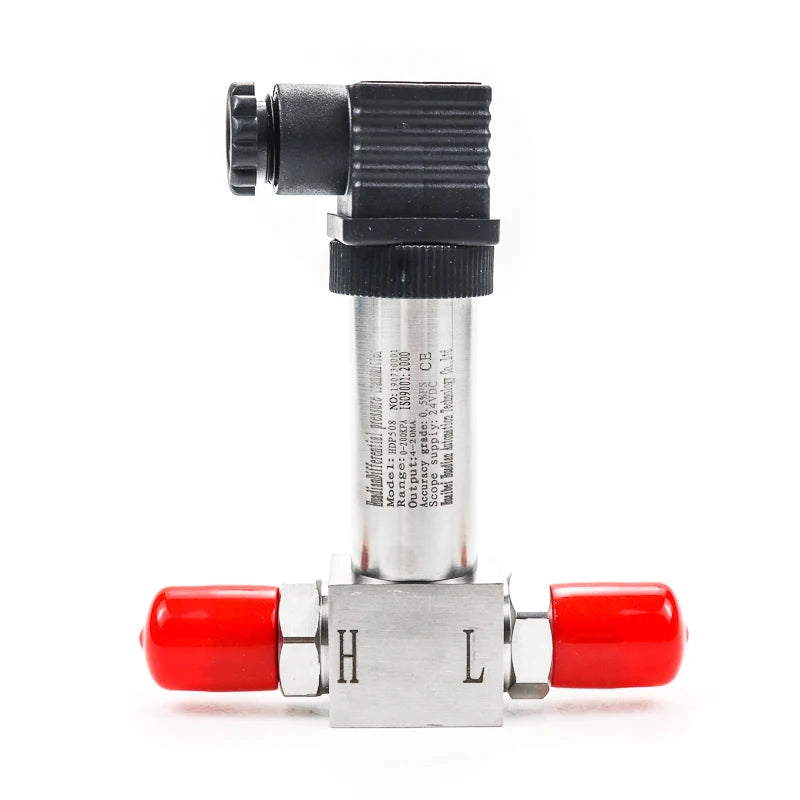

The HDP702 series integrated differential pressure transmitter is assembled with an OEM silicon piezoresistive differential pressure oil-filled core. The outer casing is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected via a pressure pipe.

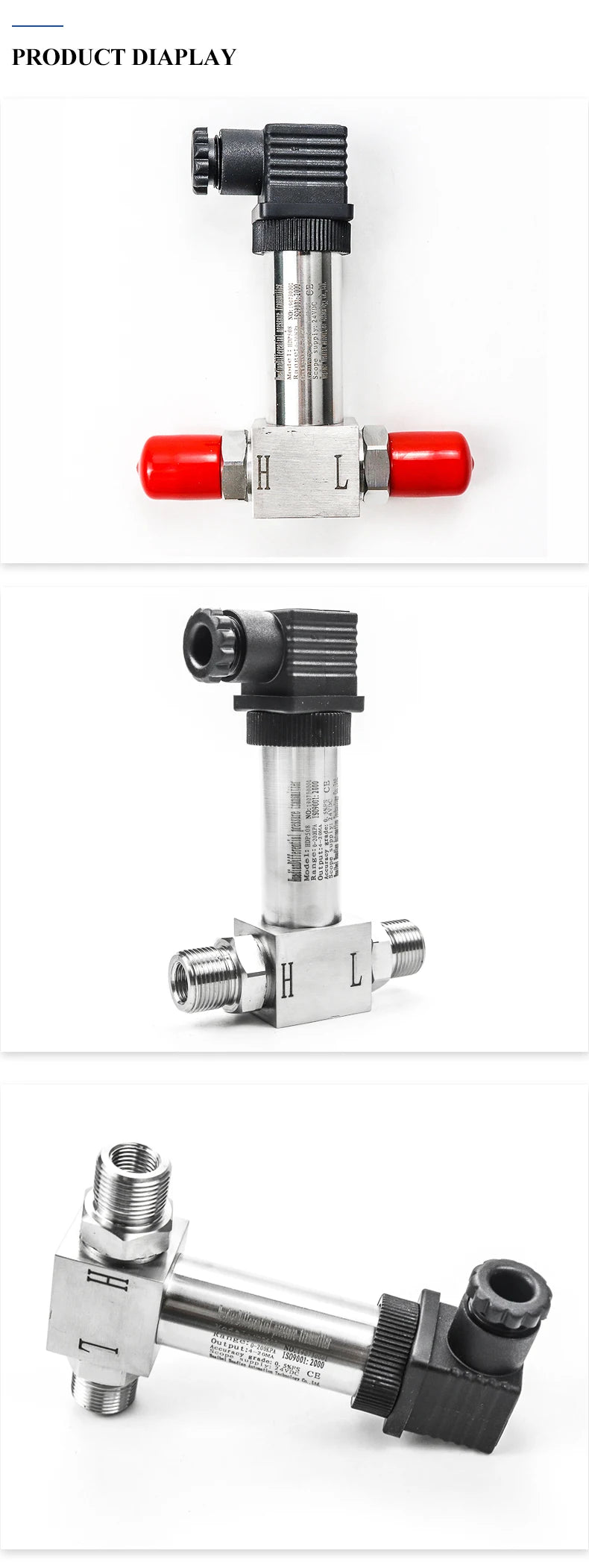

Product details

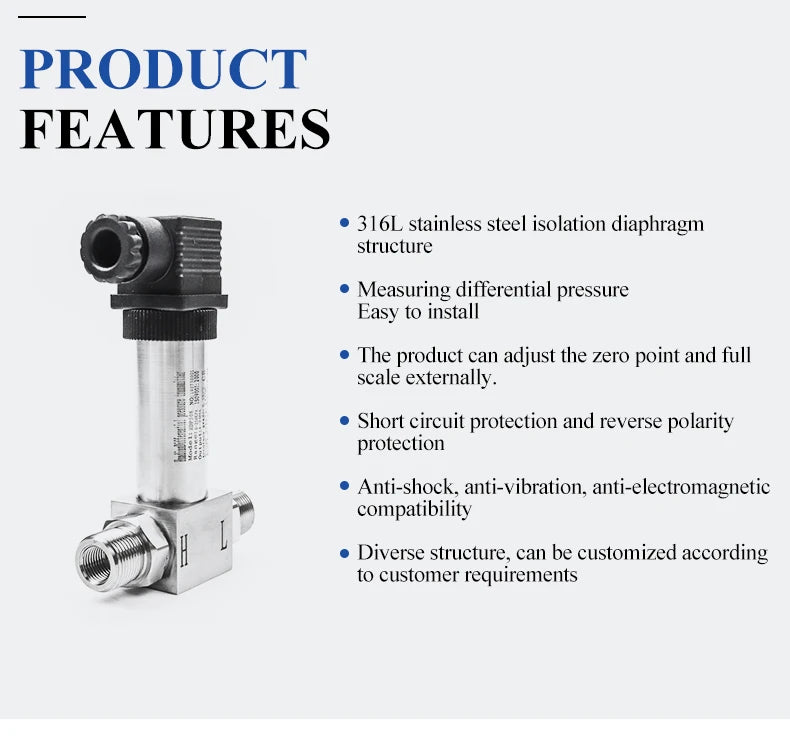

Smart differential pressure transmitter
mail to: lee(@)huadianauto.com
whatsApp/skype/wechat: +86 152 1569 7991

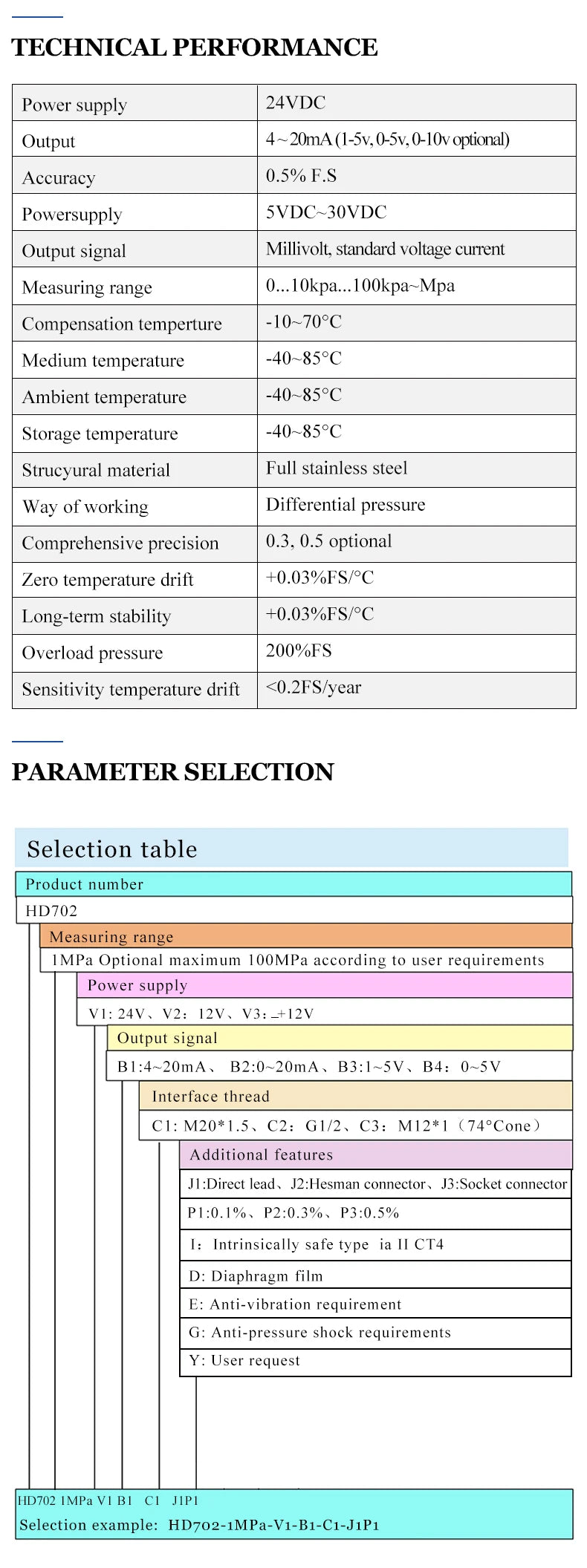

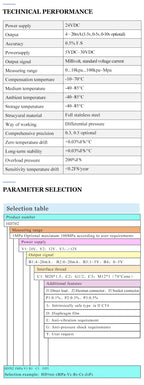

Selection Table

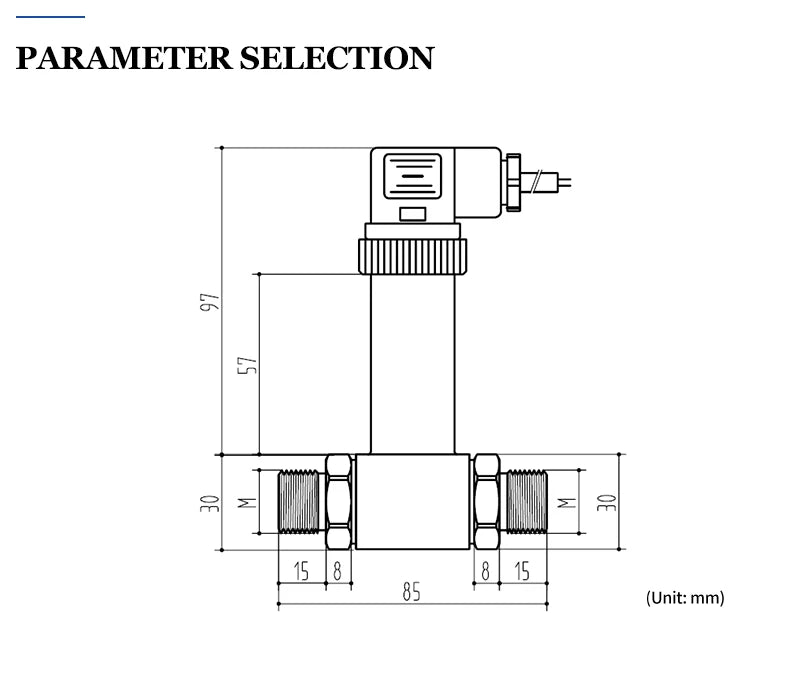

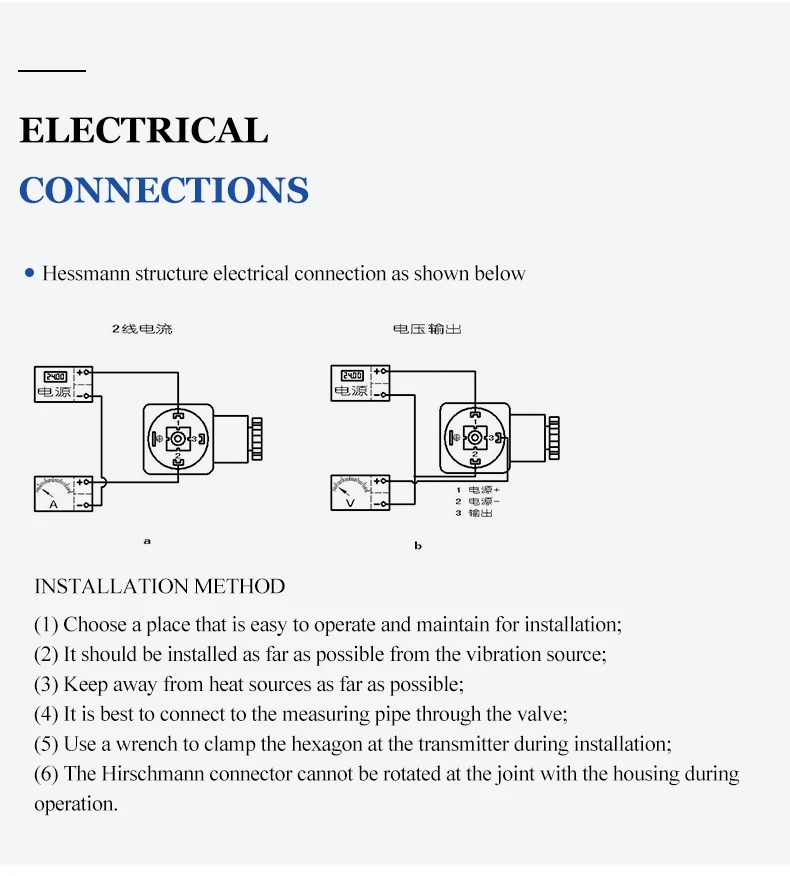

Wiring Diagram And Size

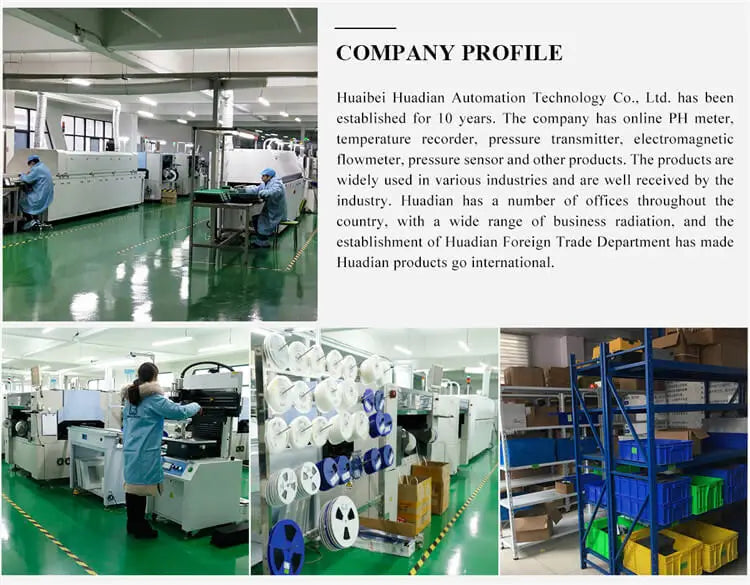

Company Information

Huadian specializes in High-tech R&D, focuses on self developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.

Our Service

1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.

2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.

3.OEM, Accept lower quantity trial order

4.Fast delivery. 24 hours With Discount Courier, Air shipment

5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.

All products are in stock (except for special customization).

6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.

7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
