0 5V 0 10V pressure sensor transmitter 4 20ma 0-20mA signal 0.5 4.5V 40mpa 35kpa 5mpa 10 bar gauge 1/4 1/2" NPT thread hydraulic
$194.40
Sale price
$194.40
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy: 0.5%
Battery Included: no
Brand Name: SENDO SENSOR
Certification: CE
Customizable: YES
Electrical Connection: DIN43650A/Hirschmann
High-concerned chemical: none
Material of Diaphragm: Stainless steel 316L
Material of Housing: Stainless steel 304
Max Measuring Range: 400 Bar & Above
Model Number: SS302
Origin: Mainland China
Output Signal: Selected
Pressure Connection: 1/4"NPT or 1/2"NPT
Pressure Range: Select the one you need
Sealing Rating: IP65
Semi-finishedproduct: No
Features
|
|
|
CE conformity |
Silicone oil filled |
Stainless steel 316L diaphragm |
|
||
Reverse polarity protection |
Descriptions
SS302 series piezoresistive pressure transmitters are the basic type in sendo sensor, also it is the most widely used one, work following the piezoresistive principle, standard medium working temperature from -20~100°C. These sensors adopt a high performance piezoresistive pressure transducer as the sensing part, the inner structure is O-ring sealed, 0 to 70°C wide temperature compensation, well suitable for precision applications in industrial environments for pressures ranging from 0,1 to 1000 bar, liquids or gas. |
Signal & Supply
Output signal |
Supply Voltage |
0.5 - 4.5V |
5 Vdc |
4 - 20 mA |
12 - 30Vdc |
0.5 - 4.5V |
12 - 30 Vdc |
0 - 5V |
12 - 30 Vdc |
0 - 10V |
15 - 30 Vdc |
0 - 20mA |
15 - 30 Vdc |
Technical data
Proof Pressure(0.7bar to 250bar) |
2.0*F.S. |
Proof Pressure (300bar to 400bar) |
1.5*F.S. |
Accuracy |
0.5%F.S. |
Stability |
≤0.2%F.S./Year |
Temp Coefficient |
±0.03%F.S./°C |
Response Time |
≤4ms(90%F.S.) |
Environmental conditions
Medium temperature range |
-20°C → +100°C |
Ambient temperature range |
-20°C → +80°C |
Compensated temp range |
0°C → +70°C |
EMC - Emission |
EN 61000-6-3 |
EMC - Immunity |
EN 61000-6-1 |
Insulation resistance |
>100 MΩ at 250 V |
Mechanical configurations
Pressure Connection |
1/4" or 1/2" NPT |
Electrical Connection |
DIN43650A |
Sealing Rating |
IP65 |
Housing |
Stainless Steel 304 |
Diaphragm |
Stainless Steel 316L |
O-ring |
Viton |

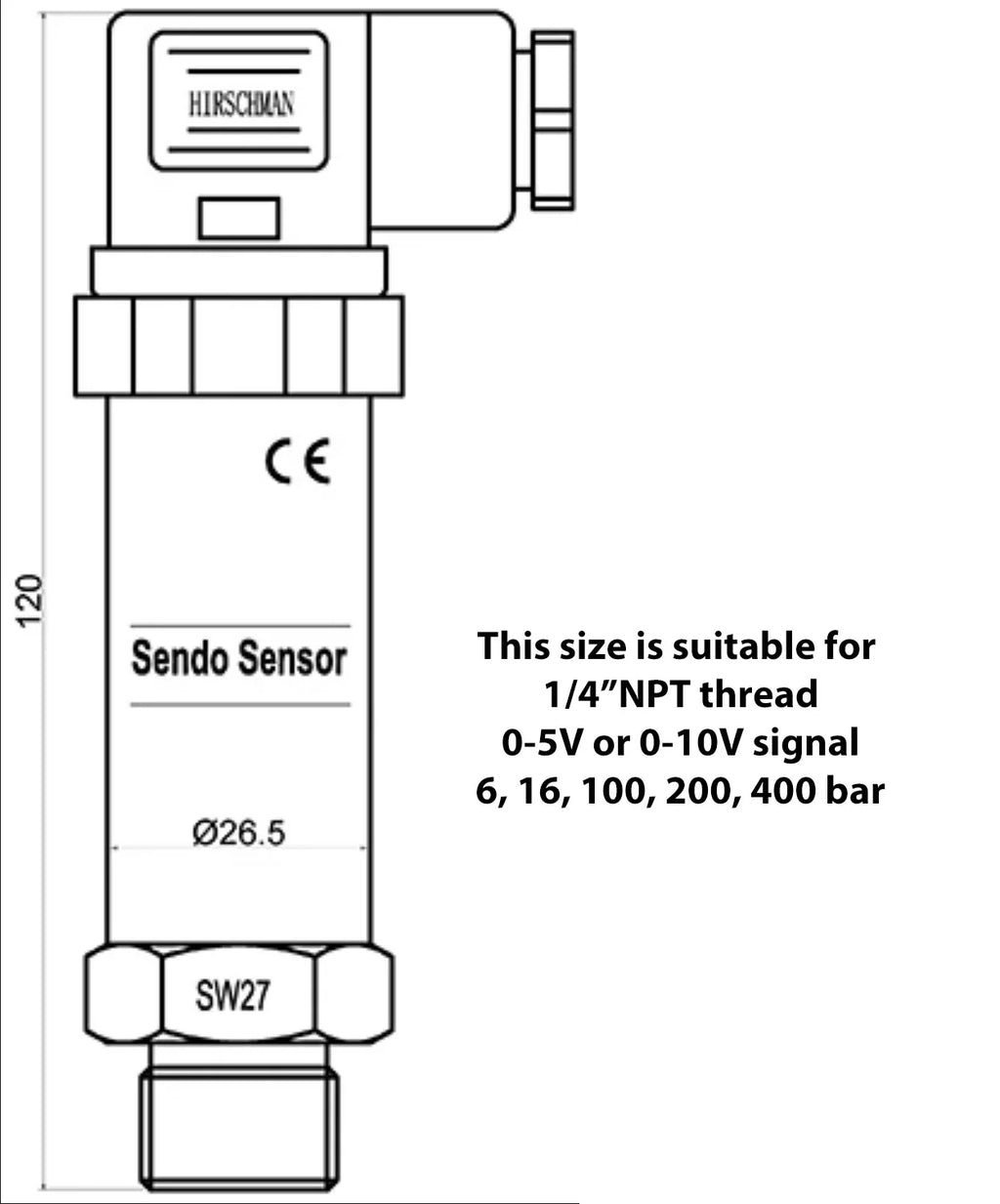

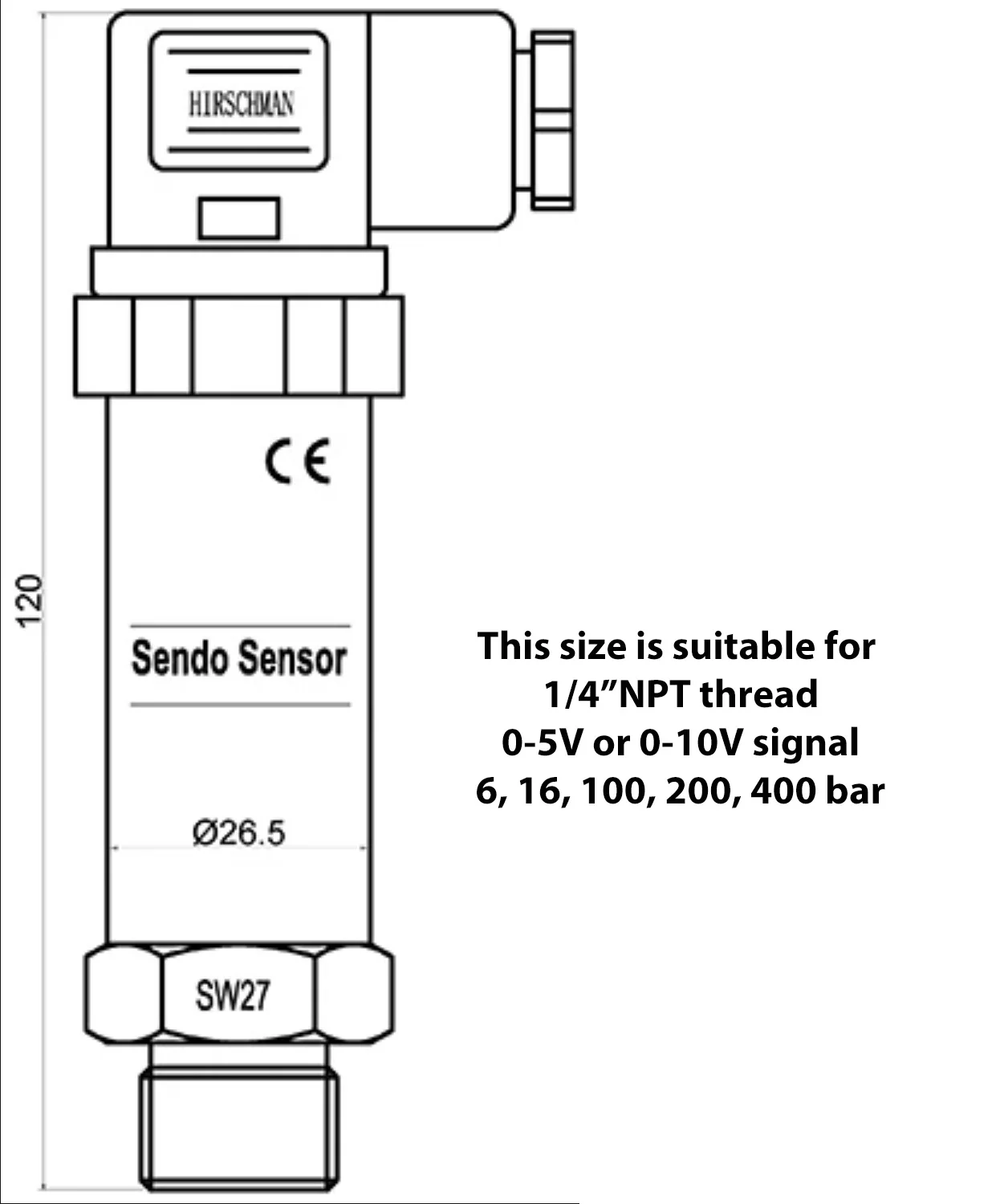

Dimensions

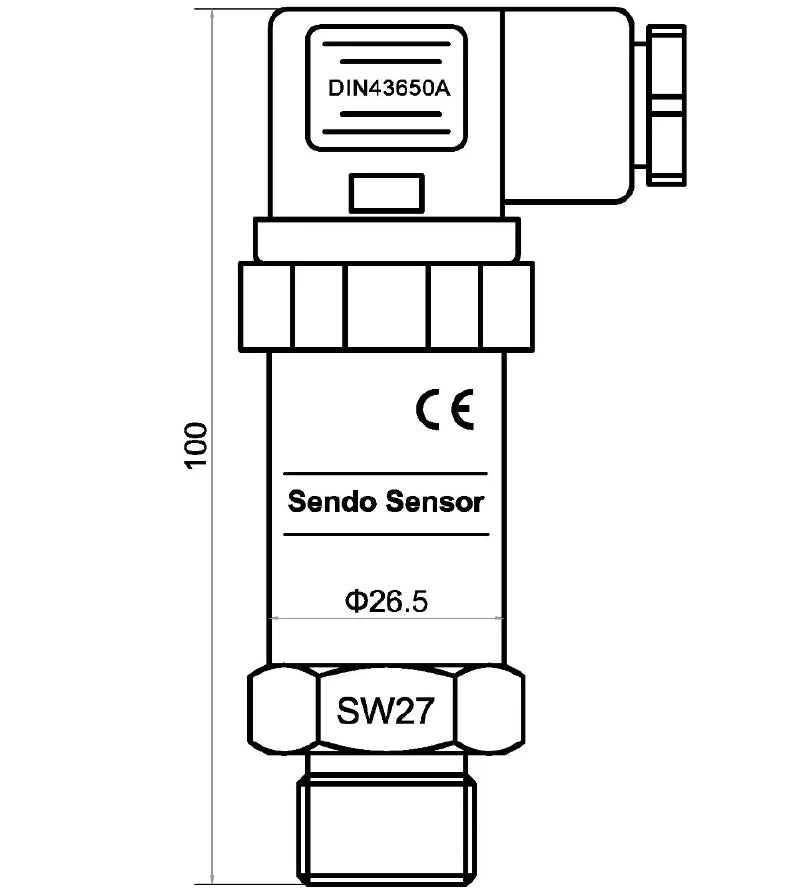

4-20mA & 0.5-4.5V (5Vdc supply)signal |

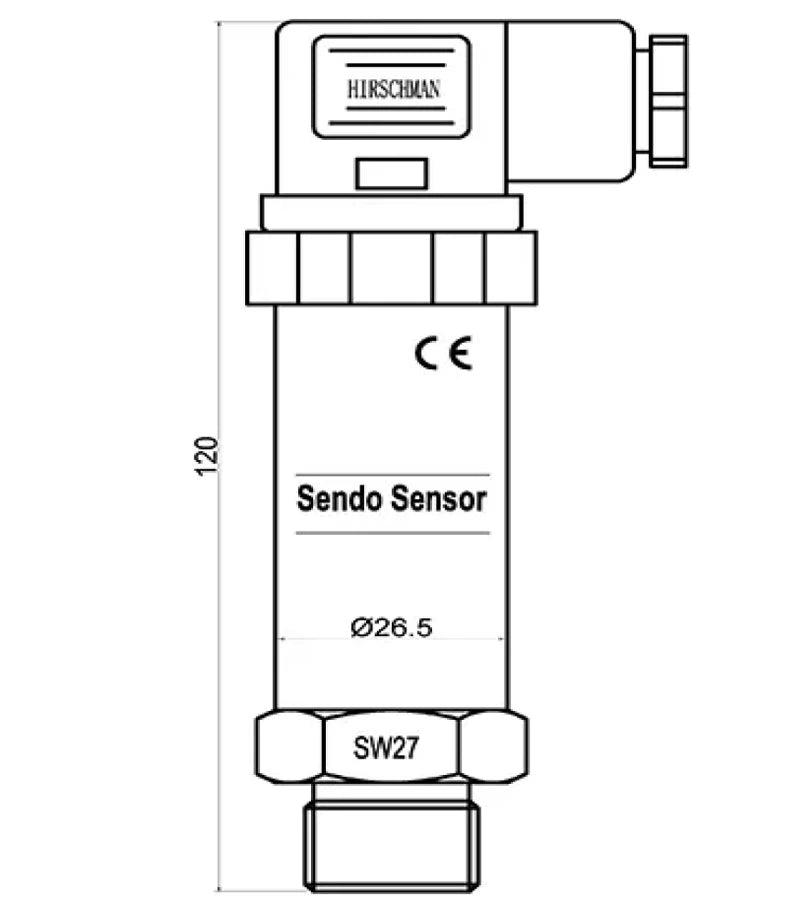

0-20mA signal |
|
|

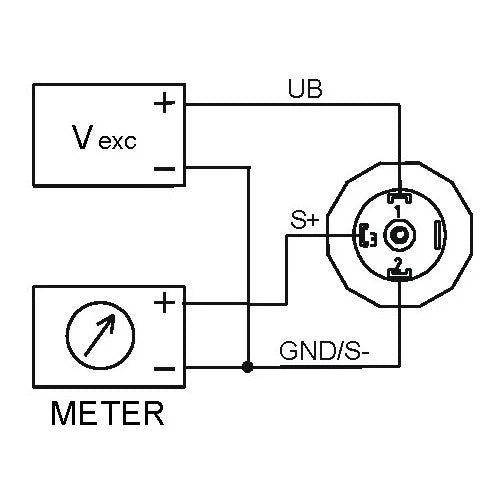

Electrical connections
|

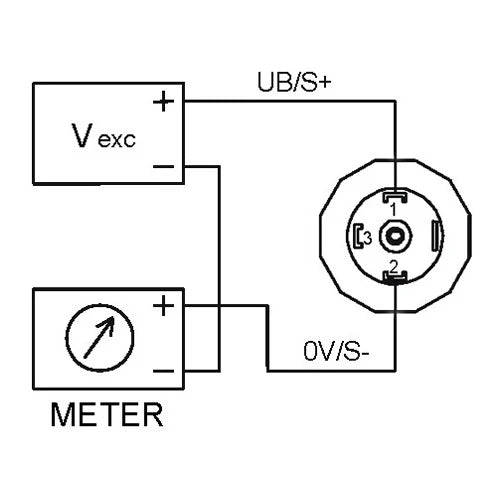

4-20mA current signal (2 wire) Pin1: + input |
0-20mA；0-5V; 0-10V; 0.5-4.5V signal (3 wire) Pin1: + input |
|
|
Pin2: + output
