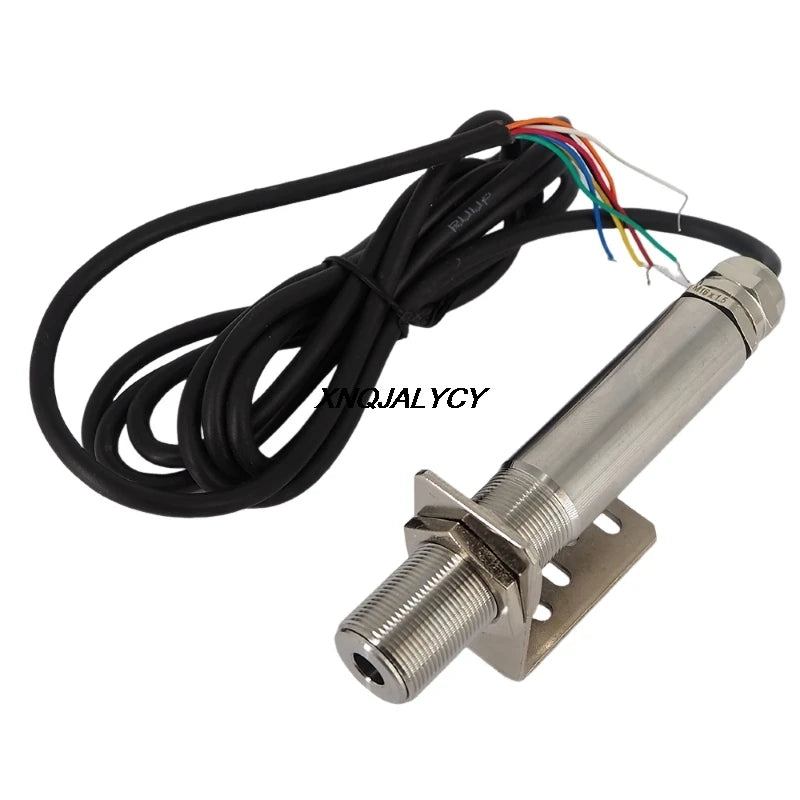

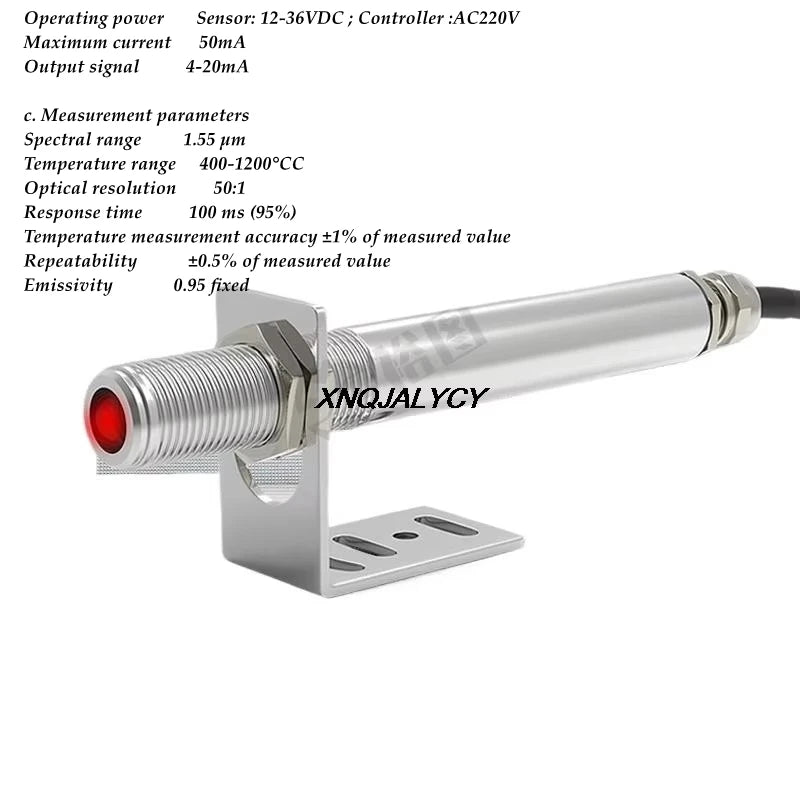

0-5V 10V Voltage RS485 Industrial Non Contact Online Infrared Thermodetector Probe Infrared Temperature Sensor Transmitter
0-100C / 0-10V output
$274.14
Sale price
$274.14
Regular price
$0.00
Skip to product information
0-5V 10V Voltage RS485 Industrial Non Contact Online Infrared Thermodetector Probe Infrared Temperature Sensor Transmitter
$274.14
Sale price
$274.14
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: XNQJALYCY
High-concerned chemical: none
Material: Mixture
Origin: Mainland China
Output: Analog Sensor
Theory: Resistance Sensor
Type: Temperature Sensor
is_customized: Yes

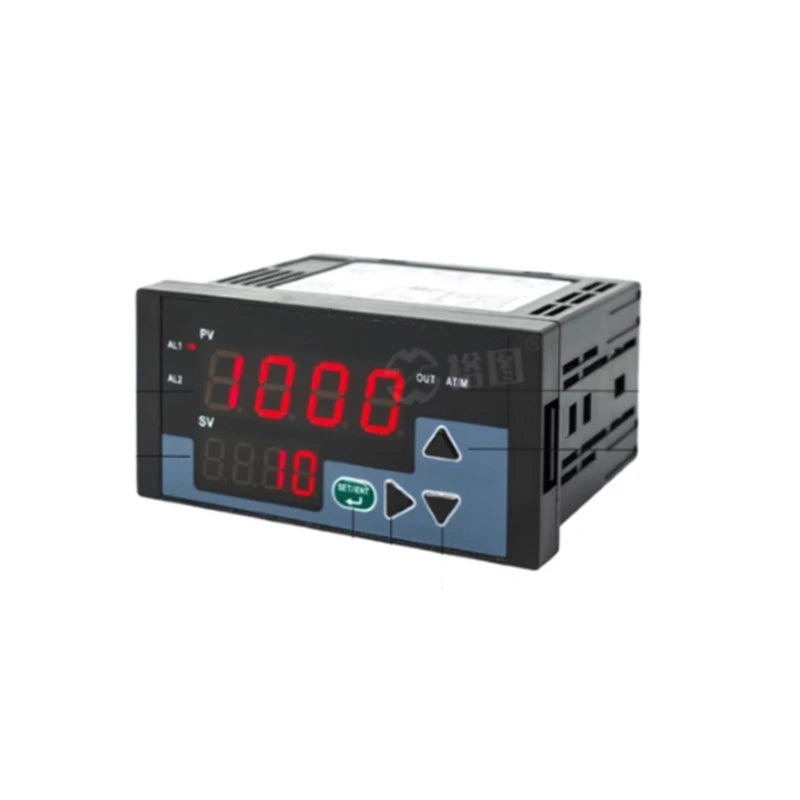

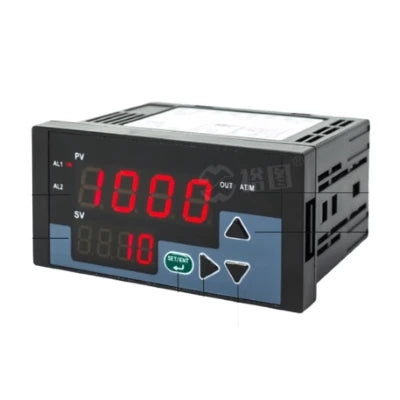

please notice : the sensor supply voltage is :DC 12-24V. the controller
supply voltage is AC220V
|
Protection level
|
IP65(NEMA-4)
|
|
Storage temperature
|
-20~80℃
|
|
Cable length
|
1.5M(Standard) Support customization
|
|
Power supply
|
24VDC
|
|
Maximum current
|
50MA
|
|

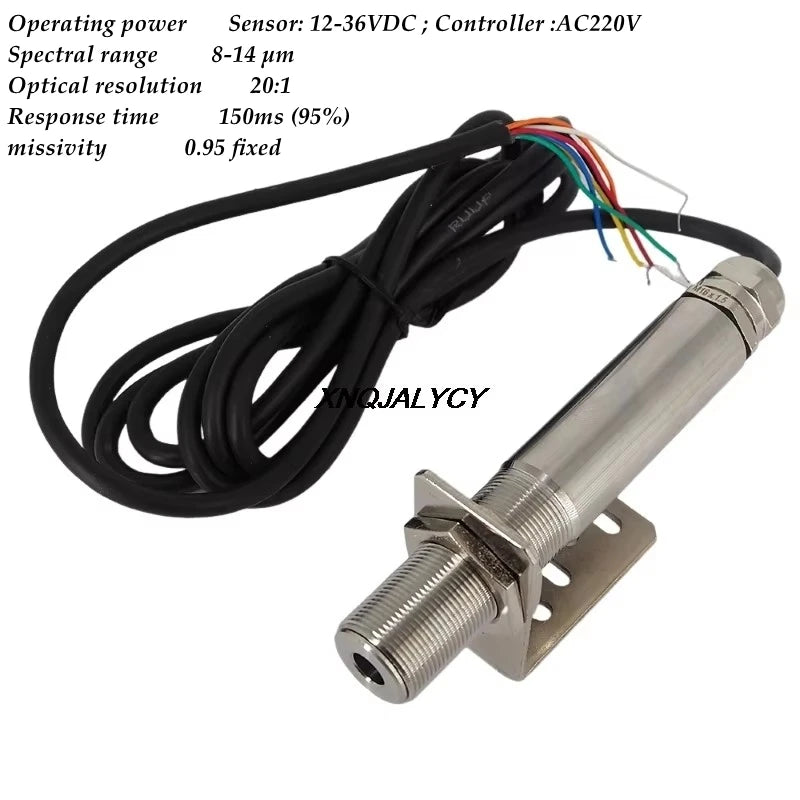

Spectral range
|
8~14μM
|
|
Optical resolution
|
20:1
|
|
Ambient temperature
|
0~60℃
|
|
Relative humidity
|
10-95%(No condensation)
|
|
Material
|
stainless steel
|
|
Output signal
|
4~20mA
|
|
Temperature range
|
0~1000℃
|
|
Response time
|
150ms(95%)
|
|
Measurement accuracy
|
±1% or ±1.5℃ Take the larger value
|
|
Repeat accuracy
|
±0.5% or ±1℃ Take the larger value
|
|

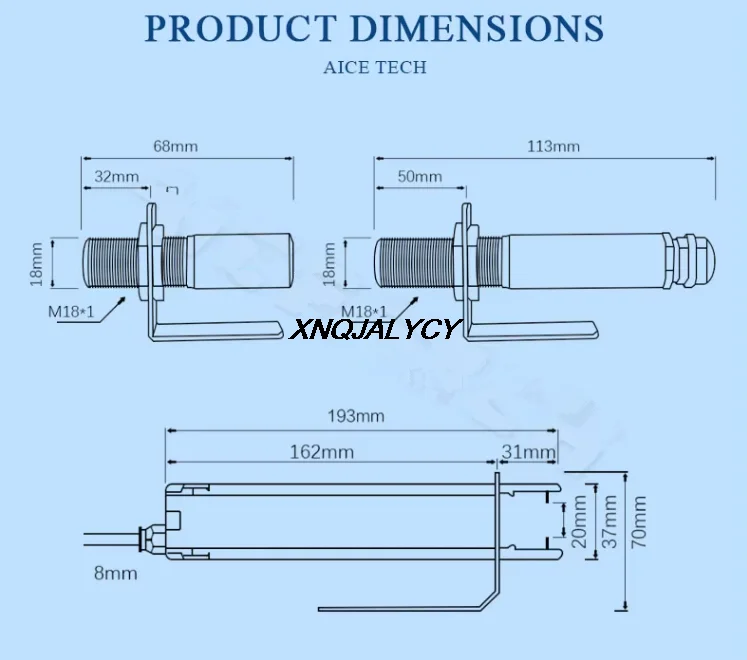

Size
|
68MM xφ18MM(Length×diameter)
|
|
Emissivity
|
0.95fixed
|
