SPECIFICATIONS

Brand Name: NovaSphere

Choice: yes

Condition: New

Display Color: White

Display Screen Circuit Board: LED Module Display

Display Size: 0.66 Inches

High-concerned chemical: none

Interface: IIC

Mini Screen Board: Micro Breakout Screen

Model Number: OLED Display Module

OLED Display Module: OLED Screen Board

Operating Voltage: 3.3-5V

Origin: Mainland China,Mainland China

Resolution: 64x48

Size: 24.00x19.00x4.00mm/0.94x0.75x0.16inch

Type: Module,LED Display Modules

White Display Module: LCD Screen Control Board

semi_Choice: yes

0.66 Inch White Display Module Display Screen Circuit Board 64x48 Pixels 3.3-5V 4 Pin I2C IIC for Arduino Electronic DIY

Features:
1. High Clarity: This 0.66-inch OLED display module offers high clarity, providing sharp and easily readable text and graphics on its larger 64x48 pixel screen compared to our 15x16mm display.
2. Low Power Consumption: With its efficient design, this OLED screen board consumes minimal power, making it suitable for projects and products that prioritize energy efficiency and battery life.
3. OLED Technology: The white display module utilizes OLED technology, which delivers excellent contrast and vibrant white color display for clear and visually appealing content.
4. SPI Interface: The OLED screen control board features an SPI interface, allowing for fast and easy communication with microcontrollers and other devices, enabling seamless integration into your project.
5. Display Driver IC: The micro breakout screen is driven by the reliable display driver IC, ensuring stable performance and compatibility with various applications.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: OLED Display Module
Display Size: 0.66 Inches
Resolution: 64x48
Interface: IIC
Operating Voltage: 3.3-5V
Display Color: White

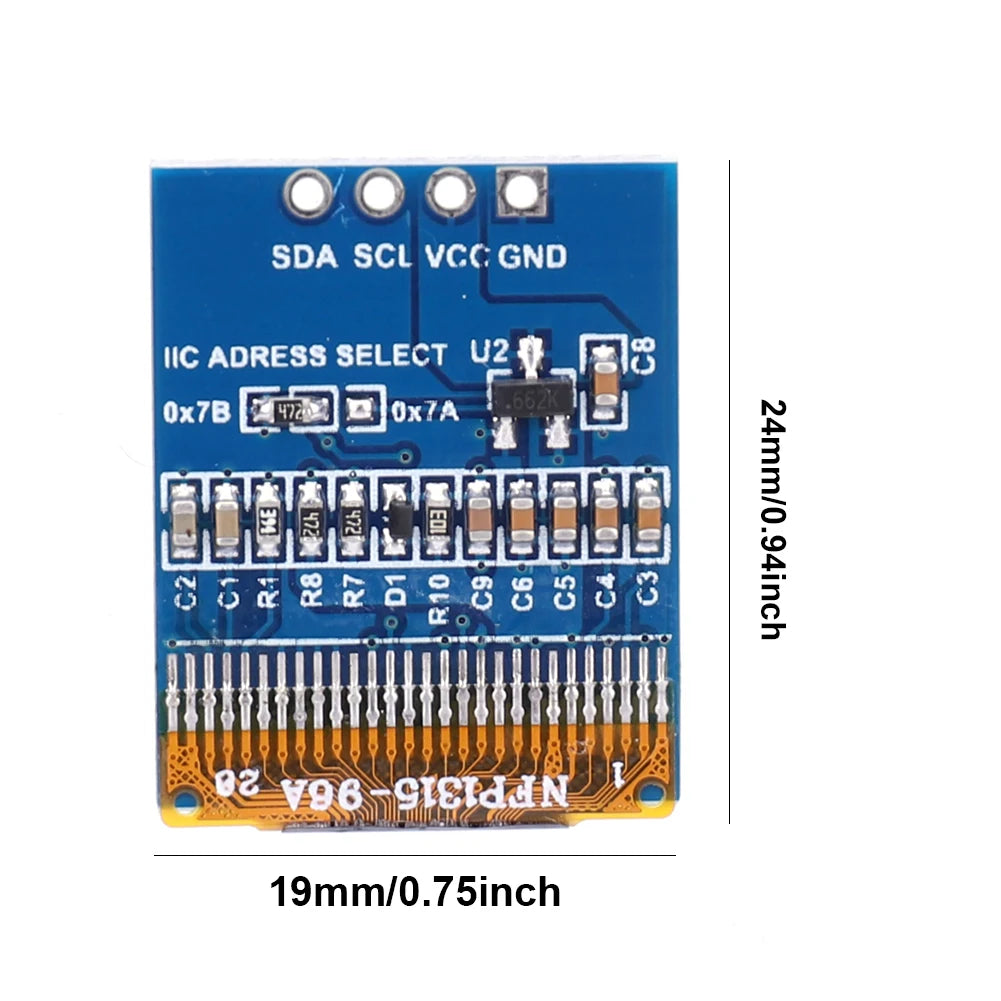

Size: 24.00x19.00x4.00mm/0.94x0.75x0.16inch
1. Slightly larger than our 15 x 16 mm display,.
2. In addition to the larger size, it also has a higher resolution of 64 x 48 pixels.

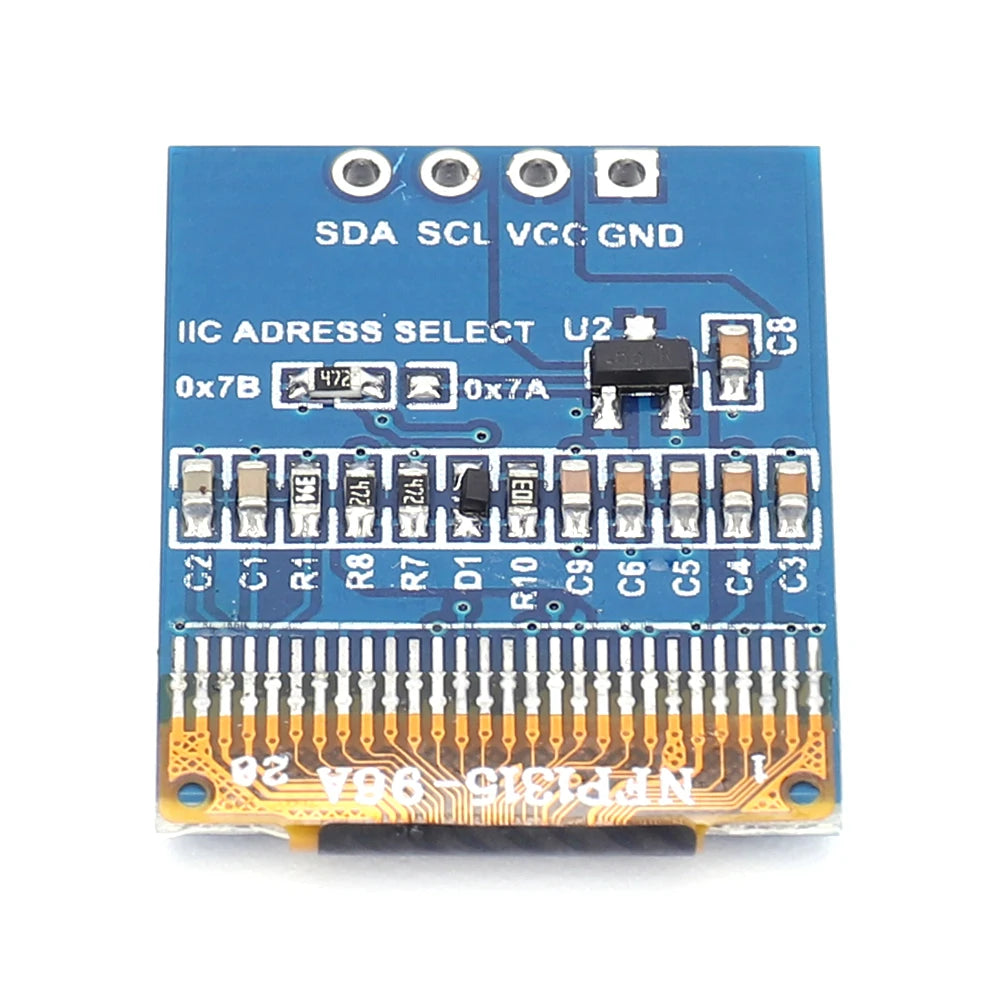

3. This is a monochrome display and will show text in white. It comes pre-assembled on its own breakout board with the pinout diagram on the back.
4. It is very easy to use with the IIC communication pins. It contains standard SDL and SCL.

5.Its small size and OLED technology make it for wearables or low power projects and products.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
