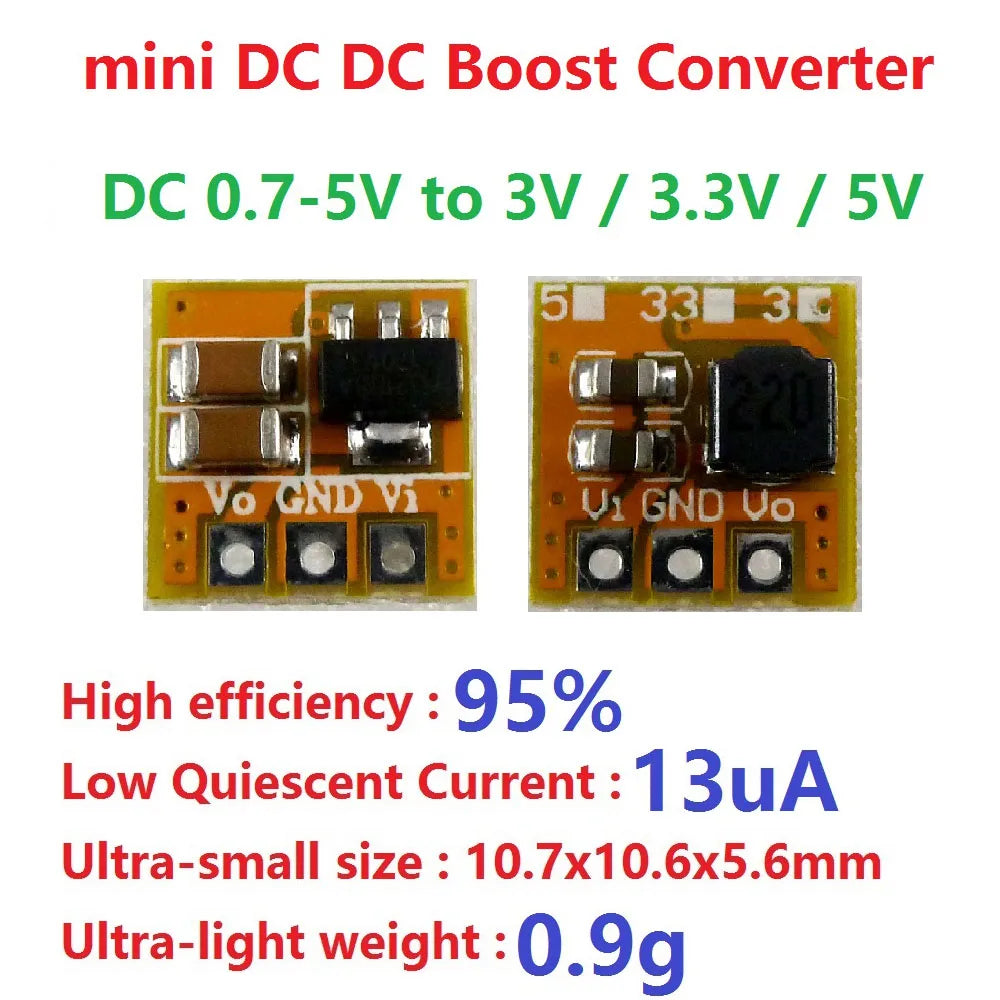

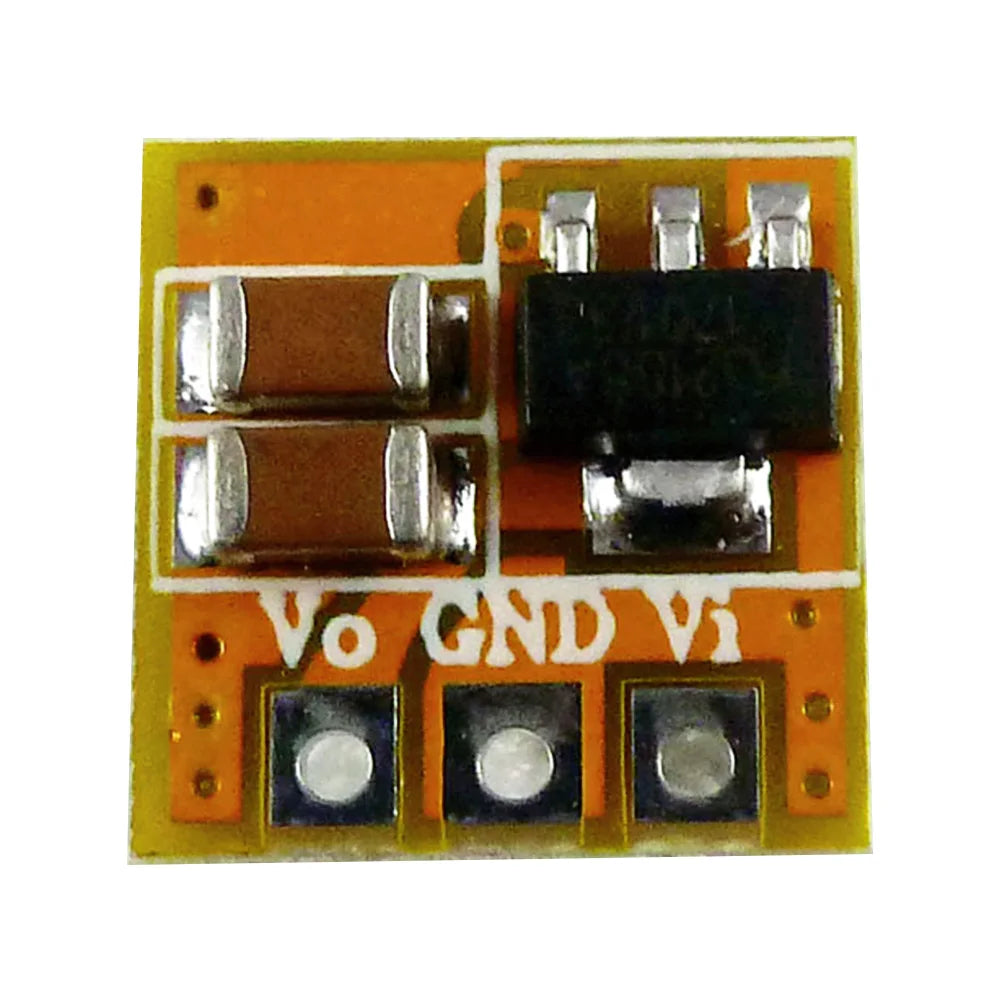

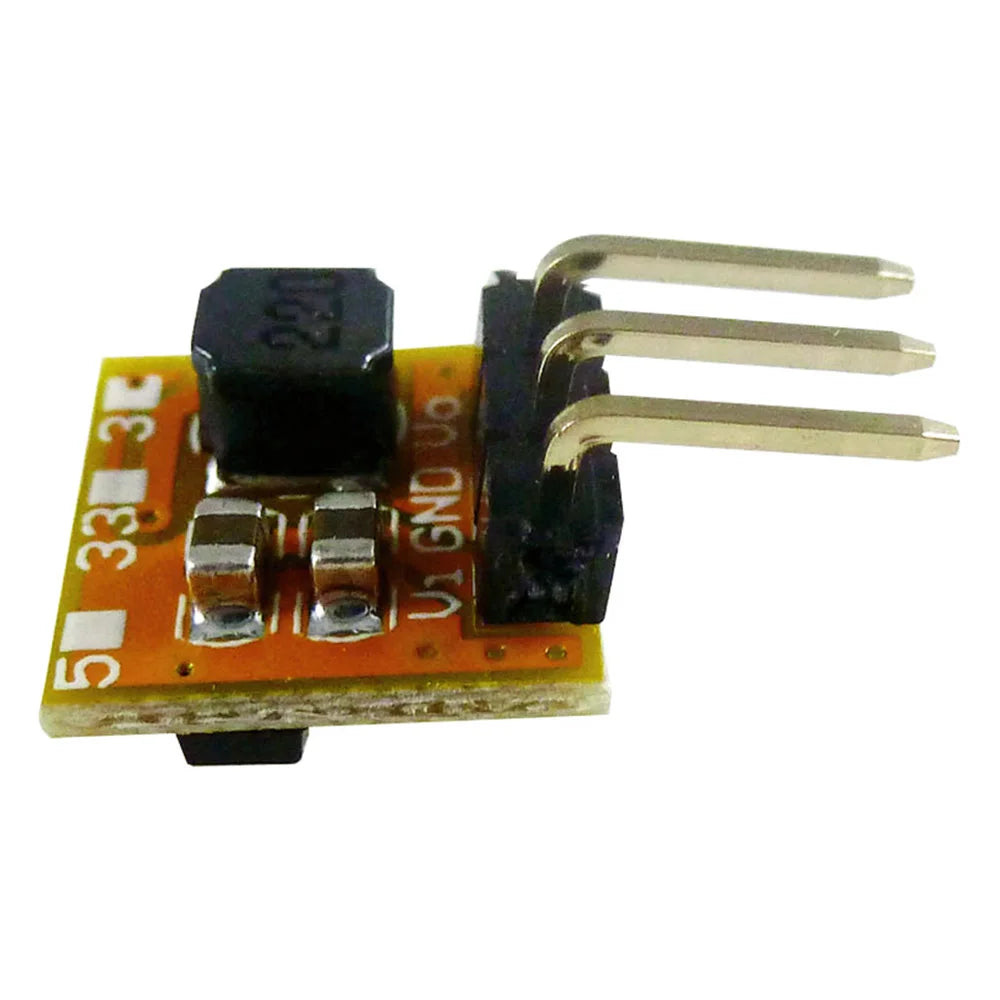

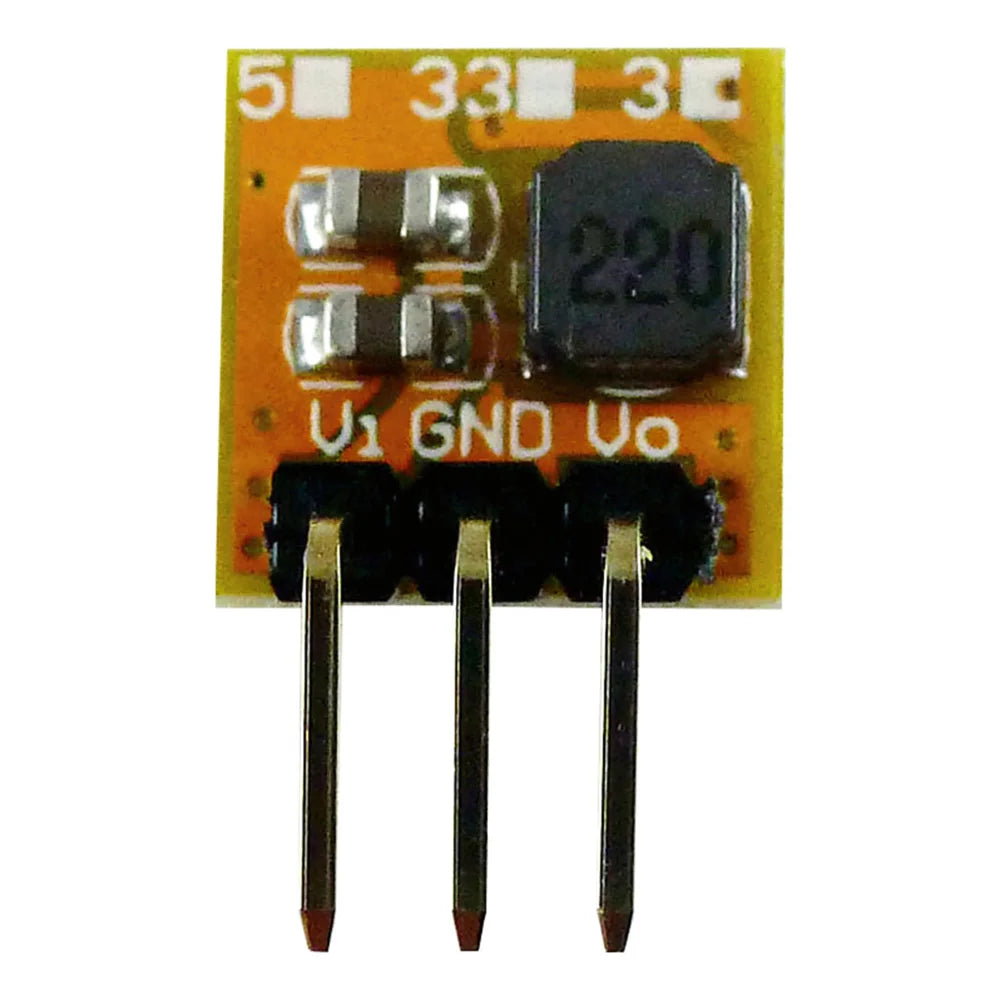

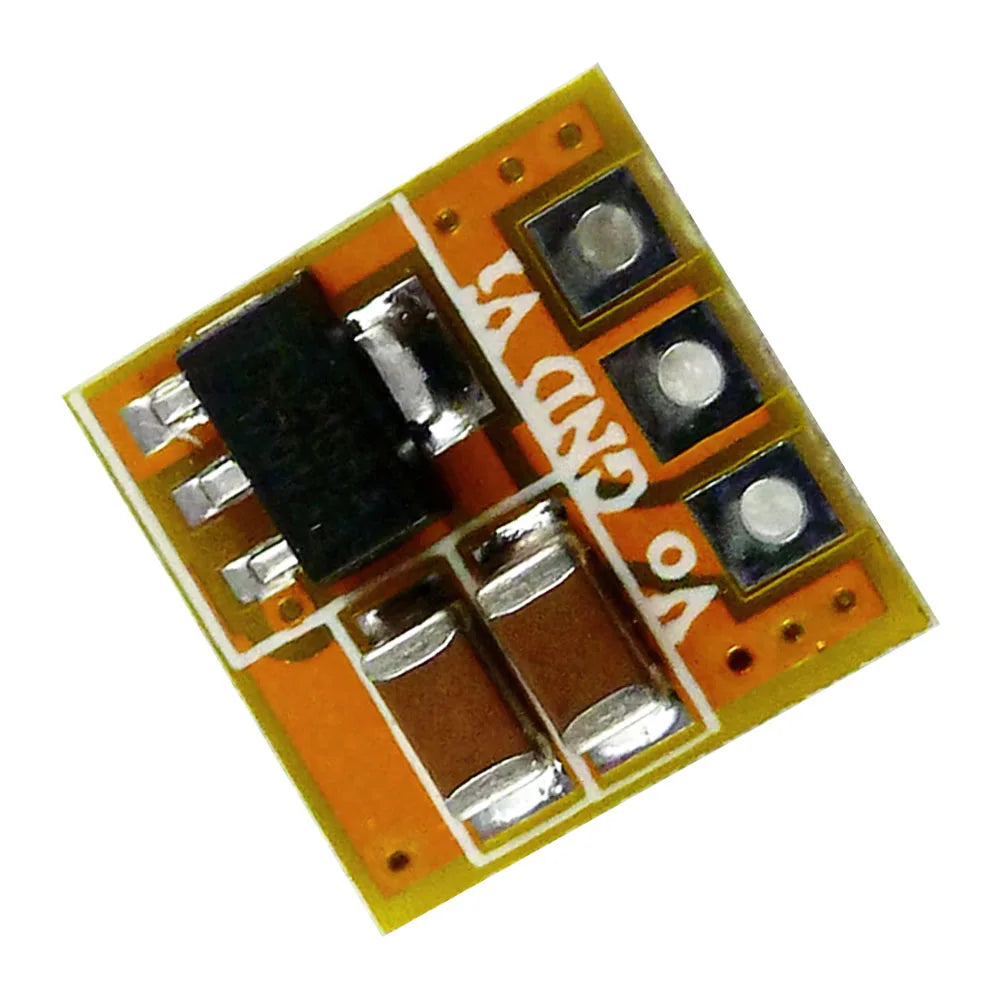

0.7-5V to 3V/3.3V/5V Boost Converter Module 95% Efficiency for AA/AAA Battery Motor Breadboard Power Supply With/Without Pin
3V with Pin
$10.60
Sale price
$10.60
Regular price
$0.00
Skip to product information
Features:
1: Wide range of applications
2: Small size
3: Simple to use
4: High efficiency
5: With needle and without needle optional
Specification:

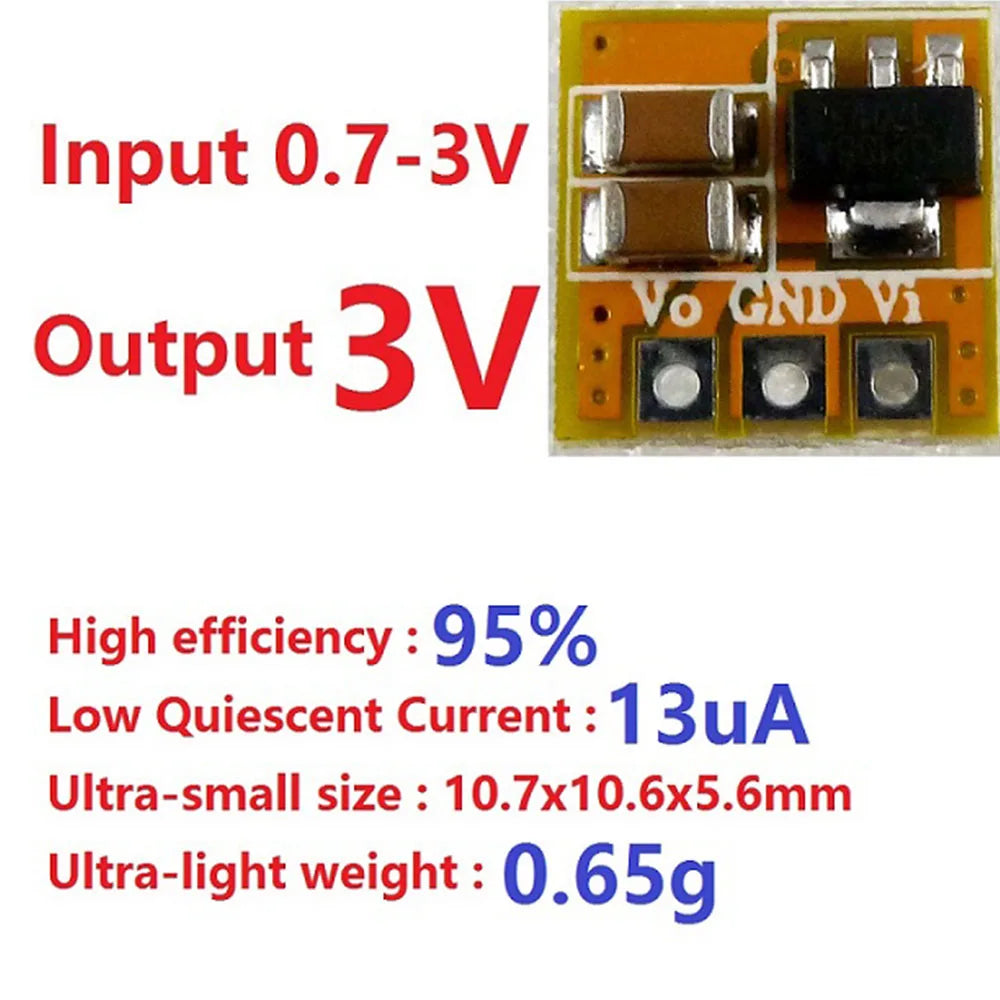

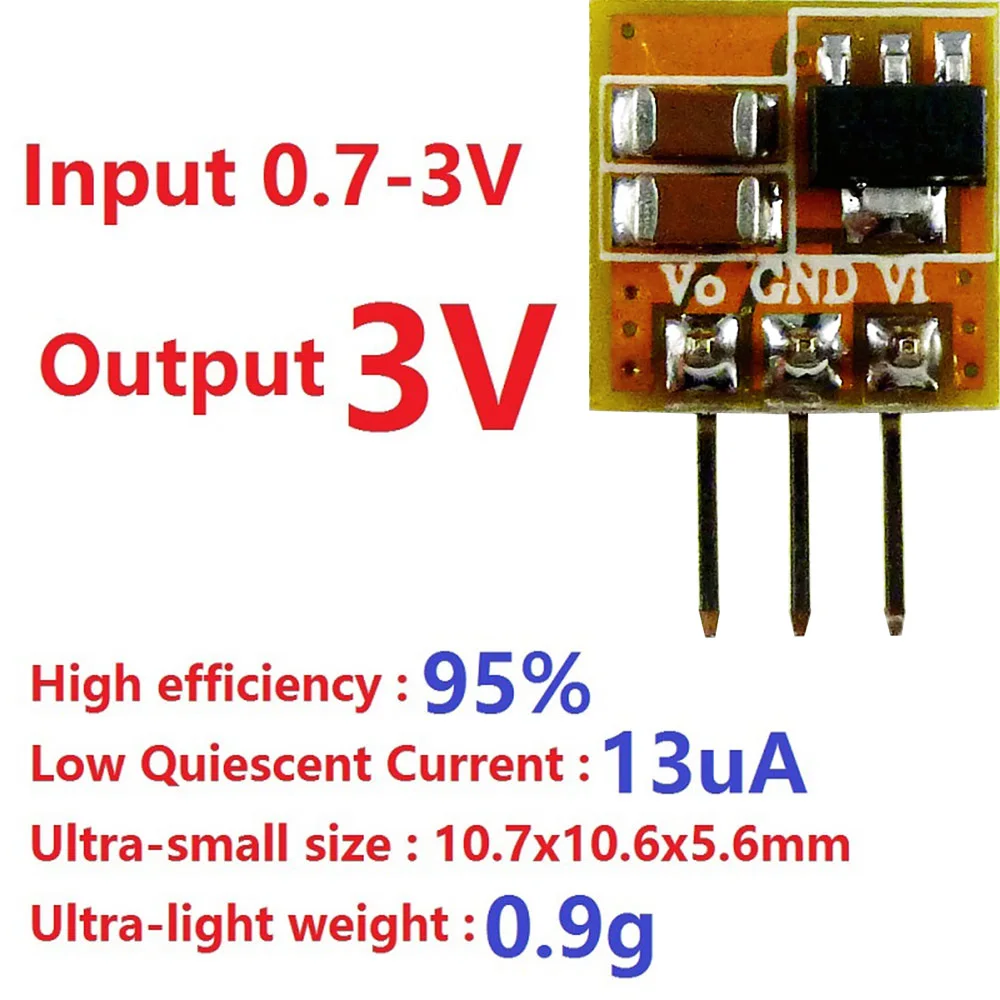

3V:
Input voltage DC 0.7 ~ 3V, output DC 3V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 77%-93%)
Low quiescent current: 13uA
Low ripple and low noise
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g

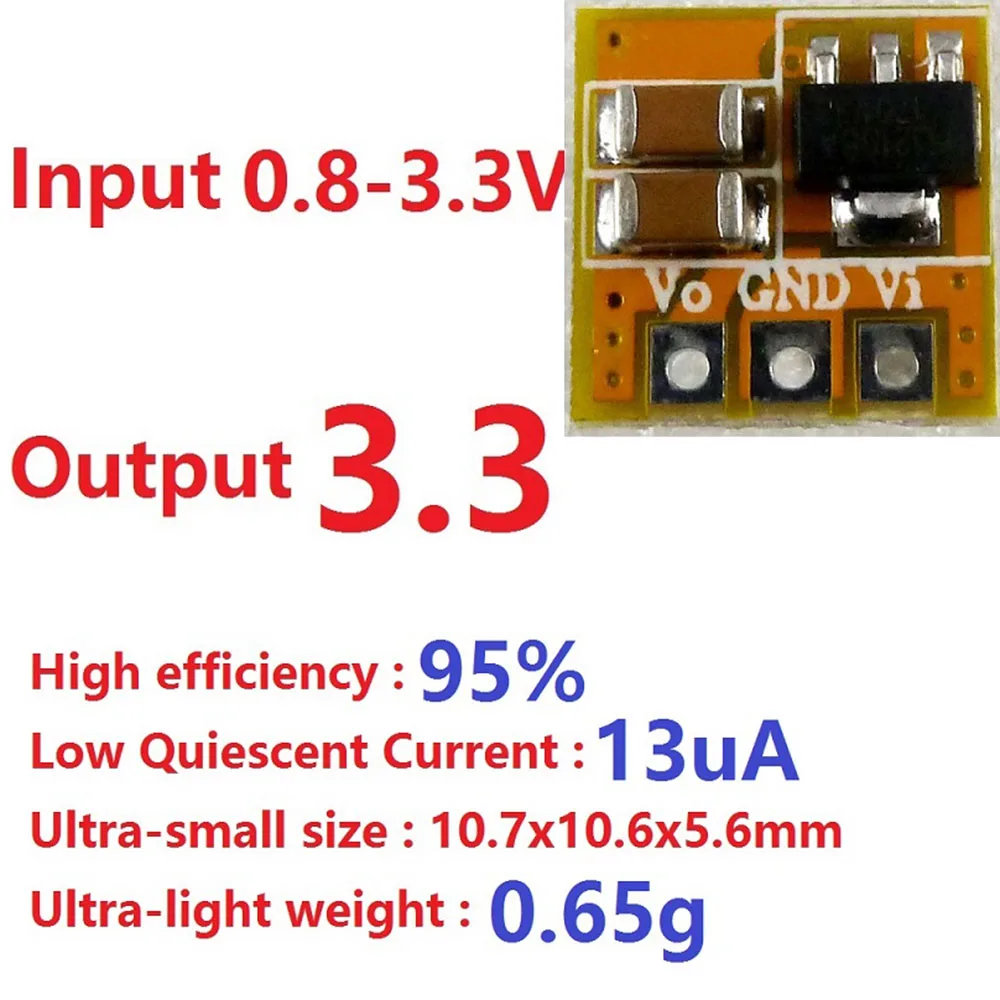

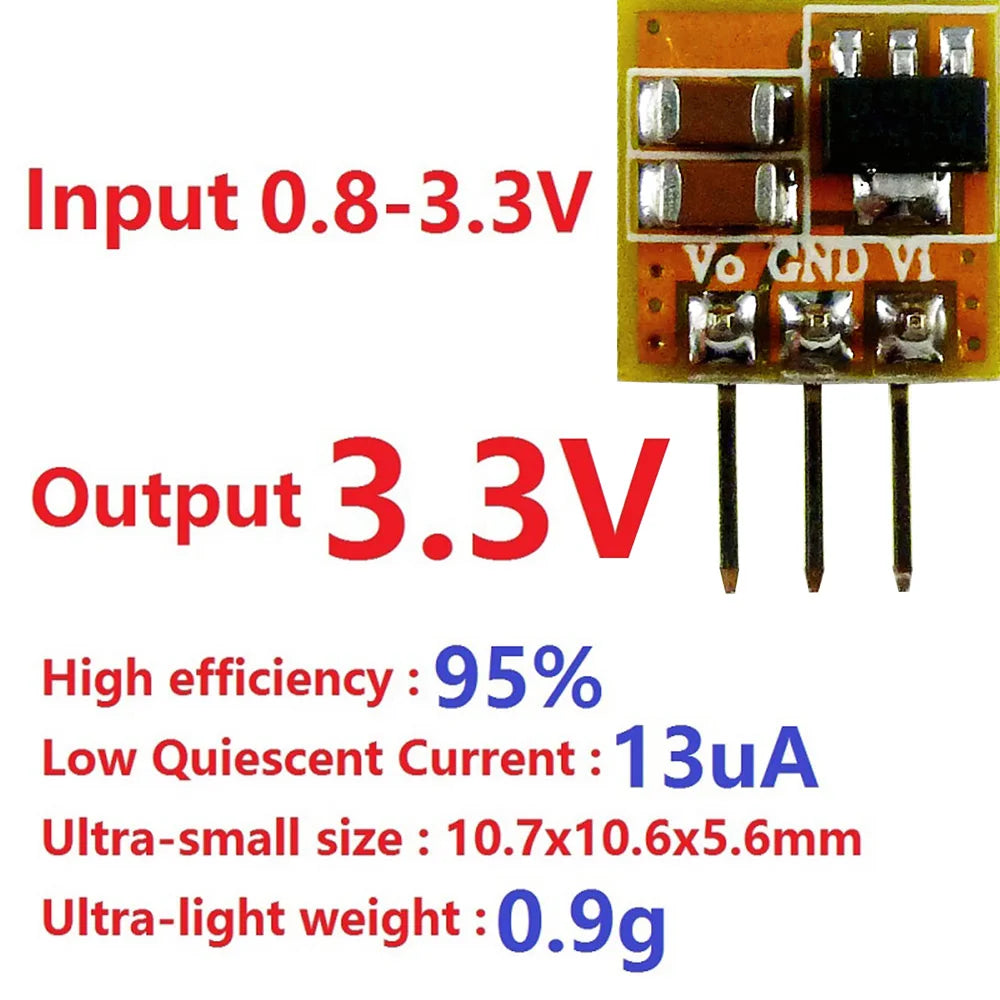

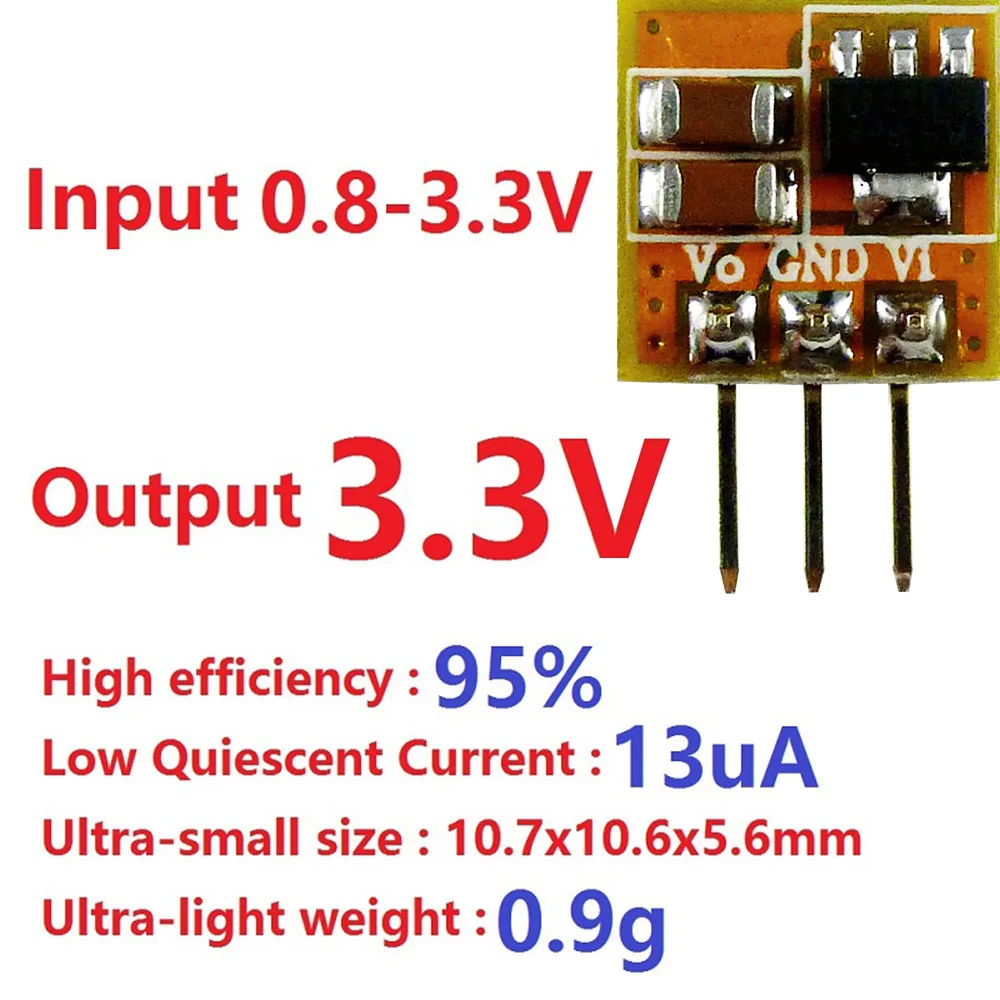

3.3V:
Input voltage DC 0.8 ~ 3.3V, output DC 3.3V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 75%-93%)
Low quiescent current: 13uA
Low ripple and low noise
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g

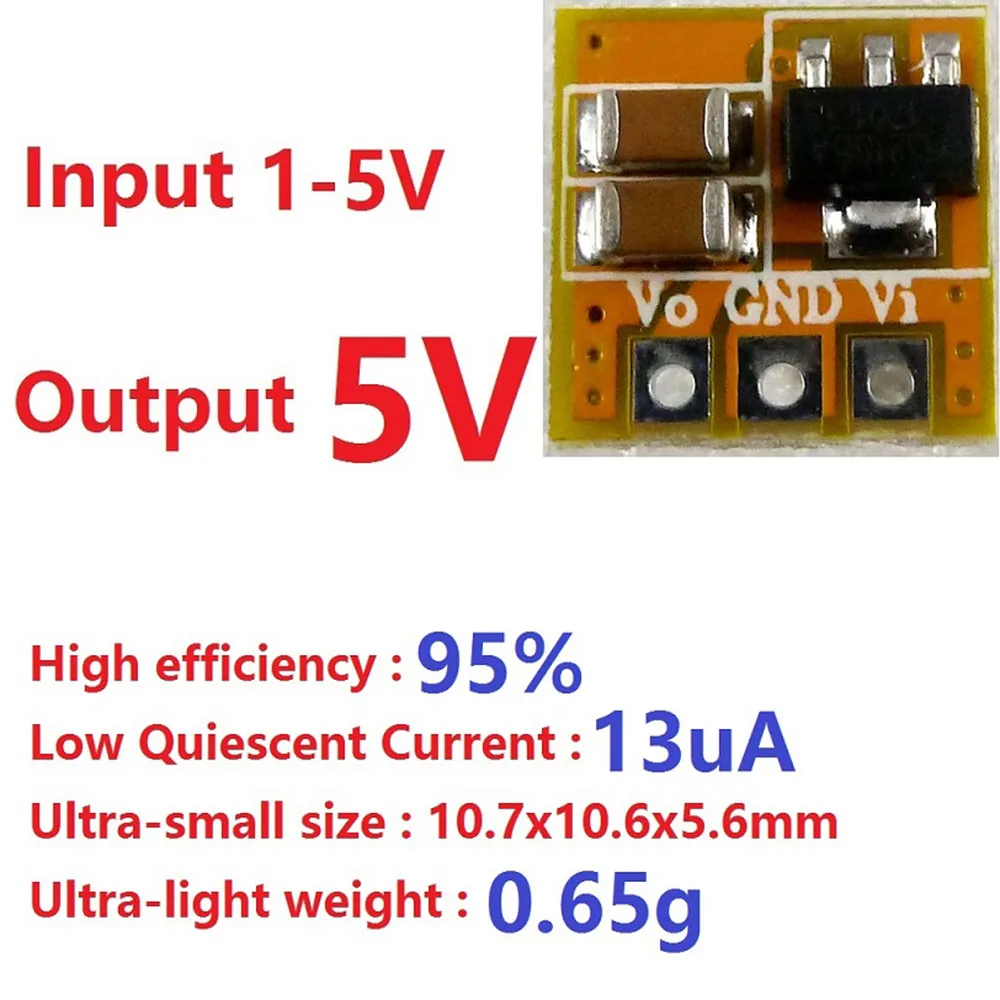

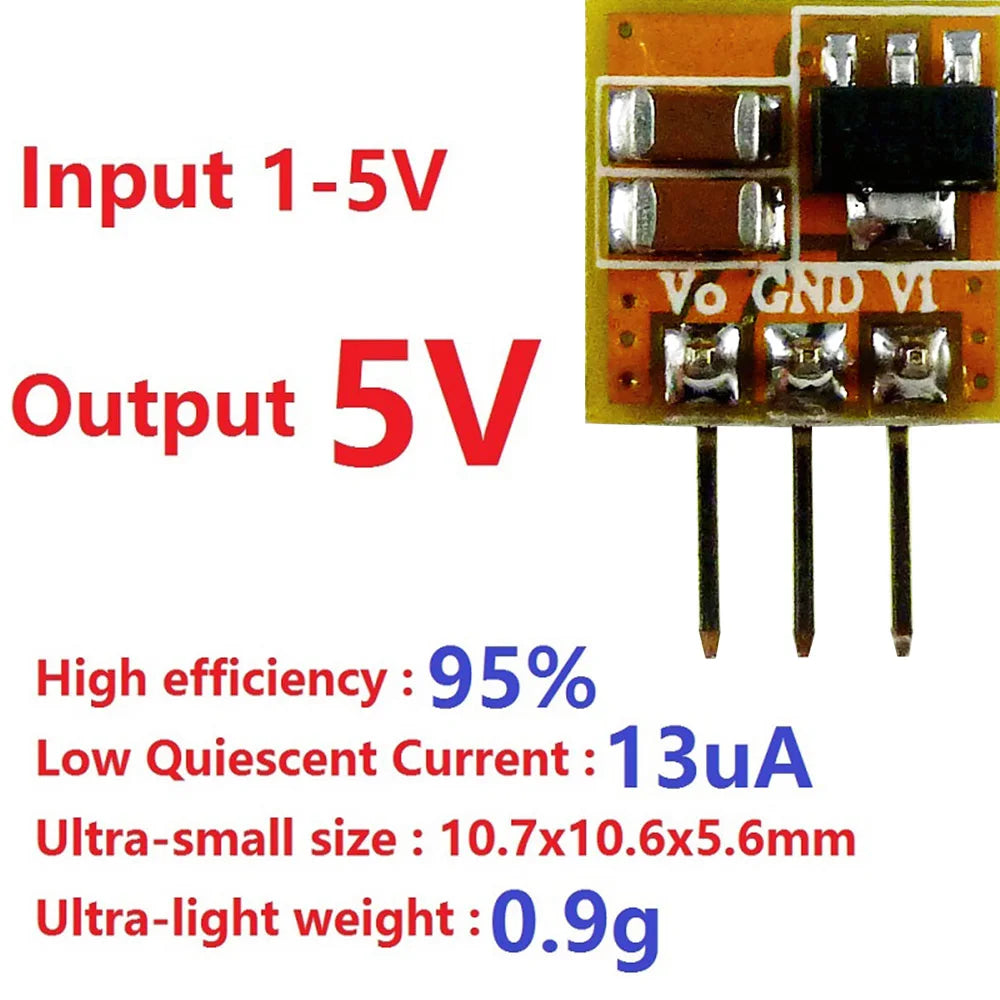

5V:
Input voltage DC 1～5V, output DC 5V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 76%-93%)
Low quiescent current: 13uA
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g
Notice:
This is a DC-DC voltage converter module, you must pay attention to:
1 The input voltage cannot be greater than the maximum input range
2 The output power cannot be greater than the maximum load for a long time
3 The input power must be greater than the output power, because the power consumption of the module itself
Q&A:
Q: Why is the output voltage less than the nominal voltage
A: The input power is too low. Test the input voltage with a multimeter, the input voltage is very low at this time
Application:
AA AAA dry battery powered equipment
Breadboard Power
Small power motor
camera, camcorder
electric toys
model airplane
LED lighting
Electronics DIY Kit
STM32 FPGA/CPLD PIC AVR board
Electronics DIY Kit
Wifi module, ESP8266, etc.
Package includes:
1* boost converter boost module
0.7-5V to 3V/3.3V/5V Boost Converter Module 95% Efficiency for AA/AAA Battery Motor Breadboard Power Supply With/Without Pin
$10.60
Sale price
$10.60
Regular price
$0.00
Description
SPECIFICATIONS
Application: Electric Toy
Brand Name: Gaqqee
Choice: yes
Condition: New
Dissipation Power: 0.7-5V to 3V/3.3V/5V Boost Converter Module
High-concerned chemical: none
Operating Temperature: 0-50C
Origin: Mainland China
Package: SMD
Quantity: 1
Supply Voltage: 0.7-5V to 3V/3.3V/5V
Type: Module
is_customized: Yes
semi_Choice: yes
Features:
1: Wide range of applications
2: Small size
3: Simple to use
4: High efficiency
5: With needle and without needle optional
Specification:
3V:
Input voltage DC 0.7 ~ 3V, output DC 3V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 77%-93%)
Low quiescent current: 13uA
Low ripple and low noise
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g
3.3V:
Input voltage DC 0.8 ~ 3.3V, output DC 3.3V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 75%-93%)
Low quiescent current: 13uA
Low ripple and low noise
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g
5V:
Input voltage DC 1～5V, output DC 5V±2%
DC DC boost converter module operating frequency 350KHZ.
High efficiency: 95% (usually 76%-93%)
Low quiescent current: 13uA
Ultra-small size (without pins): 10.7x10.6x5.6mm
Ultra-light weight: with Pin 0.9g, without Pin 0.65g
Notice:
This is a DC-DC voltage converter module, you must pay attention to:
1 The input voltage cannot be greater than the maximum input range
2 The output power cannot be greater than the maximum load for a long time
3 The input power must be greater than the output power, because the power consumption of the module itself
Q&A:
Q: Why is the output voltage less than the nominal voltage
A: The input power is too low. Test the input voltage with a multimeter, the input voltage is very low at this time
Application:
AA AAA dry battery powered equipment
Breadboard Power
Small power motor
camera, camcorder
electric toys
model airplane
LED lighting
Electronics DIY Kit
STM32 FPGA/CPLD PIC AVR board
Electronics DIY Kit
Wifi module, ESP8266, etc.
Package includes:
1* boost converter boost module
