SPECIFICATIONS

Band Width: Details page

Battery Included: no

Brand Name: Gaqqee

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: Details page

Display Size: 2.9 Inches & Under

GAQQEE Model: DS0138

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: 0.96-inch DOS LCD Oscilloscope Kit

Origin: Mainland China

Real Time Sampling Rate: Details page

Record Length: Details page

Semi-finishedproduct: Yes

Supply Voltage: DC 5V (micro USB)

Voltage Range: 0-30V (requires LSB adjustment)

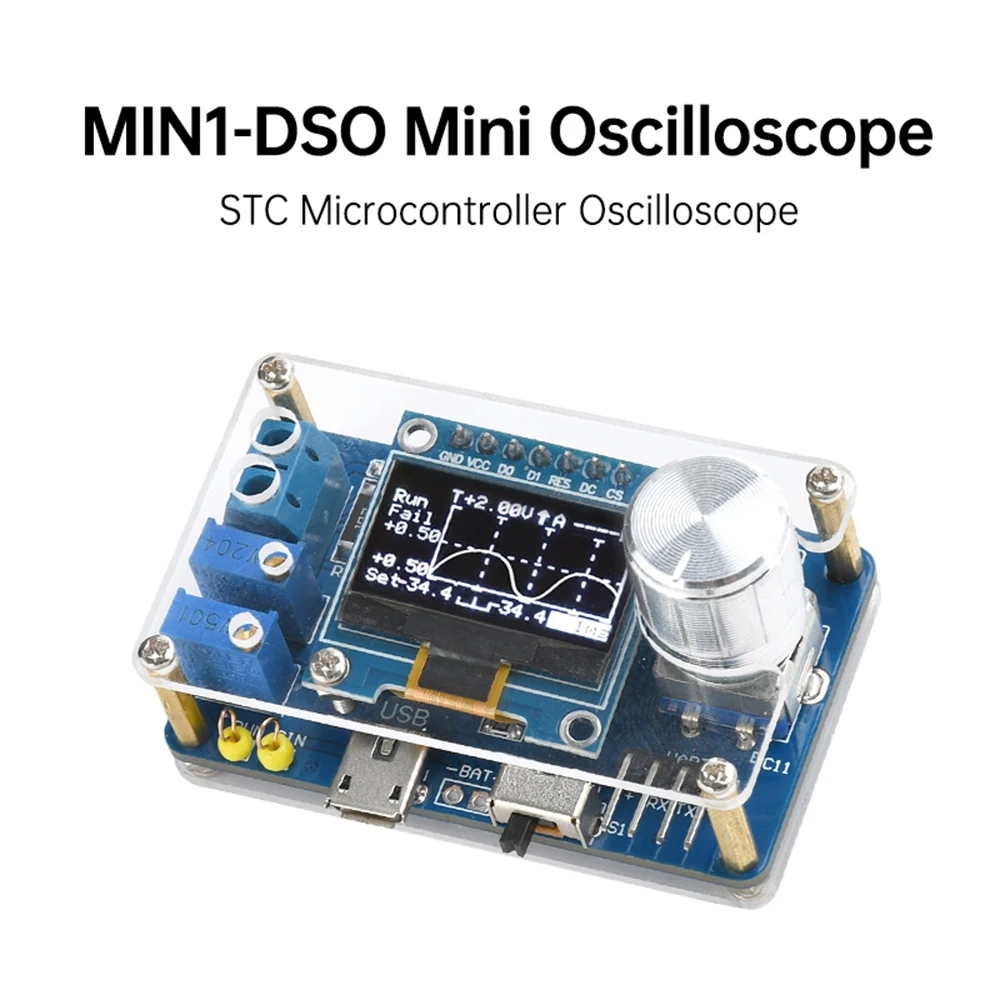

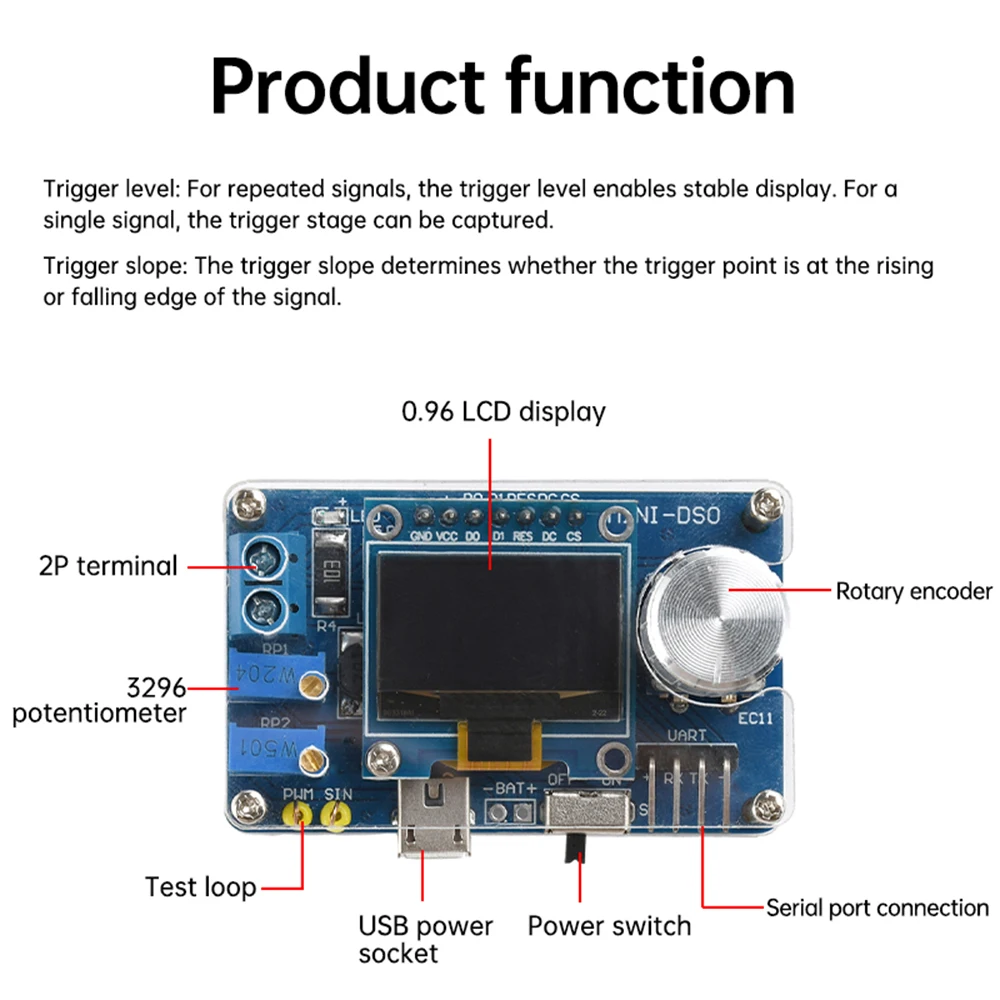

Product Features:

1. Indicator light: Typically illuminates to indicate sampling is in progress

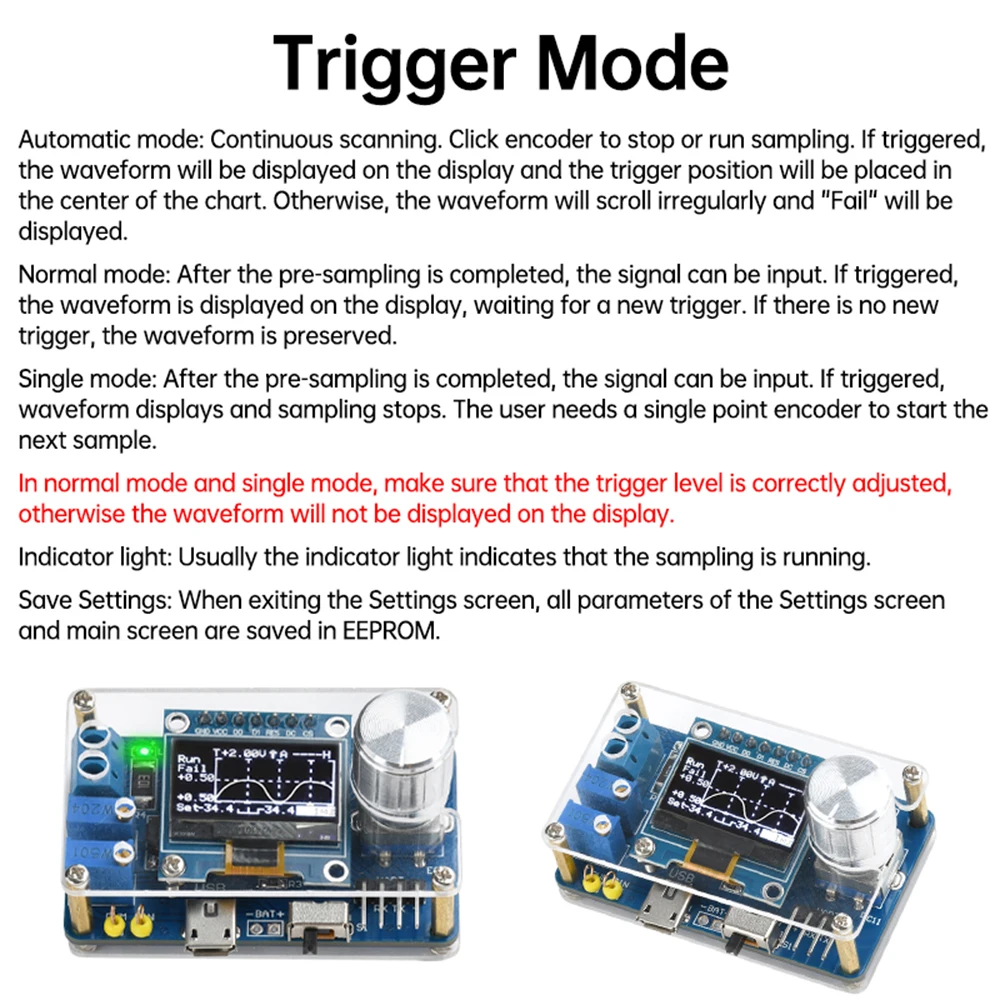

2. Three trigger modes: Auto mode, Normal mode, Single mode

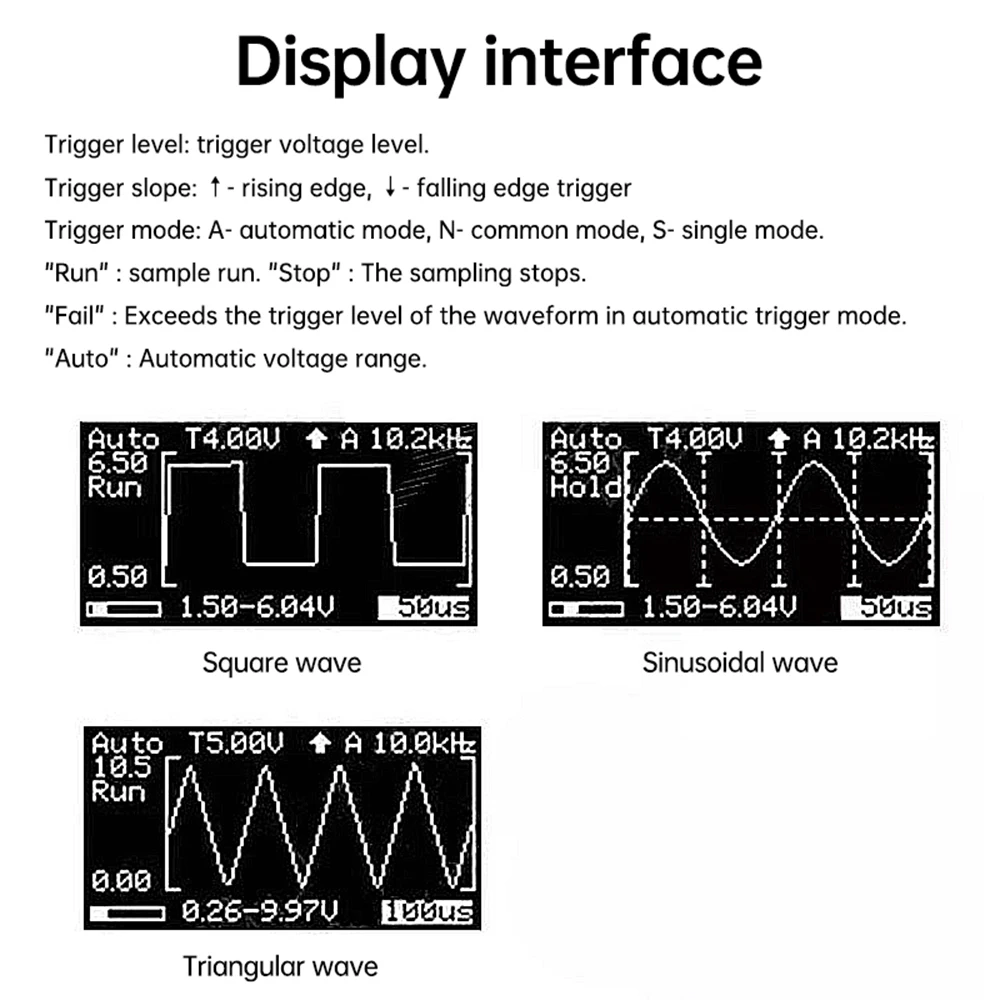

3. Trigger slope: Determines whether the trigger point occurs on the rising or falling edge of the signal

4. Trigger Level: For repetitive signals, the trigger level ensures stable display. For single-shot signals, the trigger level captures the event.

5. Save Settings: Upon exiting the settings menu, all parameters from both the settings and main screens are stored in EEPROM.

6. Waveform Generator: PWM (Pulse Width Modulation) and SIN (Sine Wave) generators. Adjusting RP1 and RP2 alters amplitude respectively.

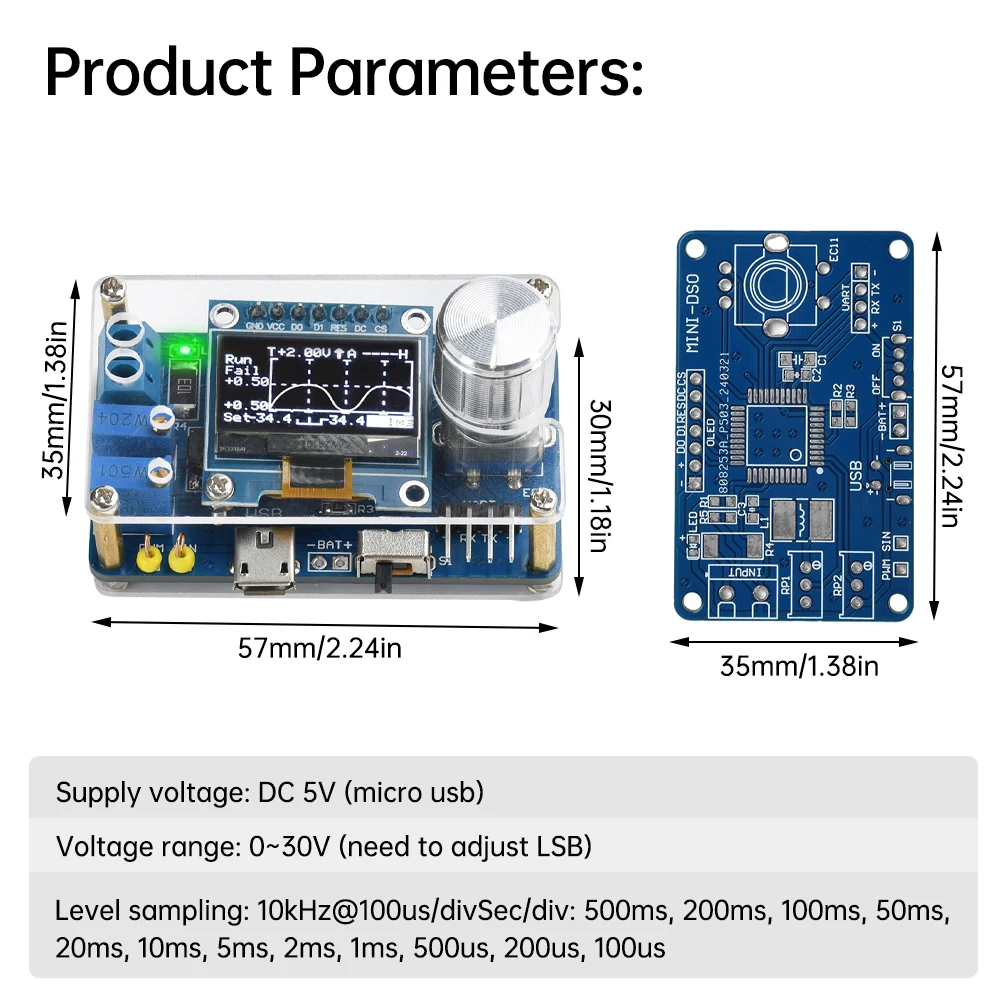

Product Specifications:

Supply Voltage: DC 5V (micro USB)

Voltage Range: 0–30V (requires LSB adjustment)

Sampling Rate: 10kHz @ 100μs/div

Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,

10ms, 5ms, 2ms, 1ms, 500μs, 200μs, 100μs

PCB Dimensions: 57×35mm

Finished Unit Dimensions: 57×35×30mm

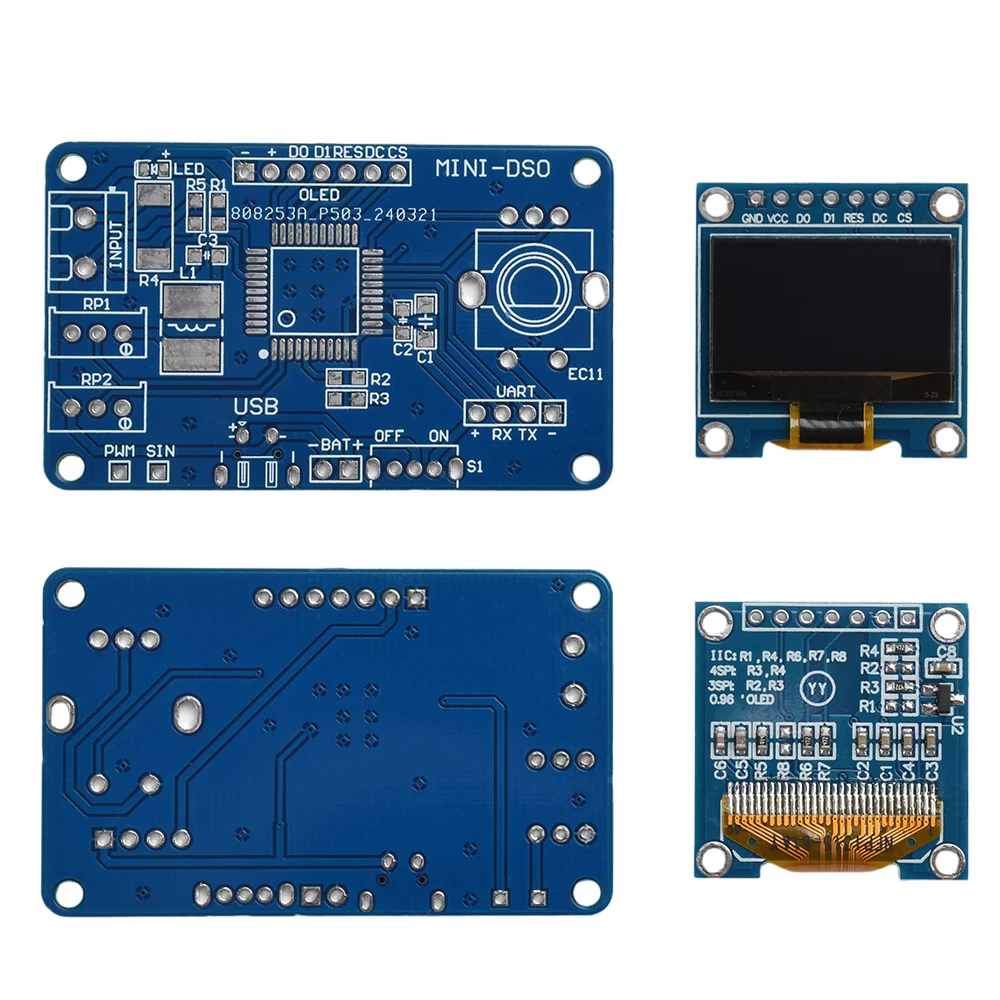

Packing List:

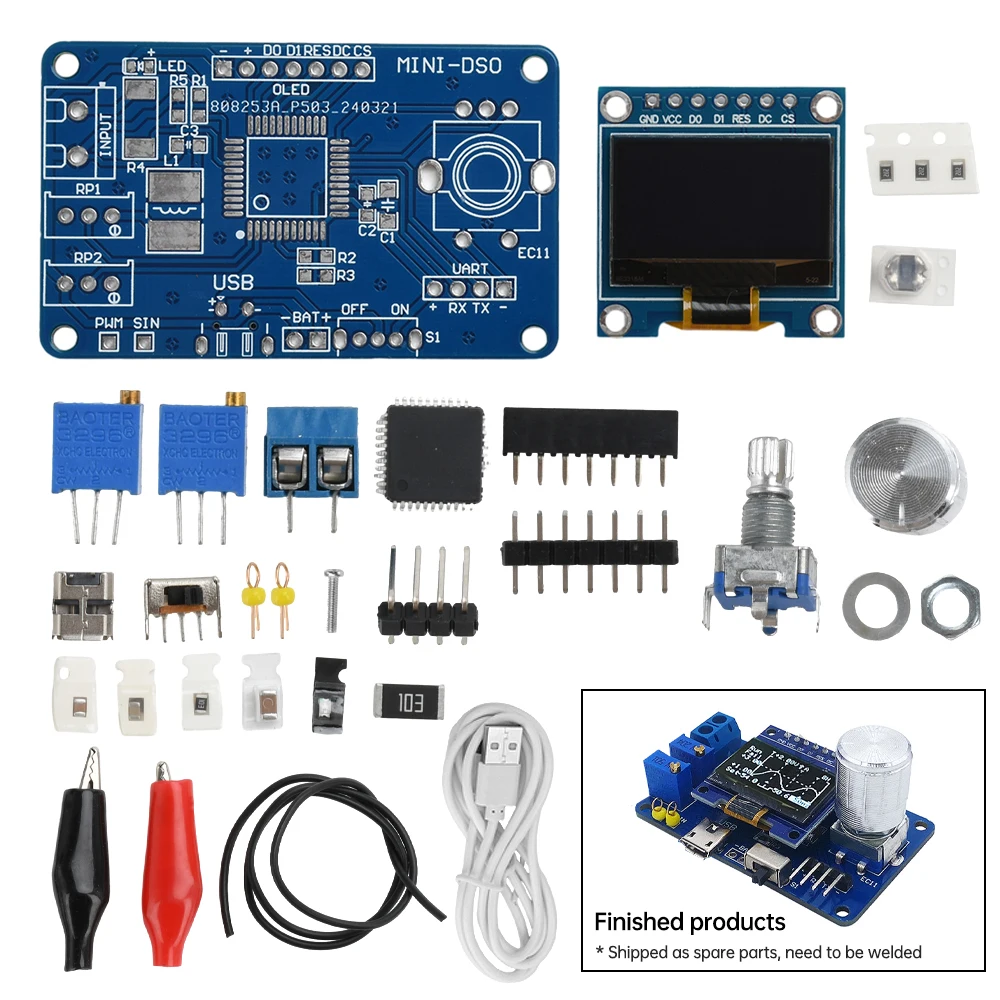

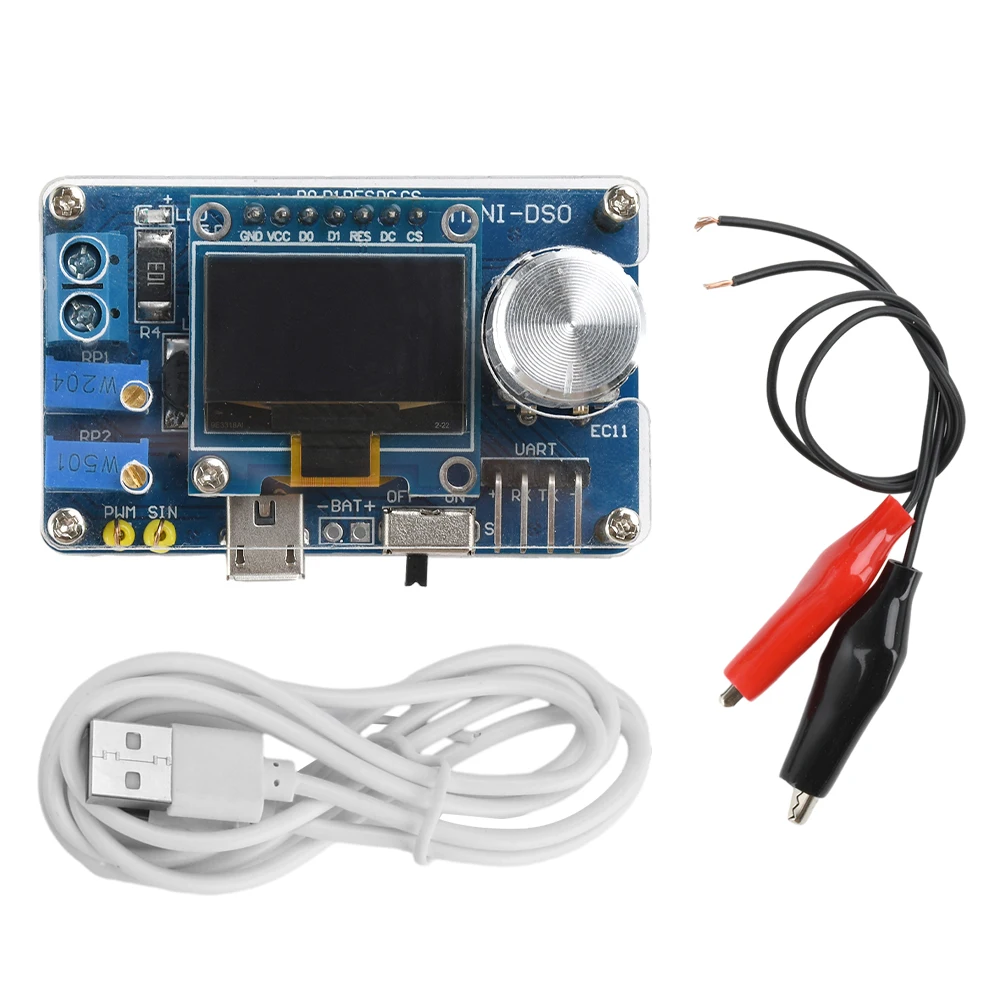

DIY Kit Components ×1
