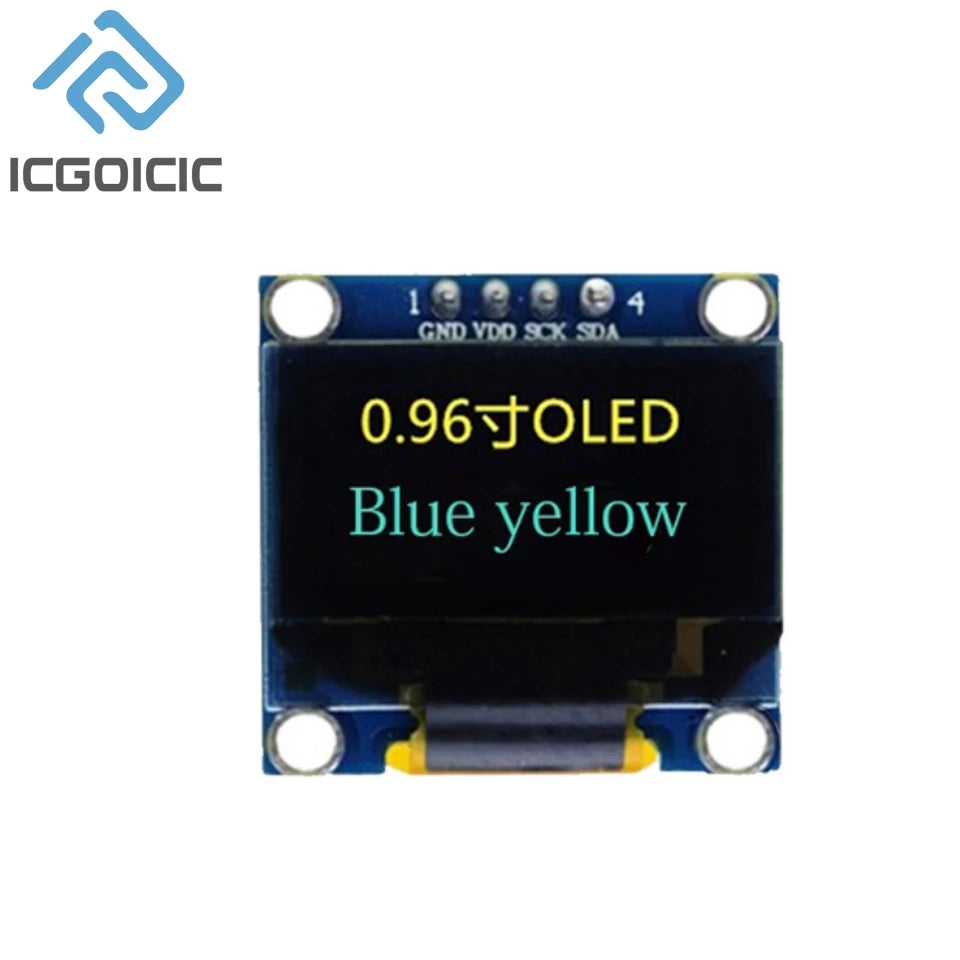

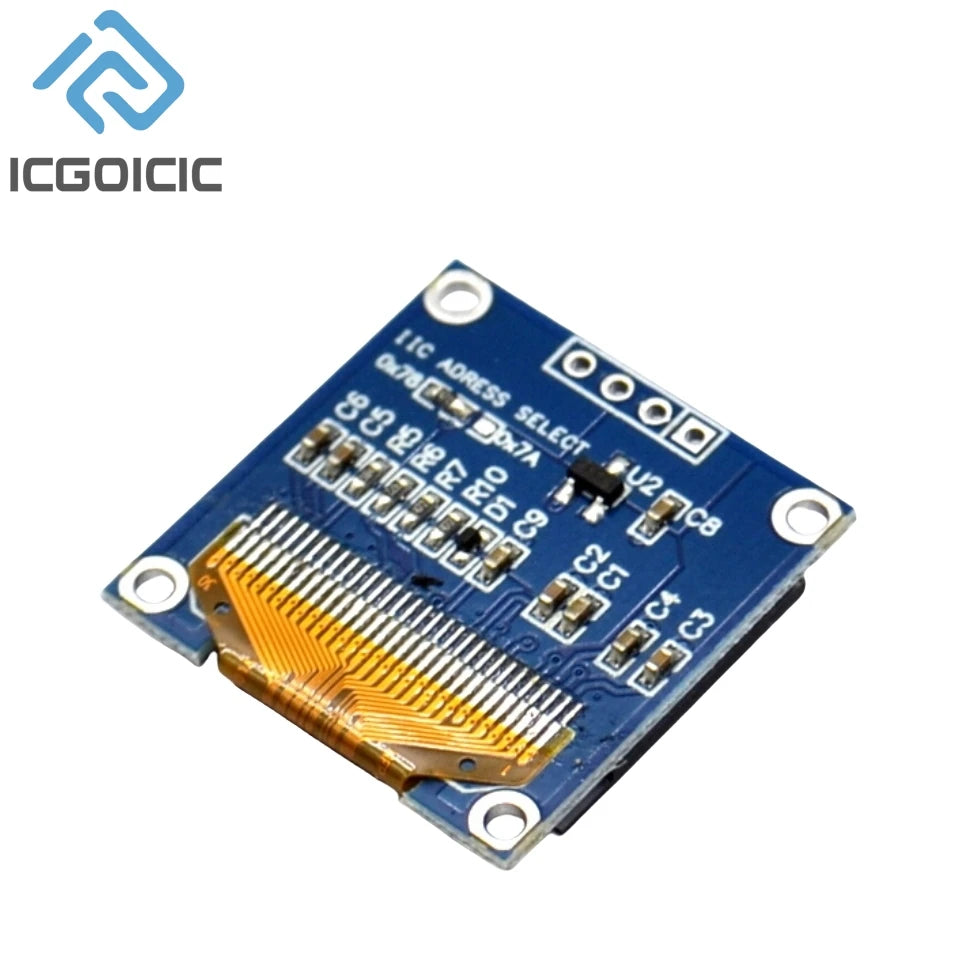

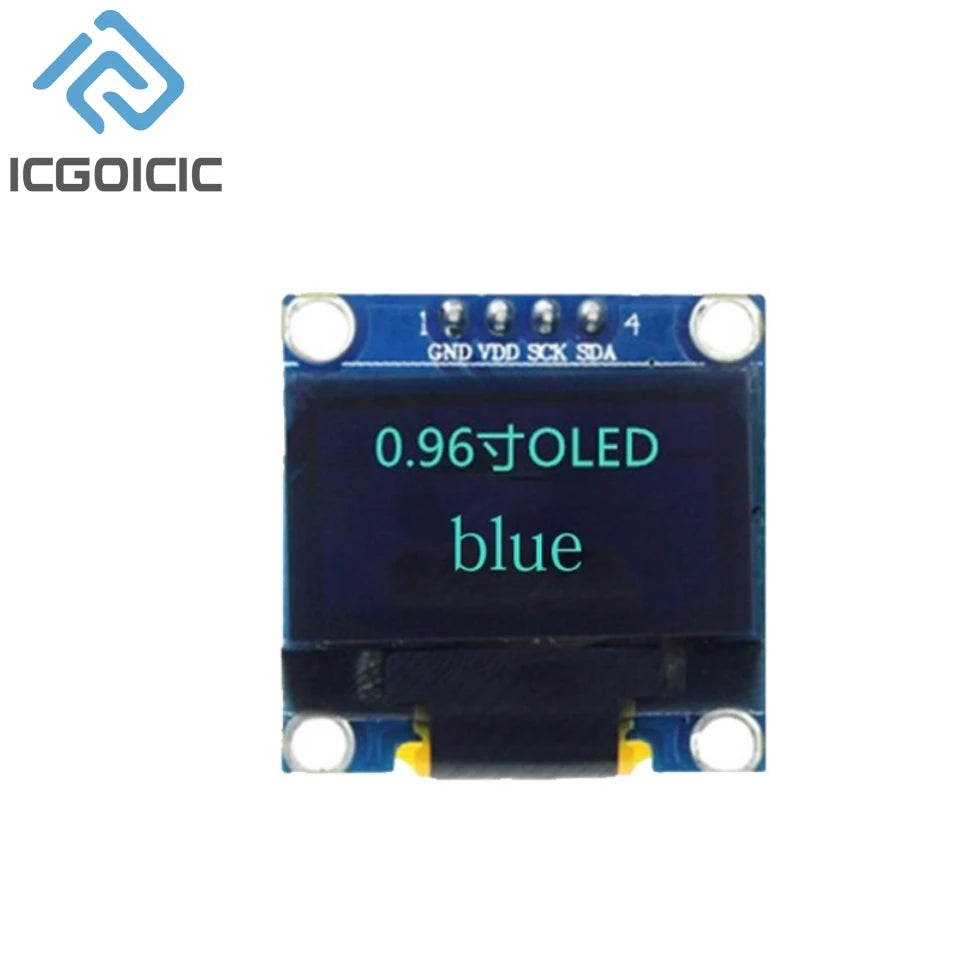

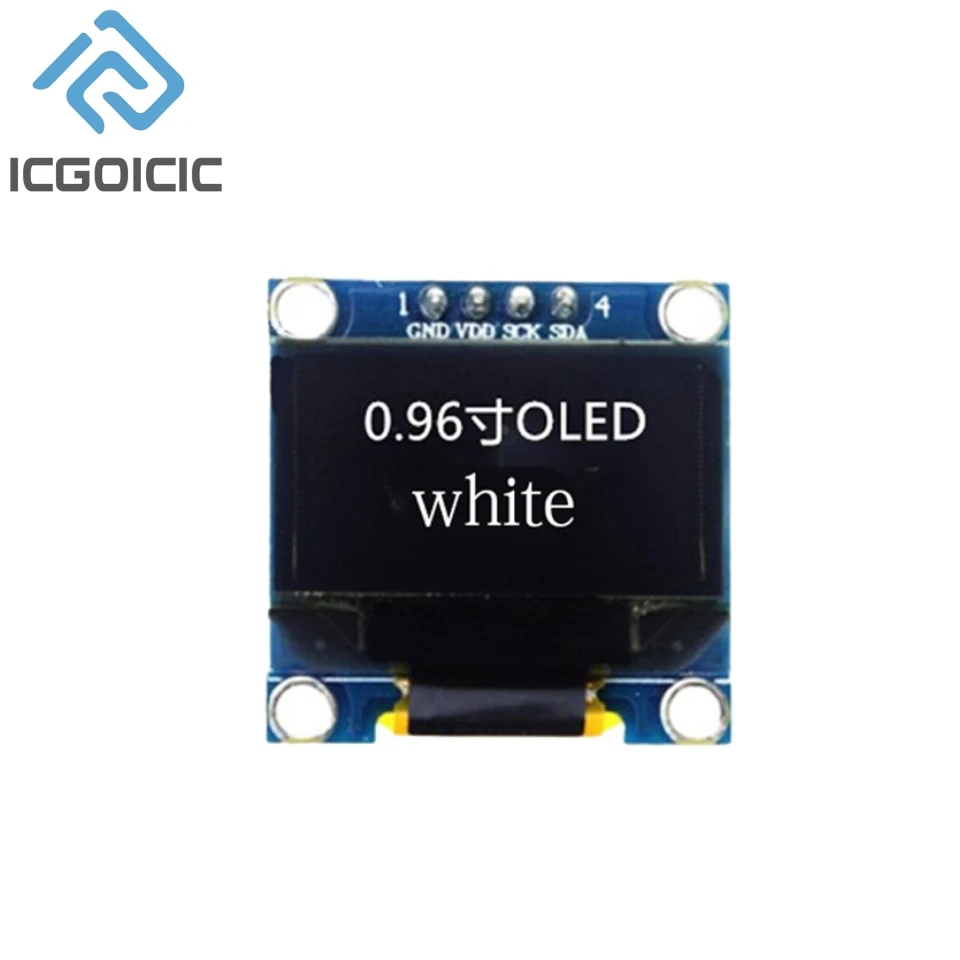

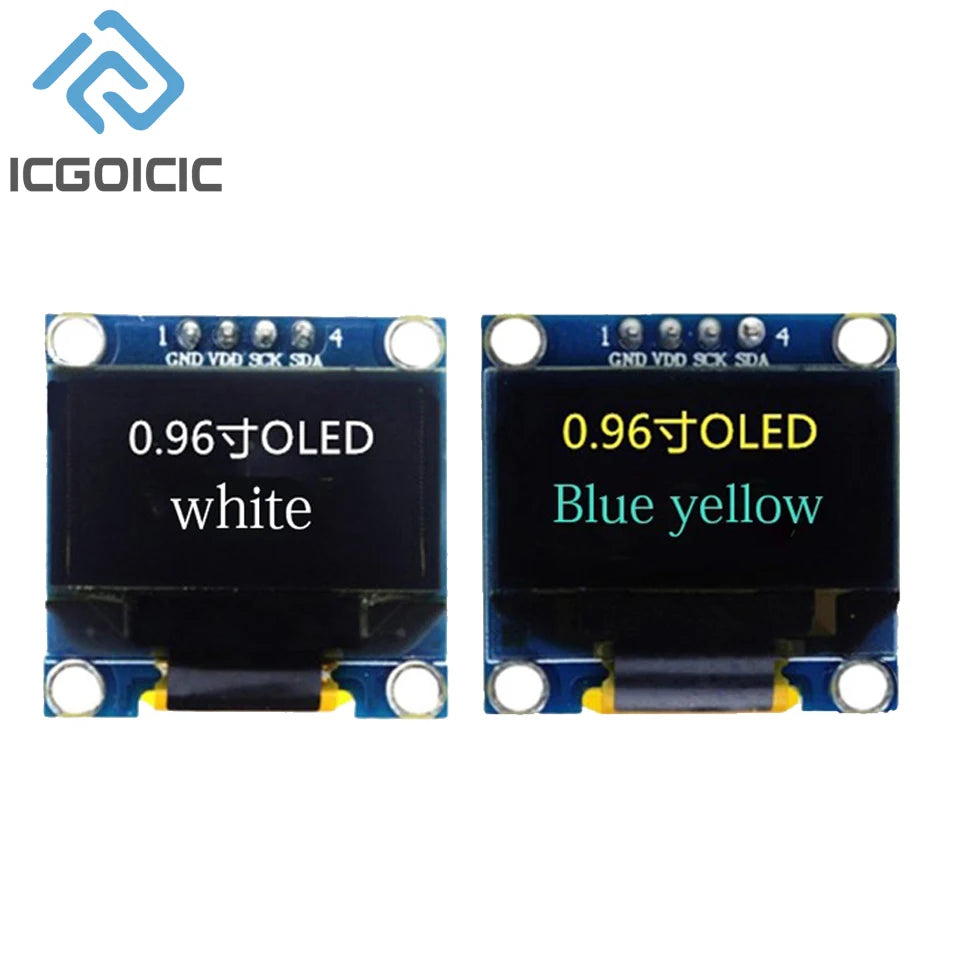

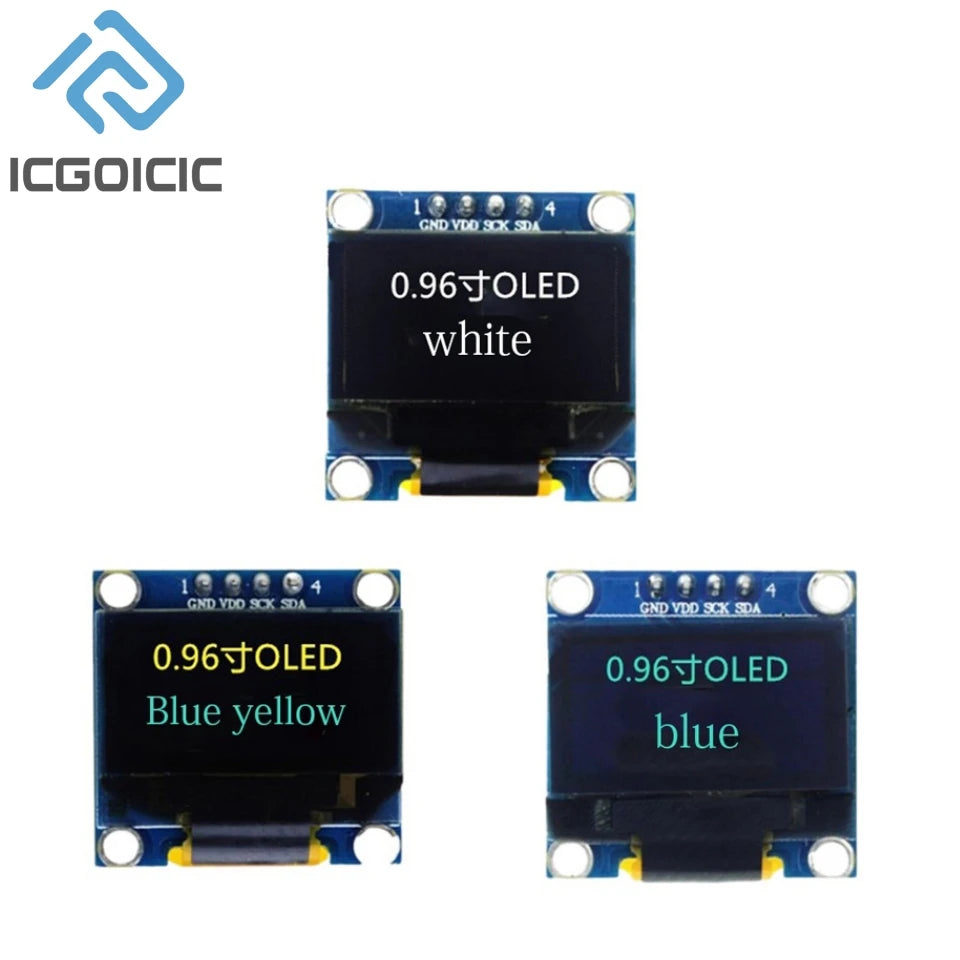

0.96 Inch OLED Display Module 128x64 Pixel I2C SSD1306 Luminous OLED Screen Board Compatible With Arduino Raspberry Pi ESP32
WHITE
$34.79
Sale price
$34.79
Regular price
$0.00
Skip to product information
0.96 Inch OLED Display Module 128x64 Pixel I2C SSD1306 Luminous OLED Screen Board Compatible With Arduino Raspberry Pi ESP32
$34.79
Sale price
$34.79
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: ICGOICIC
Choice: yes
Display Mode: 12864
High-concerned chemical: none
Model Number: 0.96 Inch OLED SSD1306
Origin: Mainland China
Resolution: 128*64
Product parameter
Driver chip: SSD1306
Supported interface: I2CIIC
Resolution: 128x64
Display color: white/blue/yellow and blue
Dimensions: 27.5x27.8(mm)
Glass size: 26.7x19.26x1.4(mm)
Display area: 21.74(W)x10.864(mm)
Point spacing: 0.17x0.17(mm)
Point size: 0.15x0.15(mm)
Pin number: 4 pins
Power consumption: The normal display power consumption is 21ma-28max
Working current: The current is about 20ma when working normally and 20ua when hibernating
Operating temperature: -30℃~70℃
Storage temperature: -40℃~80℃
Operating voltage: 5V/3.3V
