SPECIFICATIONS

Brand Name: NONE

Choice: yes

Display Mode: 128x64

High-concerned chemical: none

Origin: Mainland China

Resolution: 128*64

Type: OLED

is_customized: Yes

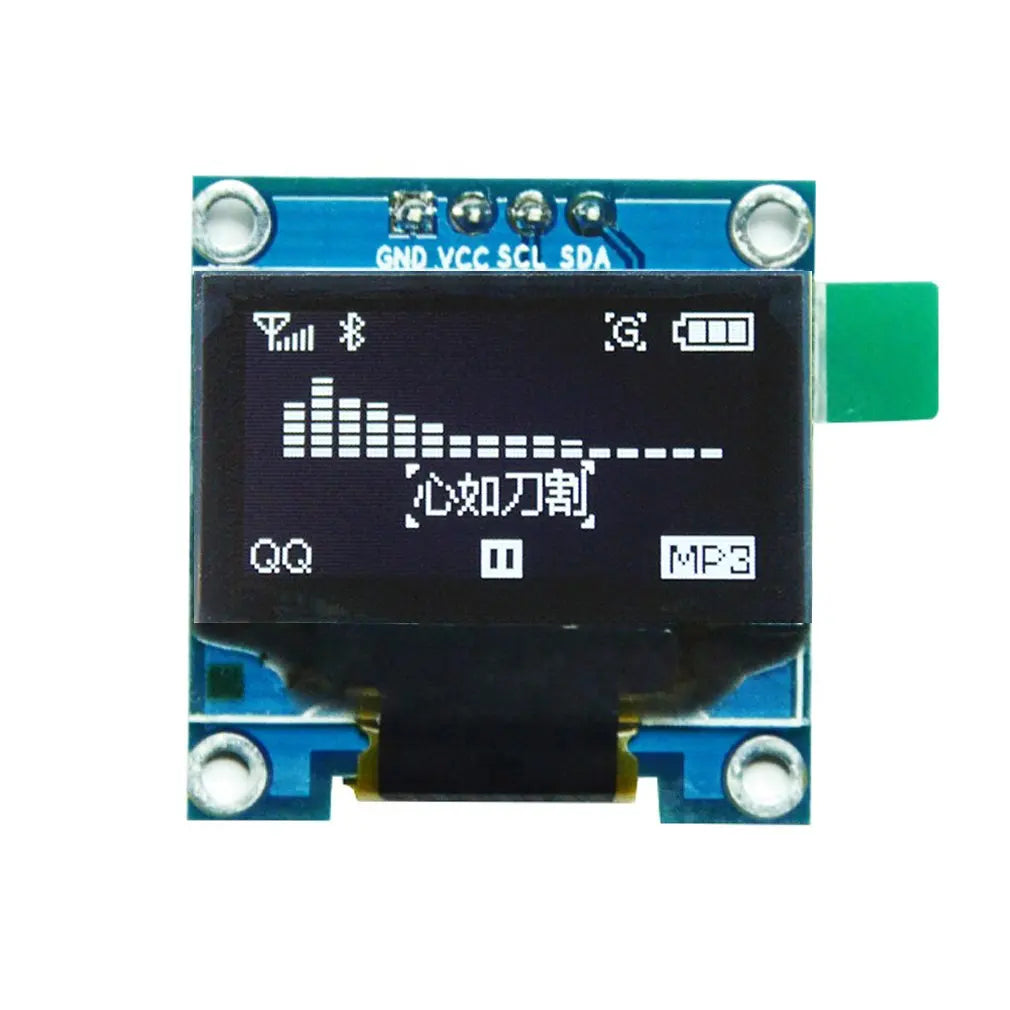

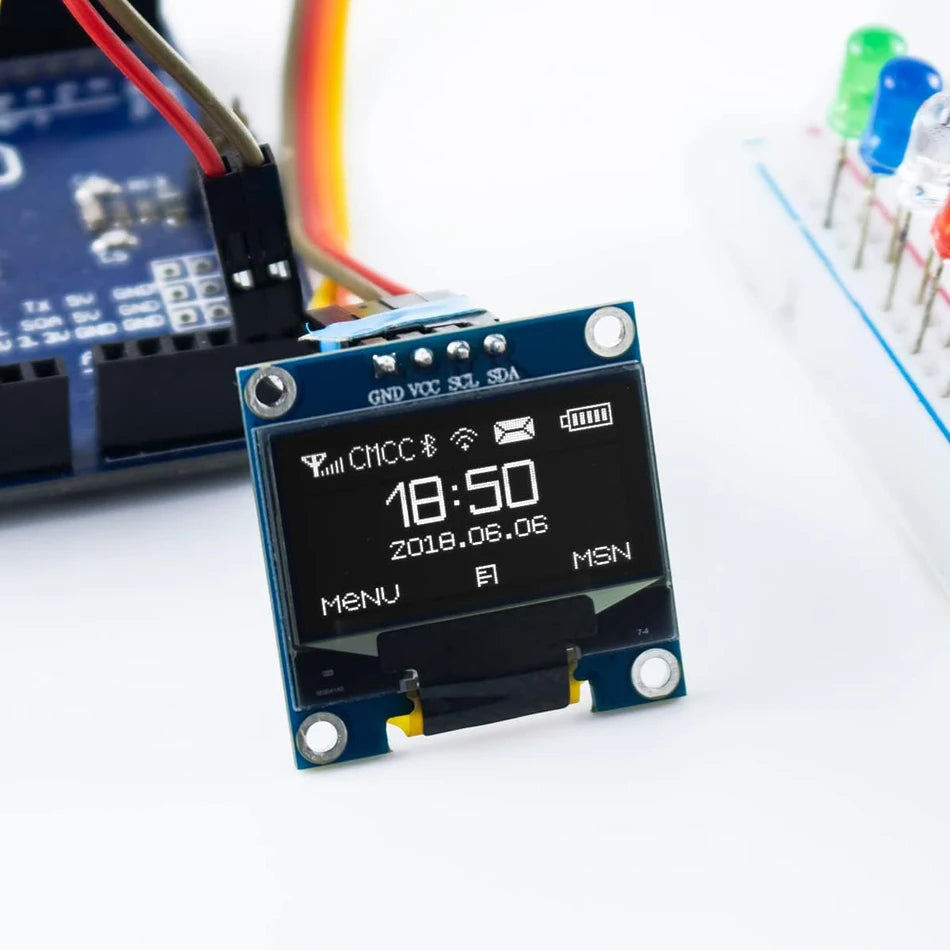

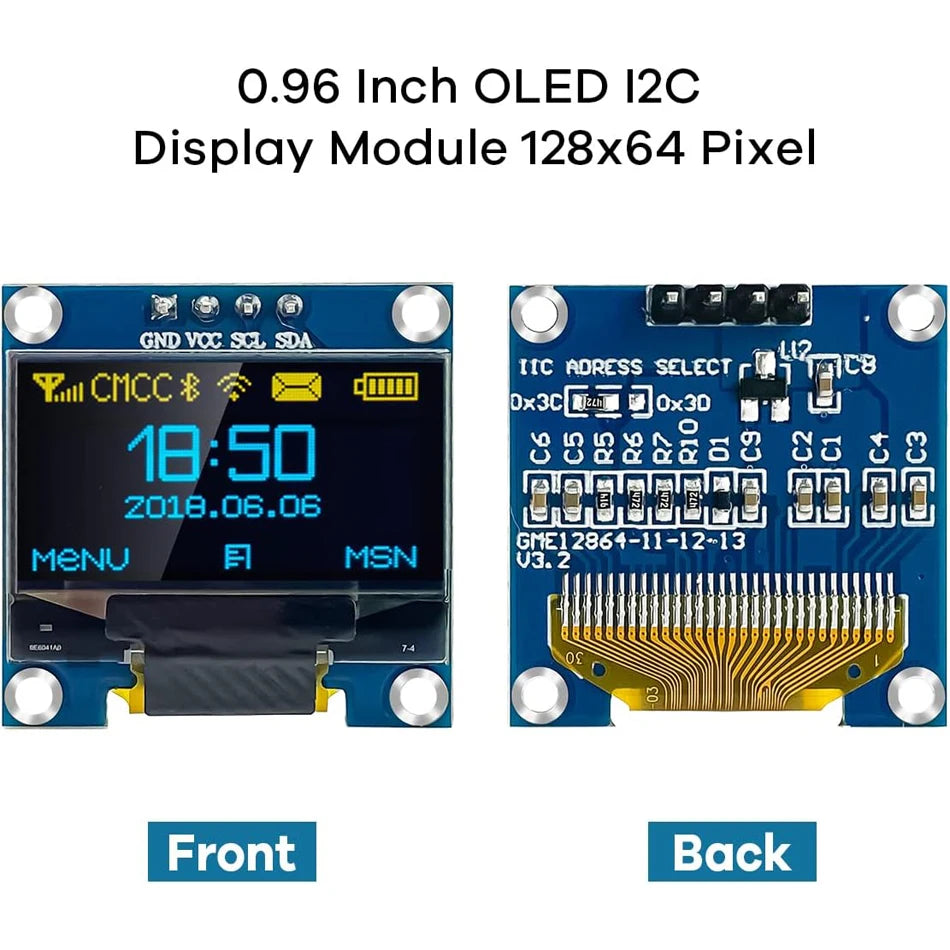

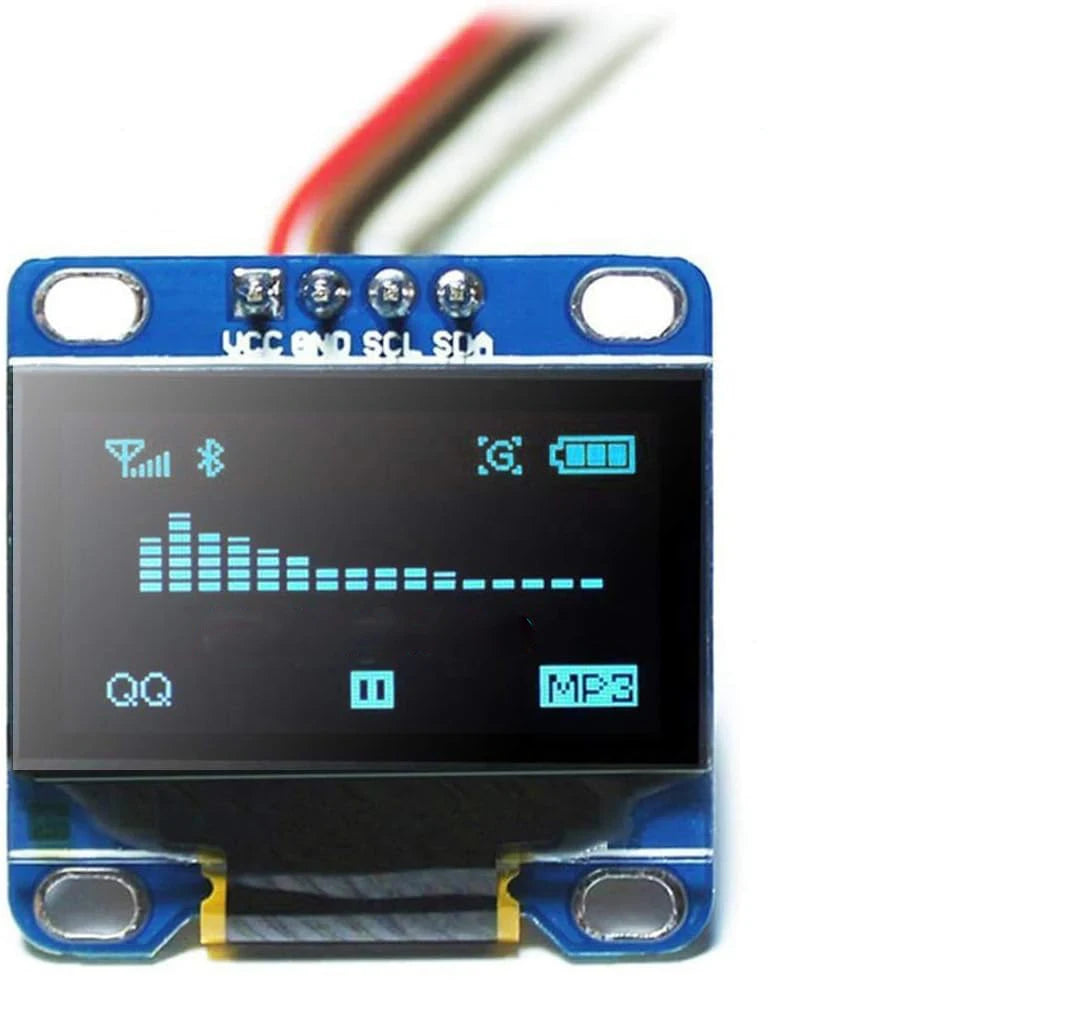

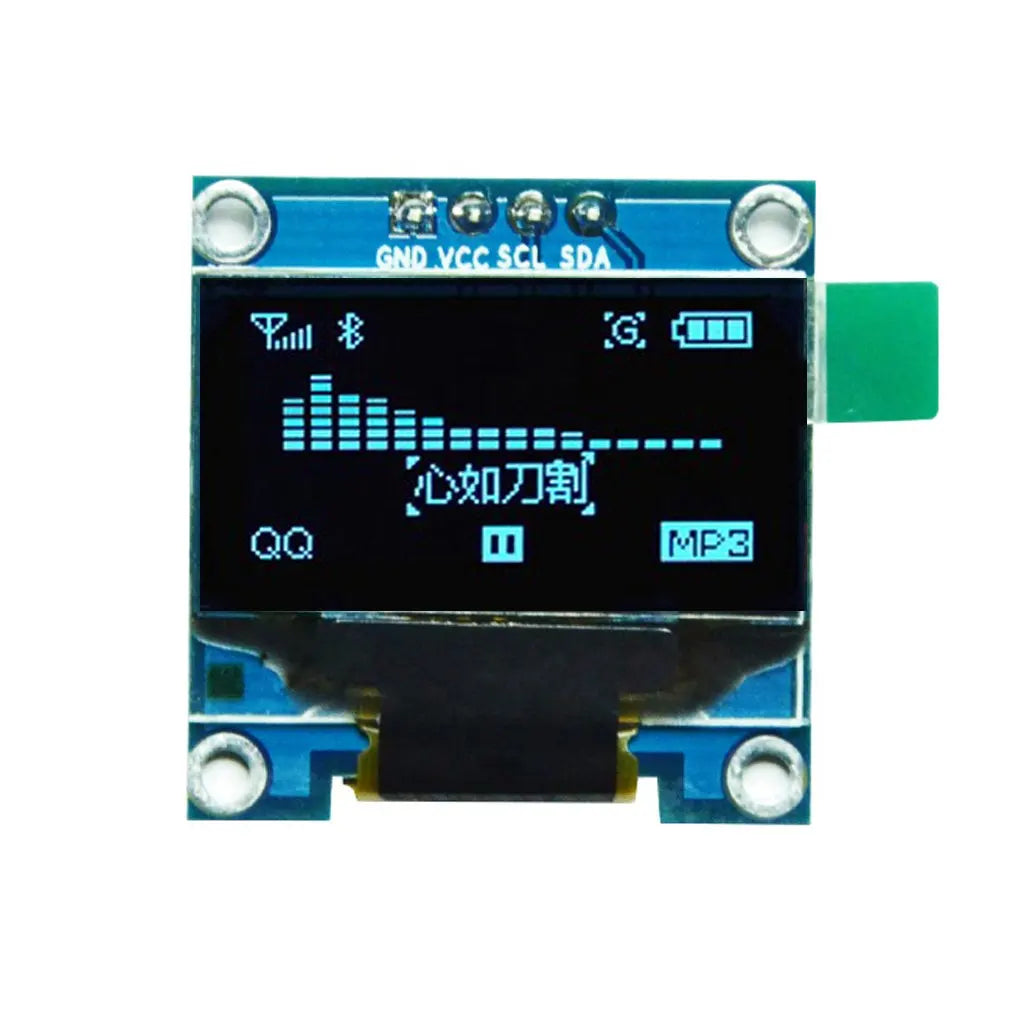

White/blue/blue yellow 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi

Features:

• 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W

• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports

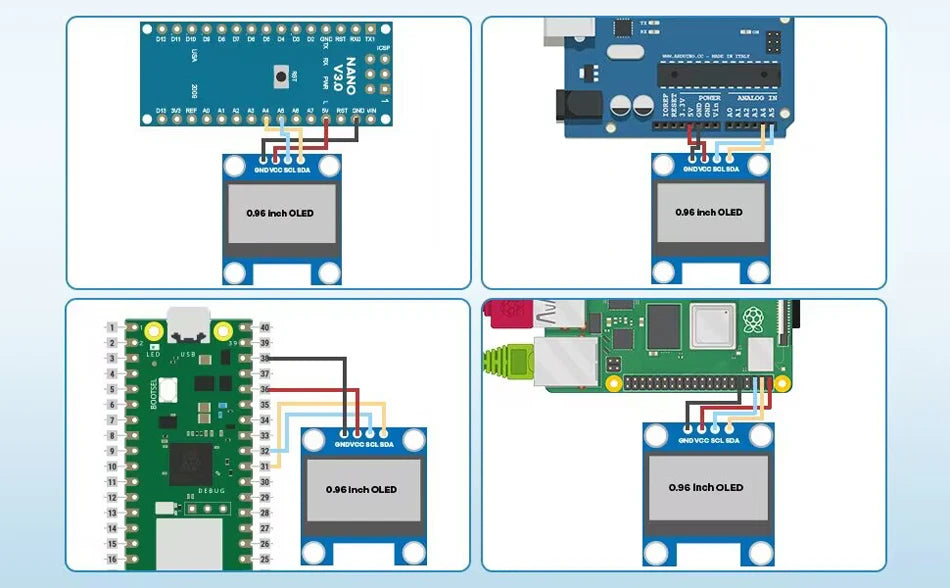

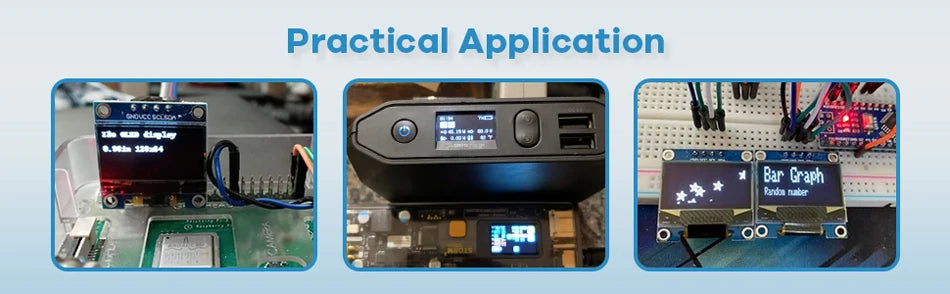

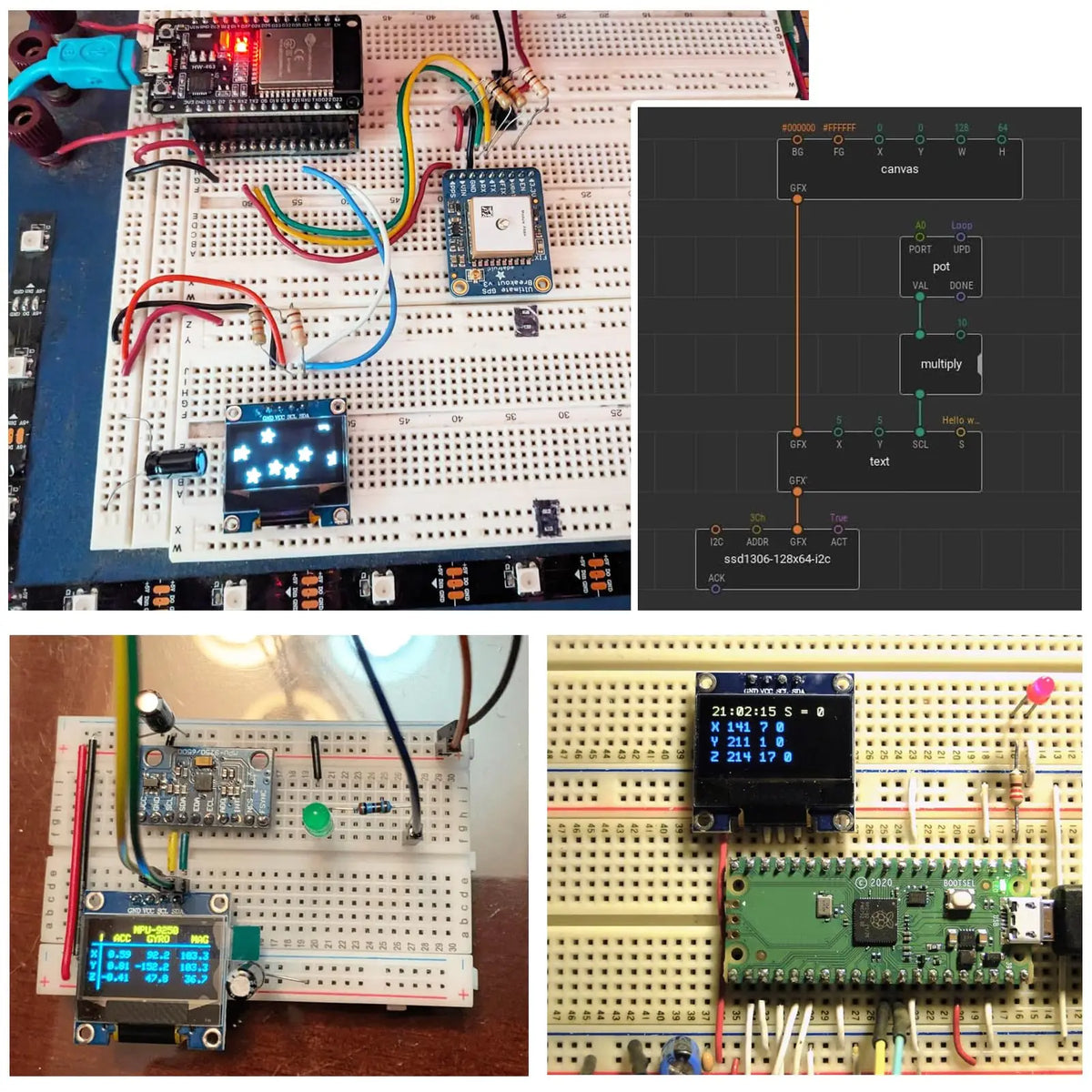

• It compatibles with Arduino Nano, R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.

• No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts

• There are no fonts embedded in the OLED controller, users can create fonts through font generation software.

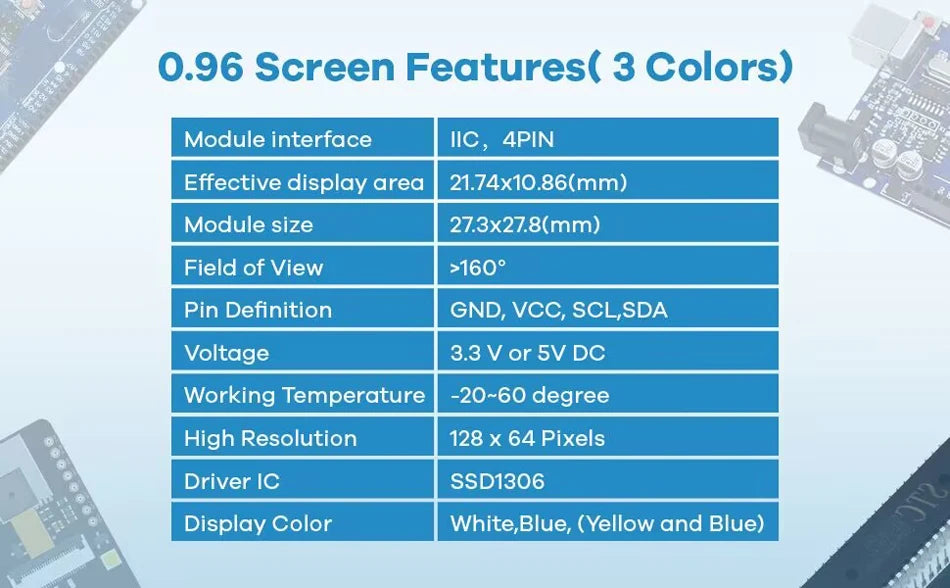

Specification:

• OLED self-luminous, no backlight

• High resolution: 128x64 (same resolution as 12864, high PPI)

• Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)

• Ultra-low power consumption: normal display 0.06w (far lower than TFT display)

• Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

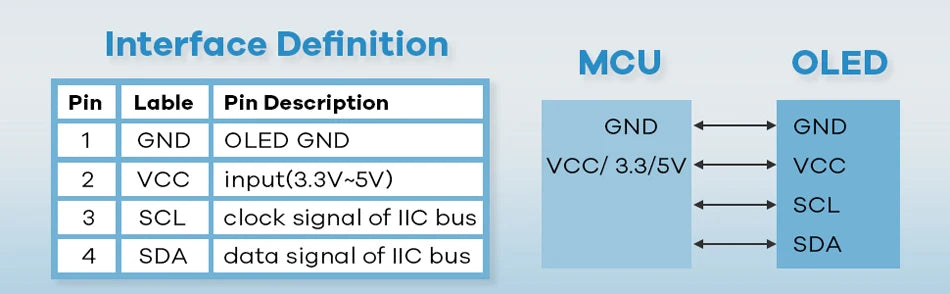

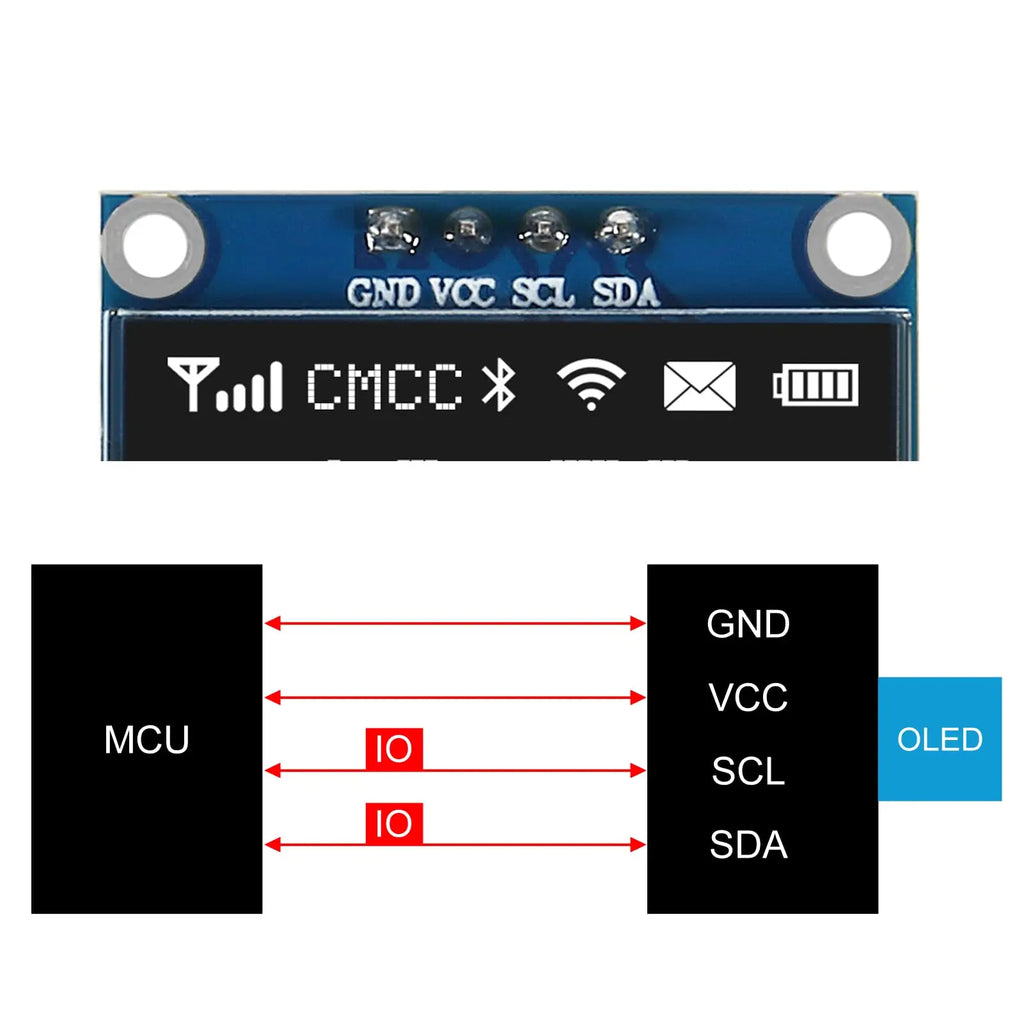

• The IIC interface only needs 2 IOs to light up easily

• Military-grade process standards, long-term stable work

• Provide rich multi-platform routines and provide underlying driver technical support

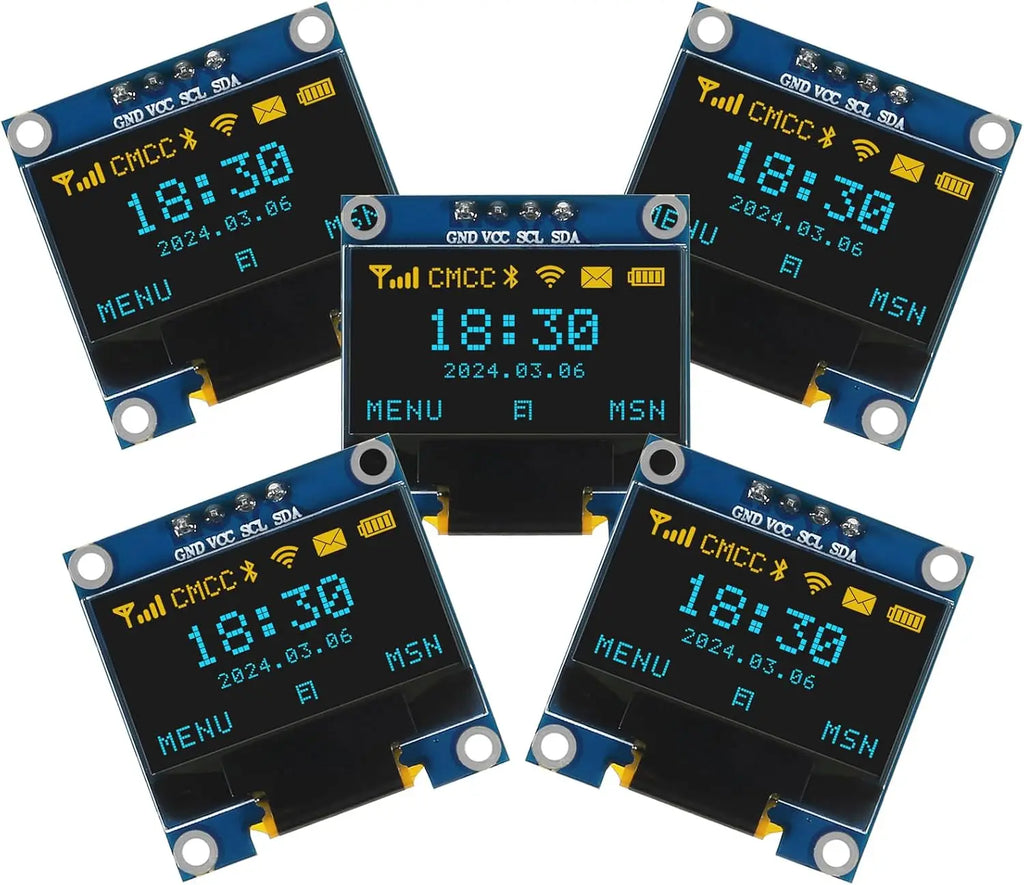

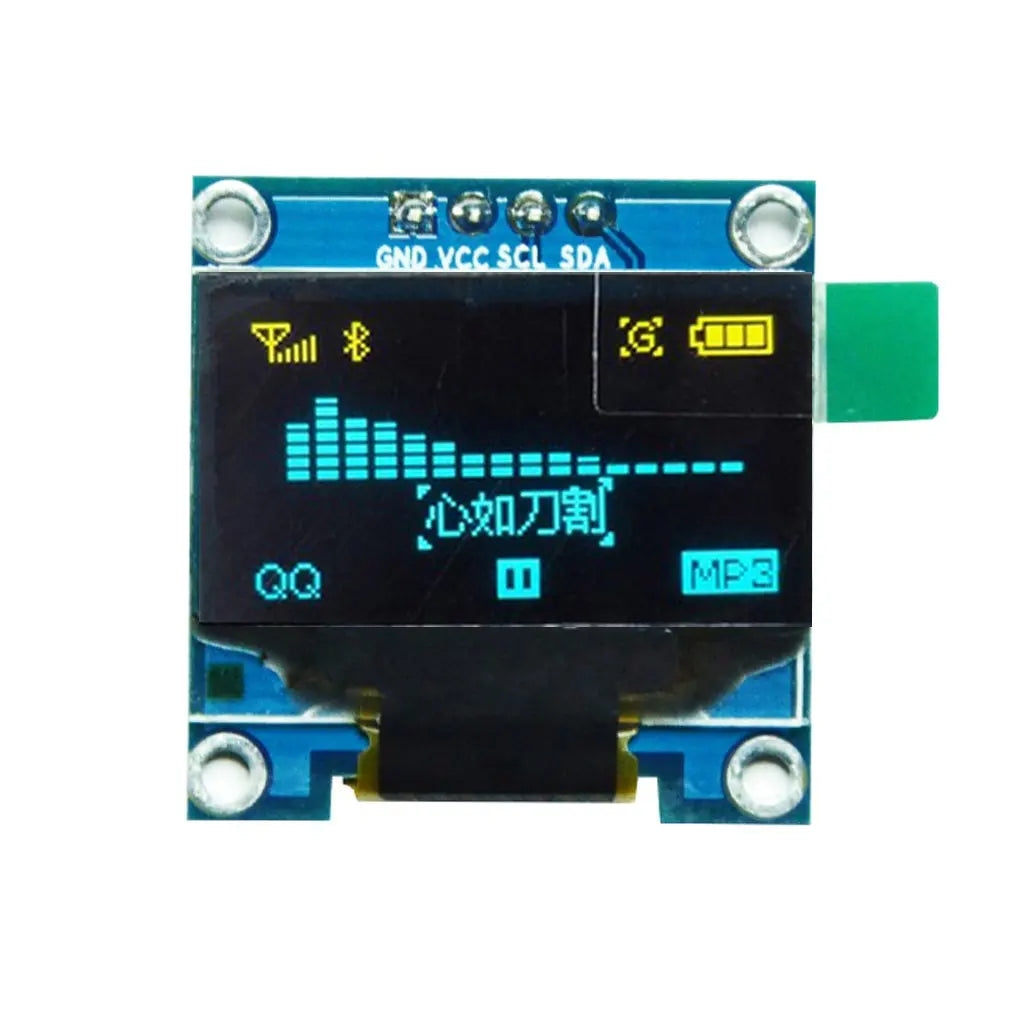

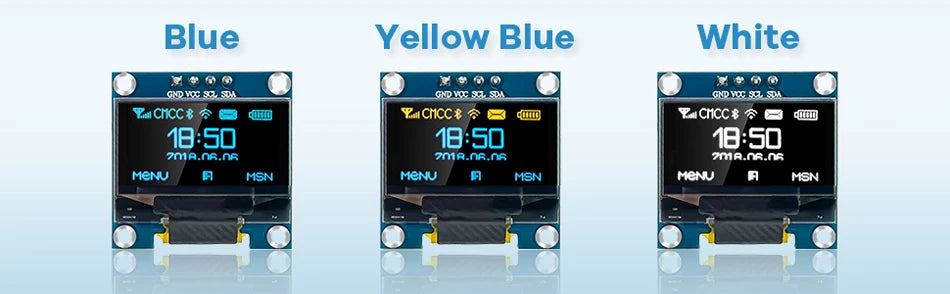

• Yellow blue, white, blue three color display scheme optional

the GND AND VCC begin pin will send randomly

Package include :

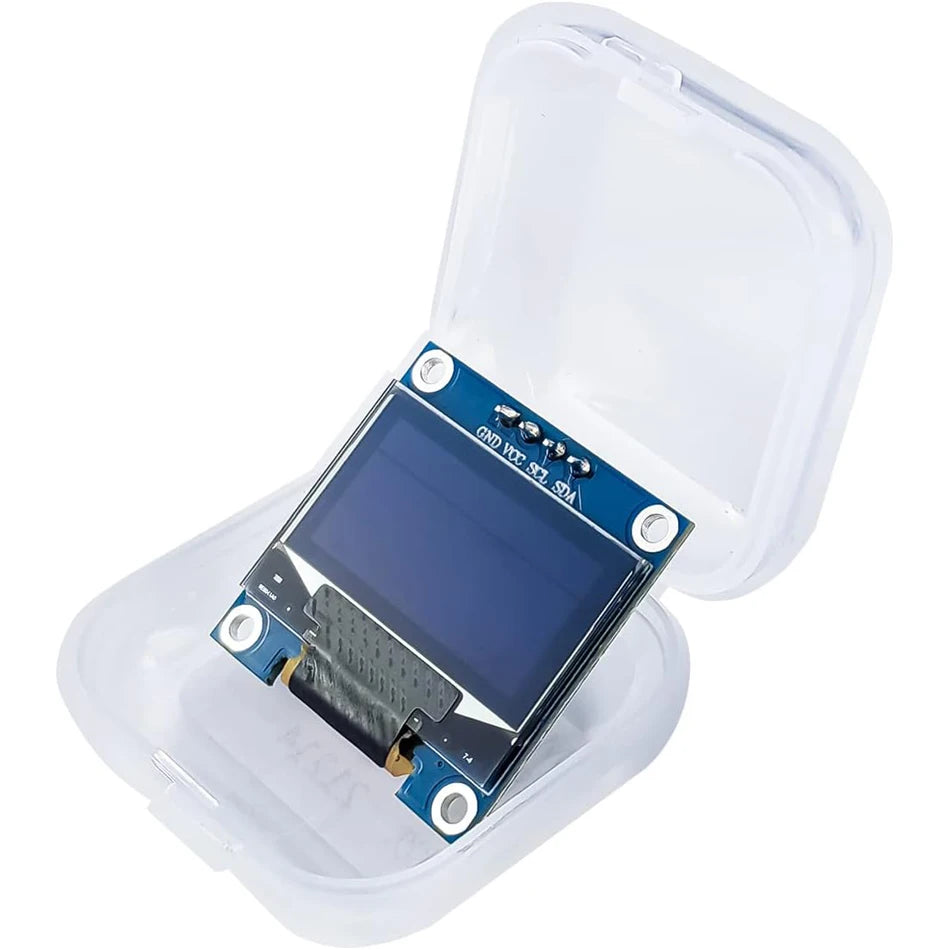

• 1 x 0.96 oled module(with protective box) Yellow / blue / white, blue

1. Key away from Fire

2. Due to includeing small parts, please keep away from Children under Three.

3. Please leave 5 star feedback if you're satisfied with our products and service, we will appreciate it

4. If the products you received was damaged or any more question, please feel free to contact us.
