SPECIFICATIONS

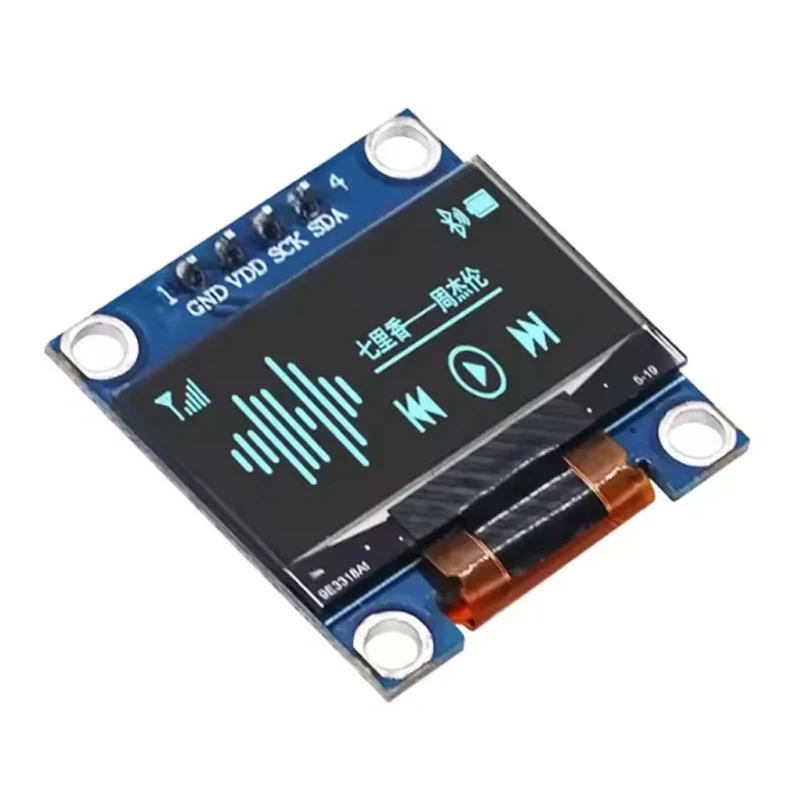

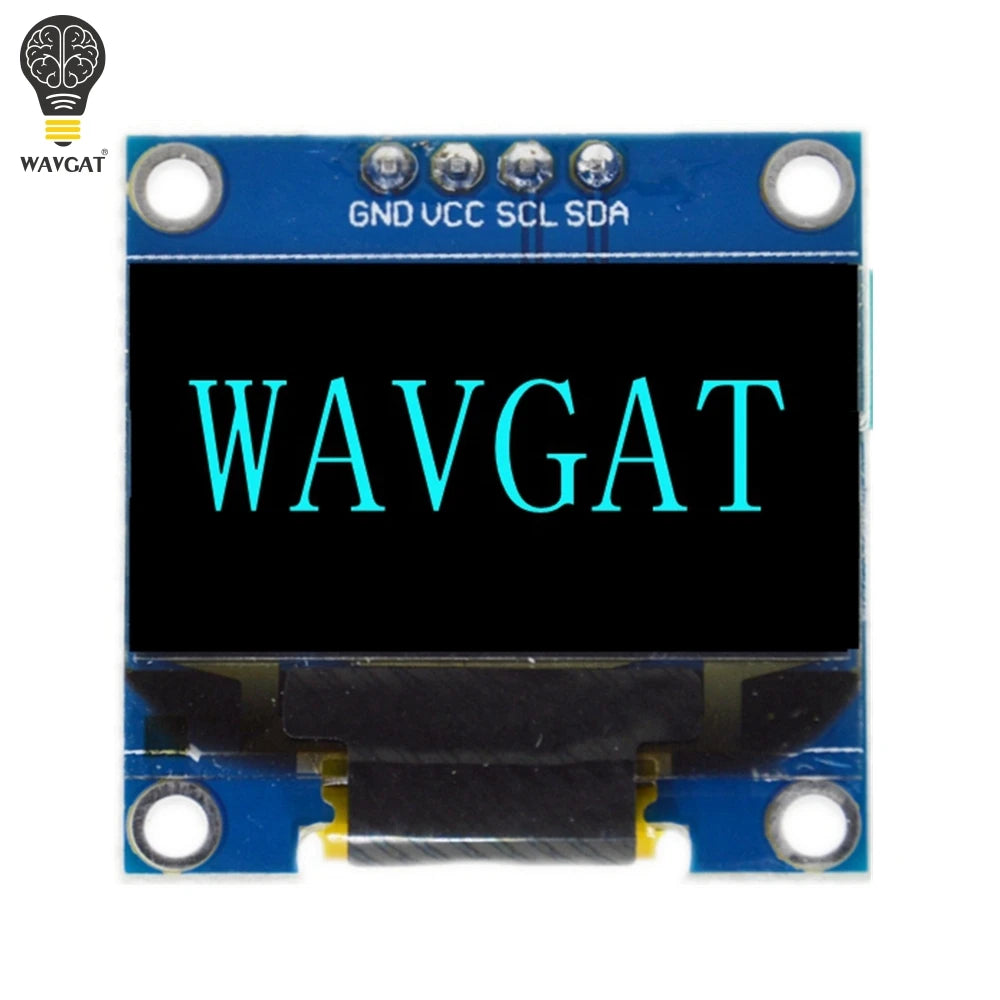

0.96 inch OLED Display Module I2C 128x64 SSD1306 White Blue Dual Color for Arduino Raspberry Pi DIY

Key Features & Benefits

📟 128x64 Resolution: Sharp pixel display.

🔌 I2C Interface: Only 4 wires (VCC, GND, SCL, SDA) – saves GPIO pins.

🔋 Ultra‑Low Power: 0.08W – ideal for battery‑powered devices.

🎨 Multiple Colors: White, Blue, Yellow‑Blue dual color options.

🔋 3.3V-5V Compatible: No level shifter needed.

👁️ Wide Viewing Angle: >160°.

🌡️ Industrial Grade: -30℃ ~ 70℃.

🧩 Compact Size: 35.4×33.5×4.3mm.

💻 Library Support: Adafruit_SSD1306, U8g2.

📍 Applications: Arduino meters, smart watches, sensor displays.

Product Description

Need a compact, clear display for your Arduino or Raspberry Pi? This 0.96" OLED module is the perfect choice. I2C interface – just 4 wires. 128x64 resolution, available in white, blue, or yellow‑blue dual color. 3.3V-5V power – direct connection. Ultra‑low power (0.08W). Library support (Adafruit_SSD1306, U8g2). Ideal for smart watches, sensor monitors, DIY gadgets.

⚡ Quick Start Guide & Important Tips

🔹 What It Does & What You Need
✅ This module does:

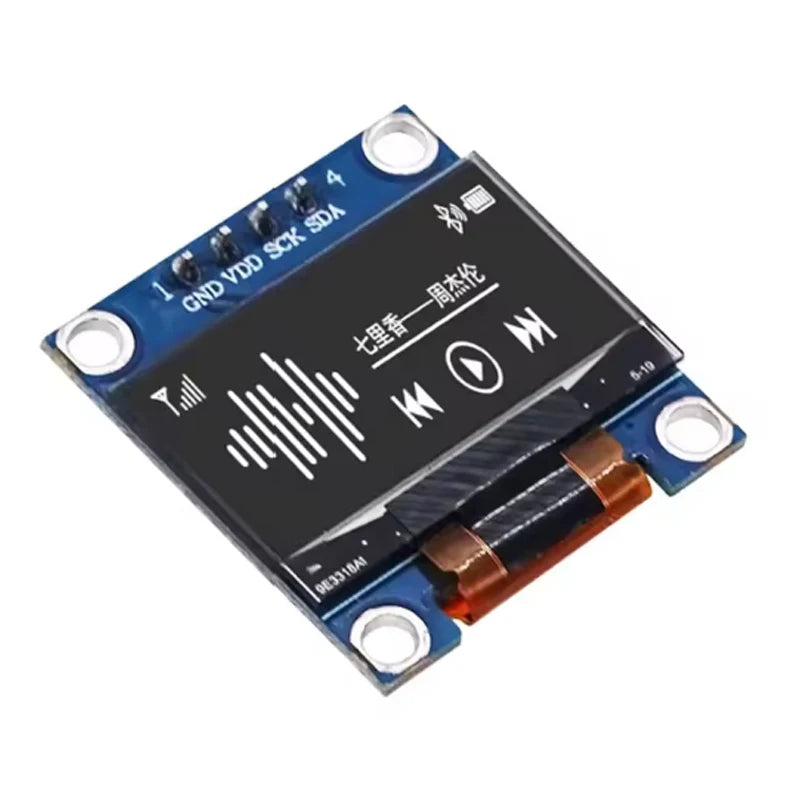

Display text, numbers, graphics, bitmaps

Debug/status display for Arduino/Raspberry Pi
❌ This module does NOT: Touch, color display, include header pins (solder required)
🔧 You will need: MCU (Arduino/RPi), 4 jumper wires, 3.3V/5V power
📦 Package includes: OLED module × (as per SKU)

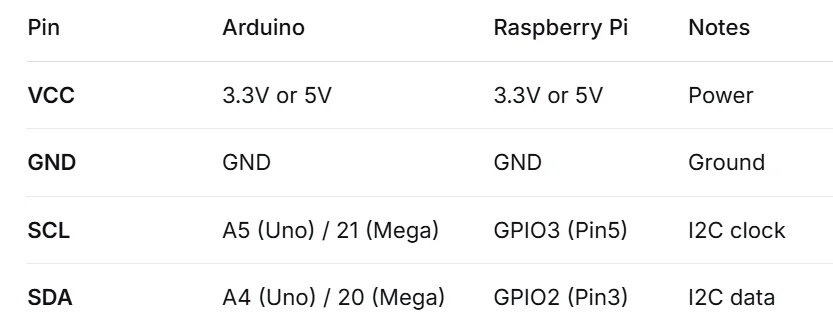

🔹 Wiring (I2C Mode)

⚠️ Important:

I2C address: Default 0x3C (or 0x3D). Run scanner if no display.

Driver: SSD1306 or SH1106 – both supported by libraries.

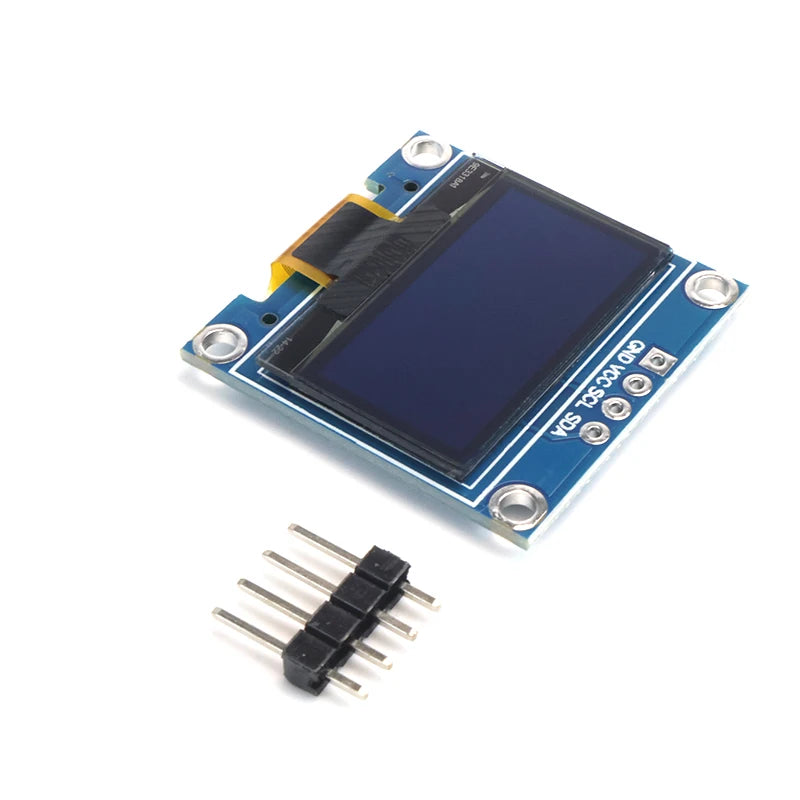

Soldering: Headers not included – solder yourself.

Power: 3.3V-5V only, do not exceed 5.5V.

Contrast: Fixed, no adjustment needed.

🔹 Common Questions

❓ No display or black screen?

1.Check I2C address

2.Check power (3.3V-5V)

3.Verify SCL/SDA wiring

4.Try hardware reset if available

❓ Garbage or offset display?
Driver difference (SSD1306 vs SH1106). Use U8g2 library for broader compatibility.

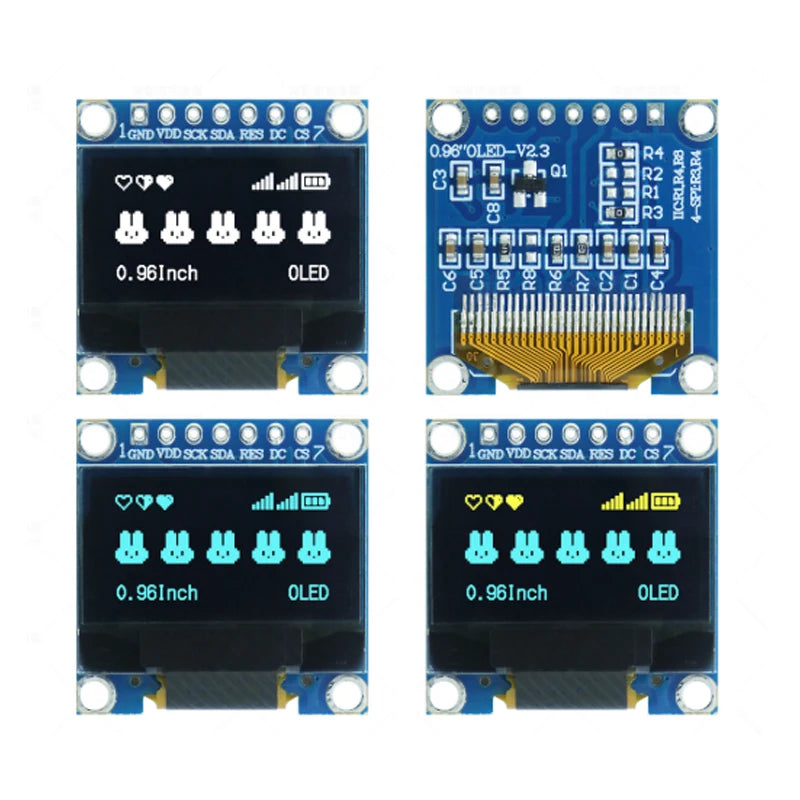

❓ White vs Blue vs Yellow‑Blue?

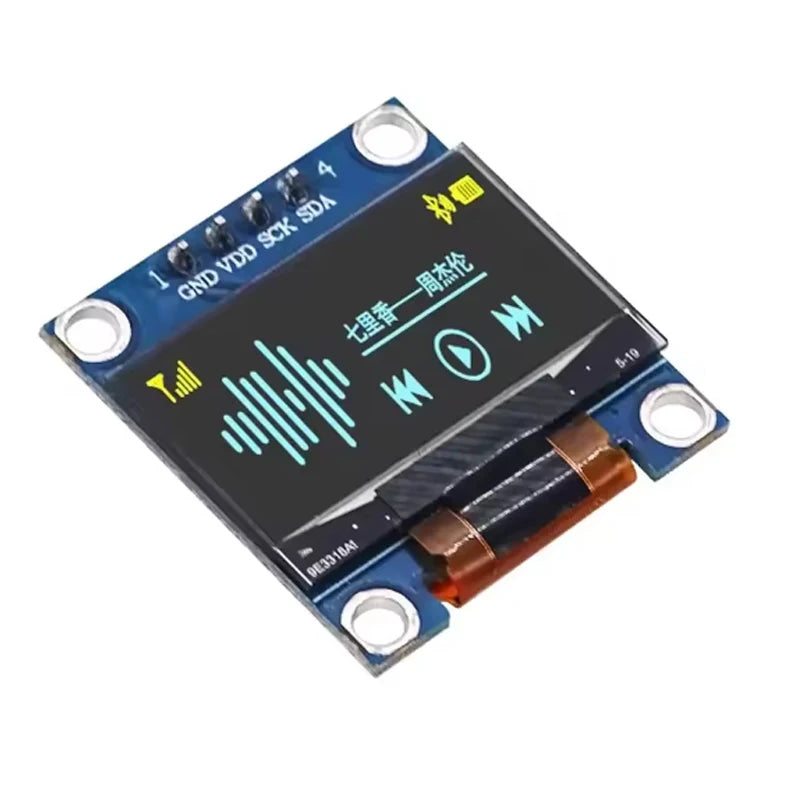

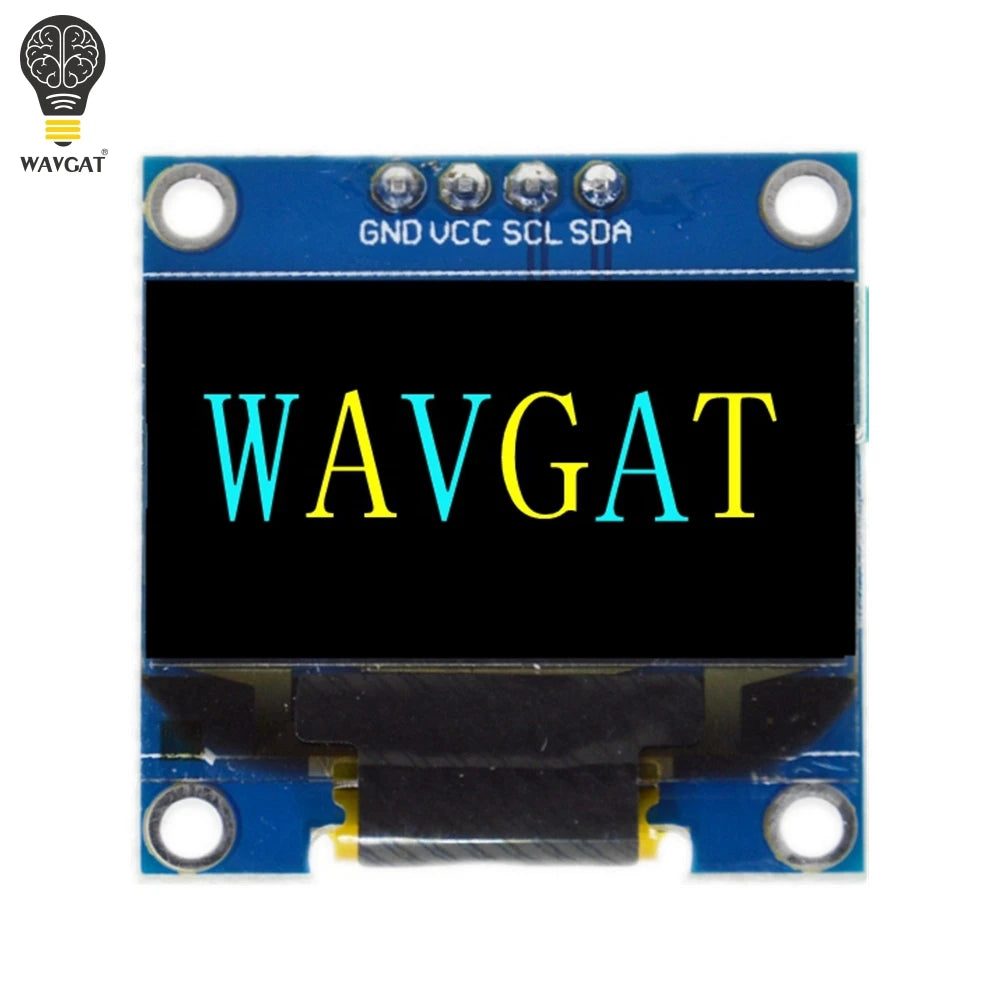

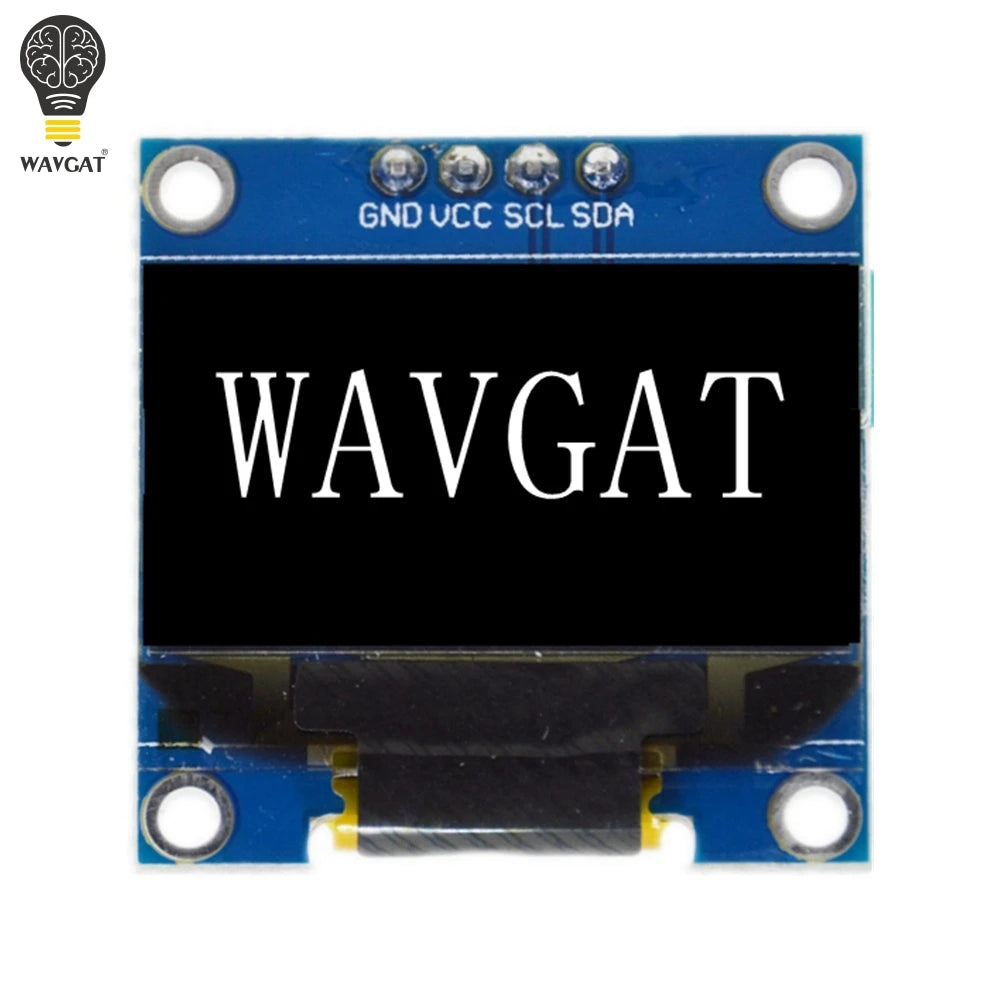

White: monochrome white; Blue: monochrome blue; Yellow‑Blue: yellow top, blue bottom. Function identical – choose by preference.

❓ Need to solder headers?
Yes, headers not included. Solder yourself or buy pre‑soldered version.

❓ Multiple I2C devices?

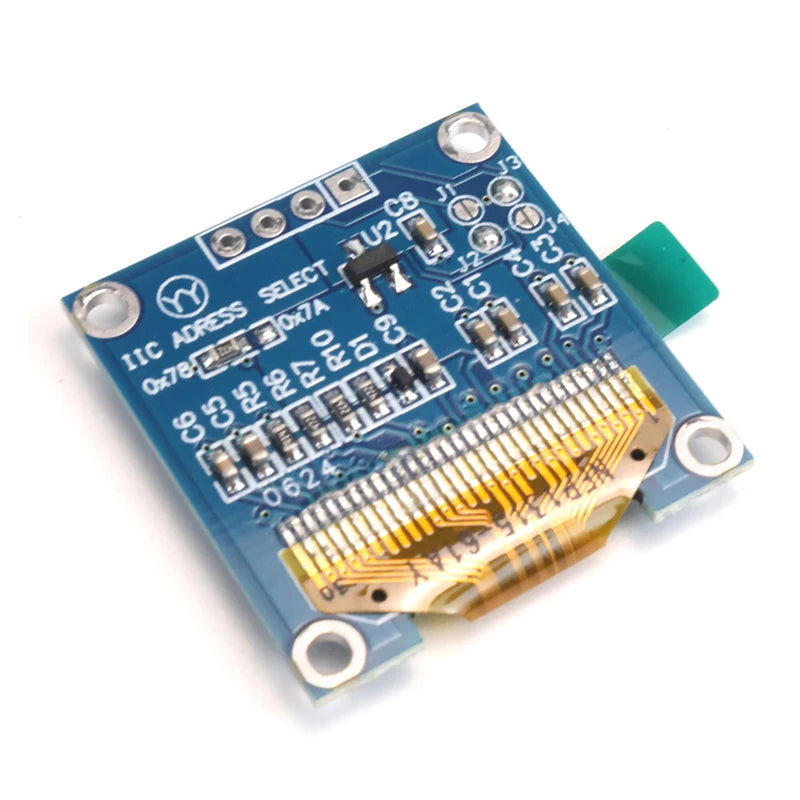

Yes, if each has unique address (OLED default 0x3C). Change address via hardware modification if conflict.

Specifications

Display Size: 0.96 inch

Resolution: 128 × 64

Driver: SSD1306 or SH1106

Interface: I2C (default)

Voltage: DC 3.3V – 5V

Power Consumption: 0.08W

Viewing Angle: >160°

Operating Temp: -30℃ ~ +70℃

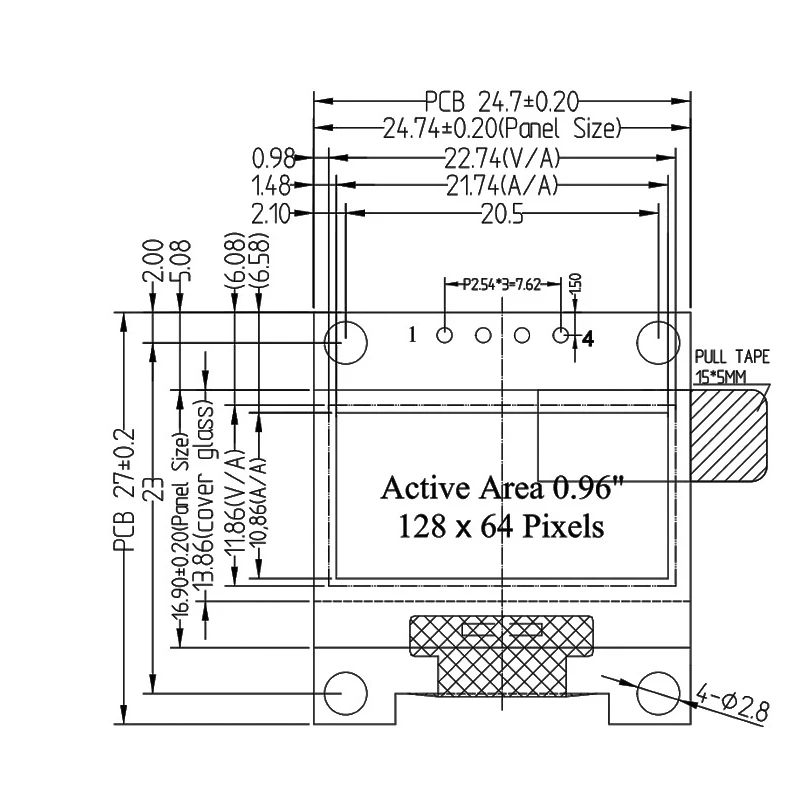

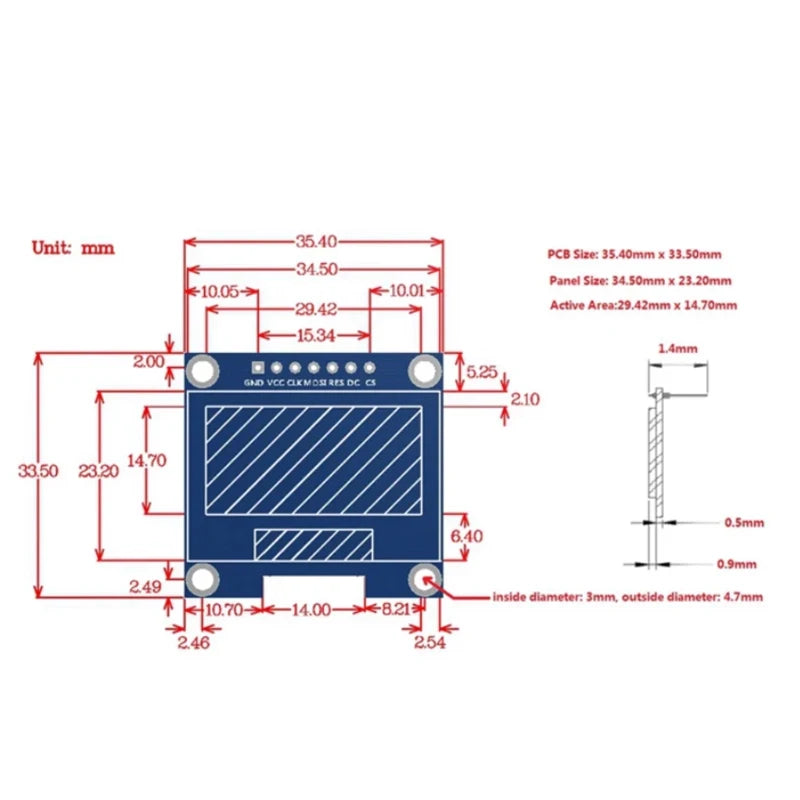

Dimensions: 35.4×33.5×4.3mm

Weight: ~5g

Note: Manual measurement, allow 1‑3mm error. Colors may vary.
