Description
SPECIFICATIONS
Brand Name: Liludin
Display Mode: 128*64
High-concerned chemical: none
Model Number: 0.96 inch oled IIC Serial White OLED Display Modul
Origin: Mainland China
Resolution: 128*64
Type: OLED
is_customized: Yes
Interface type: IIC interface

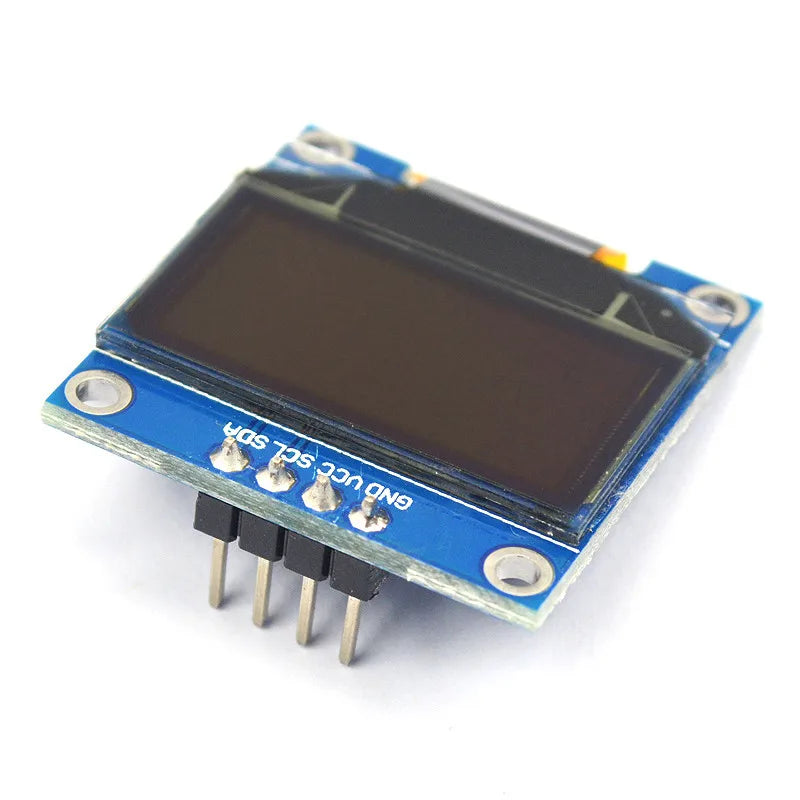

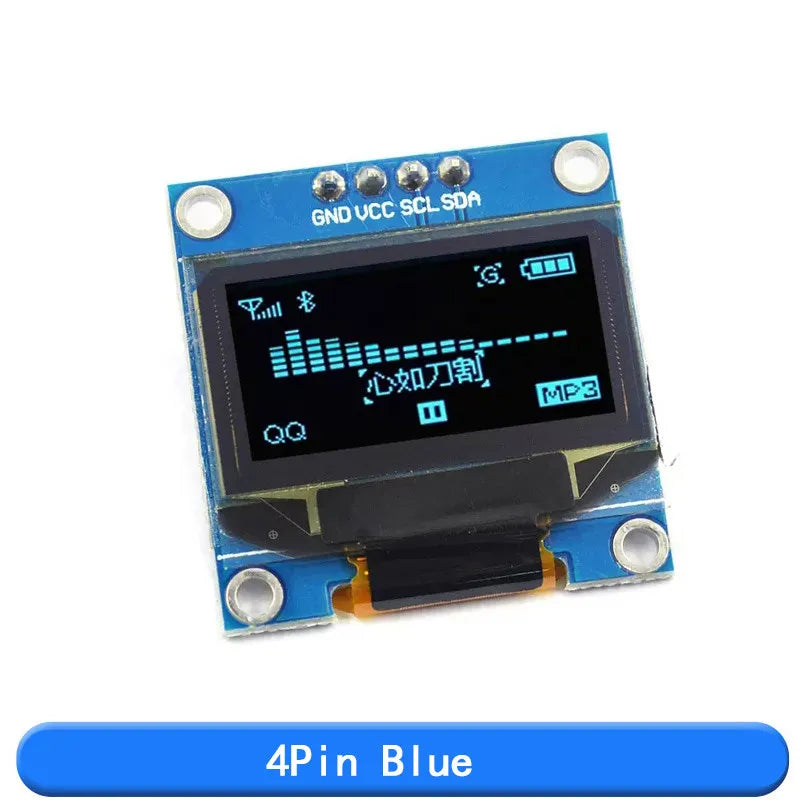

Pin definition: GND,VCC,SCL,SDA
1:GND(OLED power supply)
2:VCC (OLED 3.3~5V)
3:SCL(OLED IIC Clock line)
4:SDA(OLED IIC Cable

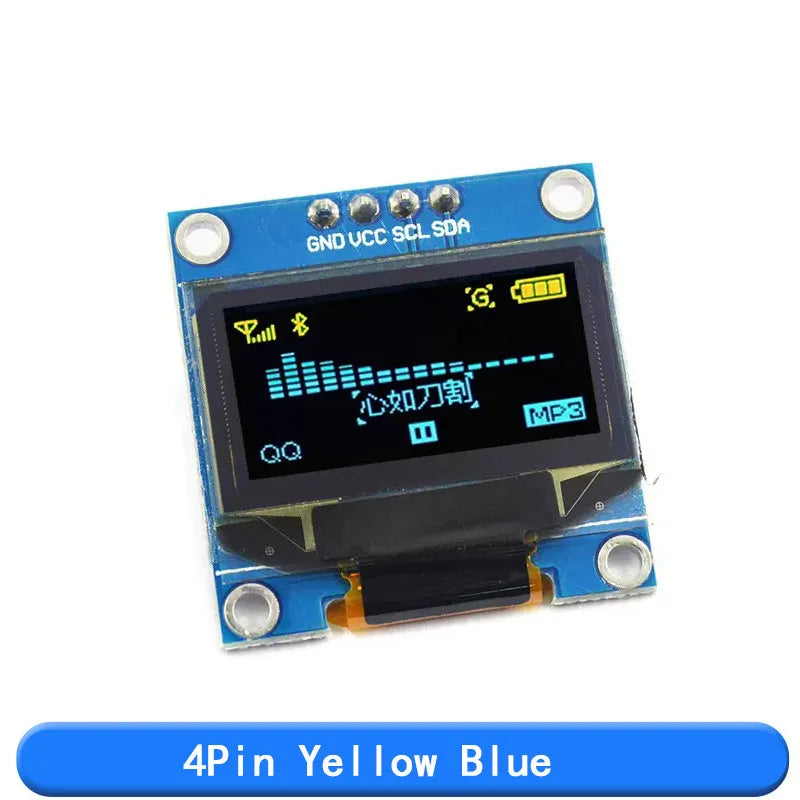

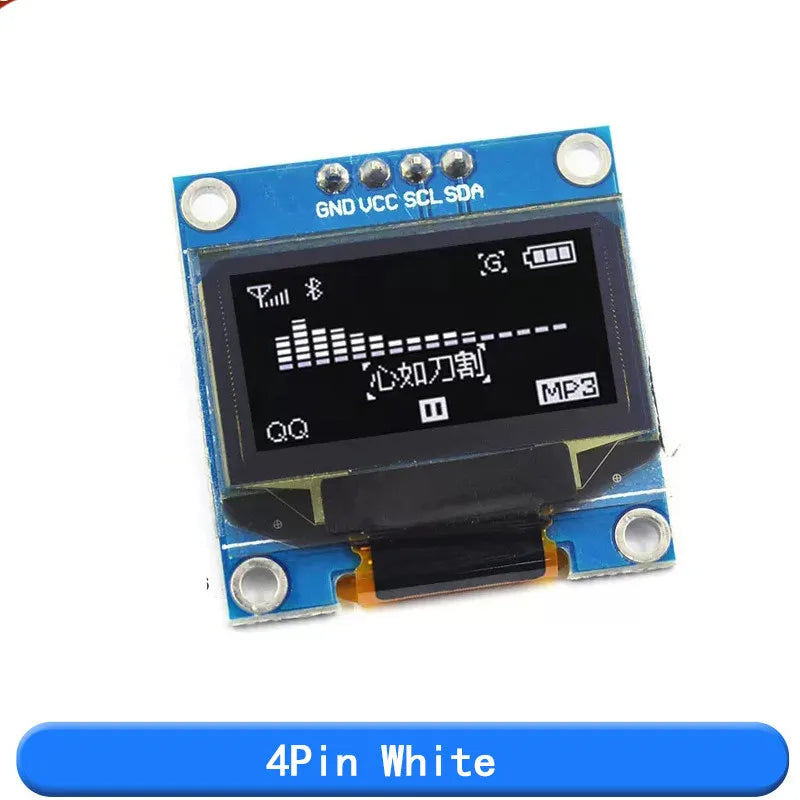

The instructions on four needles IIC interface module
Four needles iic interface is relatively simple,only two signal lines
1. The GND power supply
2. The VCC power supply is (3 ~ 5.5 V)
3. The SCL OLED D0 feet,for the clock pin in the IIC communication
4. The SDA OLED D1 feet,in the IIC communication pin for the data

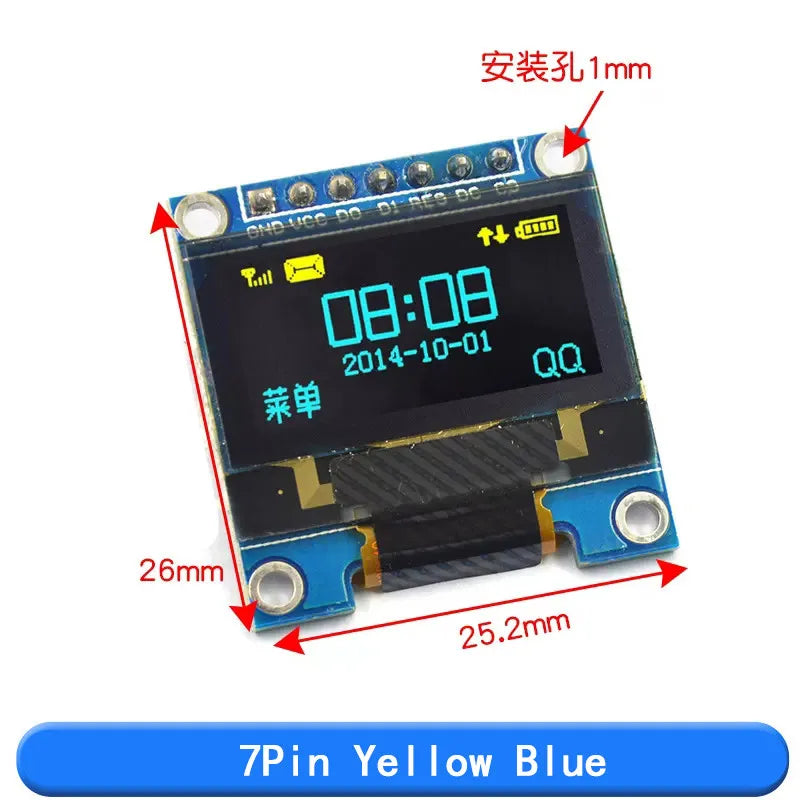

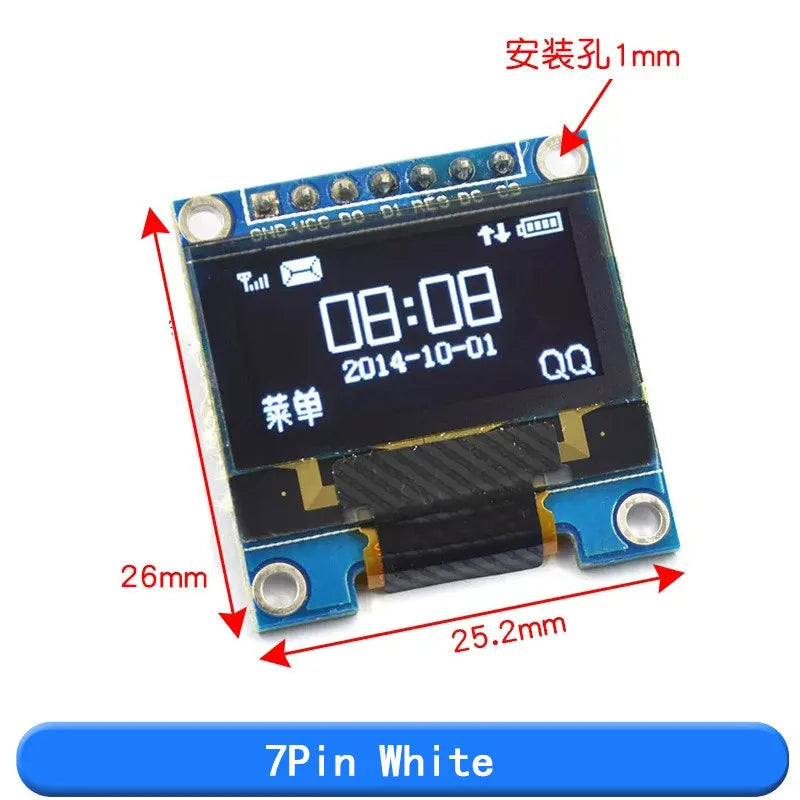

7PIN:
Drive IC: SSD1306
Resolution: 128*64
PIN NO.: 7Pin
Color: White
Interface: SPI and IIC interface
Provide detail datasheet
Interface Definition
1>GND =Ground Power
2>VCC = VDD(2.8V~5.5V)
3> D0 = Clock Line
4> D1 = Data Line
5> RES = Reset
6> DC = data/command
7> CS = Chip Selection
