0402 SMD Capacitor - Buying Guide

This listing includes single value and 50-value assorted pack options:
The assorted pack is shown as an image option.
Single values are listed as text options.
Please check the title carefully to avoid wrong selection.
Quantity & Packaging
Single capacitance value: 100 pcs per bag

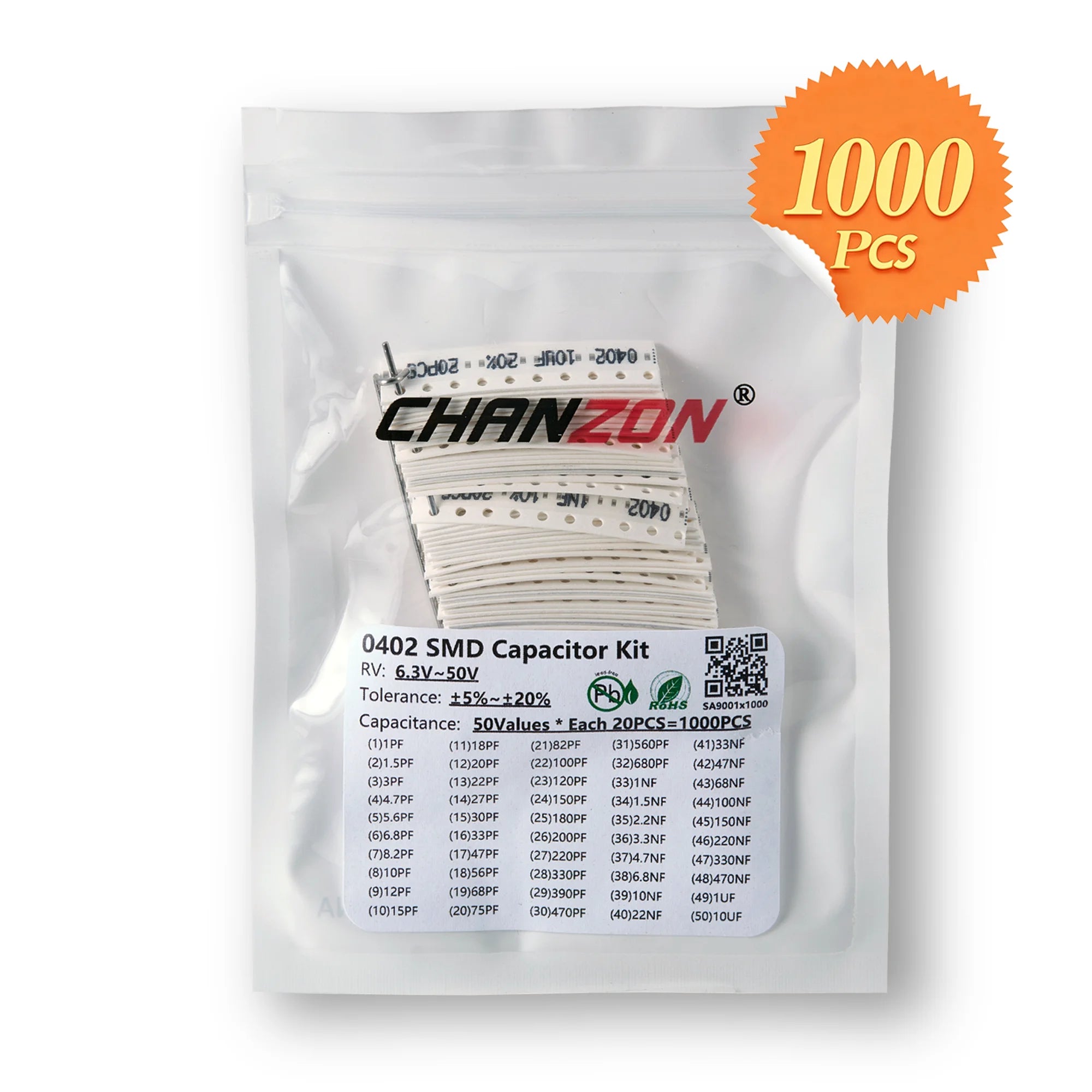

50 assorted values pack: 1000 pcs total

Capacitance & Tolerance

±5%tolerance: 0.5pF ~ 150pF
（0.5pF、1pF、1.2pF、1.5pF、1.8pF、2pF、2.2pF、2.5pF、2.7pF、3pF、3.3pF、3.6pF、3.9pF、4pF、4.7pF、5pF、5.6pF、6pF、6.8pF、7pF、8pF、8.2pF、9pF、10pF、12pF、15pF、18pF、20pF、22pF、24pF、25pF、27pF、30pF、33pF、36pF、39pF、47pF、51pF、56pF、68pF、75pF、82pF、100pF、120pF、150pF ）
±10%tolerance: 180pF ~ 820pF
（180pF、200pF、220pF、270pF、300pF、330pF、360pF、390pF、470pF、510pF、560pF、680pF、820pF）

Rated Voltage: 50V

Unit Conversion
1 μF=1000 nF=1,000,000 pF
Different units may represent the same capacitance.Contact us to confirm values or ask about our high-capacitance listing.
Measurement Note
For high-capacitance MLCCs, some older measuring instruments cannot output sufficient AC voltage and may not give accurate readings. Please take this into consideration during testing.
