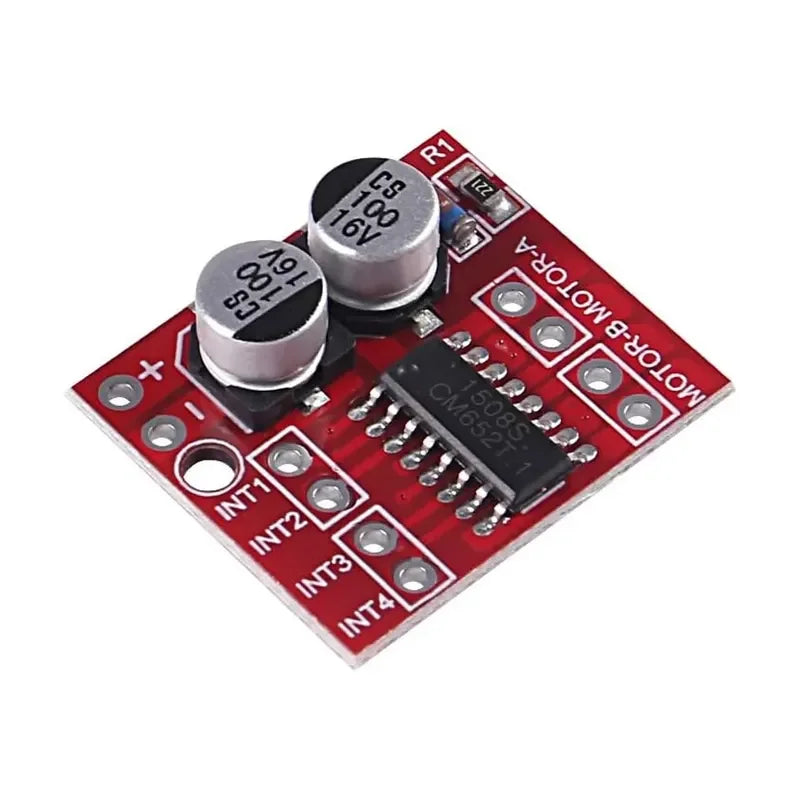

1-100pcs Mini L298N DC Motor Driver, MX1508 Mini Dual Channel 1.5A 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper

1-100pcs Mini L298N DC Motor Driver, MX1508 Mini Dual Channel 1.5A 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper

$48.33

$48.33 $0.00

Color 30pcs 20pcs big 15pcs big 5pcs 10pcs 100pcs 1pcs 6 pcs

Description

SPECIFICATIONS

Application: Electric Toy,Electric Toy

Brand Name: NONE

Choice: yes

Condition: New,New

Dissipation Power: 1.5A,15A

High-concerned chemical: none

Model Number: 6 Pack Mini L298N DC Motor Driver

Operating Temperature: MX1508 Mini Dual Channel,MX1508 Mini Dual Channel

Origin: Mainland China,Mainland China

Package: SOP,SOP

Supply Voltage: 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper,2 Way PWM Speed Controller Dual H-Bridge Replace Stepper

Type: Drive IC,Drive IC

isCustomized: Yes

semi_Choice: yes

• High-Performance Driver :The Mini L298N DC Motor Driver is a high-performance solution, ensuring efficient and reliable operation of your electric toys.

• Dual Channel Design :Featuring a dual channel design, this driver allows for simultaneous control of two motors, enhancing the versatility and functionality of your devices.

• 1.5A Power Handling :With a power handling capacity of 1.5A, this driver can comfortably drive high-current motors, making it ideal for applications that require robust performance.

• PWM Speed Controller :Equipped with a PWM speed controller, this driver provides precise speed control, allowing for fine-tuning of your device's speed and torque characteristics.

• Dual H-Bridge Replacement :The Mini Dual Channel 1.5A 2 Way PWM Speed Controller comes with a dual H-Bridge replacement, offering enhanced durability and reliability.

• Versatile Application :Whether it's for electric toys or other applications, this driver's wide-ranging application makes it a practical choice for various needs.

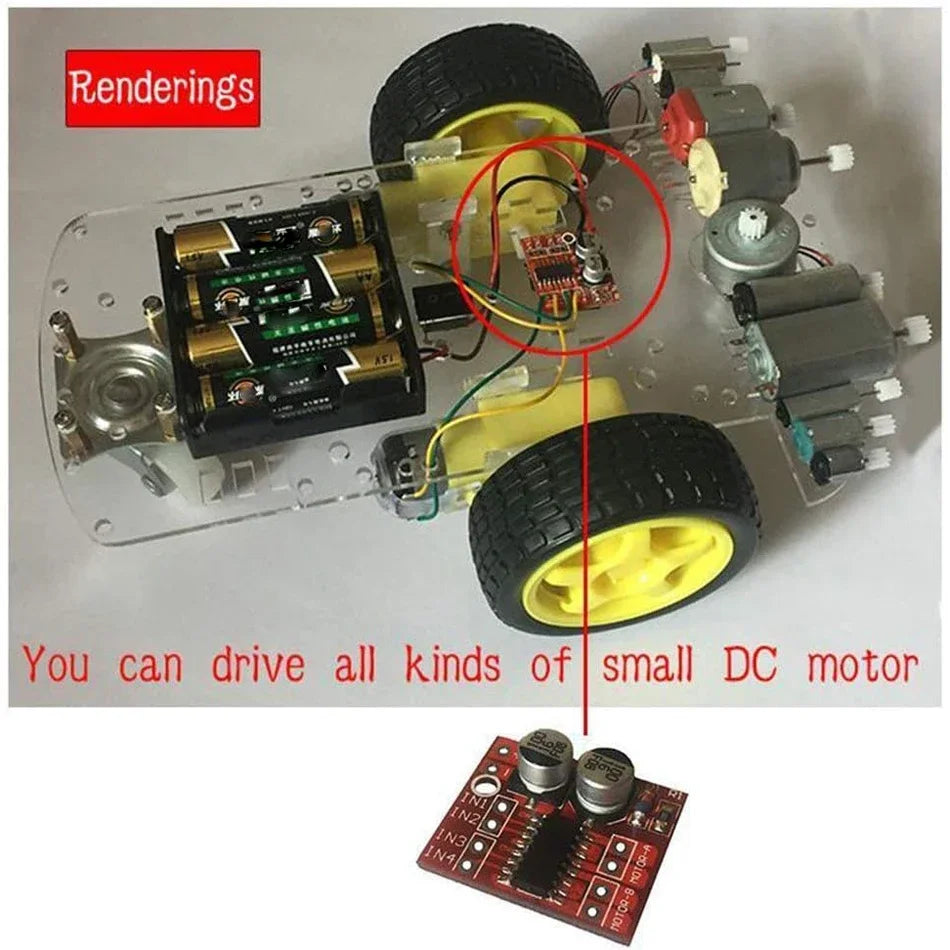

Motor drive module is ideal for use in battery-powered smart car, toy cars, robots.
Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor.

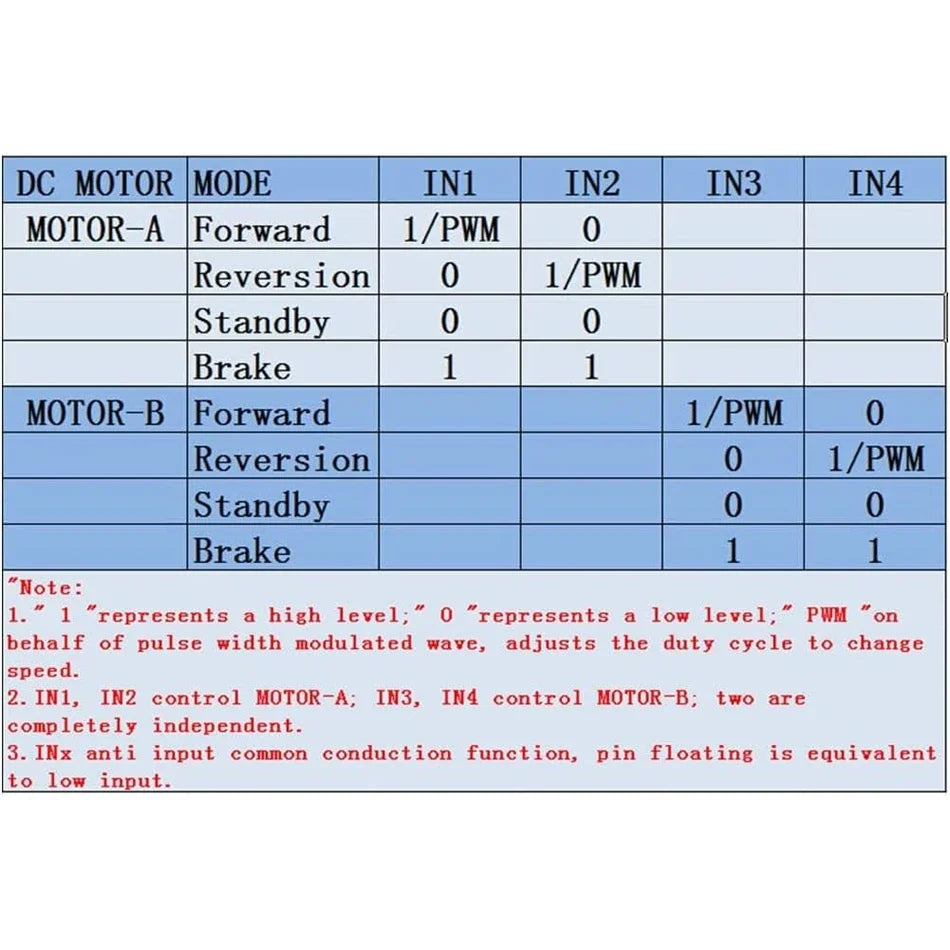

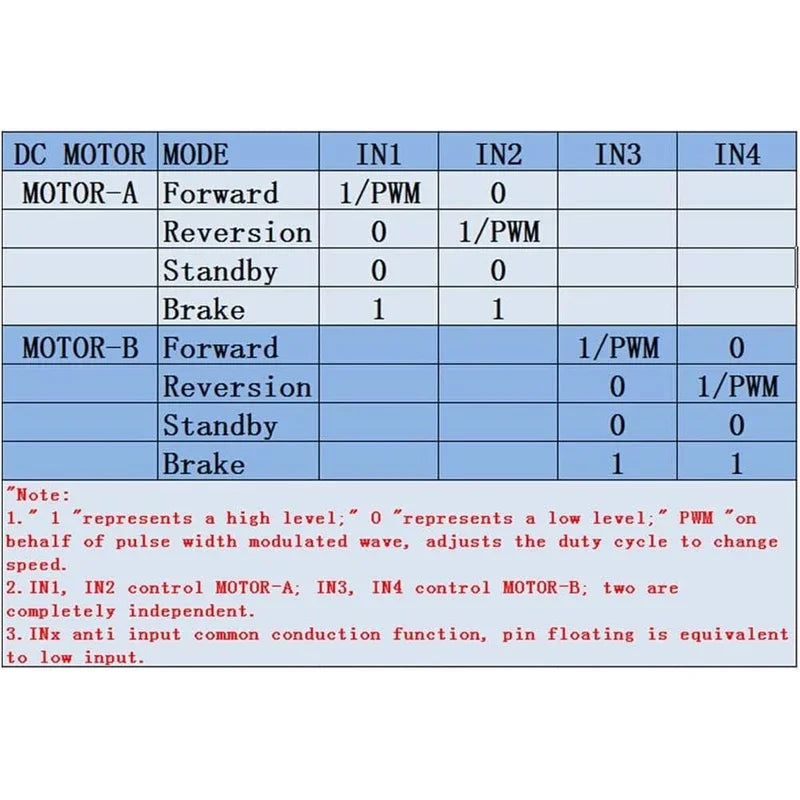

Supply voltage 2V -- 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.
Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped.
Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered.

Product parameters:

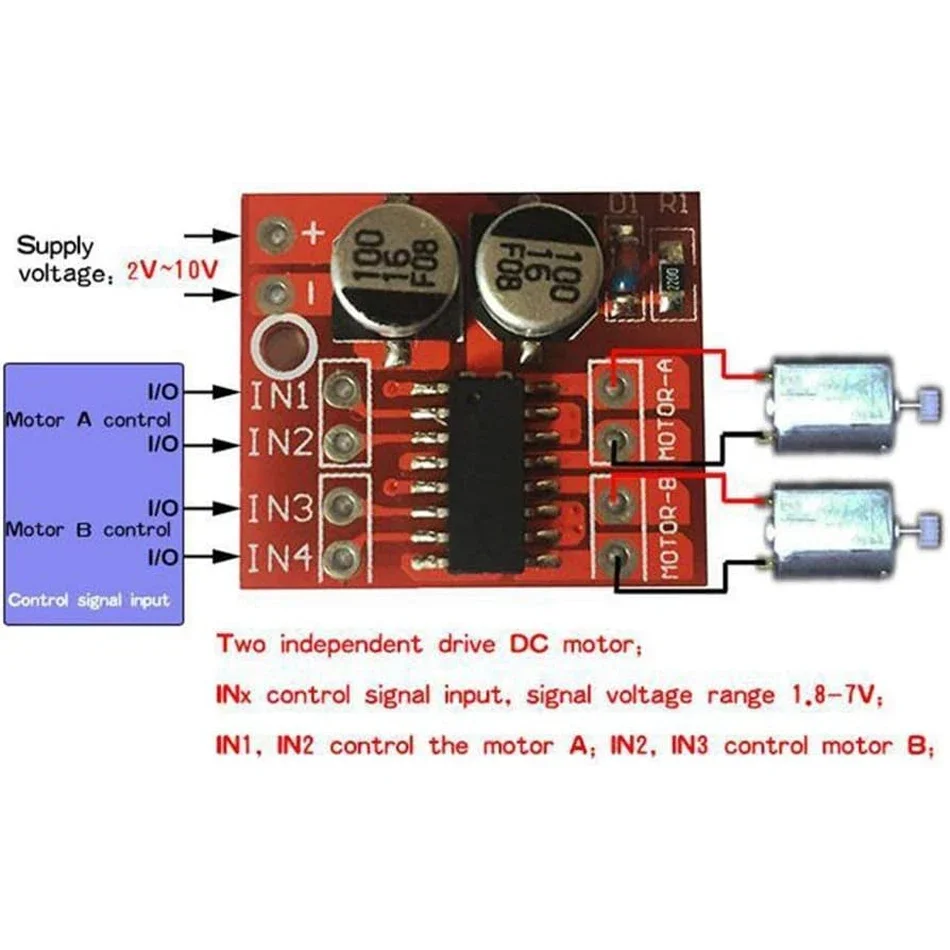

The module supply voltage 2V-10V.
Signal input voltage 1.8-7V.
Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).
Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.

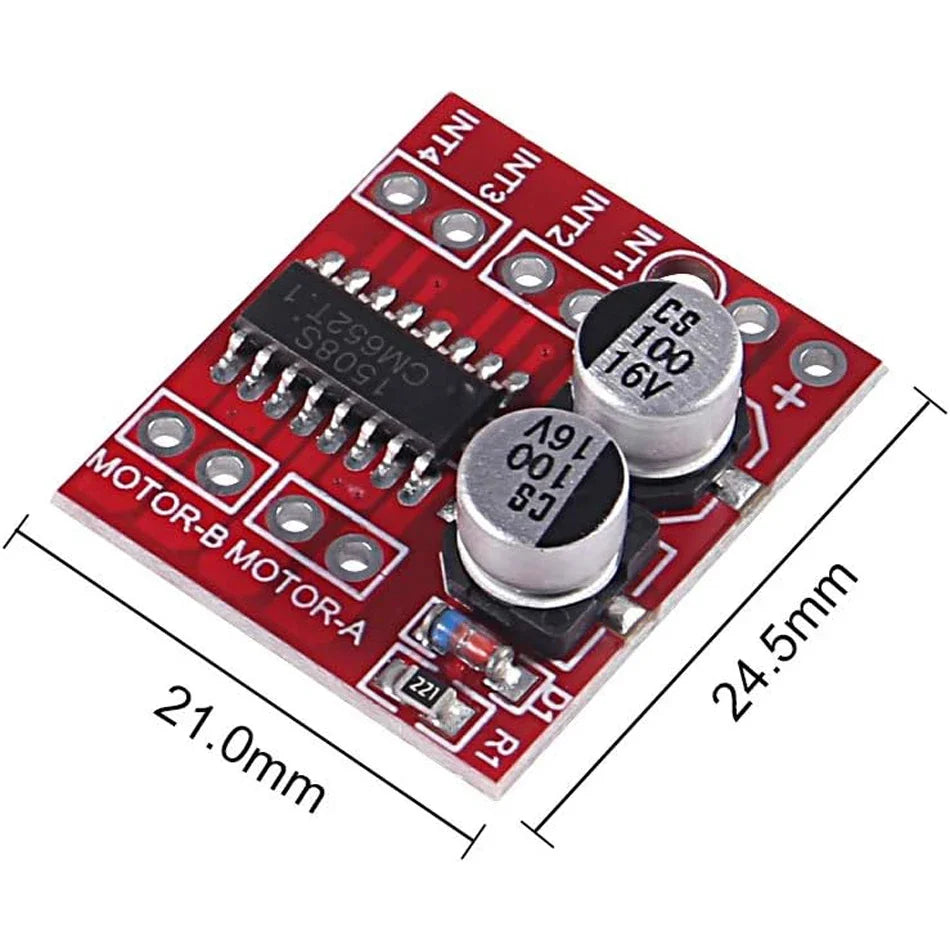

Product Size: 24.7*21*5mm (length, width, height), ultra-small size.
The mounting hole diameter: 2 mm.

Attention:
1.Power positive and negative reversed will certainly cause damage to the circuit.
2.Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned.

Package Included:

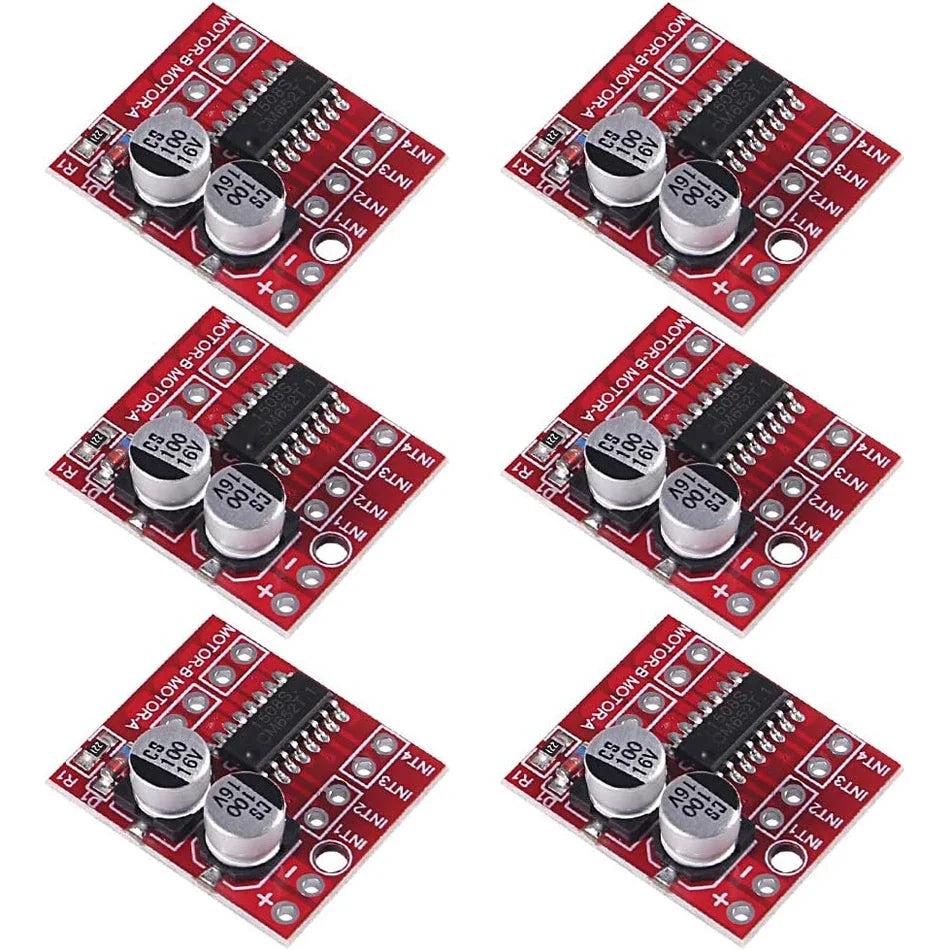

6 * Mini L298N Motor Drive Modules
