SPECIFICATIONS

Application: Computer

Brand Name: SZYTF

Choice: yes

Condition: New

Dissipation Power: N/A

High-concerned chemical: none

Operating Temperature: N/A

Origin: Mainland China

Supply Voltage: N/A

Type: Module

semi_Choice: yes

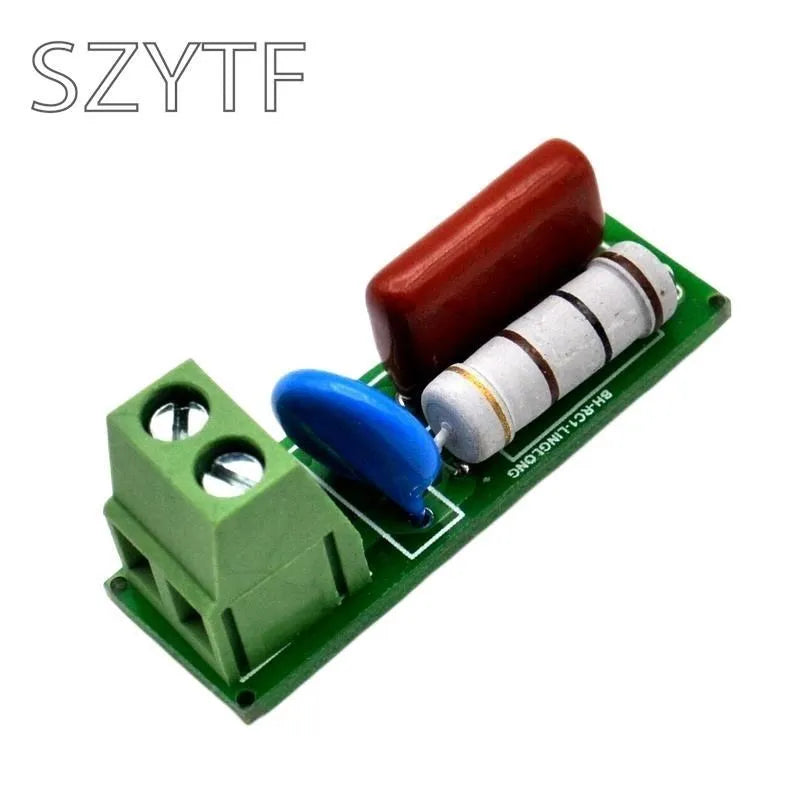

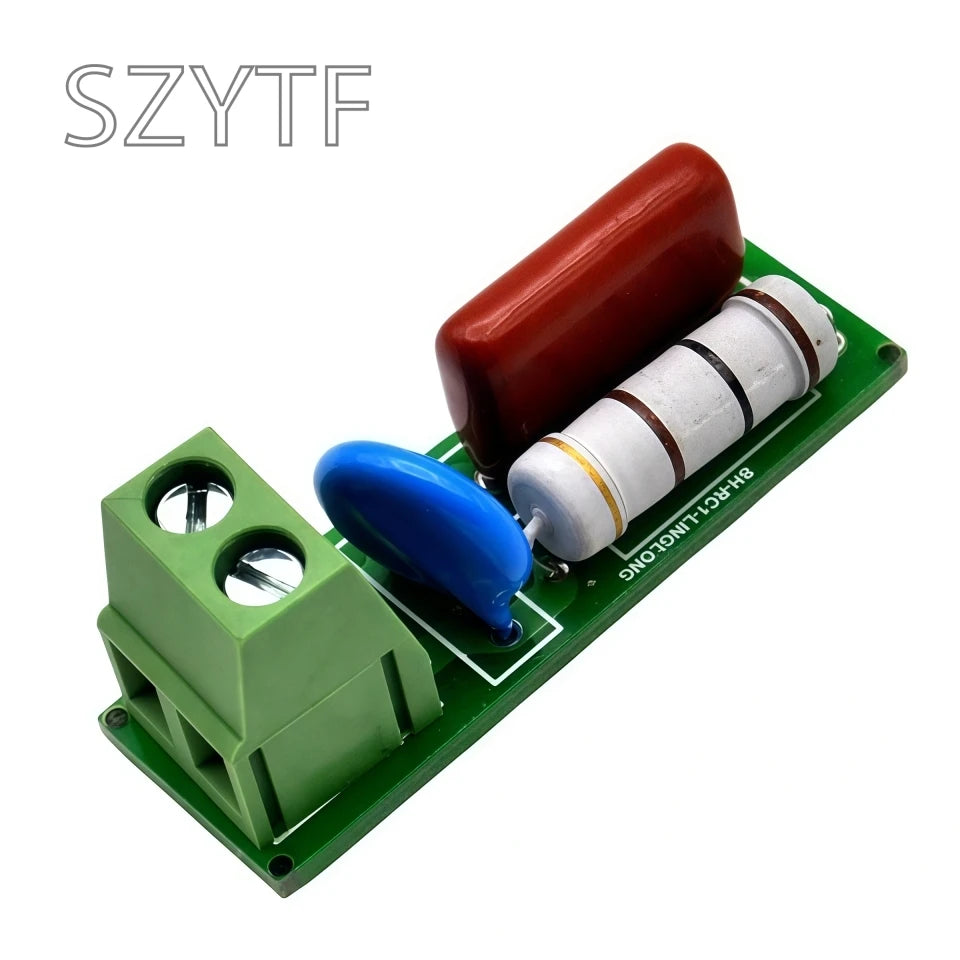

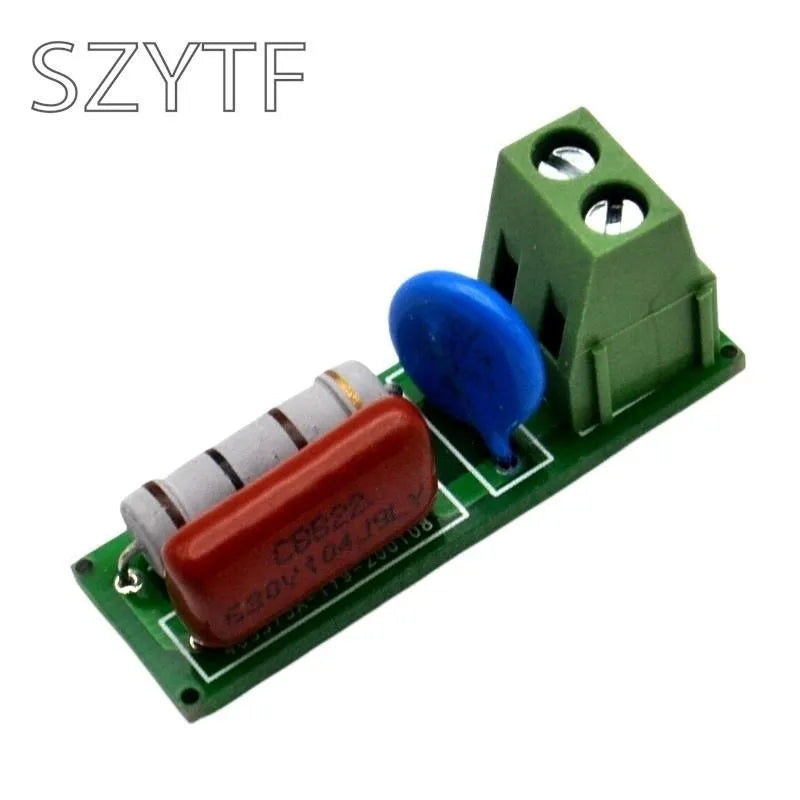

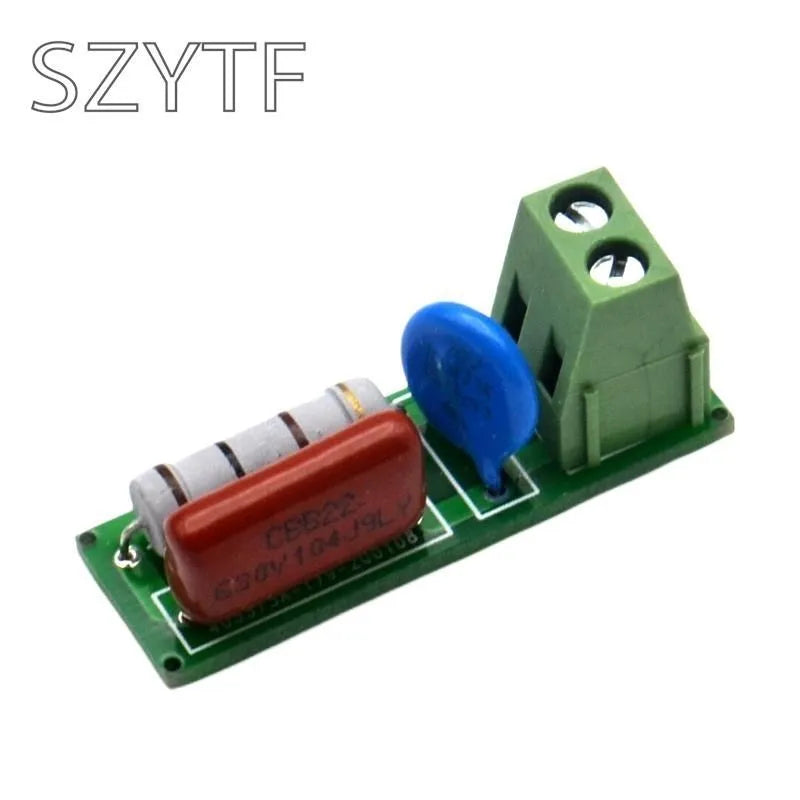

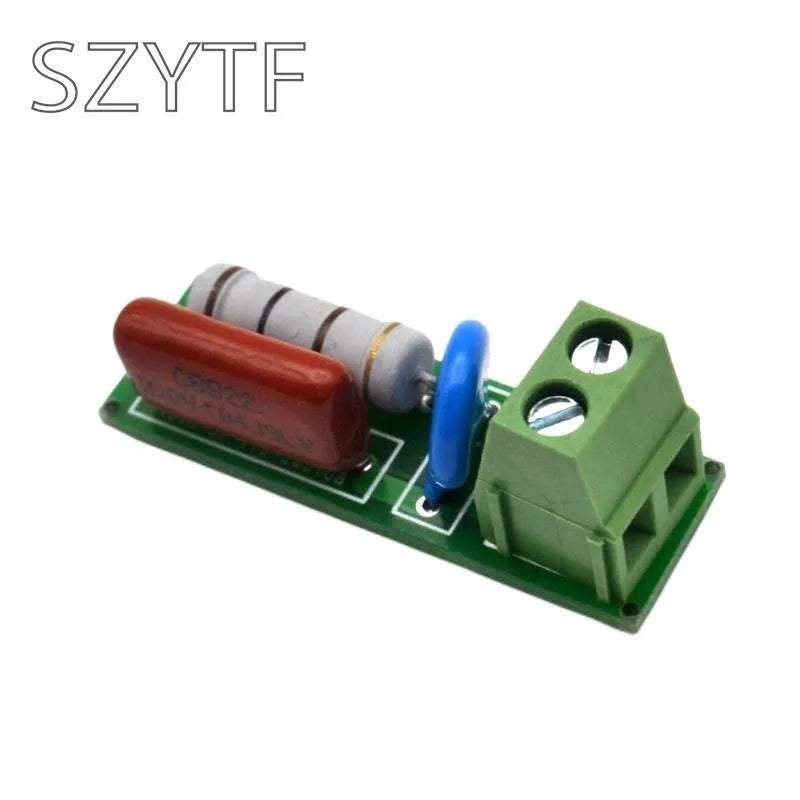

RC snubber circuit relay contact protection circuit module / module electromagnetic interferenceModule features:

RC absorption circuit is also called RC buffer circuit, it is a resistor and capacitor in series, and the circuit structure connected in parallel with the switching device, used to improve the voltage and current waveform of the electronic power device when it is on and off. RC absorbing loop module can prevent the inductive electromotive force generated by inductive load switching on and off from causing damage to relays, thyristors and other switching devices, prevent electromagnetic interference and increase the anti-interference ability of single chip computer.

Product parameters:

1, suitable for AC or DC 5~400V inductive load (less than 1000W load) protection relay contacts or thyristors.

2, RC absorption circuit, absorption inductive load induced electromotive force

3, there is a varistor, to prevent the voltage fluctuation is too large current is too large, causing the relay contact adhesion.

4, provide circuit anti-interference ability.

5. Crimping terminal is used to make wiring more convenient.
