1-10pcs 0.96 inch oled IIC Serial 128X64 I2C SSD1306 12864 LCD Screen Board OLED Display Module For Arduino White BLUE YELLOWBLU
White 1pcs / China Mainland
$12.56
Sale price
$12.56
Regular price
$0.00
Skip to product information
1-10pcs 0.96 inch oled IIC Serial 128X64 I2C SSD1306 12864 LCD Screen Board OLED Display Module For Arduino White BLUE YELLOWBLU
$12.56
Sale price
$12.56
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Display Mode: -
High-concerned chemical: none
Model Number: 0.96 inch oled
Origin: Mainland China
Resolution: 128*64
Type: OLED
is_customized: Yes
semi_Choice: yes
Display screen: 0.96-inch OLED
Display colors: White / Blue / Blue and Yellow Dual Color
Control chip: SSD1315
Operating voltage: 3.3V / 5.0V
Interface type: IC interface
Resolution: 128*64
Operating temperature: -40℃ ~ 80℃
Viewing angle: >160°
Pin count: 4-pin, 2.54mm

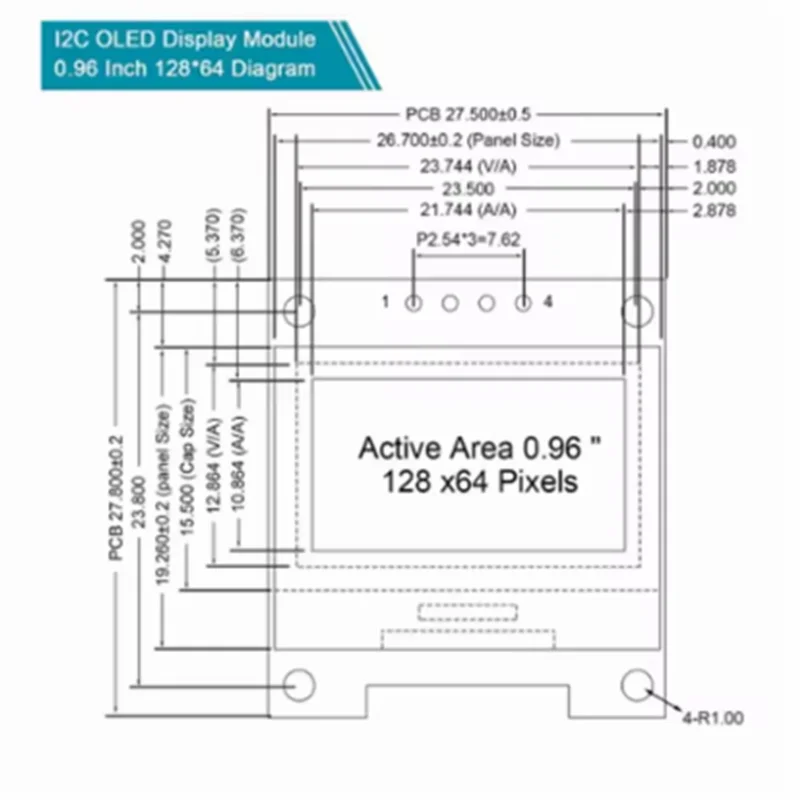

Display area: 21.744*10.864 (mm)
0.96 Inch OLED Module for showing graphical & textual information directly on your micro-controller projects. It supports many chips: for Arduino UNO and Mega, Raspberry pi, 51 MCU, STIM 32, etc., the UNO shown in the picture is NOT INCLUDE
Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
Embedded Driver IC: SSD1315. Communication: I2C/IIC Interface, only need two I / O ports
Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable
No embedded fonts inside the OLED controller, user can create the fonts through the font generation software. We offer technical support and software library as well as the guide book in the package
