SPECIFICATIONS

Brand Name: Keshy

Choice: yes

High-concerned chemical: none

Model Number: AC-DC

Origin: Mainland China

Output Type: SINGLE

Rated Capacity: ＜40VA

Type: Power Supply

is_customized: Yes

semi_Choice: yes

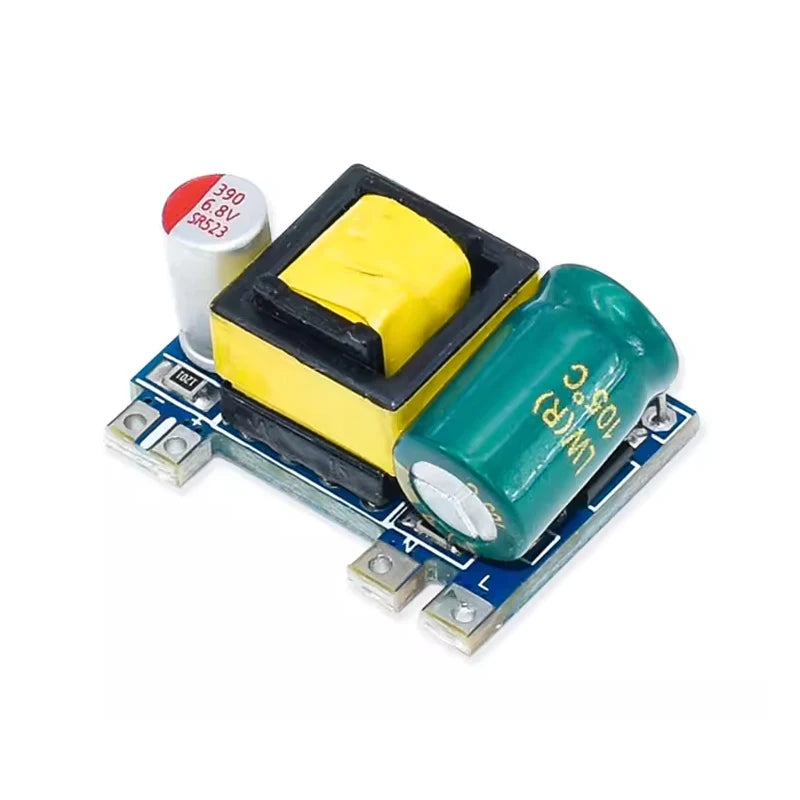

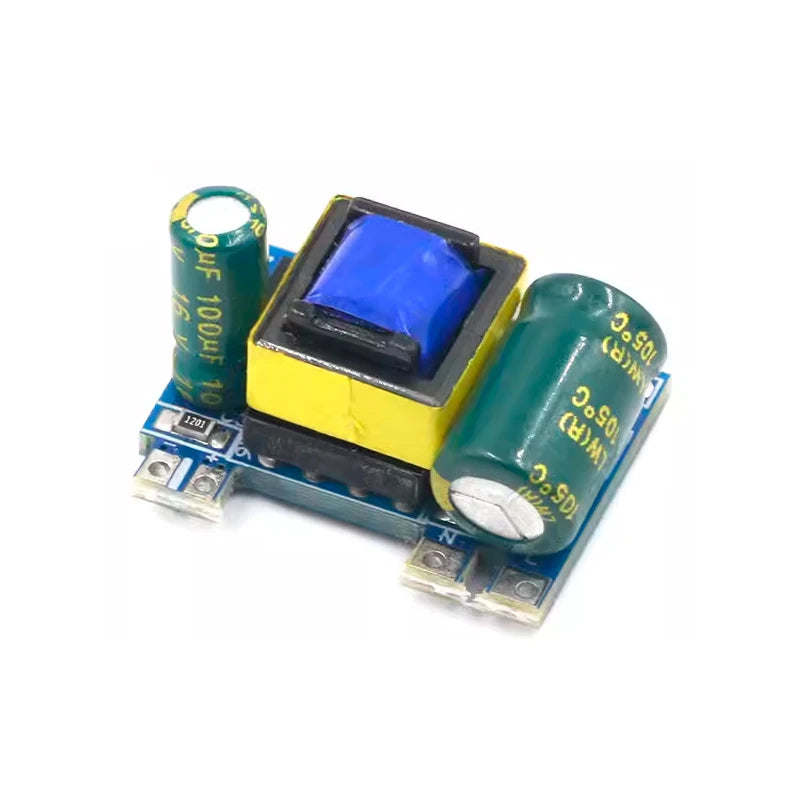

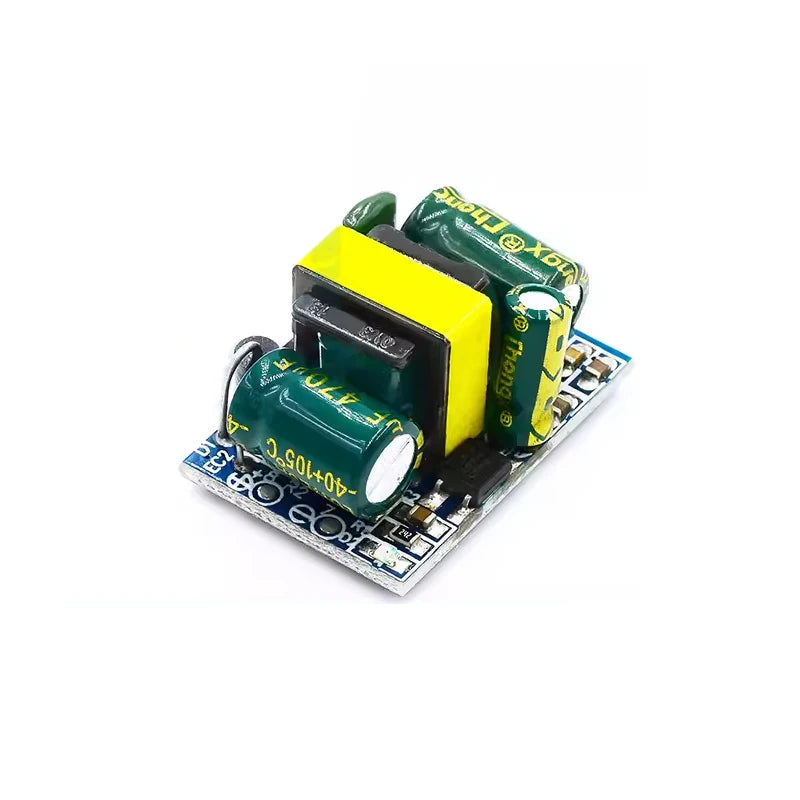

Precision 5V700mA 3.5W isolating switching power supply module 220 rpm 5V power supply

Operating temperature: -20 degrees to 70 degrees, the temperature resistance of the green gold capacitor is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (it is not recommended to use it above 70 degrees), and the output filter is a high-quality solid-state capacitor

Input voltage range: AC50V-277V DC70V-390V

No-load power: <0.05W Full load power: <4W

Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.

Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, heavy load rise, 50% load ripple 60mV

Output current: 5V0mA-700mA, enter constant current working mode when full load

Test resistance: 7 ohms (4.9V) for 5V

Output indicator: Green

Output power: 3.5W Efficiency: 80%

Output protection: over-voltage, over-current, over-temperature, over-work, short-circuit protection, etc.

Operating temperature: -20 degrees to 70 degrees, the temperature resistance of the green gold capacitor is 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at room temperature (it is not recommended to use it above 70 degrees), and the output filter is a high-quality solid-state capacitor

Input Characteristics:

Input voltage range: AC50V-277V DC70V-390V

No-load power: <0.05W Full load power: <4W

Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current.

Output voltage: 12V -0.05+0.3V no-load and full load, light load minus 0.1V, heavy load rise, 50% load ripple 100mV

Output current: 12V0mA-300mA, enter constant current working mode when full load

Test resistance: 40 ohms (12V) for 12V

Output indicator: Green

Output power: 3.5W Efficiency: 80%

Output protection: over-voltage, over-current, over-temperature, over-work, short-circuit protection, etc

Features:

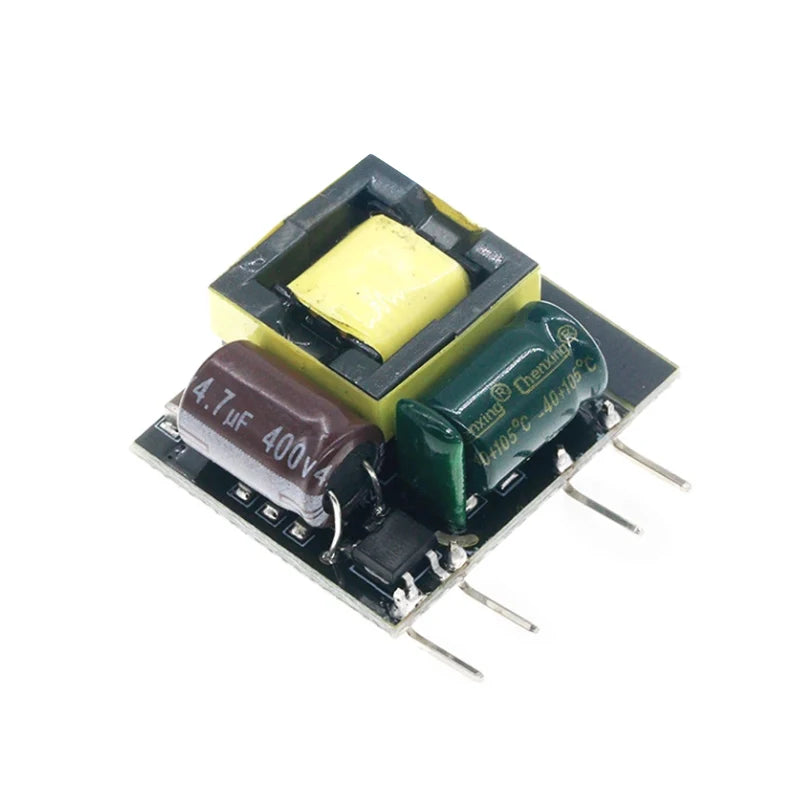

The product is easy to install, and the input and output can be soldered to 5.08 terminals or pins.

There are mounting fixing holes at the four corners, which can be fixed with screws to prevent movement or vibration, and the diameter of the fixing holes is 3mm

The global universal input voltage AC100V-265V has strong versatility.

High efficiency, strong design density, small size, easy installation, and extremely low output ripple.

Inputs are highly isolated from outputs

Overload, short circuit, and over-temperature protection are all available

Power protection: overload, short circuit, and over-temperature protection

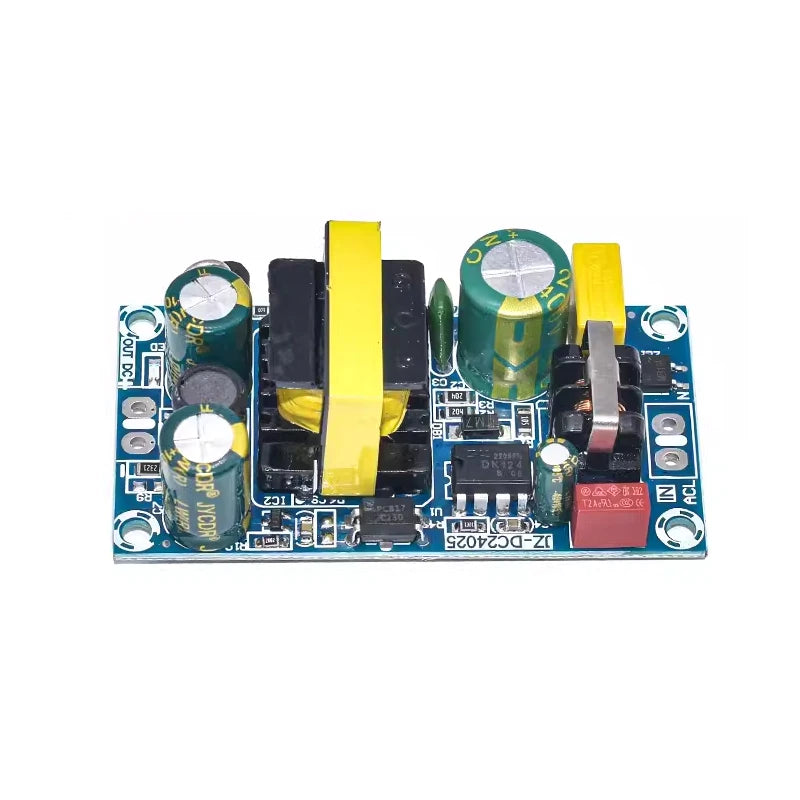

Voltage input: AC100V-265V

Frequency input: 50HZ-60HZ

Output voltage: DC12V

Output Current: Rated 2A Peak 4A Protection

Output power: 24W

Overall size: length 6.9cm * width 3.6cm * height 2.5cm
