SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

BBS: http://forum.mhetlive.com/topic/47/mh-et-live-tiny8-16-0mhz

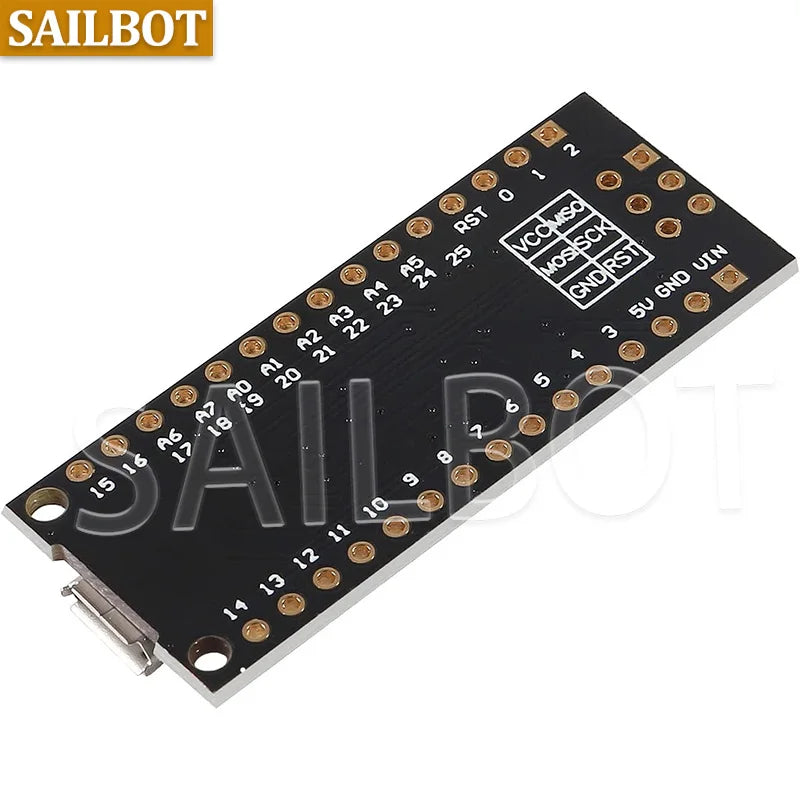

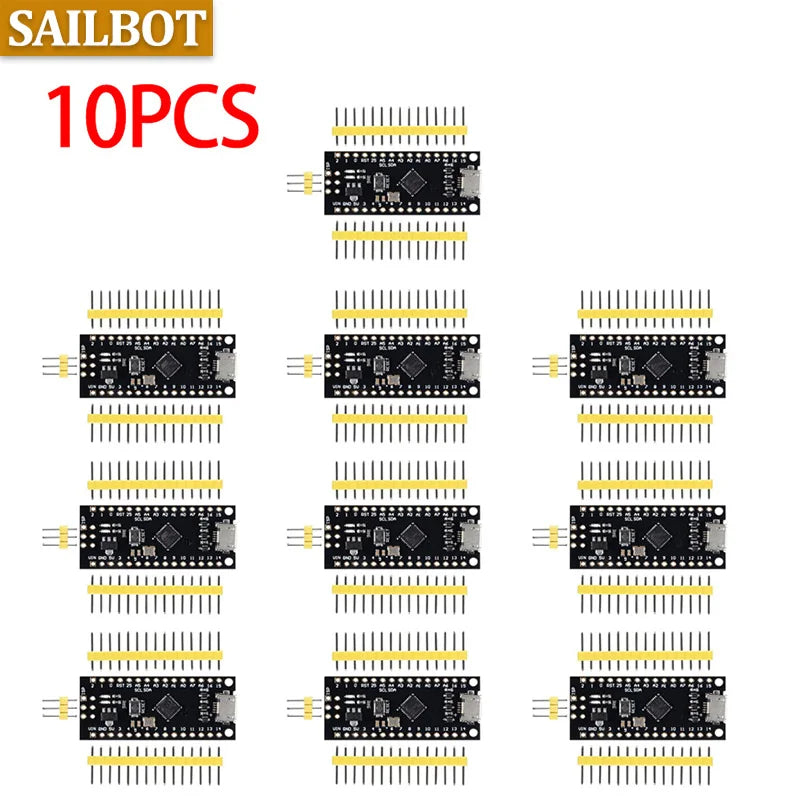

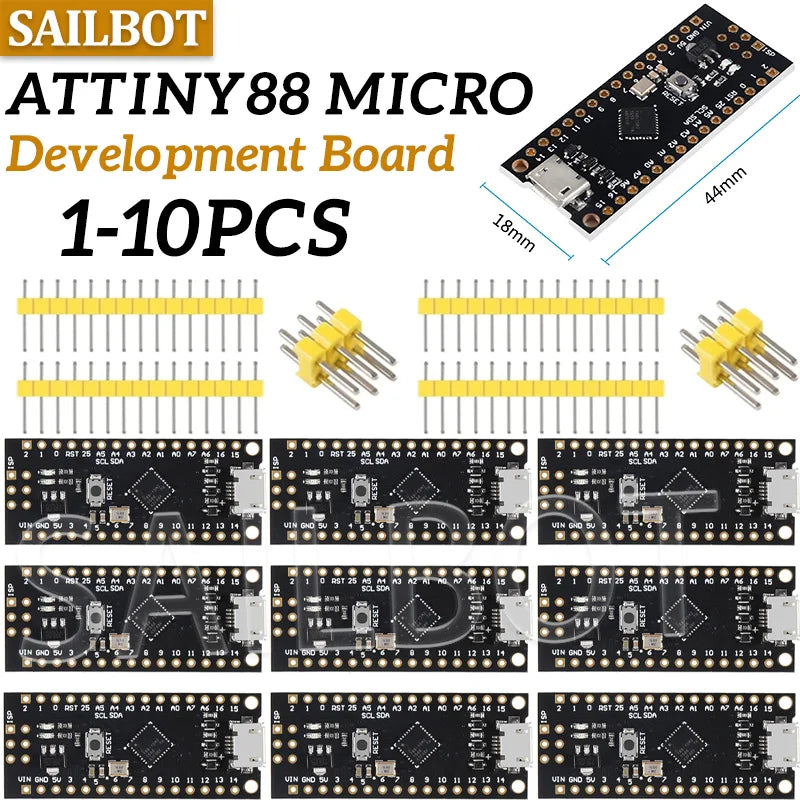

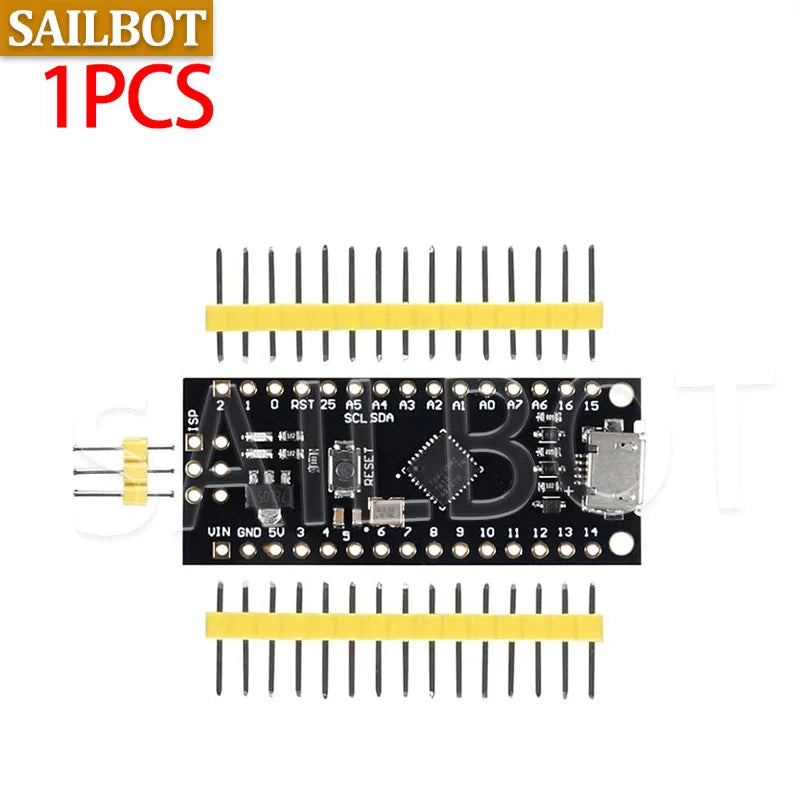

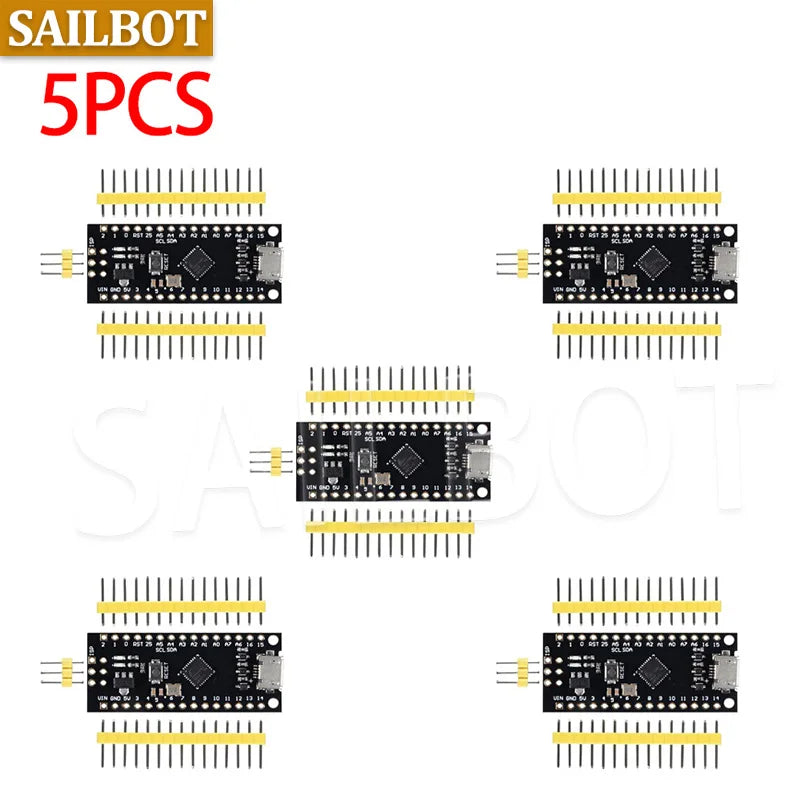

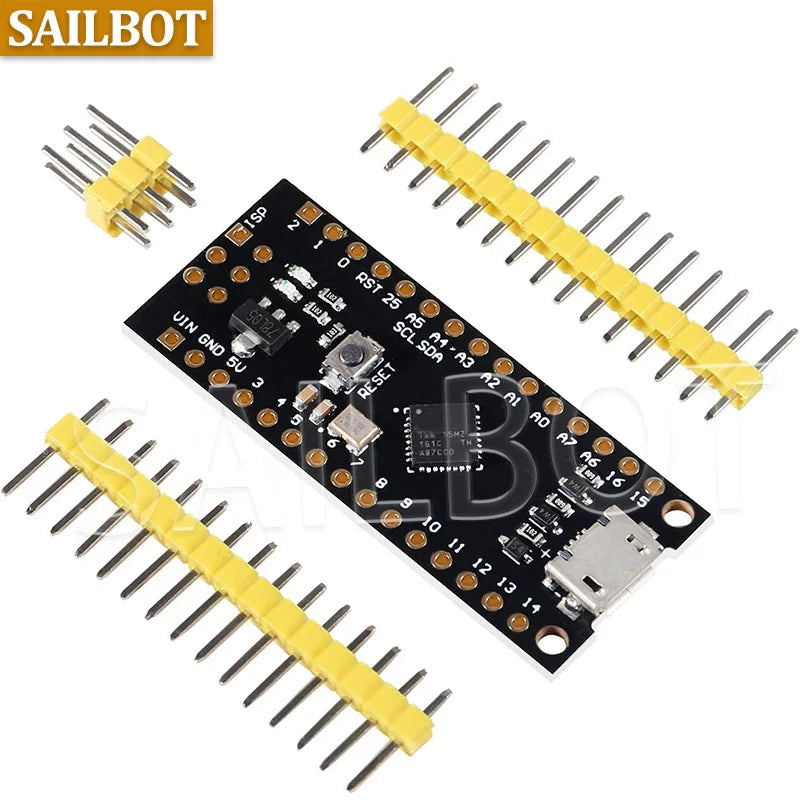

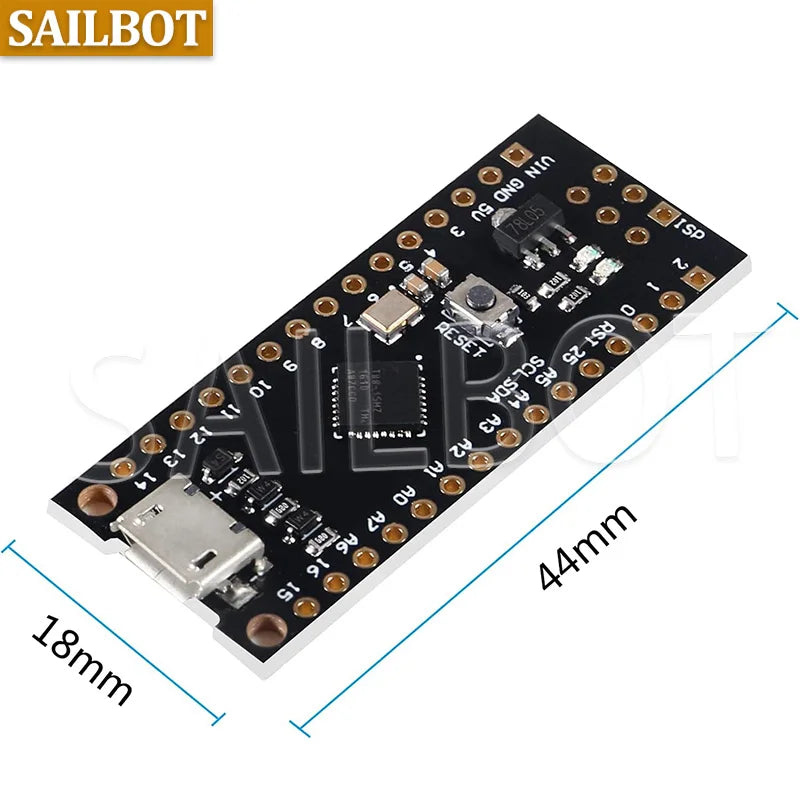

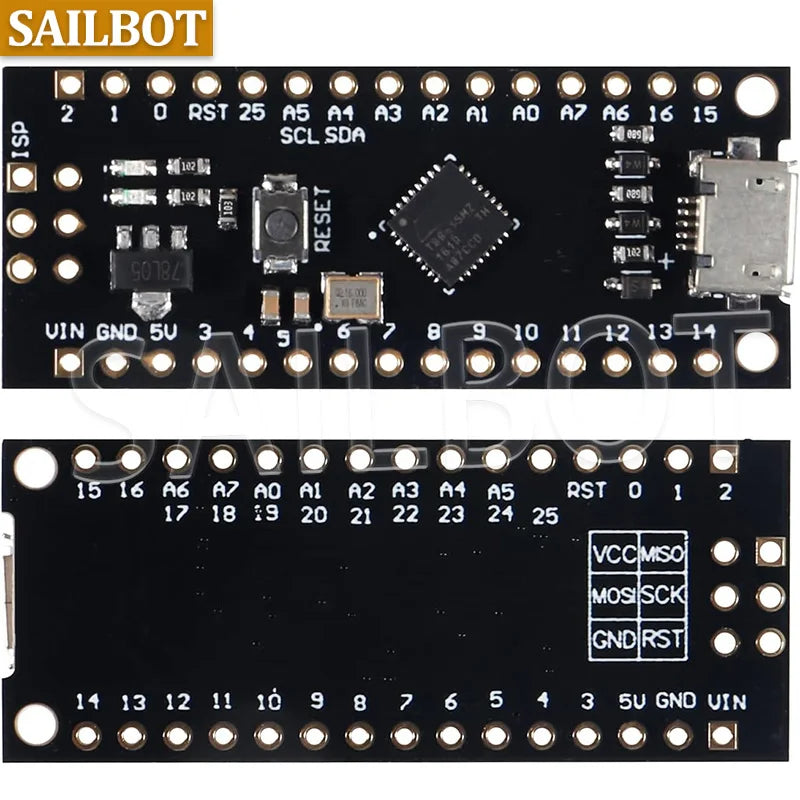

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much.The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headersincluded and easy to solder them by yourself.

Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

1. Power via USB or External Source - 5v or 7-35v (12v or less recommended,

automatic selection)

2. On-board 500ma 5V Regulator

3. Built-in USB

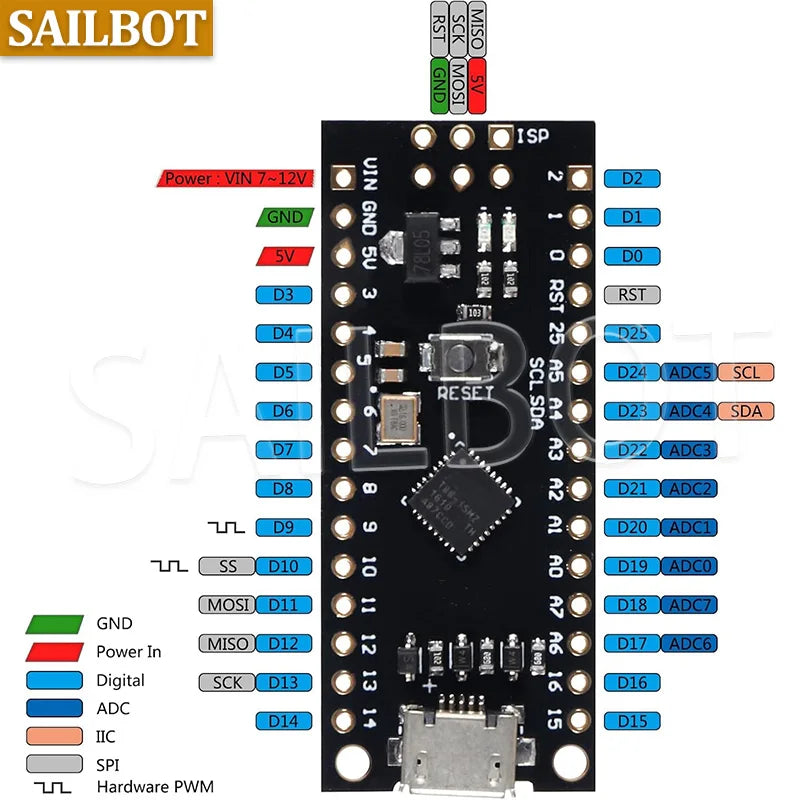

4. 26 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

5. 8k Flash Memory (about 6k after bootloader)

6. I2C and SPI

7. 26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )

8. ADC on 8 pins
