SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New,New,New

High-concerned chemical: none

Model Number: BMI160,BMI160

Origin: Mainland China,Mainland China,Mainland China

Output: Switching Transducer

Supply Voltage: 1

Theory: Resistance Sensor

Type: Logic ICs,vibration sensor,Switch

Usage: Temperature Sensor

semi_Choice: yes

modname=ckeditor

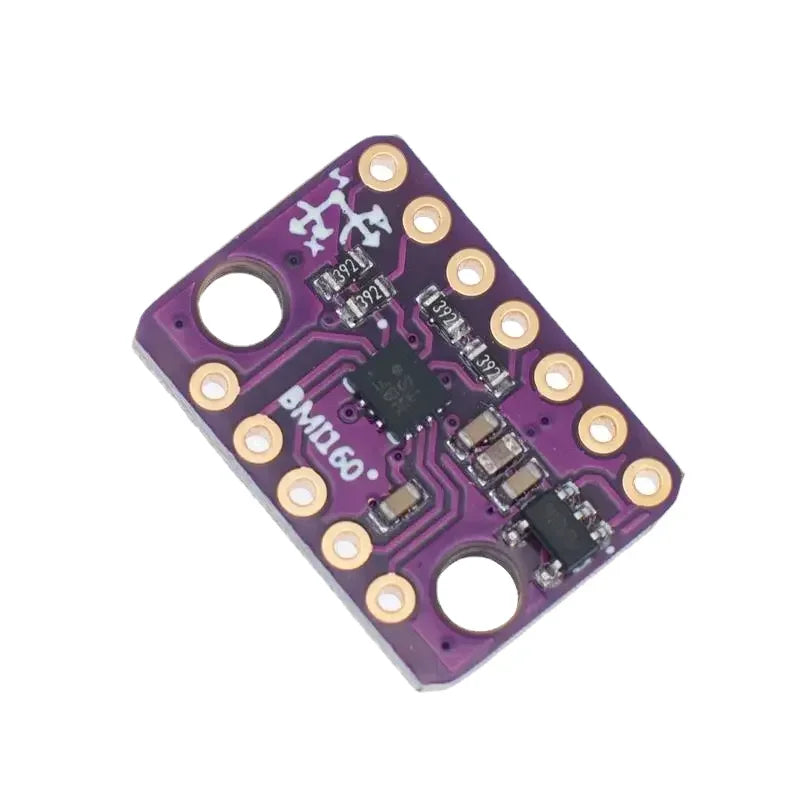

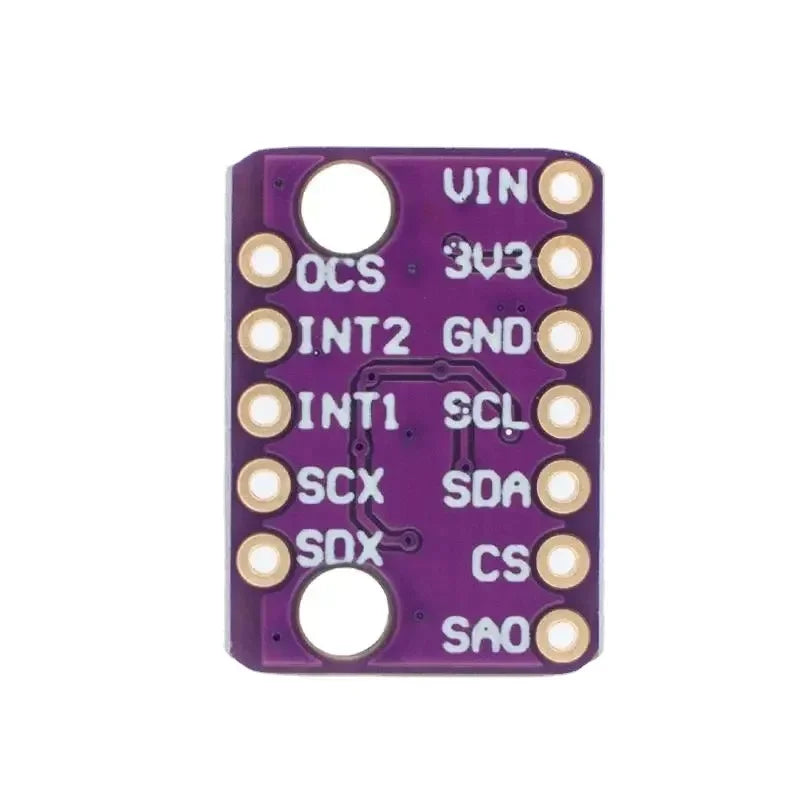

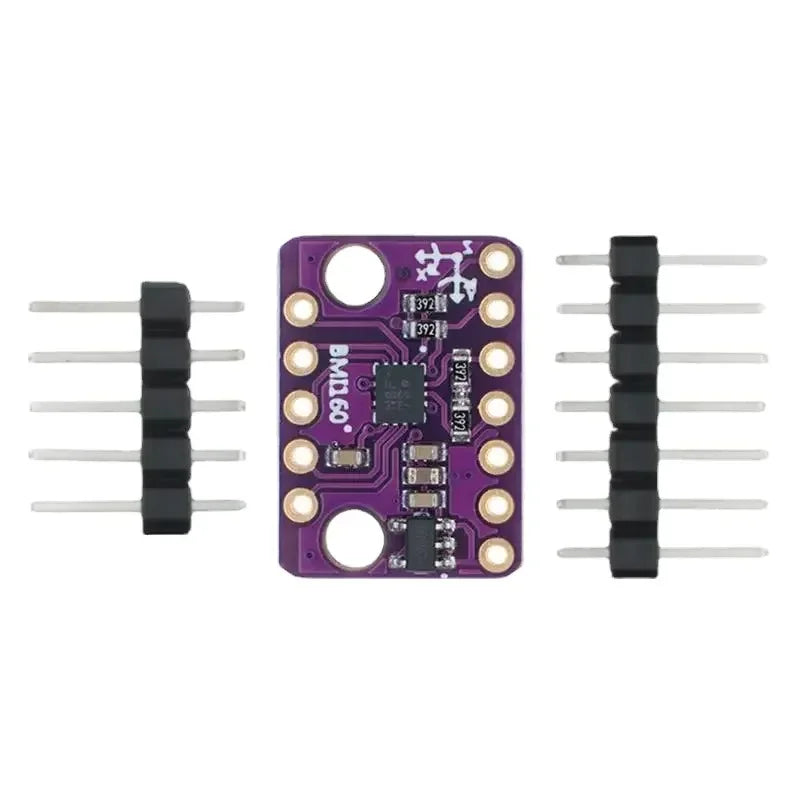

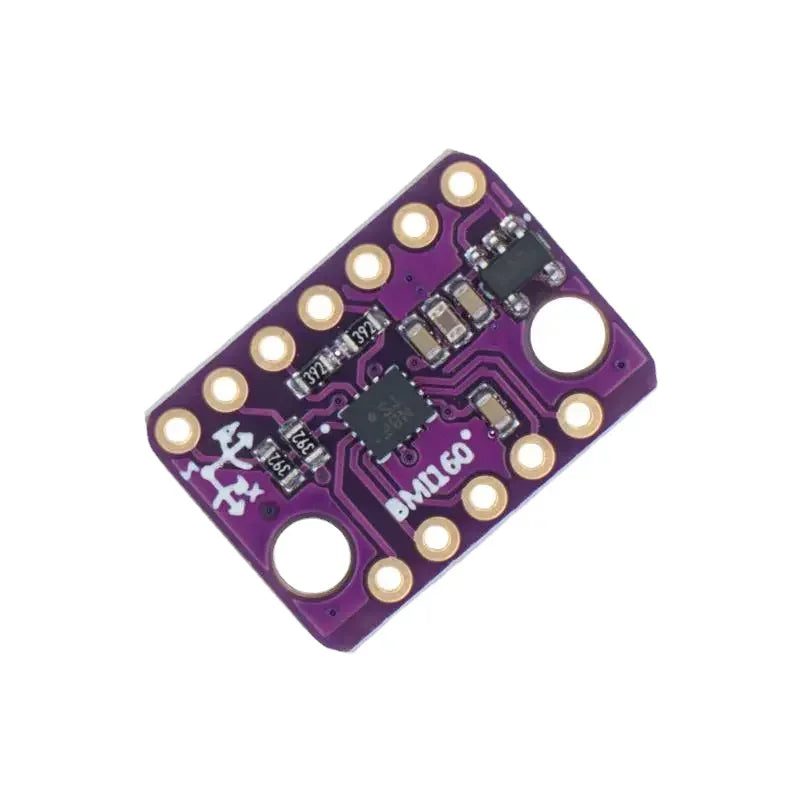

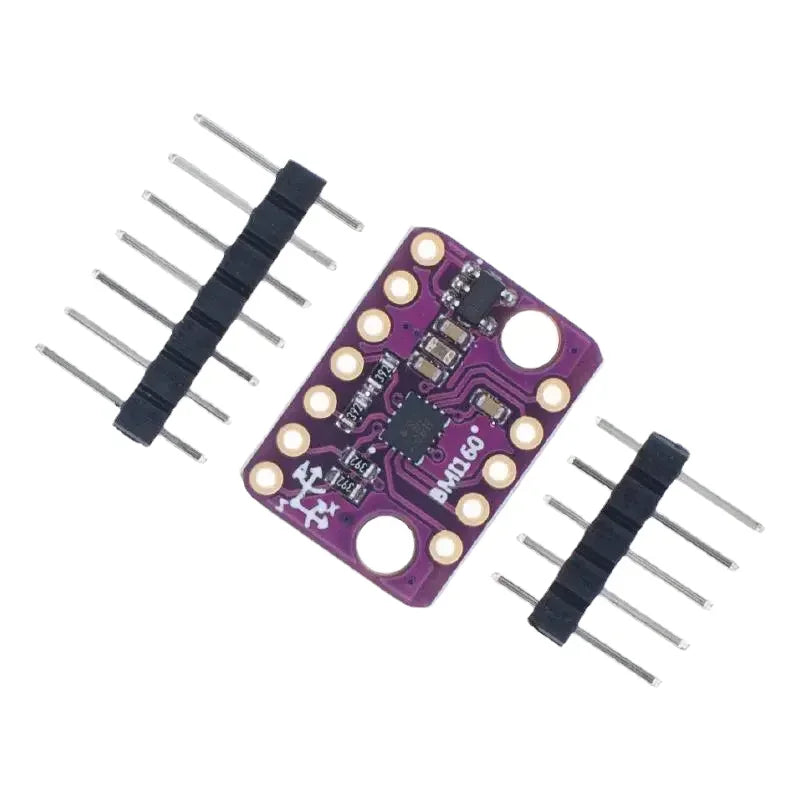

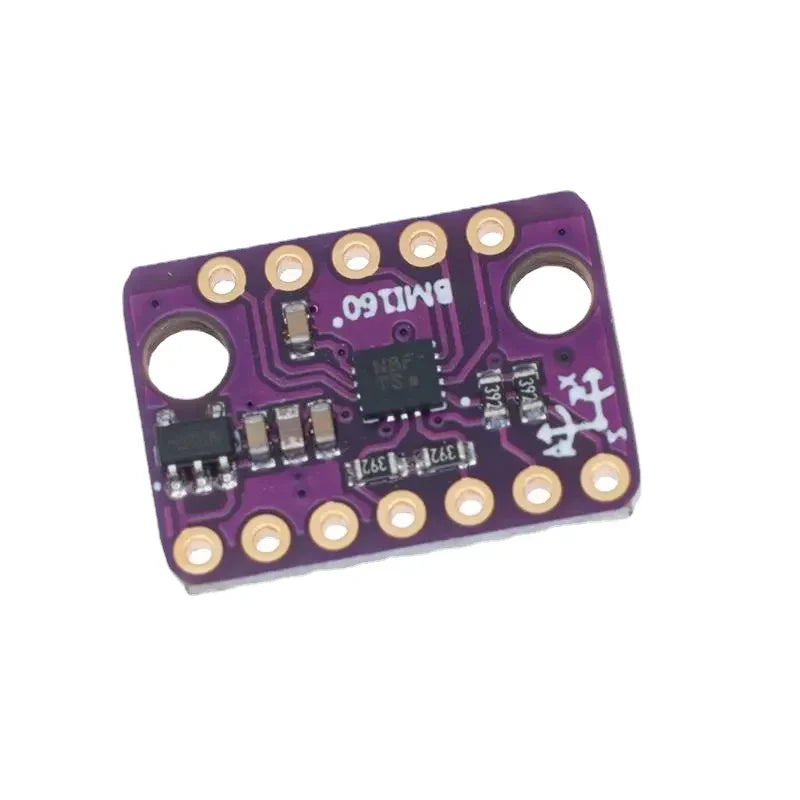

GY-BMI160 module (three-axis gyroscope + three-axis acceleration)Chip used: BMI160Power supply: 3-5v (internal low pressure difference voltage regulator)Communication mode: Standard IIC/SPI communication protocolChip built-in 16bit AD converter,16 bit data outputGyro range: 125 250 500 1000 2000 /sAcceleration range: 24816gMetal-sunk PCB, machine welding process to ensure qualityPin spacing 2.54mmModule size 13mm*18mm

The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data.

In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 A, enabling always-on applications in battery driven devices. It is available in a compact 14-pin 2.5 x 3.0 x 0.8 mm3 LGA package."

Applications

- Augmented reality and immersive gaming

- 3D-scanning and indoor mapping

- Indoor navigation, pedestrian dead-reckoning, step-counting

- 6- and 9-axis sensor fusion, air mouse applications
