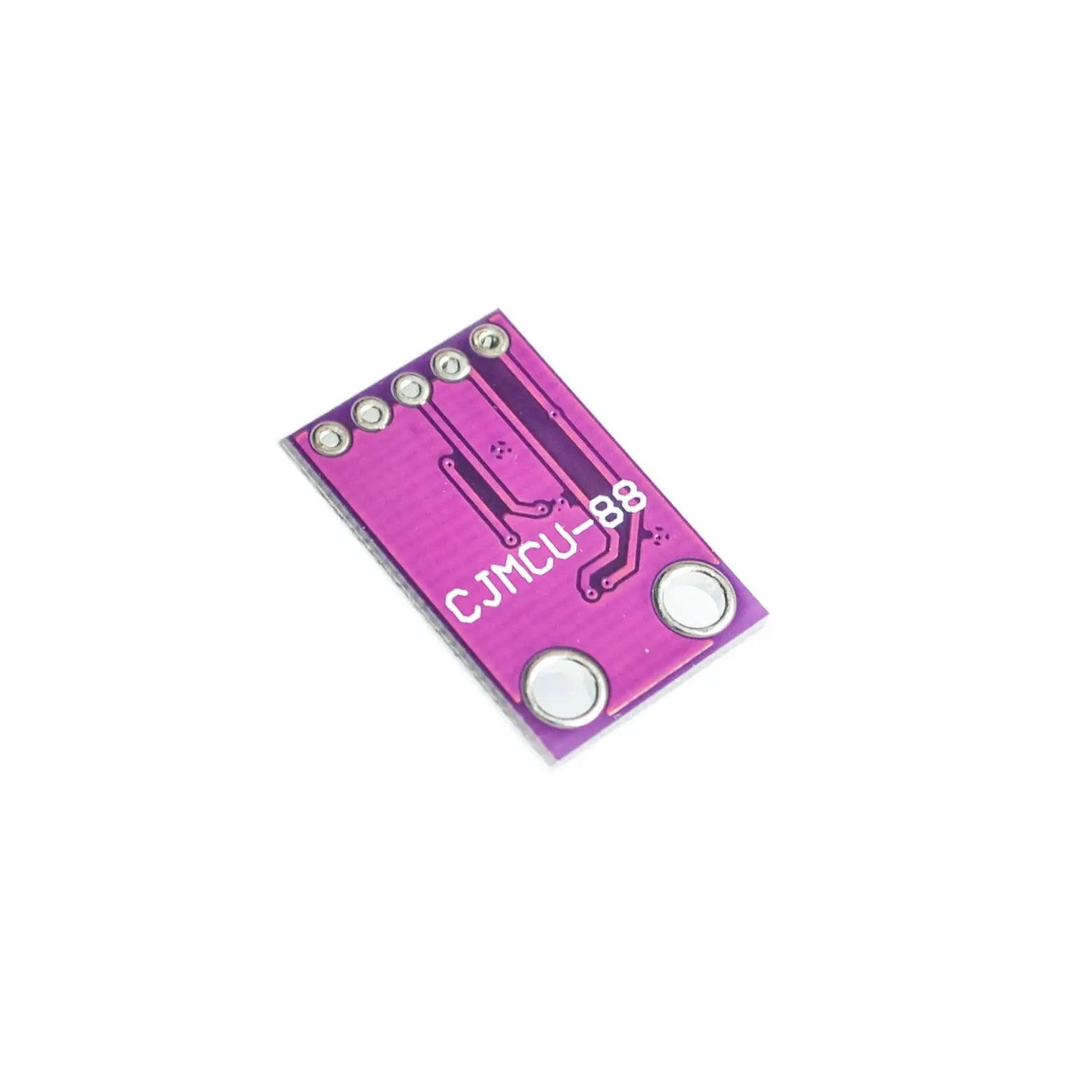

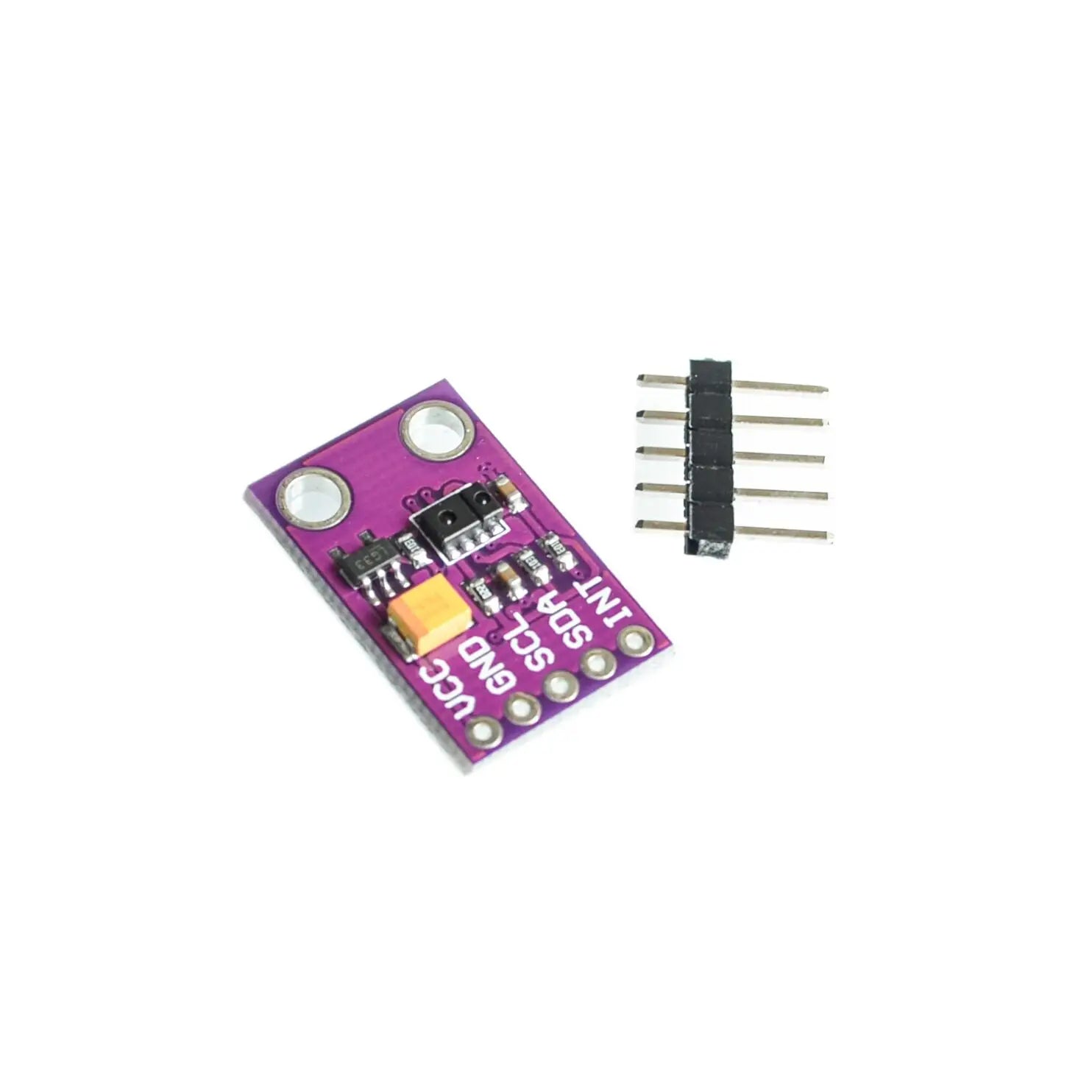

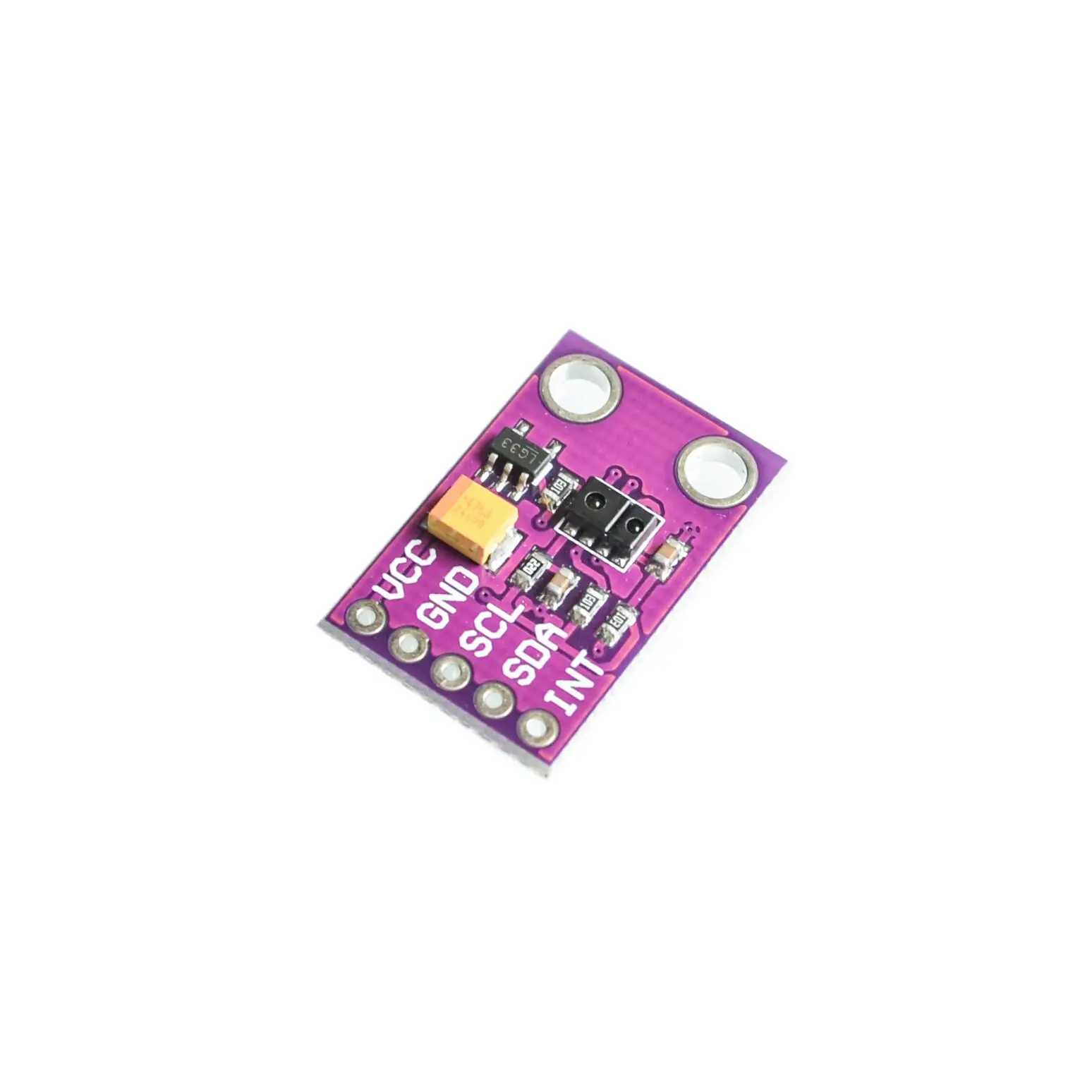

TMD27713 Face Proximity illumination Sensor IR LED for NEW

 Module using chip: TMD27713

Detection distance 100mm

Module name: Face proximity detection module Distance light sensor module

Ambient light + proximity sensor + infrared LED three-in-one sensor TMD2771X used in mobile phones mainly plays two functions, one is used to detect the current ambient light intensity (ALS); The backlight brightness is automatically adjusted according to the current ambient brightness condition by software adjustment to adapt to the ambient brightness; The soft brightness of the backlight can protect the eyesight and achieve the effect of electricity saving; The other function is called the proximity sensing function (PROX), which uses the infrared reflection of the internal LED emission and the reception of the sensor's built-in PD to determine whether the phone is close to the face during the call, so as to determine the backlight state and the touch screen key state ON/OFF.

Compared with the 2-in-1 product TSL2771X, the biggest advantage of the 3-in-1 device TMD2771X is that it integrates the infrared emission tube inside, without the support of external leds. The 2-in-1 sensor is not equipped with an LED inside, and an external LED is required; This design method has no harsh requirements in the hardware /pcb part, but the power of the LED is a more important problem point.

The consistency of the Sensor itself can be controlled during the TAOS process, but the discrete type of the LED semiconductor device (which is an inherent characteristic) will make the actual production need to strictly control the power level of the LED, and there will be some inconvenience in the production process.

In addition, the three-in-one sensor has integrated the transmit/receive and reduced the design, and the design installation is more space free, and the structural part of the requirements will be relatively simple. The actual design of the two-in-one sensor needs to focus on the internal diffraction problem after the device is loaded into the mechanism, so we must pay attention to the partition between the transmission and reception when the mechanism is designed; If the panel has the problem of opening holes (including ink opening holes), it is also necessary to fully consider the opening area (the diameter of the round hole is mainly considered) and the height of the installation position from the surface of the panel, and based on this, the installation of the light guide column/installation method is determined. The interior of the 3-in-1 sensor device has been partitioned with stainless steel; However, due to the small size of the sensor body (2.4*4.0*1.4), the integrated production also makes the implementation of external isolation measures relatively difficult, so the actual structural design needs to pay attention to relevant issues, and refer to the following mechanism design suggestions in detail.
