SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: LOW

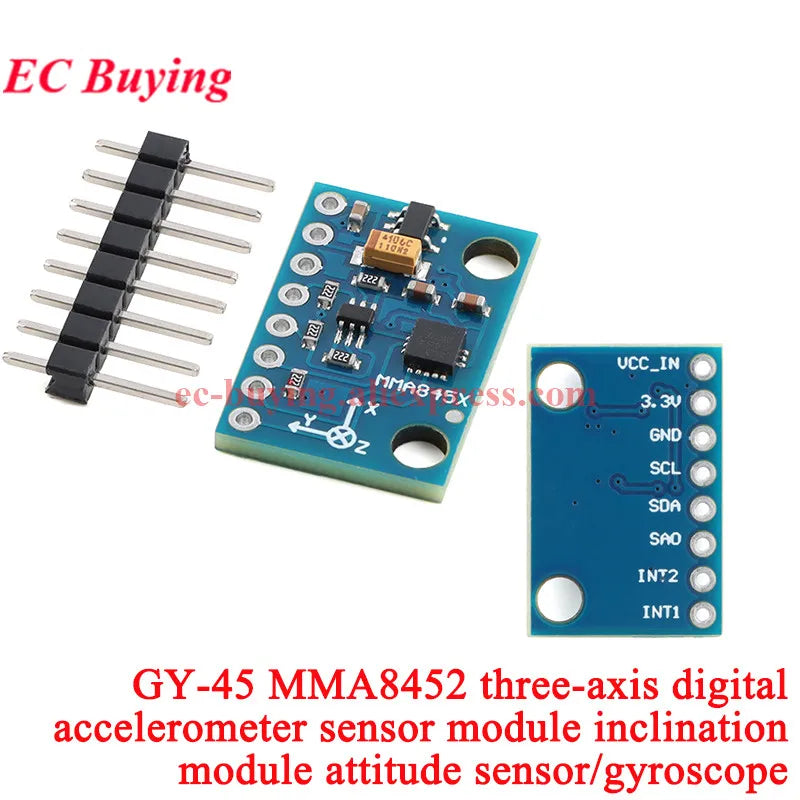

GY-45 MMA8452 three-axis digital: accelerometer sensor module tilt module attitude sensor/gyroscope

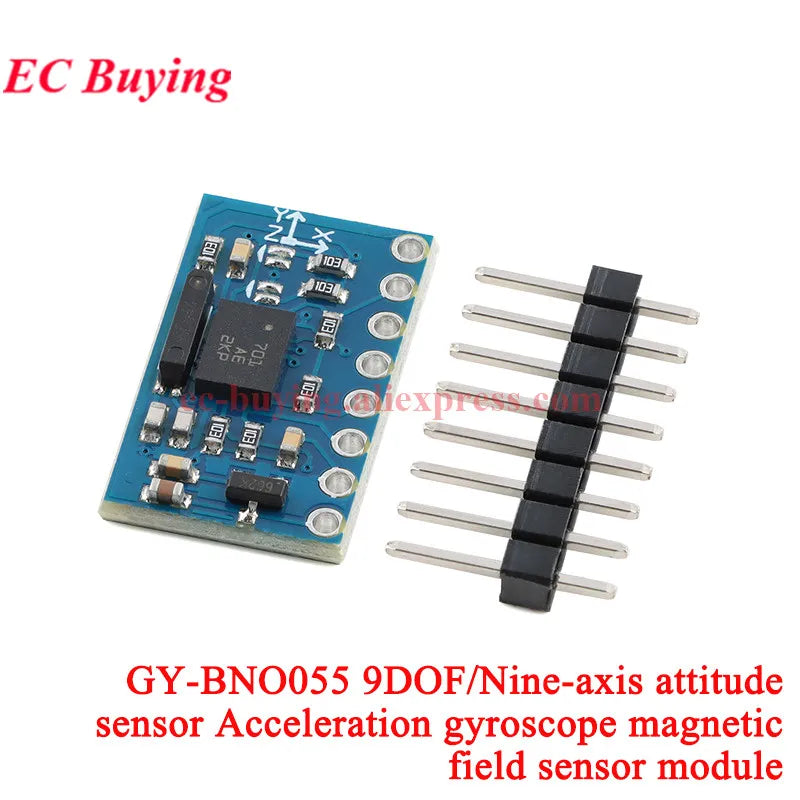

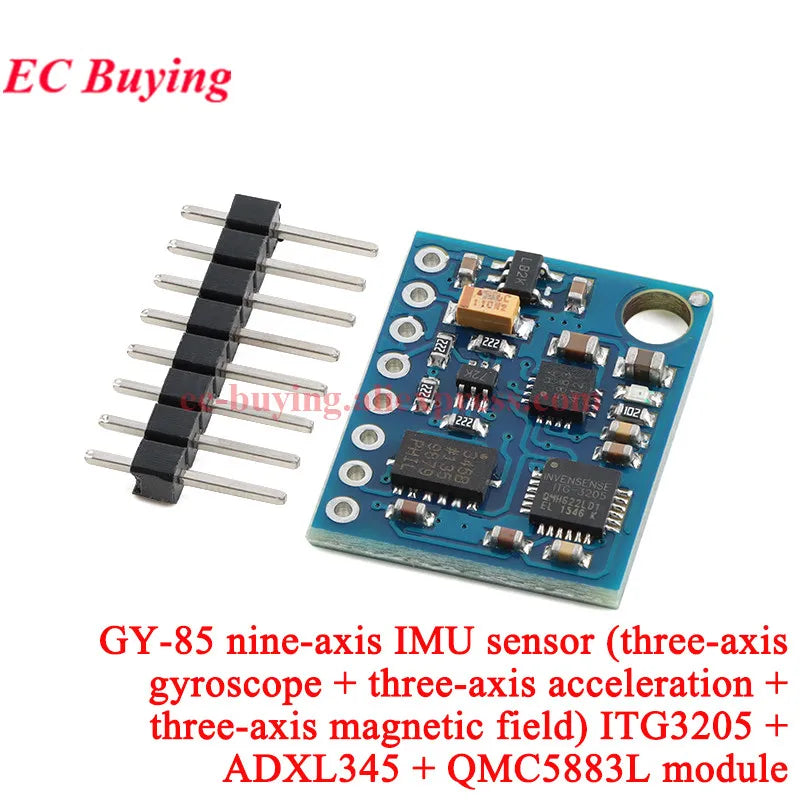

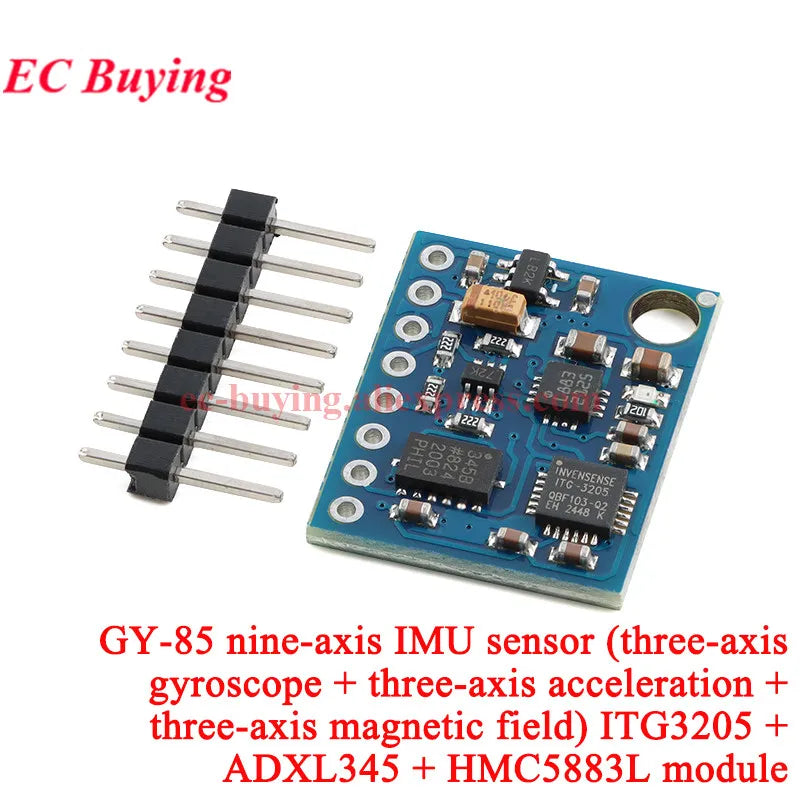

GY-85 nine-axis IMU sensor: three-axis gyroscope + three-axis acceleration + three-axis magnetic field ITG3205 + ADXL345 + QMC5883L / HMC5883 module

GY-9255 MPU-9255: Nine-axis attitude three-axis electronic compass acceleration gyroscope magnetic field sensor module

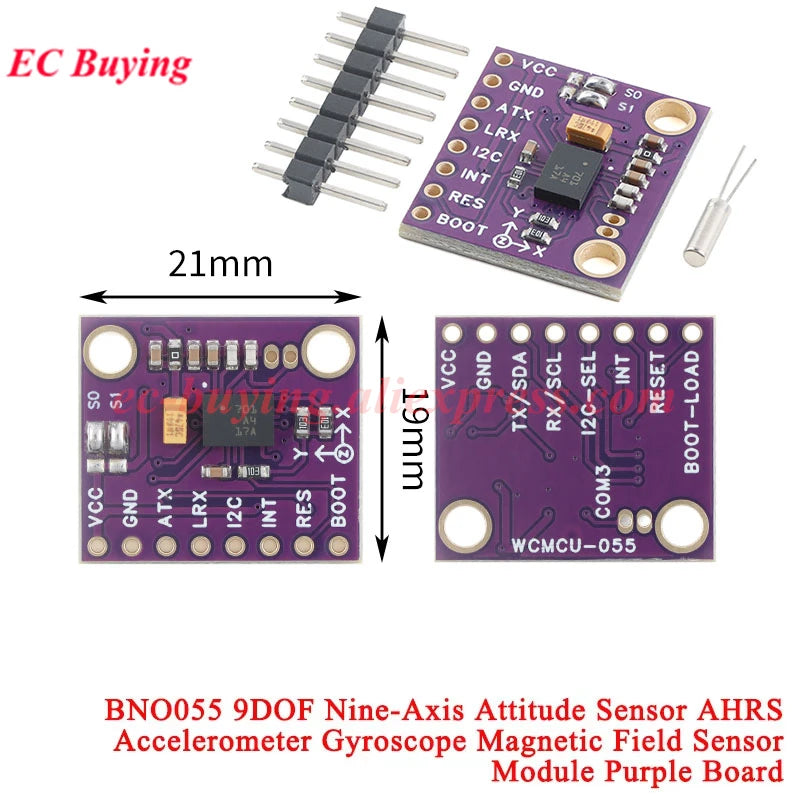

GY-BNO055 BNO055 9DOF: Nine-axis attitude sensor Accelerometer gyroscope magnetic field sensor module

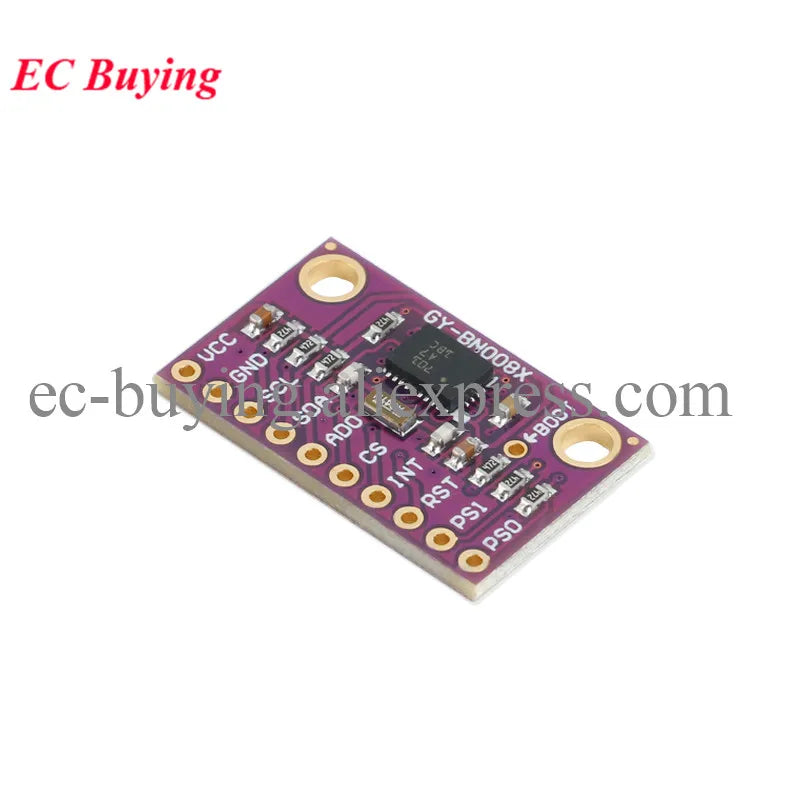

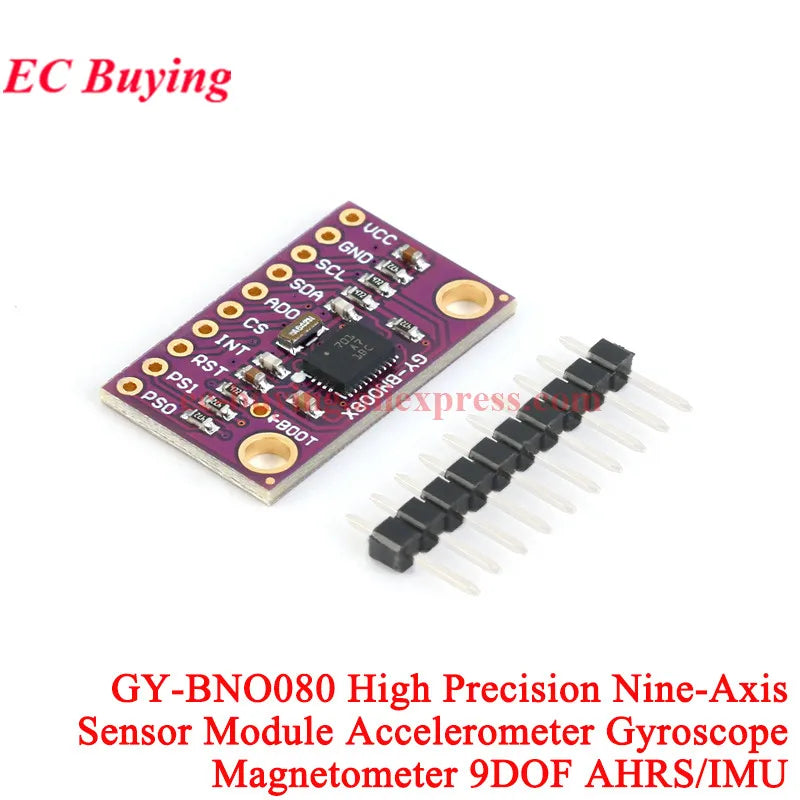

GY-BNO080 9DOF AHRS/IMU: High-precision nine-axis sensor module Accelerometer gyroscope magnetometer

GY-LSM9DS1 GY-BNO080: BNO085 bno08x High Accuracy

High-concerned chemical: none

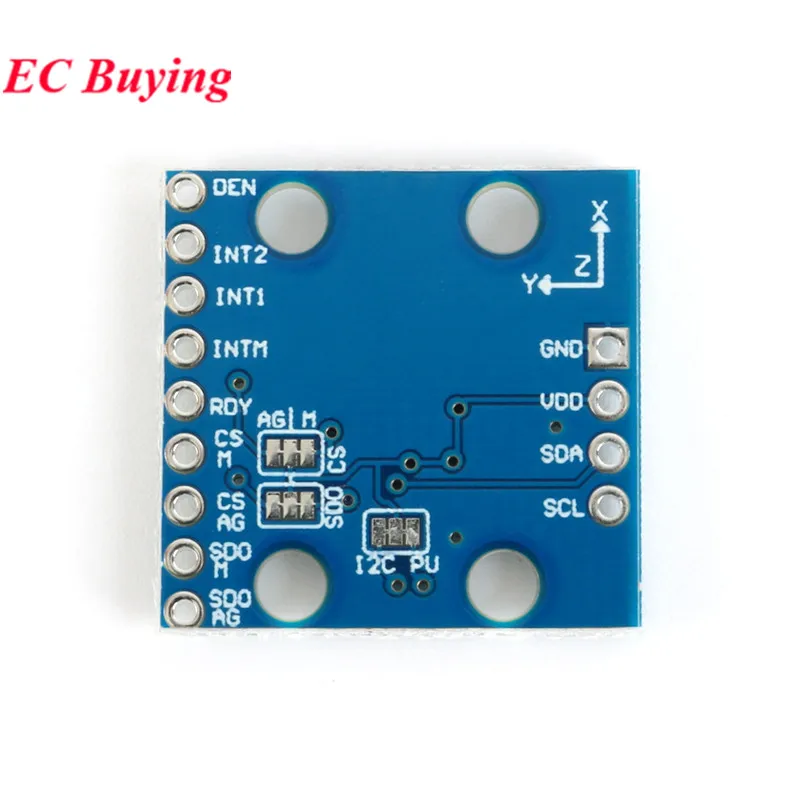

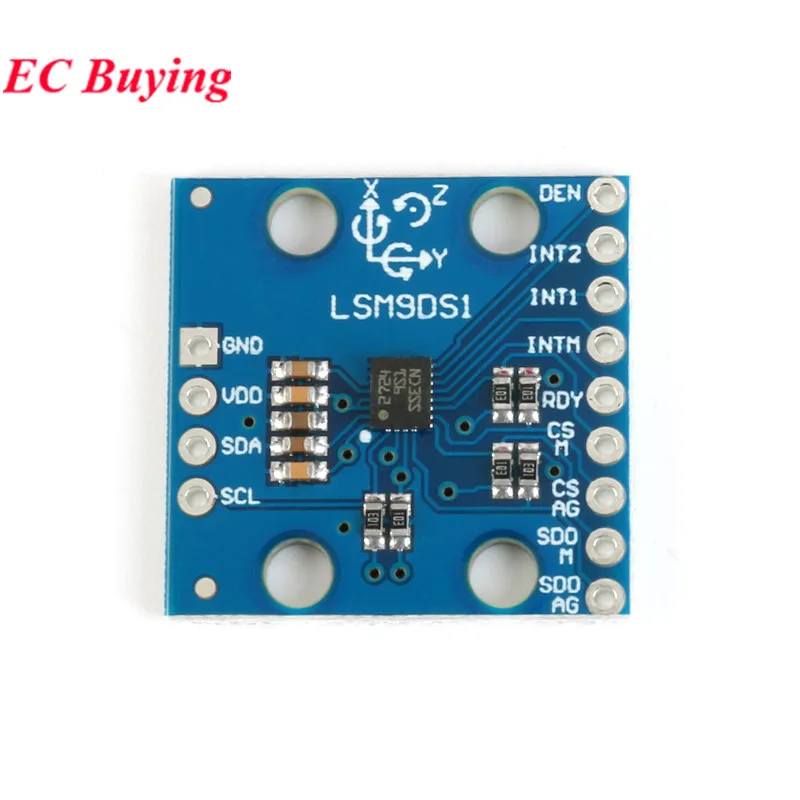

LSM9DS1 9 Nine-axis IMU Electronic Compass: Accelerometer Gyro Magnetometer/Inertial Measure Sensor Module I2C SPI For Arduino,Accelerometer Gyro Magnetometer/Inertial Measure Sensor Module I2C For Arduino

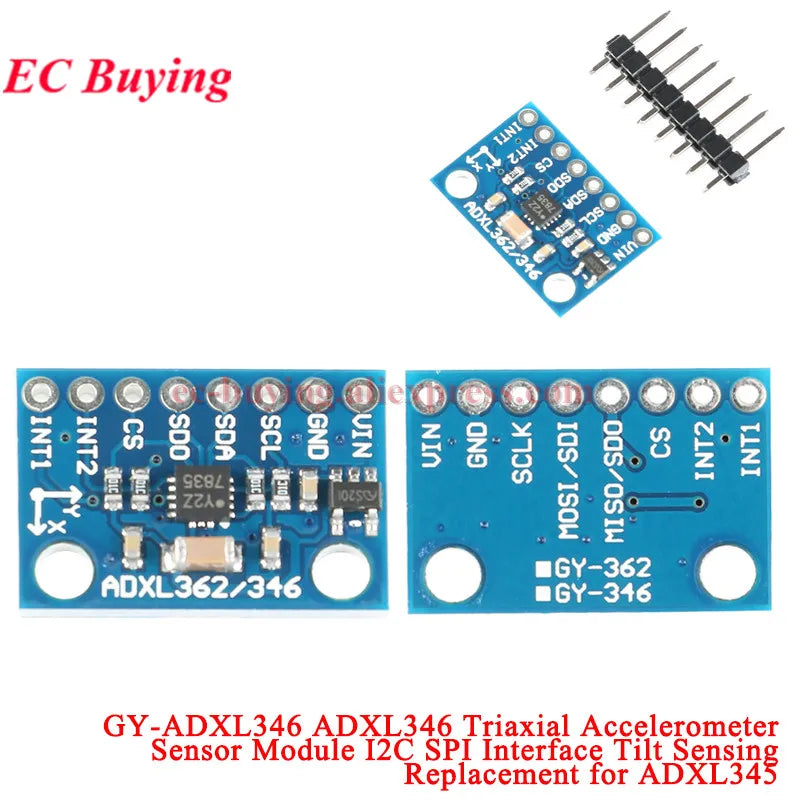

LSM9DS1 nine-axis Sensor Module: 9-axis IMU Accelerometer Gyroscope Magnetometer GY-BNO080 9DOF MPU-9250 MPU-9255 BNO055 ADXL345 GY-ADXL346 ADXL346

LSM9DS1 nine-axis Sensor Module 9-axis IMU: Accelerometer Gyroscope Magnetometer GY-BNO080 9DOF MPU-9250 MPU-9255 BNO055

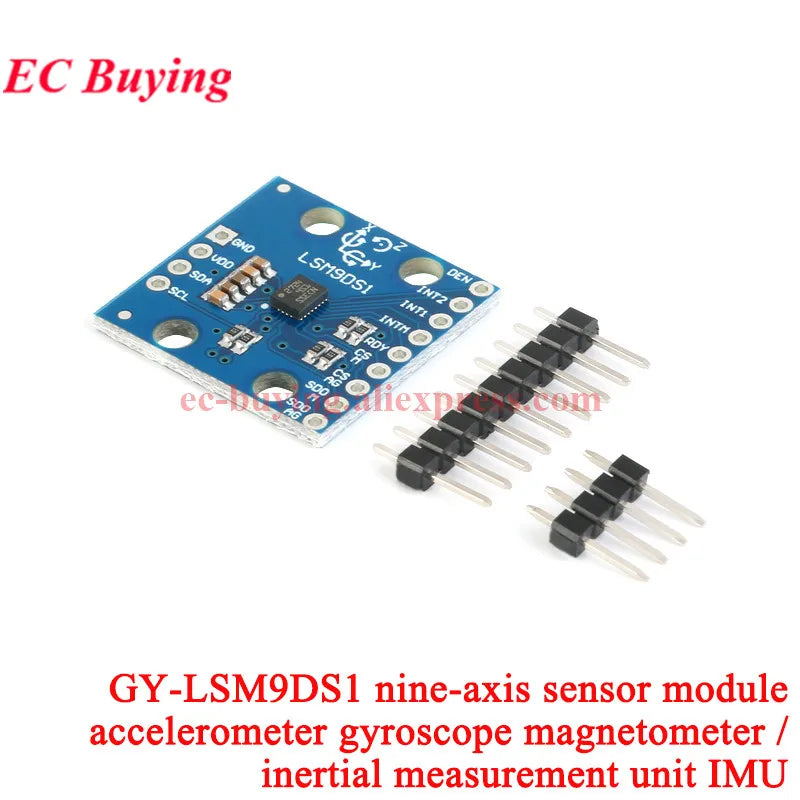

LSM9DS1 nine-axis Sensor Module GY-LSM9DS1: 9-axis IMU Accelerometer Gyroscope Magnetometer For Arduino

MPU-9250 nine-axis: attitude sensor module 3 three-axis gyroscope + three-axis acceleration + three-axis magnetic field

Operating Temperature: normal

Origin: Mainland China

Package: module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 3.3v

Type: Voltage Regulator

is_customized: Yes

Power supply voltage: 3.3v

Support i2c, spi interface

Product Introduction:



The BNO080 / 085 is a 9-axis system-in-package (SiP) that enables rapid development of sensor-enabled augmented reality (AR), virtual reality (VR), robotics and IoT devices.



Featuring high-performance accelerometers, magnetometers and gyroscopes, the low-power 32-bit ARM Cortex M0 + MCUs are available in a small package.





Interfaces:



The BNO080 can communicate through a variety of interfaces. The Qwiic VR IMU has two jumpers that allows the user to select their interface of choice.





I2C (Default): Up to 400kHz



SPI: Up to 3MHz



UART: 3Mbps



UART-RVC (Robot Vacuum Cleaners): 115200kbps





Performance Characteristics:



Rotation Vector



Dynamic Error: 3.5°



Static Error: 2.0°



Gaming Rotation Vector



Dynamic Error: 2.5°



Static Error: 1.5°



Heading Drift: 0.5° / min



Geomagnetic Rotation Vector



Dynamic Rotation Error: 4.5°



Static Rotation Error: 3.0°



Gravity Angle Error: 1.5°



Linear Acceleration Accuracy: 0.35m/s2



Accelerometer Accuracy: 0.3m/s2



Gyroscope Accuracy: 3.1° / sec



Magnetometer Accuracy: 1.4μT



Chip used: MPU-9250
Gyroscope range: ± 250 500 1000 2000 °/s
Acceleration range: ± 2±4±8±16g
Magnetic field range: ± 4800uT
Power supply: 3-5v (internal low dropout voltage regulator)
Communication mode: standard IIC/SPI communication protocol (chip built-in 16bit AD converter, 16-bit data output)
Pin pitch: 2.54mm
Product size: 1 5mm * 25mm

Pin Description
VCC: positive pole of power supply.
GND: negative pole of power supply
SCL: IIC Clock Signal Line
SDA: IIC Data Signal Line
EDA: IIC master serial data for connecting external sensors
ECL: IIC master serial clock for connection to external sensors
ADO: IIC slave address pin
INT: Interrupt Digital Pin
NCS: Chip Select (SPI mode only)
FSYNC: Frame sync digital input.

Non-original module, without magnetometer

Feature

1. On-board ADXL345, Support I2C/SPI, it's a low cost cap-based accelerometer sensor.

2. Support 5V/3.3V voltage input, onboard RT9161, better performance than 1117, faster load the appropriate speed, it is ideal for high noise power supply environment.

3. Common Pins were lead out, Pin distance is standard 100mil (2.54mm), compatible for your newsystem.

4. PCB board is Gold-plated, Boad size: 28 mm x 14 mm
