SPECIFICATIONS

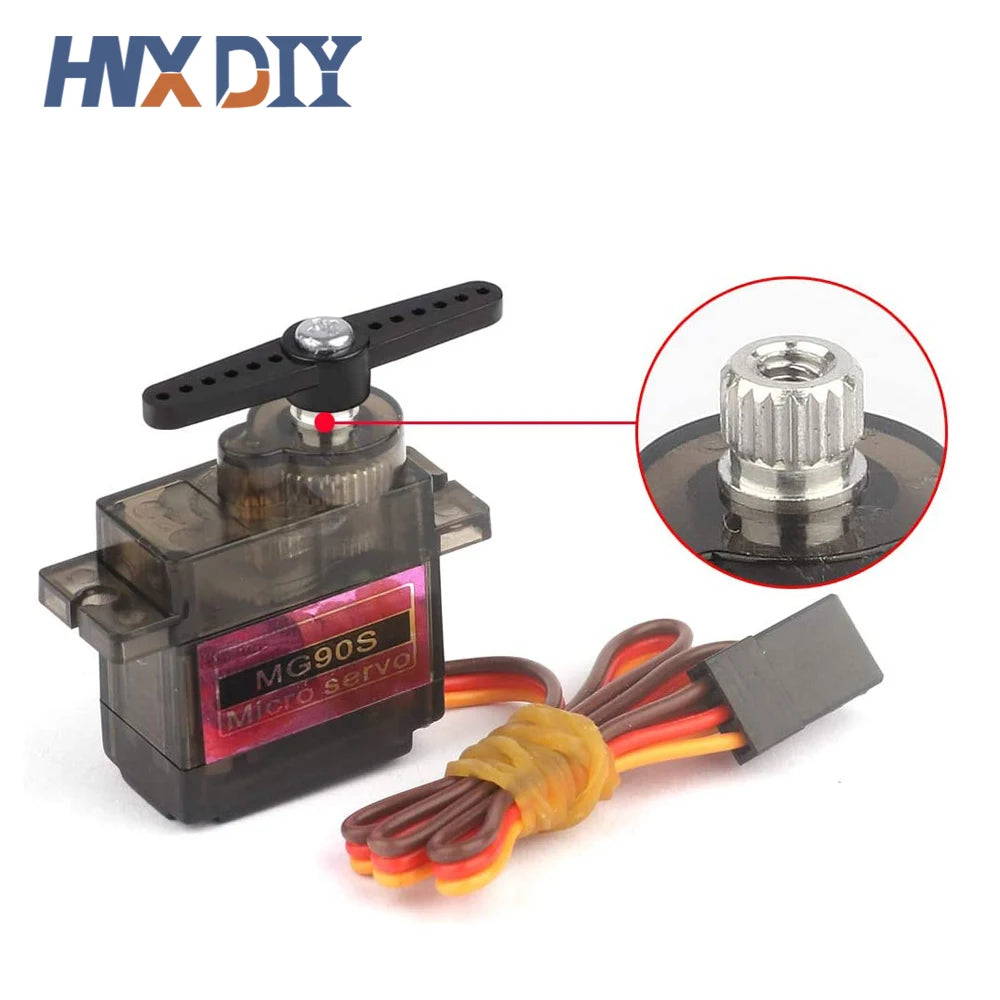

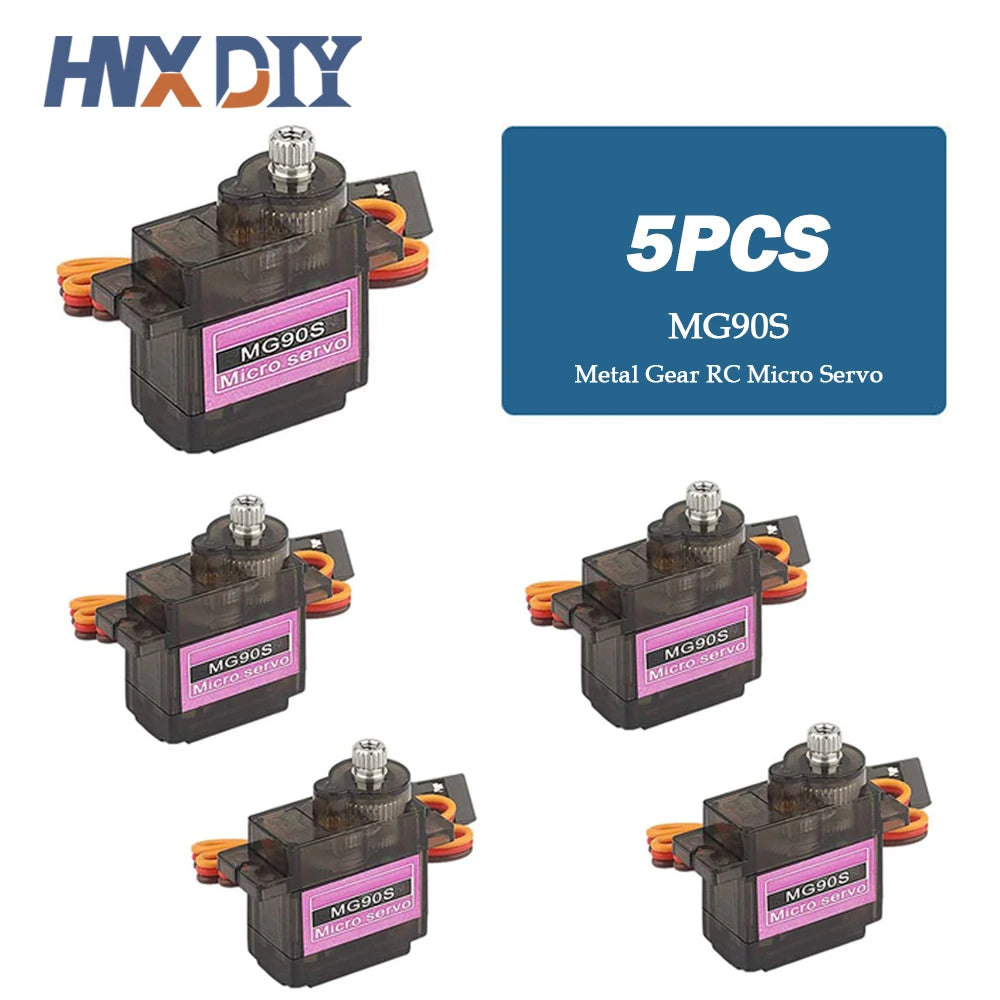

1-10PCS MG90S Micro Servo Motor Metal Gear Analog RC Servomotor 180 Degree For Mini Car Airplane Helicopter Arduino Robot

Specification:
Product Model: MG90S

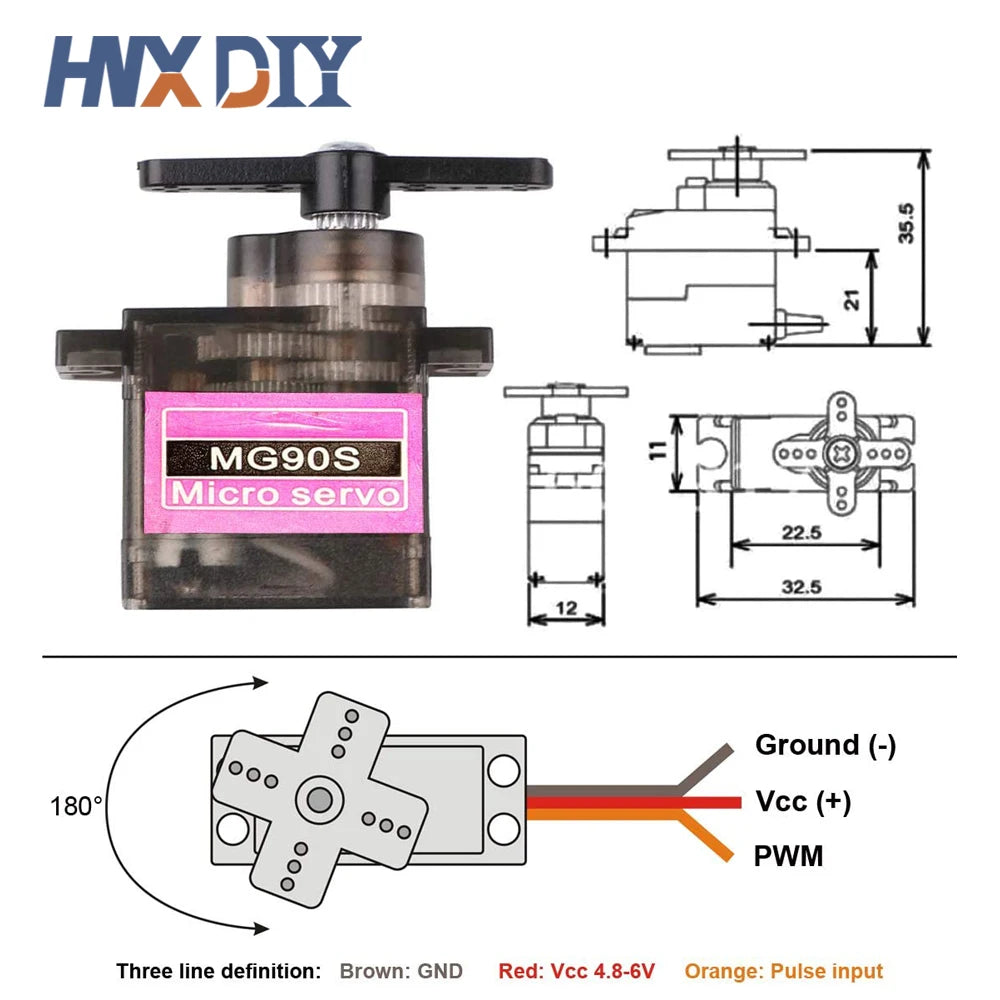

Dimensions: 22.8 x 22.4 x 12mm
Working Torque: 2kg/cm
Reaction Speed: 0.11 seconds / 60 degrees (4.8V)
Operating Temperature: 0 ℃- 55 ℃
Dead Band Width: 5msec

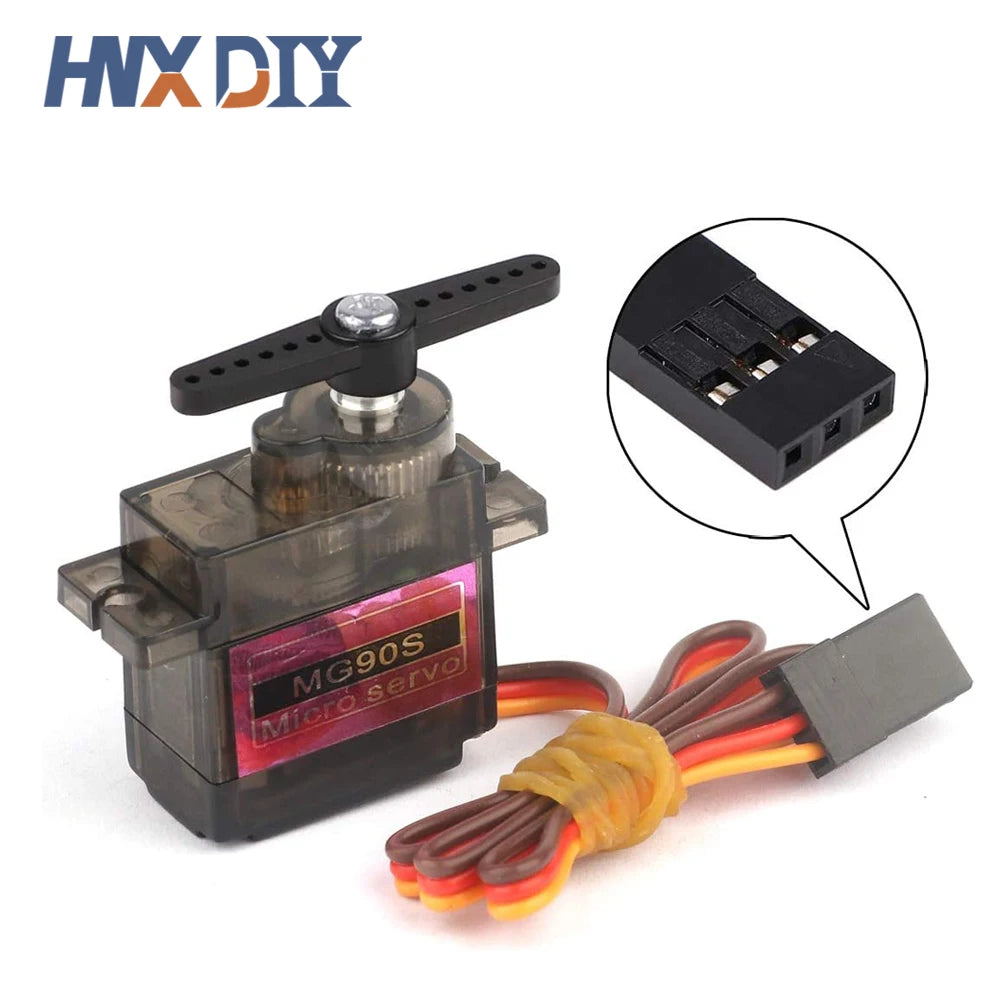

Plug Type: JR, FUTABA General
Rotation Angle: 0-180°
Operating Mode: Analog
Operating Voltage: 4.8V
Gear Material: Aluminium+Plastics/All Metal

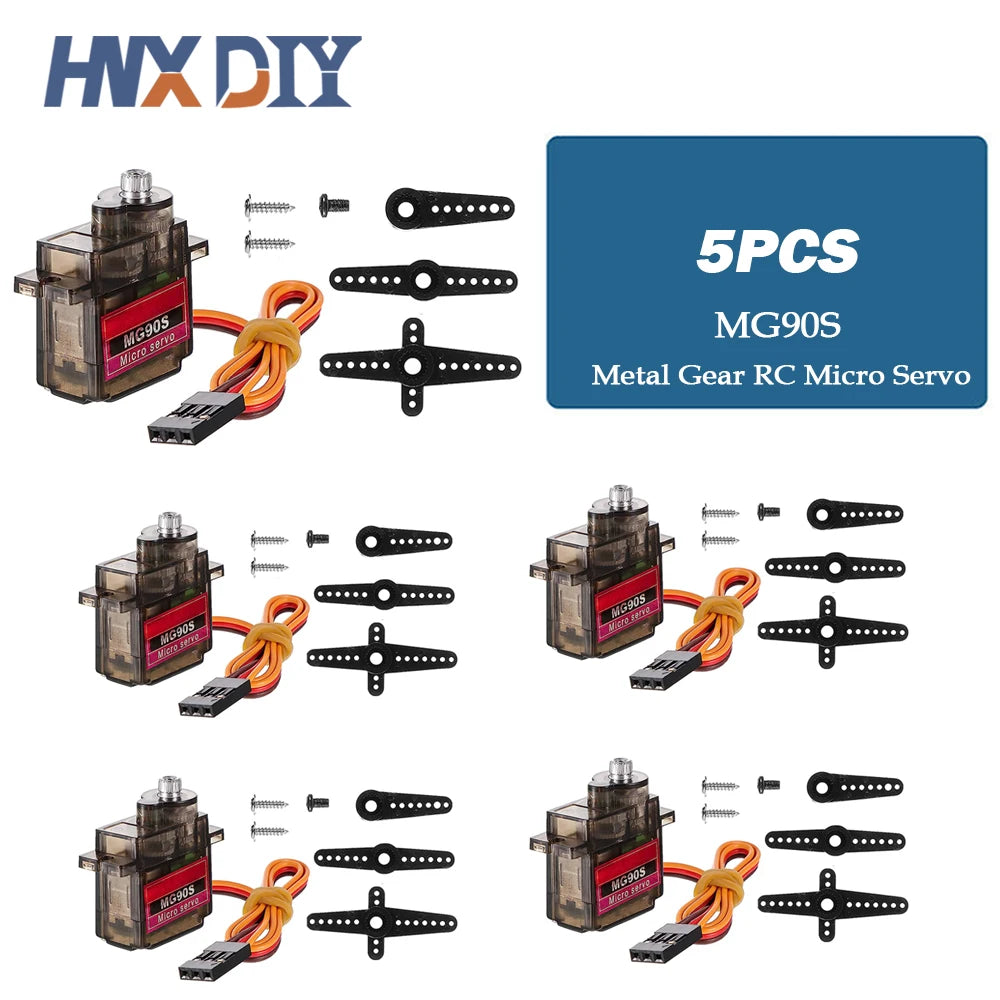

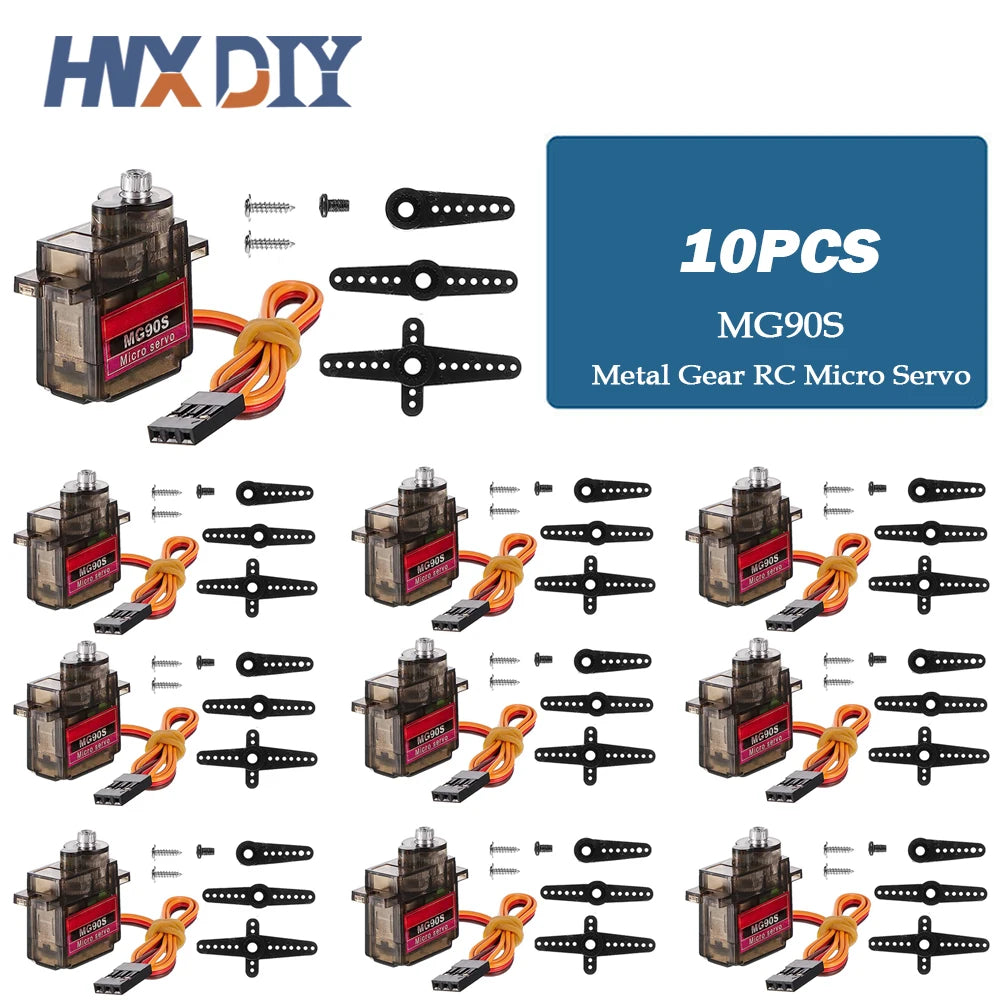

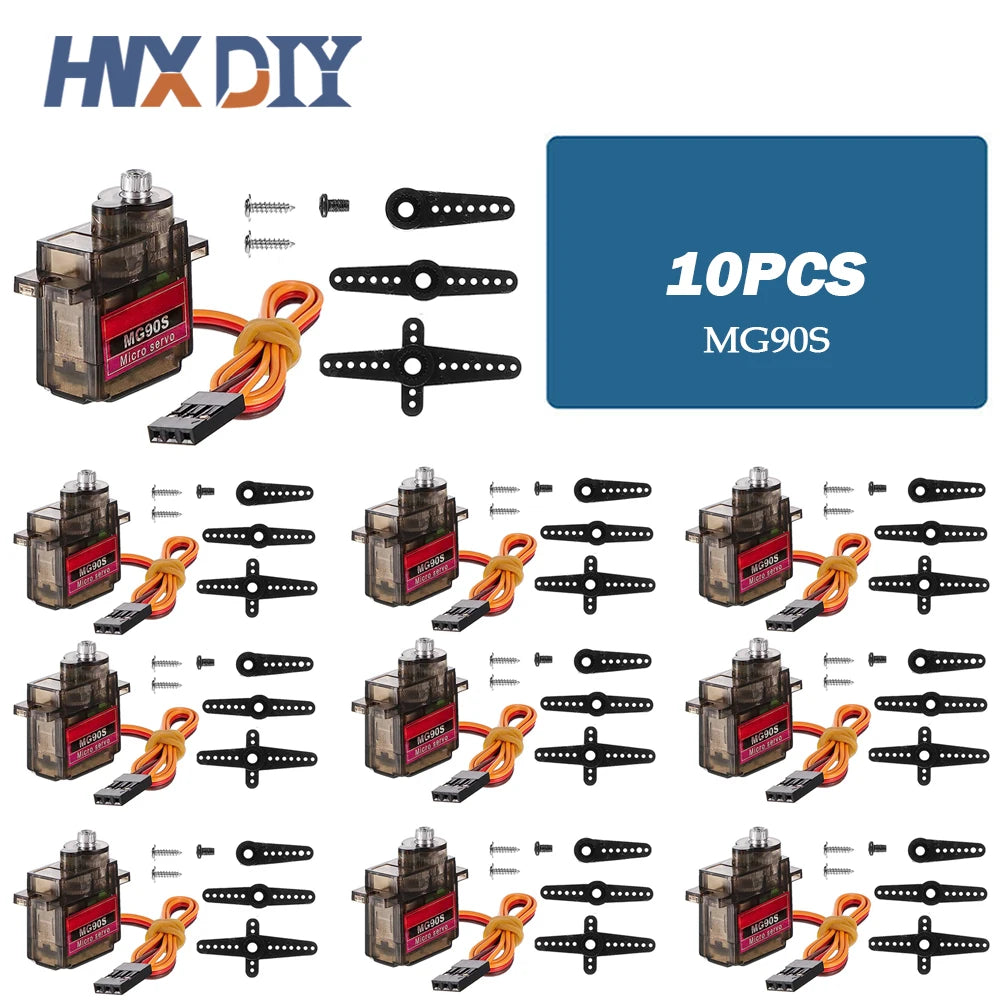

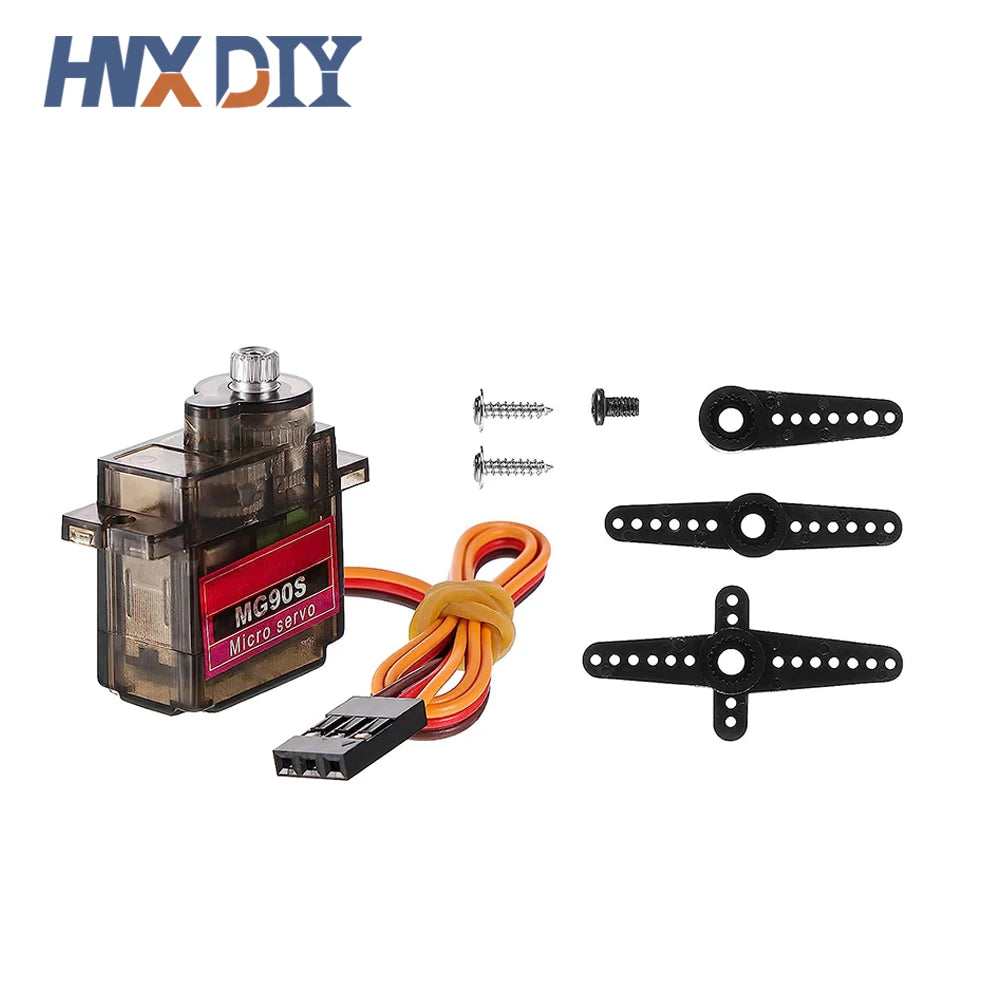

Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Scope: Small and medium-sized electric model aircraft and model

Steering Gear Control:

The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.

1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees

For 180 degree servo, please use a professional PWM Servo Controller to control the angle
