SPECIFICATIONS

1) Output Current: 2A
2) Input Voltage: 2V-24V
3) Output Voltage: 5V-28V (recommended to use within 26V)
4) Efficiency: >93% (efficiency is related to input and output pressure difference)
5) Dimensions: 37mm*17mm*7mm (Length*Width*Height)

Precautions
1) This module is a boost module, the output voltage is greater than the input voltage
2) The peak current output current does not exceed 2A
3) When the output voltage of the module cannot be adjusted and is always equal to the input voltage, please turn the potentiometer counterclockwise for more than 10 turns, and then use the module to adjust the voltage normally. Voltage regulation method: the potentiometer is facing the chest, turn it counterclockwise to boost the voltage!
(When the output voltage of the module cannot be adjusted, the output voltage is always equal to the input voltage. Please adjust the potentiometer counterclockwise for more than 20 turns. (Let the potentiometer lean against the chest and turn counterclockwise to boost the voltage)

The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.

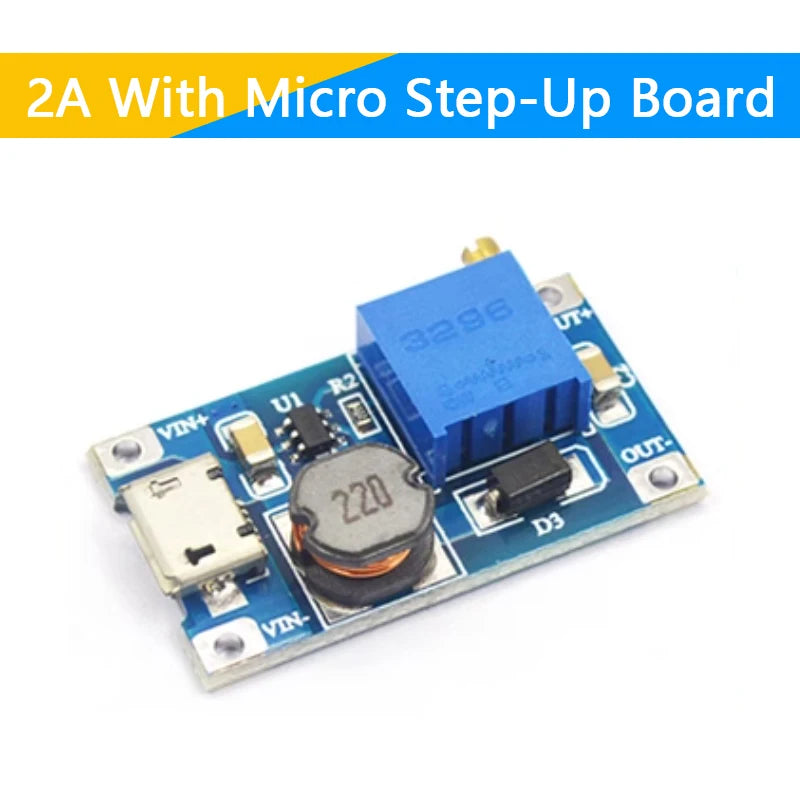

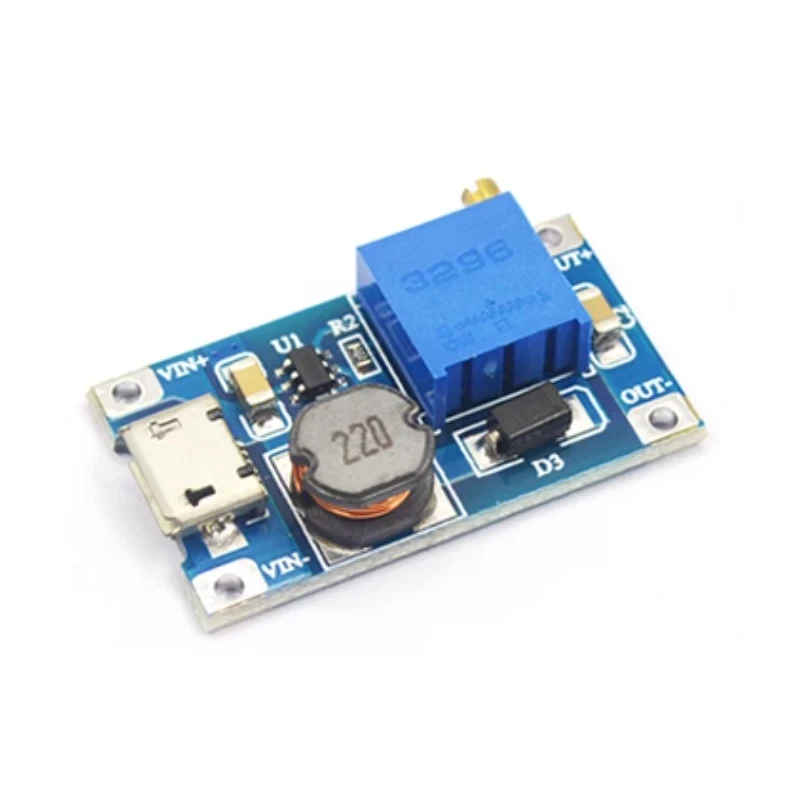

The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Maximum output current: 2A (recommended for use within 1A)
Input voltage: 2 v ~ 24 v
Maximum output voltage:> 28 v (recommended for use within 26V)
Efficiency:> 93%

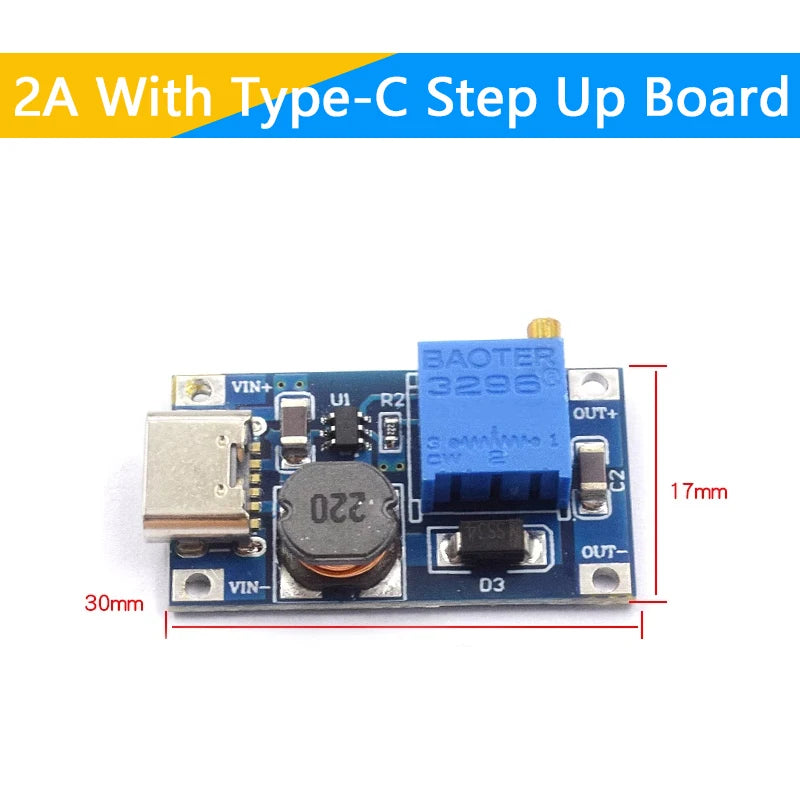

Size: 30mm * 17mm * 14mm (L * W * H)

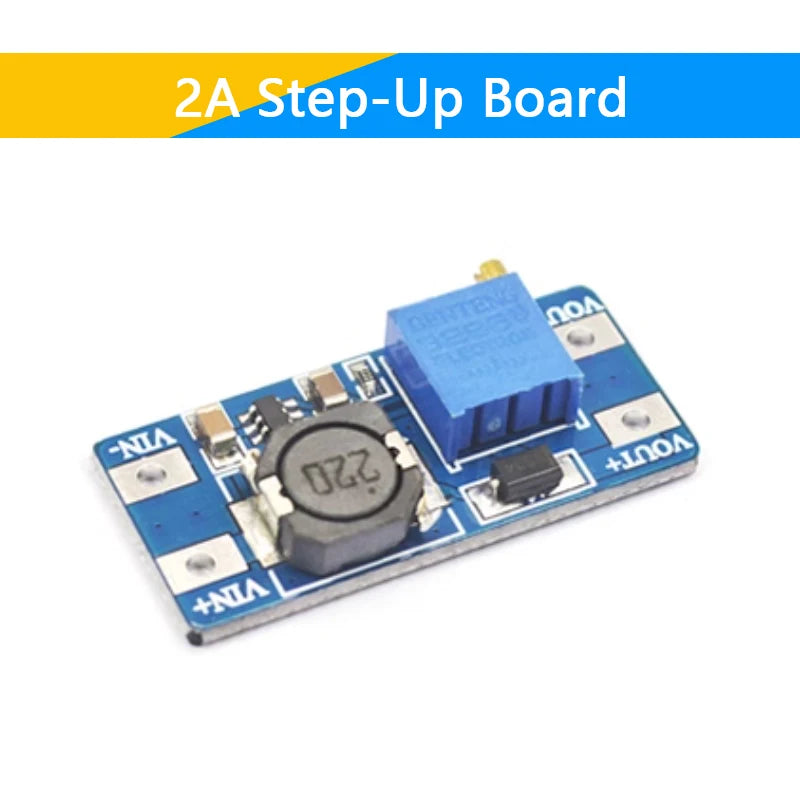

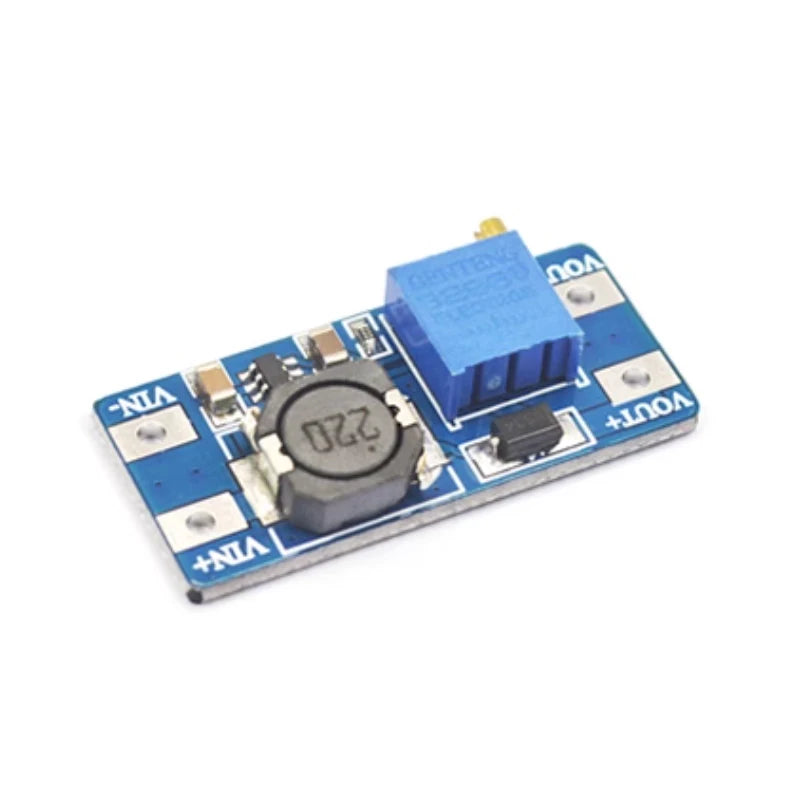

This module is a step-up module, the output voltage is greater than the input voltage.
Peak current output current does not exceed 2A.

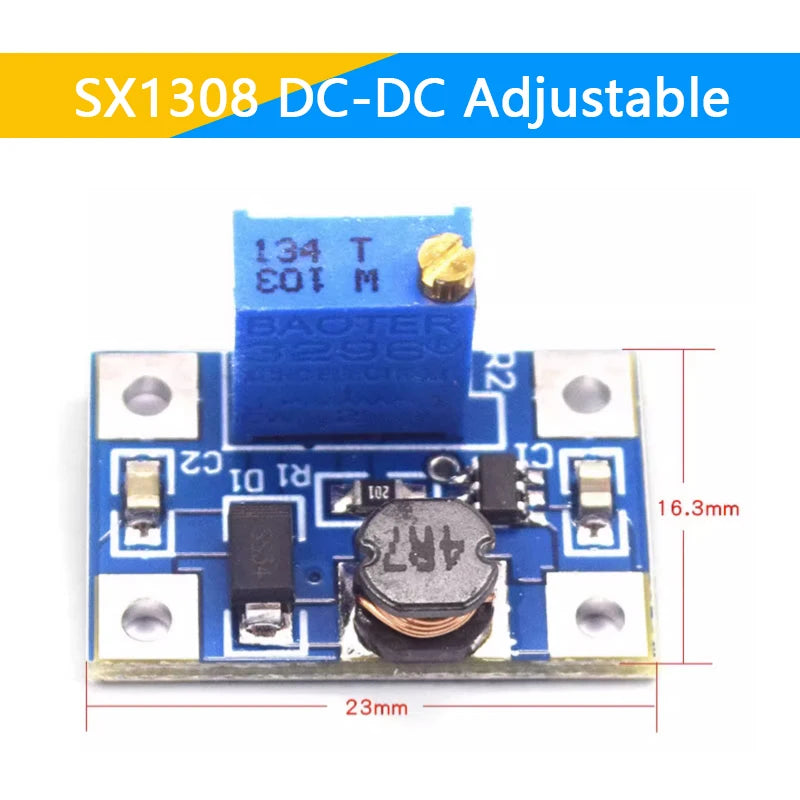

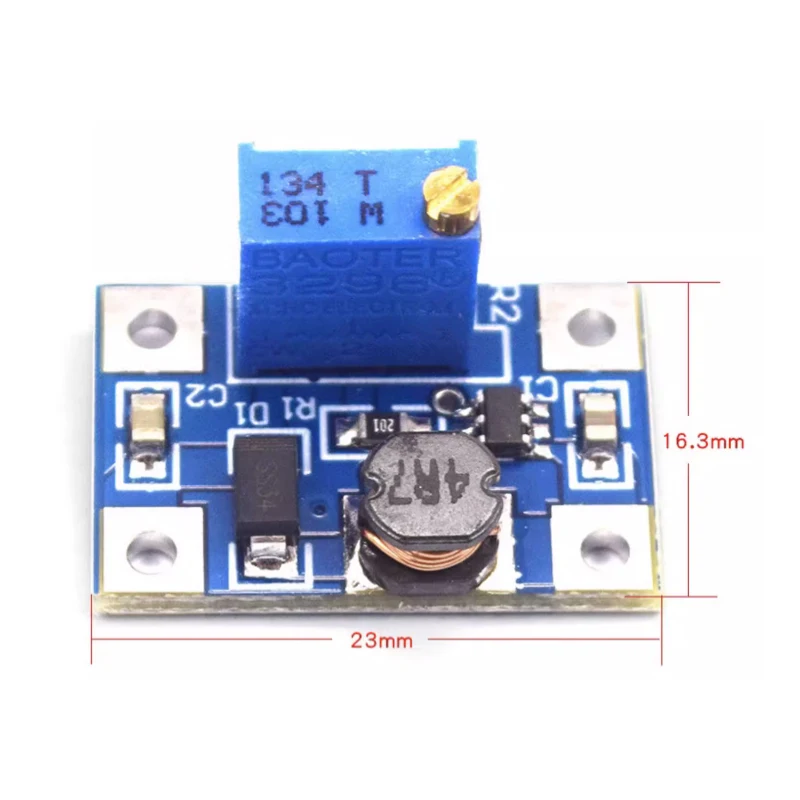

SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Features:
Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage

 Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
