SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Specifications:

Range: 800+ meters line of sight

Frequence: 2.4GHz~2.5GHz

Operating voltage: 3 ~ 3.6V Max

Max Current: 115mA

Multi-frequency: 125 frequency

A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).

The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs which allows for direct connection of SPI pins to the ( compatible with ) ArduinoIDE.

Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC).

The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex: for ArduinoIDE), from sleep when the module receives a transmission providing great power conservation in battery devices.

Package Included:（according your choice)

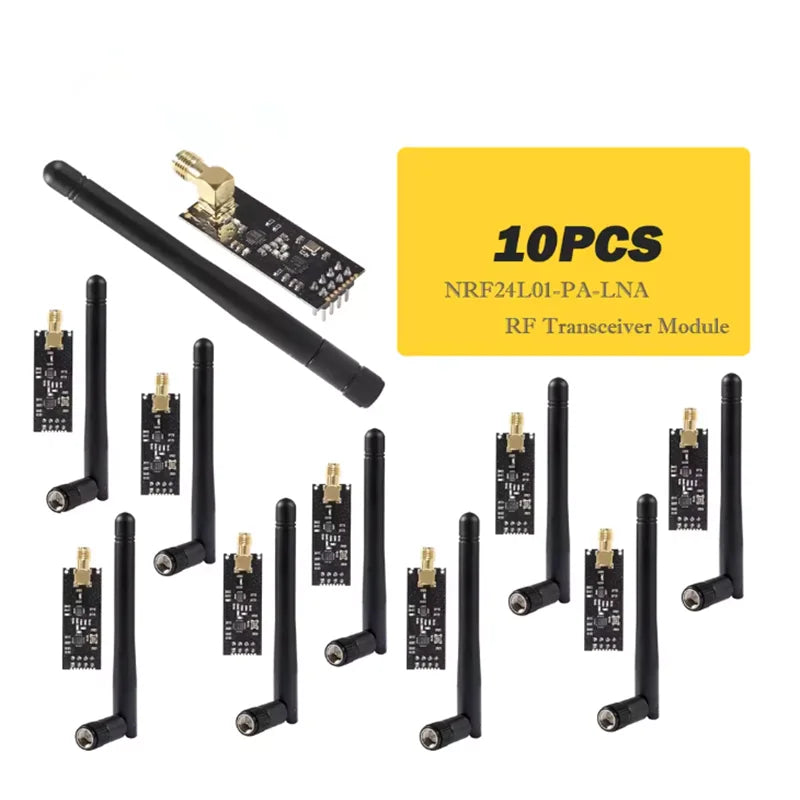

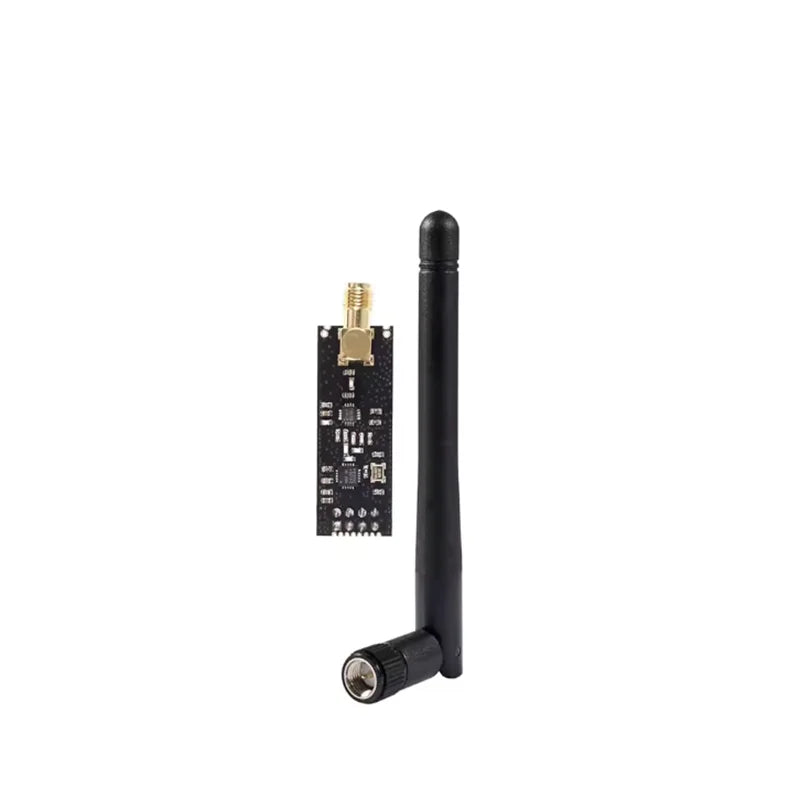

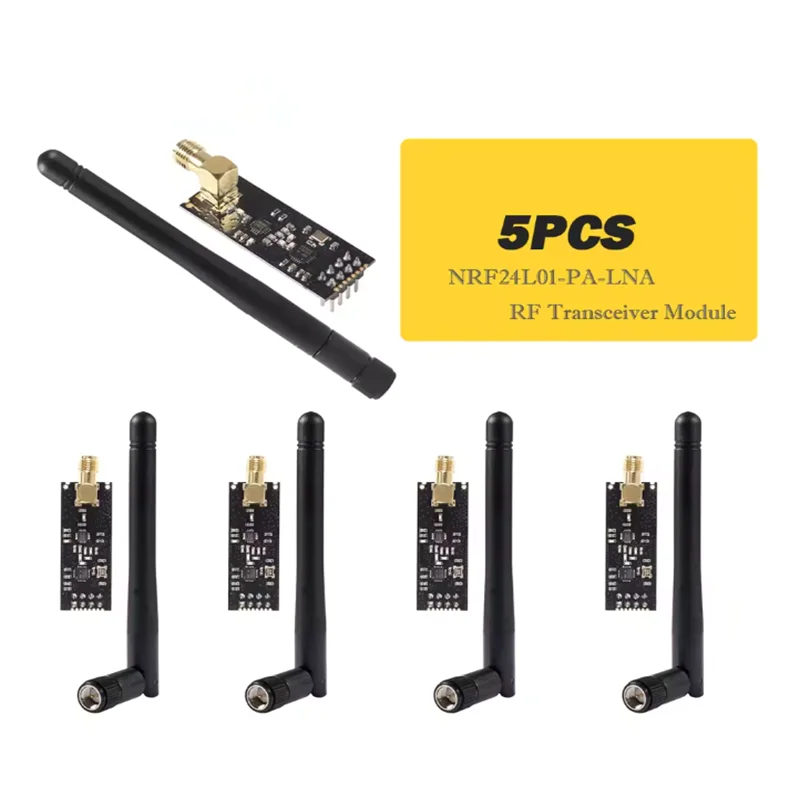

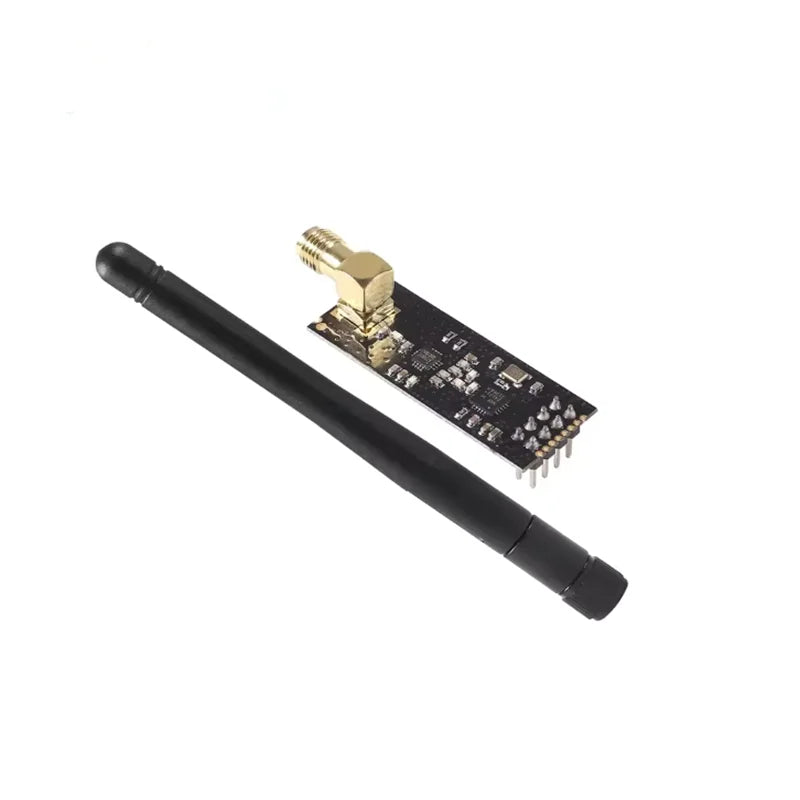

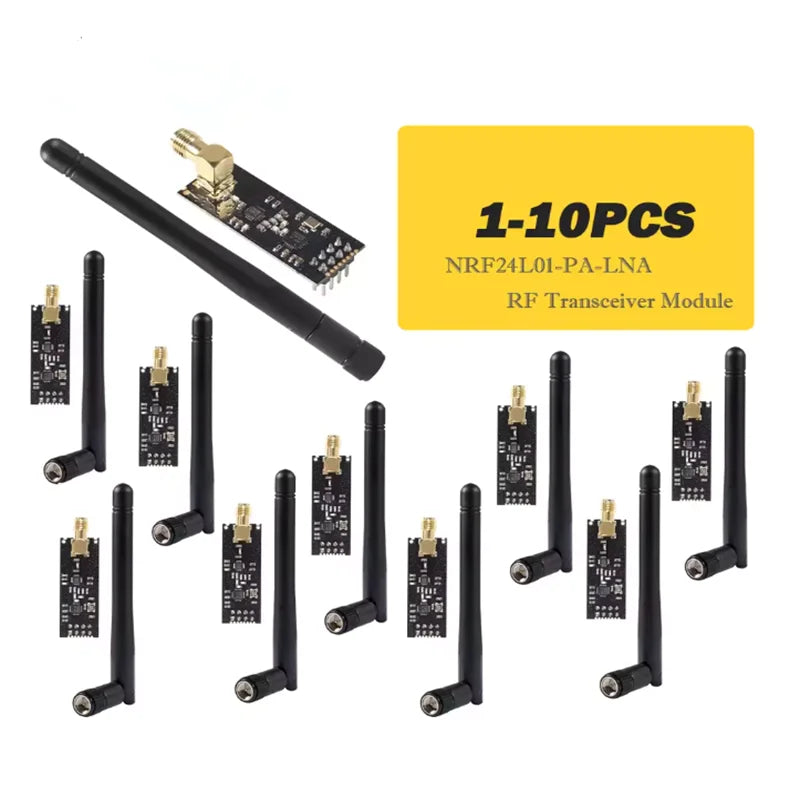

1/5/10 x Wireless Module

1/5/10 x Antenna
