Color
Model Number
Description

SPECIFICATIONS

470Mhz 915Mhz 918Mhz 430Mhz: Onboard antenna 410-525Mhz

803MHZ 930MHz: 803-930MHz LLCC68 803-930MHz

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: low

High power long distance: 10KM

High-concerned chemical: none

Model Number: Ra-01 Ra-01SC Ra-01SH Ra-01S Ra-01H Ra-01SC Ra-01SCH-P

Operating Temperature: normal

Origin: Mainland China

Other Type: SX1278 SX1268 LLCC68

Package: Module

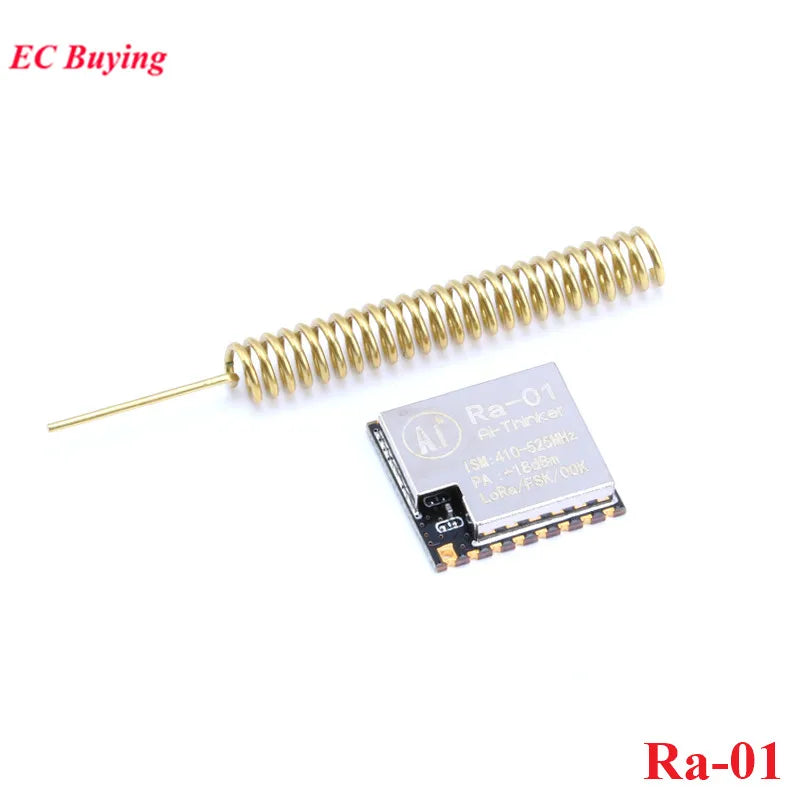

Ra-01 LoRa RF Wifi Wireless Transmit Module SX1276 Ra-01SC: Ra-01SH Ra-01S Ra-01H Lora Spread Spectrum 433MHZ 868MHZ SPI/UART

Ra-01 Ra-02 Ra-08 Ra-09 Ra-01H Ra-01SH Ra-01SC: Ra-08H Ra-09H Ra-01SC-P Ra-01SCH-P Ra-01S-P Ra-01SH-P Antenna Seat

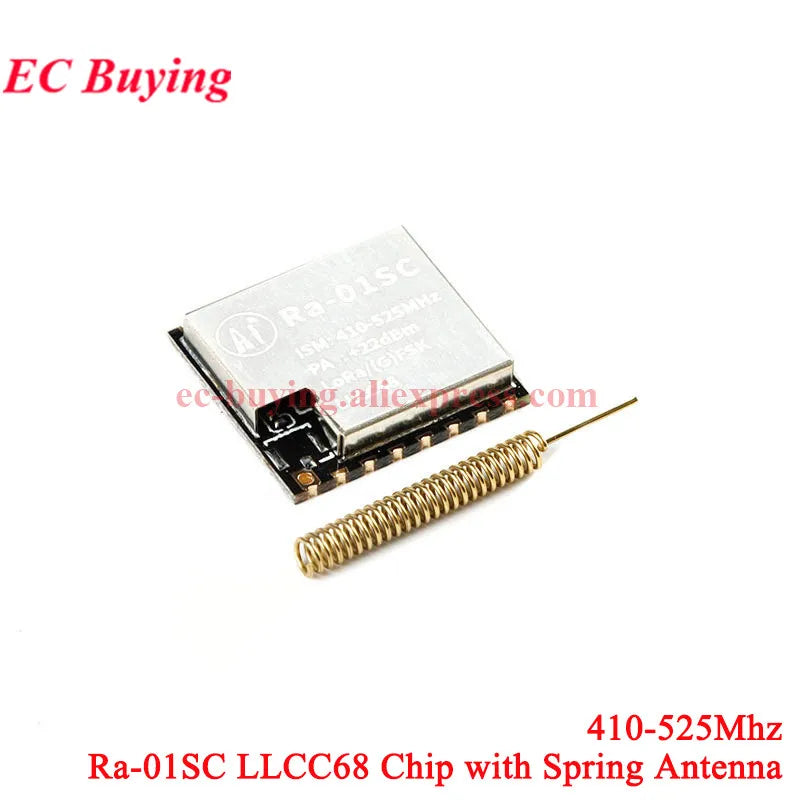

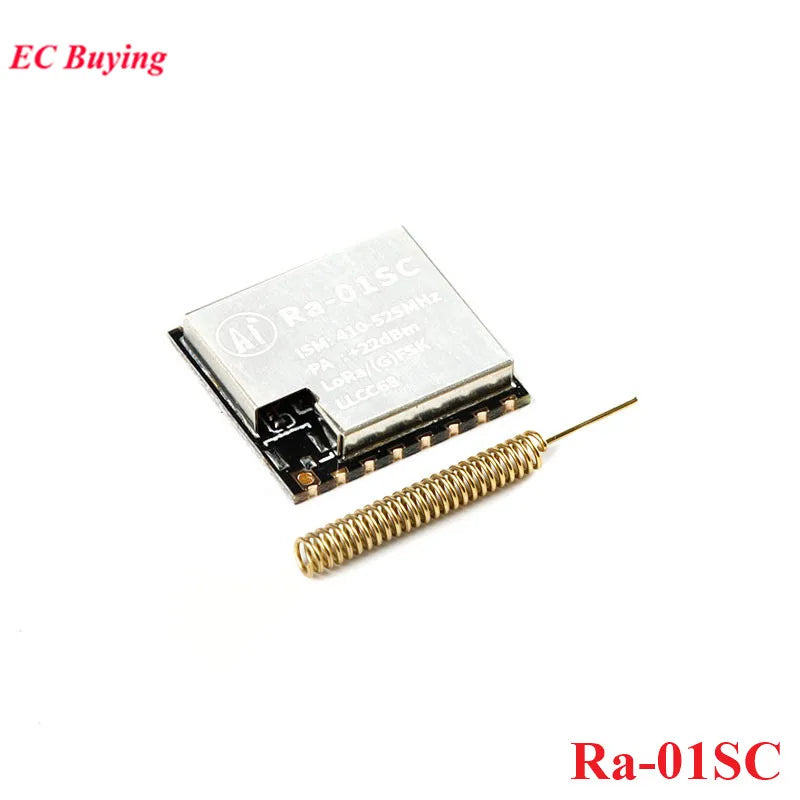

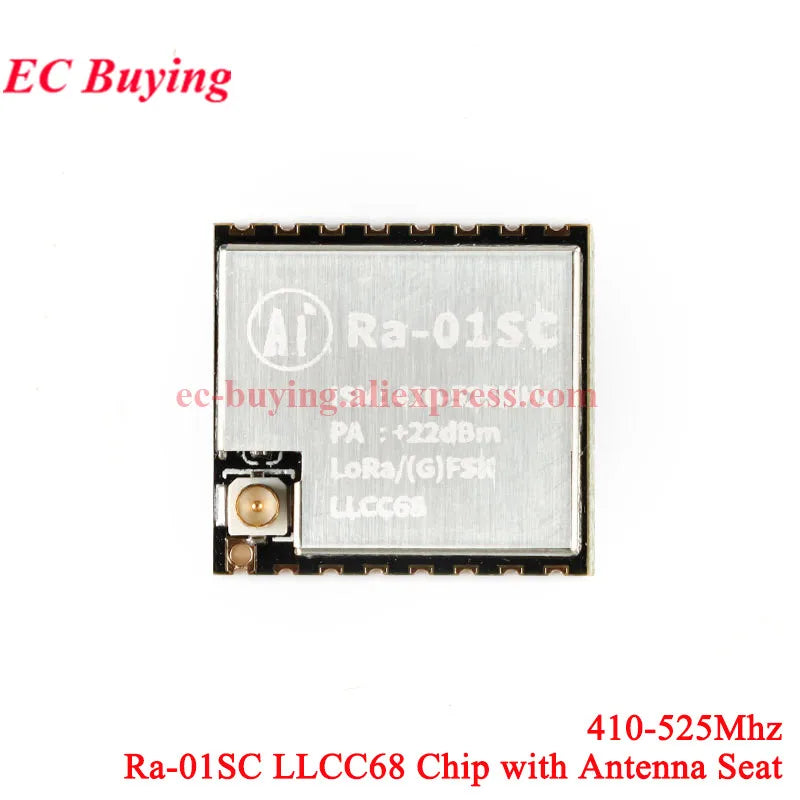

Ra-01SC LoRa spread spectrum wireless module: wireless RF module SPI interface LLCC68 core chip

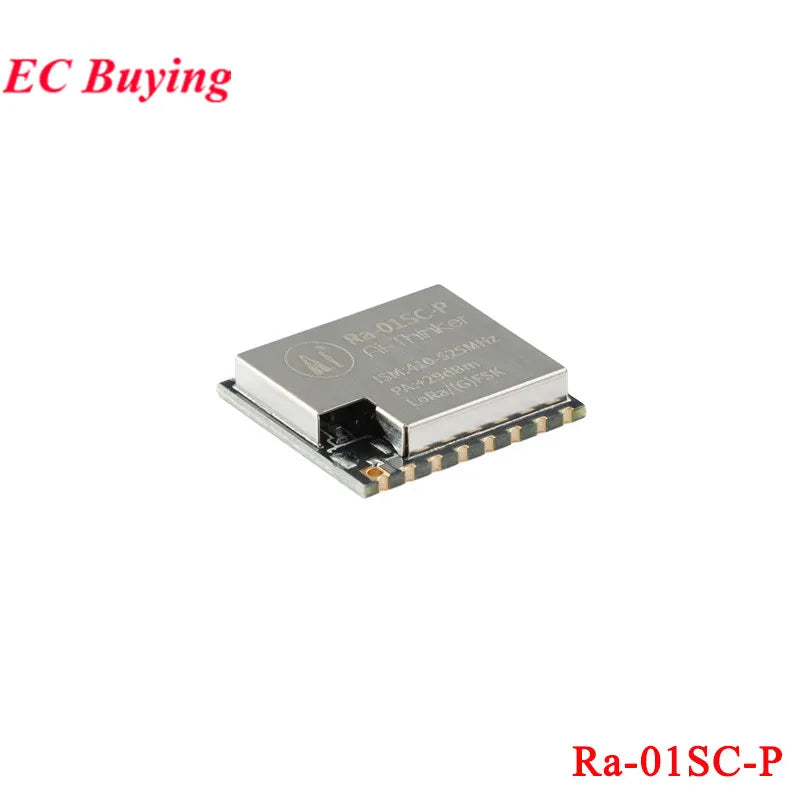

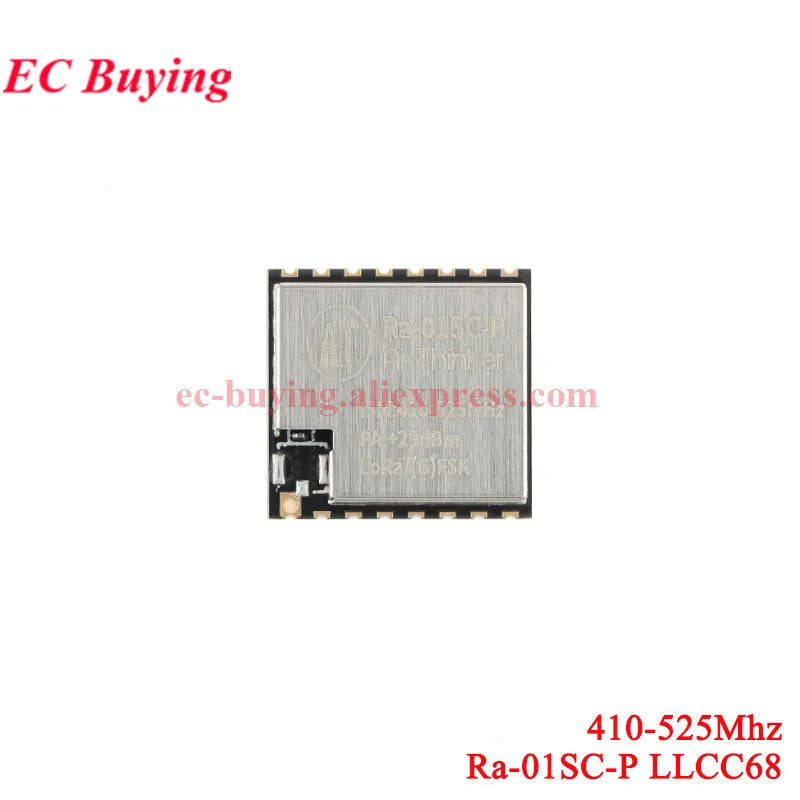

Ra-01SC-P: Ra-01S-P Ra-01SH-P

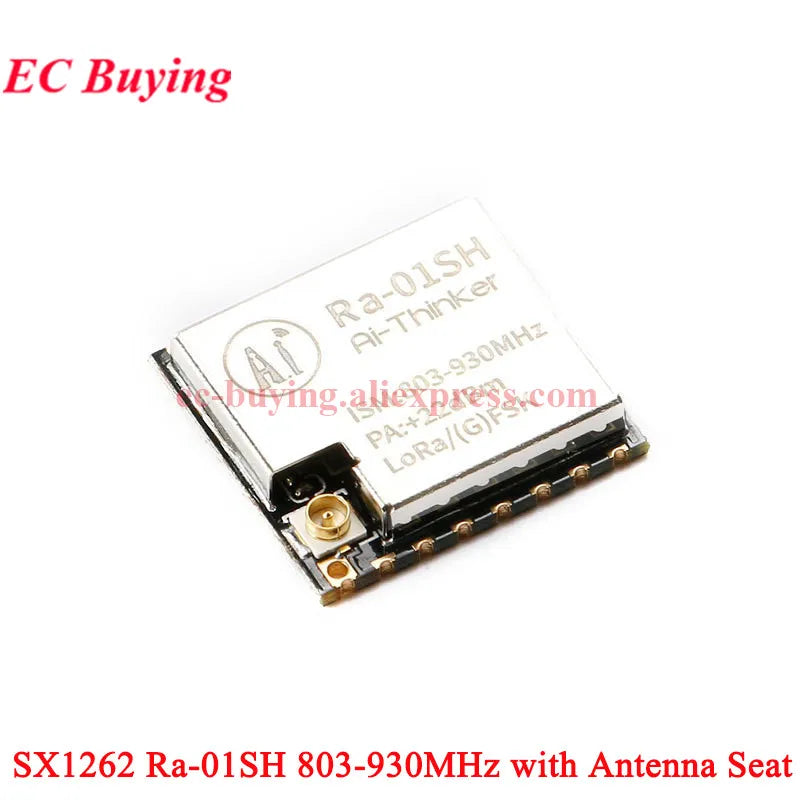

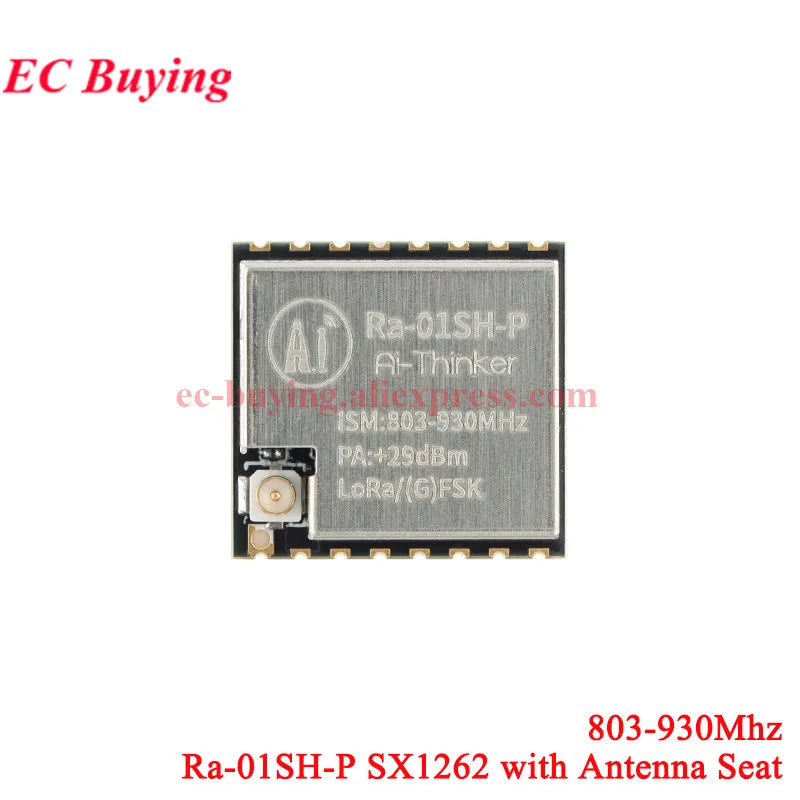

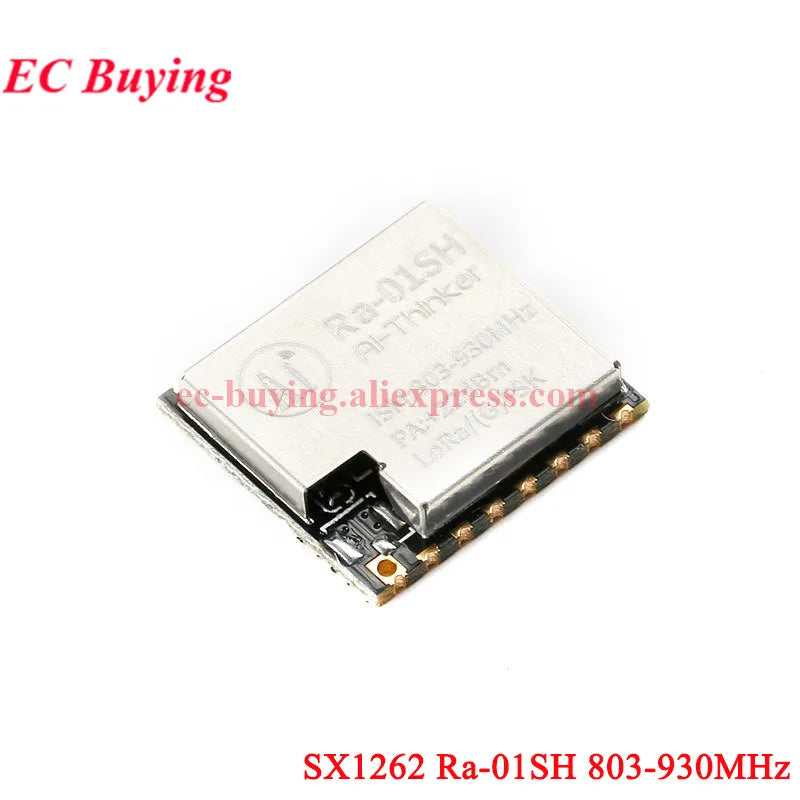

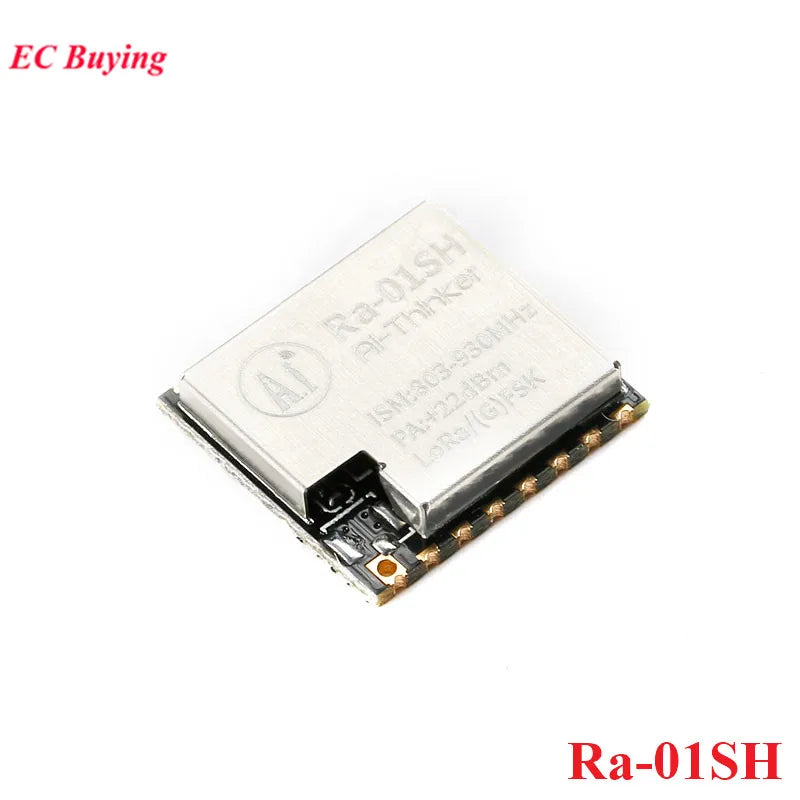

Ra-01SH-P High-power long-distance: LoRa wireless module SX1262 chip module

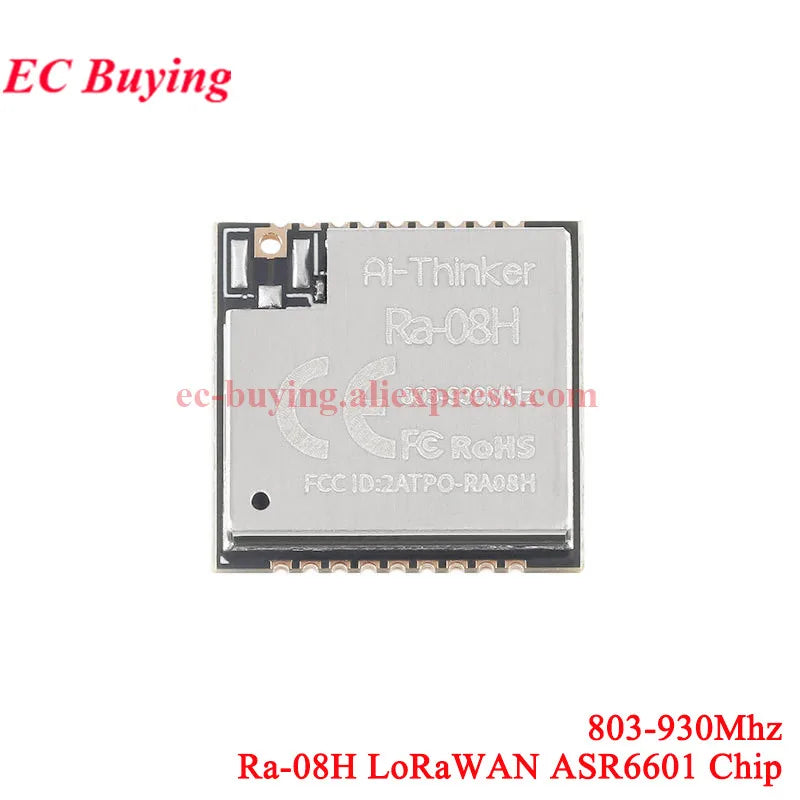

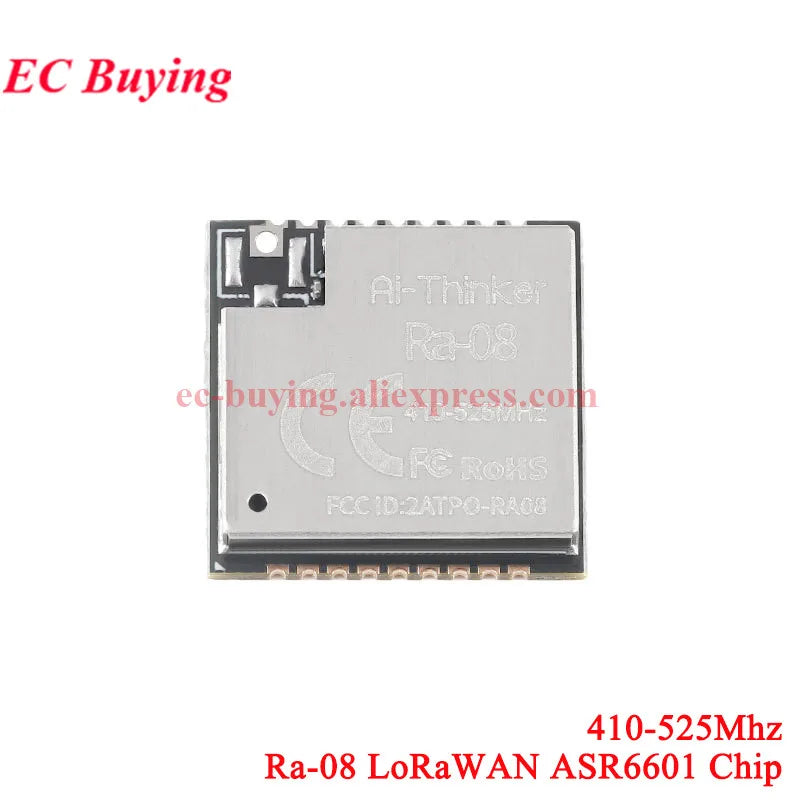

Ra-08 LoRaWAN RF module: with ASR6601 chip built-in MCU 470MHz external antenna

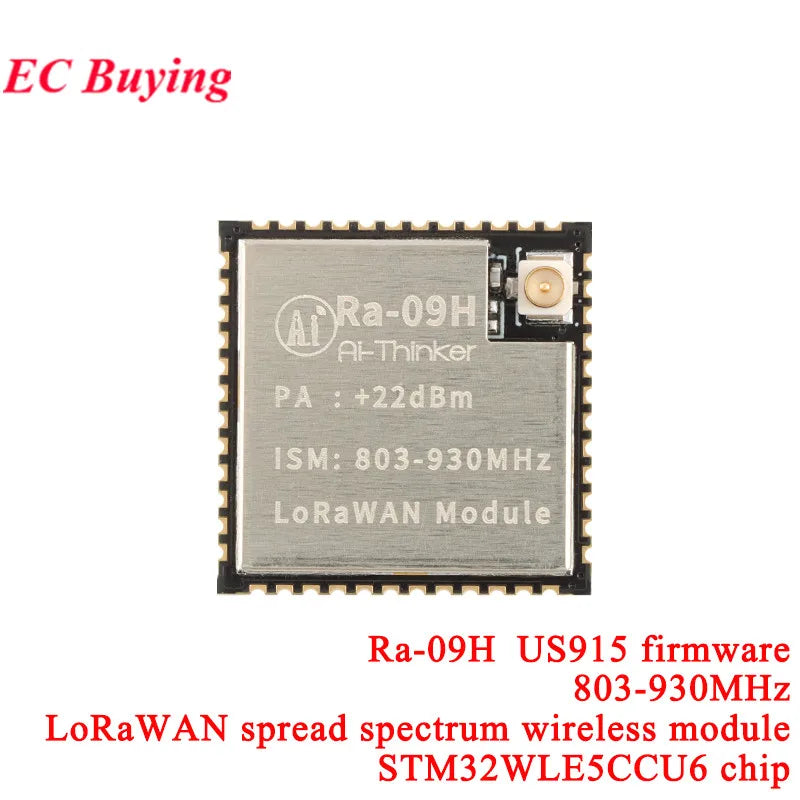

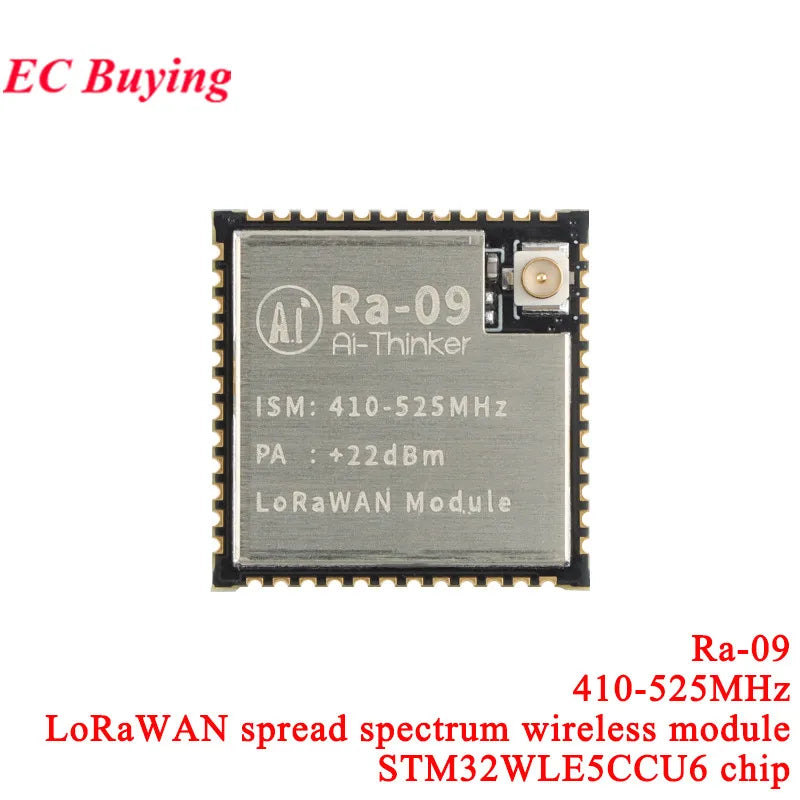

Ra-09H US915 Ra-09 LoRaWAN wireless: spread spectrum module STM32WLE5CCU6 chip 410~525MHz LoRa module

SX1276 LoRa spread spectrum wireless: communication module 868MHz wireless serial port SPI interface Ra-01H

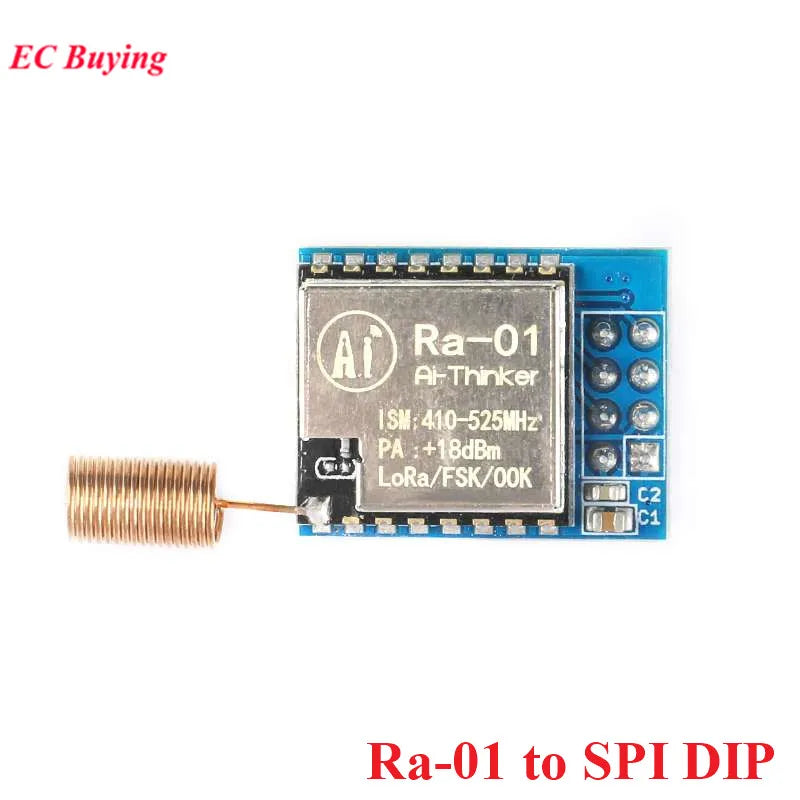

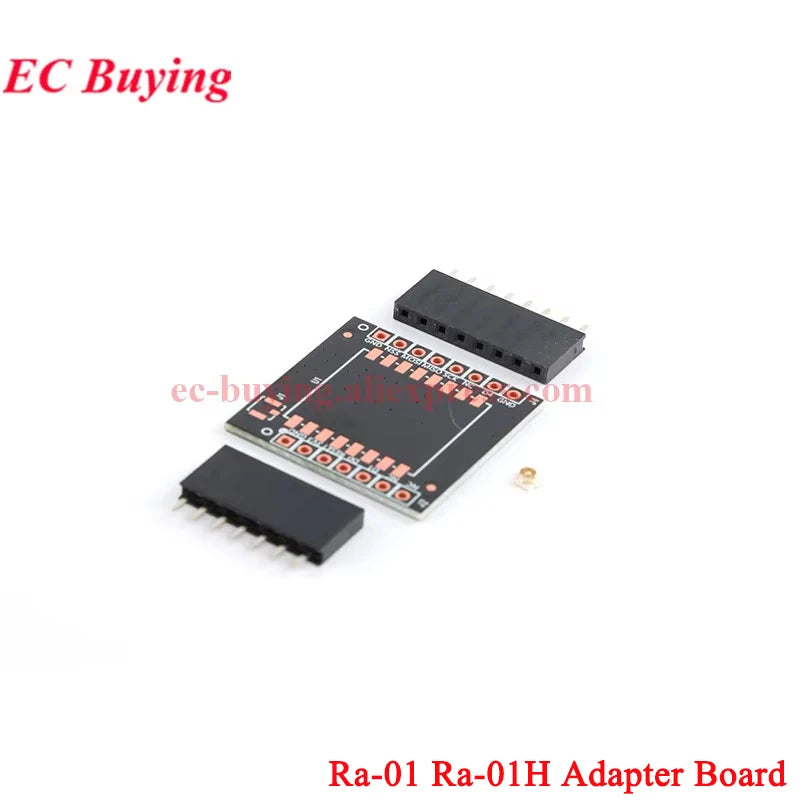

SX1276 SX1278 STM32WLE5CCU6 LLCC68: SX1268 SX1262 ASR6601 LoRa Module Ra-01 to SPI DIP

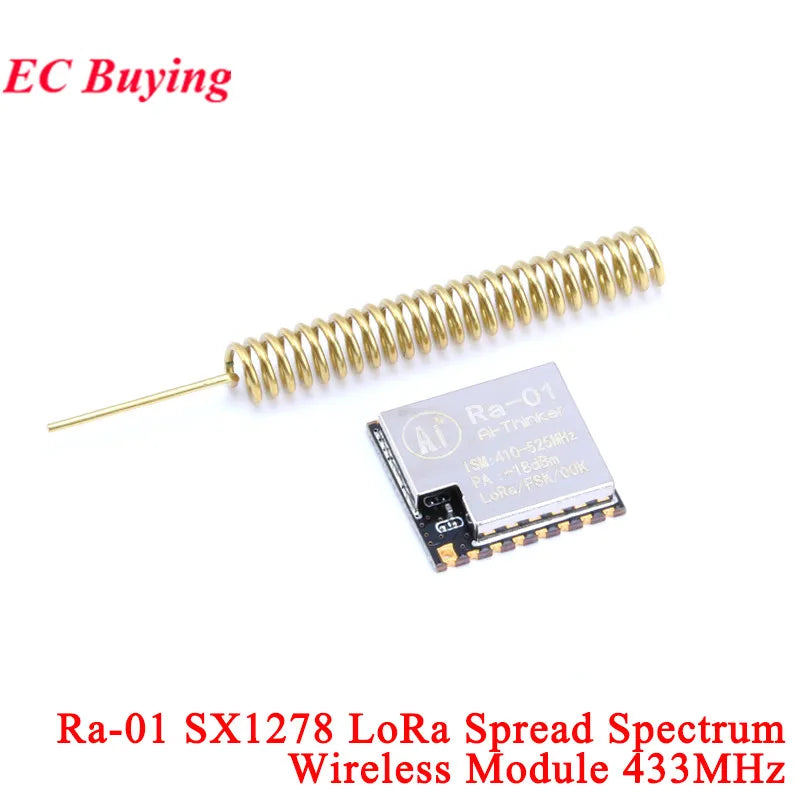

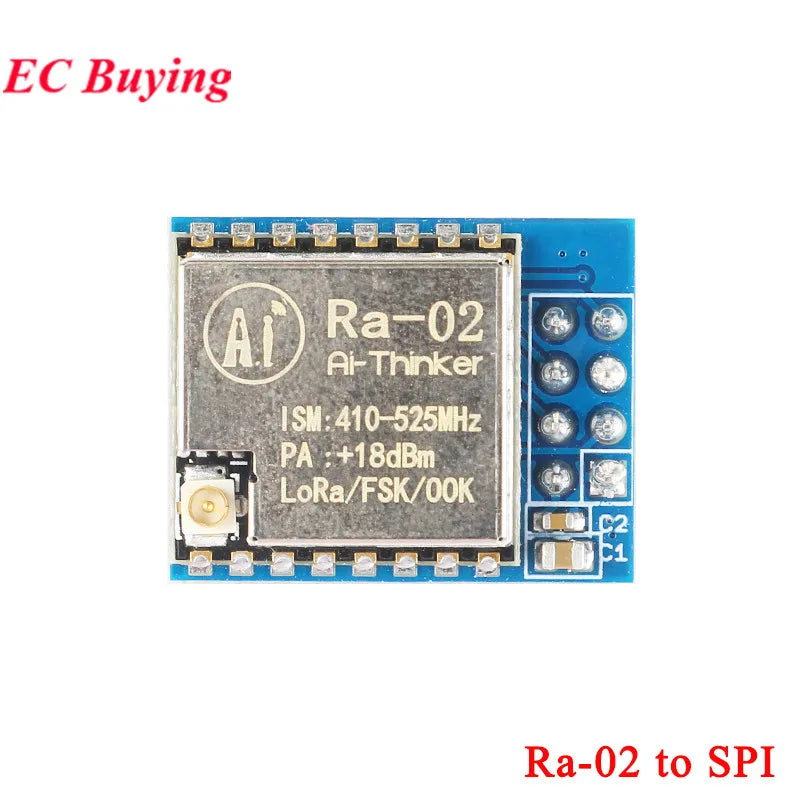

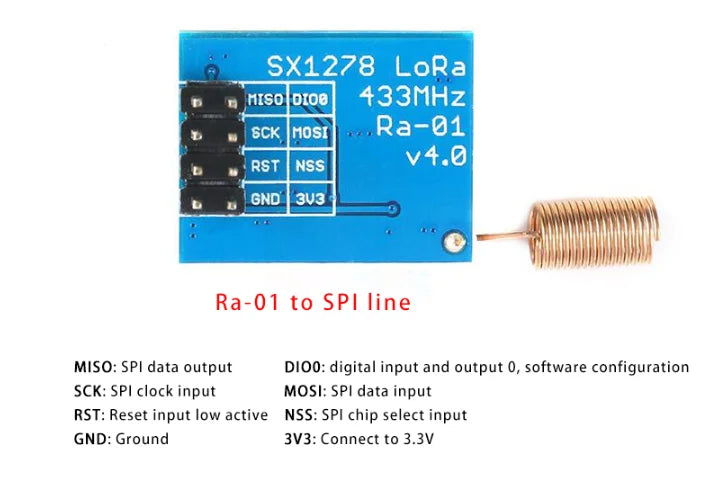

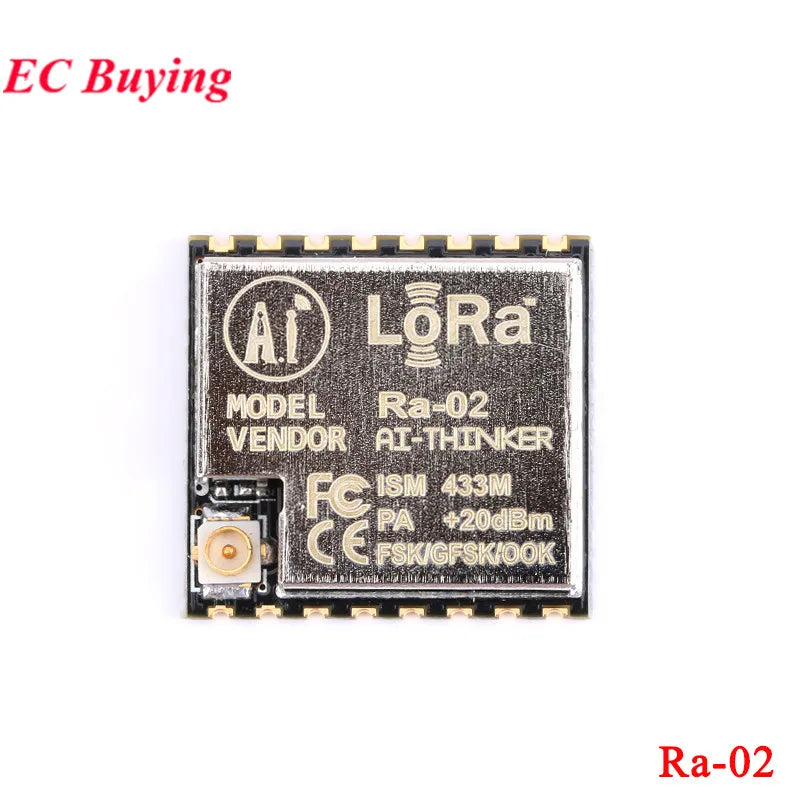

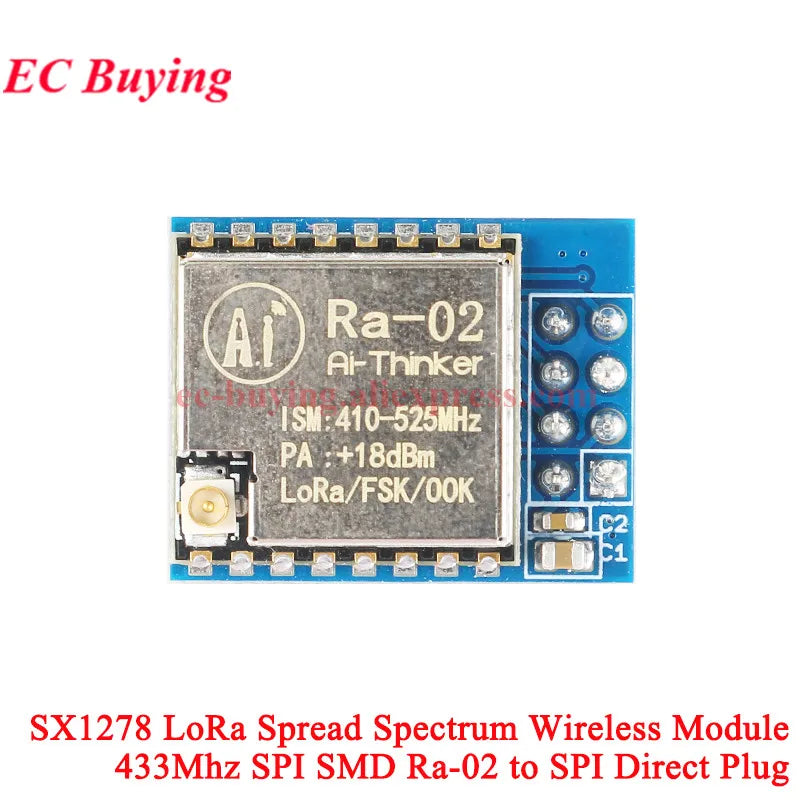

SX1278 LoRa Module Ra-01Ra-02 LoRa Spread Spectrum Wireless: Transmit Module 433MHZ/SPI DIP Translator Ra-01 Ra-02 For Smart Home

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: PCB Board

Type: Logic ICs

is_customized: Yes

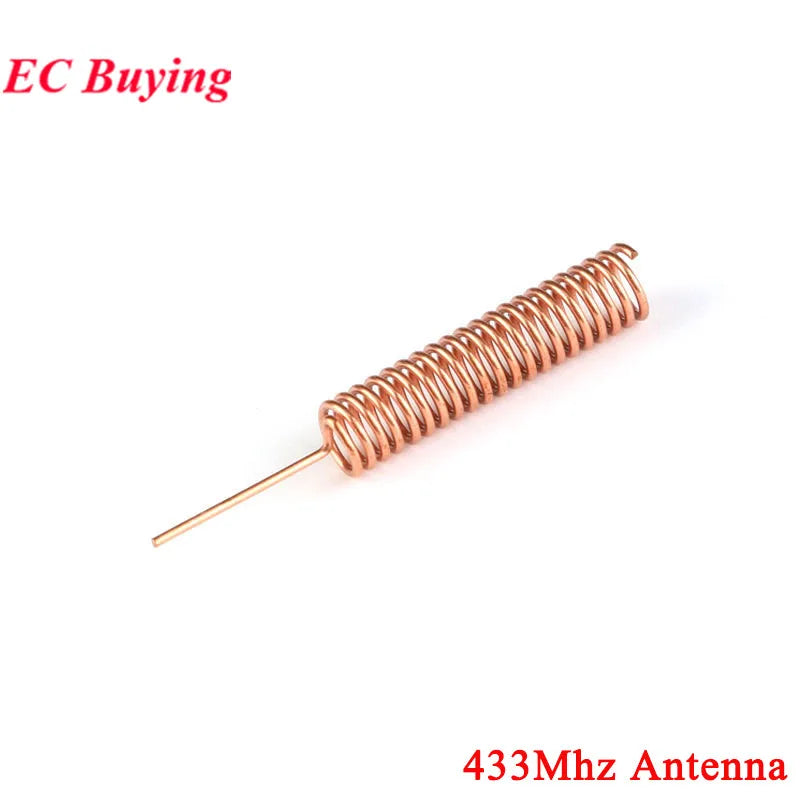

Note: 433MHZ antenna 20pcs, we prepare it for customers who need it. If you don't need it, please don't place an order. No refund will be made if the selection is wrong. Thanks for your understanding!

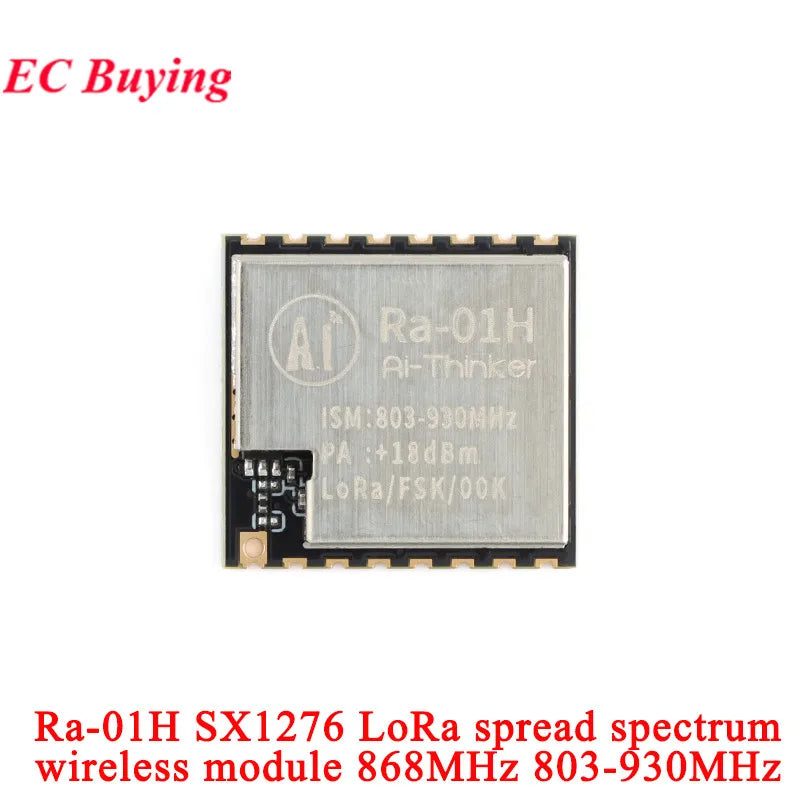

The Ra-01H mainly uses LoRaTM remote modem for ultra long-distance spread spectrum communication, which has strong anti-interference ability and can minimize current consumption. At the same time, the module is compatible with FSK remote modulation and demodulation, which solves the problem that traditional design solutions cannot simultaneously The problem of distance, anti-interference and power consumption.

Parameter:

Support interface: SPI interface
Programmable bit rate: up to 300kbps
Spectrum range: 803- 930MHz
Antenna form: spring antenna

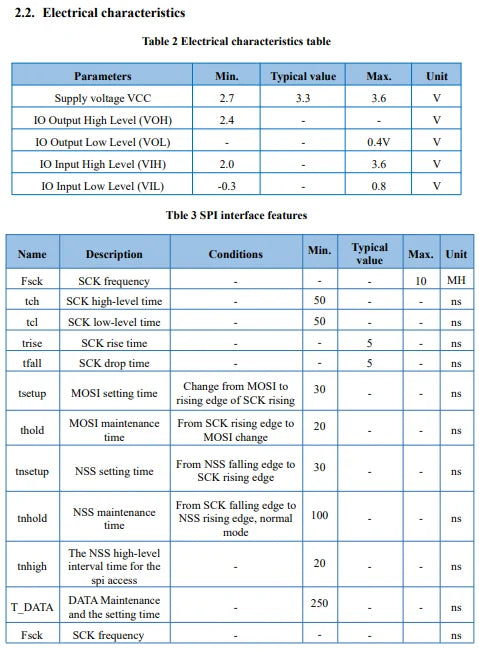

Working voltage: 3.3V
Average operating current (unit: mA): 868MHz:
TX: 103mA Rx: 12.15mA Standby: 1.6mA915MHZ:
TX: 105mA Rx: 12. 15mA Standby: 1. 5mA
Working temperature: -30 ° C ~ 85 ° C
Storage temperature: -40C^ 90°C, <90%RH

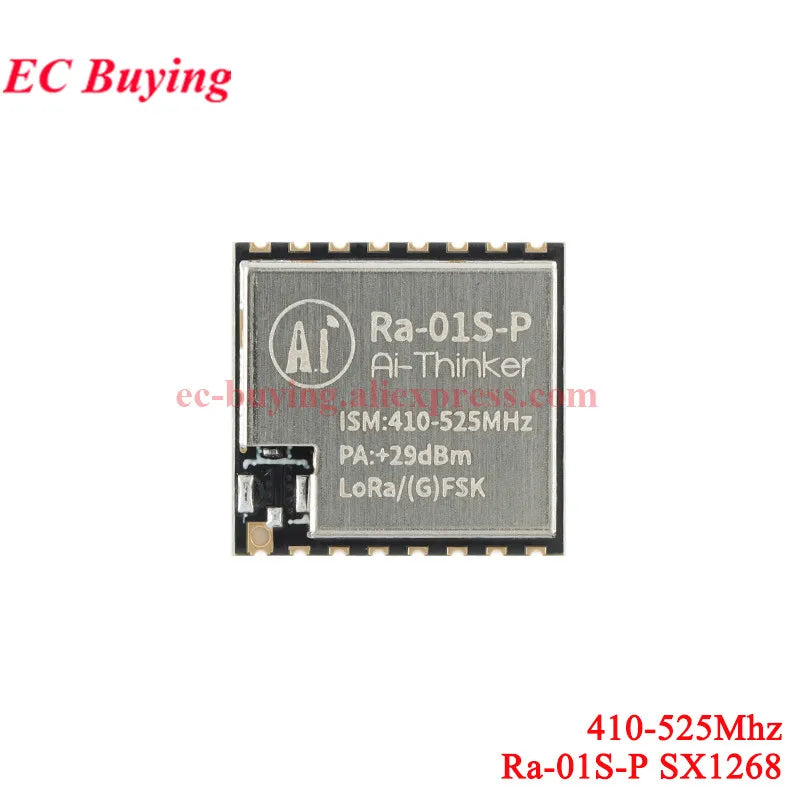

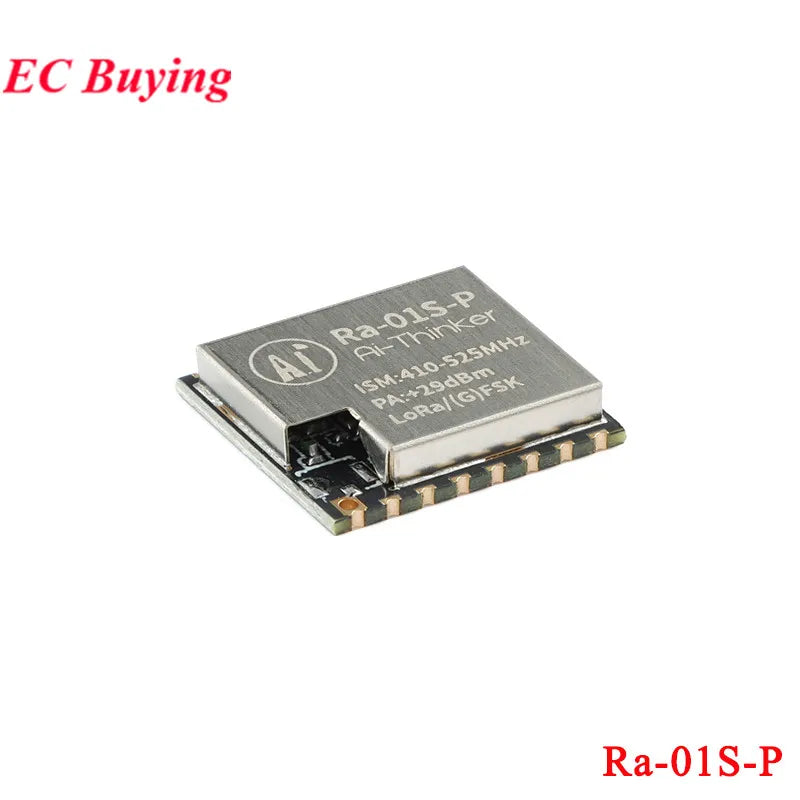

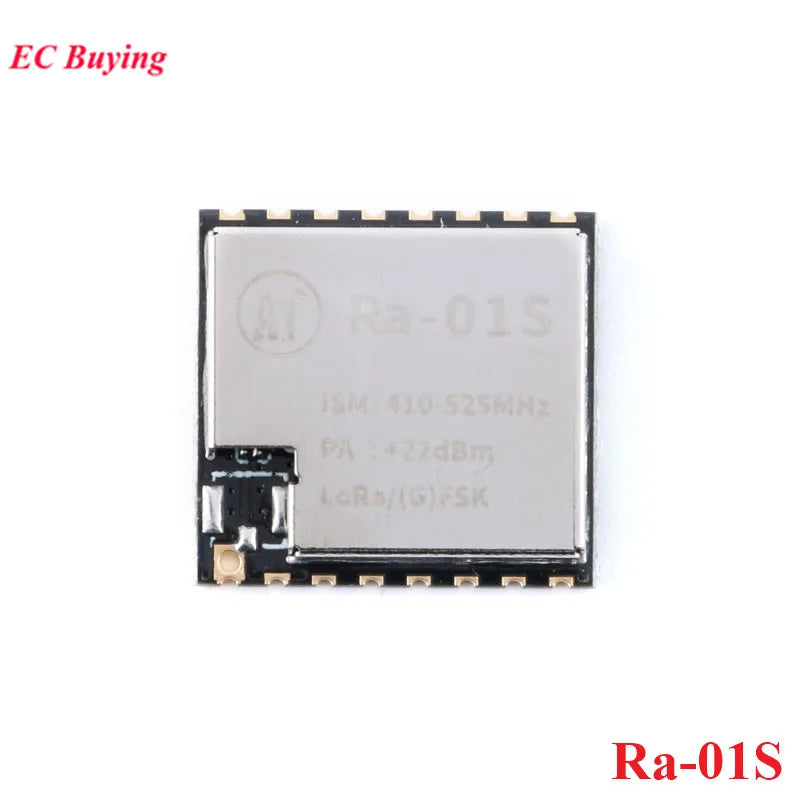

Module model: Ra-01S

Package: SMD16

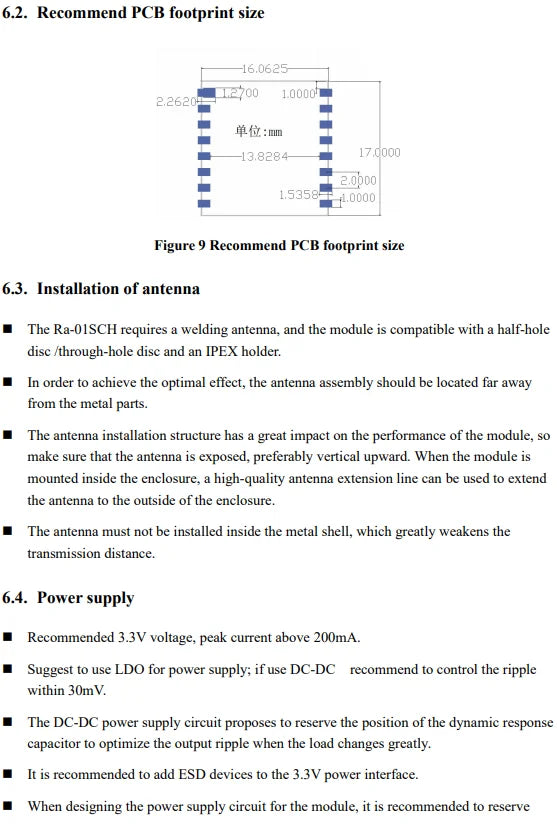

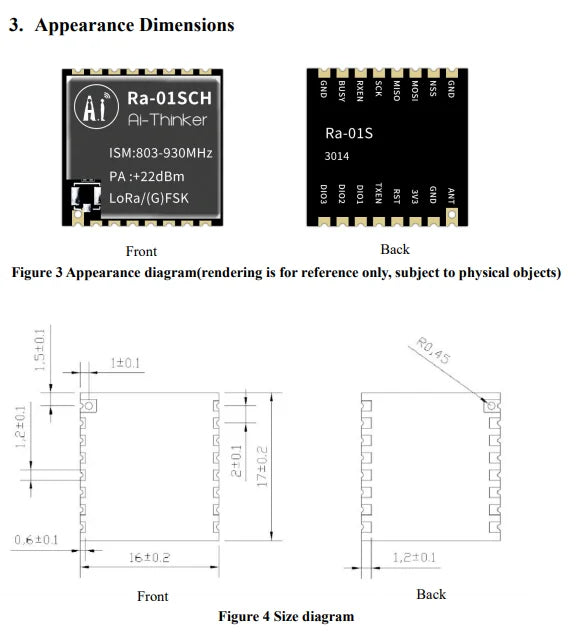

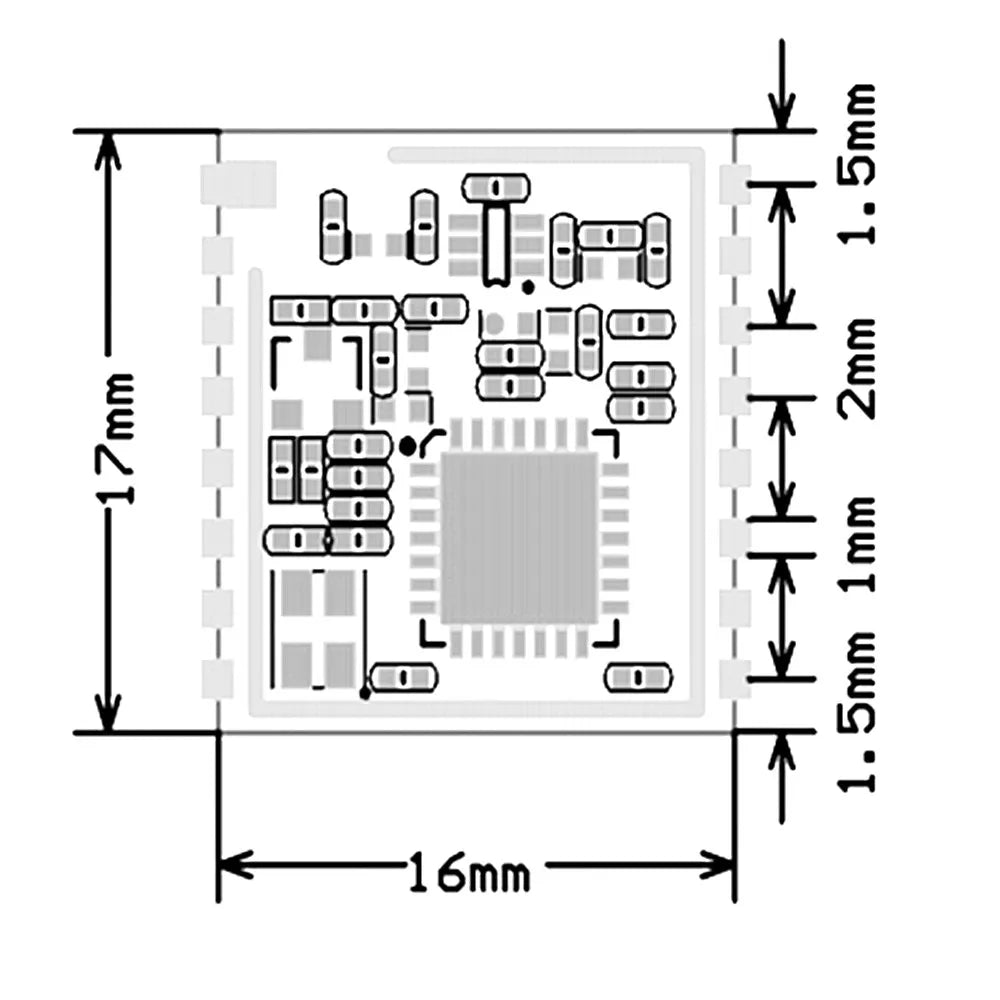

Size: 17*16*3.2(±0.2)MM

Antenna form: Compatible with half-hole pads/through-hole pads (antennas need to be soldered) holder

Spectrum range: 410MHz~525MHz

Working temperature: -40 ℃ ~ 85 ℃

Storage environment: -40 ℃ ~ 125 ℃, <90%RH

Power supply range: 2.7~3.6V, typical value 3.3V, current greater than 200mA

Support interface: SPI

Programmable bit rate up to: 300kbp

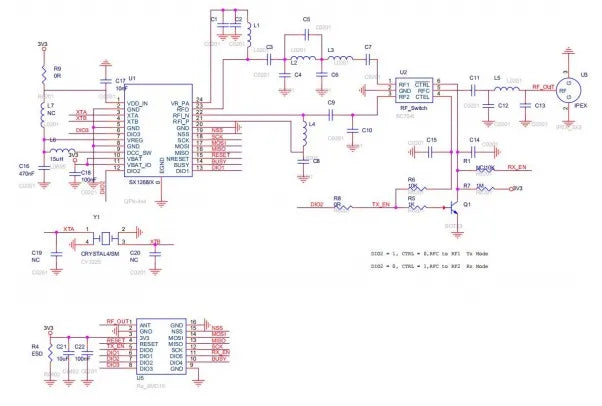

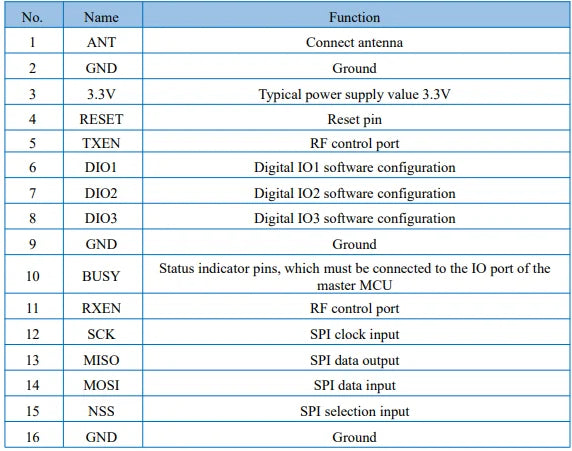

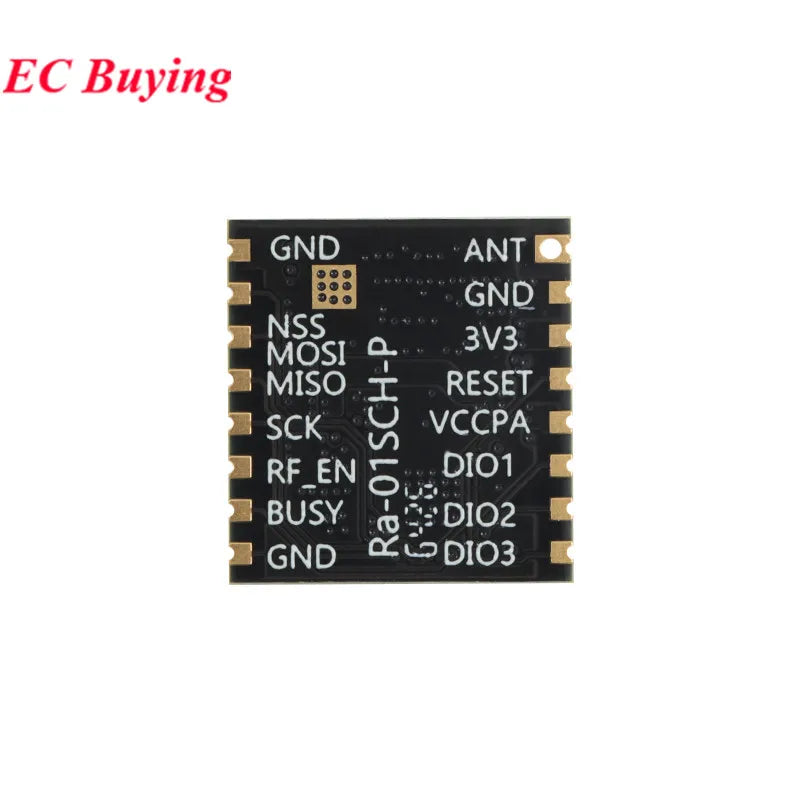

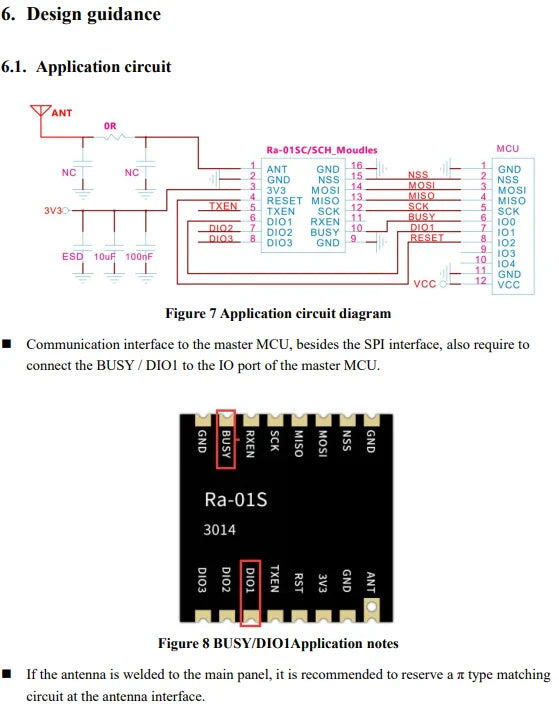

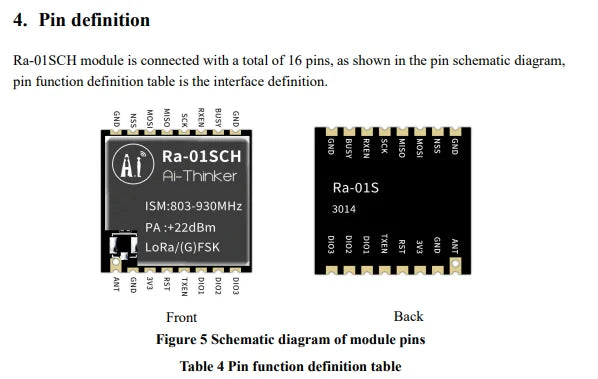

Pin Description:
1. ANT: Connect the antenna
2. GND: Ground
3. 3.3V: Typical 3.3V power supply
4. RESET: Reset pin
5. TXEN: RF control port
6. DIO1: Digital IO1 software configuration
7. DIO2: Digital IO2 software configuration
8. DIO3: Digital IO3 software configuration
9. GND: Ground
10. BUSY: Status indication pin
11. RXEN: RF control port
12. SCK: SPI clock input
13. MISO: SPI data output
14. MOSI: SPI data input
15. NSS: SPI chip select input
16. GND: Ground
