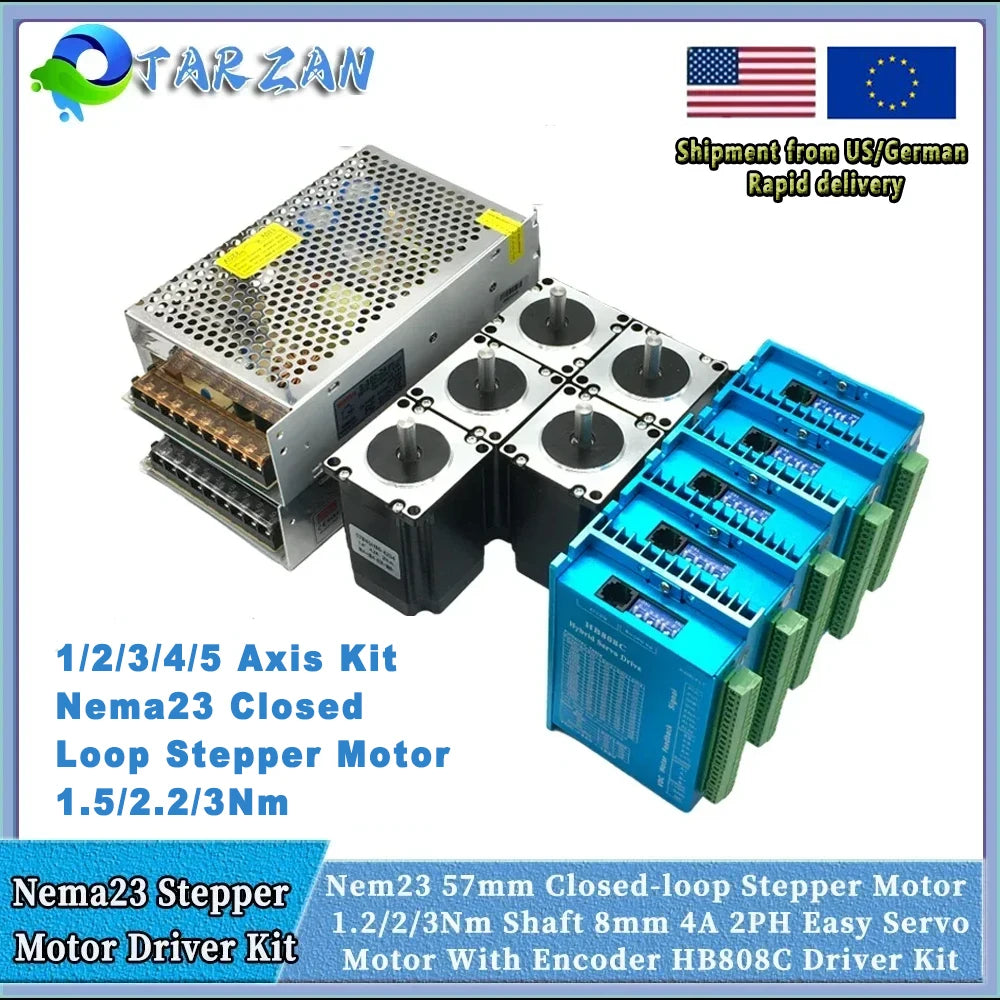

Description

SPECIFICATIONS

Brand Name: YUN DUAN

Certification: CE

High-concerned chemical: none

Holding Torque: 1.2/2/3N.m

MOTOR: Nema23 57mm

Model Number: Nema 23 Closed Loop Stepper Motor Kit,Model Number

Nema23 Motor Current: Nema23 Motor Current

Number of motor sets: 1/2/3/4/5 Axis

Origin: Mainland China

Phase: 2

Power Supply Output Voltage: DC 24V (Constant Voltage)

Step Angle(degrees): 1.8

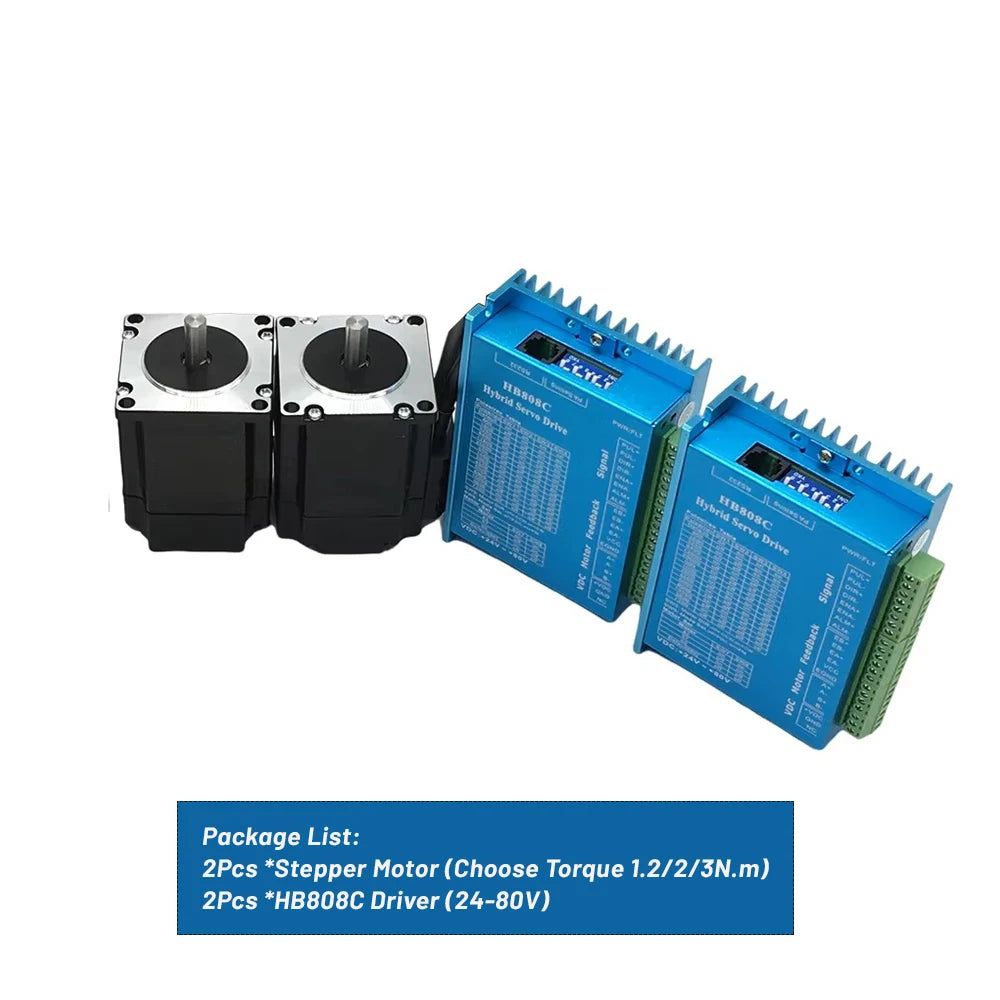

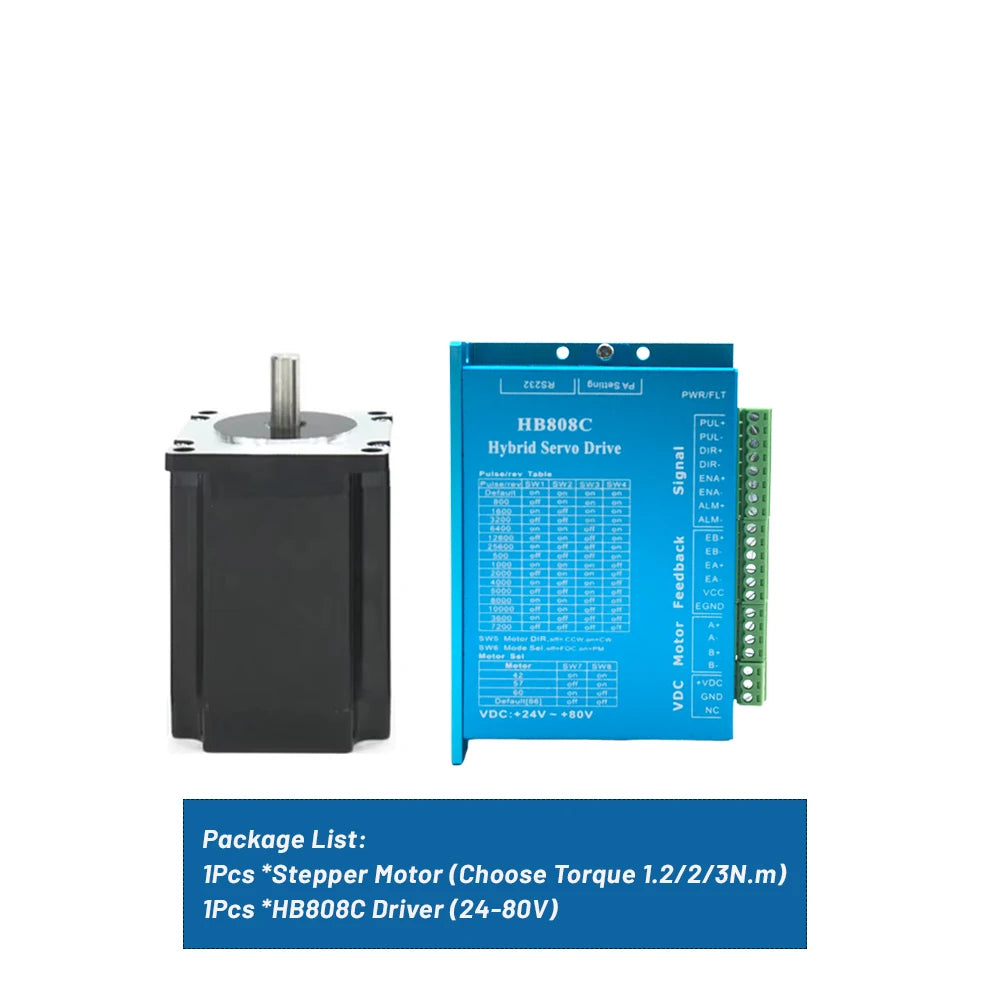

1 Axis Kit:
1Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
1Pcs * HB808C Driver (24-80V)

2 Axis Kit:
2Pcs * Stepper motor (Choose Torque 1.5/2.2/3N.m)
2Pcs * HB808C Driver (24-80V)

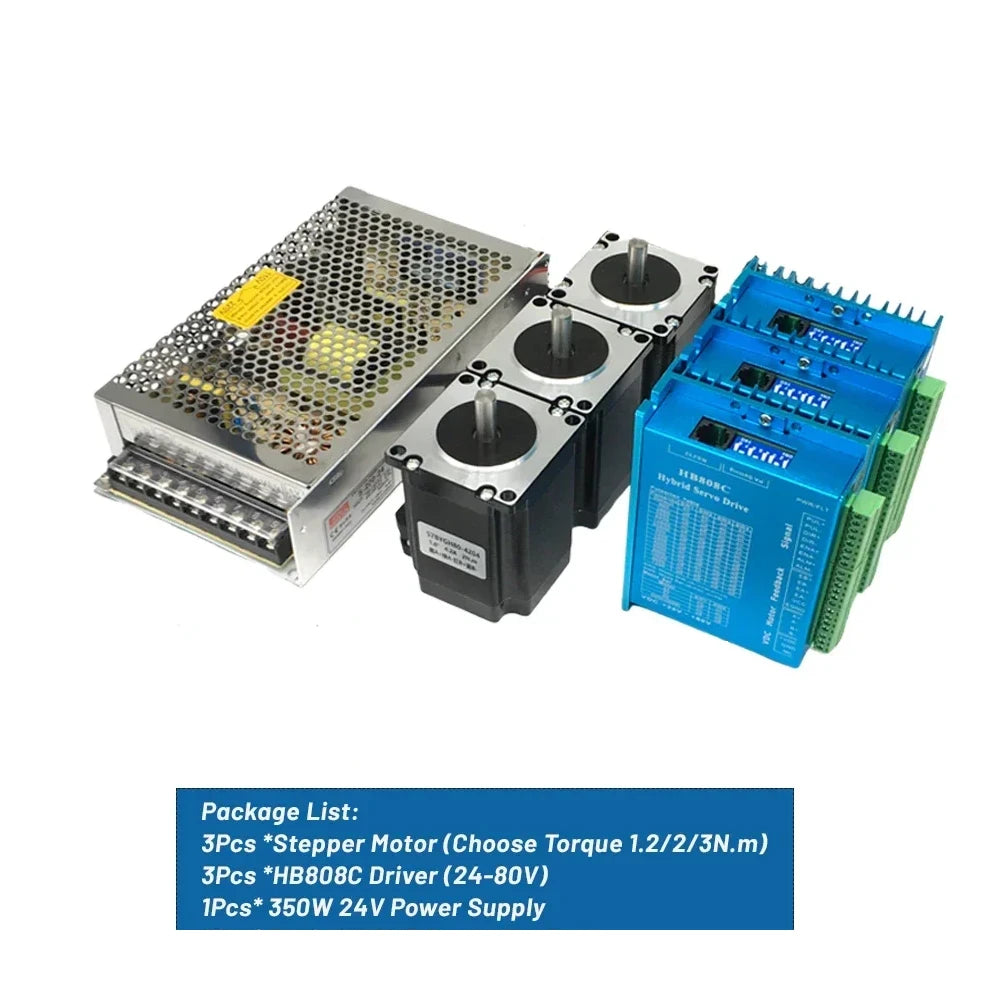

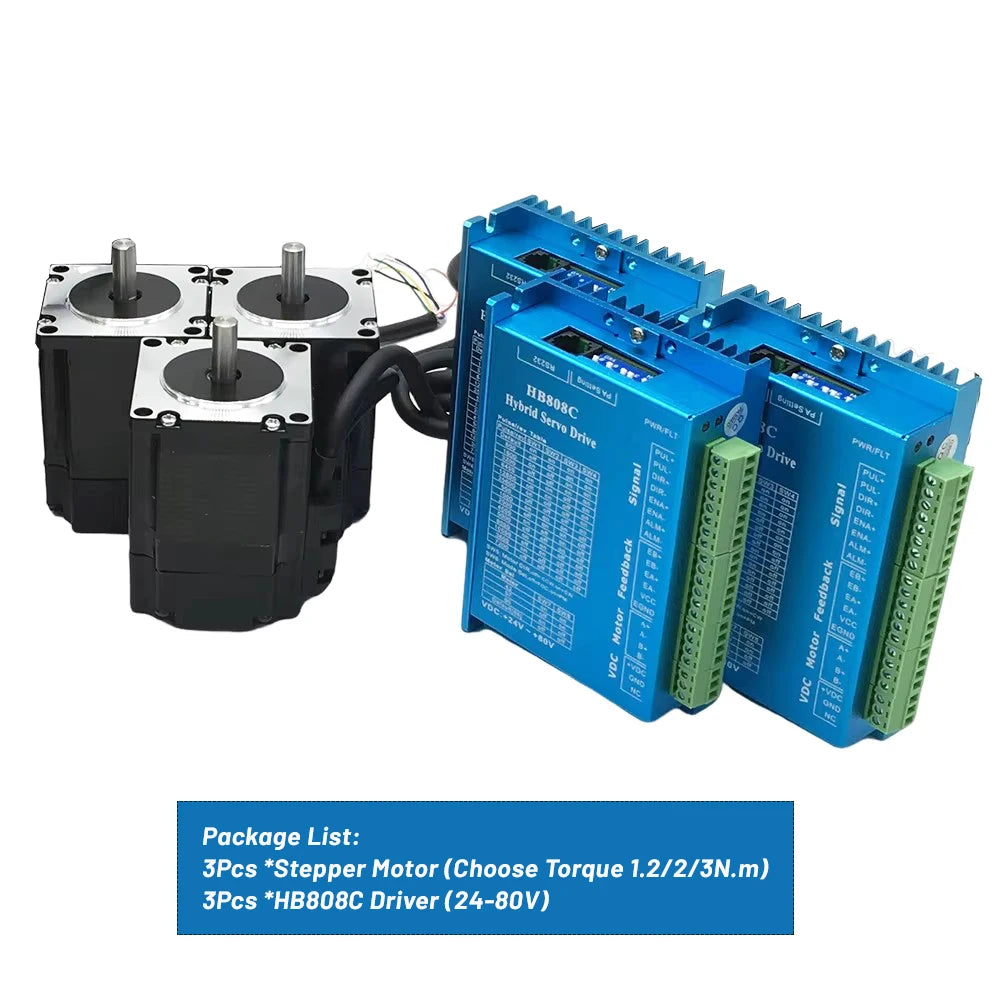

3 Axis Kit:
3Pcs * Stepper motor (Choose Torque 1.5/2.2/3N.m)
3Pcs * HB808C Driver (24-80V)

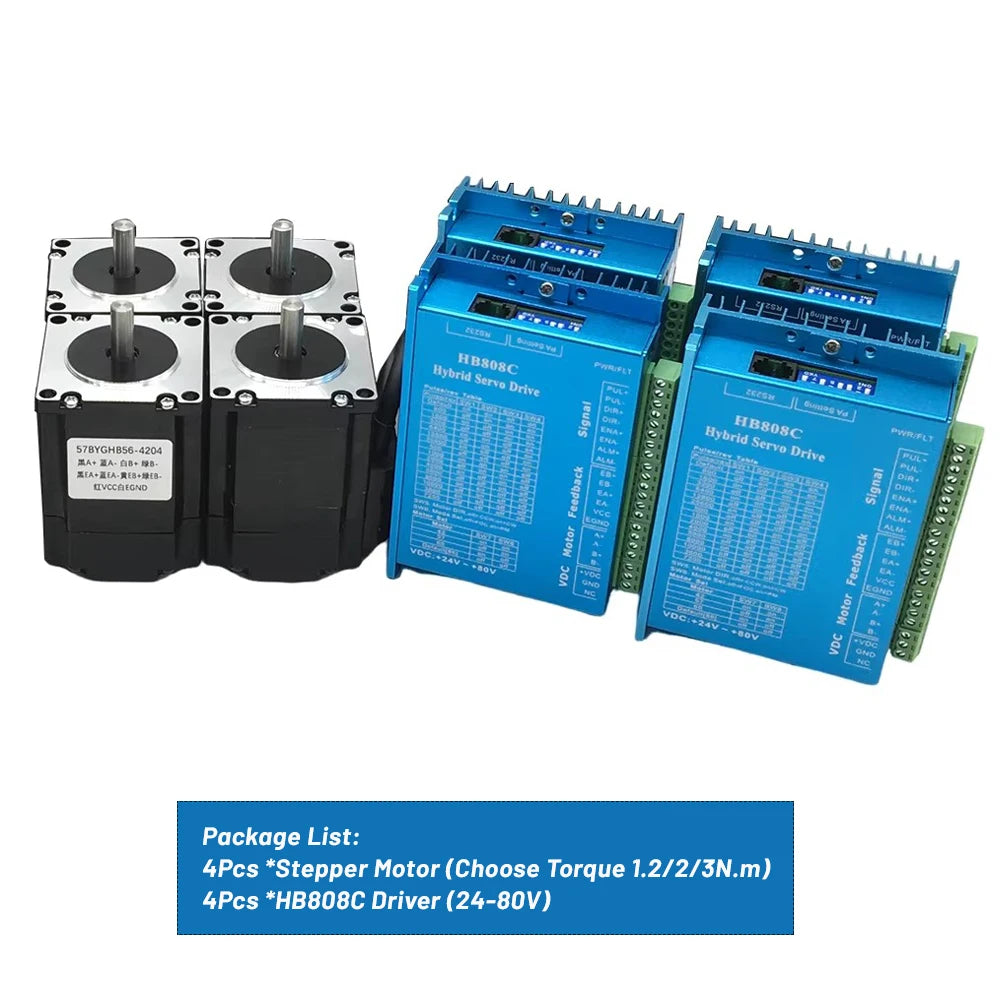

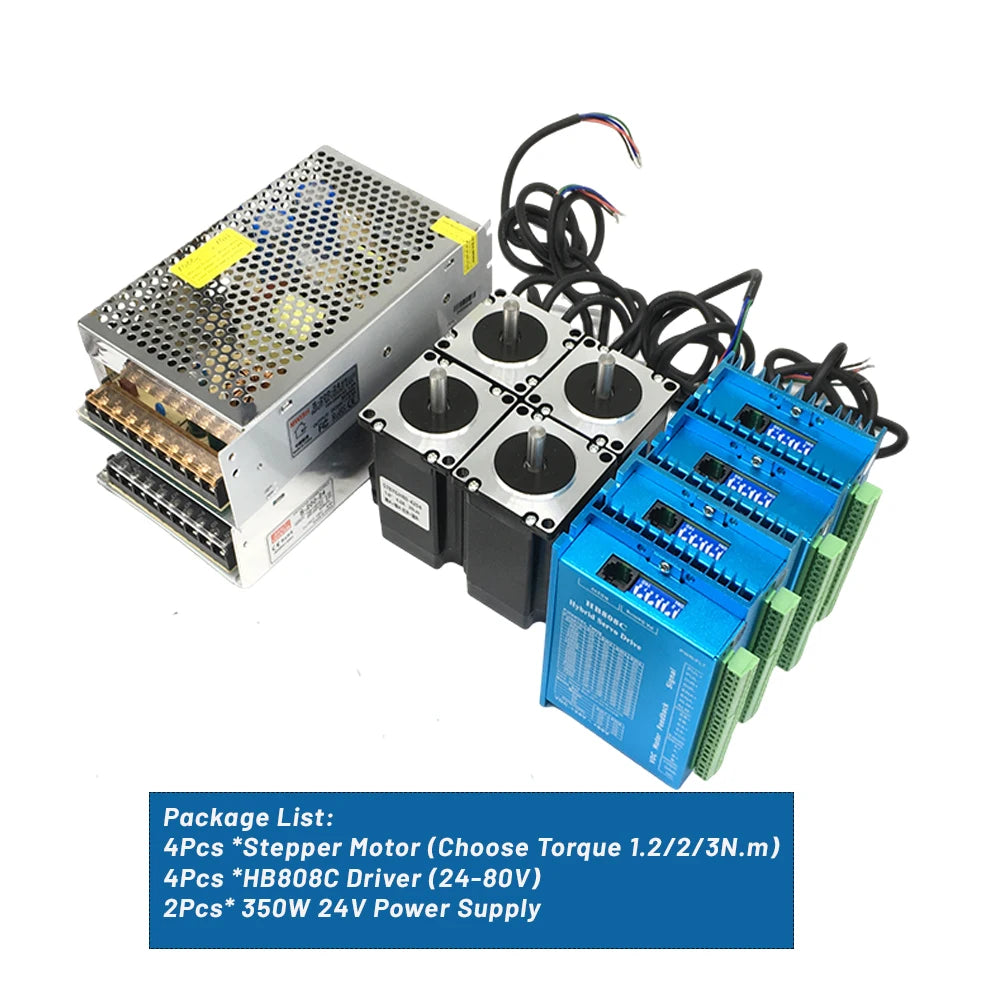

4 Axis Kit:
4Pcs * Stepper motor (Choose Torque 1.5/2.2/3N.m)
4Pcs * HB808C Driver (24-80V)

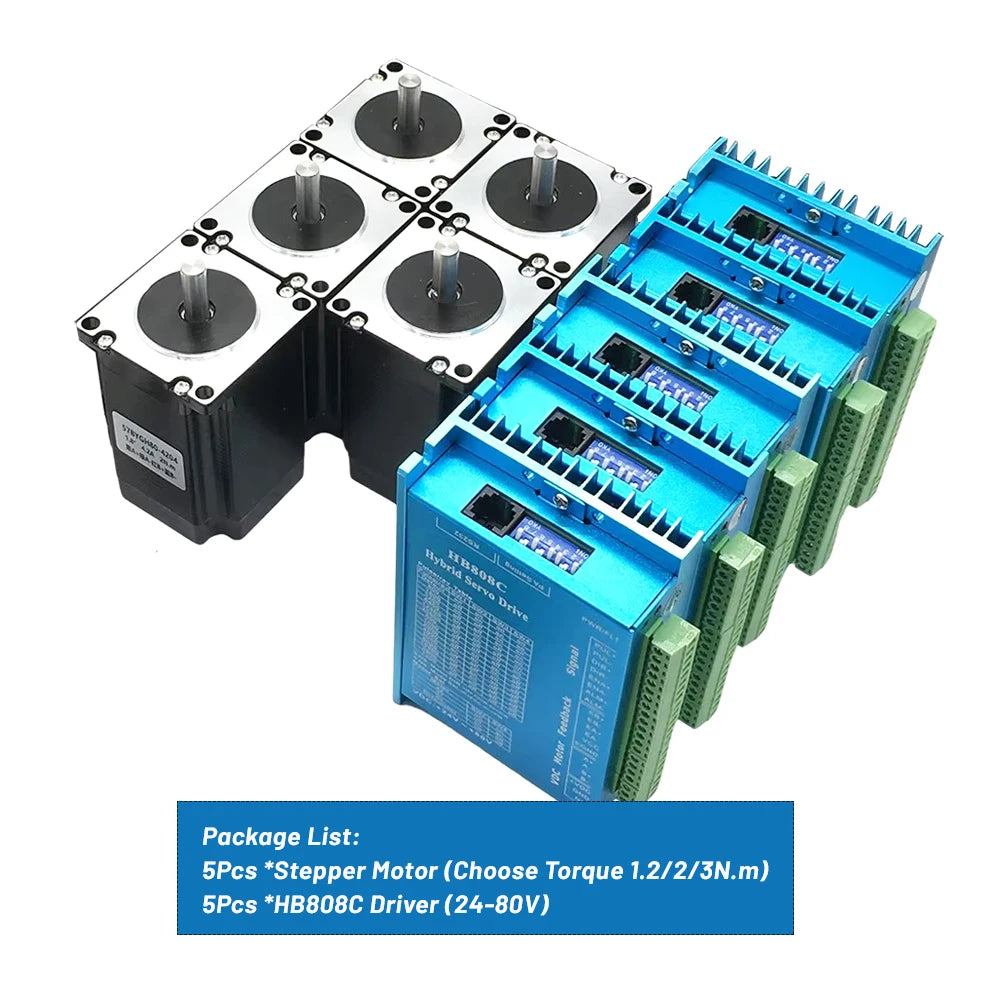

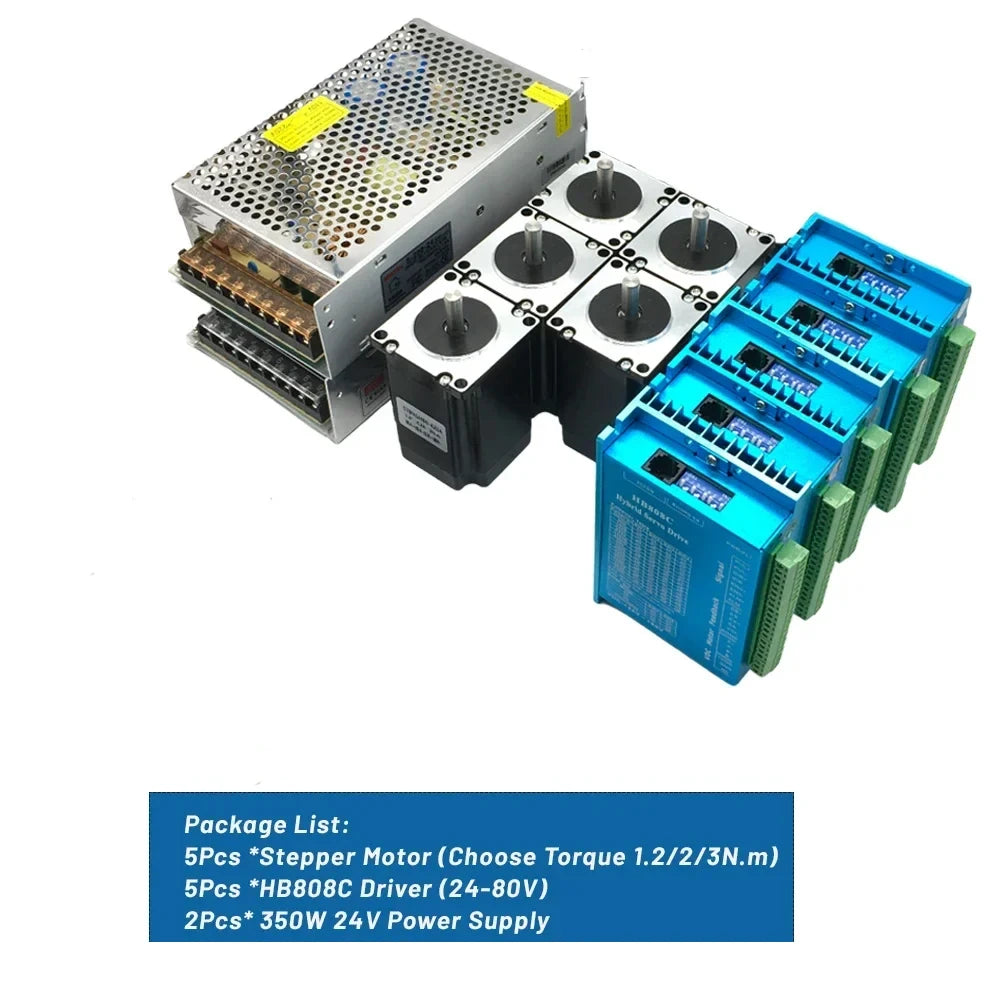

5 Axis Kit:
5Pcs * Stepper motor (Choose Torque 1.5/2.2/3N.m)
5Pcs * HB808C Driver (24-80V)

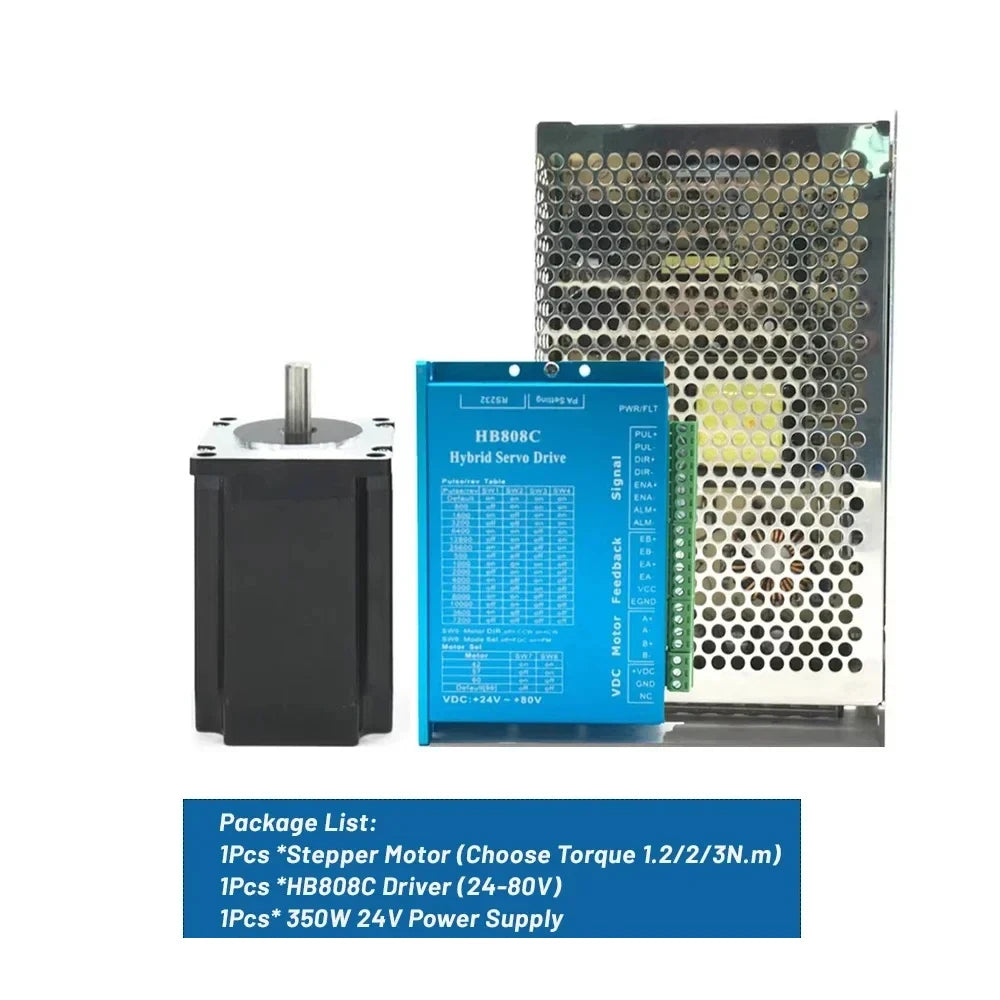

1 Axis-With Power:
1Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
1Pcs * HB808C Driver (24-80V)
1Pcs* 350W 24V Power Supply

2 Axis-With Power:
2Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
2Pcs * HB808C Driver (24-80V)
1Pcs* 350W 24V Power Supply

3 Axis-With Power:
3Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
3Pcs * HB808C Driver (24-80V)
1Pcs* 350W 24V Power Supply

4Axis-With Power:
4Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
4Pcs * HB808C Driver (24-80V)
2Pcs* 350W 24V Power Supply

5 Axis-With Power:
5Pcs * Stepper Motor (Choose Torque 1.5/2.2/3N.m)
5Pcs * HB808C Driver (24-80V)
2Pcs* 350W 24V Power Supply

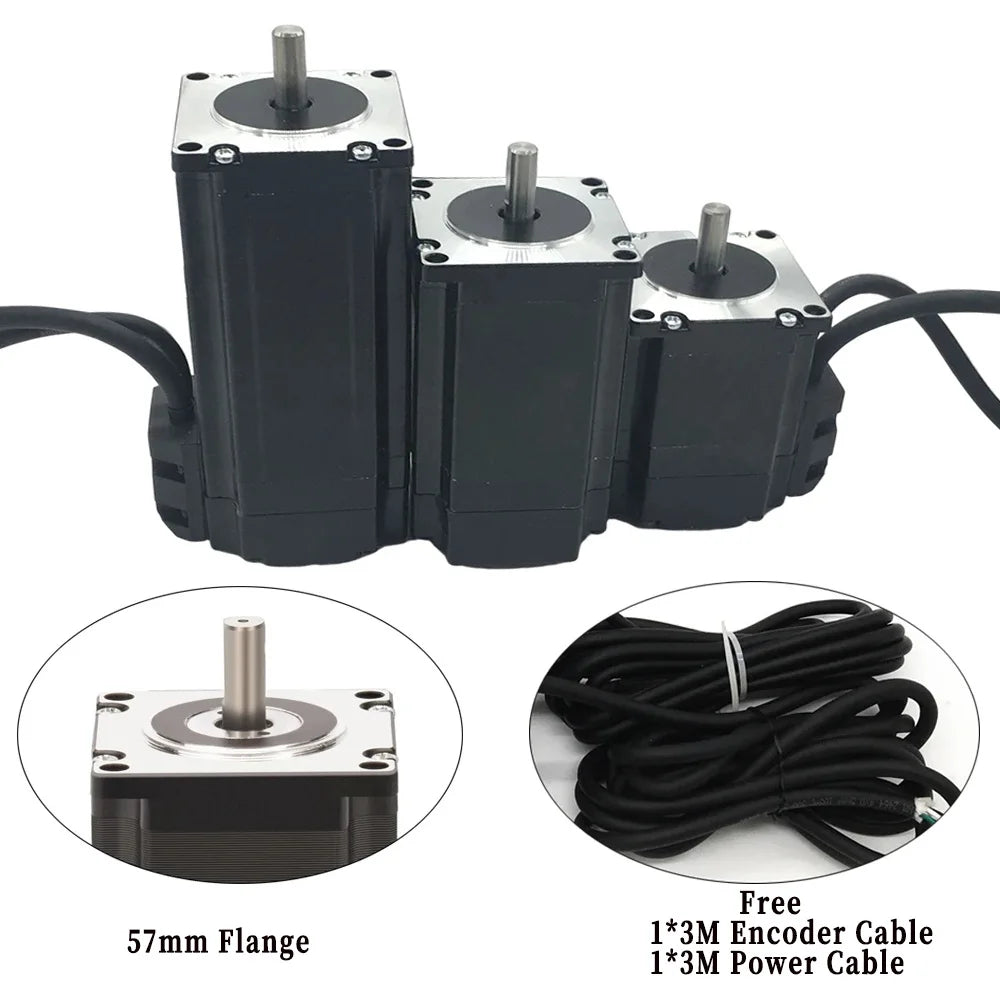

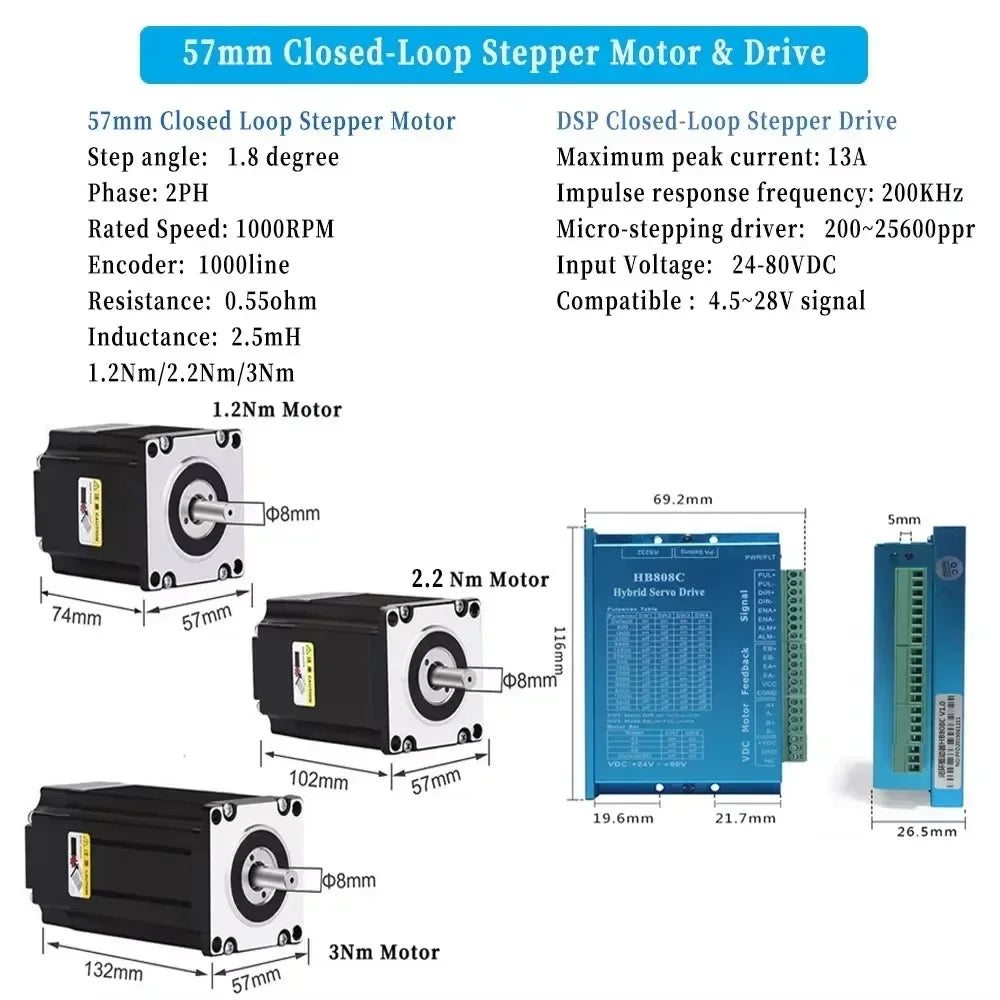

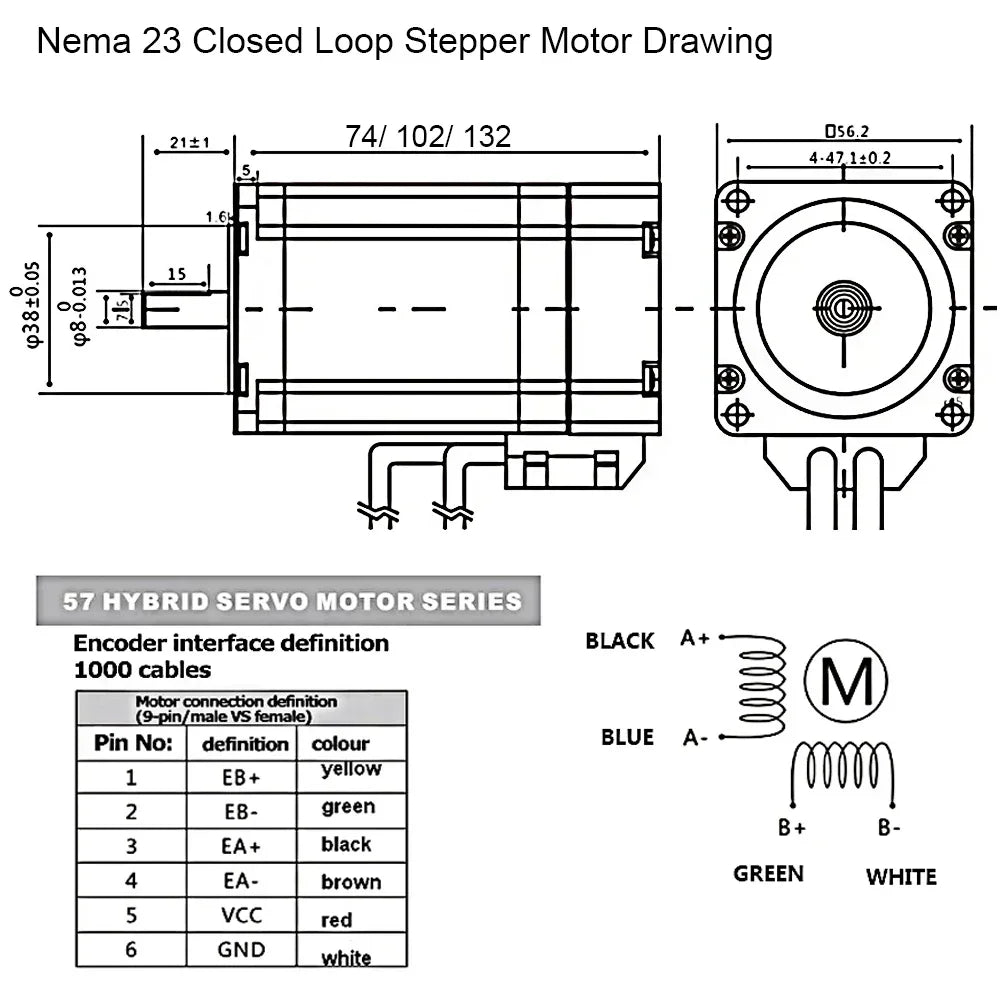

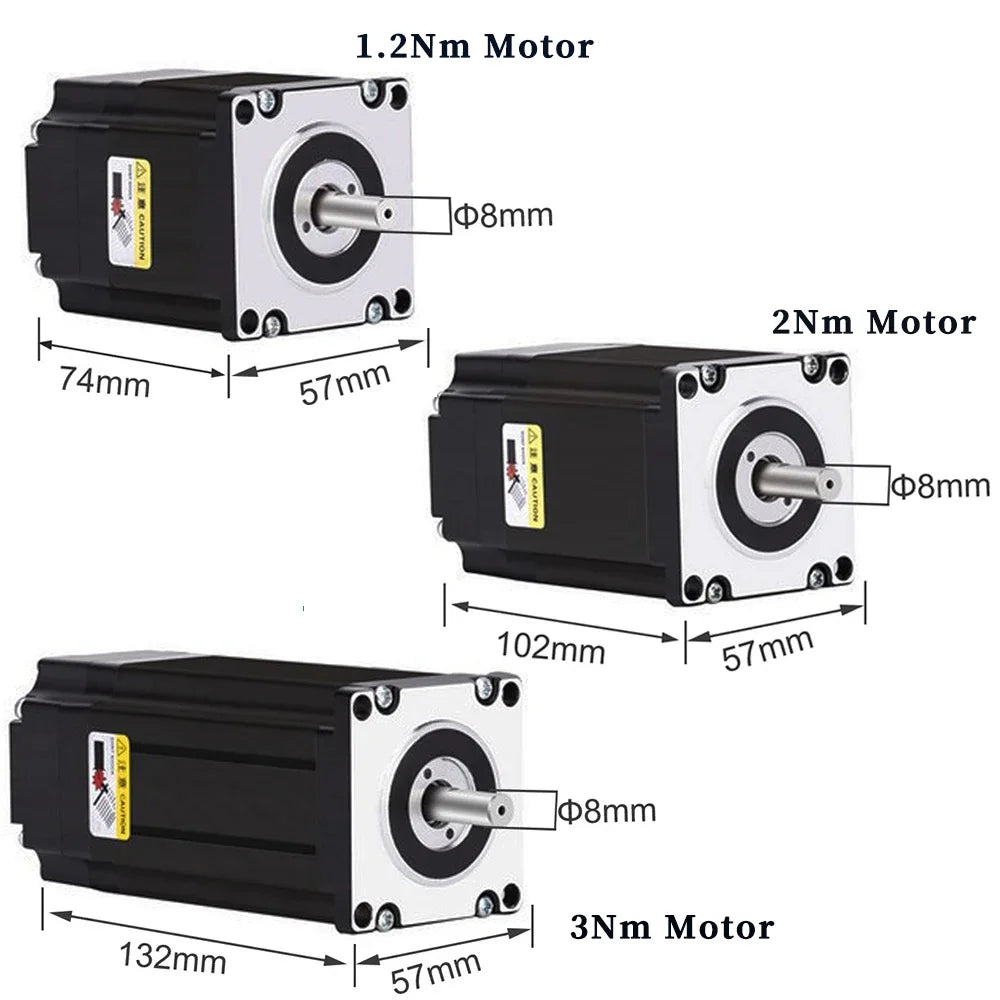

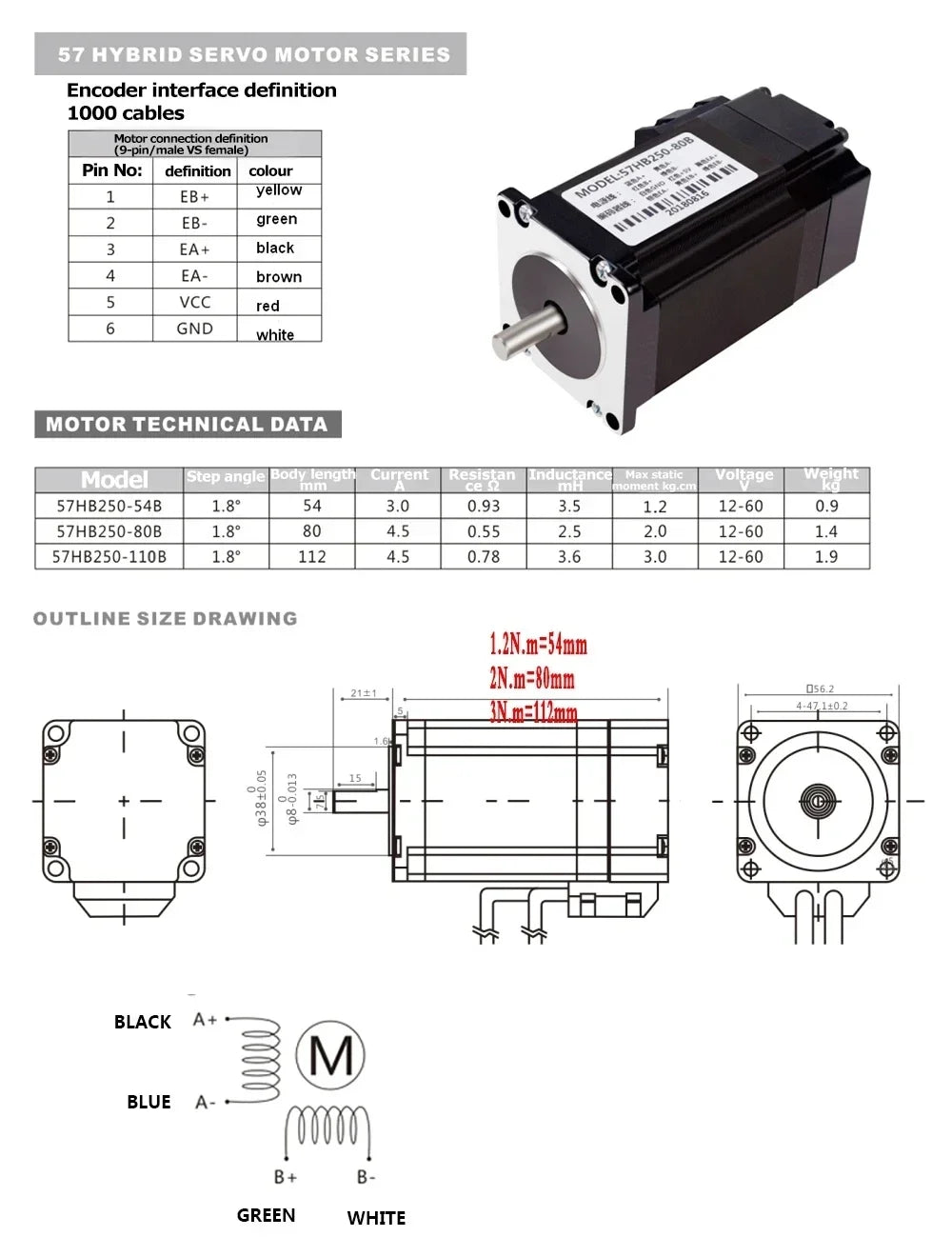

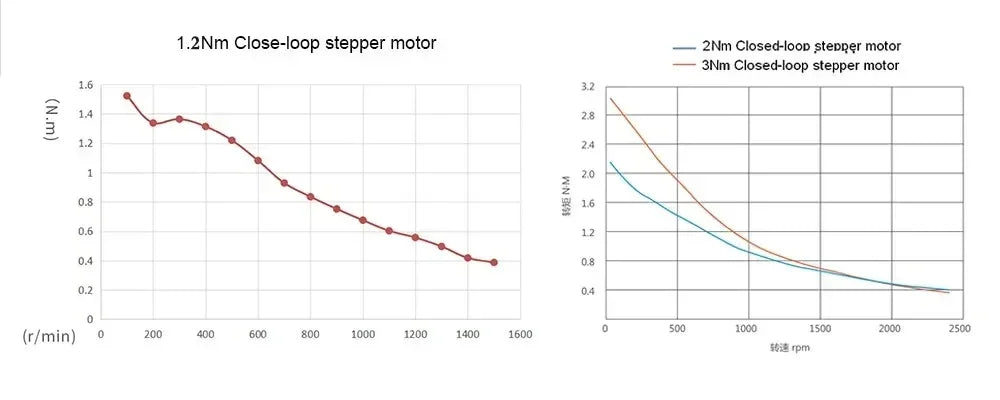

Motor electric parameter:
1.Flange: NEMA23 57MM
2.Step angle: 1.8 degree
3.Phase: 2PH

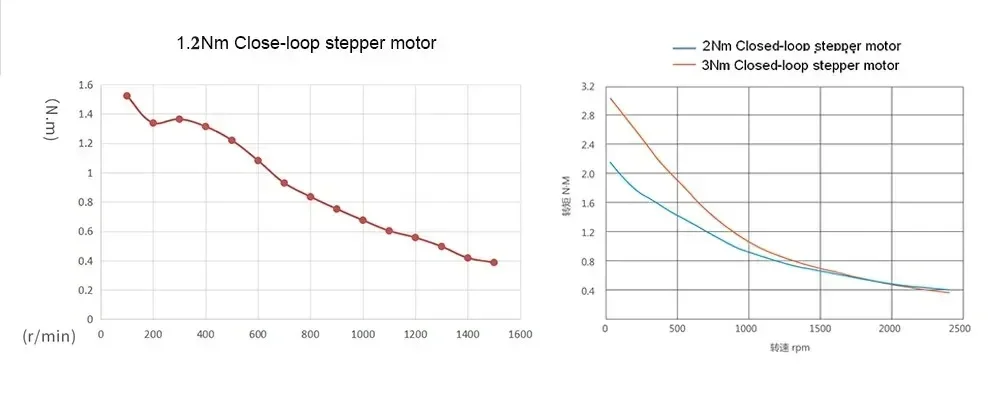

4.Hold torque: 1.2/2.0/3.0Nm
5.Motor Length: 56/80/112MM
6.Rated Speed: 1000RPM
7.Encoder: 1000line
8.Resistance: 0.4/0.7/0.8(ohm)
9.Inductance: 1.2/2/3.5mH
10.Class of insulation: B

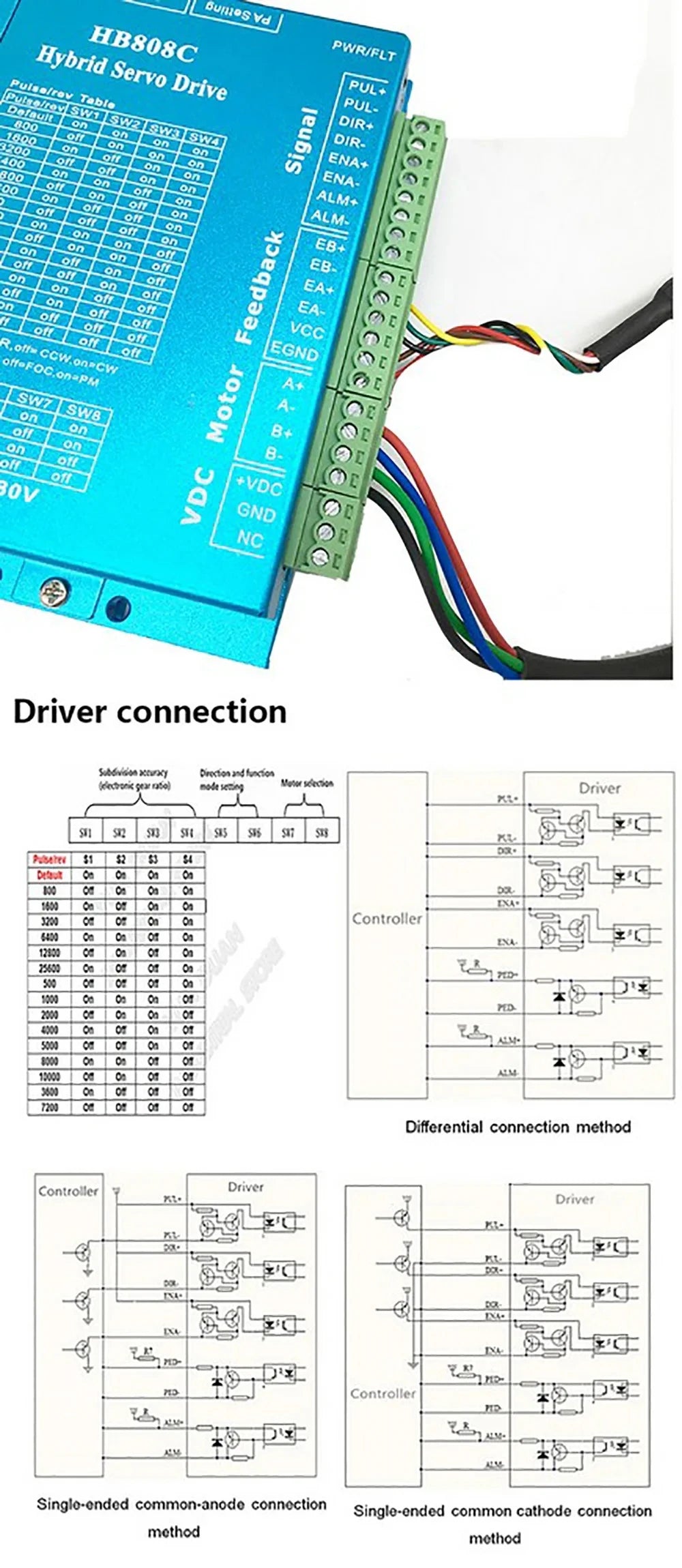

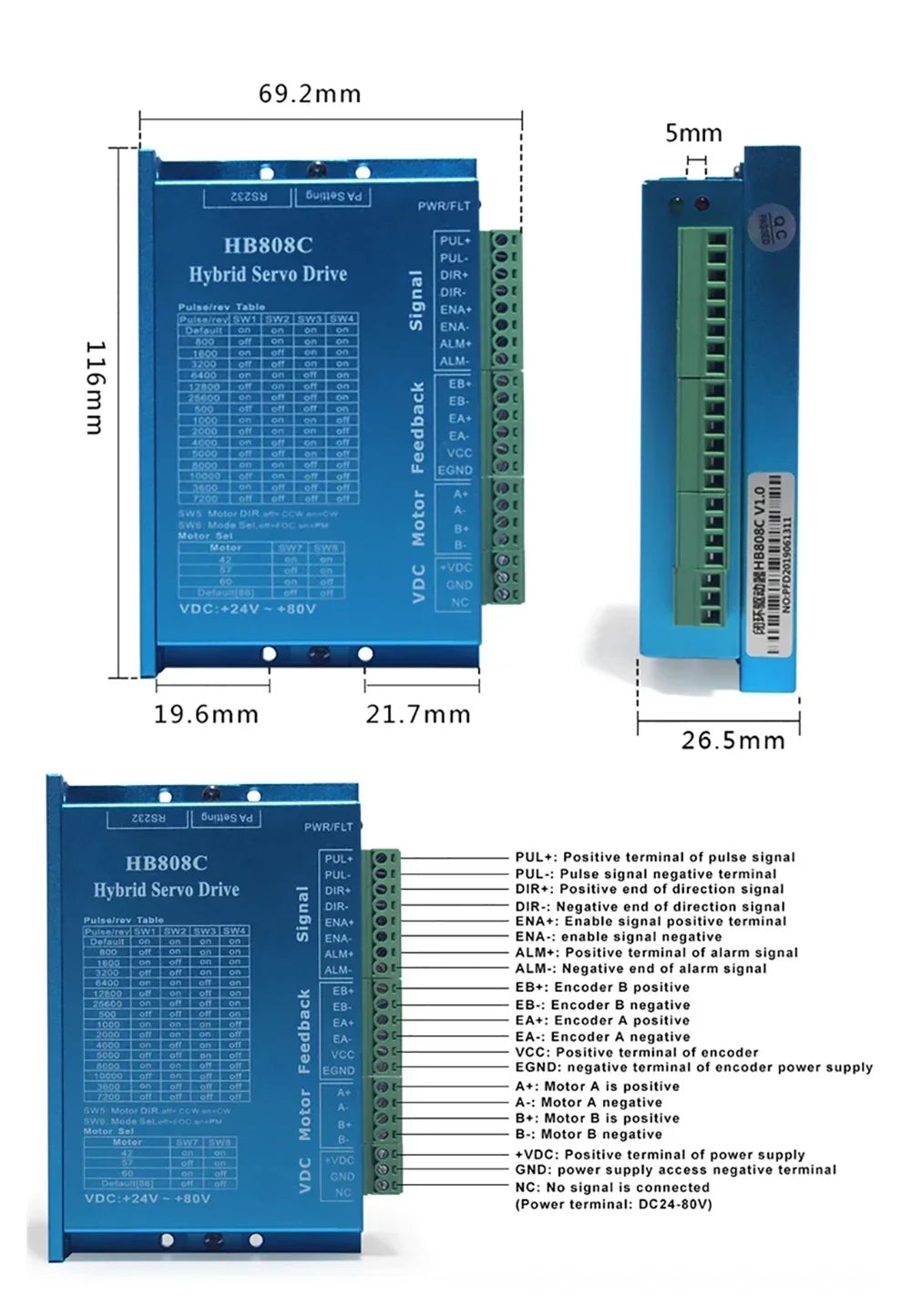

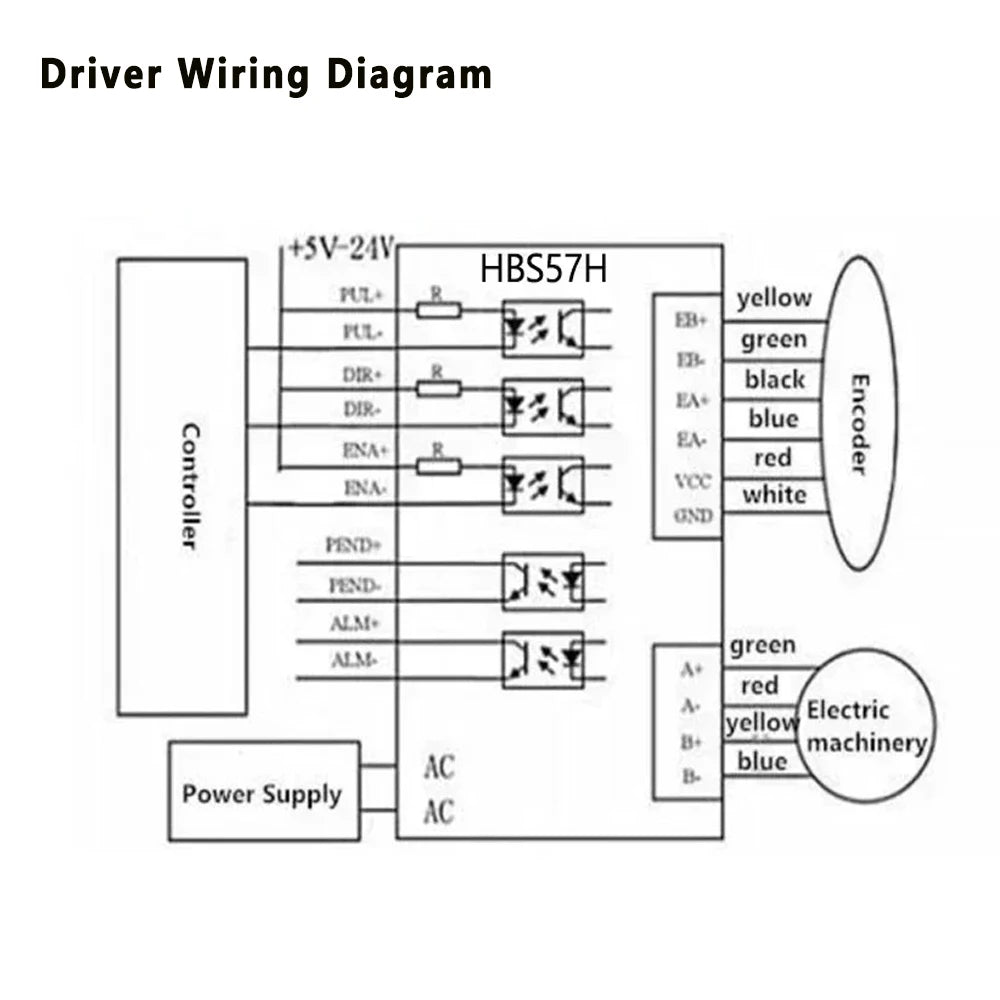

Drive functional parameter:

1.Model: HB808C
2.Type: DSP Closed loop stepper drive

3.Maximum peak current: 8A

4.Impulse response frequency: 200KHz

5.Micro-stepping driver: 200~25600ppr

6.Input Voltage: 24-80VDC

Protective function: Over voltage, over current, tracking error, over proof

7.Signal input: Support PUL/DIR and CW/CCW modes (difference)

8.Compatible : 4.5~28V signal (Don't need a resistor)

ceramic, glass bottle, wire, metal cap, etc

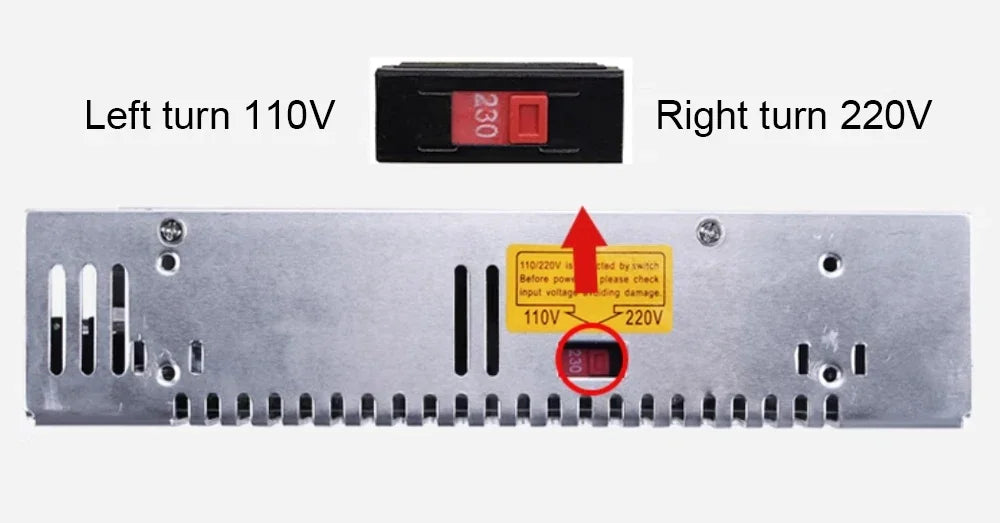

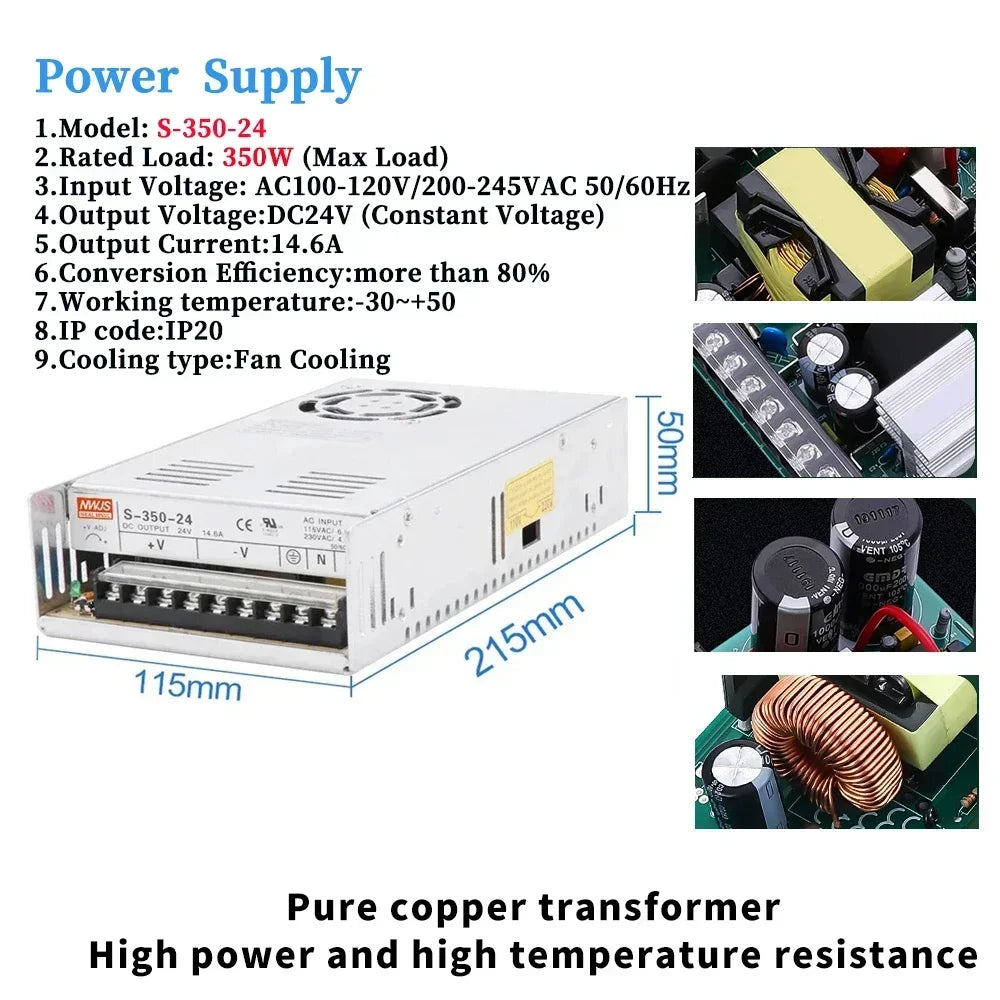

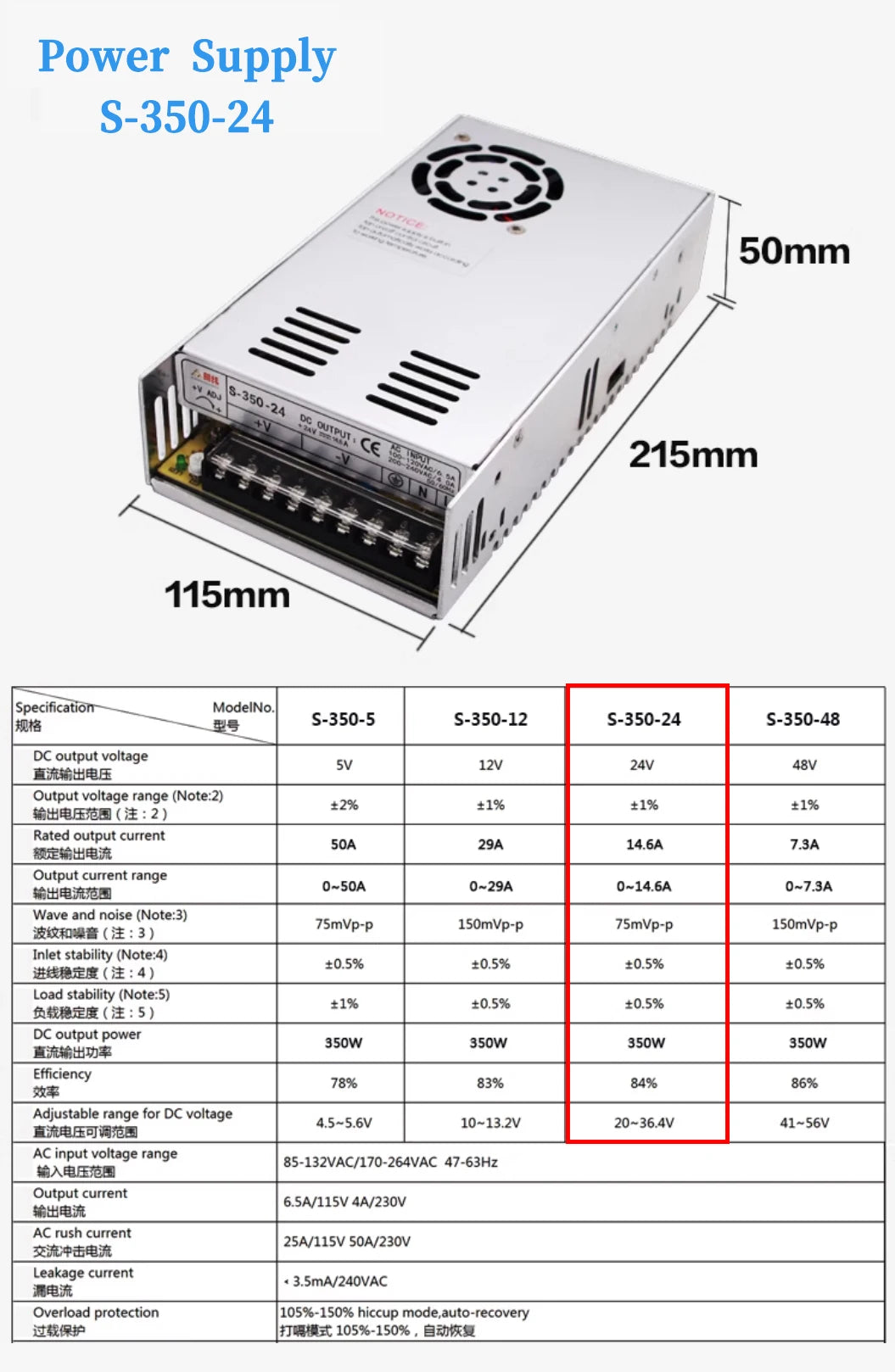

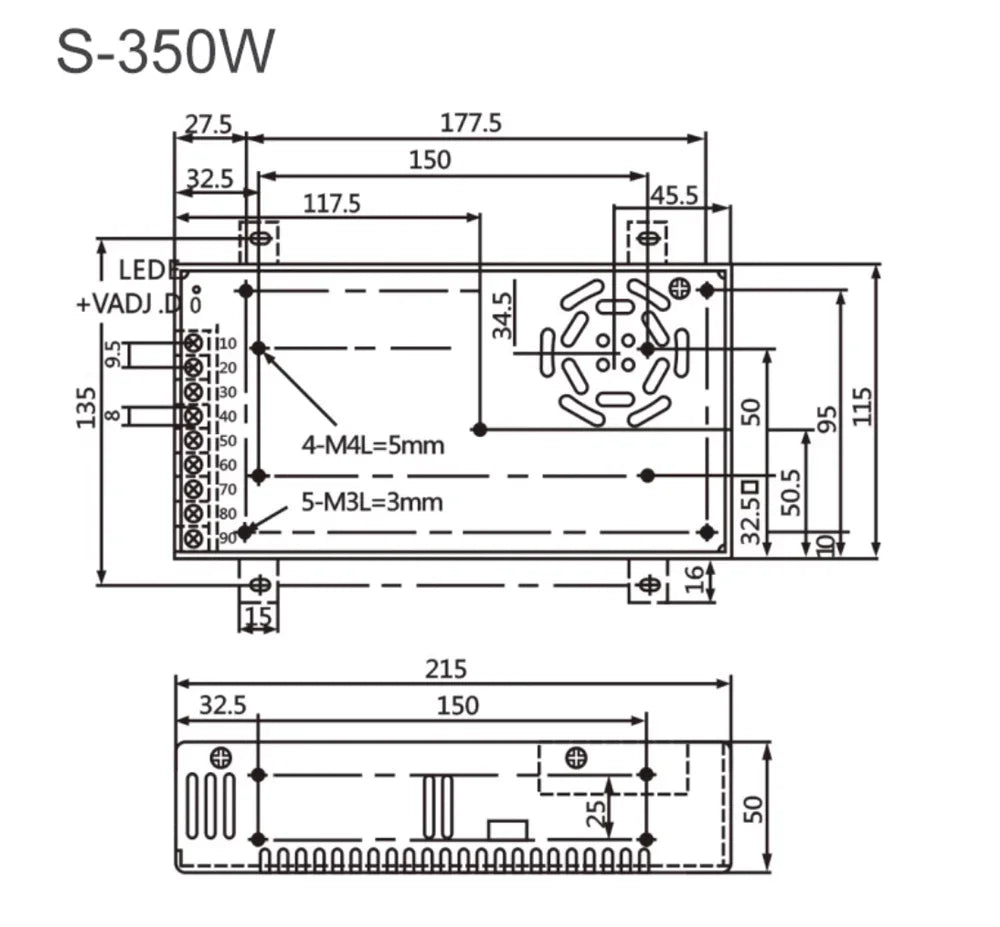

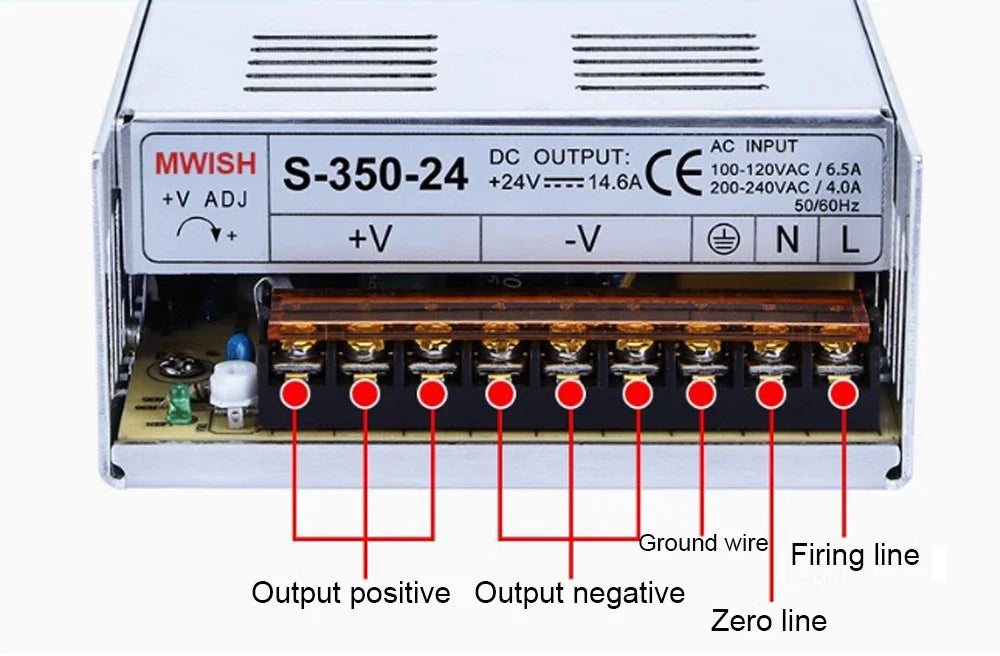

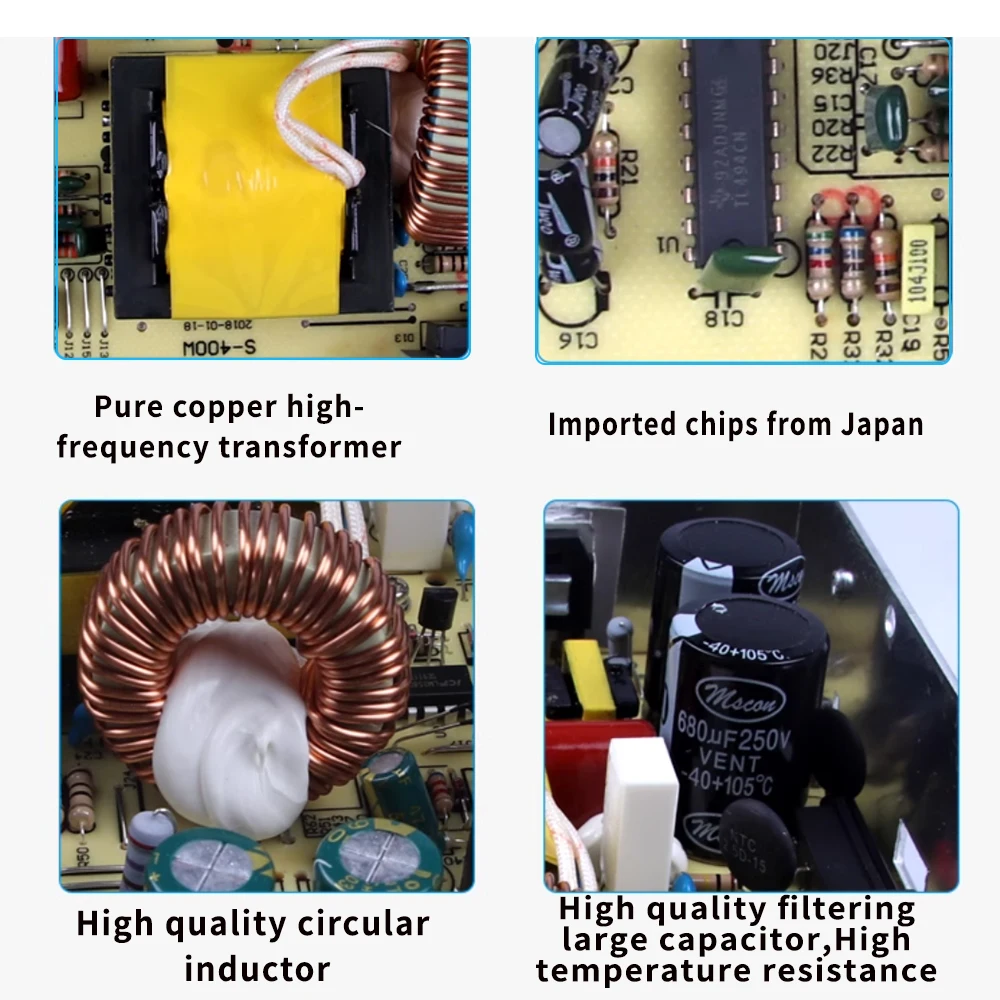

Power Supply parameter:

1.Model:S-350-24
2.Rated Load: 350W(Max Load)
3.Input Voltage: AC100-120V/200-245VAC 50/60Hz
4.0utput Voltage:DC24V(Constant Voltage)
5.0utput Current:14.6A
6,Conversion Efciency:more than 80%
7.Working temperature:-30~+50
8.IP code:IP20
9.Cooling type:Fan Cooling
