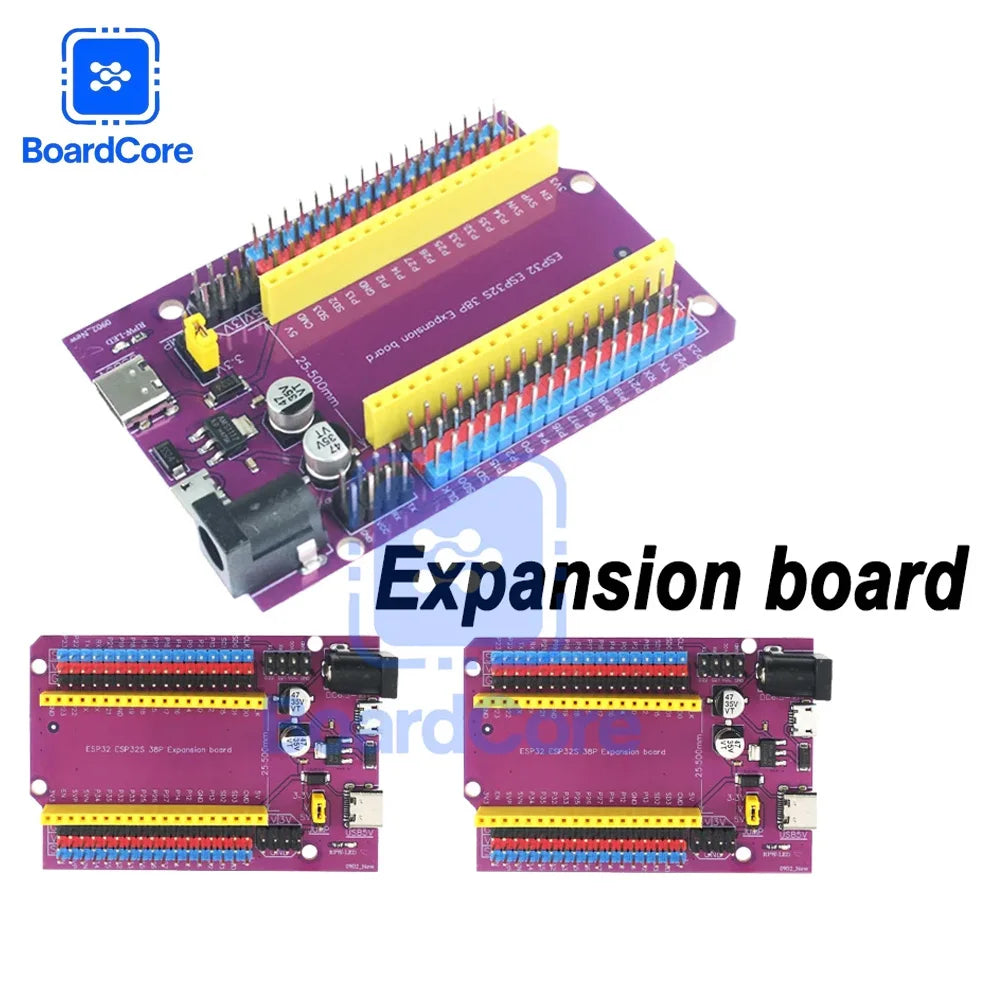

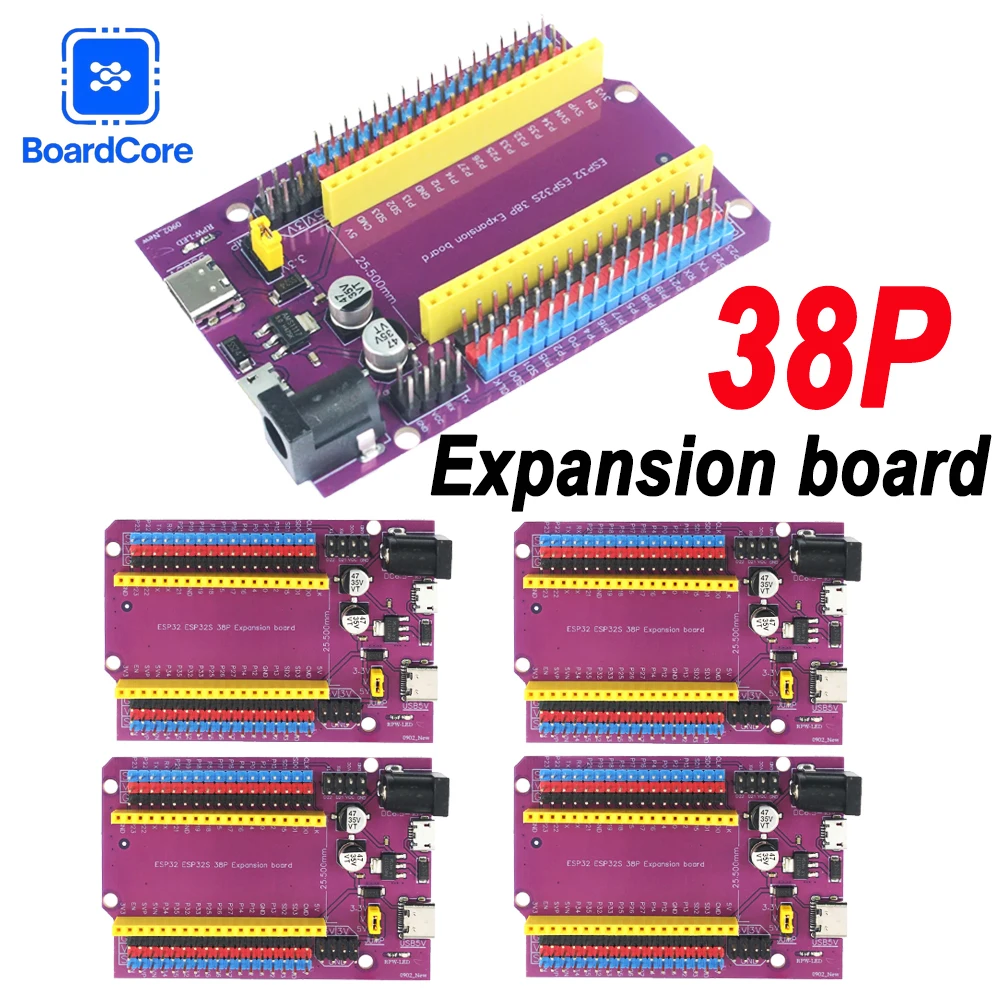

ESP32 38-Pin Expansion Board – The Ultimate Companion for IoT Development

In the rapidly evolving world of embedded systems and the Internet of Things (IoT), having the right tools and components is essential for developers, hobbyists, and engineers alike. One such essential component is the ESP32 38-Pin Expansion Board, a powerful and versatile accessory designed to enhance the capabilities of the popular ESP32 development board. Whether you're working on a smart home project, an industrial automation system, or a wearable IoT device, this expansion board offers the flexibility, performance, and connectivity you need to bring your ideas to life.

 What is the ESP32 38-Pin Expansion Board?

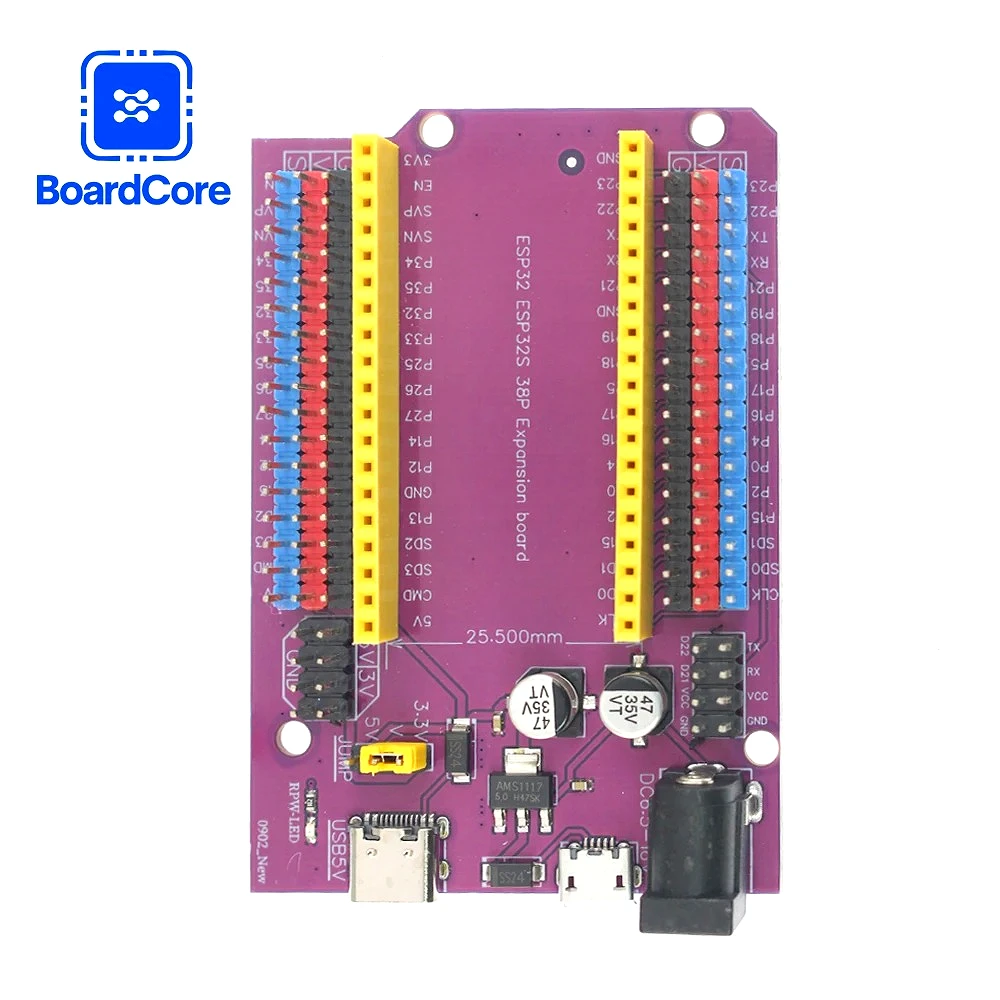

The ESP32 38-Pin Expansion Board is a breakout board specifically designed to interface with the ESP32 microcontroller module. It provides a convenient and organized way to access all the essential pins of the ESP32, including digital I/O, analog input, PWM, UART, SPI, I2C, and more. With 38 pins available for connection, this board is ideal for developers who need to integrate multiple sensors, actuators, and communication modules into their projects.

Unlike the compact ESP32 module itself, the expansion board offers a larger footprint and a more user-friendly layout, making it easier to prototype and test complex circuits. It is especially useful for those who are new to embedded development or who want to streamline their workflow with a more accessible and modular setup.

 Key Features of the ESP32 38-Pin Expansion Board

- 38-Pin Interface: Provides full access to the ESP32’s GPIO pins, making it easy to connect external components and peripherals.
- Dual-Core CPU: Built around the powerful ESP32 module, which features a dual-core Tensilica LX6 microprocessor for enhanced performance.
- Wi-Fi and Bluetooth Connectivity: The ESP32 module supports both 802.11 b/g/n Wi-Fi and dual-mode Bluetooth (Classic and BLE), enabling seamless wireless communication.
- Low Power Consumption: Designed for energy efficiency, the ESP32 module is ideal for battery-powered and portable IoT applications.
- Integrated Peripherals: Includes a wide range of built-in peripherals such as capacitive touch sensors, Hall effect sensor, and multiple timers and PWM channels.
- Easy to Use: The expansion board is compatible with popular development environments like Arduino IDE, ESP-IDF, and MicroPython, making it accessible to both beginners and advanced users.
- Robust Design: Constructed with high-quality materials and a durable layout, the board is built to withstand repeated use and prototyping.

 Why Choose the ESP32 38-Pin Expansion Board?

When it comes to IoT development, the ESP32 38-Pin Expansion Board stands out for its versatility, performance, and ease of use. Here are a few reasons why it’s a top choice for developers and makers:

 1. Enhanced Prototyping Capabilities

The 38-pin layout allows for easy access to all the essential functions of the ESP32, making it simple to connect external components such as sensors, displays, and communication modules. Whether you're working on a simple LED control system or a complex IoT gateway, this board provides the flexibility you need to prototype and test your designs efficiently.

 2. Support for Multiple Communication Protocols

Thanks to the ESP32’s built-in Wi-Fi and Bluetooth capabilities, the expansion board is perfect for projects that require wireless connectivity. It supports a wide range of communication protocols, including HTTP, MQTT, TCP/IP, and more, making it ideal for cloud-based IoT applications and local network communication.

 3. Low Power and High Performance

The ESP32 module is known for its low power consumption and high processing power, making it suitable for a wide range of applications—from battery-powered sensors to high-performance embedded systems. The expansion board preserves these advantages, allowing developers to build efficient and responsive IoT devices.

 4. Compatibility with Popular Development Tools

The board is fully compatible with widely used development platforms such as the Arduino IDE, ESP-IDF, and MicroPython. This means you can take advantage of a vast library of code examples, libraries, and community support to speed up your development process.

 5. Cost-Effective and Scalable

Compared to other development boards, the ESP32 38-Pin Expansion Board offers an excellent balance of performance and affordability. It’s an ideal choice for both small-scale projects and large-scale deployments, thanks to its scalability and modular design.

 Applications of the ESP32 38-Pin Expansion Board

The ESP32 38-Pin Expansion Board is a versatile tool that can be used in a wide range of applications. Here are some of the most common use cases:

- Smart Home Automation: Control lights, thermostats, and security systems using Wi-Fi and Bluetooth connectivity.
- Industrial IoT: Monitor and control industrial equipment, sensors, and actuators in real-time.
- Wearable Technology: Develop low-power wearable devices with built-in connectivity and sensor support.
- Environmental Monitoring: Collect and transmit data from temperature, humidity, and air quality sensors.
- Robotics and Automation: Use the board to control motors, servos, and other robotic components.
- Educational Projects: Teach students about embedded systems, IoT, and wireless communication using a hands-on approach.

 How to Get Started with the ESP32 38-Pin Expansion Board

Getting started with the ESP32 38-Pin Expansion Board is straightforward. Here’s a quick guide to help you begin:

1. Connect the Board: Plug the expansion board into your computer using a USB cable or connect it to an external power source.
2. Install the Development Environment: Download and install the Arduino IDE or ESP-IDF, depending on your preferred programming language.
3. Upload Your First Sketch: Use a simple example sketch to test the board’s functionality, such as blinking an LED or connecting to a Wi-Fi network.
4. Add Peripherals: Connect sensors, displays, or other components to the available GPIO pins and start building your project.
5. Test and Iterate: Use the board to prototype and refine your design before moving to a final product.

 Conclusion

The ESP32 38-Pin Expansion Board is a powerful and flexible tool for anyone involved in IoT development. With its 38-pin interface, dual-core CPU, Wi-Fi and Bluetooth capabilities, and low power consumption, it offers everything you need to create innovative and connected devices. Whether you're a hobbyist, a student, or a professional engineer, this board is an essential addition to your development toolkit.

By combining the performance of the ESP32 with the convenience of a breakout board, the ESP32 38-Pin Expansion Board makes it easier than ever to bring your IoT ideas to life. So why wait? Start building your next project today and experience the full potential of the ESP32 platform.
