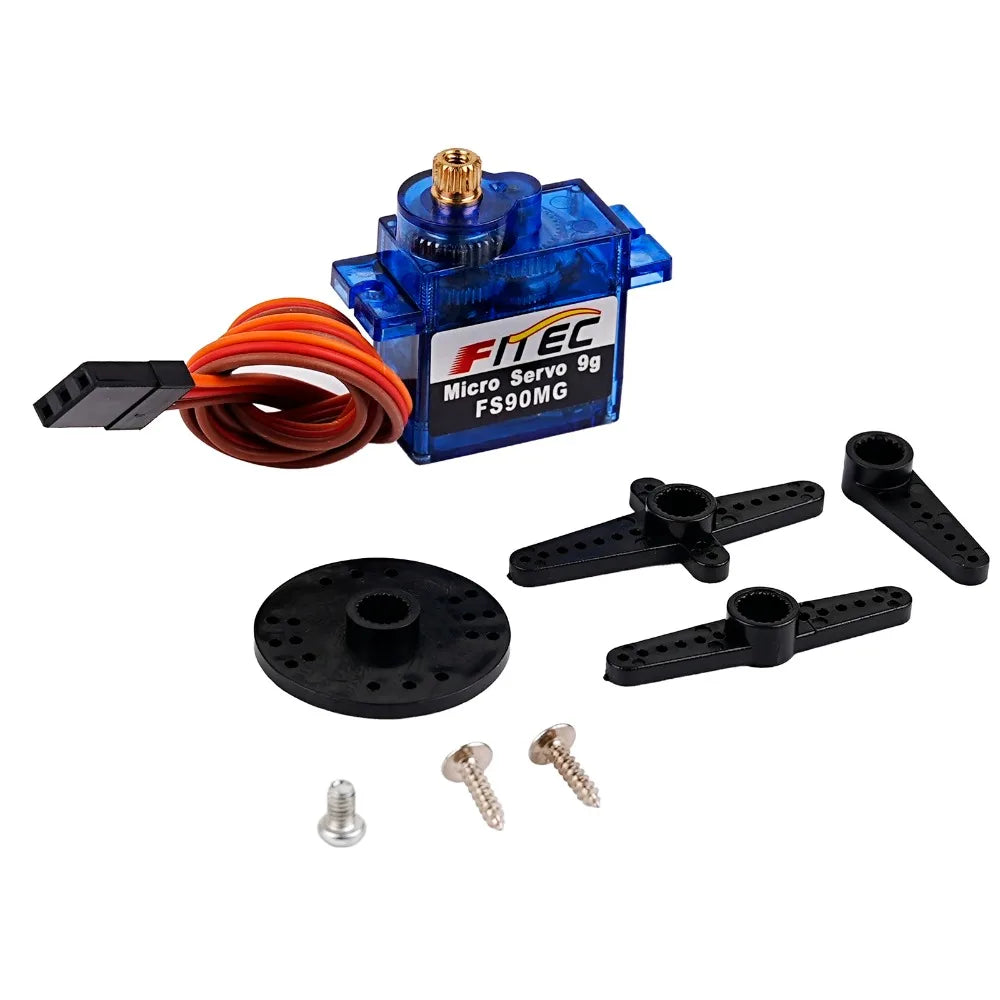

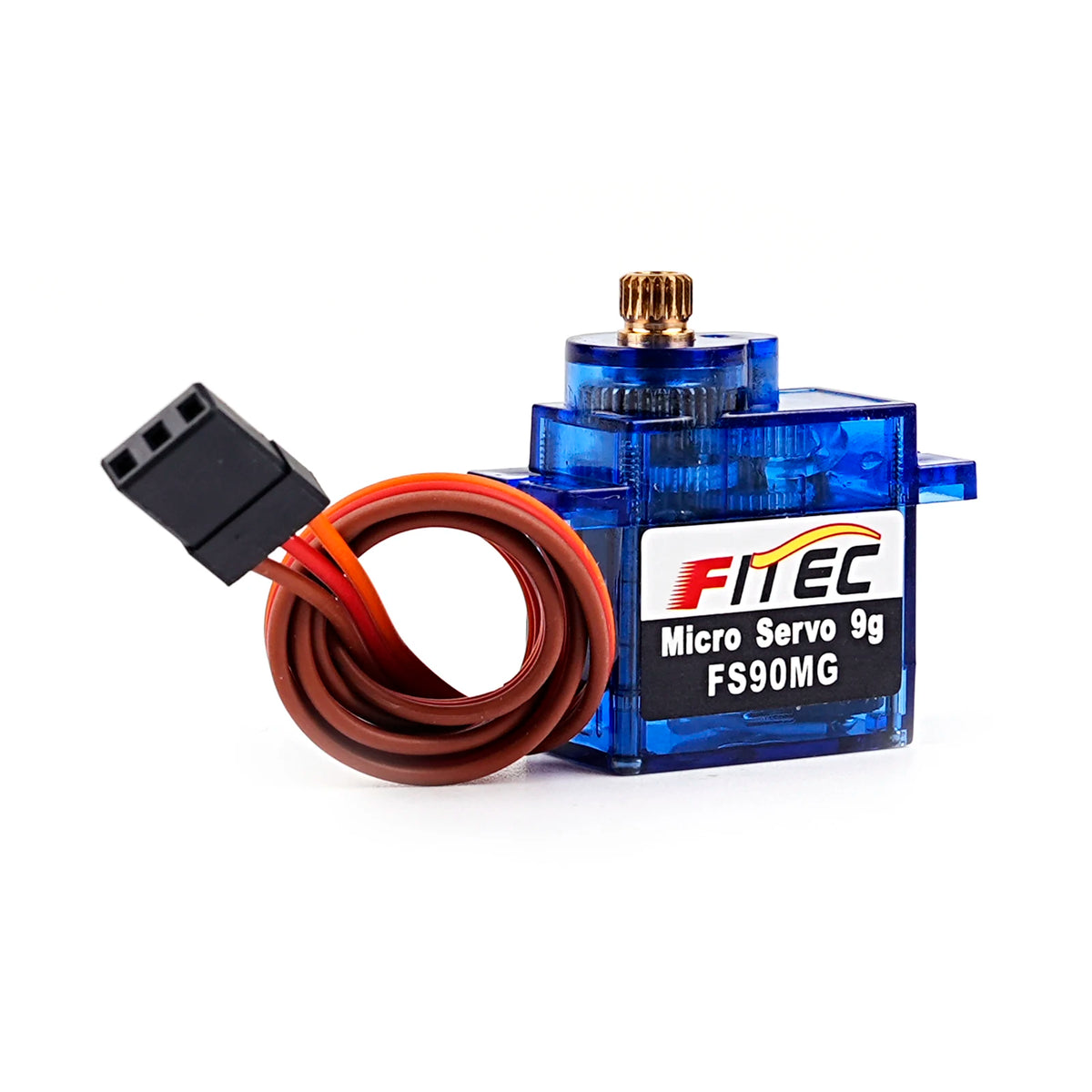

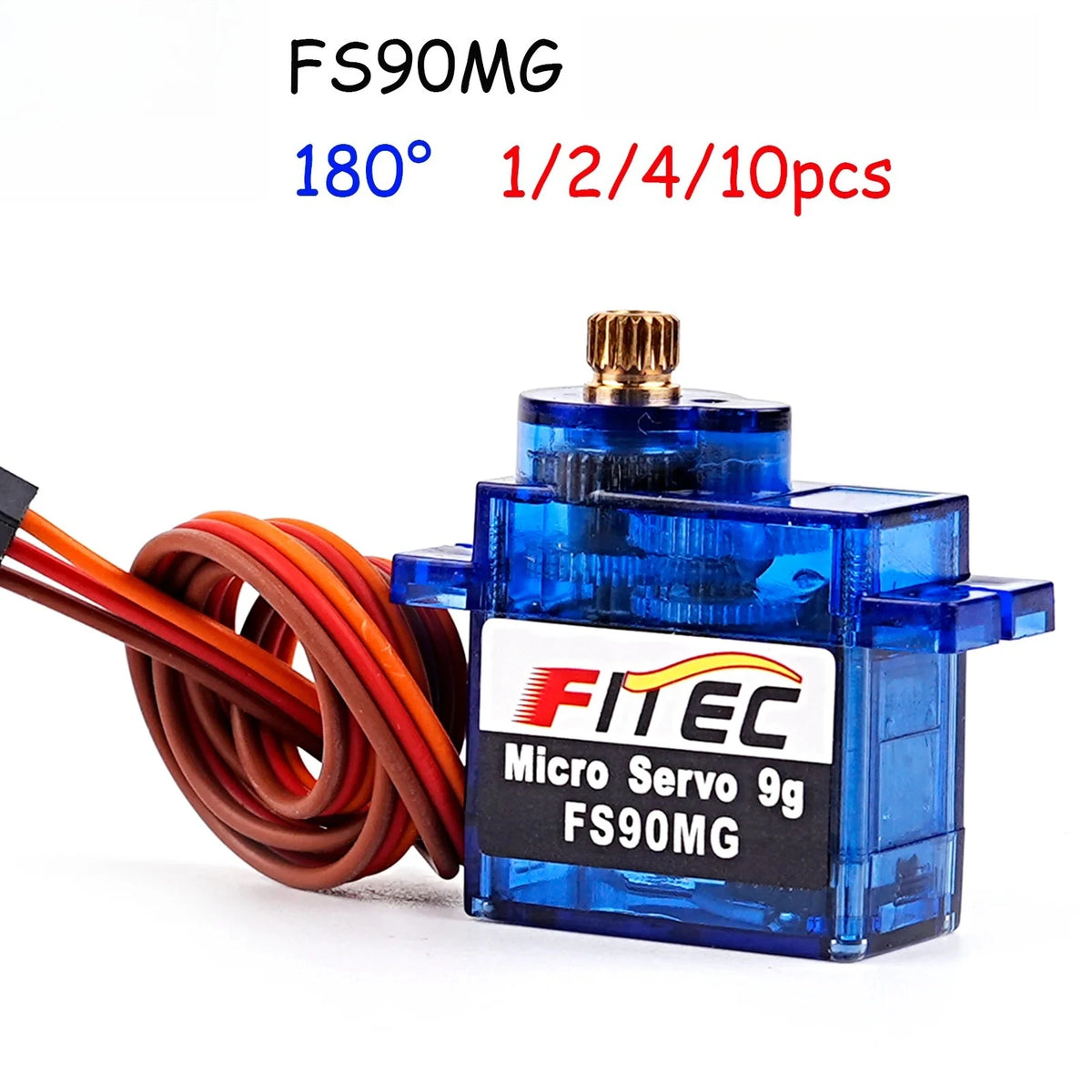

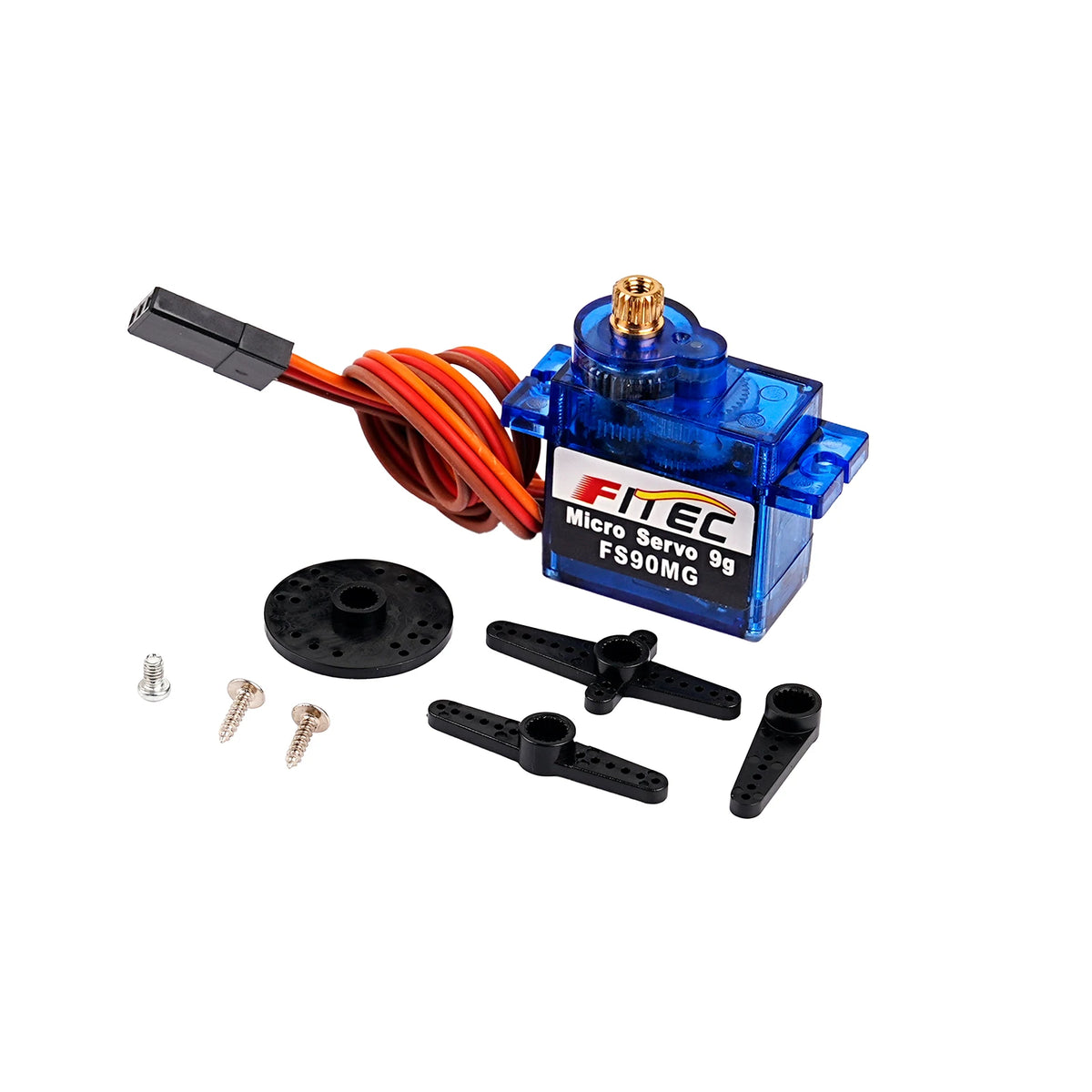

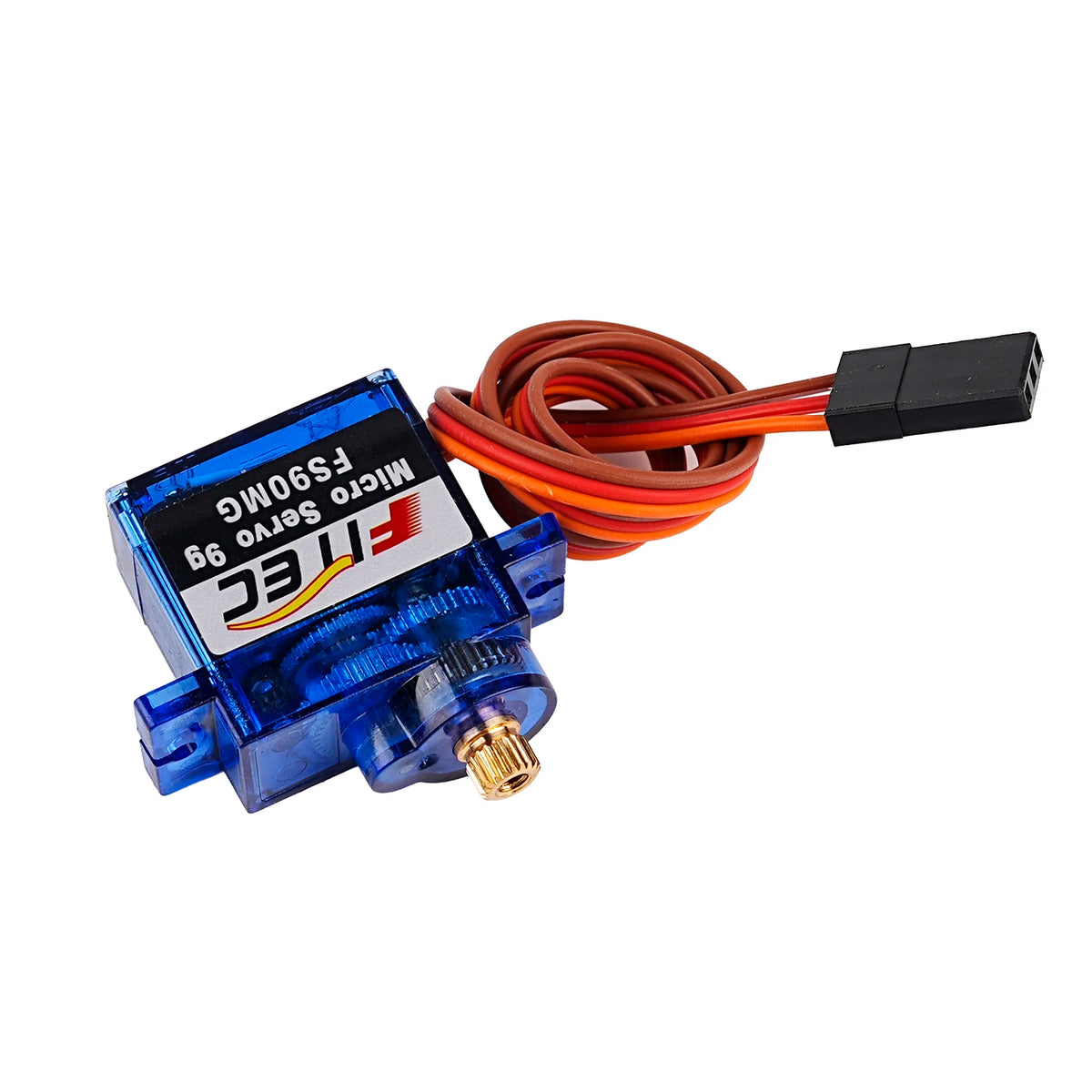

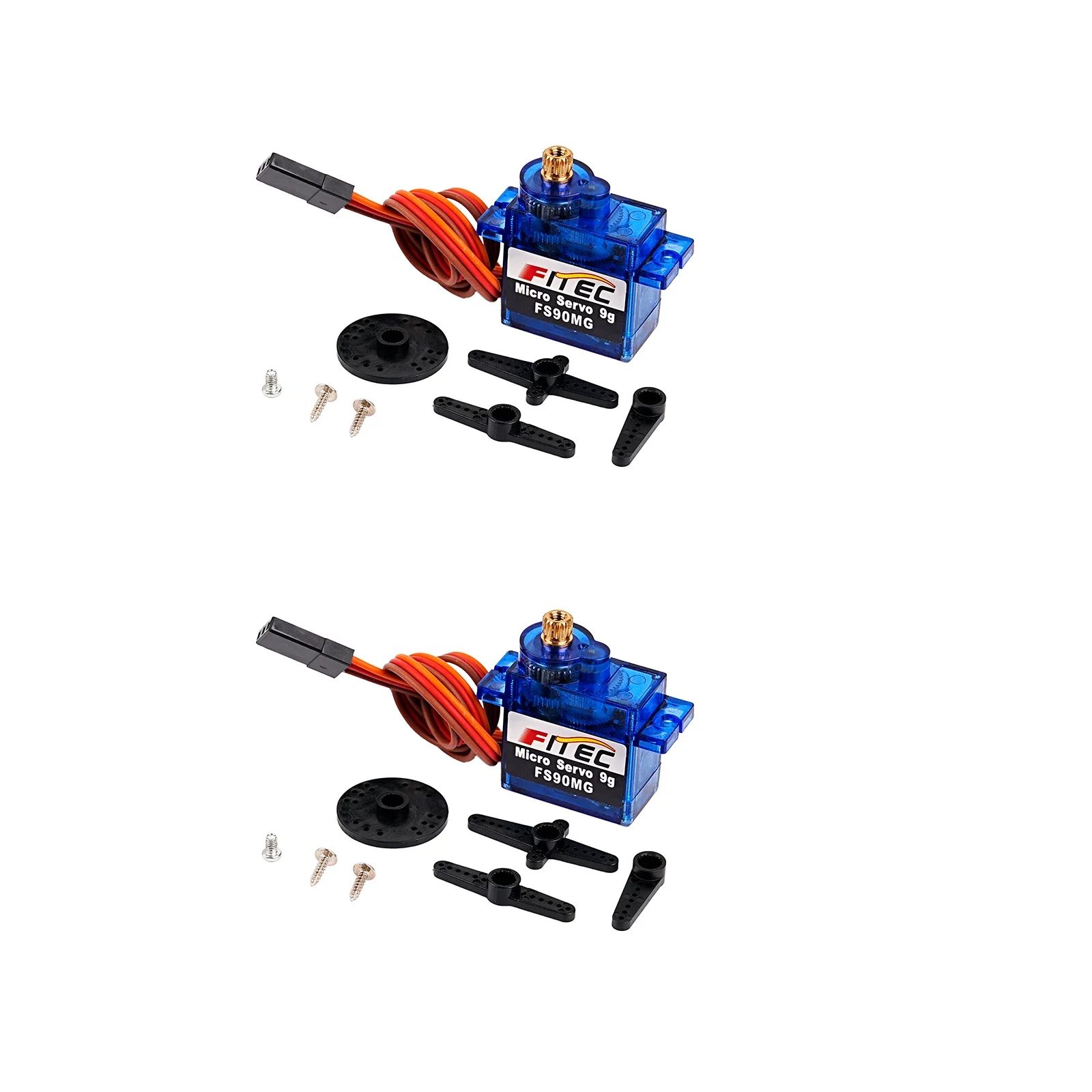

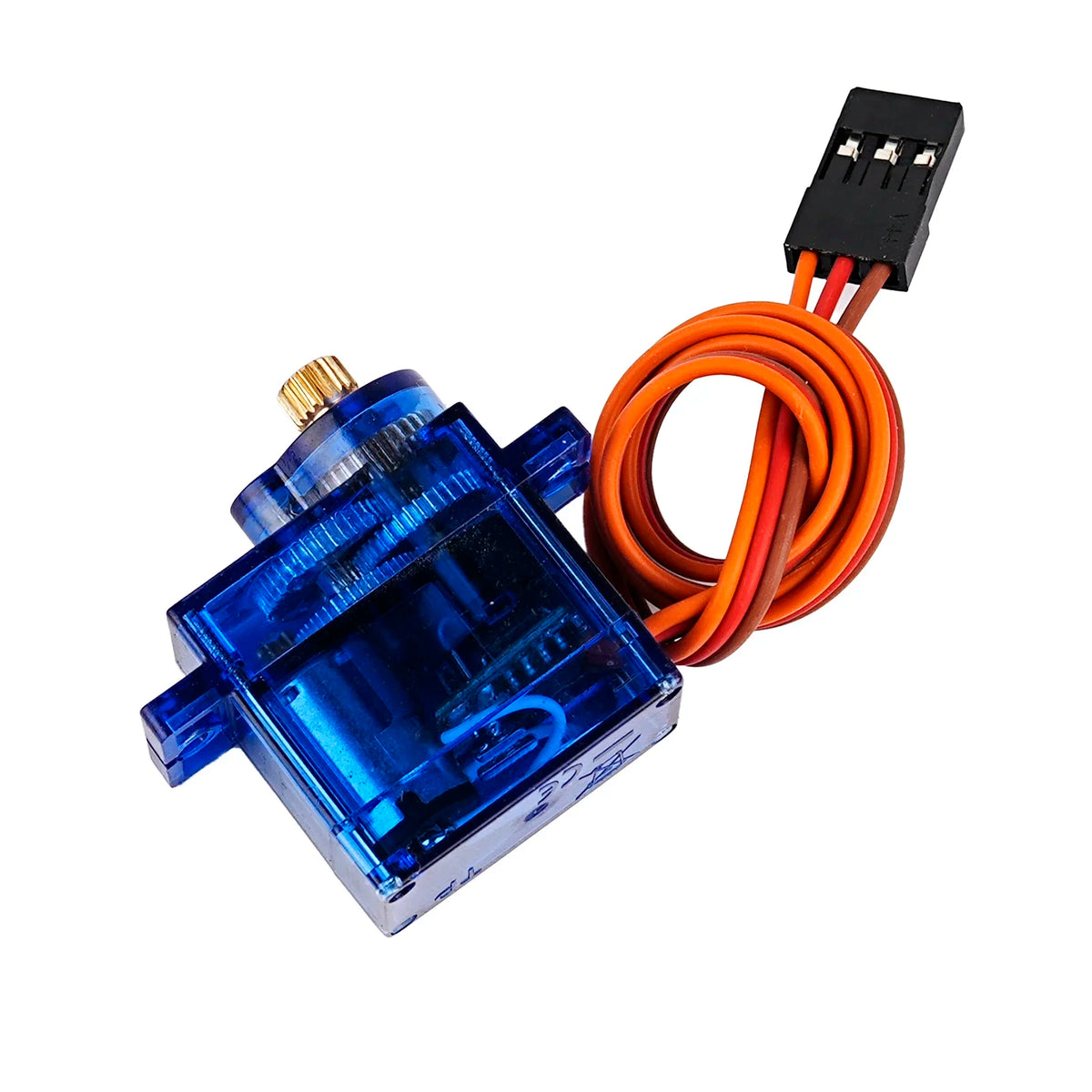

1/2/4/10PCS Feetech FS90MG 2.2KG 9g Digital Servo Metal Gear Micro Servo Motor 4.8-6V 180 Degree for 450 Helicopter Robot RC Car

1/2/4/10PCS Feetech FS90MG 2.2KG 9g Digital Servo Metal Gear Micro Servo Motor 4.8-6V 180 Degree for 450 Helicopter Robot RC Car

$134.76

$134.76 $0.00

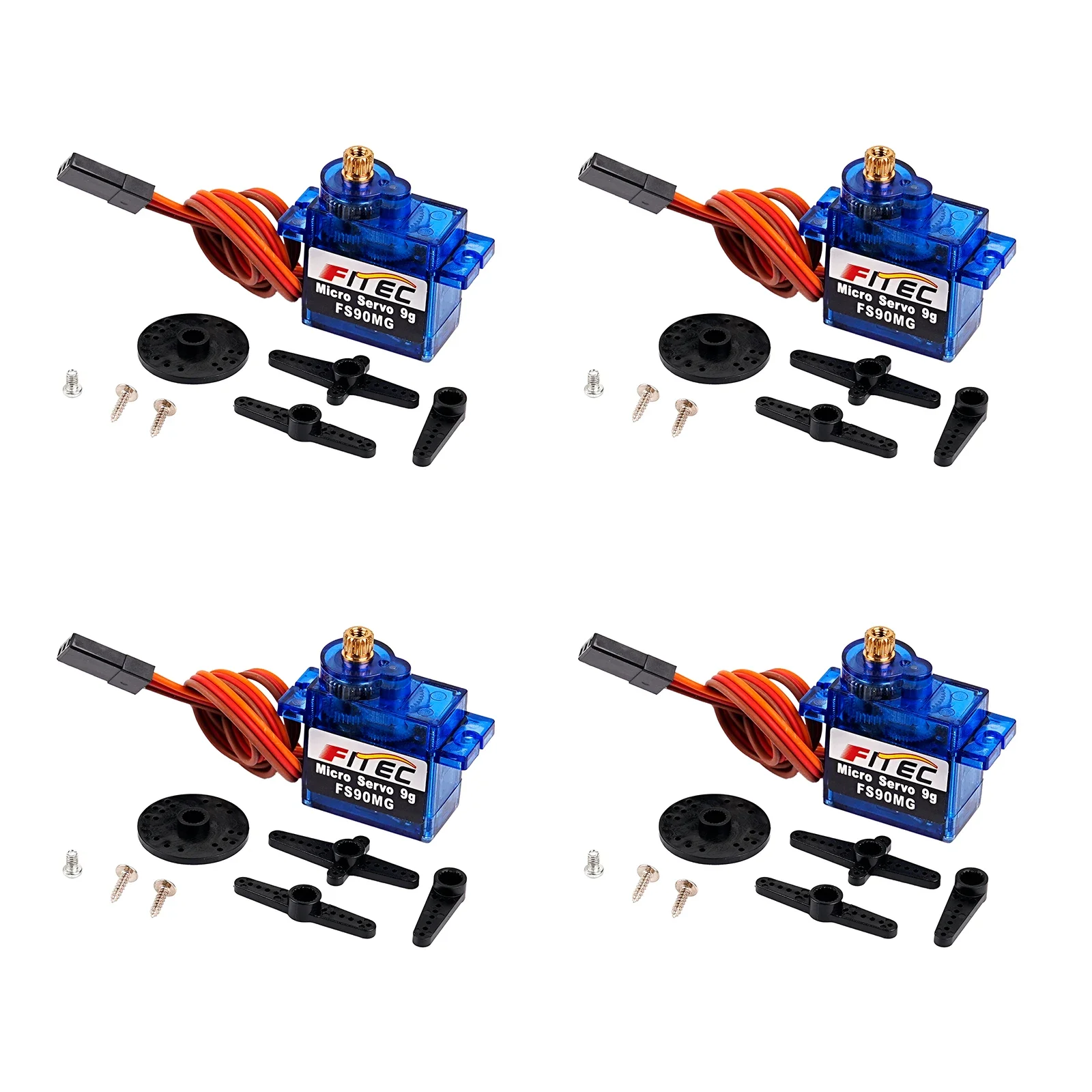

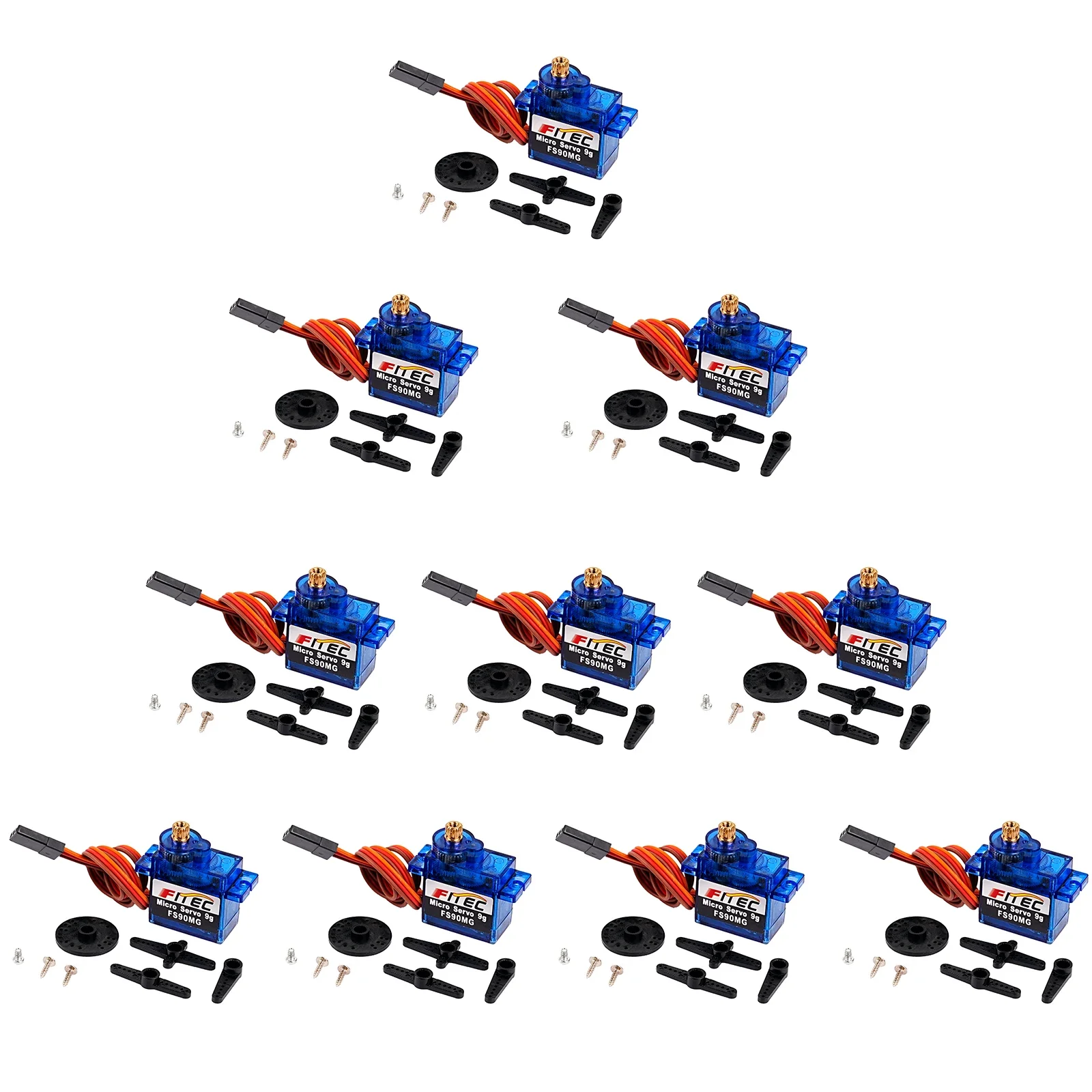

Color 4PCS 10PCS 1PCS 2PCS

Description

SPECIFICATIONS

Brand Name: wishiot

Choice: yes

High-concerned chemical: none

Origin: Mainland China

1/2/4/10PCS 2.2KG 9g Digital Servo Metal Gear Feetech FS90MG Micro Servo Motor 4.8-6V 180 Degree for Robot RC Car Mircobit

Description：
Model: FS90MG
Product Name: 6V 2.2kg.cm Digital Servo

Specifications:
Storage Temperature Range: -30℃ ~ 80℃
Operating Temperature Range: -1℃ ~ 70℃

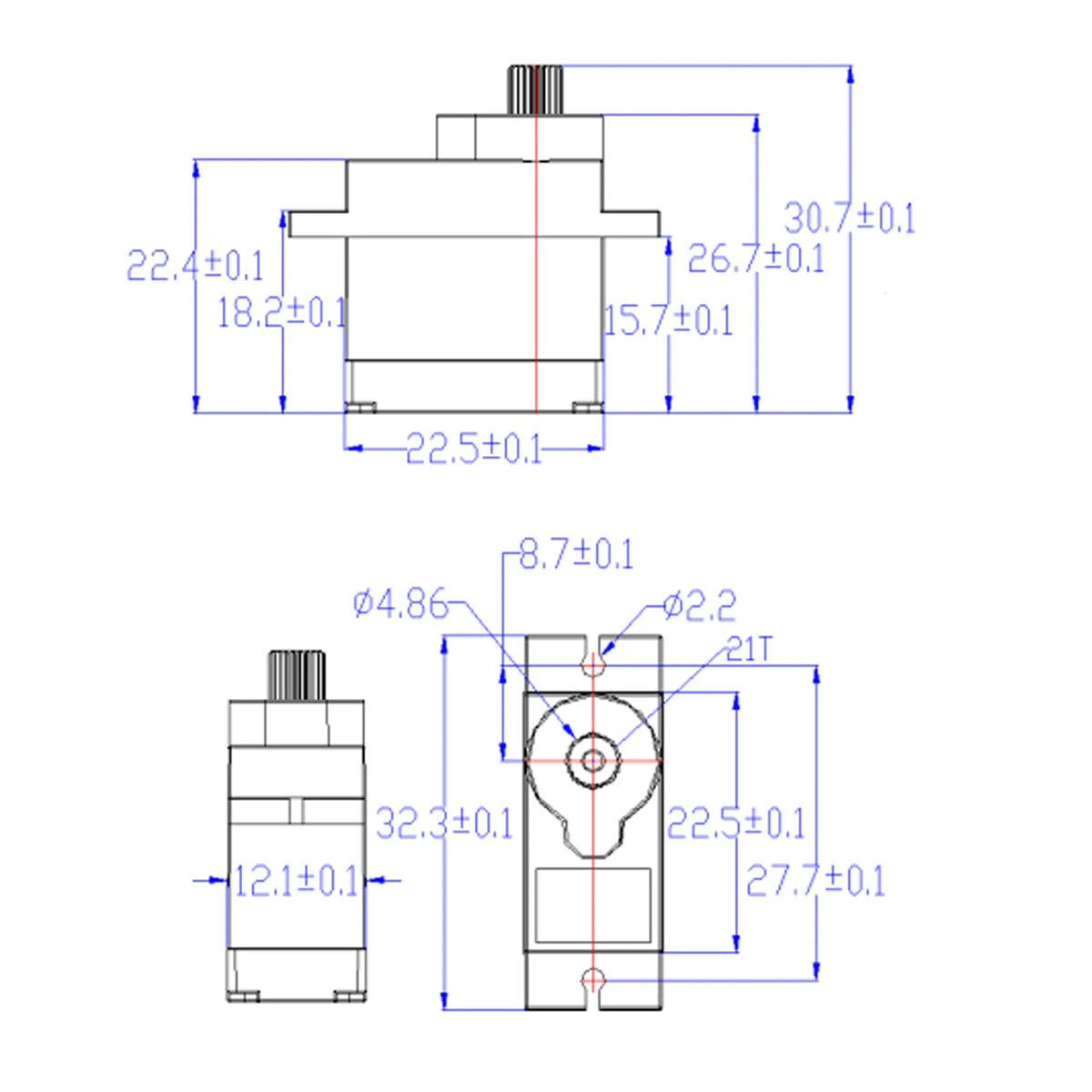

Size: 22.5mm*12.1mm*26.7mm
Weight: 12.7±1g
Gear Type: Copper
Limit Angle: 180°
Bearing: No Ball Bearings
Horn Gear Spline: 21T
Horn Type: Plastic, POM
Case: ABS
Connector Wire: 250mm
Motor: Metal Brush Motor
Operating Voltage Range: 4.8V–6V
Idle Current (at stopped): 5mA–6mA
No Load Speed: 0.07sec/60° @6V
Running Current (no load): 220mA @6V
Peak Stall Torque: 2.2kg.cm @6V
Rated Torque: 0.7kg.cm @6V
Stall Current: 800mA @6V
Running Degree: 180° (when 500–2500µs)
Rotating Direction:
CW: 1500→900µs
CCW: 1500→2100µs
