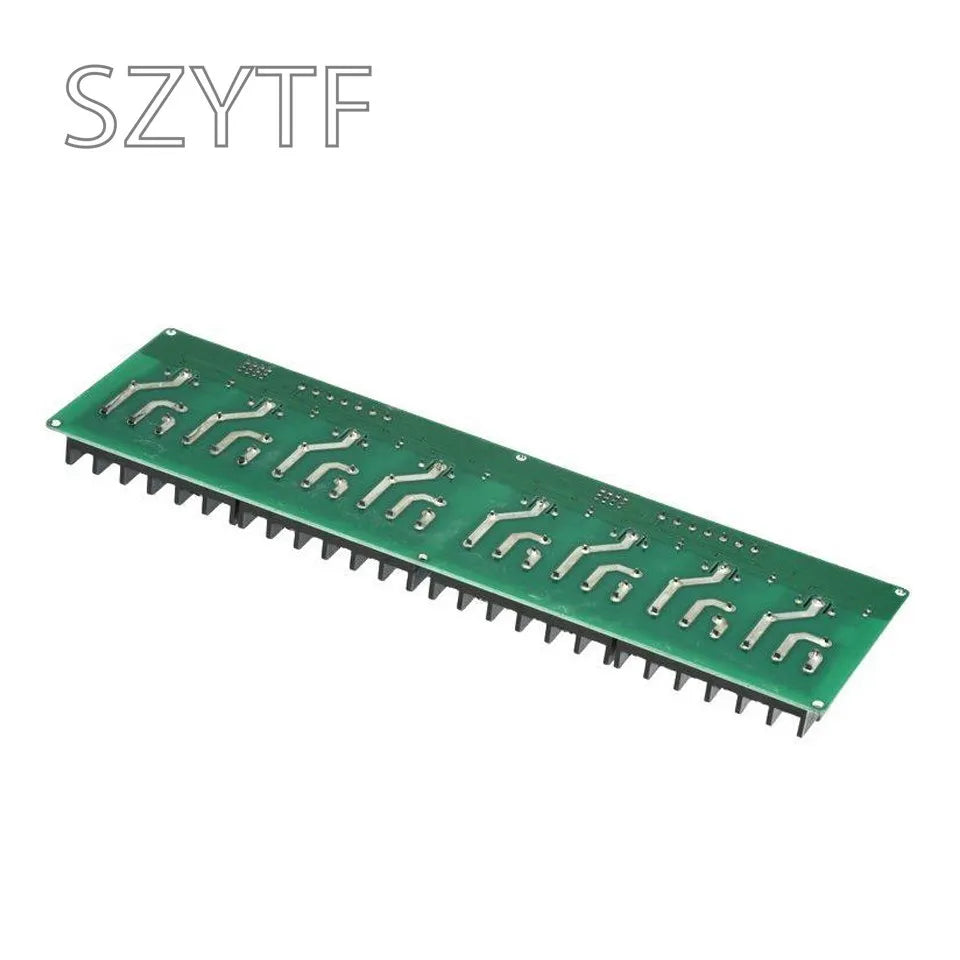

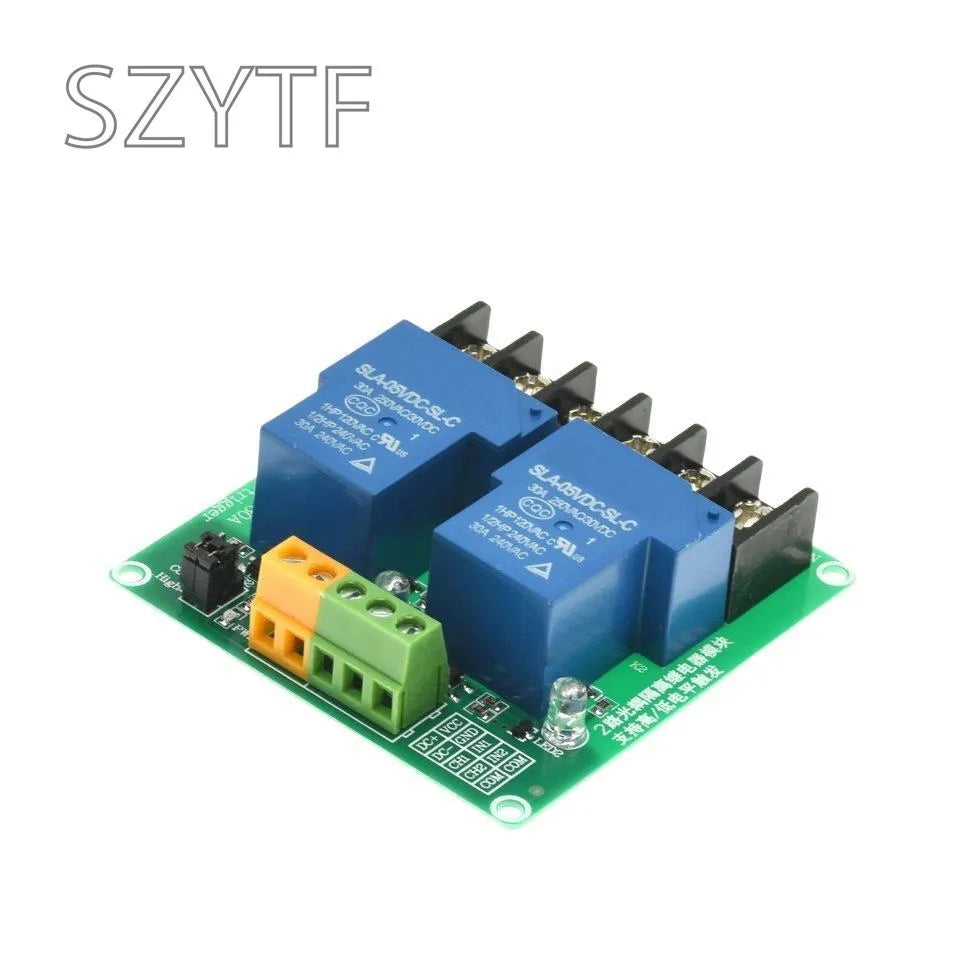

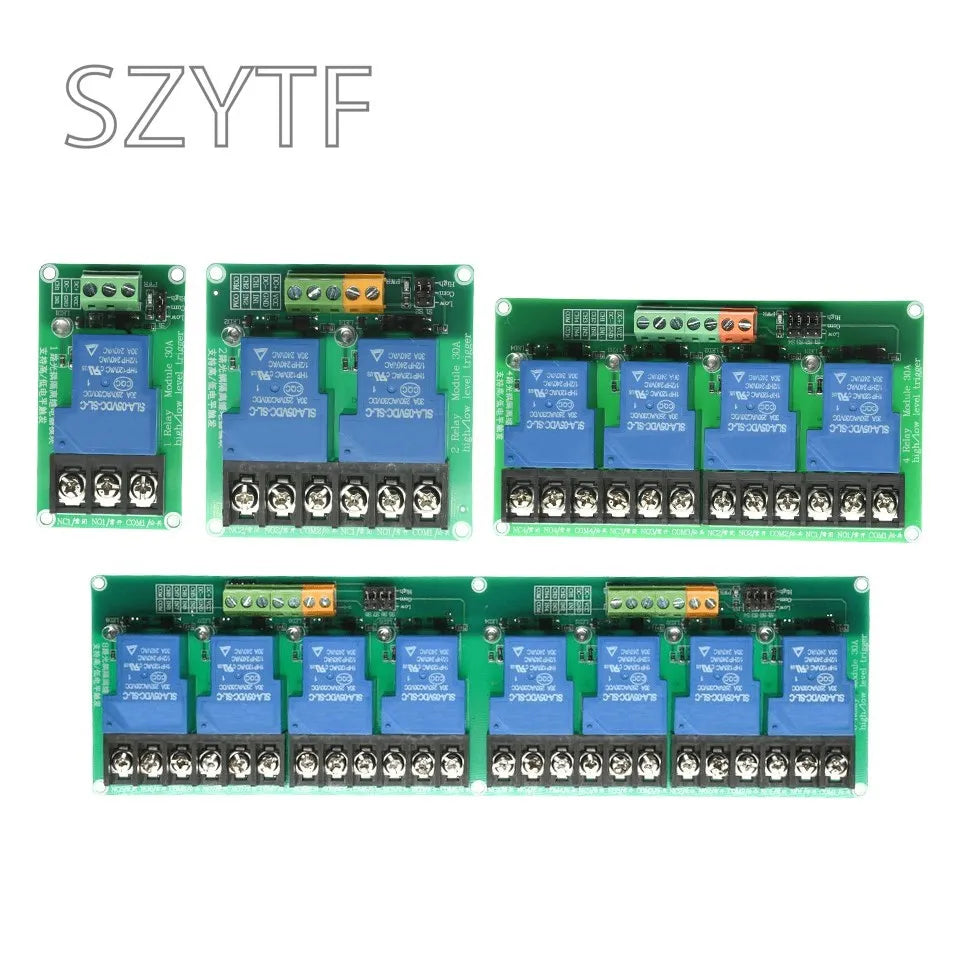

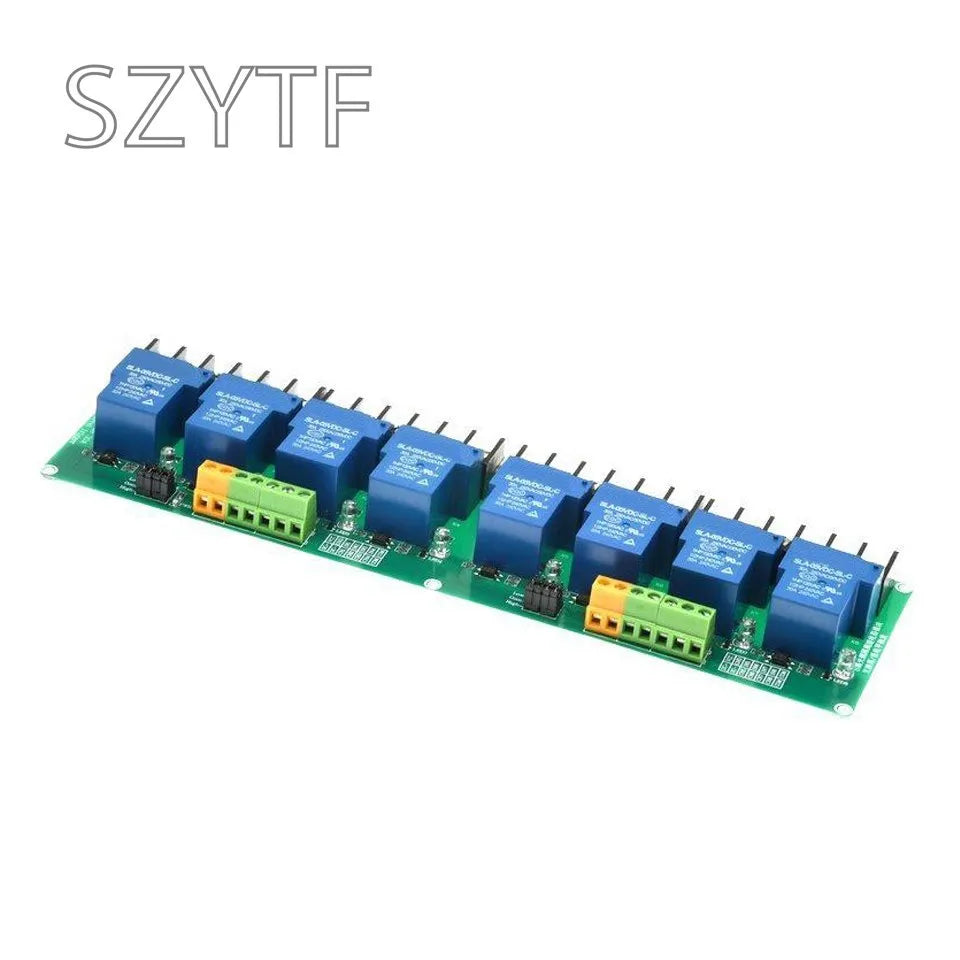

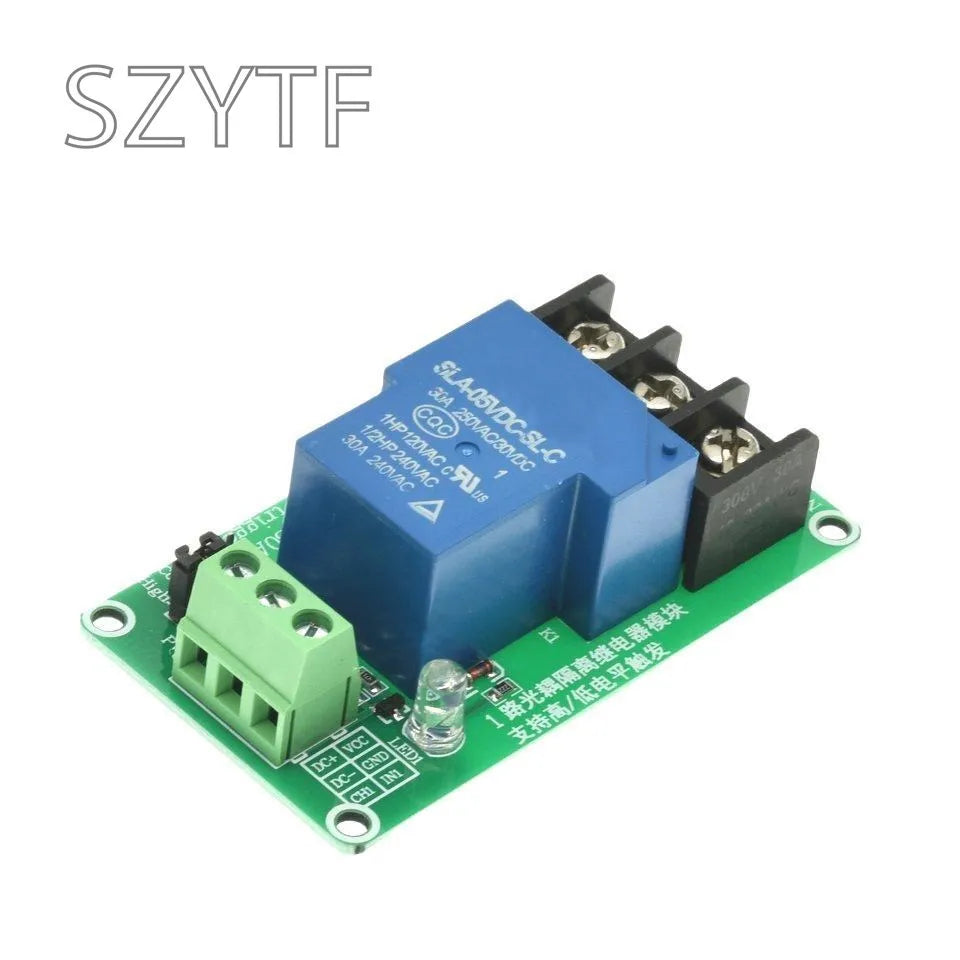

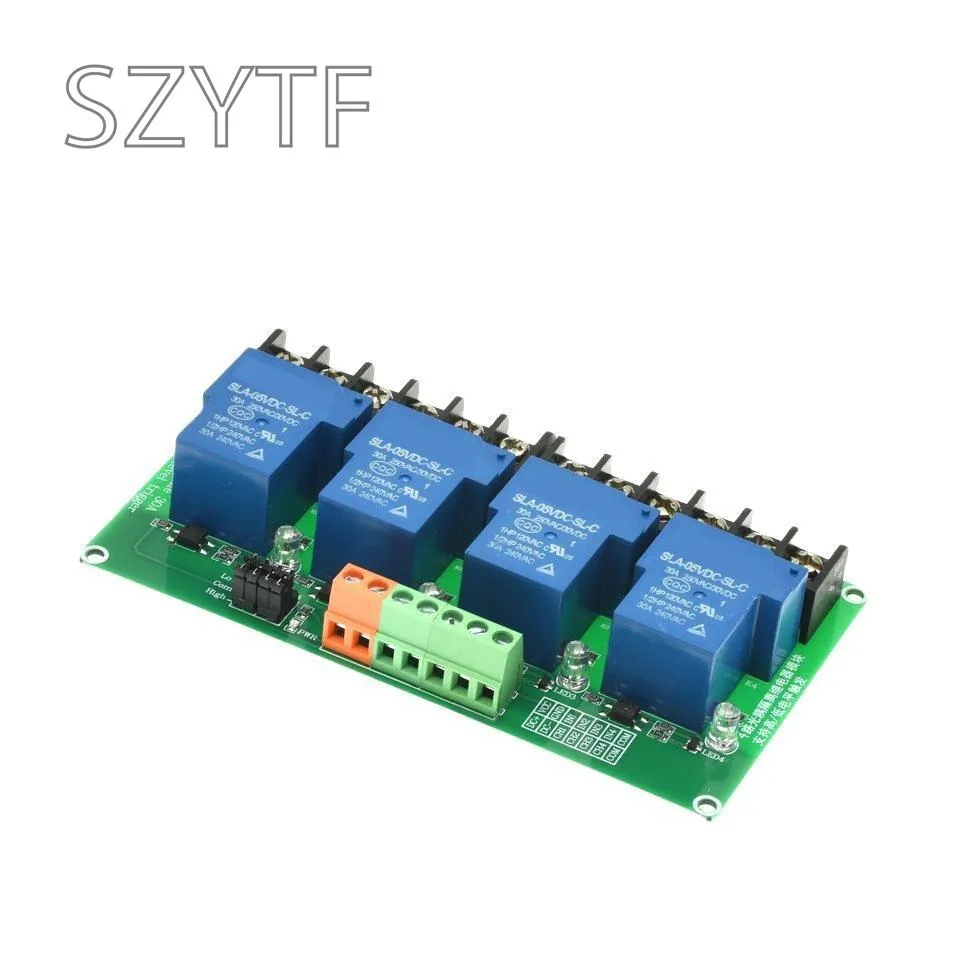

SPECIFICATIONS

Product Application:

PLC automation equipment control, industrial system control, Internet of Things control, home intelligent control, electronic enthusiasts development experiments, various circuit modifications.

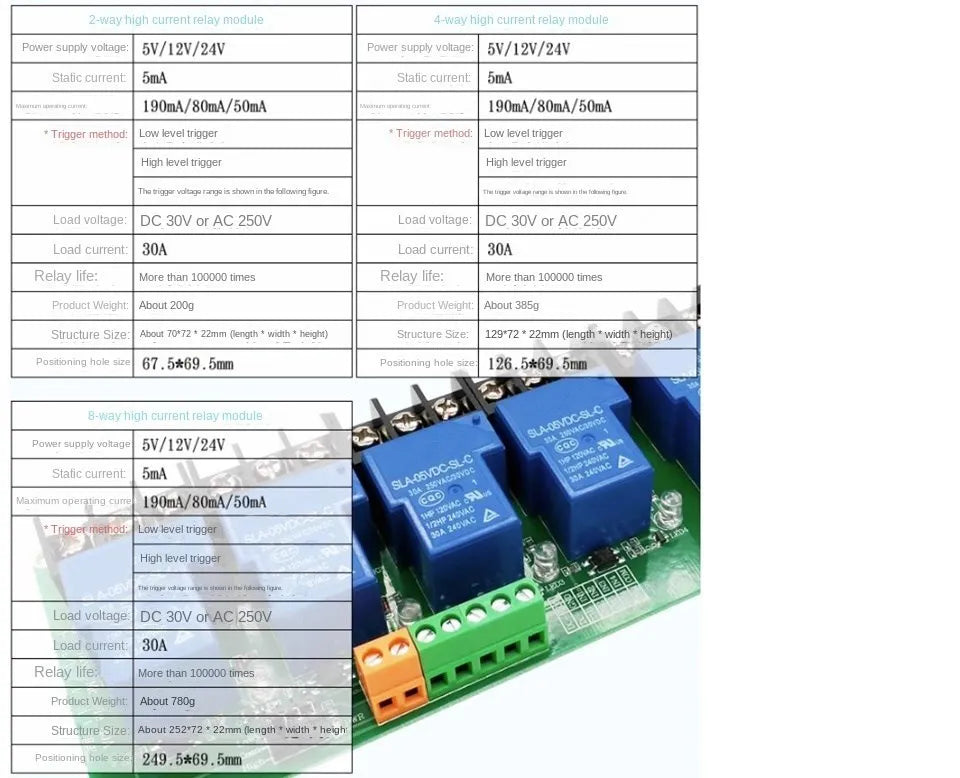

Product parameters:

Trigger voltage range：

05V Low level trigger module :0-2VDC relay ON (ON), 3-5VDC relay OFF (OFF)

12V low level trigger module :0-5VDC relay ON (ON), 6-12VDC relay OFF (OFF)

24V Low level trigger module :0-12VDC relay ON (ON), 13-24VDC relay OFF (OFF)

05V high level trigger module :3.3-5VDC relay ON (ON), 0-2.5VDC relay OFF (OFF)

12V high level trigger module :6-12VDC relay ON (ON), 0-5.5VDC relay OFF (OFF)

24V high level trigger module :12-24DC relay ON (ON), 0-8.5VDC relay OFF (OFF)

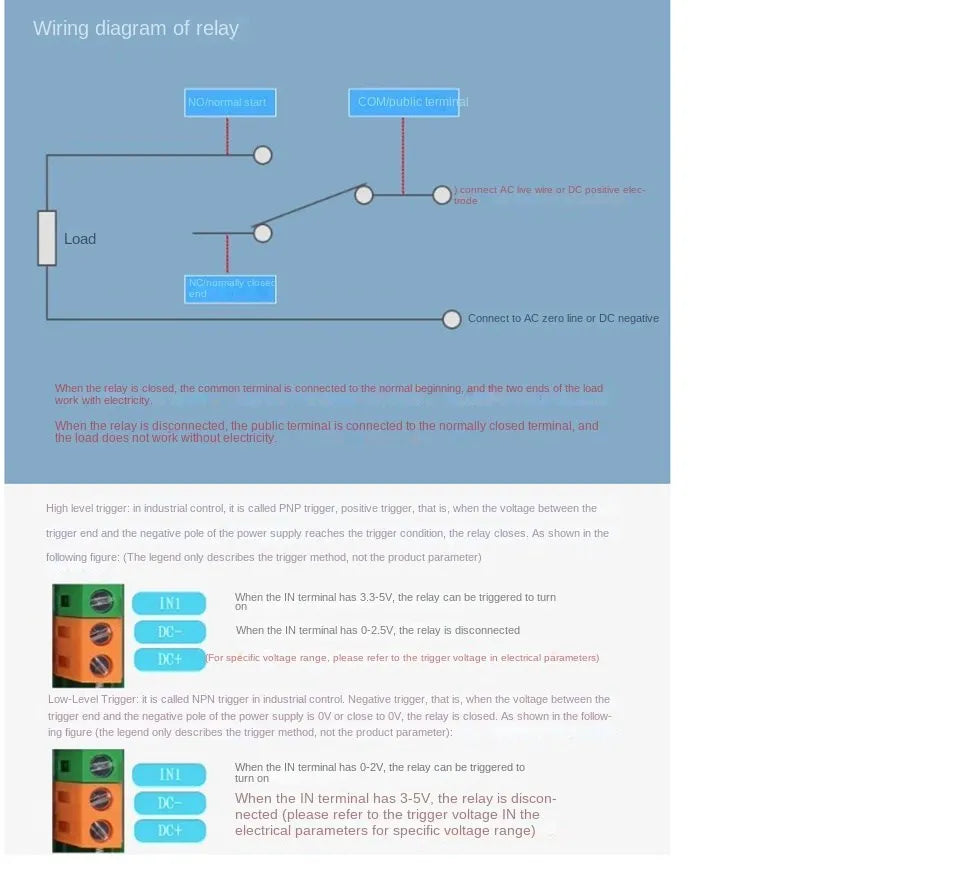

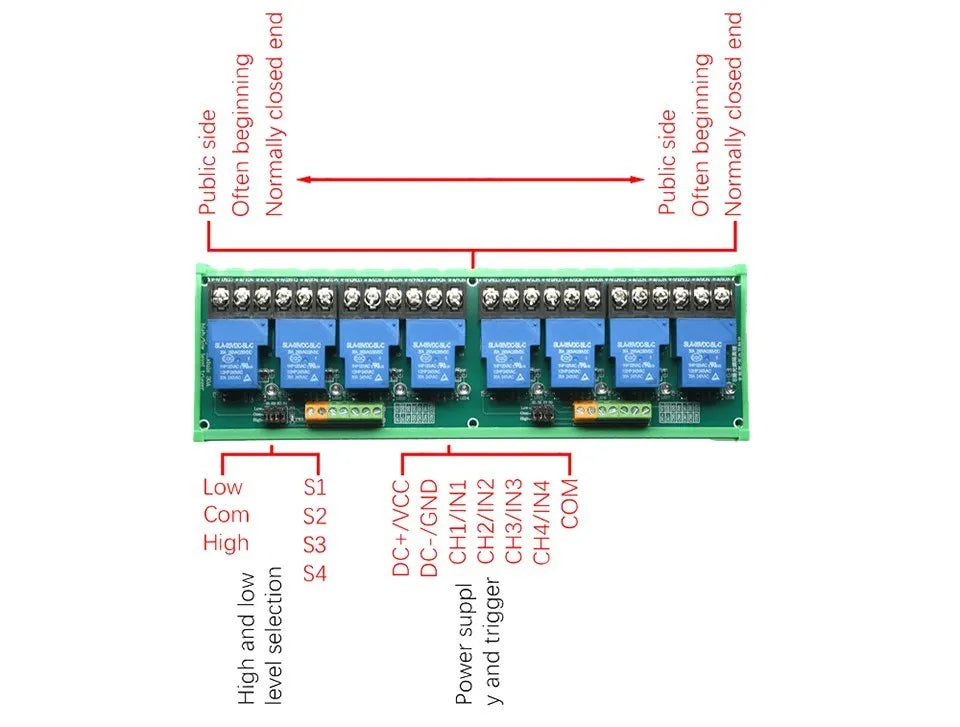

Wiring instructions:

Note:

1, power supply and load please use within the parameter range, do not use beyond the range.

2, the rated load and life is a reference value, will be compared according to different environmental factors, load nature and type

It is very different, so it is best to confirm it in real or simulated real use.

3, the load capacity of the module is greatly affected by the ambient temperature and its own temperature rise, and it needs to be based on the actual working environment conditions.

The use of air convection heat dissipation can be installed in a good convection environment.

4, electrical durability at high temperature: When the module is used at high temperature, the electrical durability will be lower than that used at room temperature, so Please confirm in actual use.
