SPECIFICATIONS

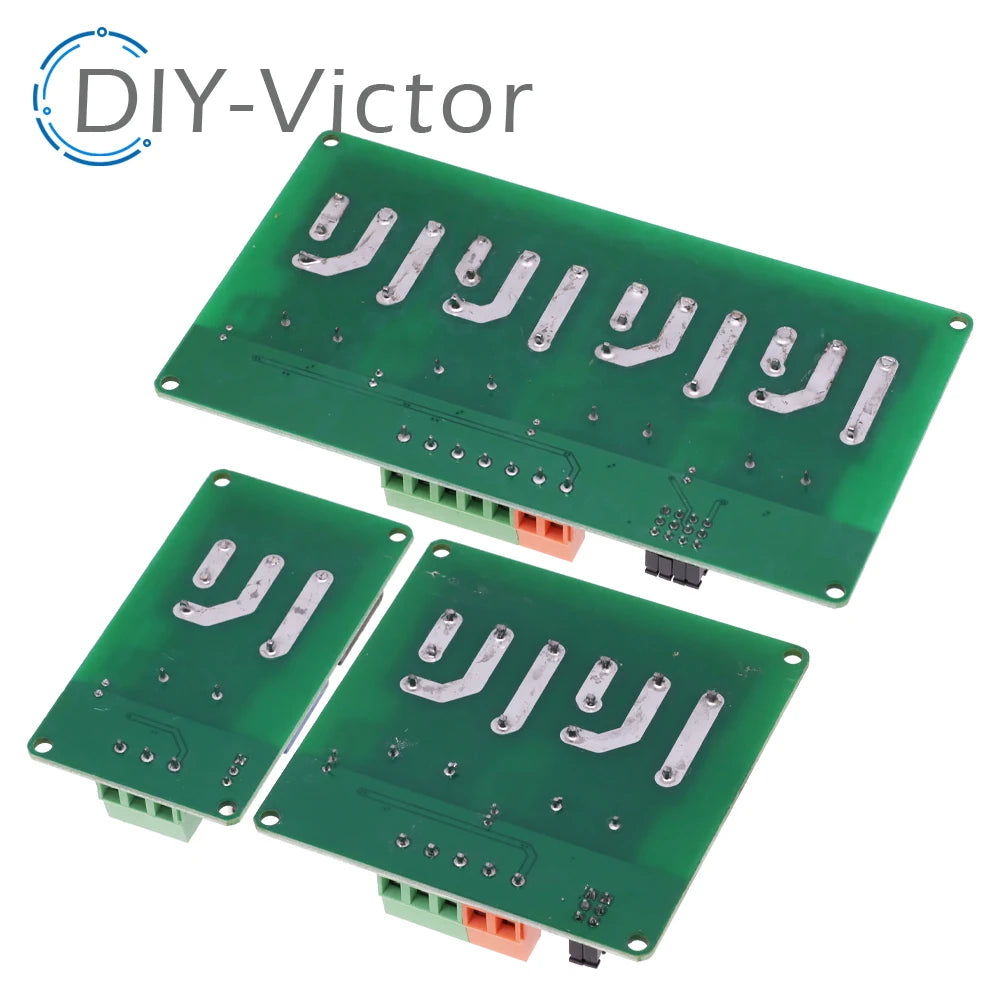

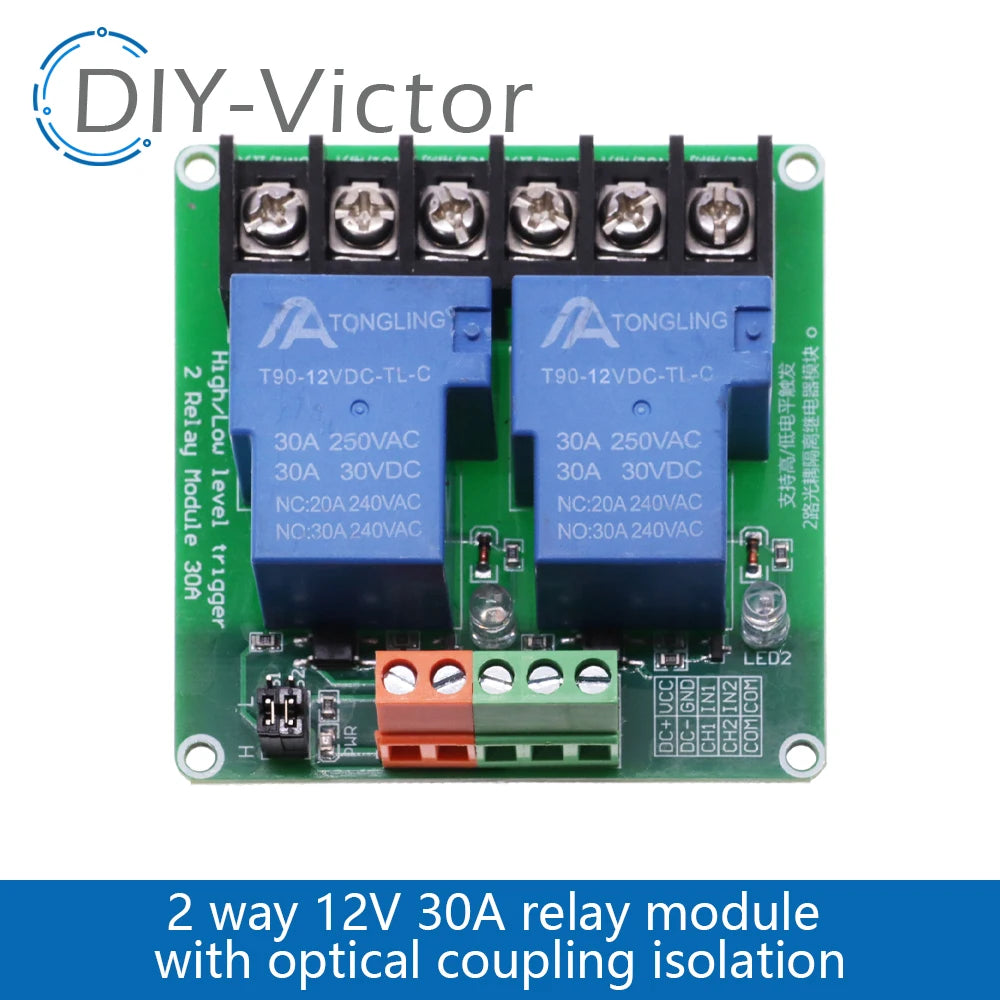

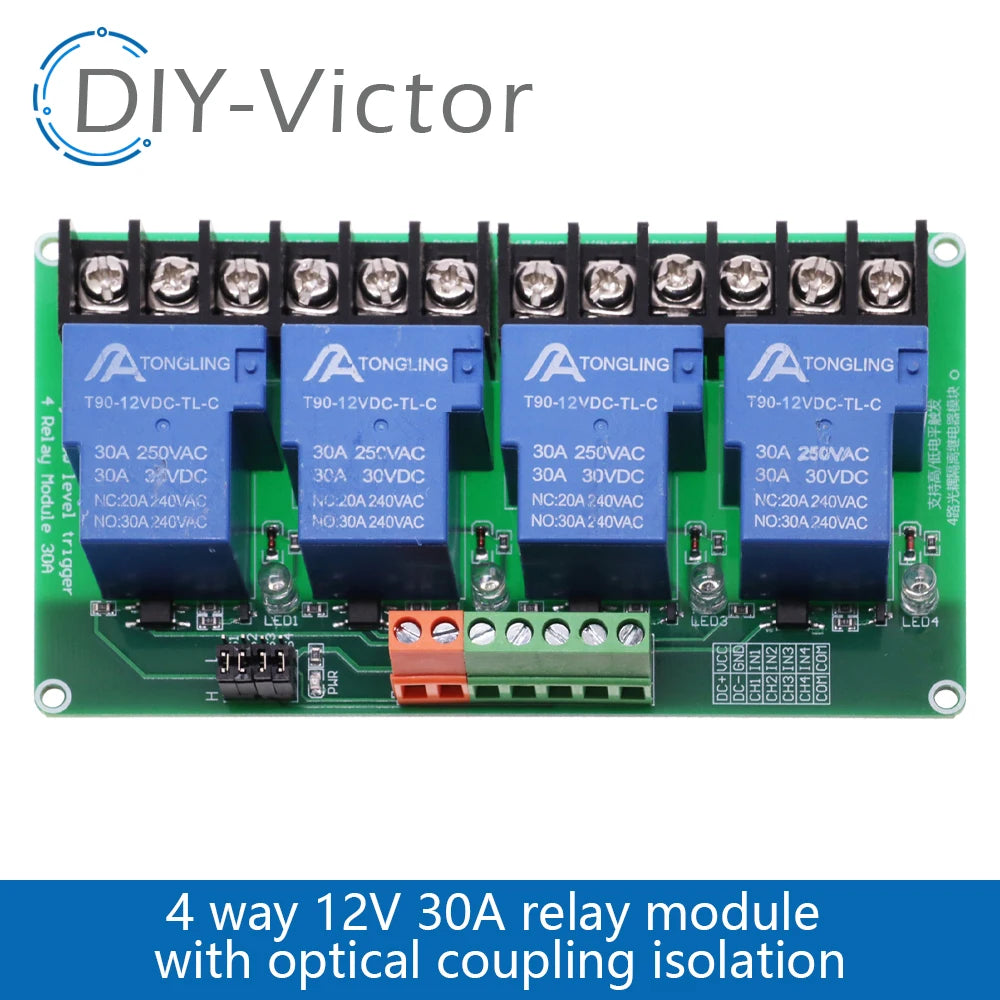

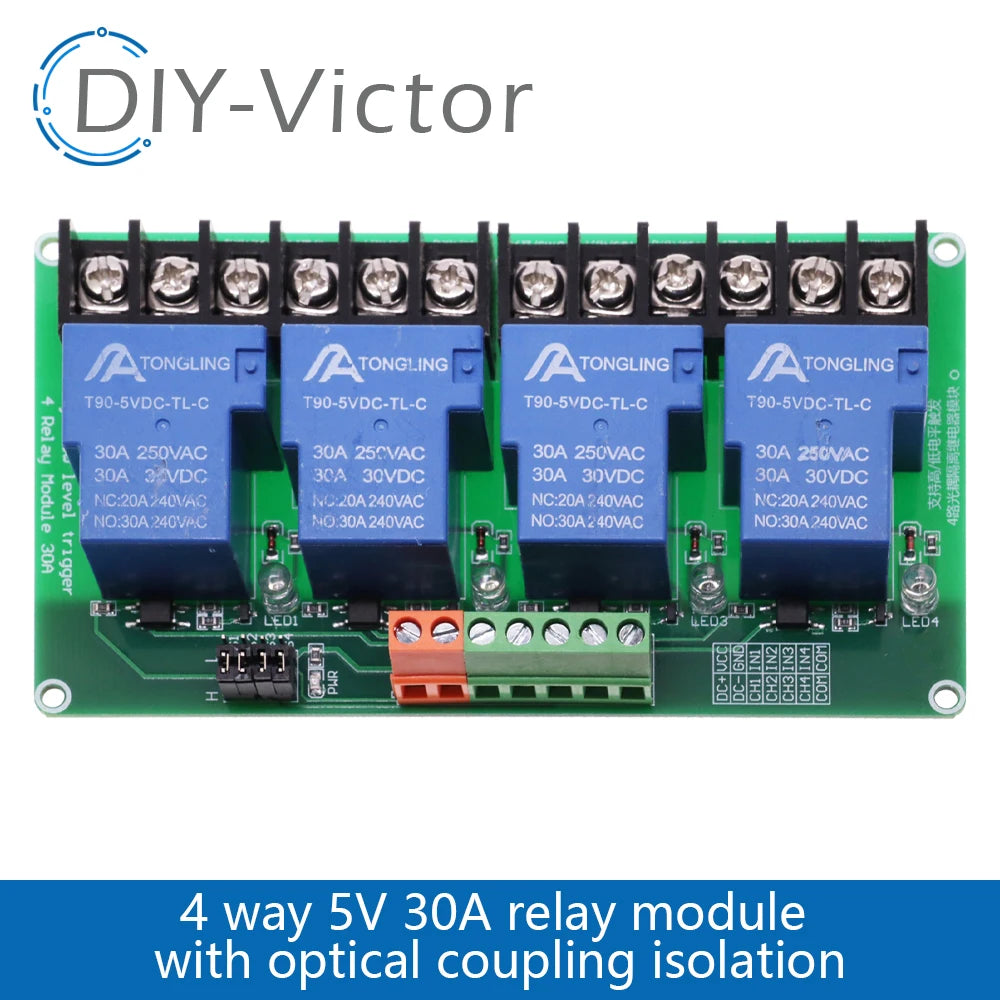

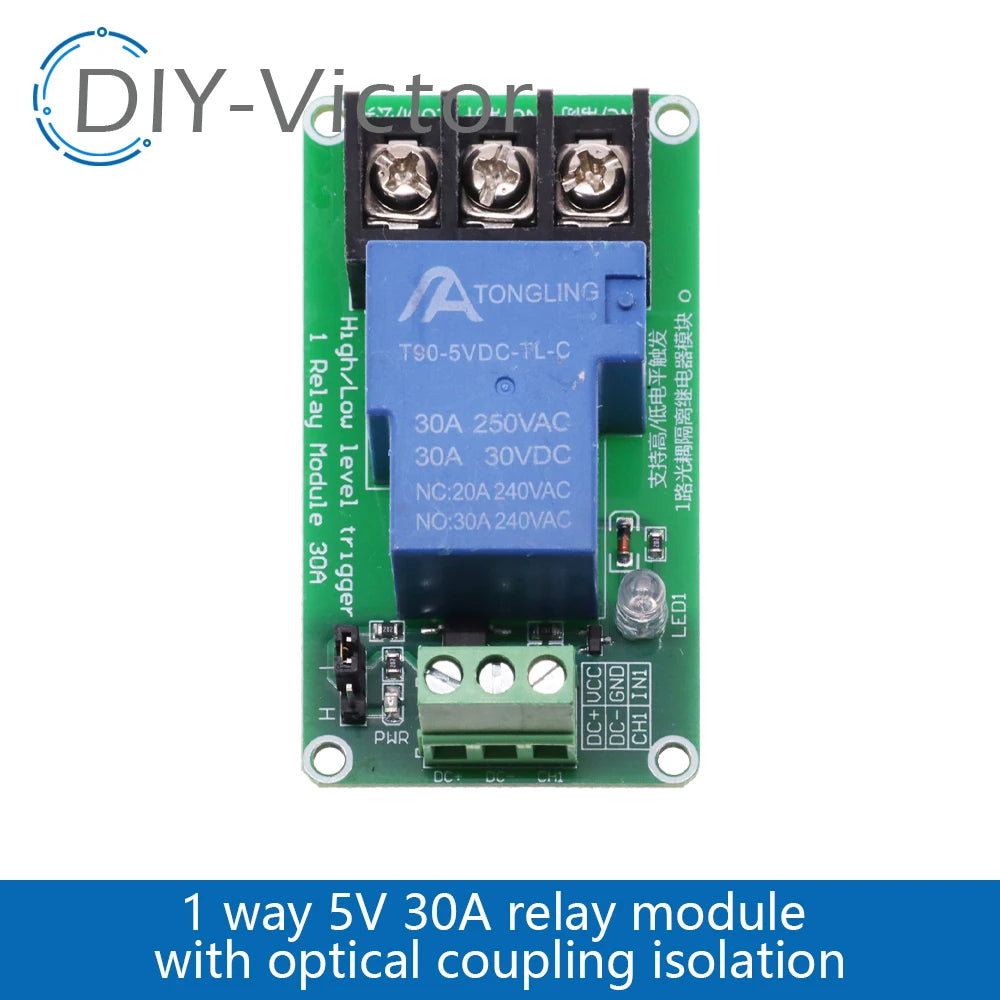

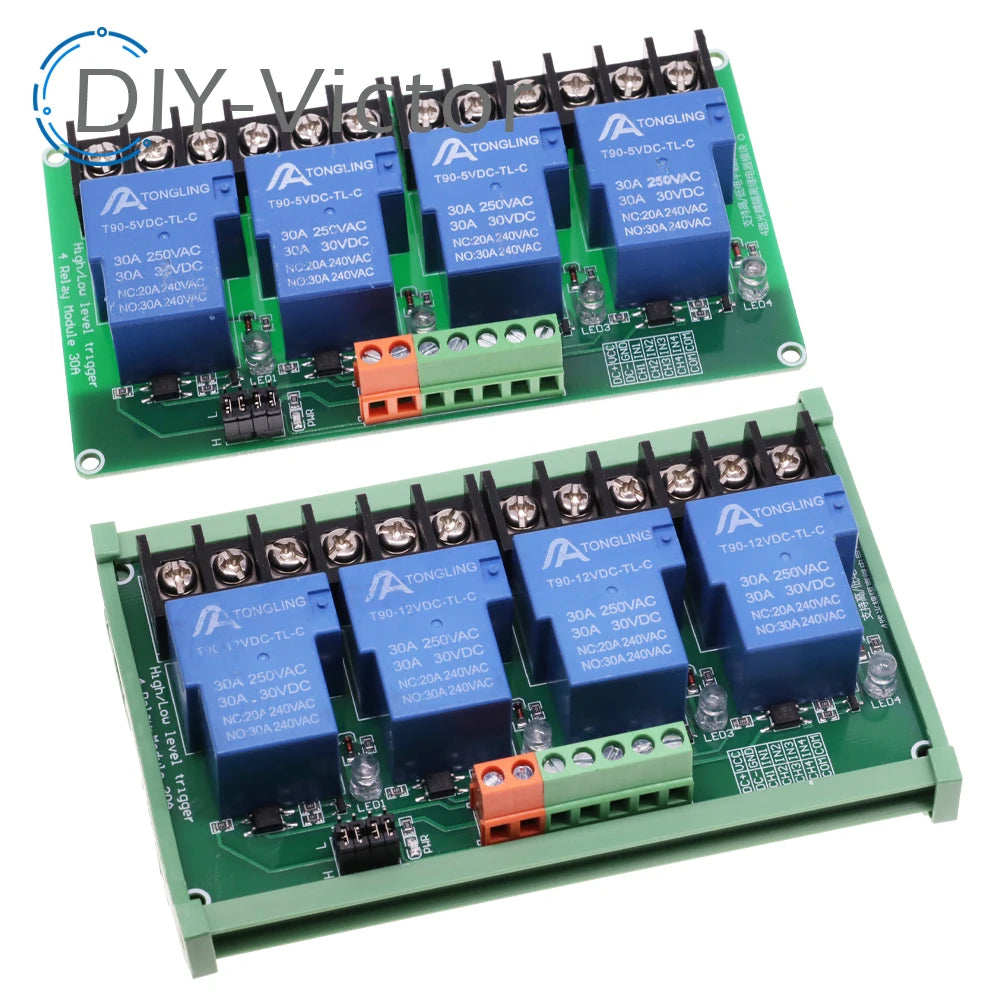

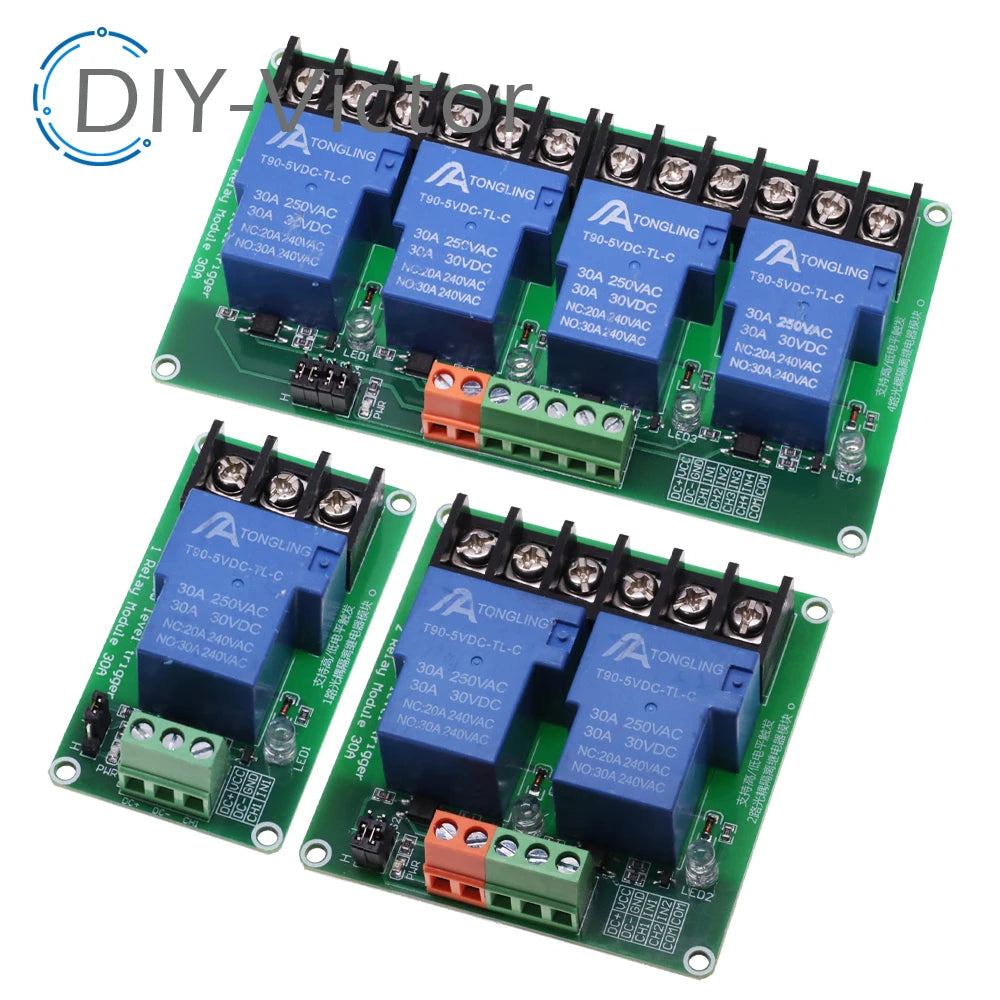

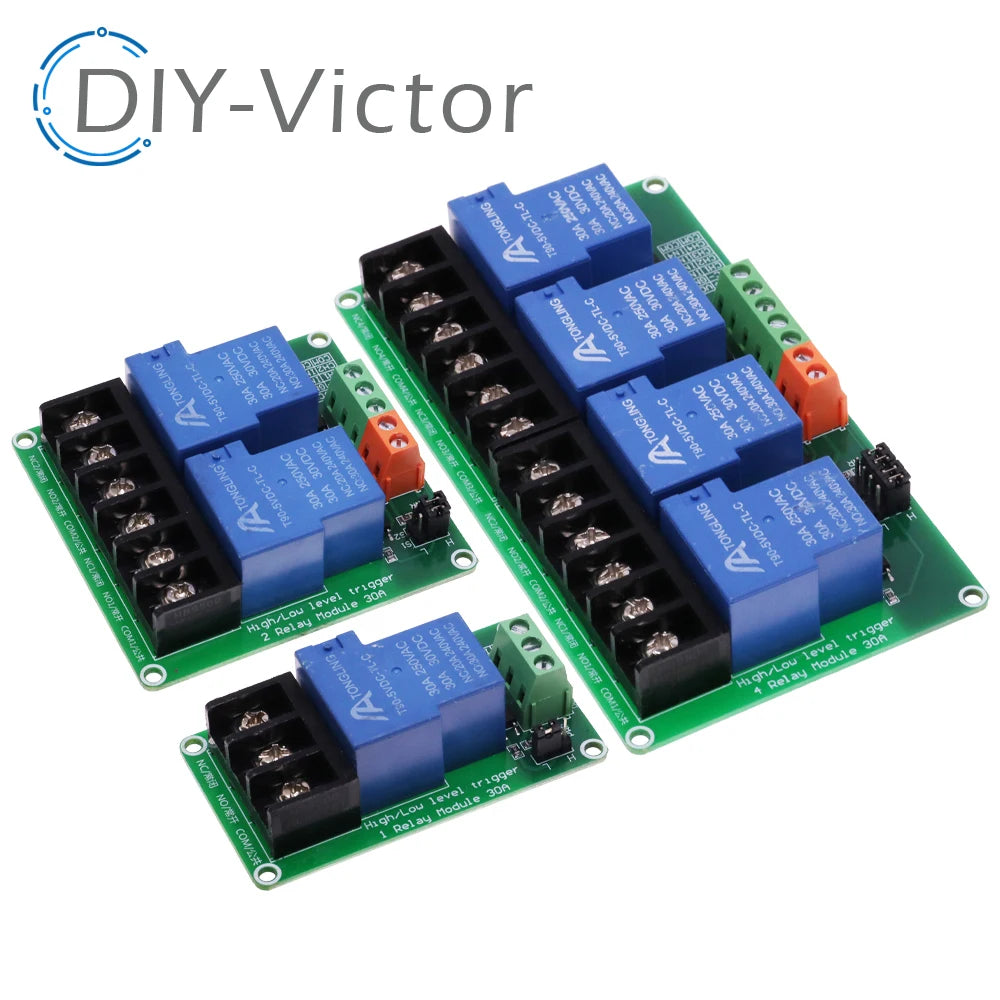

Product introduction

1. The module USES the authentic quality 30 a maximum load relay normally open interface: AC 250V / 30A, DC 30V / 30A;

2. The patch optical coupling isolation, driving ability strong stable performance; Trigger current 5mA;

3. modules, working voltage of 5V, 12V, 24V;

4. module can be set up by high level or low level trigger

5. interface design, humanization, all interface can connect directly by patch panel is convenient

6. module size: 72 mm * 39.9 mm * 20.9 mm (length * width * height)

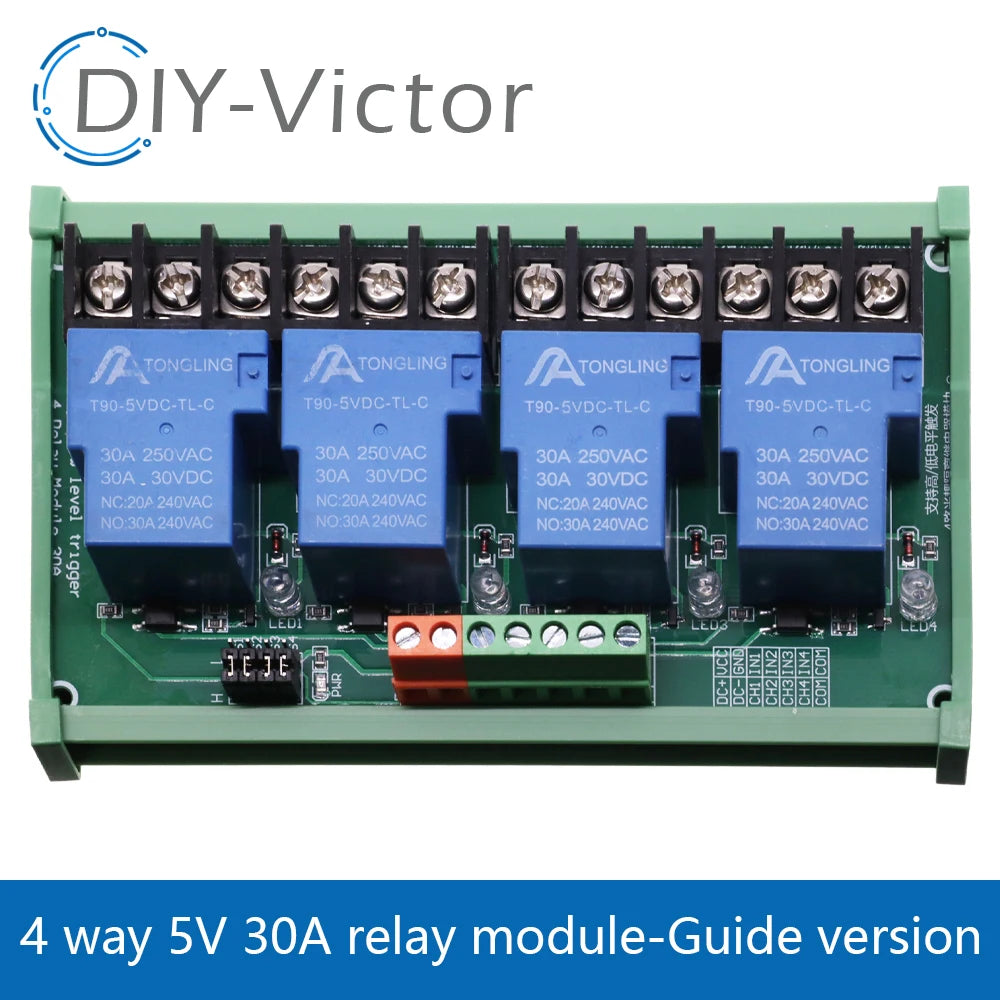

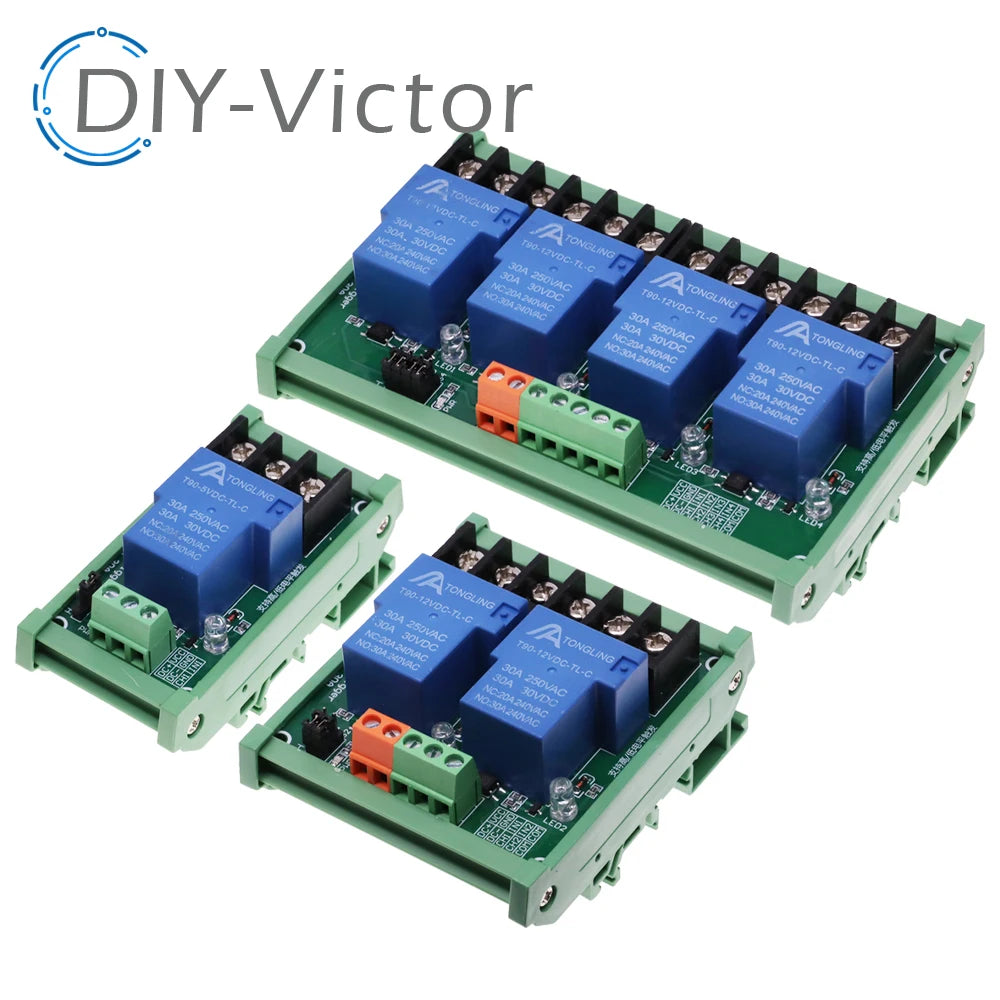

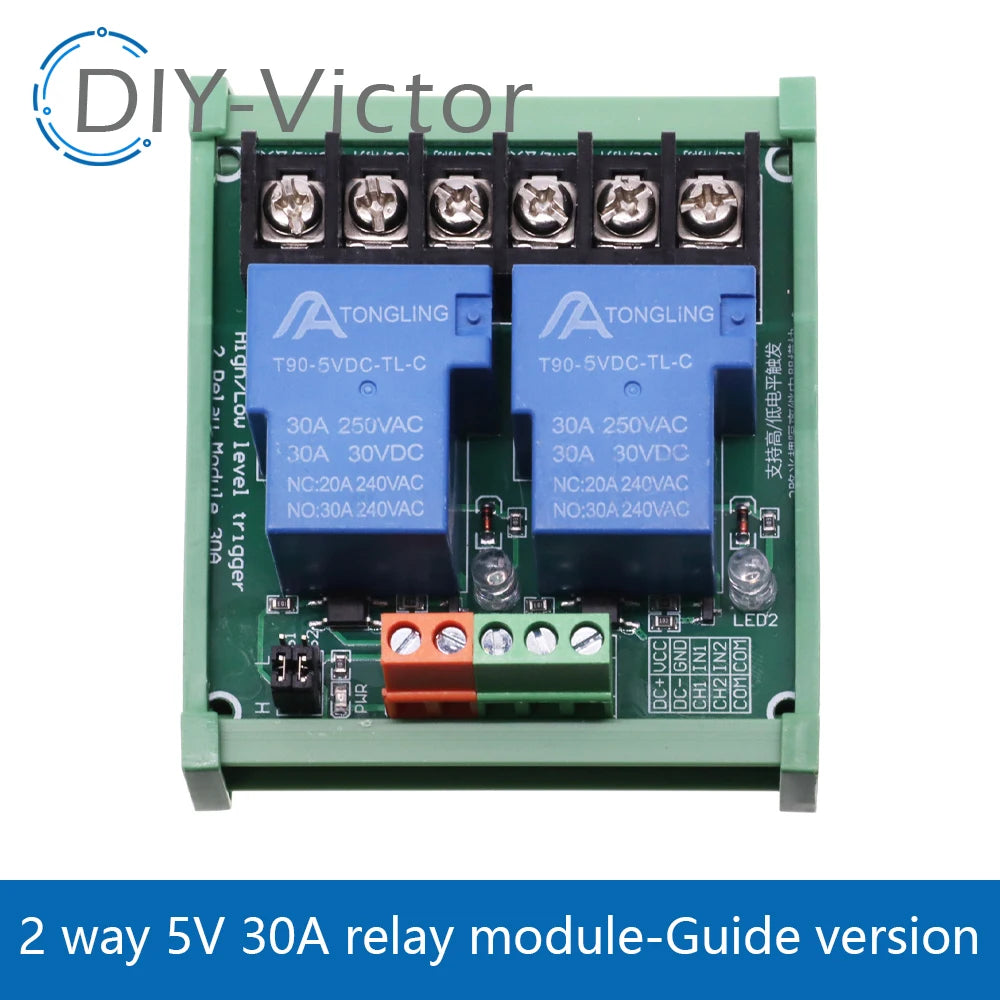

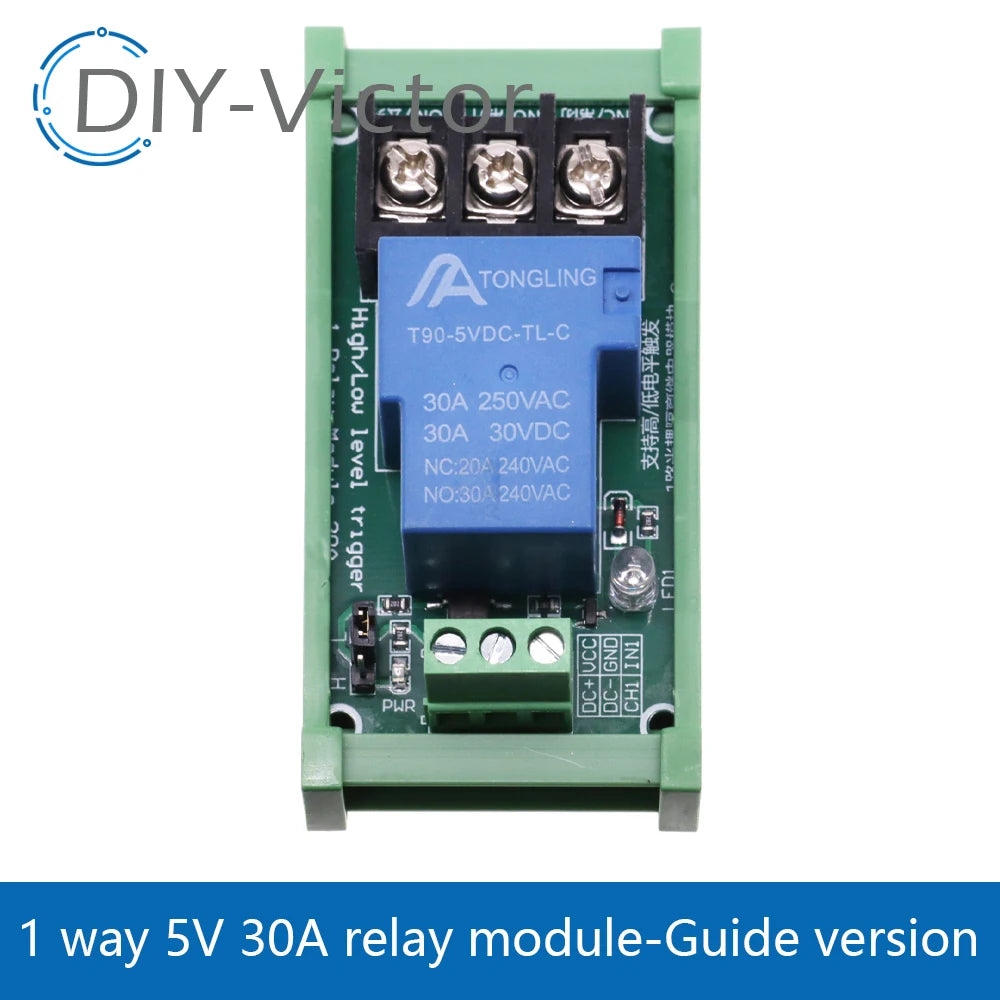

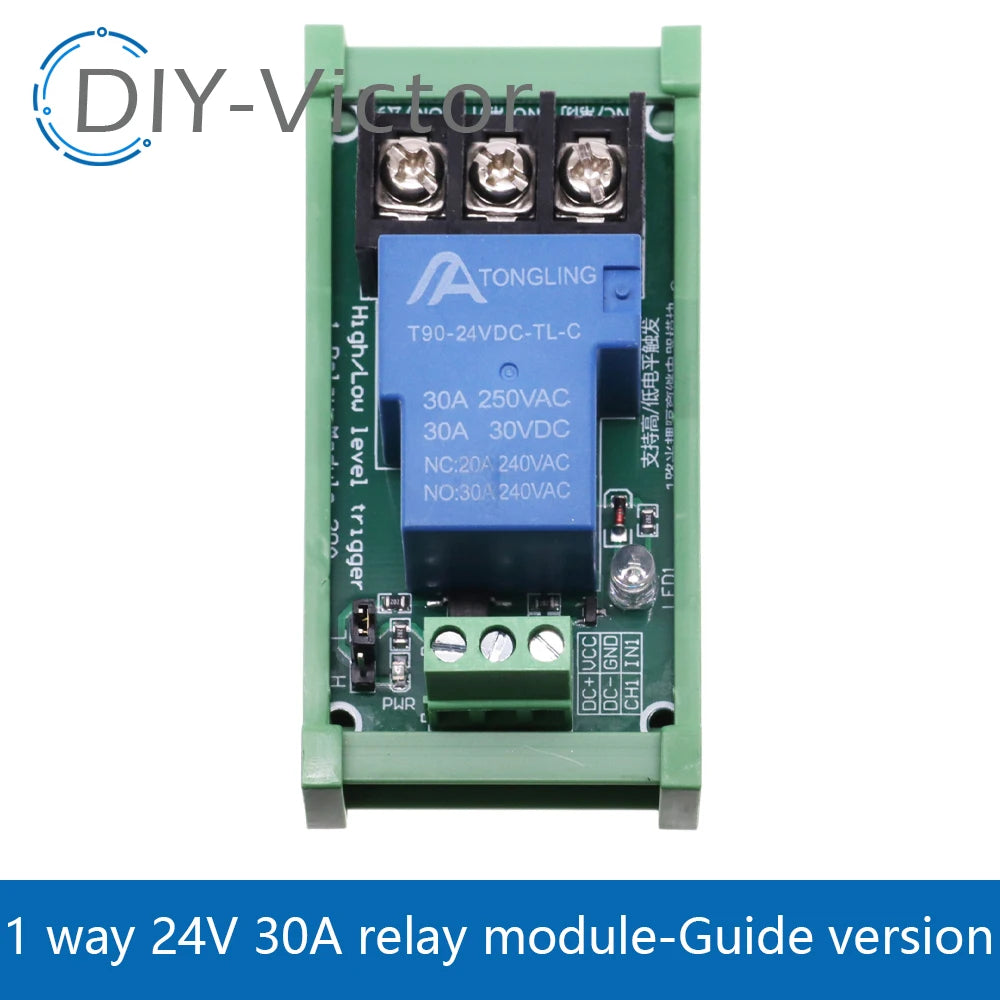

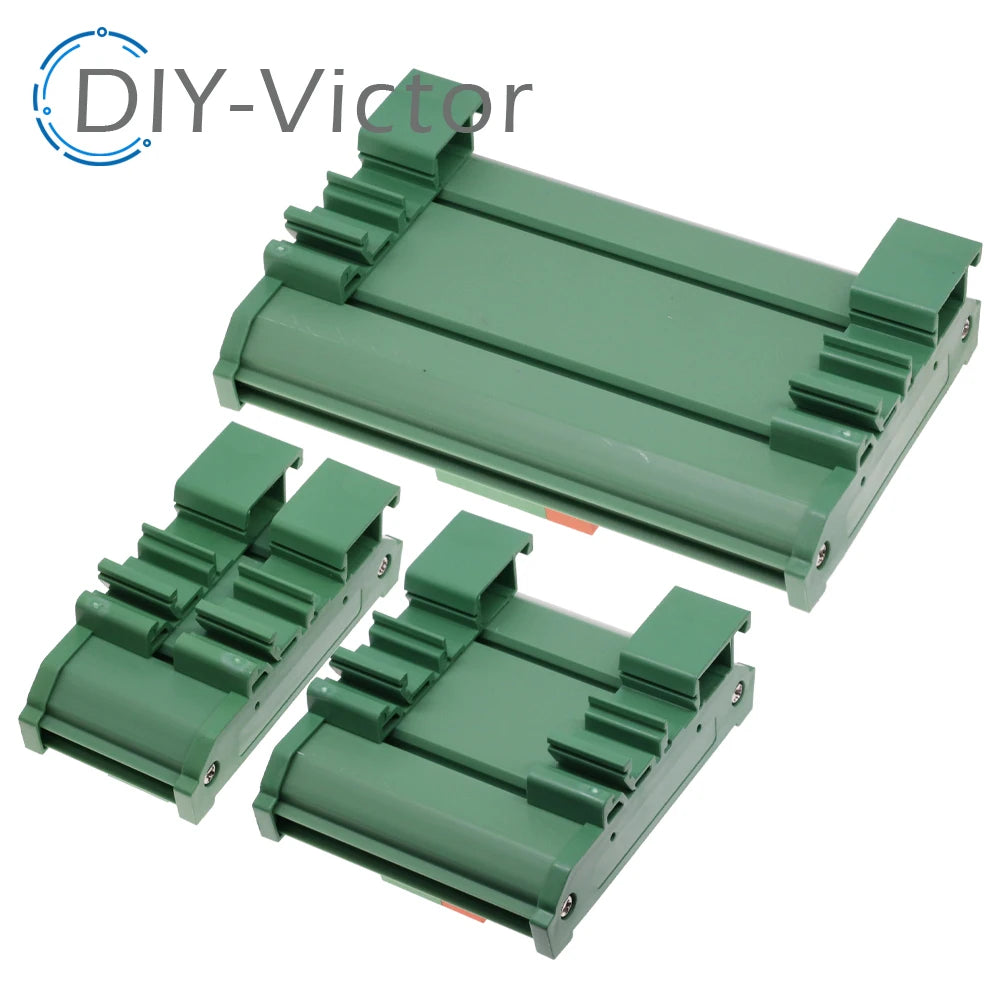

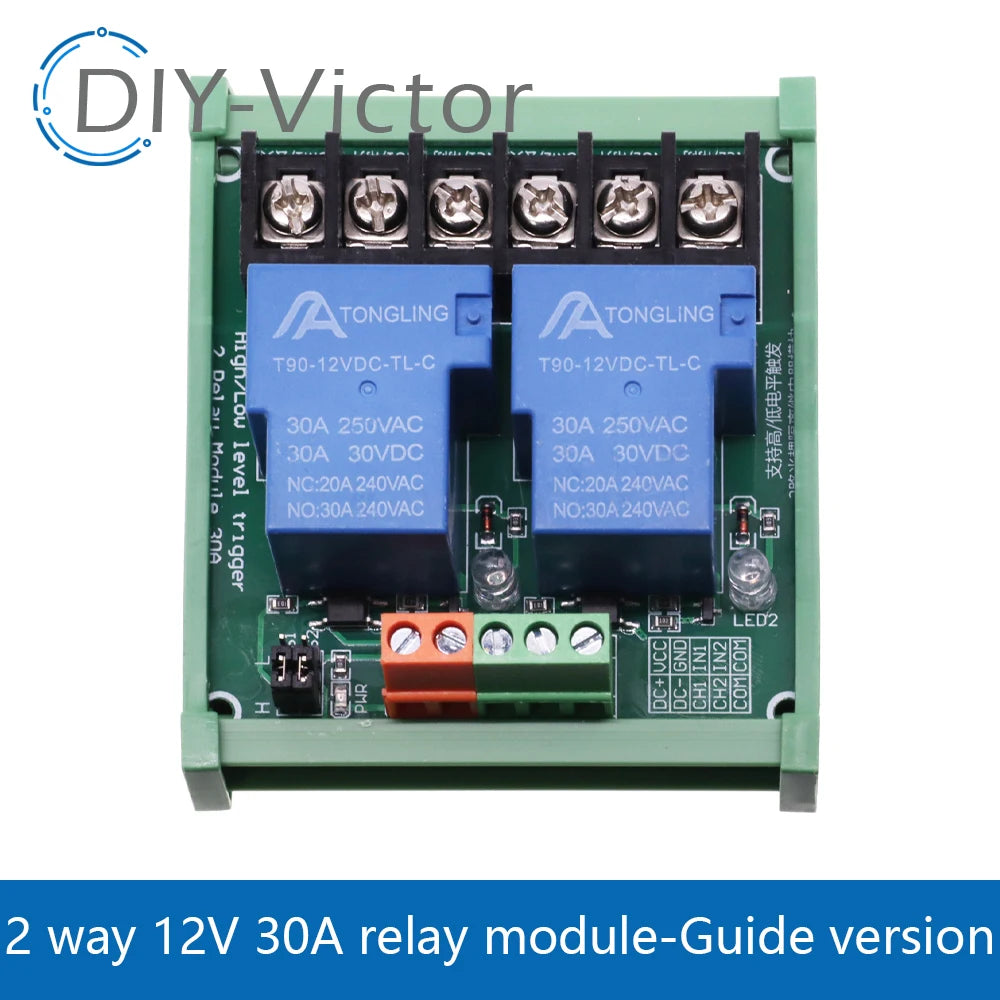

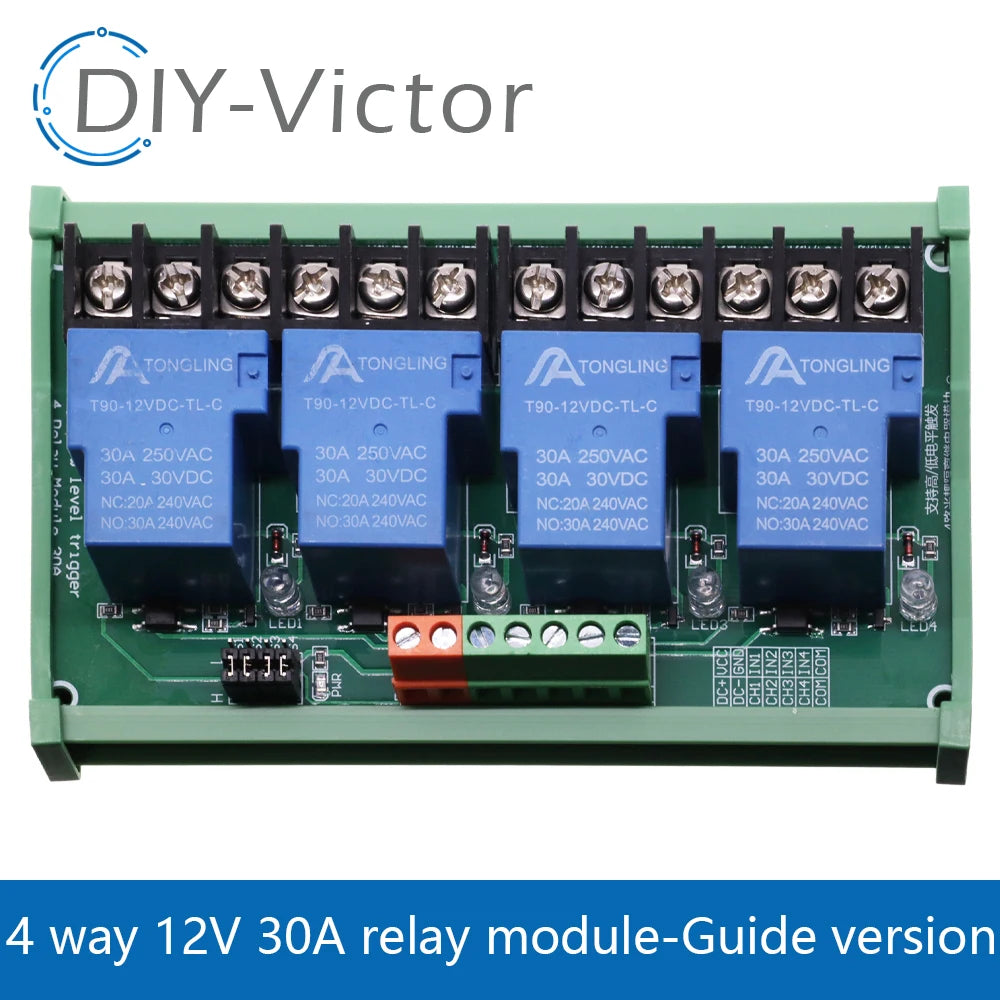

Module size (with module framework): 42.2 mm * 86.5 mm * 44.3 mm

7. product net weight: 46 g; 82 g (including module framework)

8. there are four fixed bolt hole, hole is 3.1 mm spacing of 44.5 mm * 27.5 mm

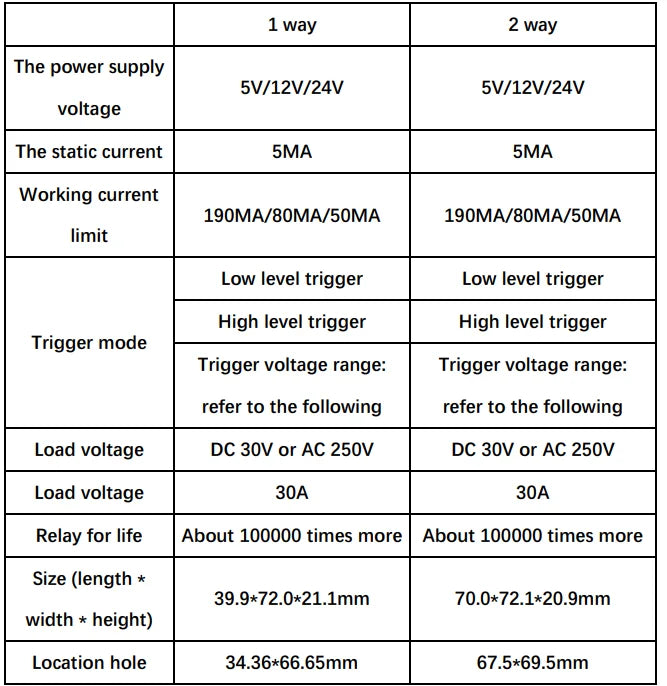

Product parameters

Note: customers should buy 5 V voltage slightly higher voltage is only 5.5 V or 6 V can trigger voltage relay!

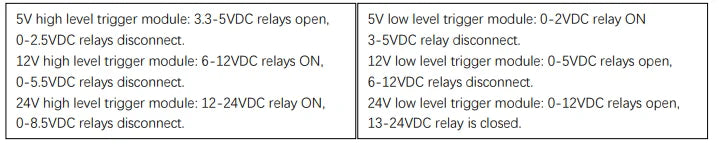

Trigger voltage range:

Module that electronic

The power of the module must be a dc voltage must be compatible with the relay voltage

1. The dc + (connected to the anode) dc and dc - (connected to a dc cathode) is used to connect the power supply and optional module voltage 5 v / 12 v / 24 v (mainly module).

2. IN the module is triggered. When there is a trigger signal, the output of the relay and the switch will close load is conductive.

3. high level and low level trigger the meaning of:

High level trigger: called PNP trigger in industrial control, the positive triggered, namely on the triggering end of trigger voltage between the cathode voltage when the relay is closed. The diagram below: (illustration only trigger mode, is not this product parameters)

Low level trigger: in industrial control, it's called the NPN triggers and negative trigger, namely on the trigger and when electrode voltages for OV or close to OV, relay is closed. Trigger methods described as follows: (illustration only, not the parameters of the product)

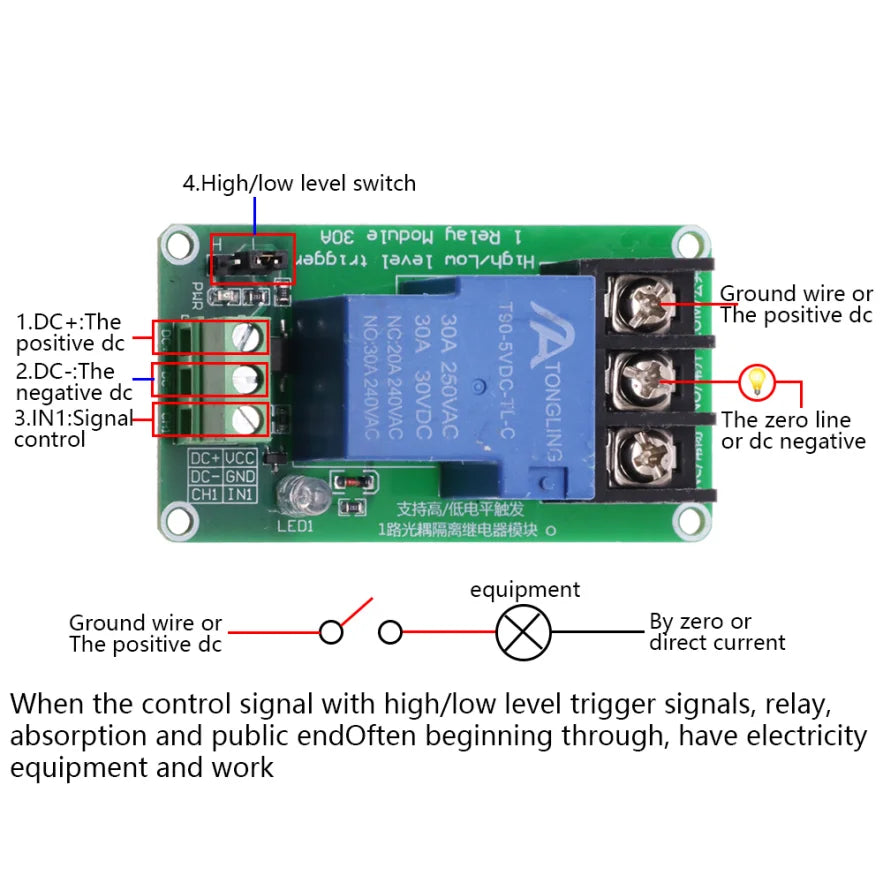

Interface specification

1. DC +: Module DC power supply positive electrode (trigger terminal voltage positive electrode)

2. DC -: DC power supply module cathode (Trigger voltage across the cathode)

3. IN: signal trigger terminal (default trigger voltage and power is the same)

4. High/low level trigger mode selection:

as shown IN figure: jump line and L end connection, for low level trigger IN end, with the H connection for high level trigger

5. normally closed end (NC): relay normally closed end

6. common(COM): relay public side

7. Normally open (NO): relay normally open

Note:

1. The source and load used in the parameter scope, please do not use beyond.

2. The rated load and life expectancy is a reference, according to different environmental factors. Larger load performance and kind friend, so be in actual or simulated use for confirmation.

3. The module's load capacity is strongly influenced by environmental temperature and its temperature rise, need according to the actual working environment, use air for heat dissipation, asks to install in the convection environment is good

4. The high temperature electric durability; Module used in high temperature, electrical durability, lower than the room temperature using so please march confirmed in actual use.
