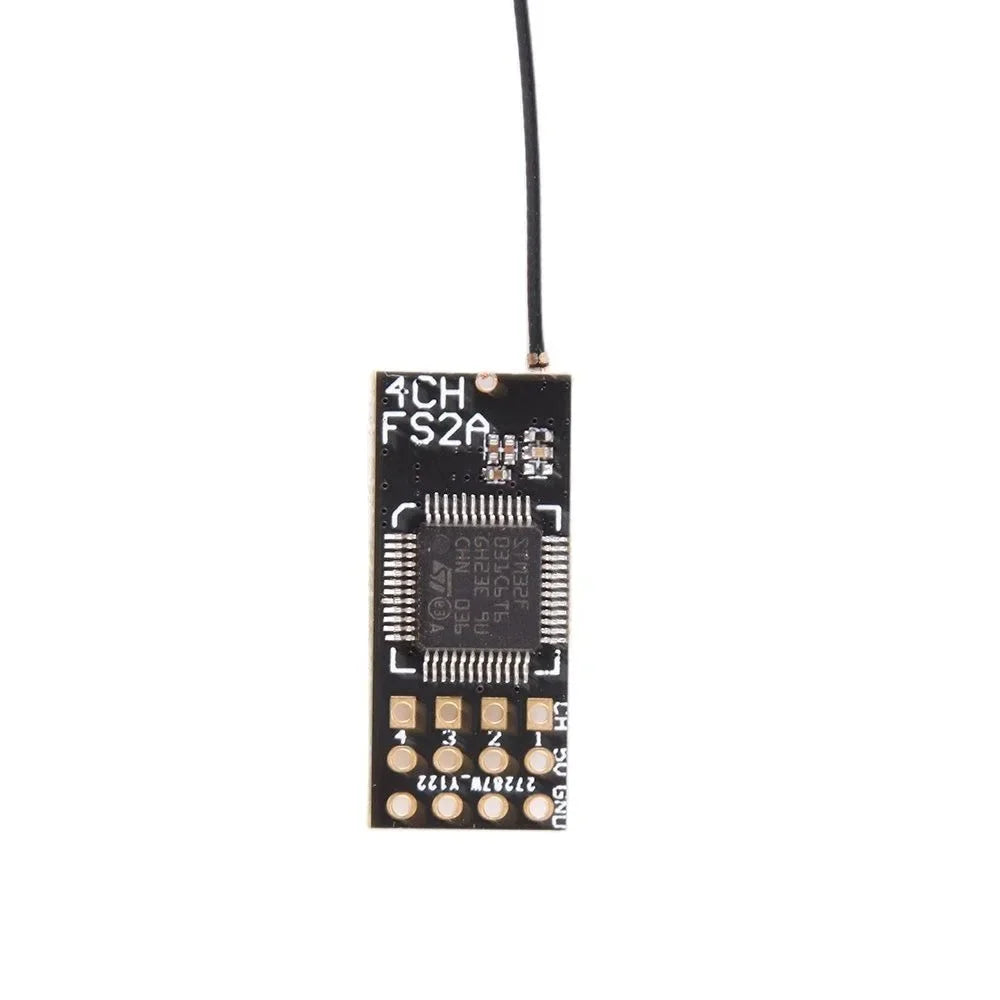

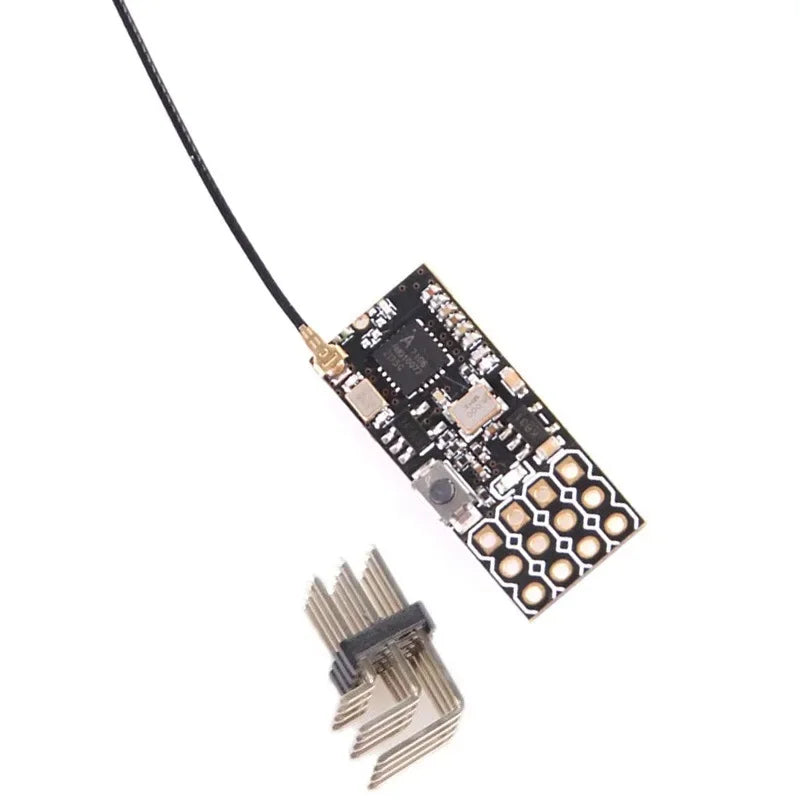

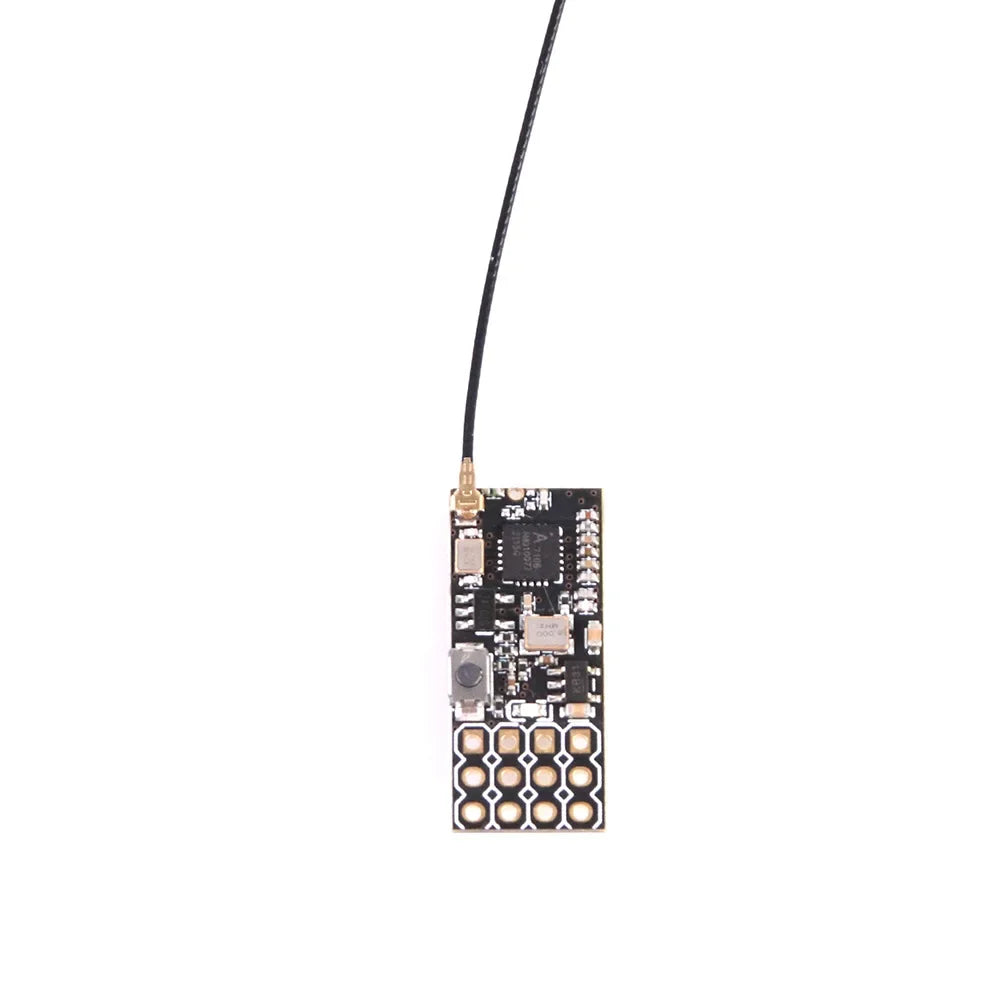

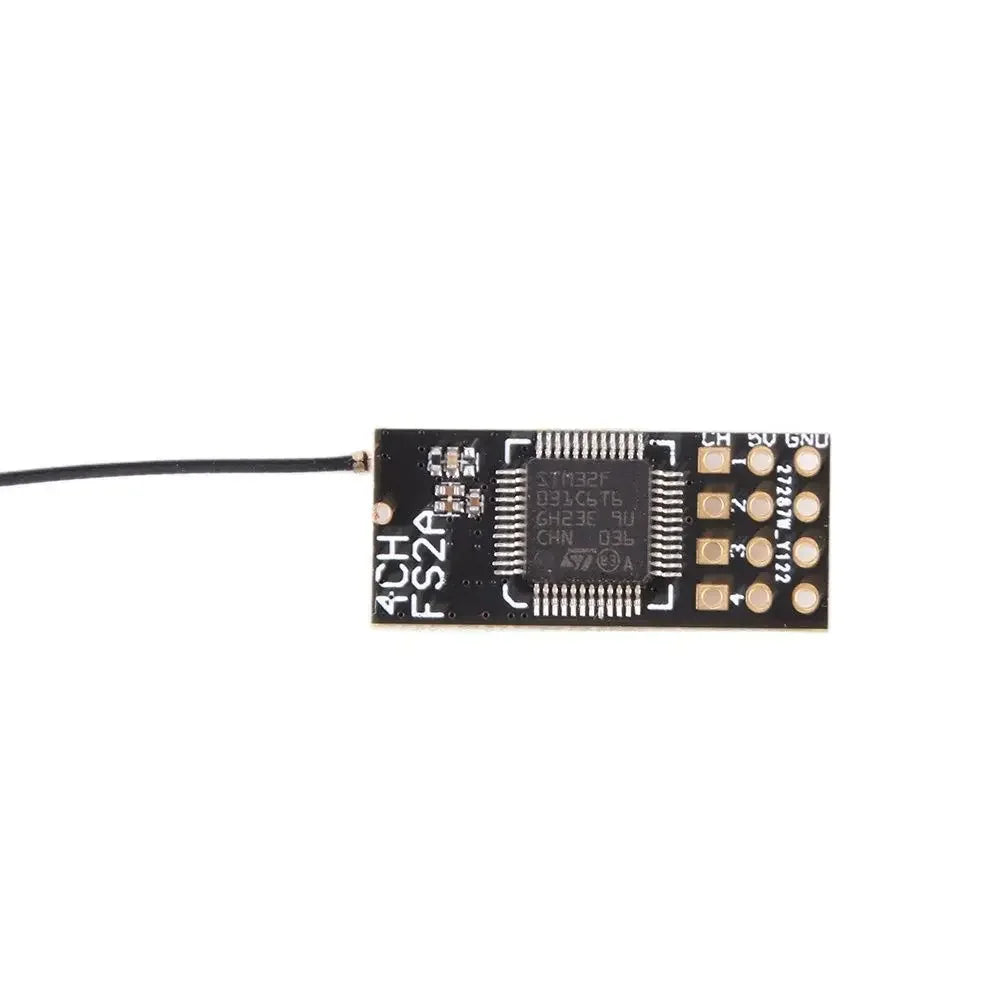

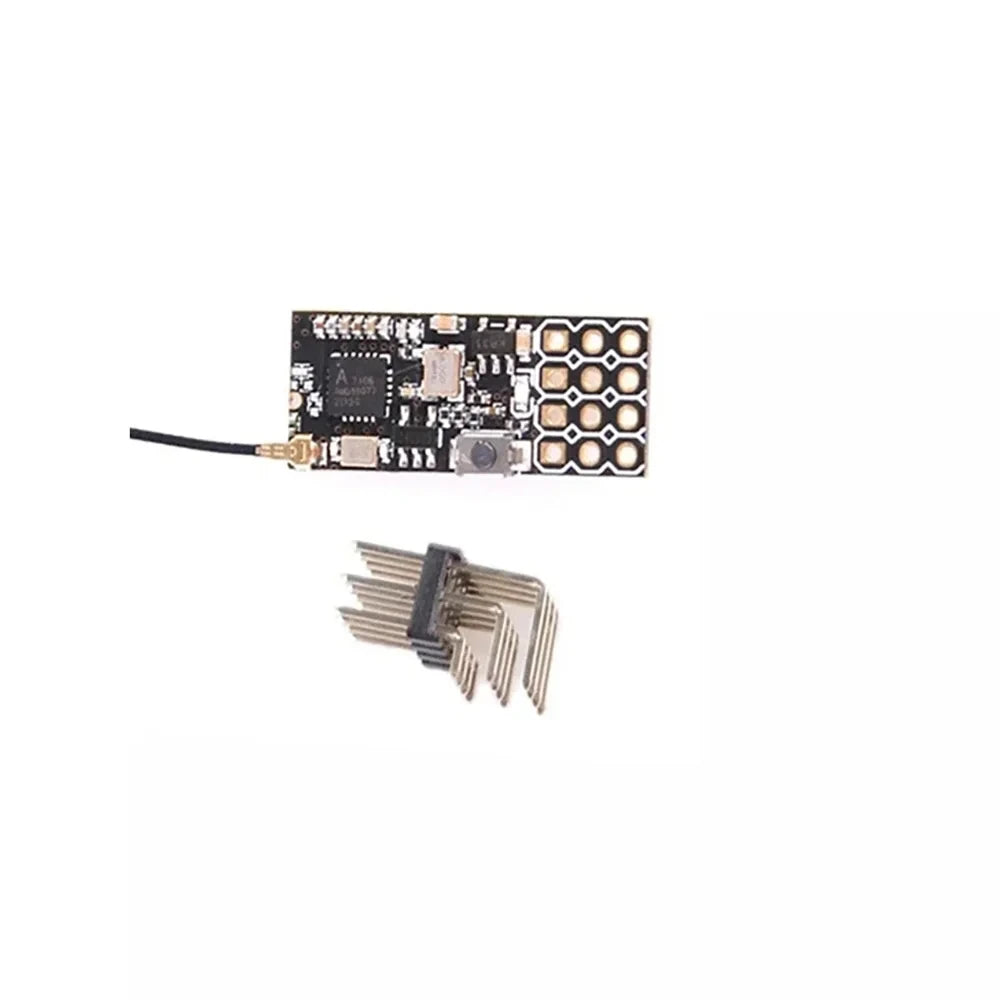

1/2/4PCS FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky I6 I6X I6S / FS-I6 FS-I6X FS-I6S Transmitter

1/2/4PCS FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky I6 I6X I6S / FS-I6 FS-I6X FS-I6S Transmitter

$25.00

$25.00 $0.00

Description

SPECIFICATIONS

Brand Name: Droyuke

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Material: Composite Material

Model Number: FS FS2A FS2A

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Antennas

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Technical parameters: value 3

Tool Supplies: Assembled class

Upgrade Parts/Accessories: FS FS2A FS2A

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

Item name: Flysky FS2A 4CH receiver
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475 GHZ
B a n d width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10 V
Distance: 400 + meters
Working current: 20MA

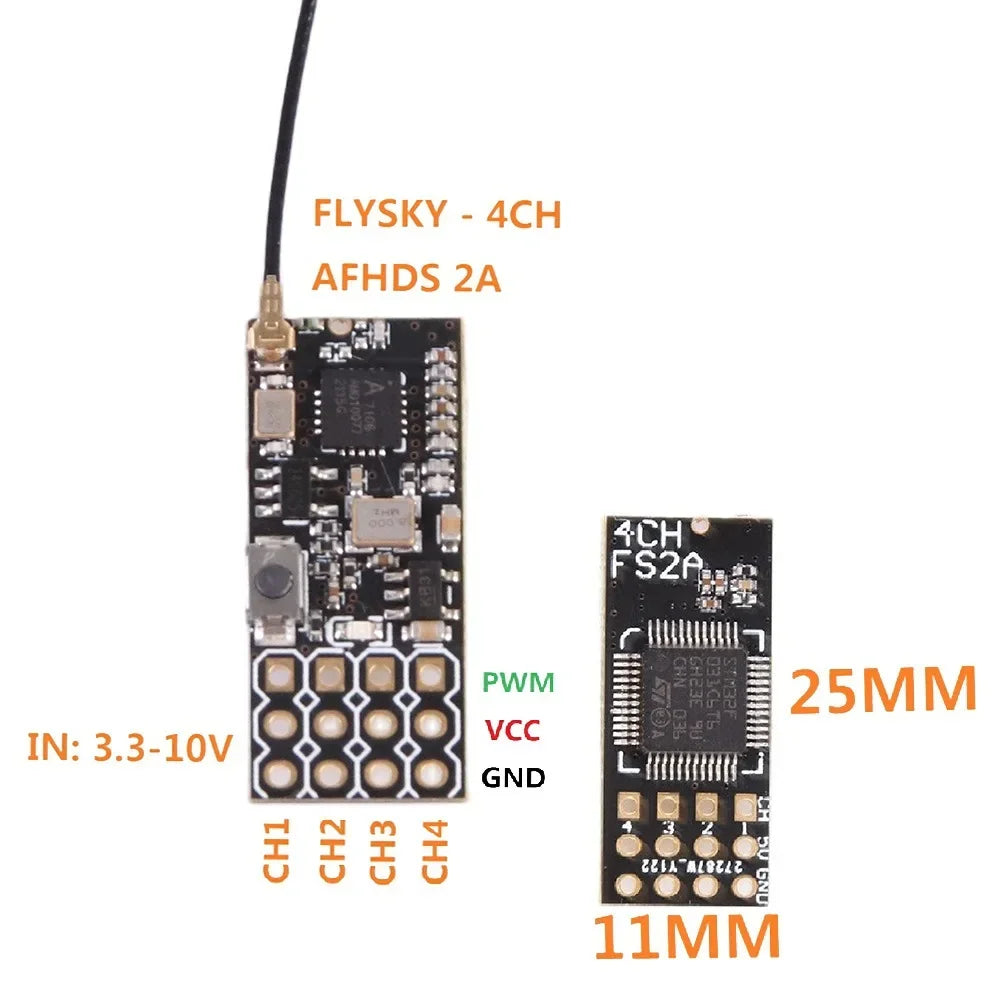

Size: 11 * 25 MM
Weight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitters

Tie:
1. Press and hold the button on the receiver and connect the power to the receiver. The blue light on the receiver flashes, received in bindind mode.
2, Set the transmitter in bind mode (confirms AFHDS 2A protocol). After getting in bind mode, the receiver changes light from flashing to flash to slow it down.
3, transmitter out of bind mode, then the receiver blue light will be bright. Indicates that the signal received is successful.

Failsafe settings:
The receiver can usually receive the transmitter signal, push the rocker to the failsafe, set, long press the receiver tying button, the blue light will flash quickly several times and then always bright, failsafe settings will succeed.

Package Included:

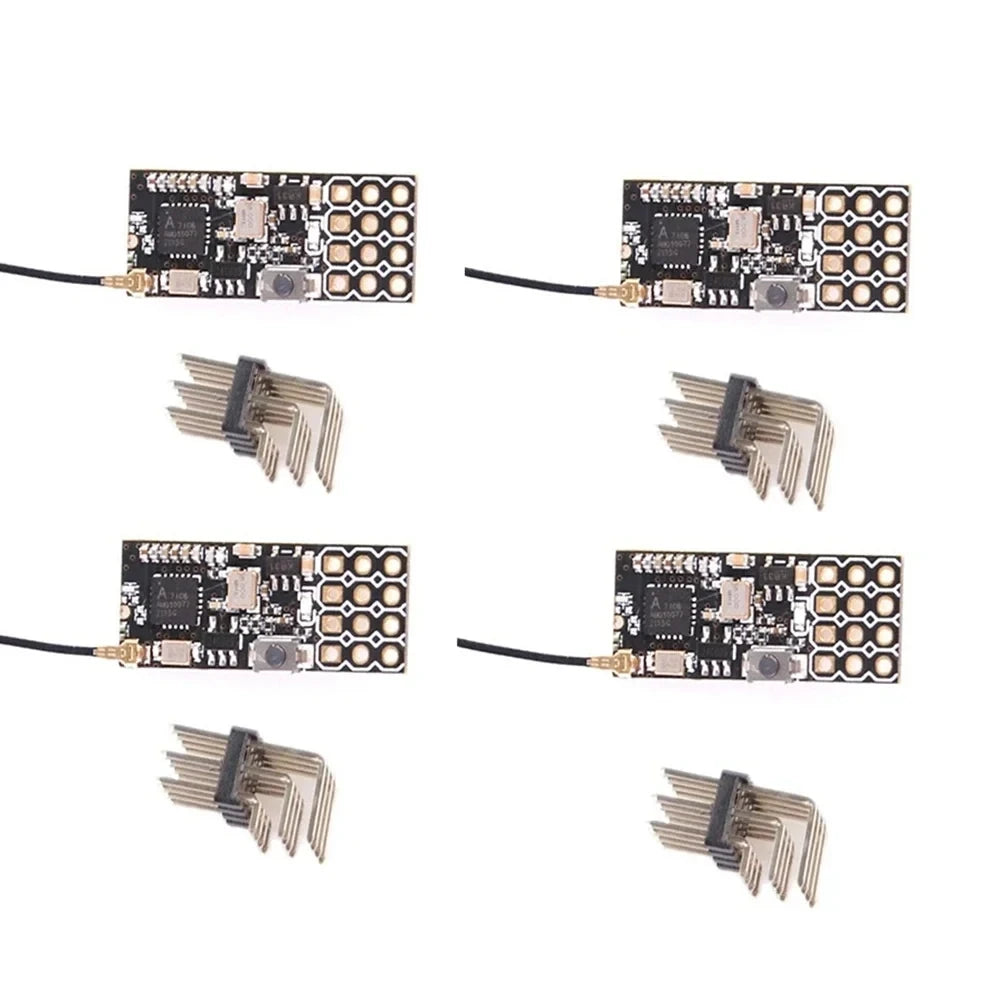

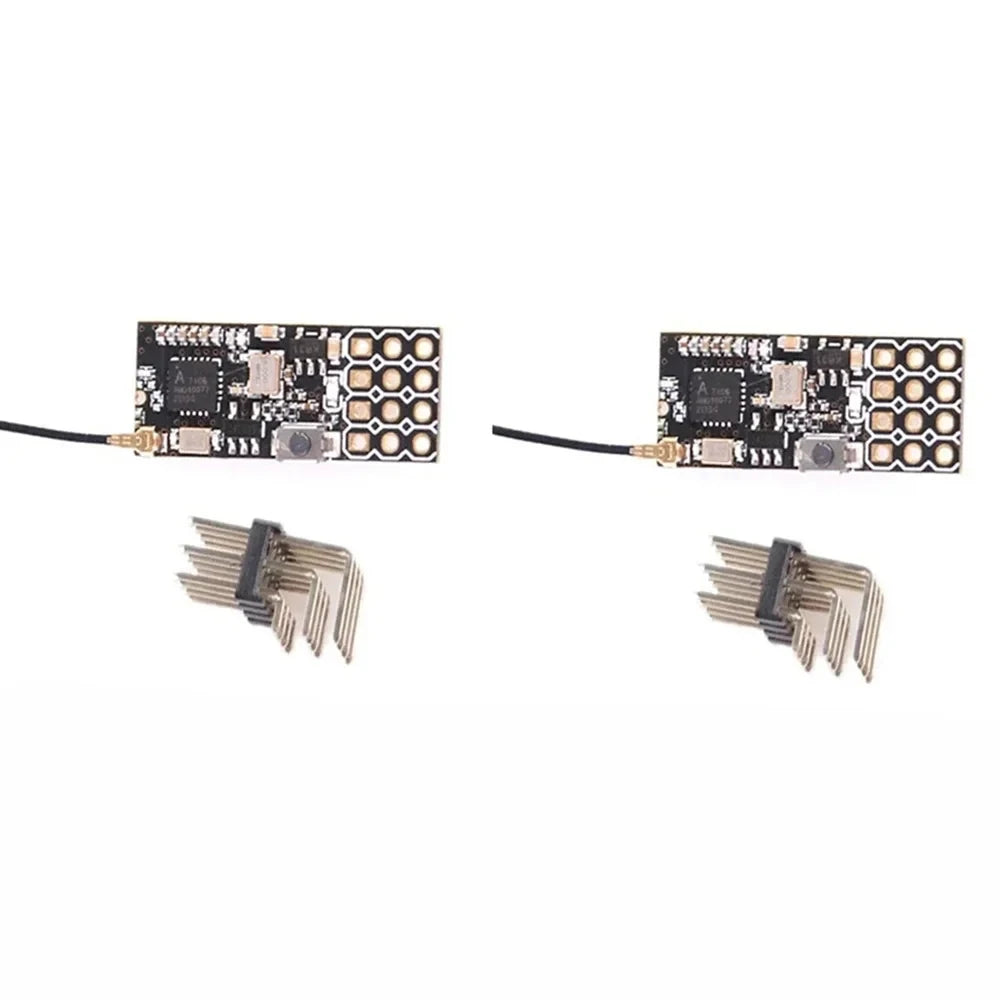

1/2/4 Pcs FS2A 4CH AFHDS 2A Mini Compatible Receiver
