SPECIFICATIONS

Application: Computer

Brand Name: AOKIN

Choice: yes

Condition: New

Dissipation Power: 3-35V

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Supply Voltage: 3-35V

Type: Voltage Regulator

Performance:

1.conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost

2,.wide voltage range input,the input voltage up to 35V

3. output voltage is adjustable,supports up to 40V

4.built-in over-temperature protection, overcurrent protection circuit full set of reliability, high reliability

5.the system conversion efficiency of over 90%, to facilitate thermal design

6.TO263-5L standard package,suitable for 30W boost applications within.

Instructions:

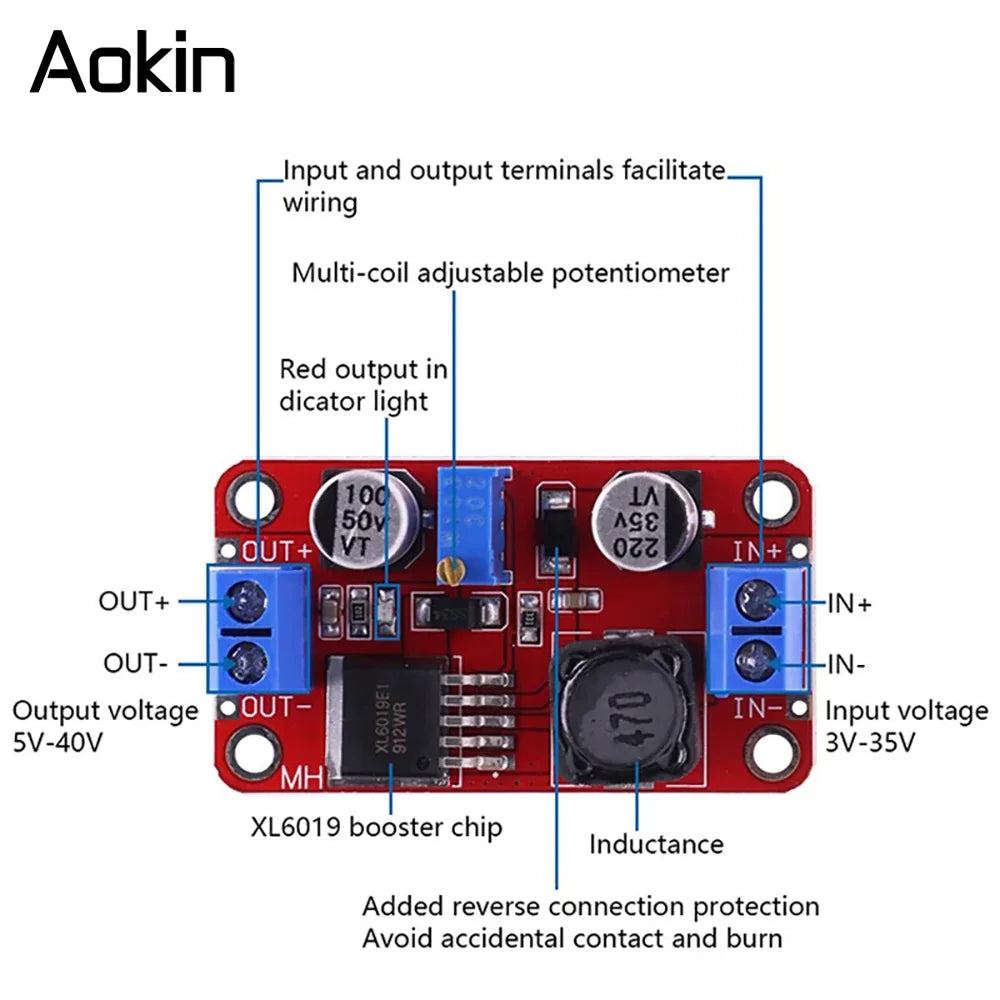

1. Power (3-35V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.

NOTE:

1. Current work long hours is recommended for use in less than 2.5M, while adding bulk Heat sink (10W output above); because it is boosting module, in order to ensure stable output Set, please keep the minimum 1.5V differential.
