SPECIFICATIONS

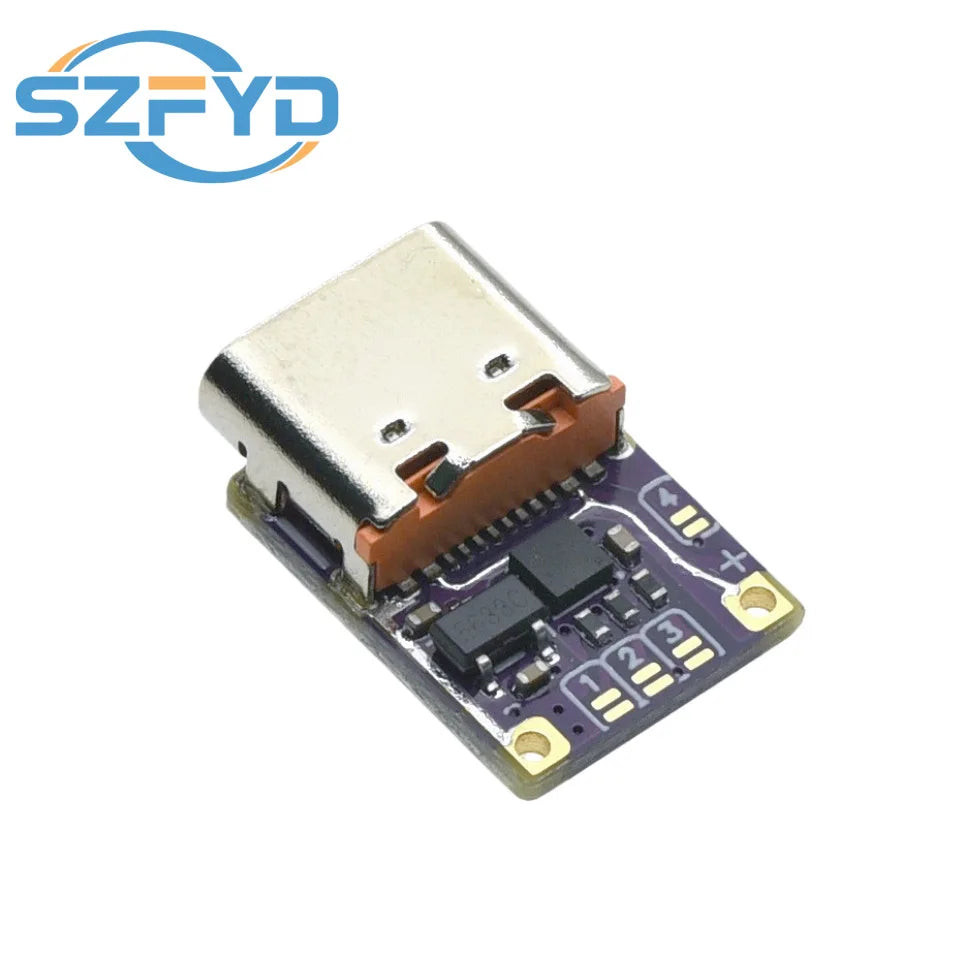

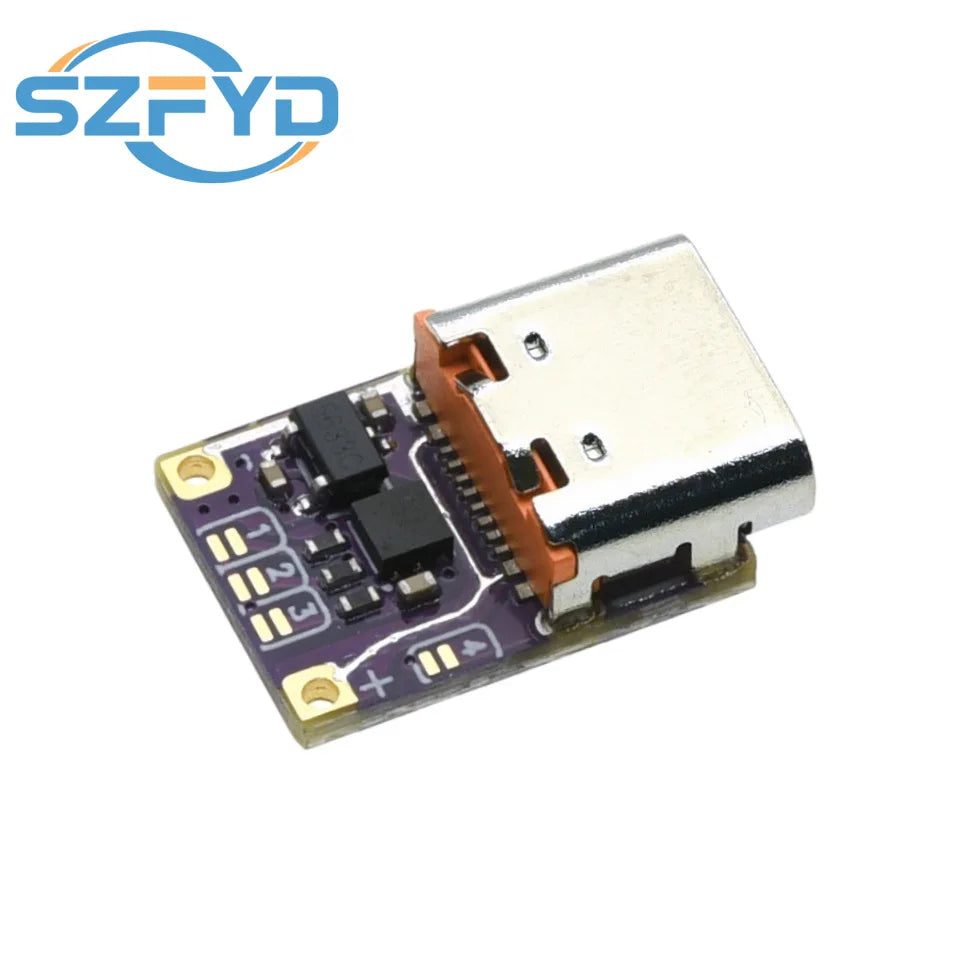

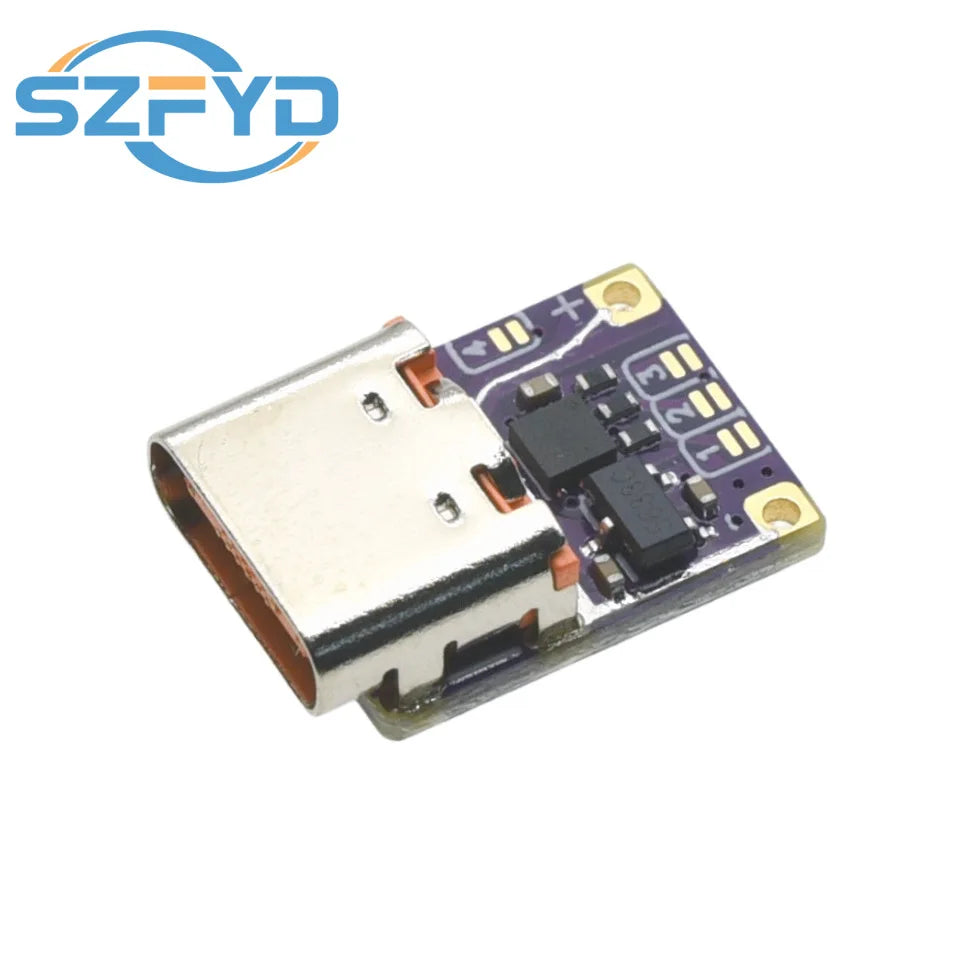

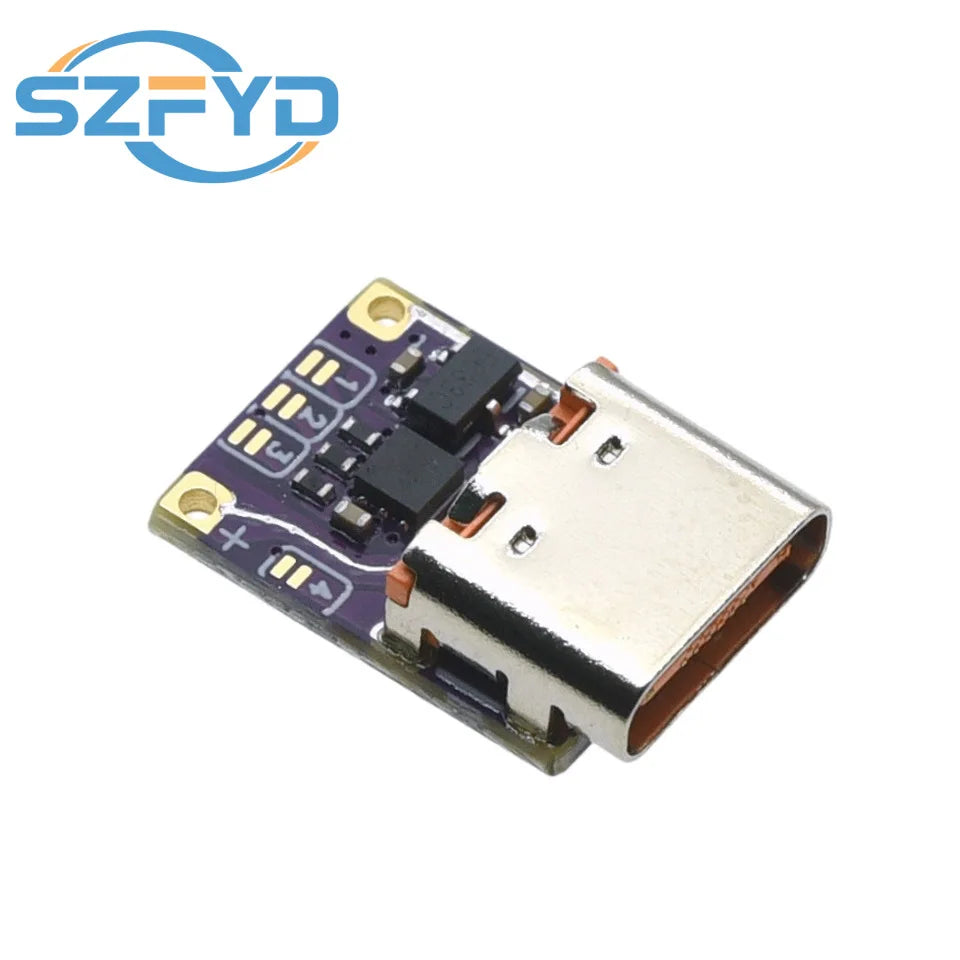

Ultra-small fast charging decoy module

The module adopts A high-current design, with an output current up to 5A. It comes in two versions, A and B, capable of outputting voltages ranging from 5 to 48V. It also features strong compatibility, supporting fast charging protocols such as PD3.1 and QC2.0, which can easily trick the charger to output the corresponding voltage. It uses short-circuiting switching, allowing for self-short-circuiting and switching to a specified voltage. The module has downward compatibility. If the power supply equipment does not support the set voltage, it will output the voltage that is closest to it

Main parameters:

Features: Compact size, high current design, multiple voltage Settings, and automatic priority application for fast charging

Output voltage: 5V/9V/12V/15V/20V/28V/36V/48V

Operating temperature: -40 to 105°C

Product dimensions: 13mm*10mm*4mm

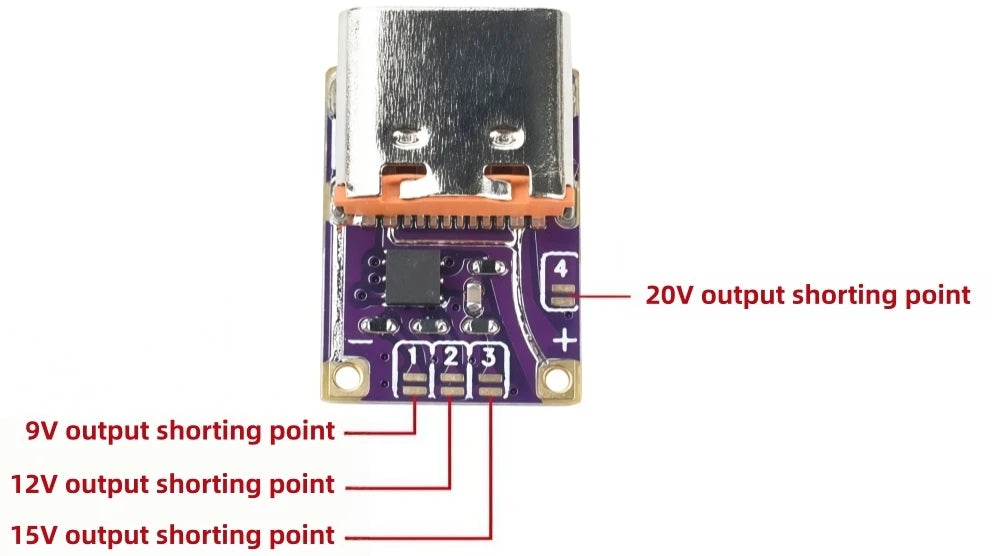

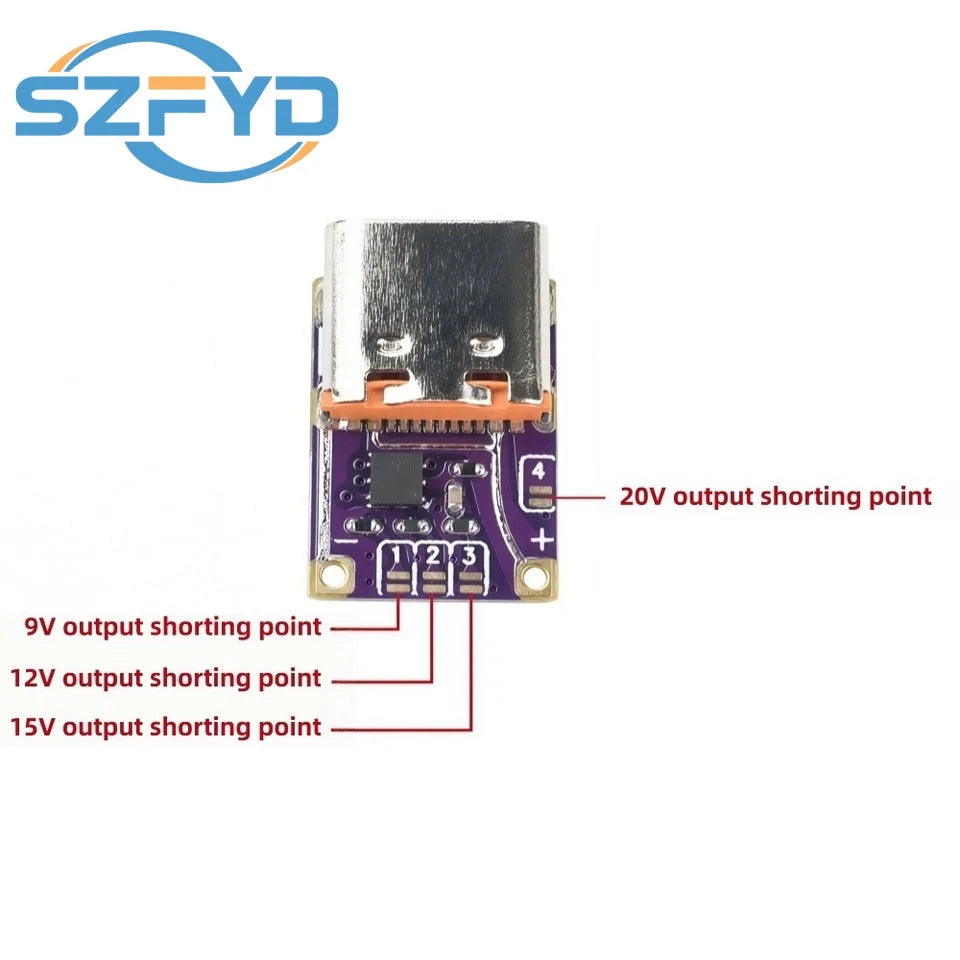

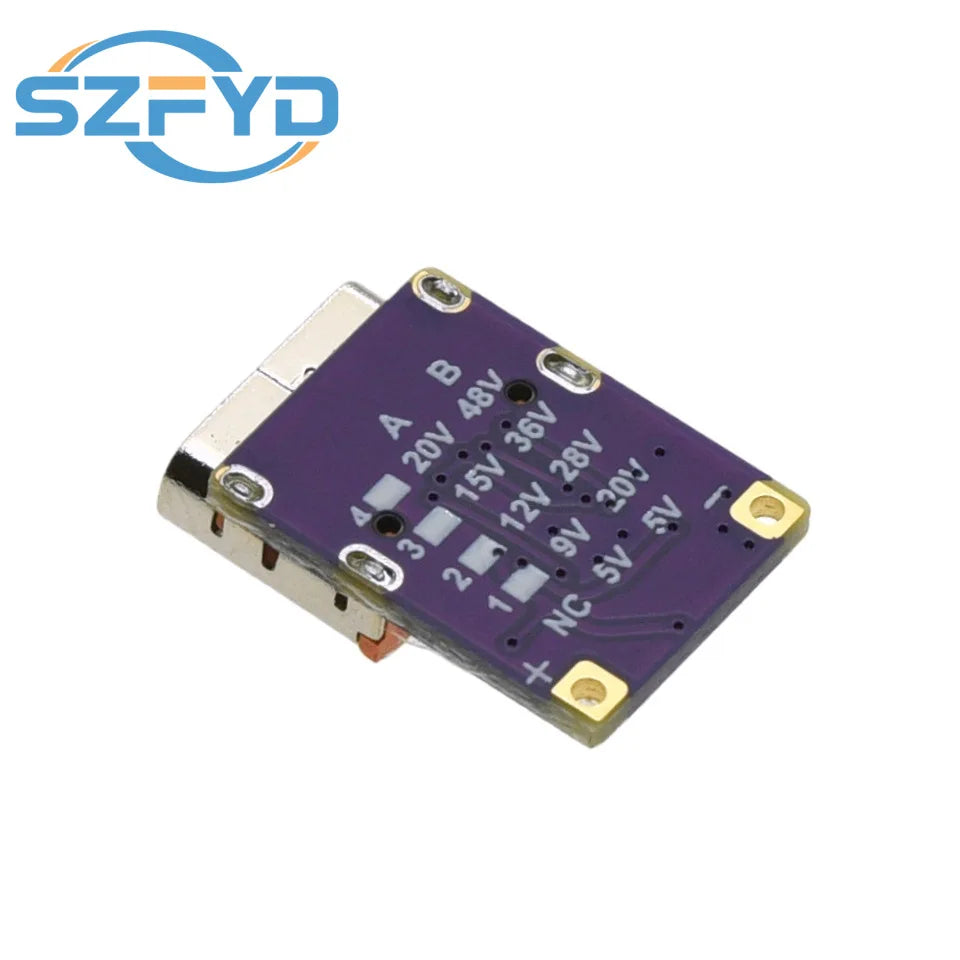

Voltage regulation diagram

Type A：The default output voltage is 5V

Note: If you need to output 20V, but the power supply device does not have 20V output, the module will not be able to output 20V either.

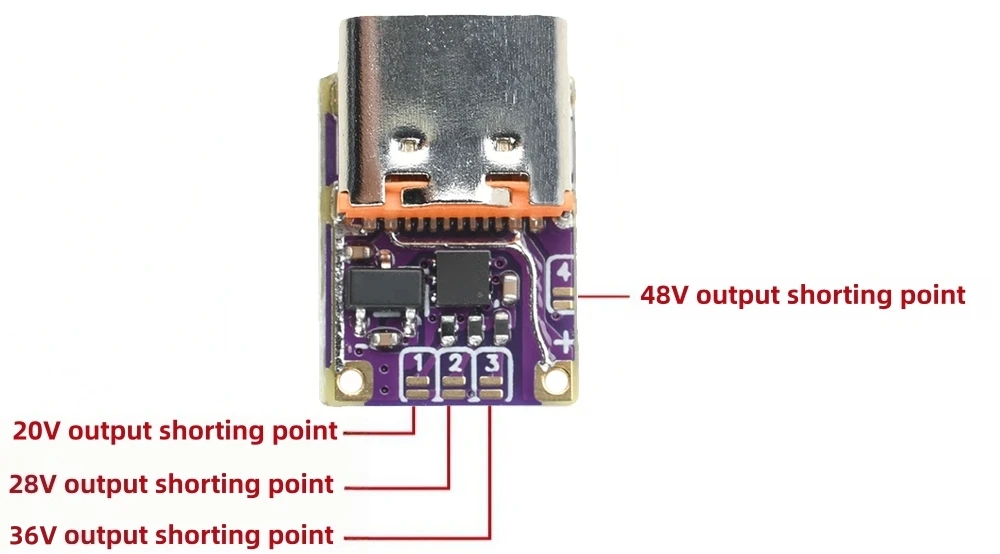

Voltage regulation diagram

Type B：The default output voltage is 5V

Note: If you need to output 48V, but the power supply device does not have 48V output, the module will not be able to output 48V either.

Attention!

The module does not have the function of voltage increase or decrease. It requires the power supply equipment to support this voltage in order to induce the corresponding voltage
