Description

SPECIFICATIONS

Accessory Type: Battery Accessories

Battery Included: no

Brand Name: Heltecbms

Certification: CE

Charger included: N

Electronic: no

High-concerned chemical: none

Model Number: Battery Active Equalizer Balancer Energy Transfer Board

Origin: Mainland China

PCBincluded: Yes

Use: others

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

RU FREE: Click on the following link to enter

Shipping guide:

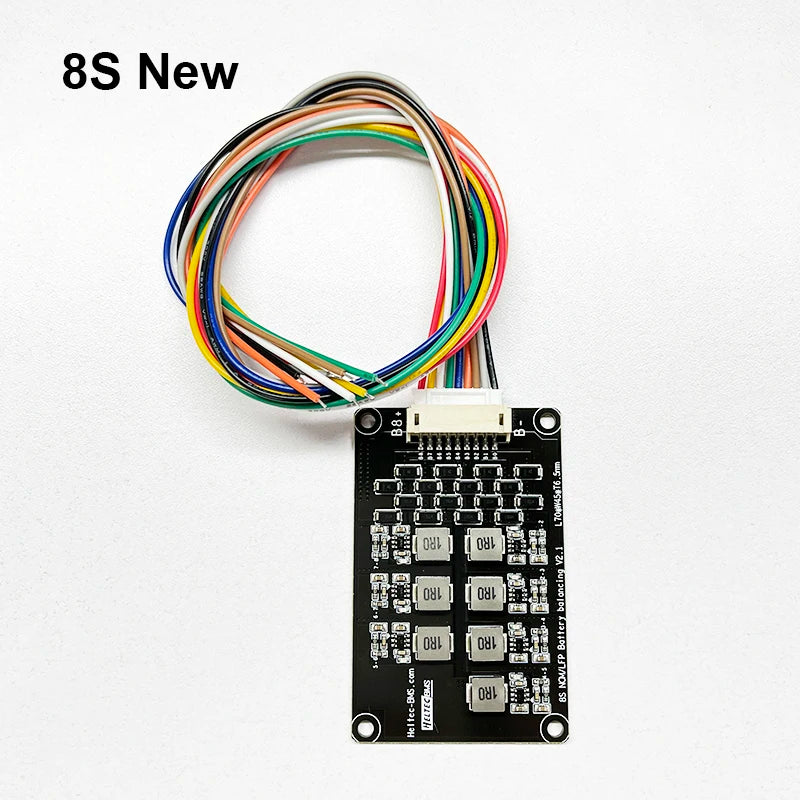

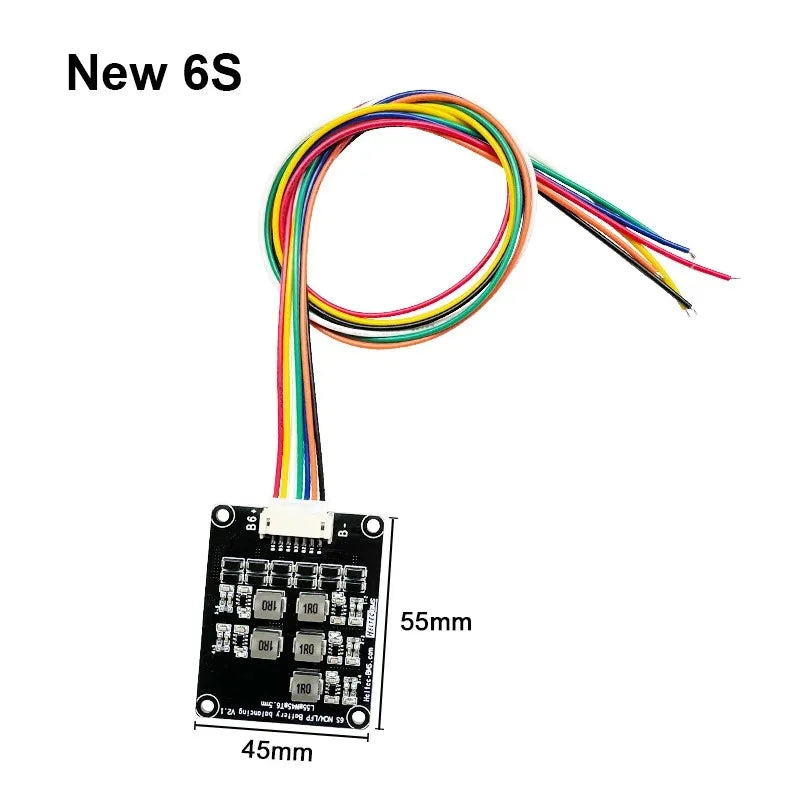

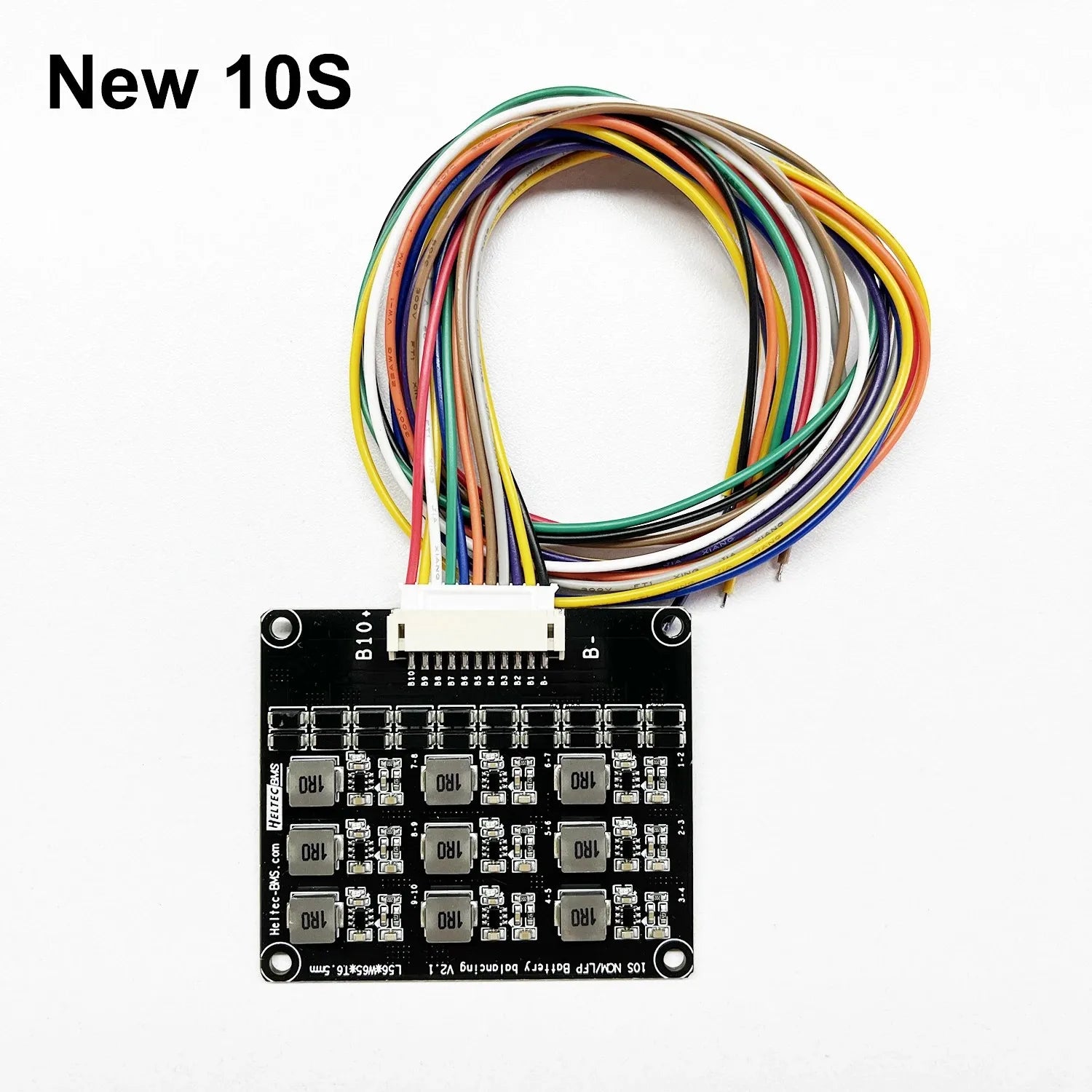

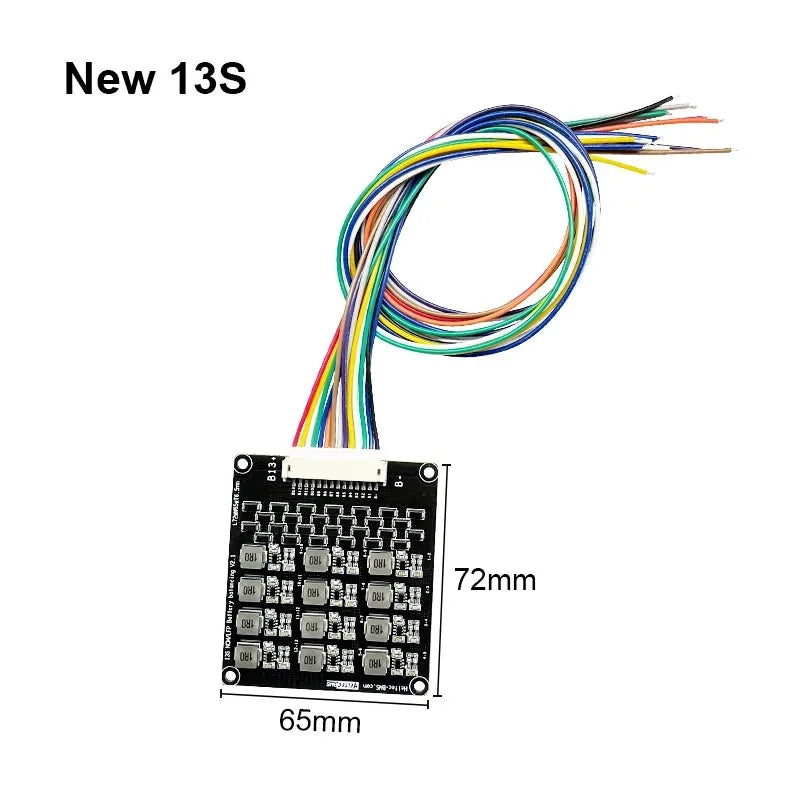

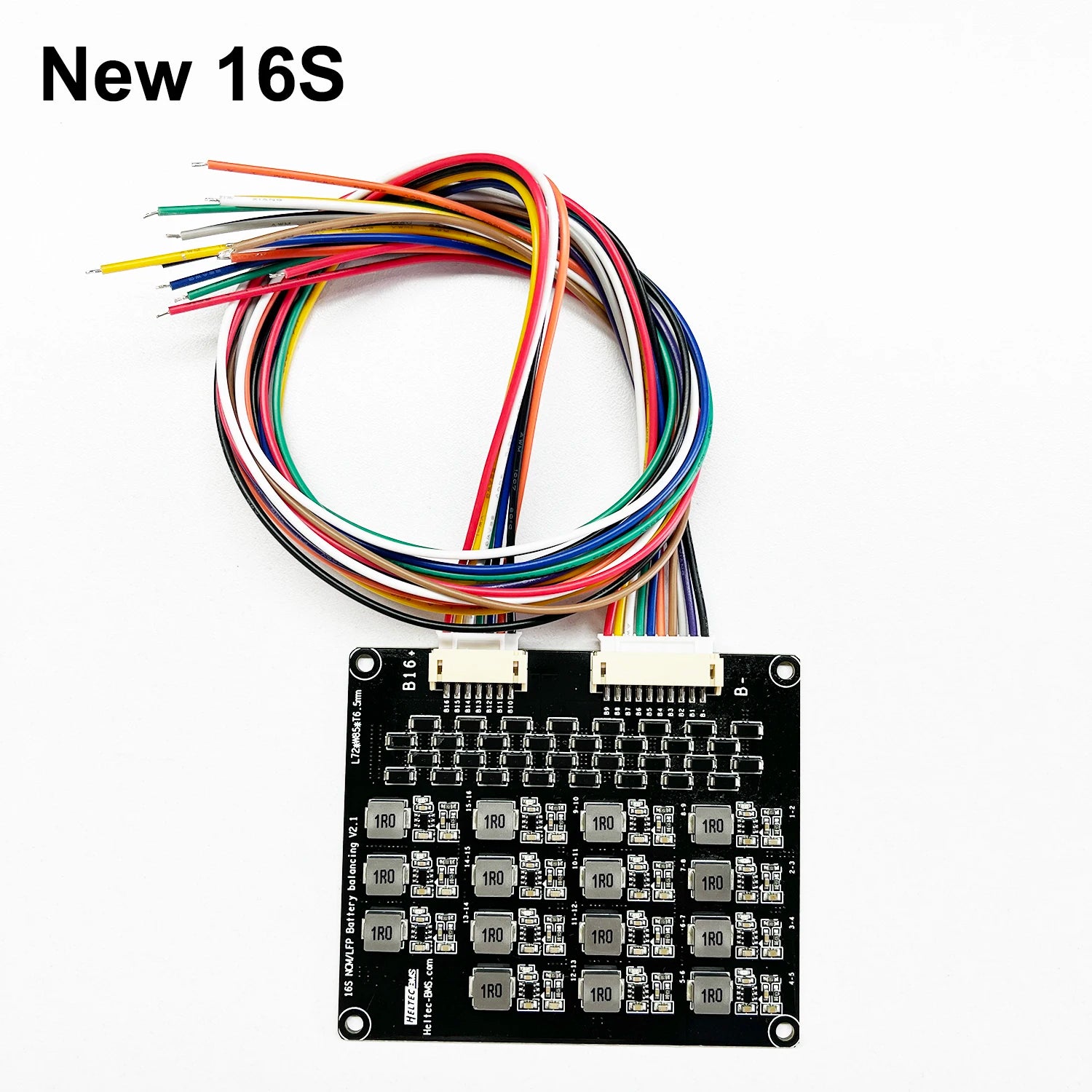

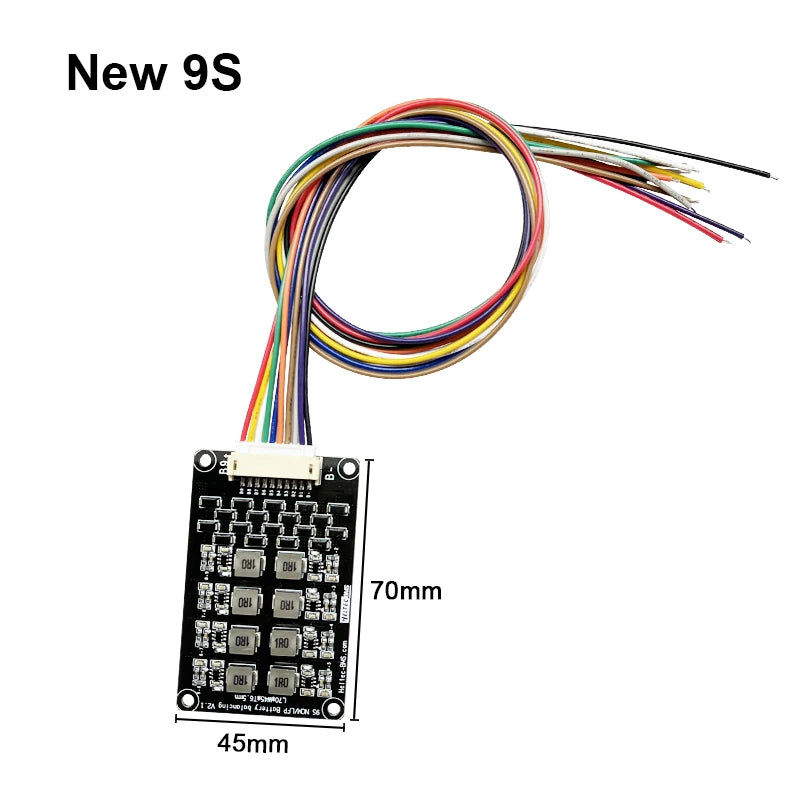

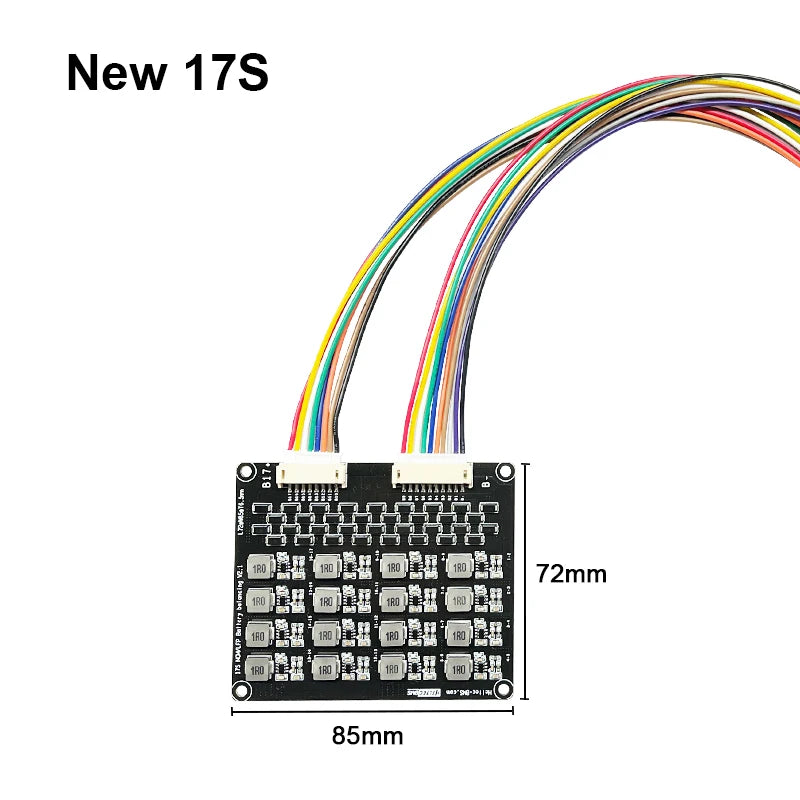

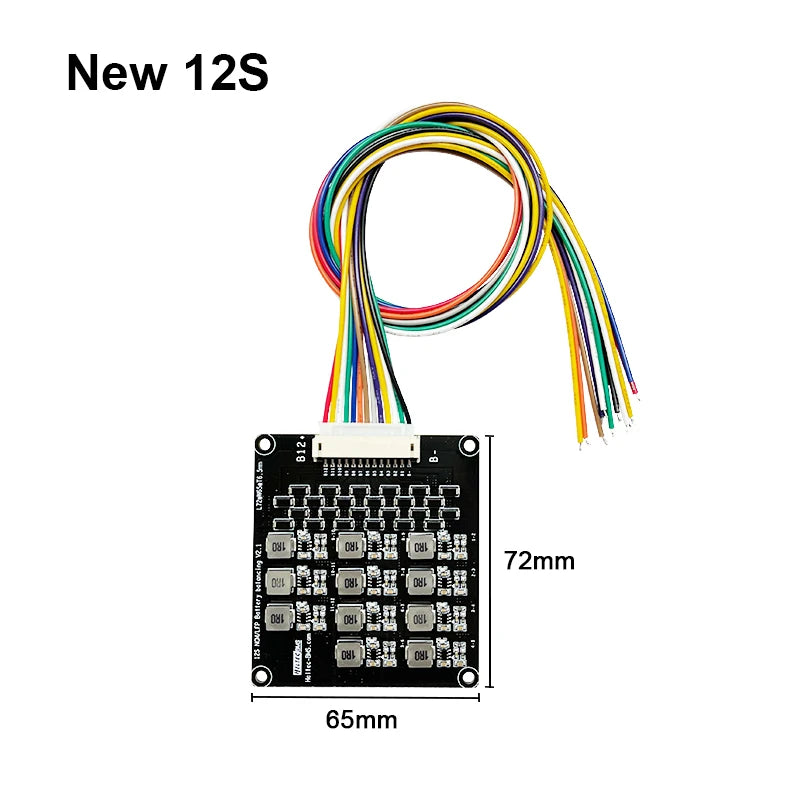

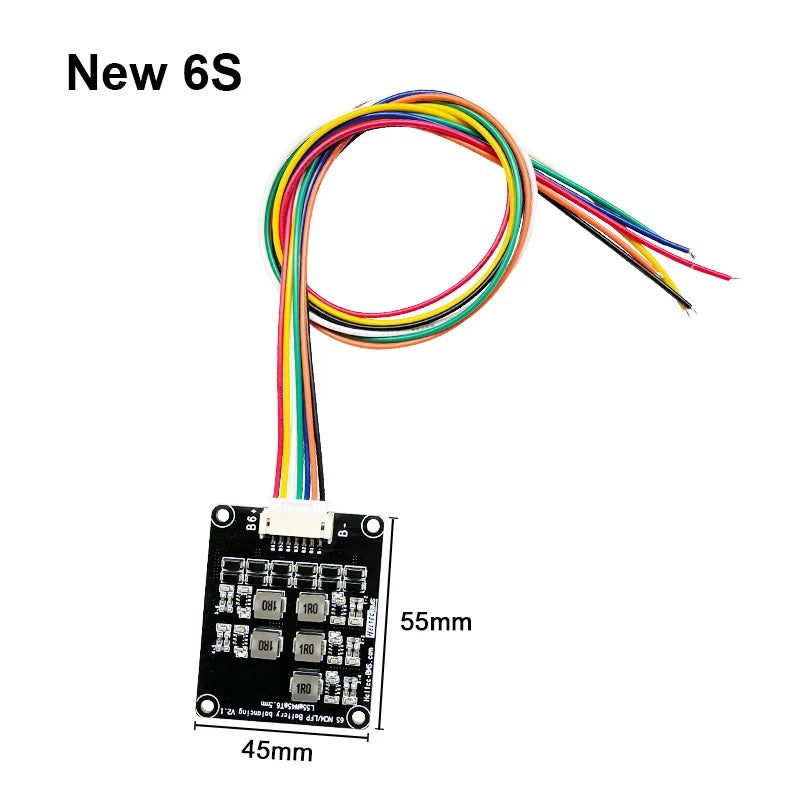

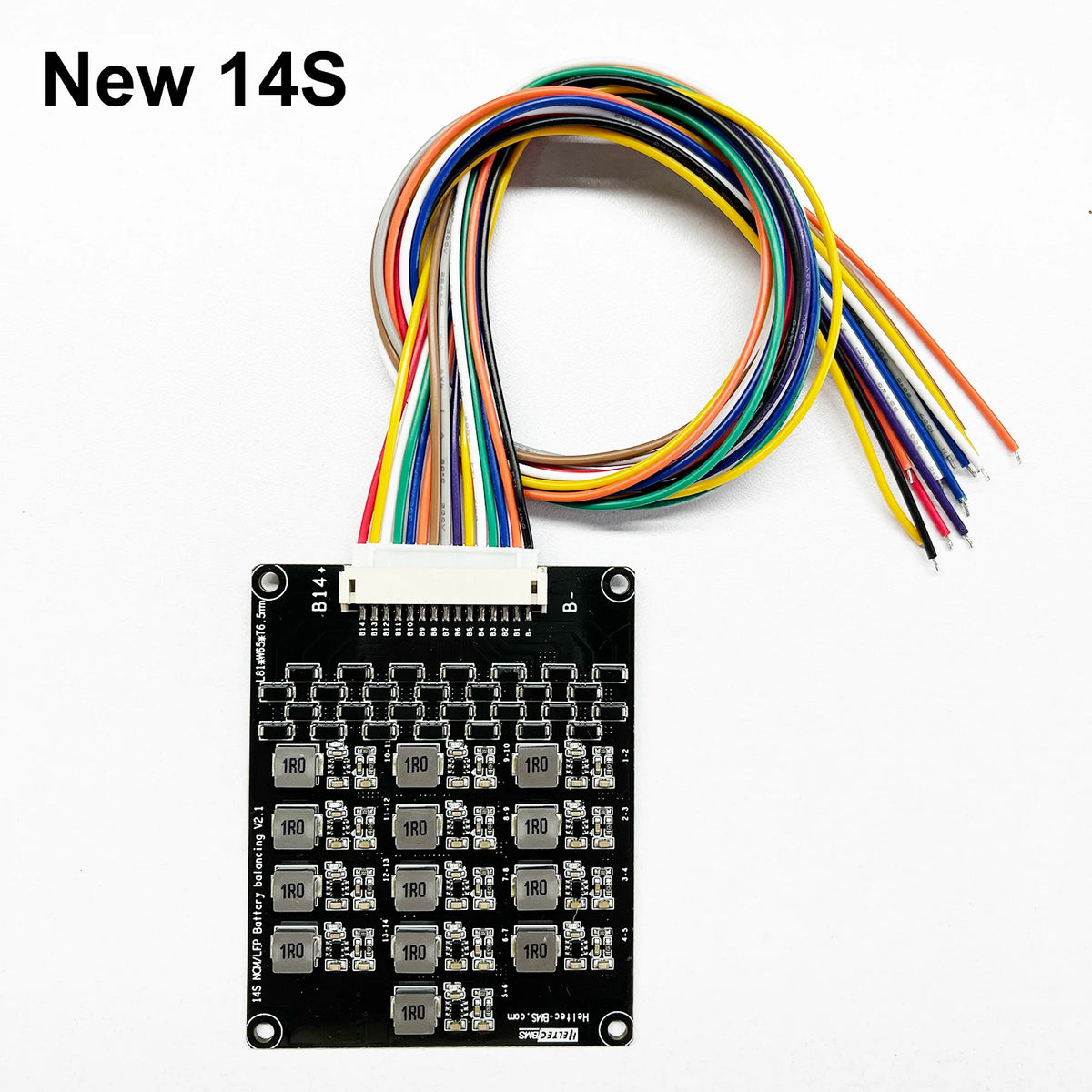

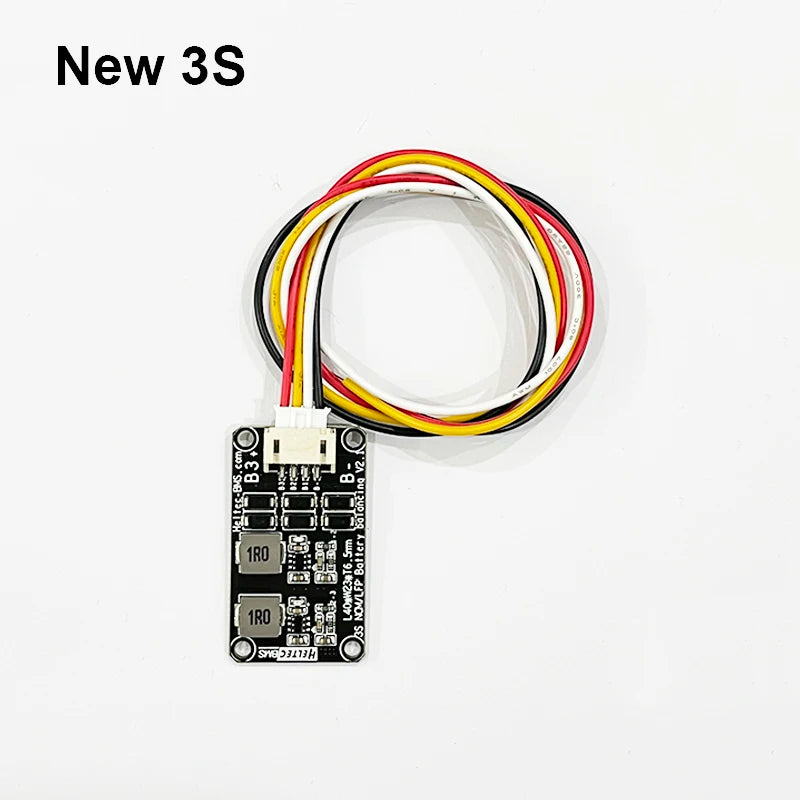

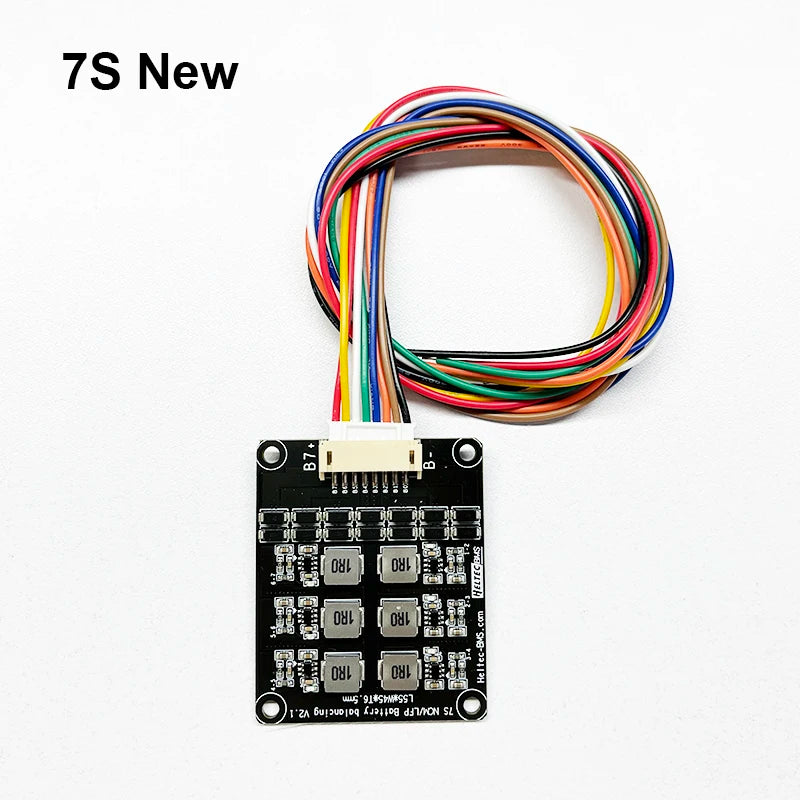

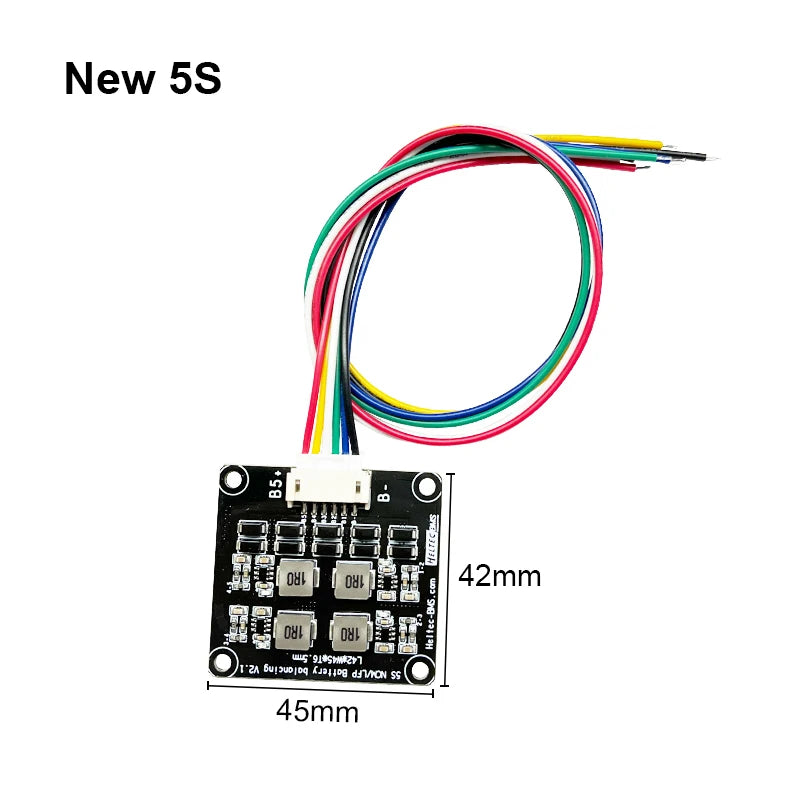

The 1.2A inductance balance boards sent from China are all new models, please pay attention to the size.

Only Russian warehouse is also a random delivery of old and new models, which does not support designation！！！

New function:

Functions of the new balance board: a freewheeling diode is added. The freewheeling diode is often used together with the energy storage element to prevent sudden changes in voltage and current, provide access and protect the balance board. Another change is to use inductance with larger volume and power, which is conducive to heat dissipation.

Note

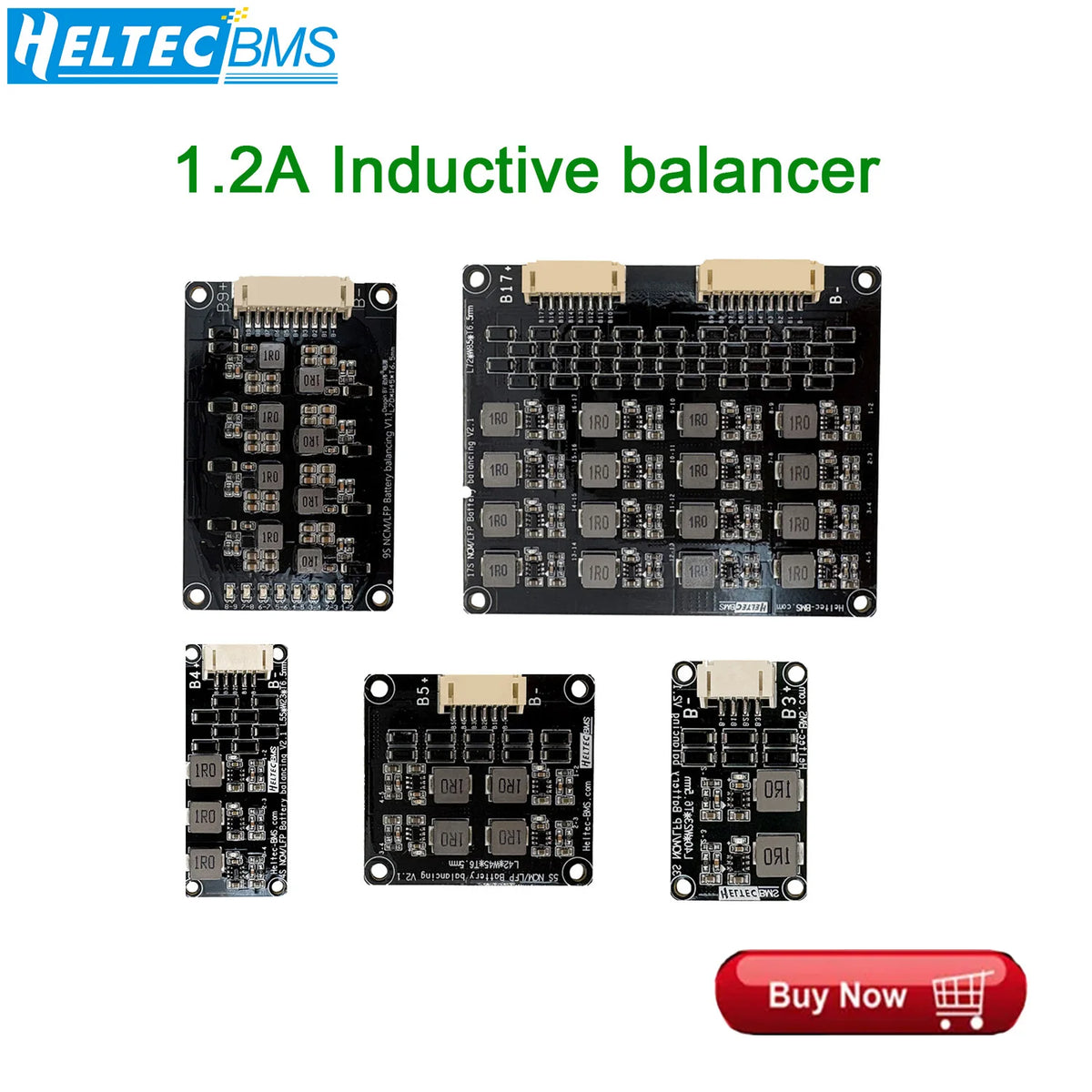

This Link is Inductive Active Balancer :

Will only balance two nearby battery which voltage defference bigger than 0.2V

You can choose our capacitance active balancer which is Group balance in same time if you need better balancer,Click to check

Intruduction

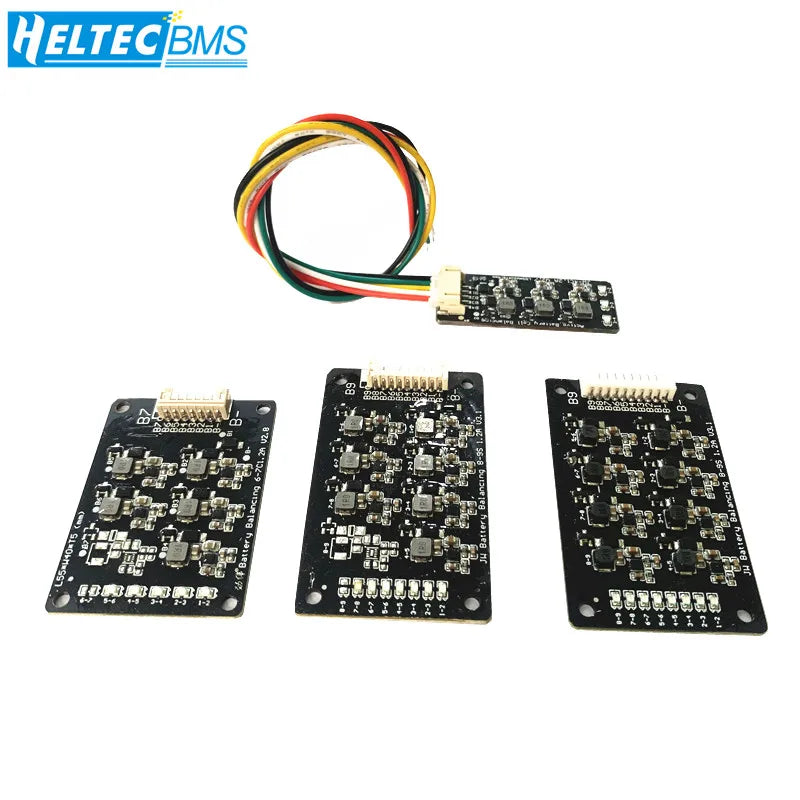

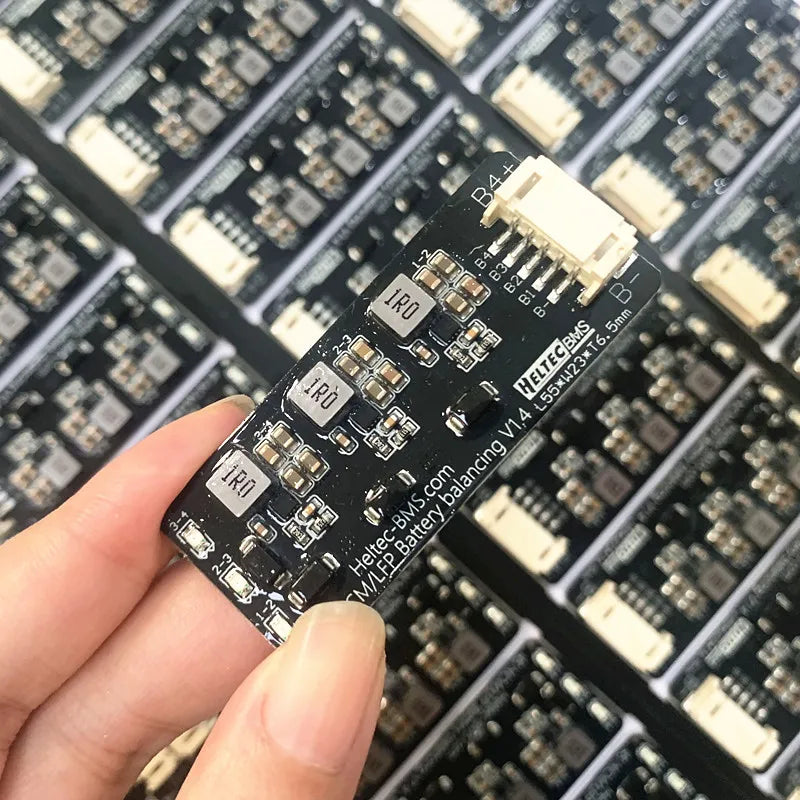

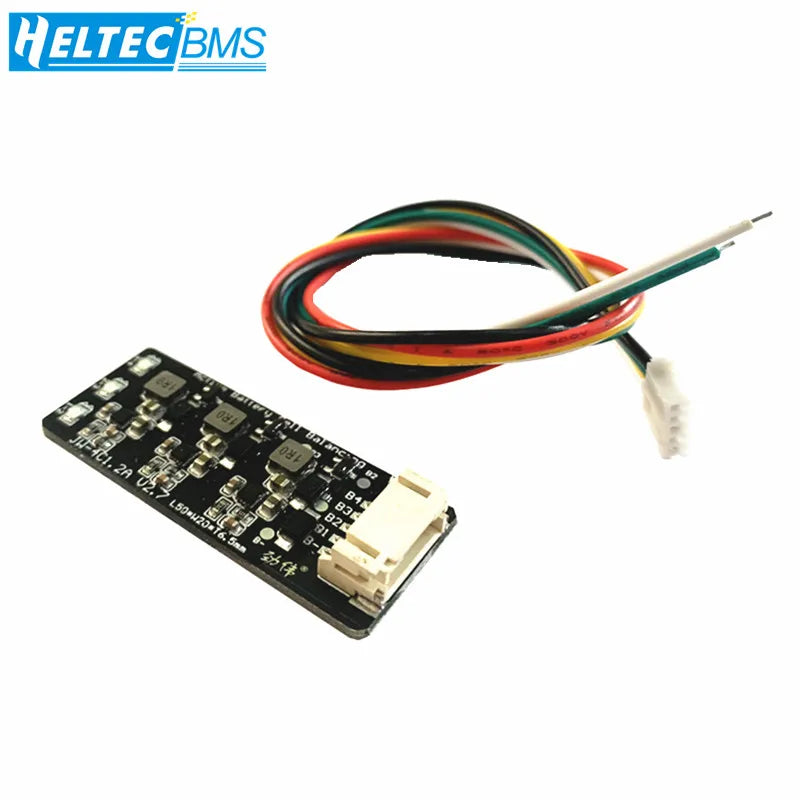

Inductive energy transfer equalization board, high current 1.2A energy transfer battery voltage balancer, significantly balance battery voltage, improve the overall efficiency of the battery pack!

Balance indication:

1. When the equalization light is on, the equalization work is turned on.

2. The equalization light goes out, the equalization circuit sleeps,

3. The equalization light flashes, the string indication is lost, or the circuit is faulty.

Principle of equilibrium:

This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging on the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.

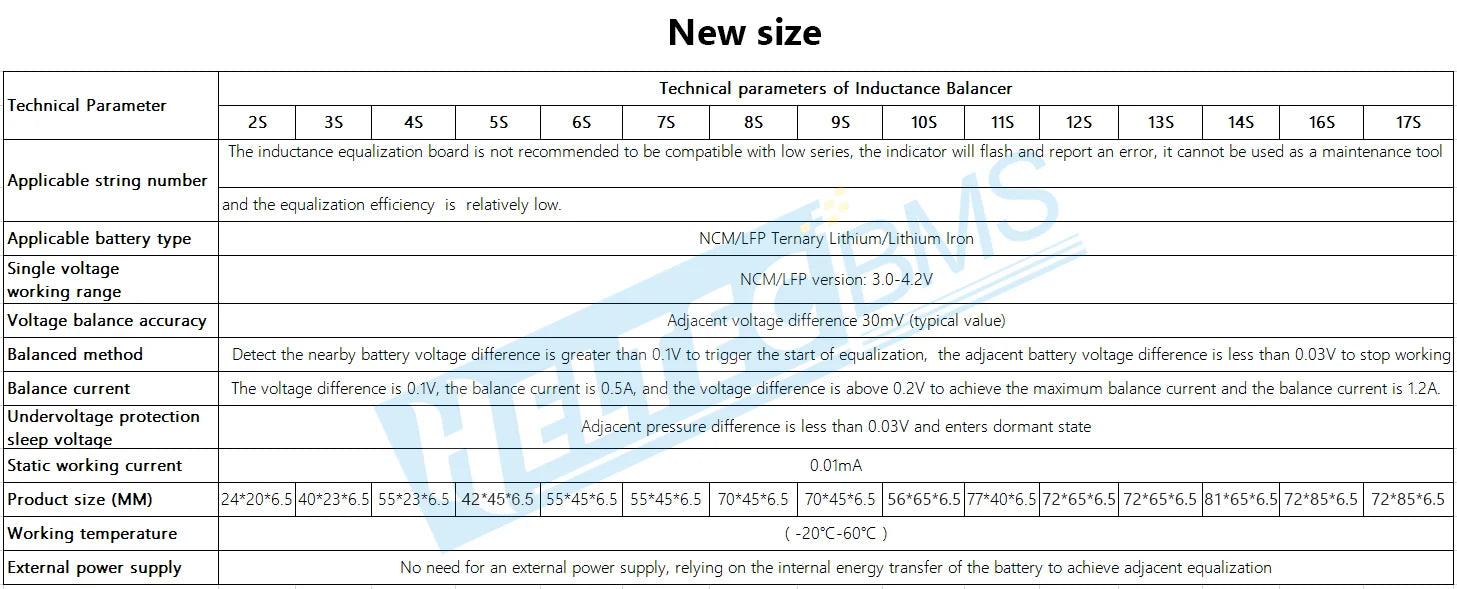

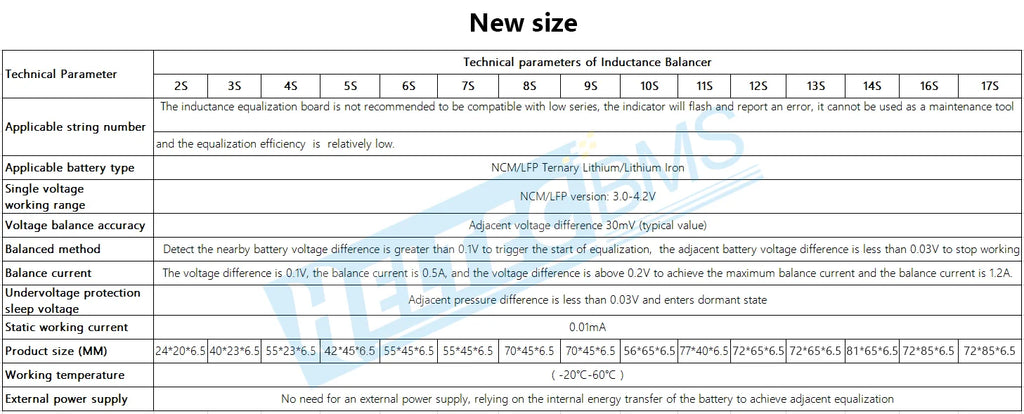

Technical Parameters:

Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.

Equilibrium current:

Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);

Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);

The smaller the differential pressure, the smaller the equalization current.

Wiring definition:

B-, the total negative pole of the battery pack (the negative pole of the first battery)

B1, the positive electrode of the first battery

B2, the positive electrode of the second battery

B3....... and so on.

Connection

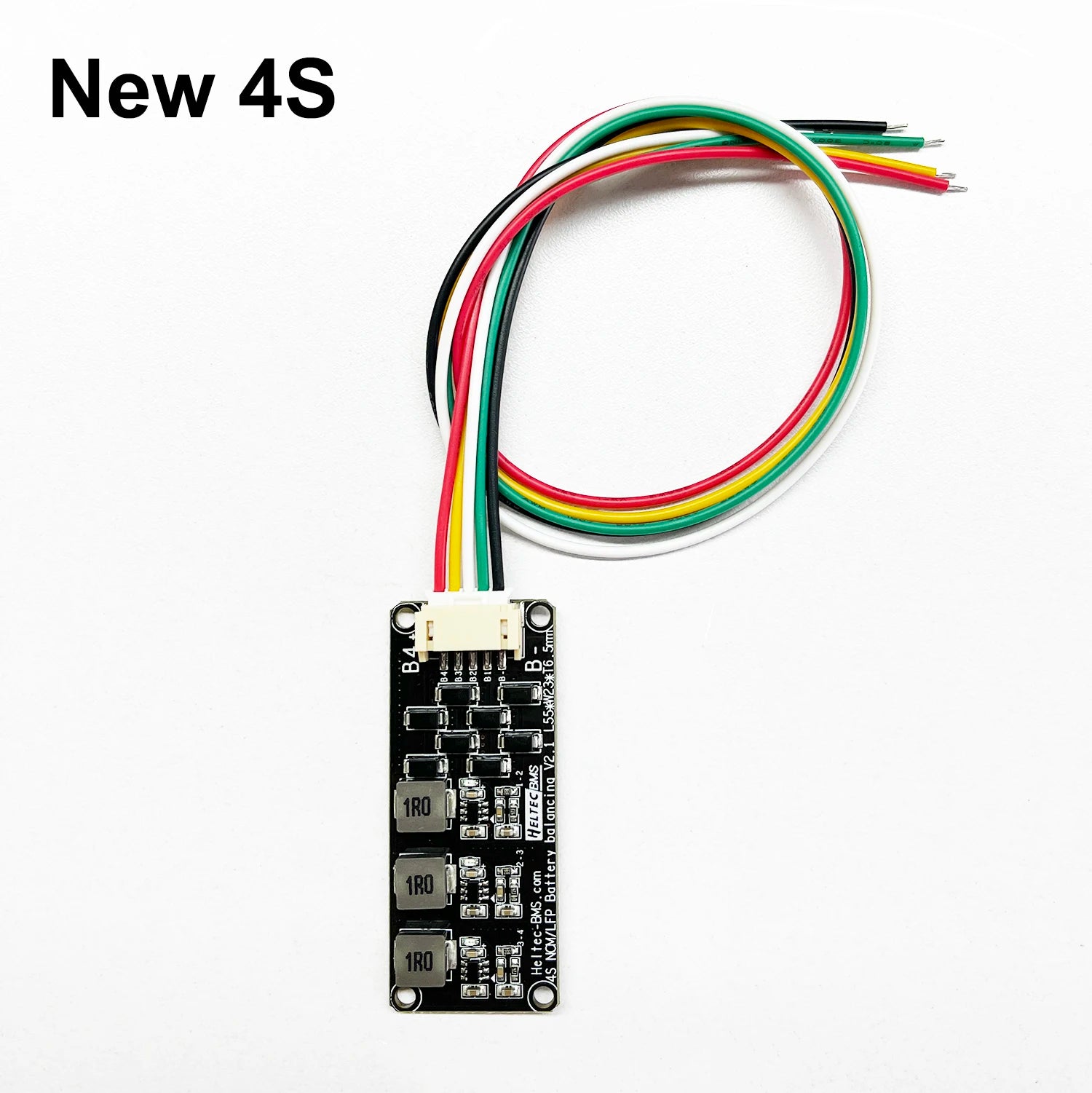

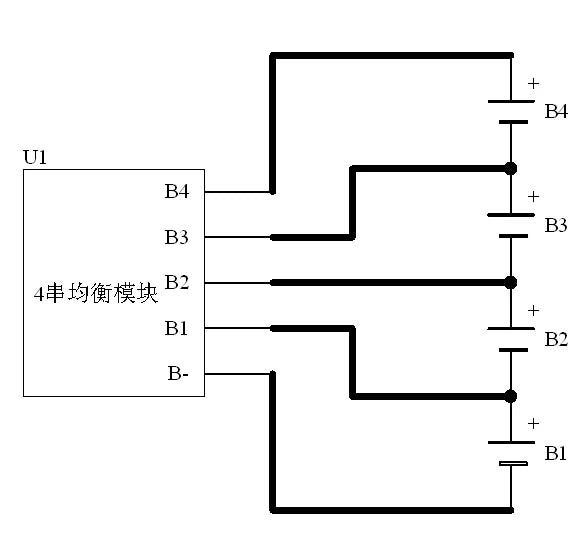

The four-string wiring diagram is as follows, and the other serial numbers are like this!

Note (13 or more string plugs need to be inserted obliquely, first touch the B-pins and insert them obliquely upwards, otherwise it may cause the board to burn out)
