SPECIFICATIONS

Brand Name: UXCELL

Certification: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature: 3 Way 8 Hole 380V 25A

High-concerned chemical: none

Model Number: Ceramic Terminal Block

Origin: Mainland China

Type: Splice

Type 1: Terminal Block Wire Connector

Type 2: Ceramic Wiring Terminal Block

is_customized: Yes

semi_Choice: yes

Enclosed Terminals. 3 Way(Pole) for the electrical cables, 6 fine copper connectors ensure a stablility of performance.
Size. 31x20x14mm/47x27.5x19.5mm in the ceramic block, copper pole fits wire up to 3.5 mm/6 mm. 5.5 mm/4.5 mm diameter hole for mouting
ceramics. Abration proof, available for 800 degree Celsus maximum operating temperature.
Compact shape. Easy and efficient for wiring connections to heaters, precise holes and smooth surface.
Application. Ceramic terminal blocks are used in extremely high temperature applications such as hot glue devices, furnaces, heaters, process equipment and machinery.

3 Way Ceramic Terminals Block

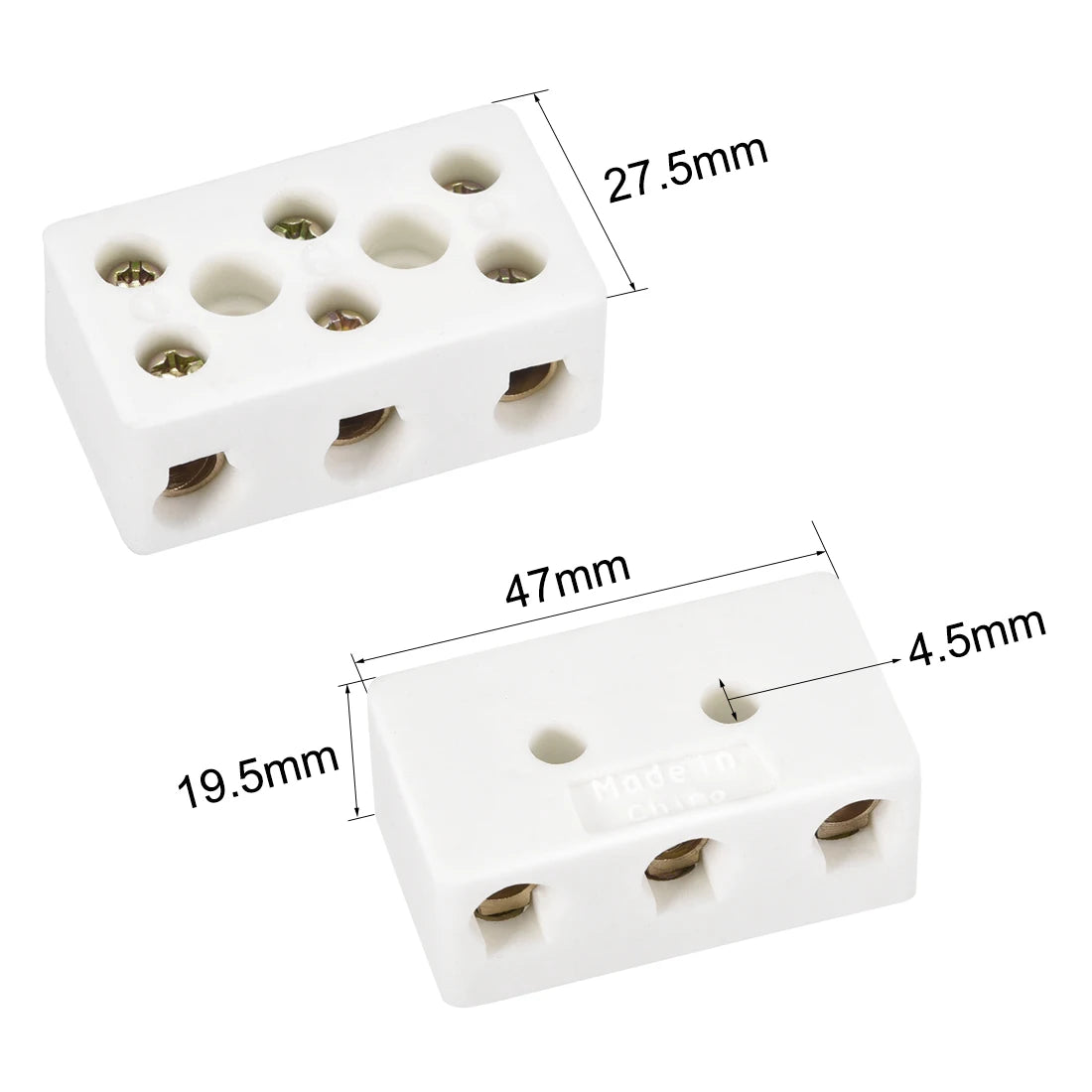

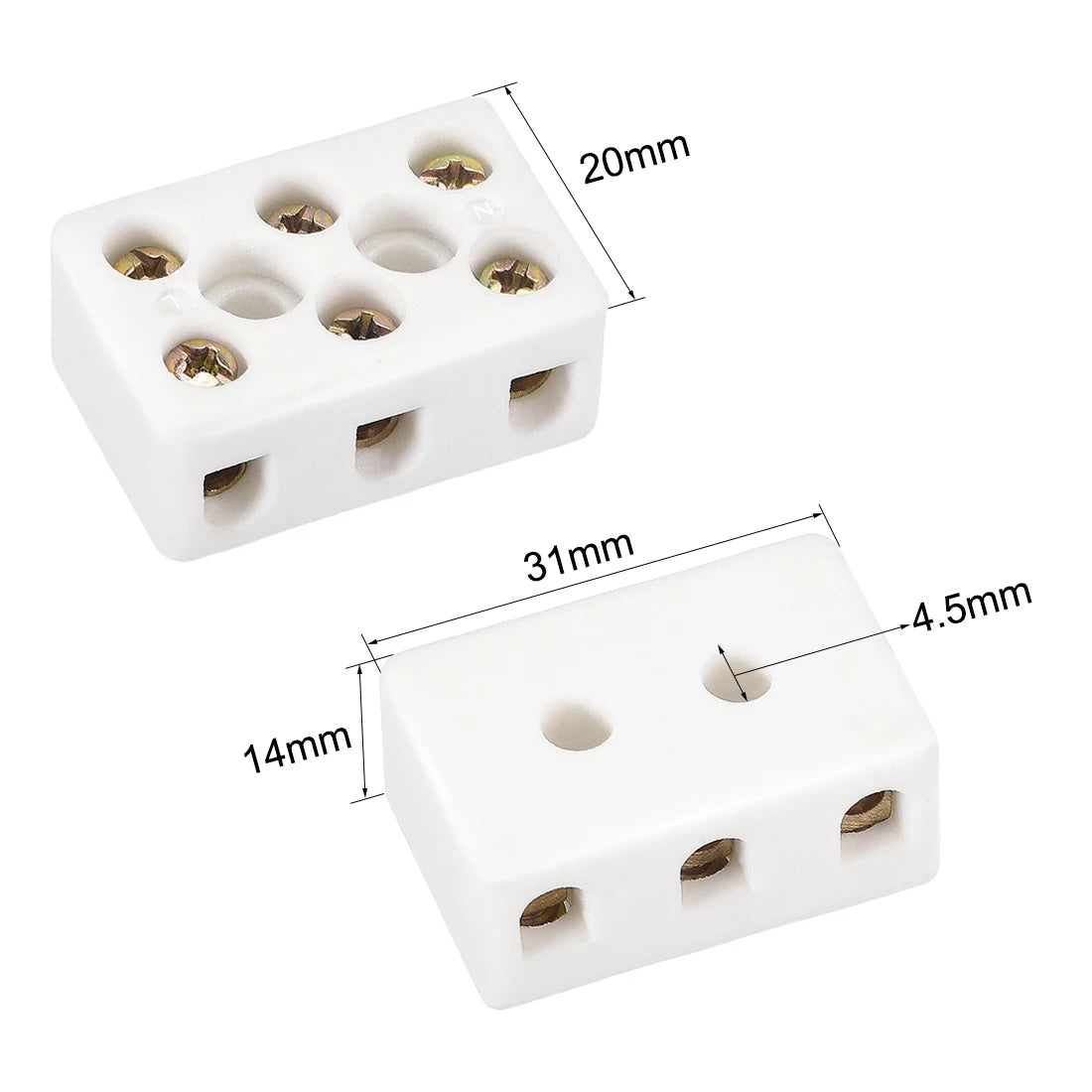

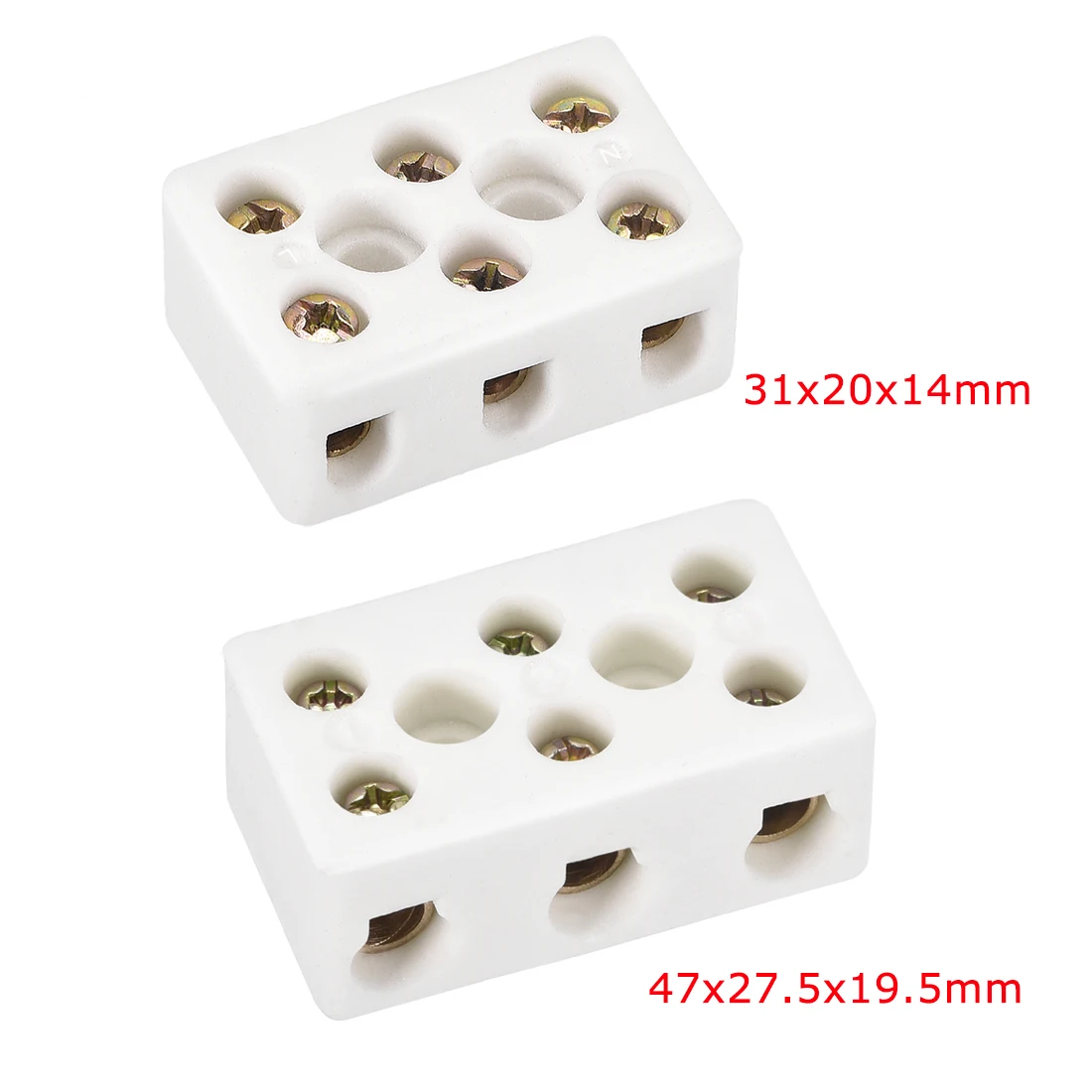

Block Size(Length, Width, Height): 31x20x14mm/47x27.5x19.5mm

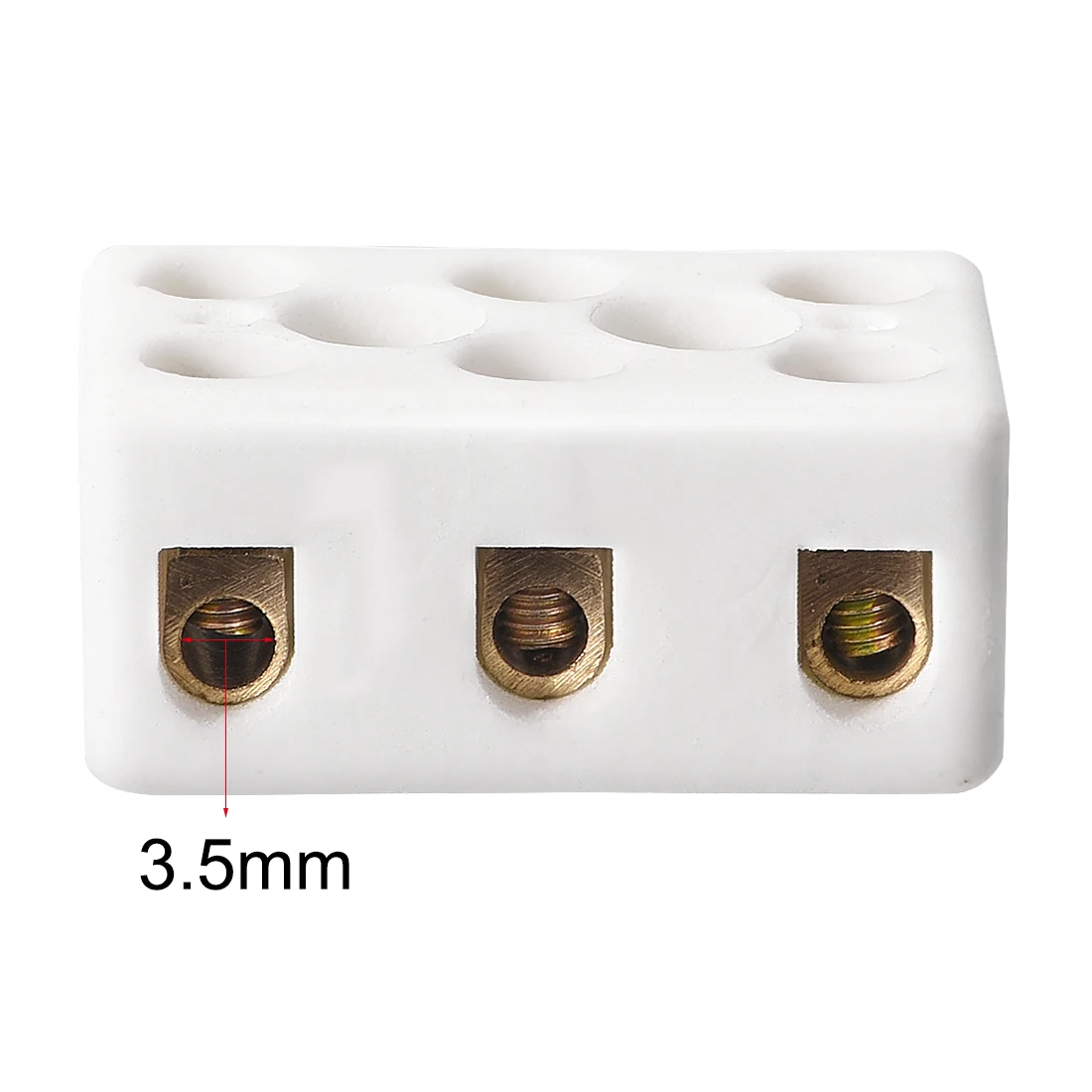

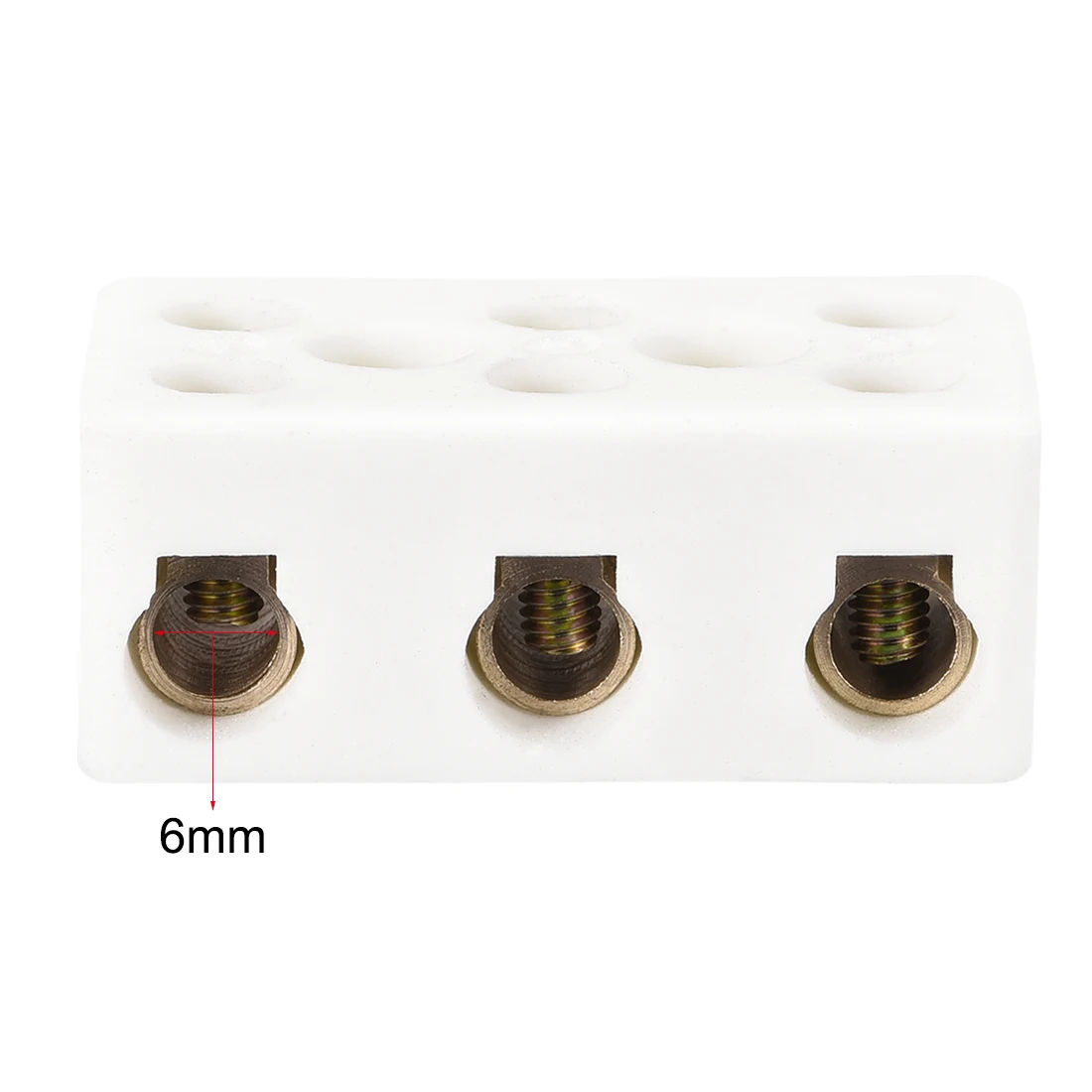

Diameter of the copper hole: 3.5mm/6mm

Hole for mounting: 2

Diameter of the mouting hole: 4.5mm/4.5mm

Materials: Ceramics / Porcelain

Maximum Operating Temp: 800 in Celsius

Rated Voltage/Current: 380V/25A

Screw Materials: Copper with Zinc plated

Package Content:

1/2pcs 3 Way 8 Hole Ceramic Terminals Block
