1/2pcs Winsen MH-410D NDIR InfraredC02 Sensor Anti, Anti-vaporInterference UART, Analog Voltage SignalLong Lifespan

1/2pcs Winsen MH-410D NDIR InfraredC02 Sensor Anti, Anti-vaporInterference UART, Analog Voltage SignalLong Lifespan

$963.27

$963.27 $0.00

Color 2PC 0-5 percent VOL 2PC 0-1 percent VOL 1PC 0-6000 ppm 1PC 0-2000 ppm 1PC 0-5 percent VOL 1PC 0-1 percent VOL 2PC 0-6000 ppm 2PC 0-2000 ppm

Description

SPECIFICATIONS

Application Scenarios: Civilian Grade

Battery Included: no

Brand Name: NONE

DIY Supplies: Electrical

High-concerned chemical: none

Is Smart Device: no

Measurement Range: 0-5% Vol

Model Number: MH-410D

Origin: Mainland China

PCBincluded: No

Semi-finishedproduct: No

With LCD Screen Or Not: No

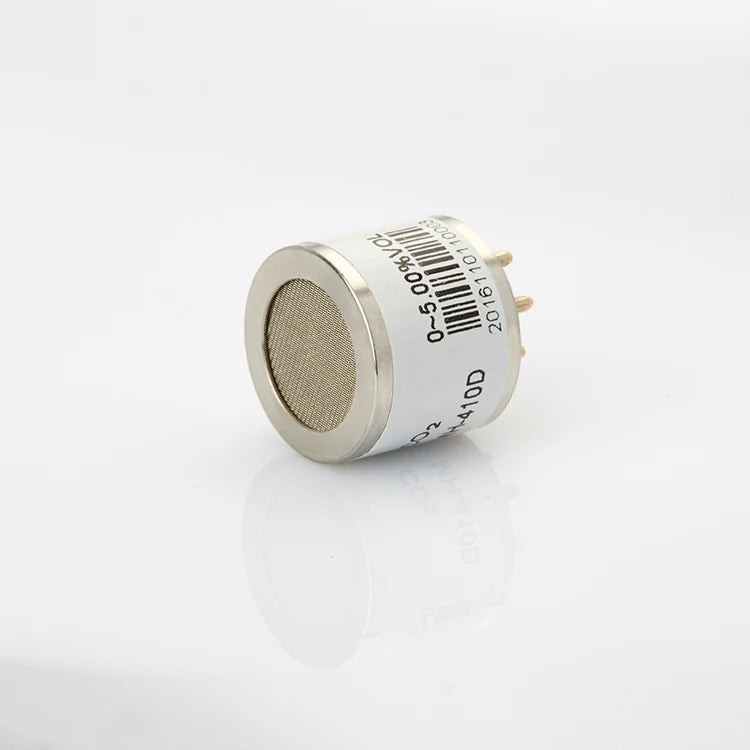

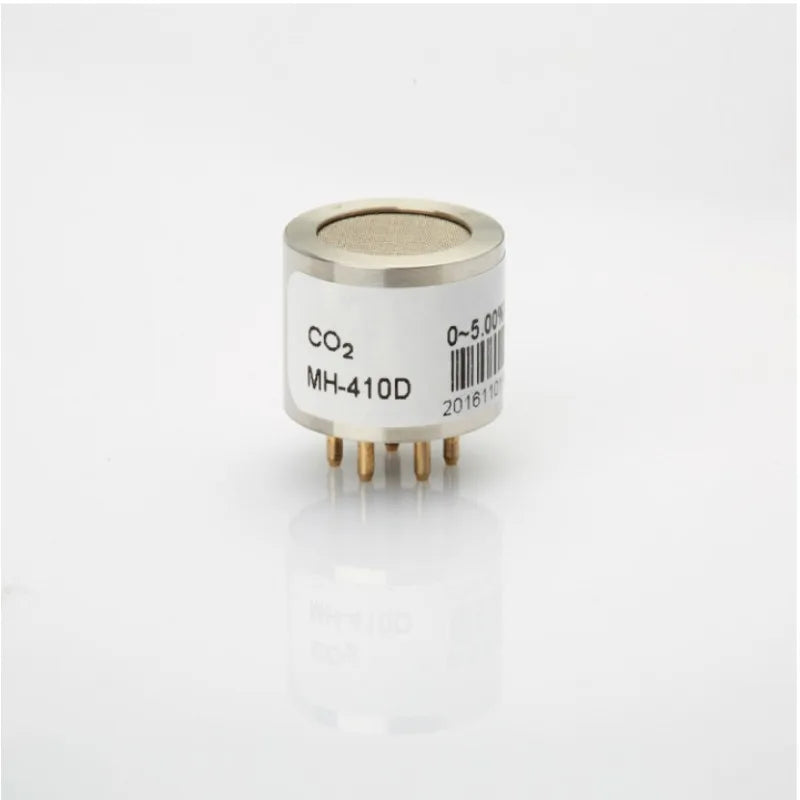

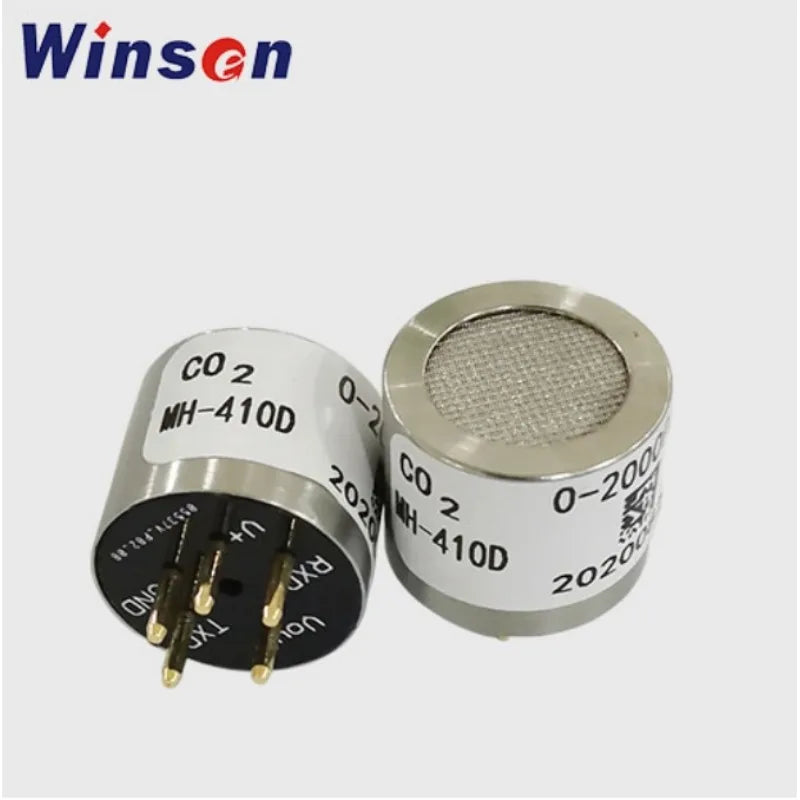

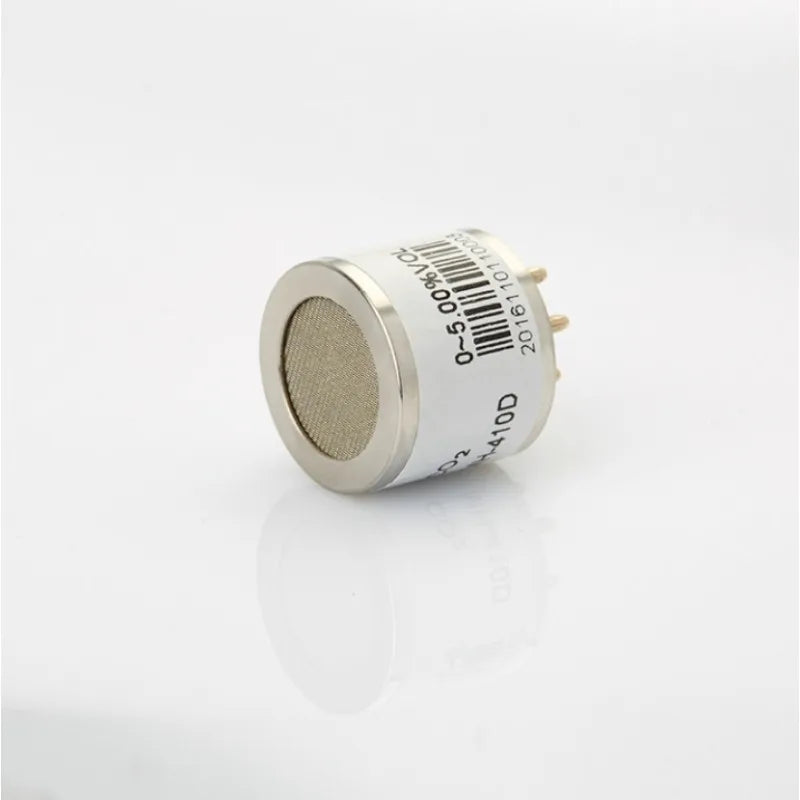

MH-410D infrared gas sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CO2 in air and has good selectivity, stable performance, long life, also is independent of Oxygen. The inside temperature sensor could be used for temperature compensation. This miniature infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, micro machine workout and superior circuit design.

Application

Widely used for HVAC refrigeration, industrial-process control and safety protection,agriculture and animal husbandry.

Features

High sensitivity, high resolution, low power consumption, fast response time
Output method: UART, analog voltage signal
Temperature compensation, excellent linear output
Long lifespan, excellent stability, anti-poisons, anti-vapor interference

Specifications

Fig1 Main Parameters

Model	MH-410D
Detection gas	CO2
Working Voltage	3.6~5VDC (Need to be powered by safety barrier)
Average Current	<85mA
Interface Level	3.0V
Detection range	0-10%volOptional (refer Fig2.)
Output Signal	UART
Output Signal	0.4~2V (Need to be powered by safety barrier)
Warm-up Time	3 min
Response Time	T90<30s
Working Temperature	-20°C ~60°C
Working Humidity	0~95%RH (no condensation)
Sizes	Φ20x22.6mm
Weight	35g
Life Time	>5 years
Defense Grade	IP54
Power, communication terminal Intrinsic safety	Ui=7.5VDC,Ii=265mA, Pi=0.5W,Ci=10μF,Li=0mH

Fig2. Measuring Range and Resolution

Target Gas	Measuring Range	Accuracy	Note
CO2	0~2000 ppm	±(50ppm + 5% of Read Value)	Temperature compensation
	0~6000 ppm		Temperature compensation
	0~1% VOL		Temperature compensation
	0~3% VOL		Temperature compensation
	0~5%VOL		Temperature compensation
