SPECIFICATIONS

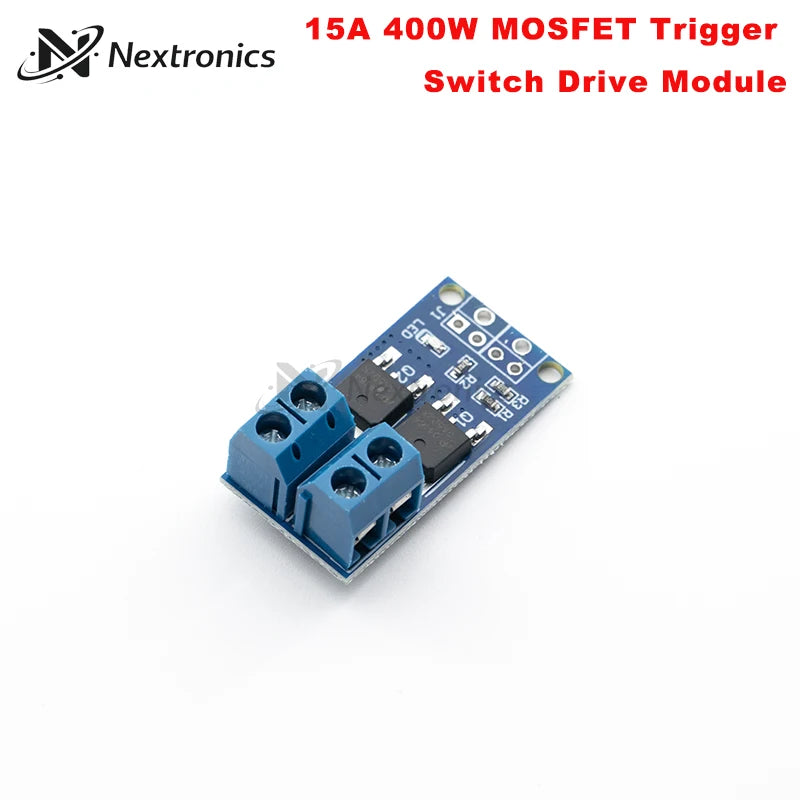

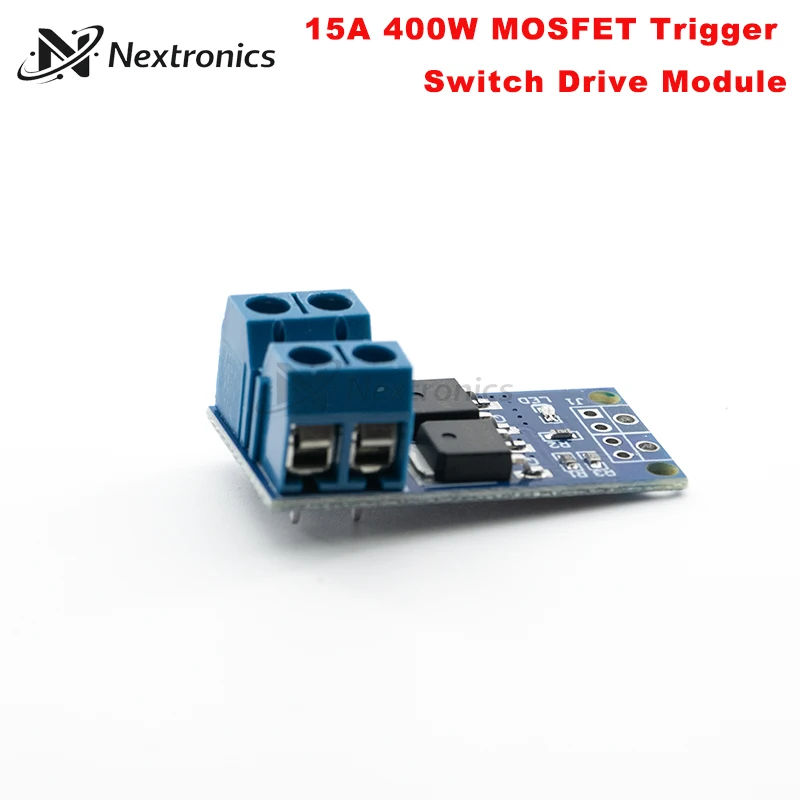

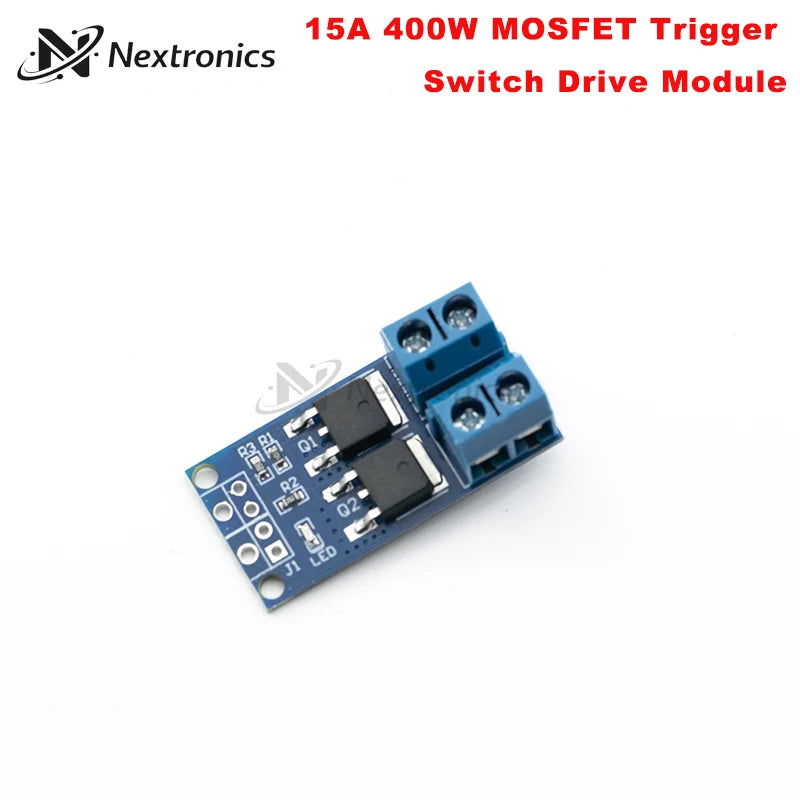

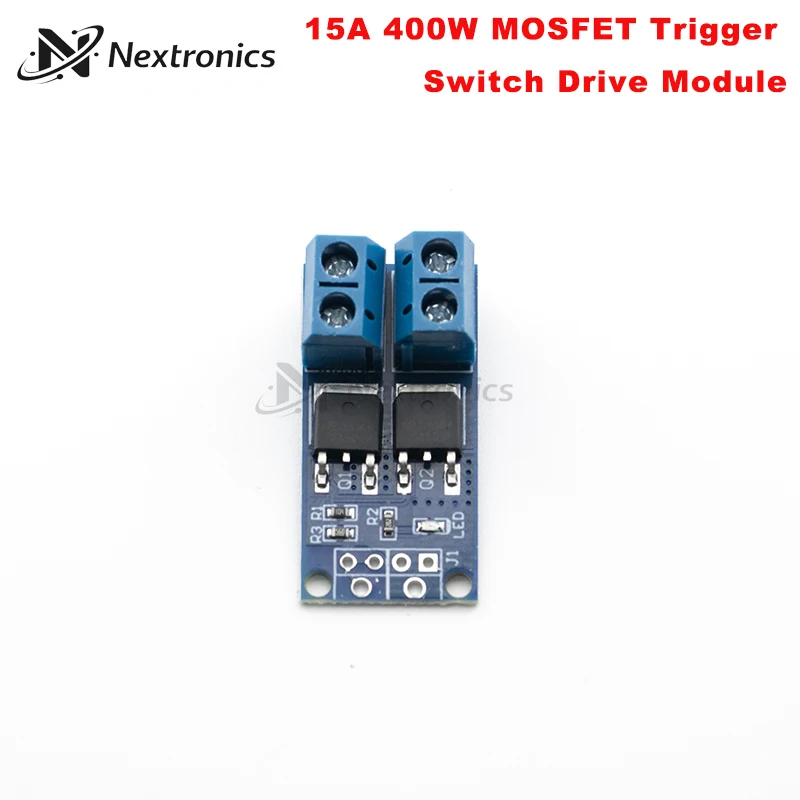

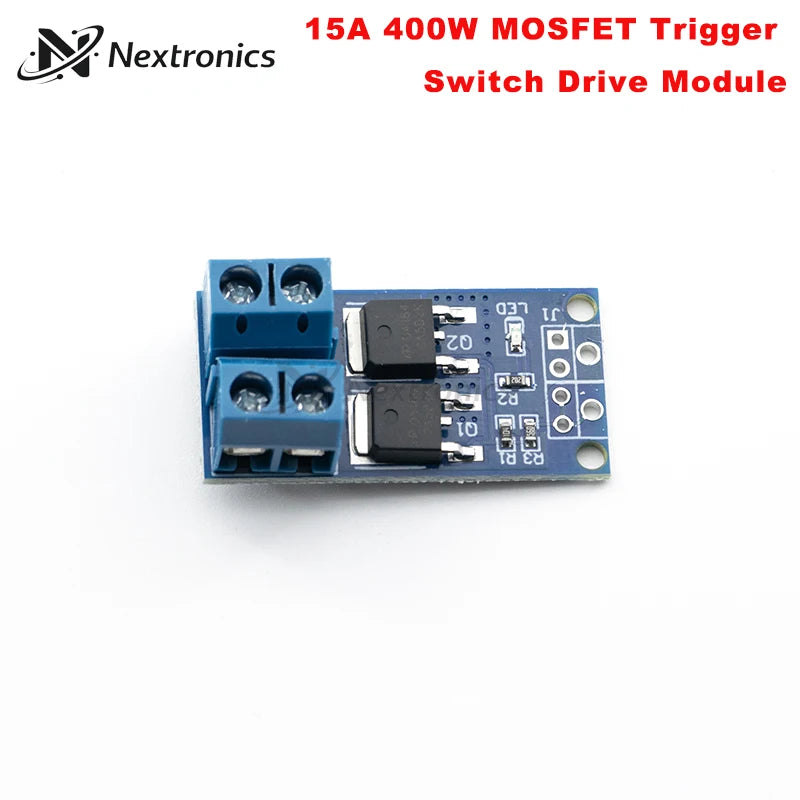

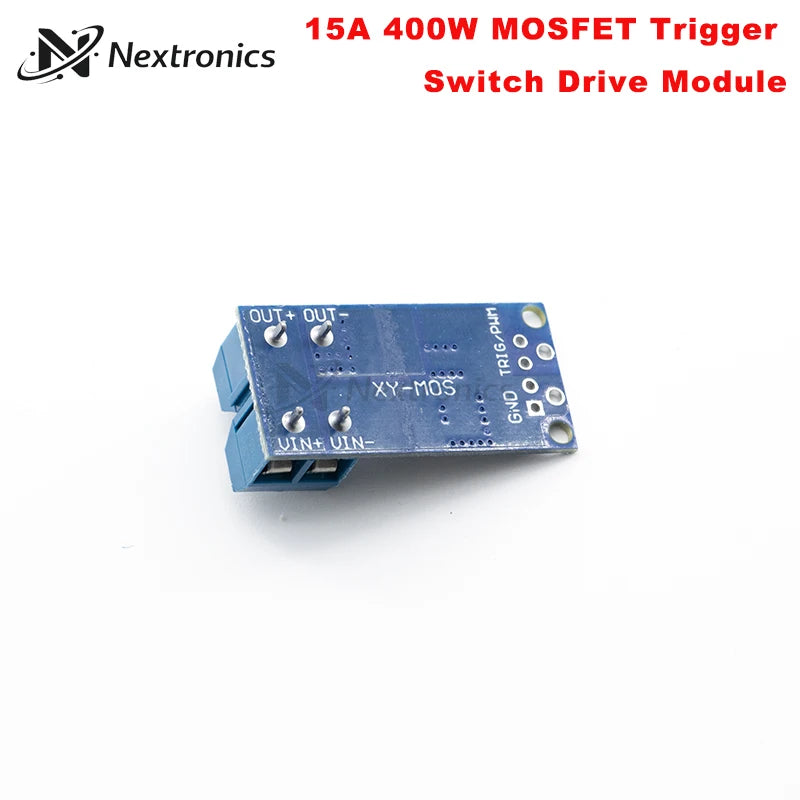

DC Motor Speed Controller Module DC 5V-36V High Power MOSFET Switch Drive Module 15A Max 30A 0-20KHz for Lamp Brightness Control

Features:

1. High Power Output: Experience the prowess of this MOSFET trigger switch drive module featuring a dual MOS parallel active output, delivering impressive power with a continuous current of 1A and a maximum power of 400W at room temperature. It satisfies the needs of various high-power devices.
2. Wide Voltage Range, PWM Support: With a working voltage range of DC 5V to 36V and compatibility with PWM signals, this PWM regulator control panel offers versatility in controlling devices. It accepts digital signals within the voltage range of DC 3.3V to 20V, making it suitable for use with microcontroller IO ports, PLC interfaces, and other DC power sources.
3. Robust Output Capability: The PWM adjustment electronic switch control board exhibits robust output capability, allowing control of high-power devices such as motors, bulbs, LED strips, DC motors, mini water pumps, solenoid valves, and more. It enables precise control over motor speed and light brightness through PWM input.
4. Infinite Switching Lifespan: Designed for durability, this DC motor speed controller module boasts an unlimited switching lifespan, ensuring long-term reliability and uninterrupted performance.
5. Compact Design, Easy Integration: Measuring just 34x17x12mm (1.34x0.67x0.47inch), this high power MOSFET switch drive module offers a compact form factor, facilitating effortless integration into various applications. Easily achieve control over high-power devices with this versatile and efficient module.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Product Parameters:

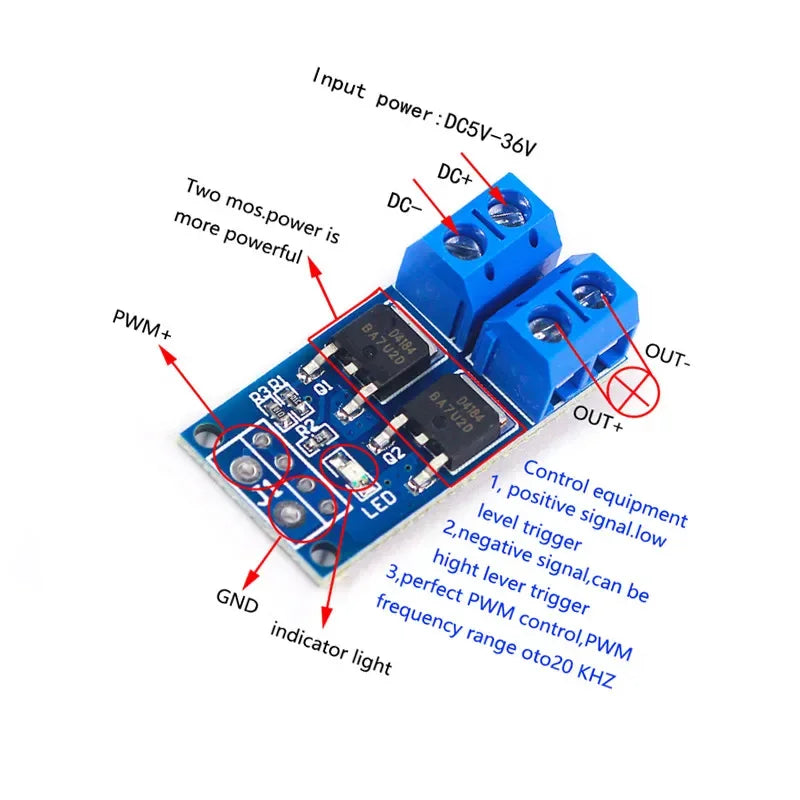

1. Operating Voltage: DC 5V--36V
2. Trigger Signal Source: Digital High And Low Levels (DC3.3V - 20V), Can Be Connected To The Microcontroller Io Port, Plc Interface, DC Power Supply, Etc., Can Be Connected To The Pwm Signal, The Signal Frequency 0 - 20khz Support
3. Output Capacity: DC DC 5V - 36V, Continuous Current At Room Temperature 1, Power 400w! Auxiliary Cooling Conditions, Is A Large Current Up To 30A!
4. Application: The Output Can Control High-Power Devices, Motors, Light Bulbs, Led Light Strips, Dc Motors, Micro Pumps, Solenoid Valves, Etc., Can Be Input Pwm, Control The Motor Speed, The Brightness Of The Lamps, Etc.
5. Service Life: Unlimited Switching
6. Working Temperature: -40-85℃.
7. Size: 34*17*12mm/1.34x0.67x0.47inch

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
