$148.91

$148.91 $0.00

Model Number 10PCS 5PCS 3PCS 1PCS

Ships FromChina Mainland

Description

SPECIFICATIONS

Application: Computer

Brand Name: XYCJJCXL

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: -30+85

Origin: Mainland China

Package: SMD

Supply Voltage: 1.8V-3.6VDC

Type: Module

semi_Choice: yes

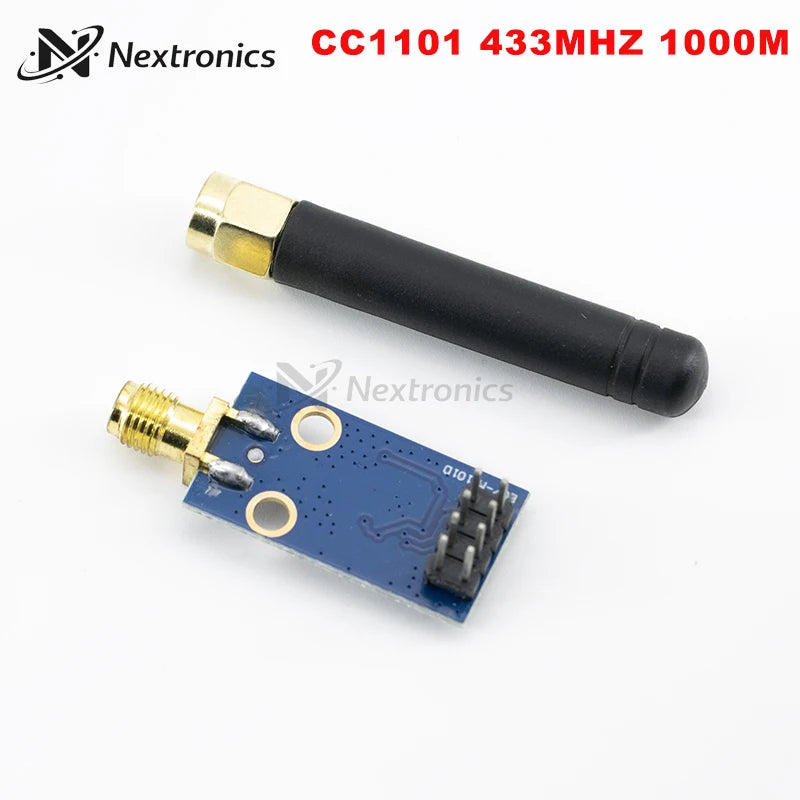

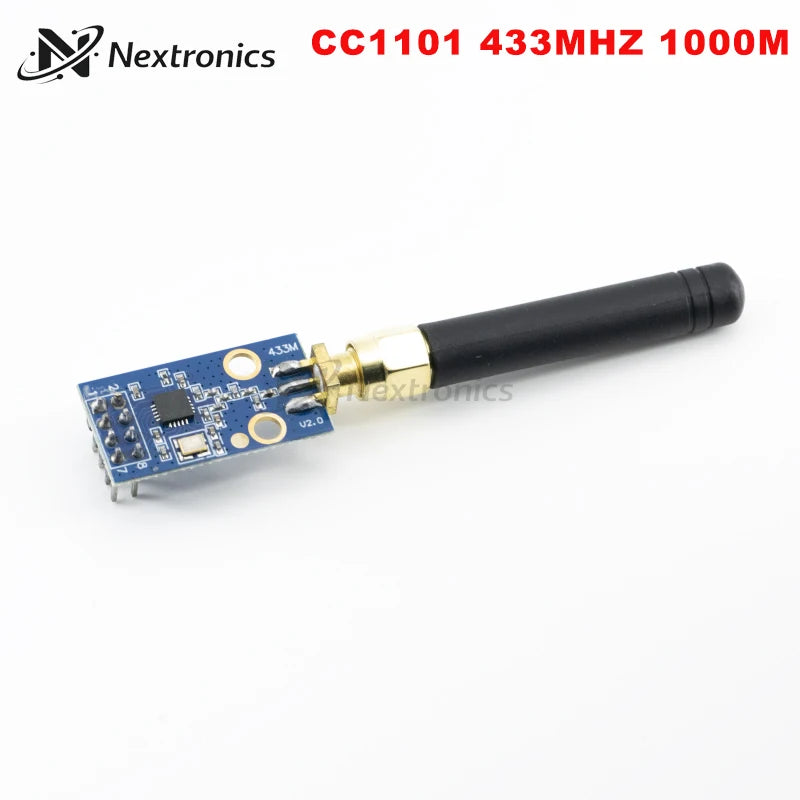

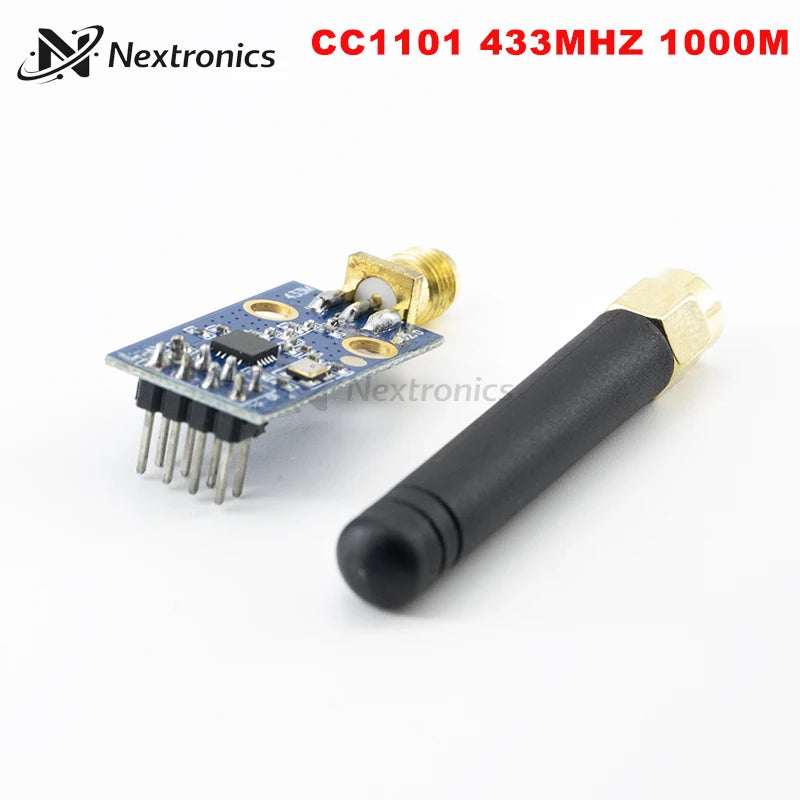

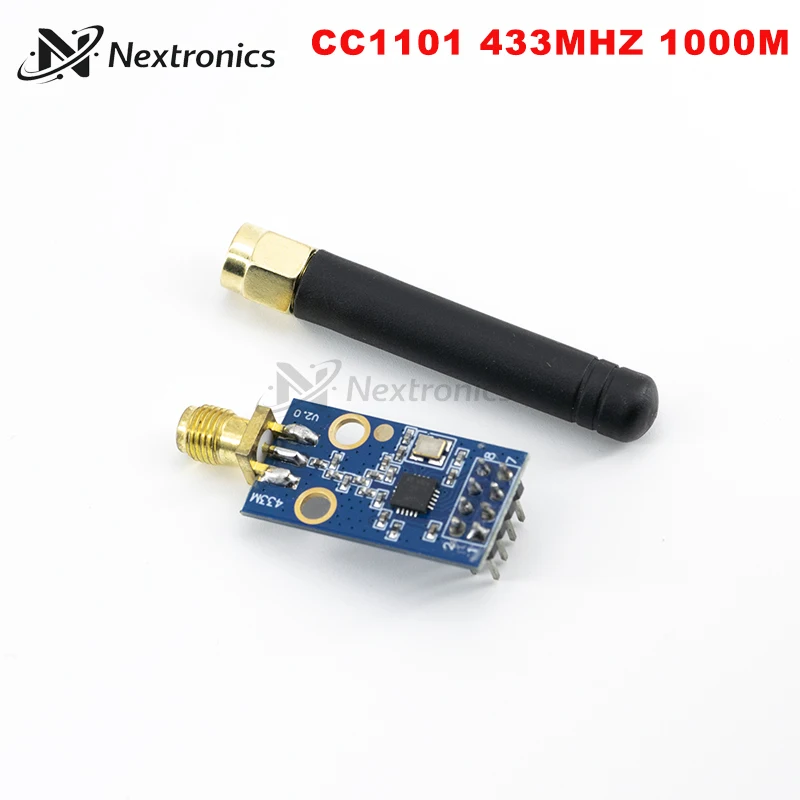

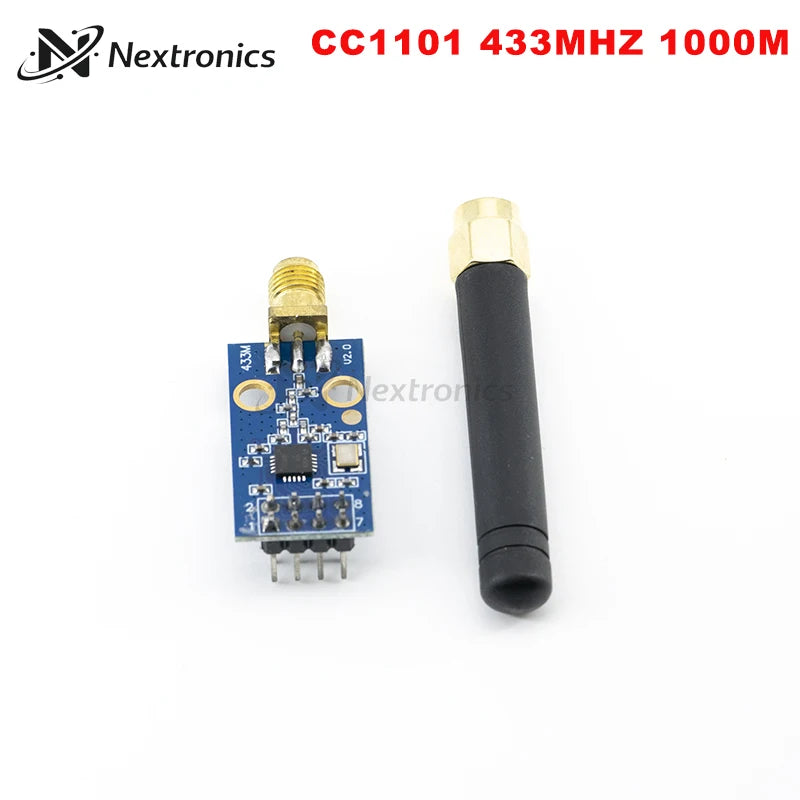

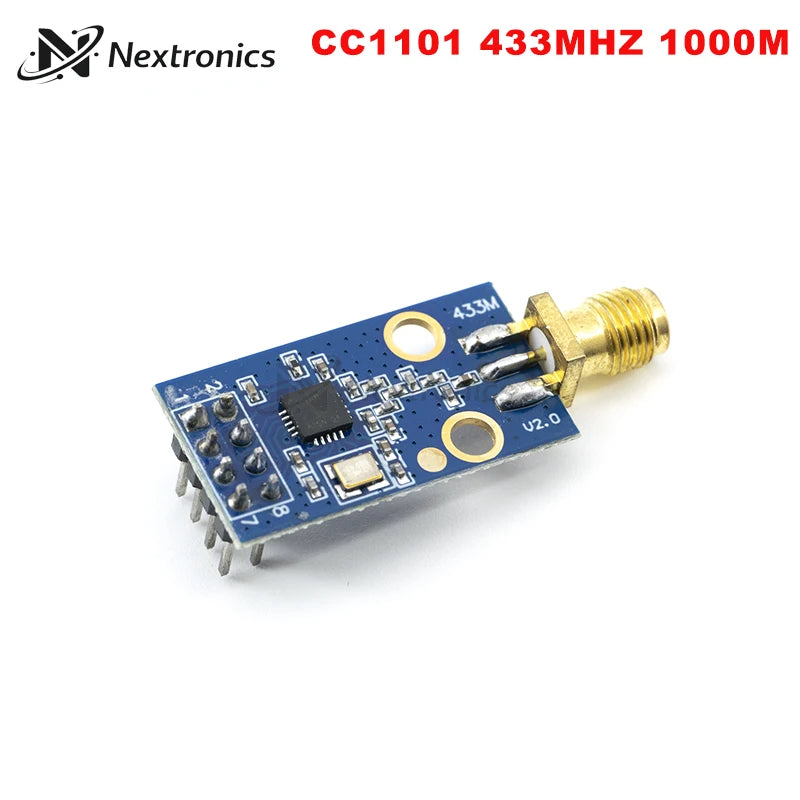

CC1101 Wireless Module 433Mhz

RF Chip: CC1101

Central frequency: 10mW

Communication distance: 380 meters

Operating voltage: 1.9-3.6VDC (to meet battery supply requirements)

Module size 15*28mm
Production process placement machine placement
Interface mode 2*4*2.54 (available universal board Dupont wire)
Voltage 1.8V-3.6VDC
Communication level: 07VDD-3.6VDC
The measured distance is greater than 380 meters (depending on whether there are obstacles in the environment)
Maximum power 10dpm(about 10mw)
Air speed 1.2kbps-500kbps (no more than 20kbps is recommended due to 433 physical characteristics)
Transmission current 29.2mA(peak)
Receiving current: 14.7mA
Communication interface: Standard SPI interface, mode 0, communication rate up to 10Mbps
Single packet 1-32 bytes, level 3 FIFO buffering
RSSI support
Working temperature: -30 degrees -85 degrees
Working temperature 10%-90%
Storage temperature: -40 degrees -125 degrees
Working band: 387MHz-464MHz (can be adjusted by software, 433 (+ or - 10%) recommended)
Receiving sensitivity: -117dpm@250kbps

Weight: 8g (Module with antenna)

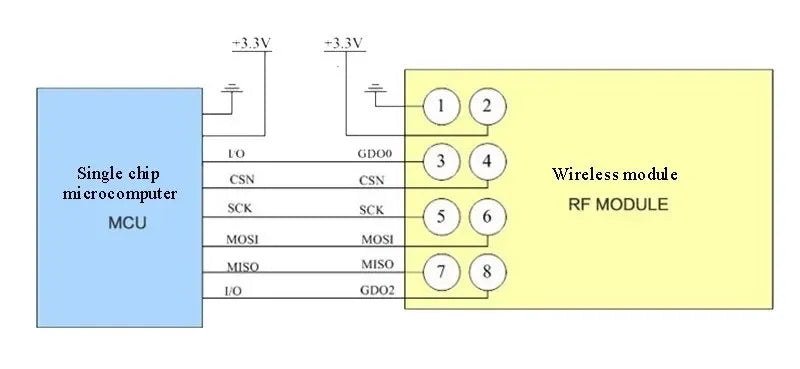

1 GND	Ground wire
2 VCC	The power supply must be 1.8V-3.6V
3 GDD0	Output Module information output
4 CSN	Input Module chip select pin used to start an SPI communication
5 SCK	Input Module SPI bus clock
6 MOSI	Input Module SPI data input
7 MISO/GD01	Output Module SPI data output
8 GD02	Output Module information output
