SPECIFICATIONS

💡 INTRODUCTION

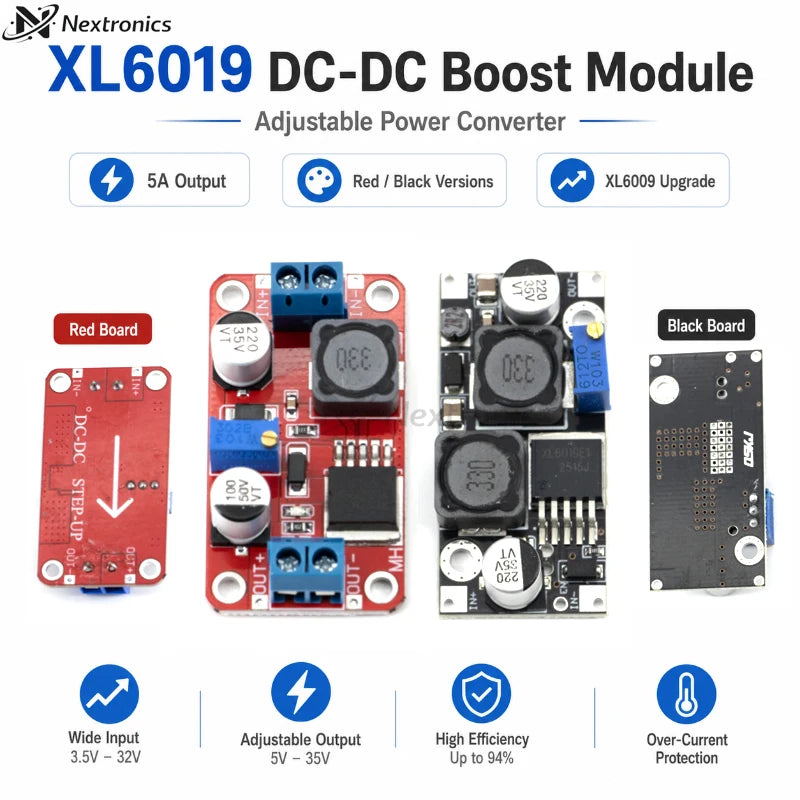

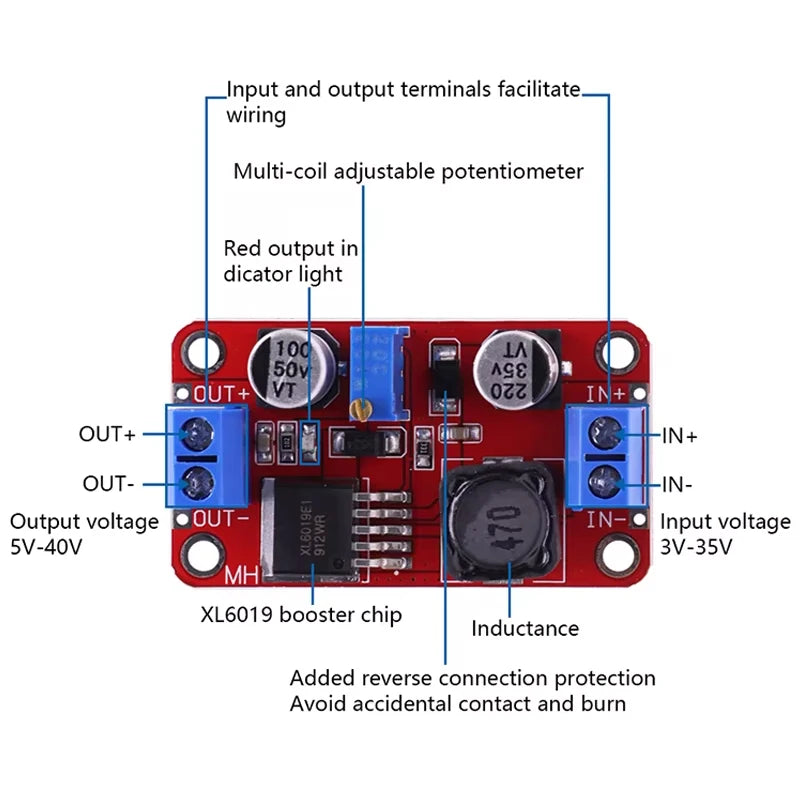

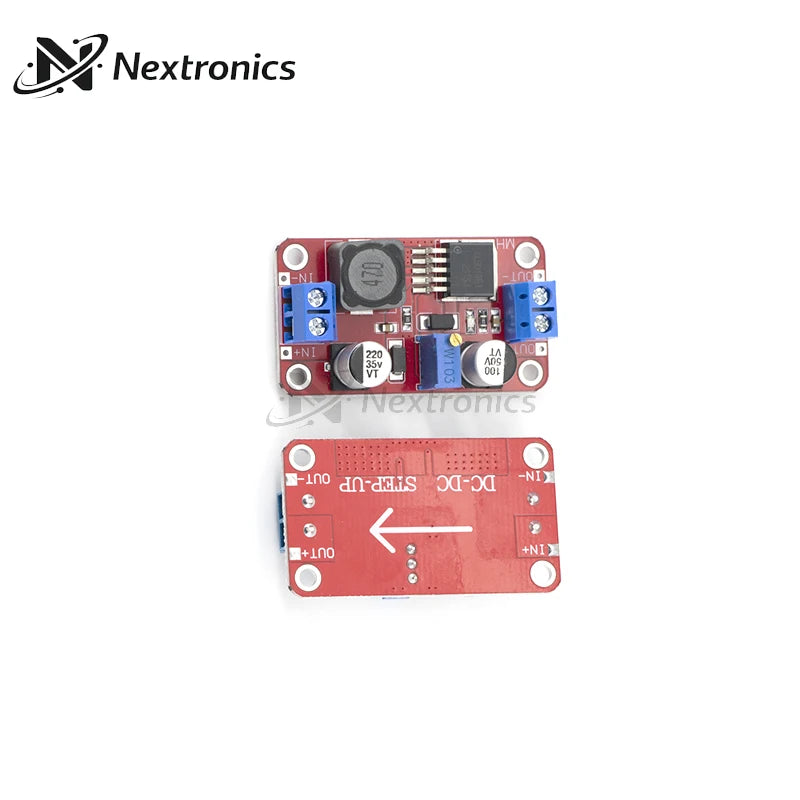

⚙️ XL6019 is a monolithic integrated circuit specially designed for boost and buck.
🔋 It can work in the range of DC 5V to 40V input voltage, with low ripple and built-in power MOS.
⏱️ XL6019 has built-in fixed frequency oscillator and frequency compensation circuit, which simplifies the circuit design.
🔄 The PWM control loop can adjust the linear change of duty cycle from 0% to 90%.
🛡️ Built-in over-current protection function and EN foot logic level turn-off function.

✨ CHARACTERISTICS

• 🔧 The conventional fully integrated constant voltage output scheme has fewer peripheral devices and lower system cost.

• ⚡ Wide voltage range input, high input voltage up to 35V

• 🔋 The output voltage can be adjusted to support 40V.

• 🛡️ Built-in over-temperature protection and over-current protection, complete set of reliability protection circuit, high reliability

• 🚀 Conversion efficiency can reach more than 90%, convenient for thermal design.

• 🔌 Wide input voltage range from 5V to 40V

• 📏 1.25V Output Voltage Sampling Voltage

• ⚠️ SW built-in overvoltage protection function

• ⏱️ Fixed 220KHz switching frequency

• 💪 Large 5A Switching Current

• 🔥 Over 94% conversion efficiency

• 🔄 EN foot TTL turn-off function

• 📈 Excellent Linearity and Load Adjustment Rate

• 🔋 Built-in power MOS

• ⚙️ Built-in frequency compensation function

• 🚦 Built-in soft start function

• ❄️ Built-in thermal shutdown function

📊 PARAMETER

🔋 APPLICATION

• 💻 EPC/Laptop Vehicle Adapter

• ⚡ Boost and Buck Conversion

• 🔧 Power Supply for Handheld Equipment

⚡ **Versatile Power Conversion Solution**

📈 The 1/5PCS 5A DC-DC Step Up Power Module is a versatile solution for power conversion needs. Designed to boost voltage from 3.3V to 35V, this module is perfect for a variety of applications. Whether you're looking to increase the voltage for an Arduino, STM, or other microcontrollers, this module is a reliable choice. With its wide operating temperature range of -40 to +85℃, it can withstand extreme conditions, making it suitable for use in a variety of environments.

🛡️ **Efficient and Reliable Performance**

🚀 The 1/5PCS 5A DC-DC Step Up Power Module is not just about versatility; it's also about efficiency and reliability. With a dissipation power range of 3-35V, this module can handle a variety of power requirements. The 5A output current ensures that the module can handle a significant load, making it suitable for high-power applications. The module's compact size and lightweight design make it easy to integrate into your projects, while the robust 105℃ volatile material ensures that it can withstand high temperatures, making it ideal for long-term use.

🧰 **Easy Integration and Use**

🔗 Designed with ease of use in mind, the 1/5PCS 5A DC-DC Step Up Power Module is a breeze to integrate into your projects. The module's electronic module functions make it a valuable addition to any electronic enthusiast's toolkit. Whether you're a professional or a hobbyist, this module is perfect for anyone looking to step up their power conversion game. Its compact size and lightweight design make it easy to transport and store, making it a valuable addition to your computer or workspace.

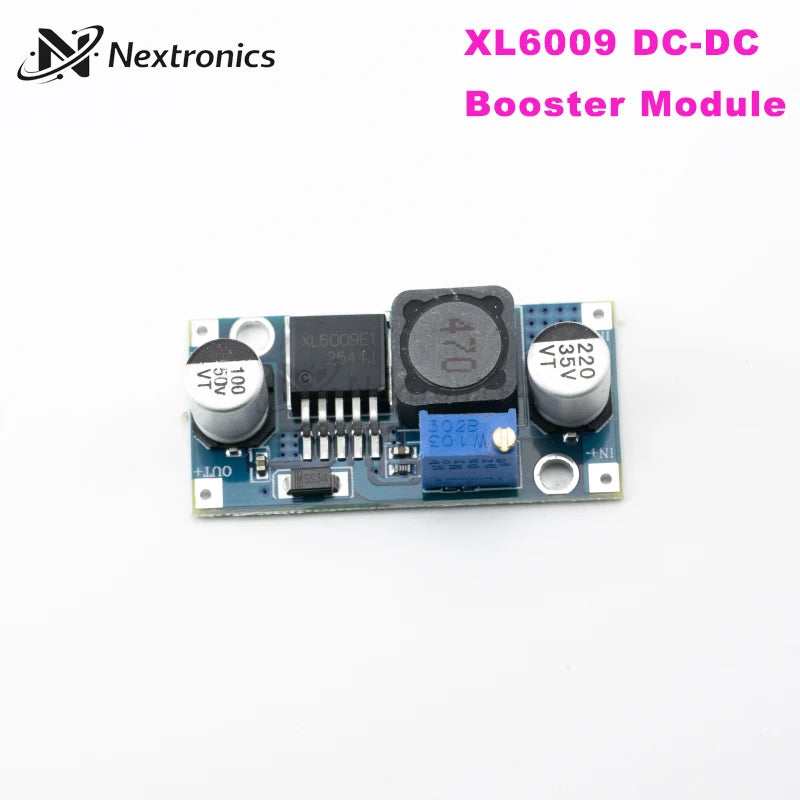

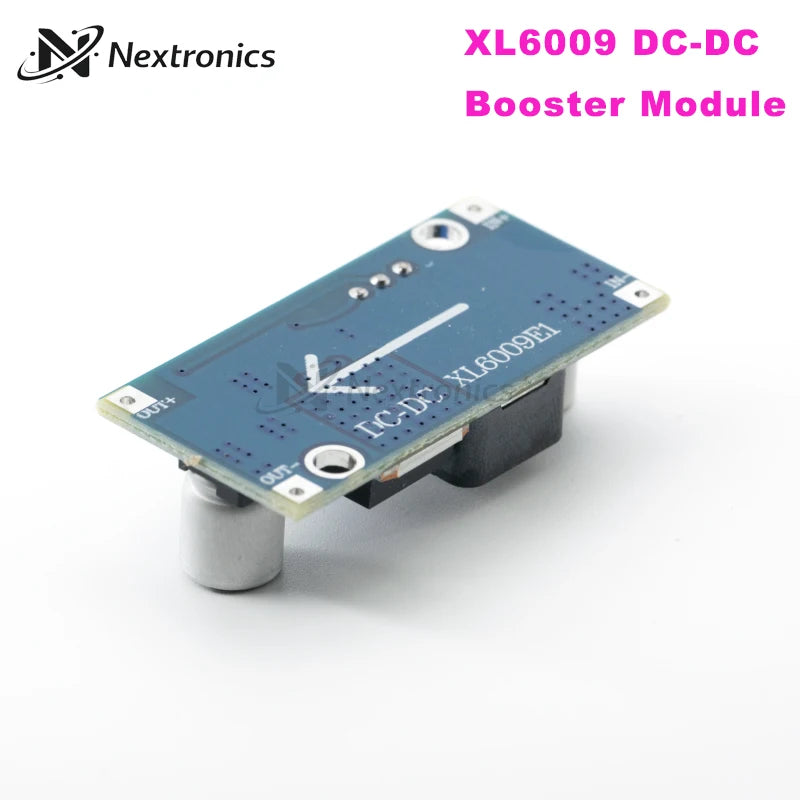

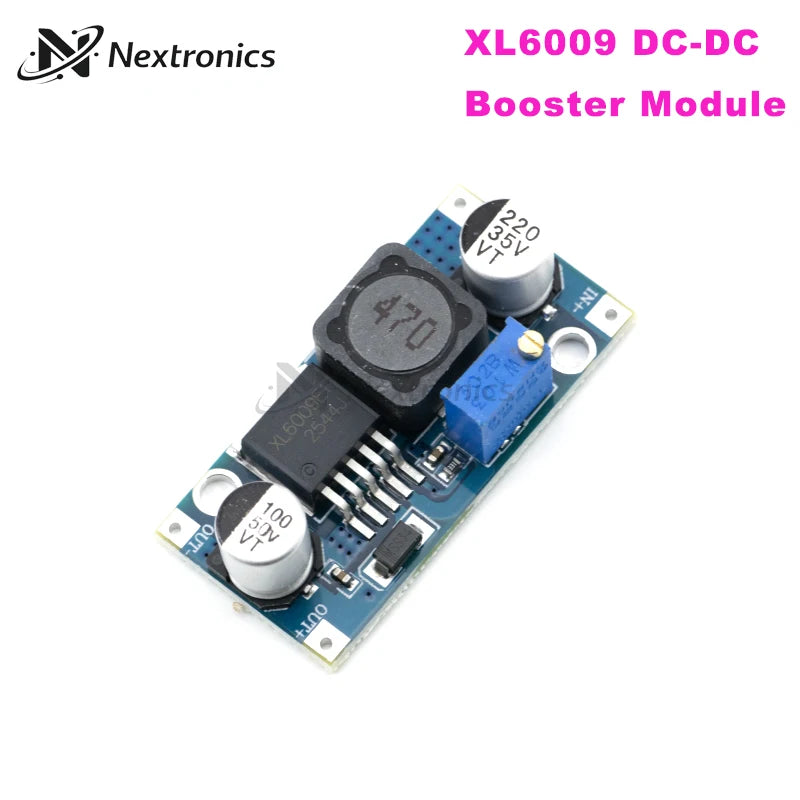

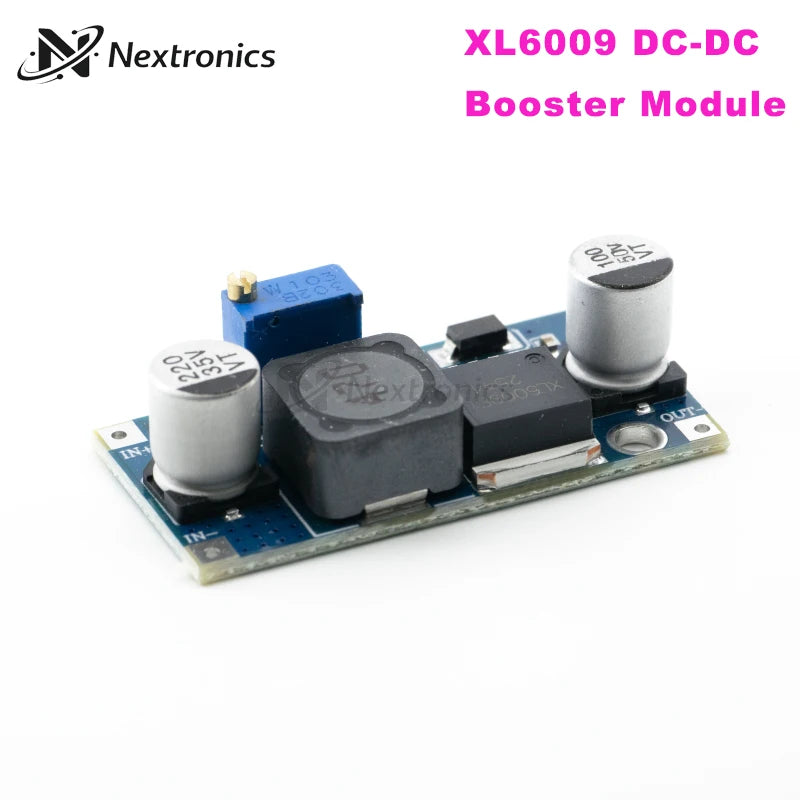

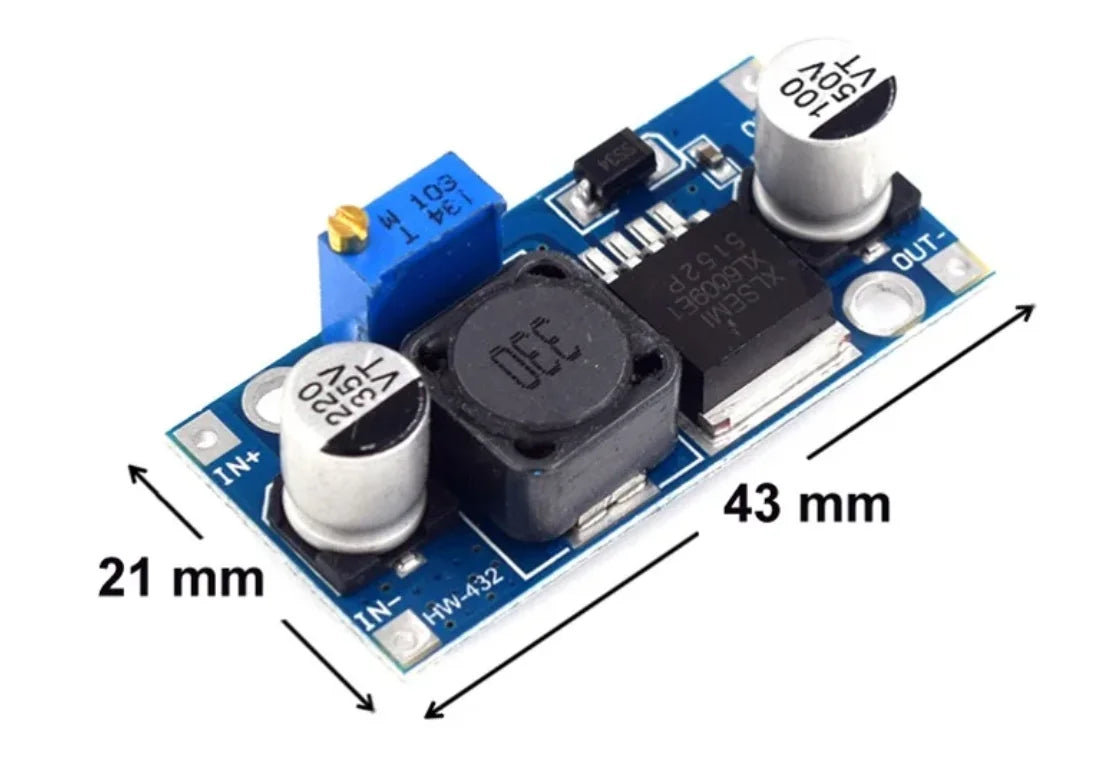

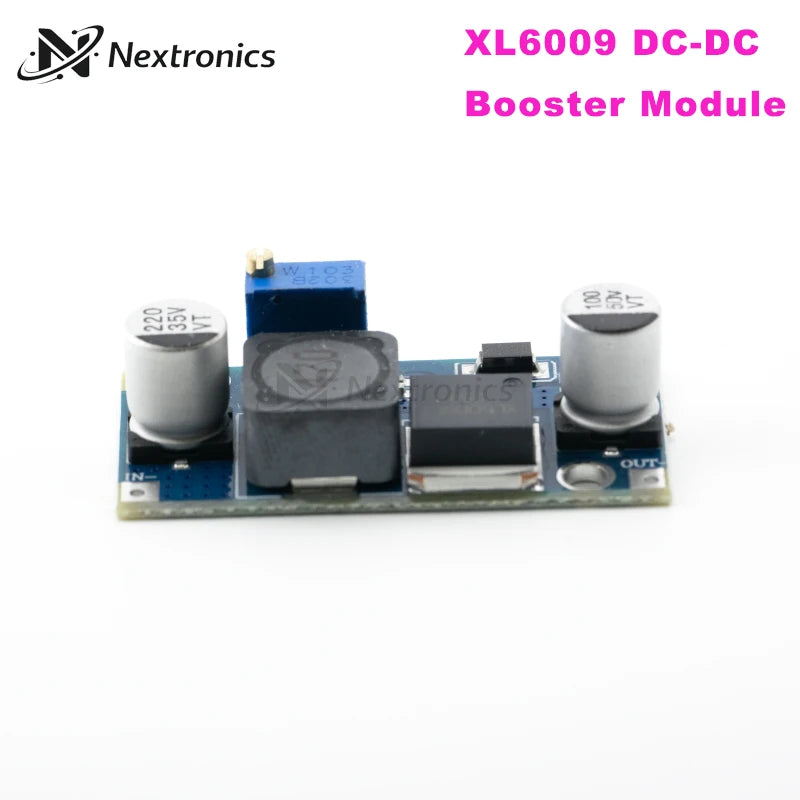

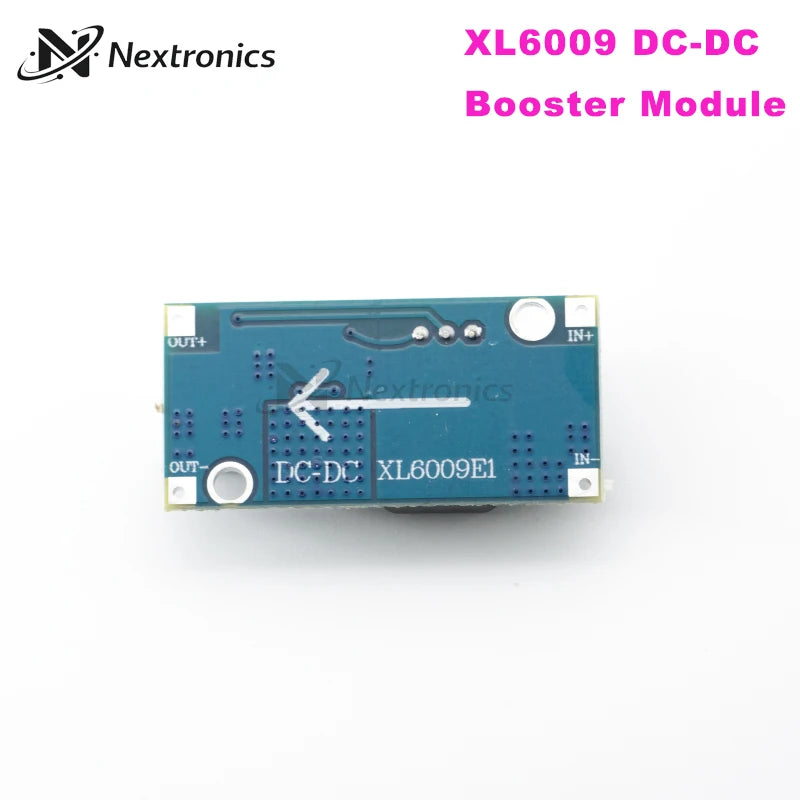

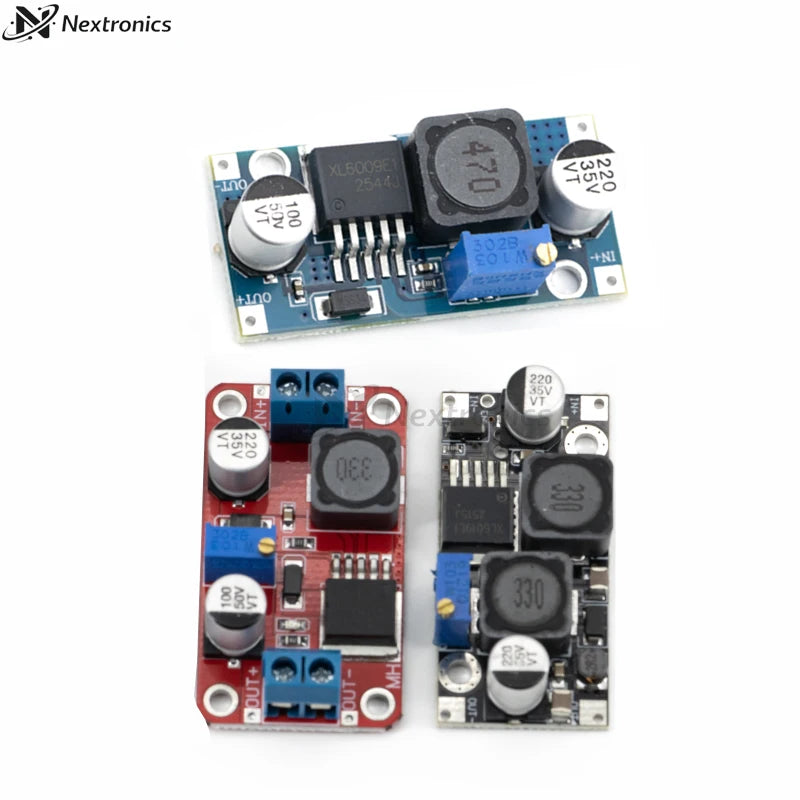

XL6009 4A Boost Converter Step Up Adjustable 15W 5-32V to 5-50V DC-DC Power Supply Module LM2577 Step-up Module

Product Introduction:

XL6009 is a high-performance boost (BOOST) module with 4A switching current. This module uses XL6009E1, a second-generation high-frequency switch technology, as the core chip, which has much better performance than LM2577, a first generation technology. The XL6009 boost module has lower cost and superior performance, The LM2577 module is about to be phased out.

Product parameters:

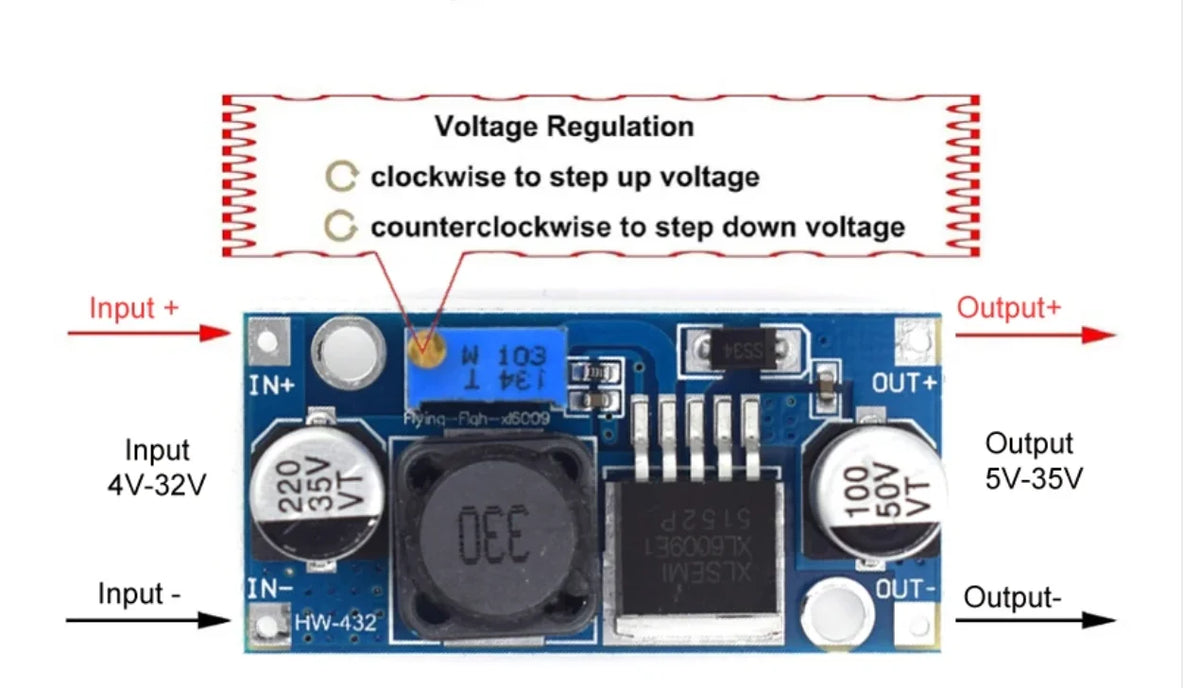

Power supply voltage: 4V~32V, the optimal operating voltage range is 5V-32V;
Output voltage: 5V~35V
Built in 4A high-efficiency MOSFET switch, achieving a maximum efficiency of 94%;
(LM2577 current is only 3A)
The ultra-high switching frequency of 400KHz can achieve very good results with small capacity filtering capacitors, with smaller ripple and volume. (LM2577 frequency is only 50KHz)

Test Comparison Example Reference:
