SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: WF2EDG/15EDGWC

Origin: Mainland China

Voltage: 5 V 12 V 20 V 30 V

semi_Choice: yes

Specification:

• Qty: 1/3/5 sets/lot

• Colour: Green

• Minimum Operating Temperature: -40°C

• Maximum Operating Temperature: 105°C

• Soldering Temperature: 250℃/5s ( ±10℃)

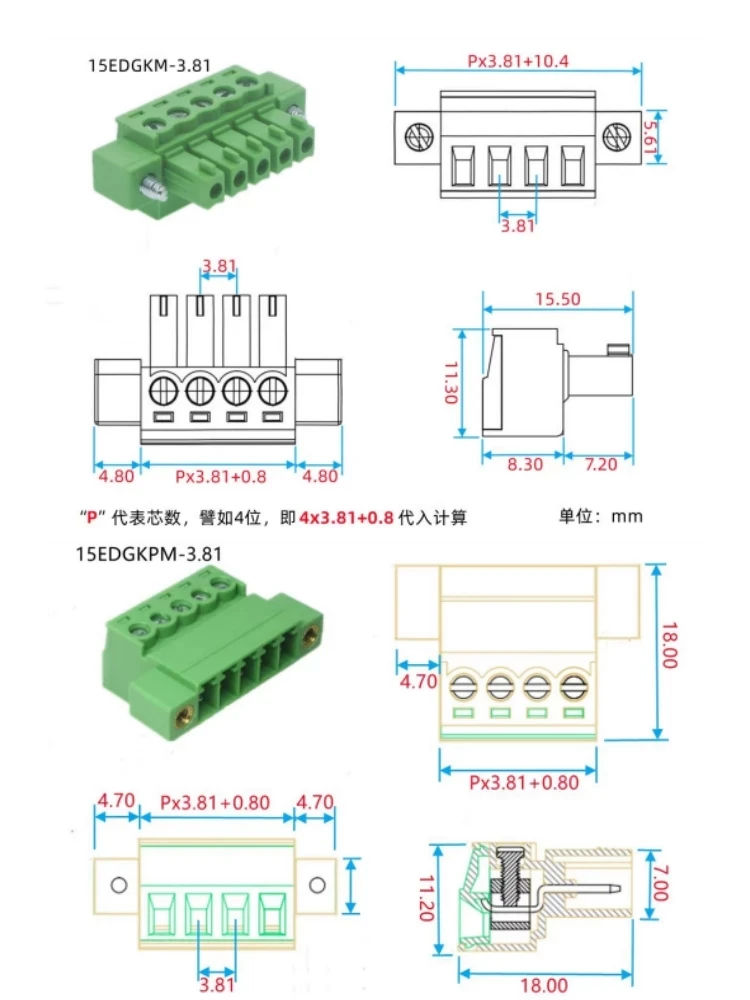

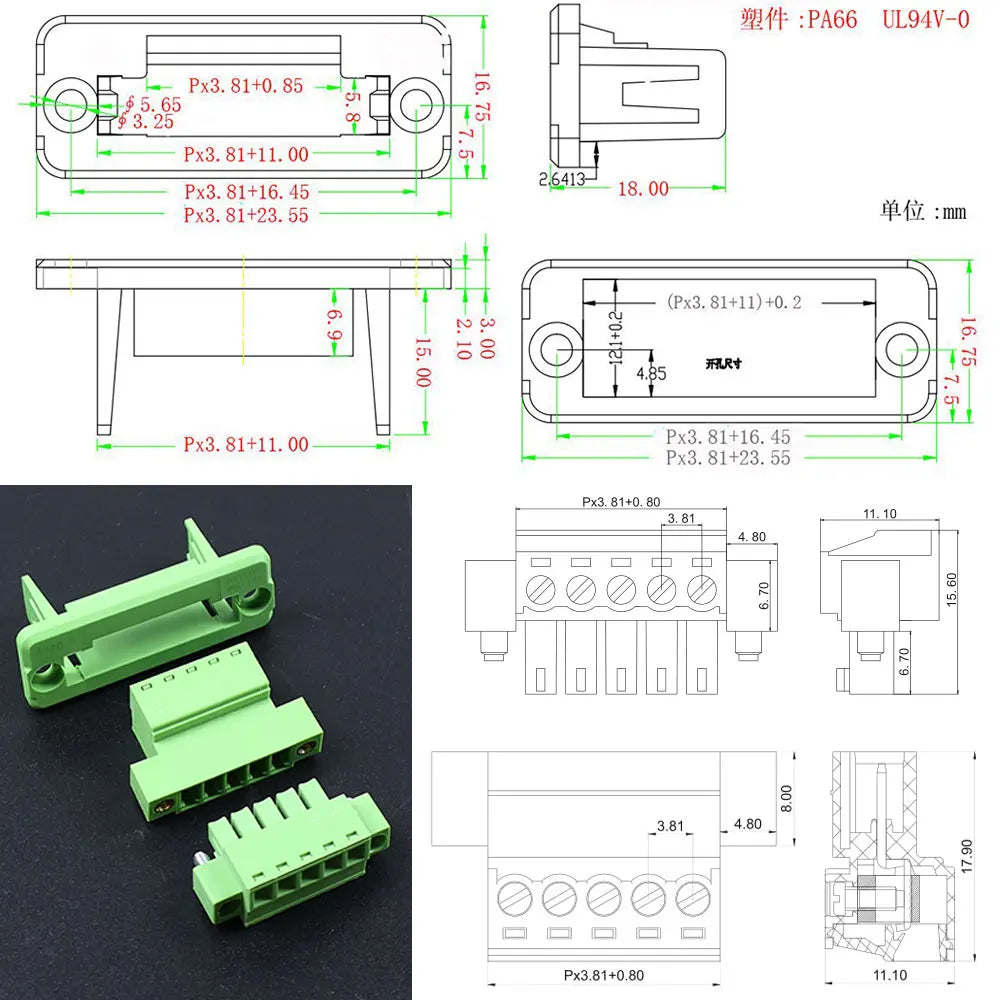

• Distance between contacts (centre): 3.81mm

• Terminal orientation: Straight

• Maximum Voltage Rating: 250 V

• Maximum Rating Current: 7A

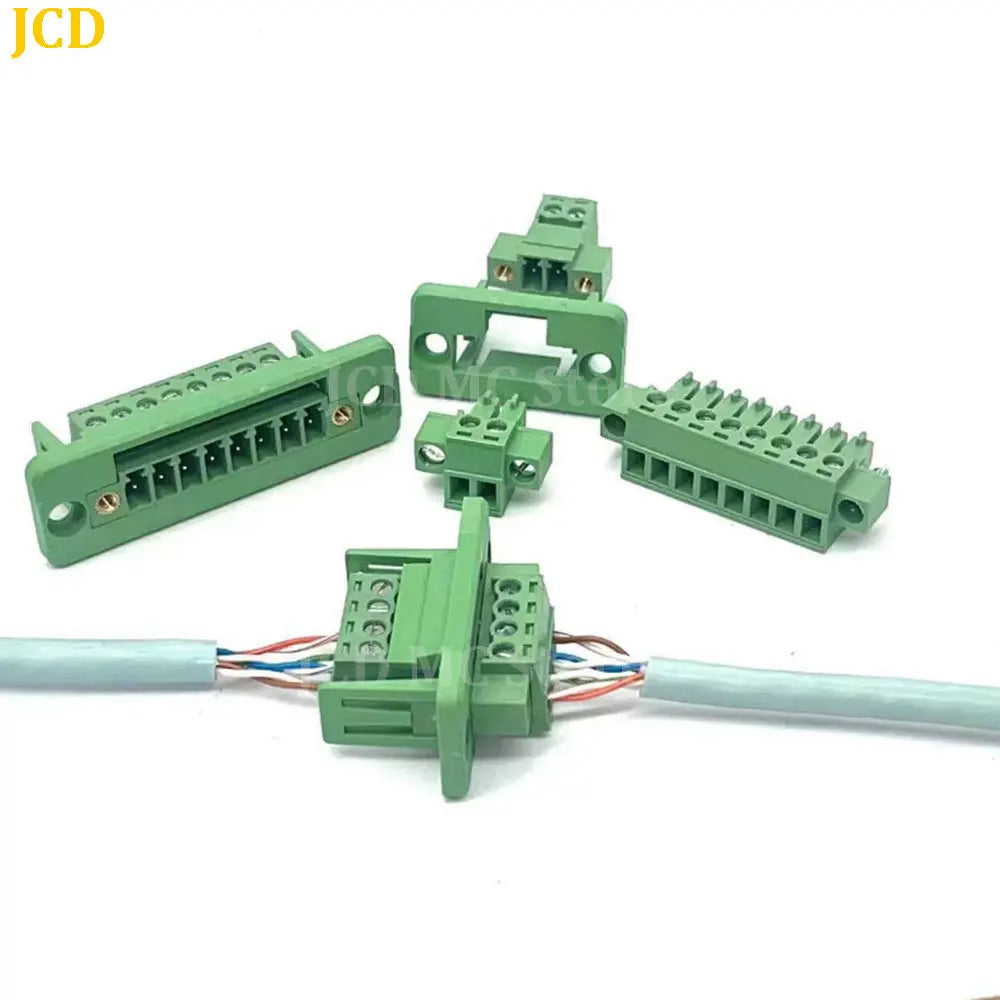

• Connector Type: Plug terminal block – Through-Wall

• Connector kind: Male / Female

• Terminal type: Cage clamp, Screw terminal (flat head)

• Locking system: Friction lock + Screw

• Terminal size: Suitable for1.5mm² wire

• Housing material: PA66

• Recommended stripping length 6-7mm

• Screw: M2 for pitch 3.81mm, Steel,Zinc plated

• Contact: phosphor bronze Ni plated

• Wire cage: Brass,Ni plated or Steel Zinc plated

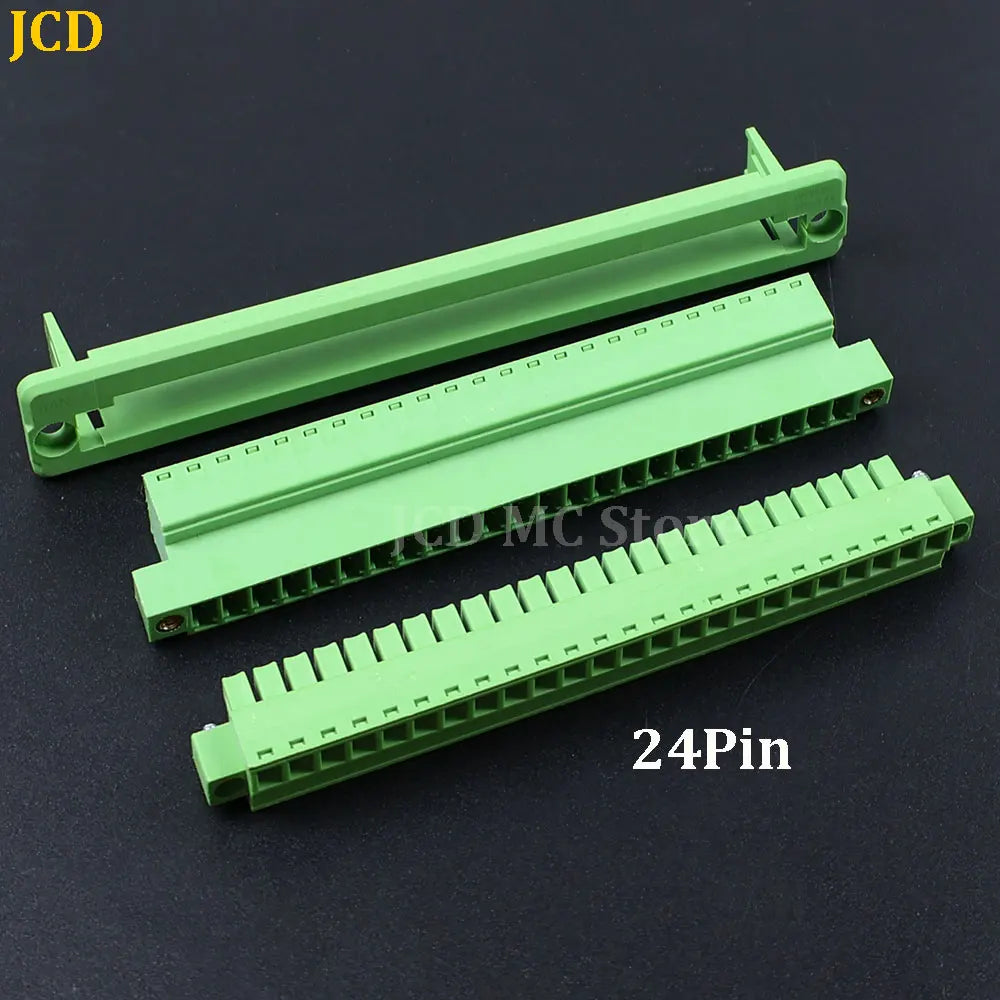

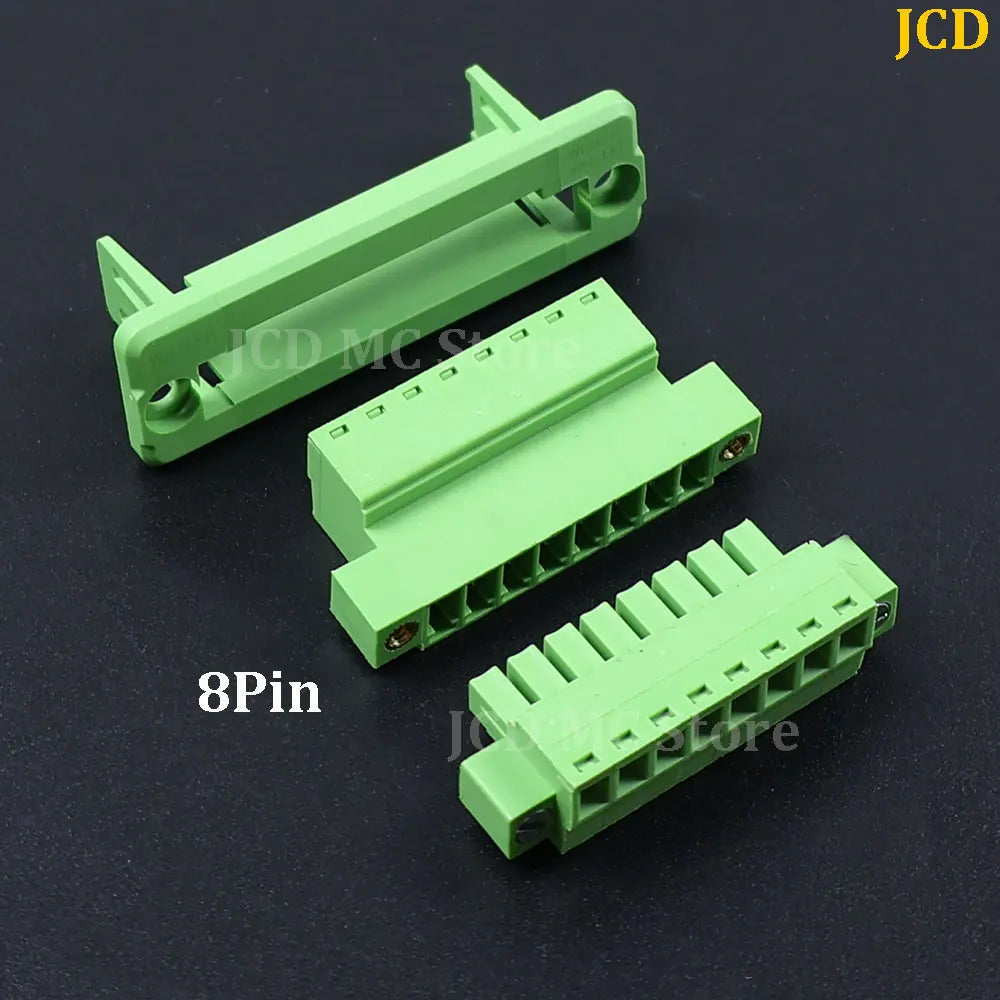

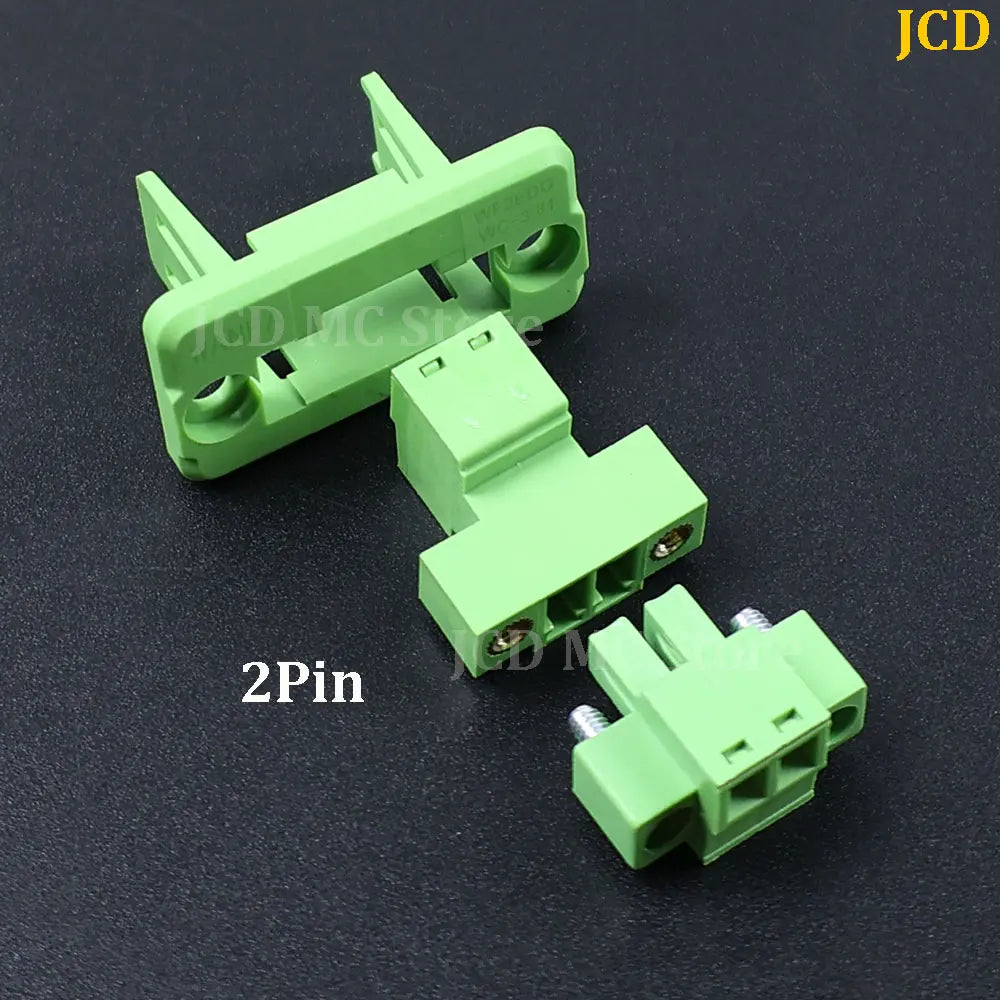

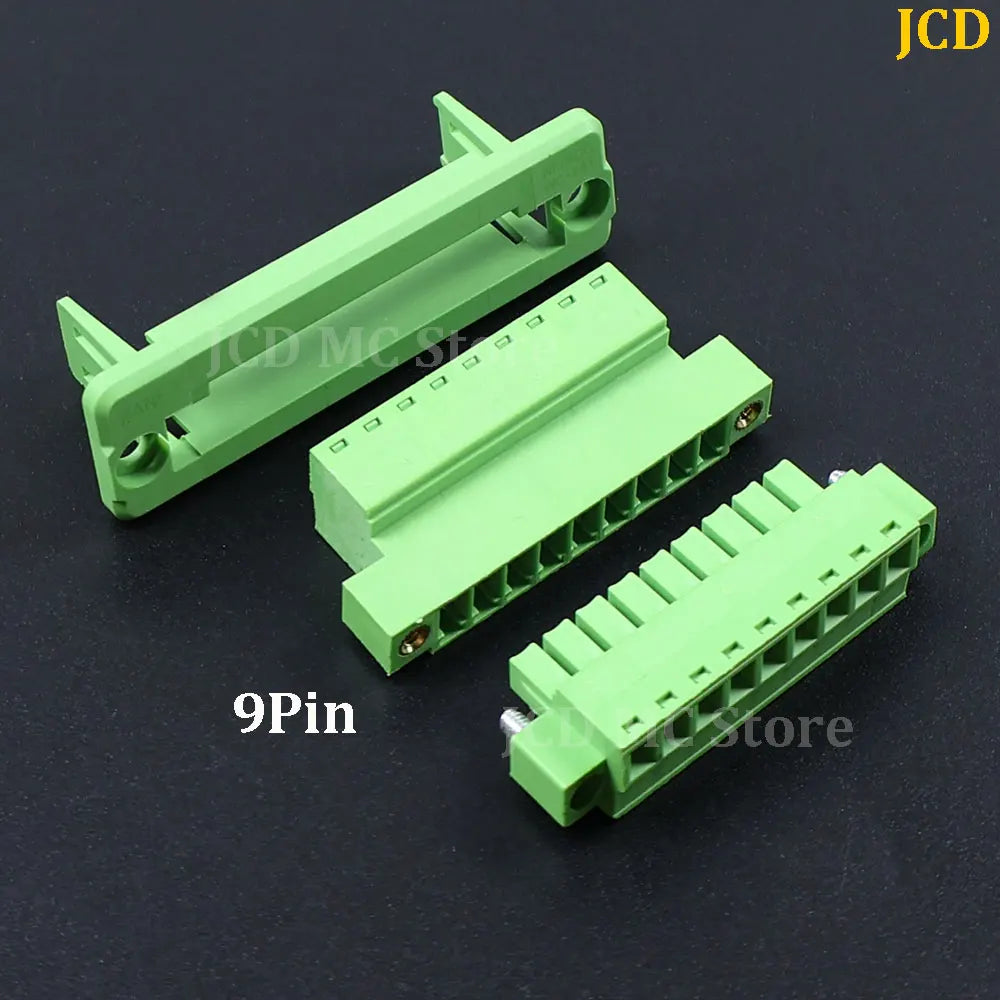

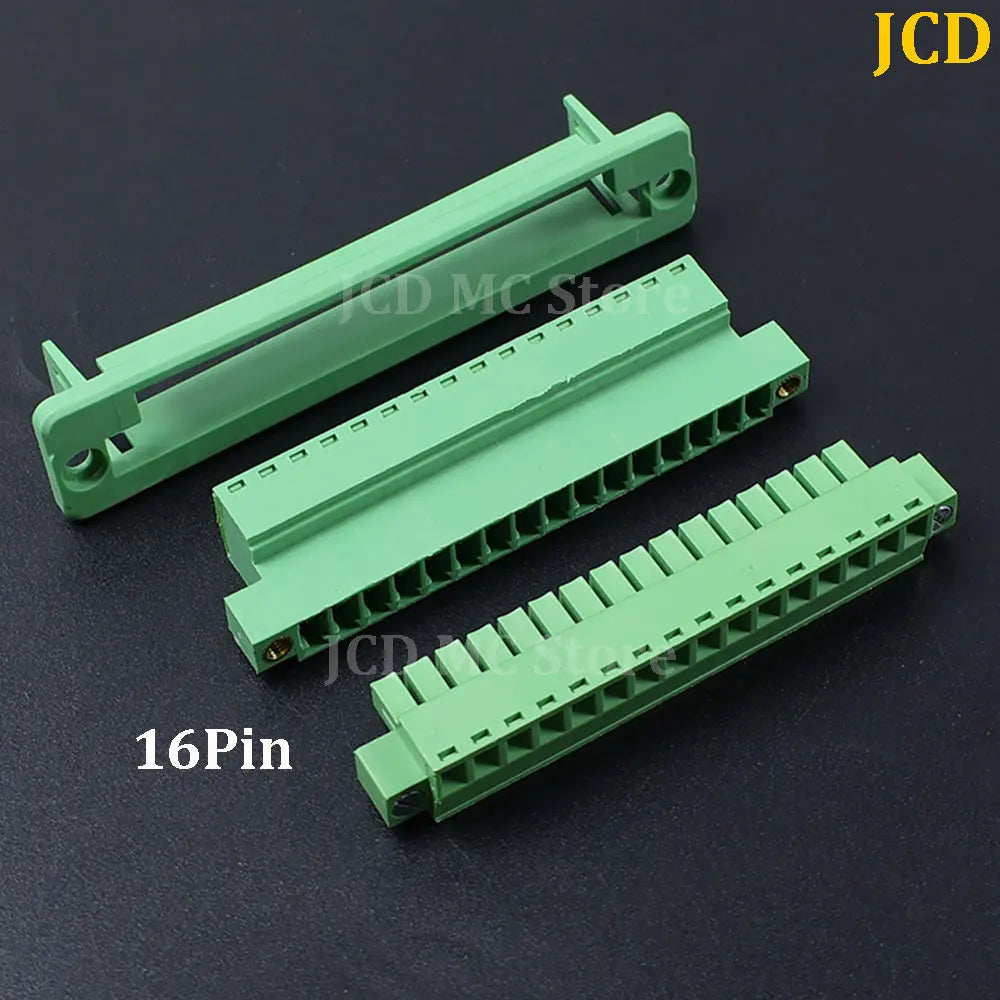

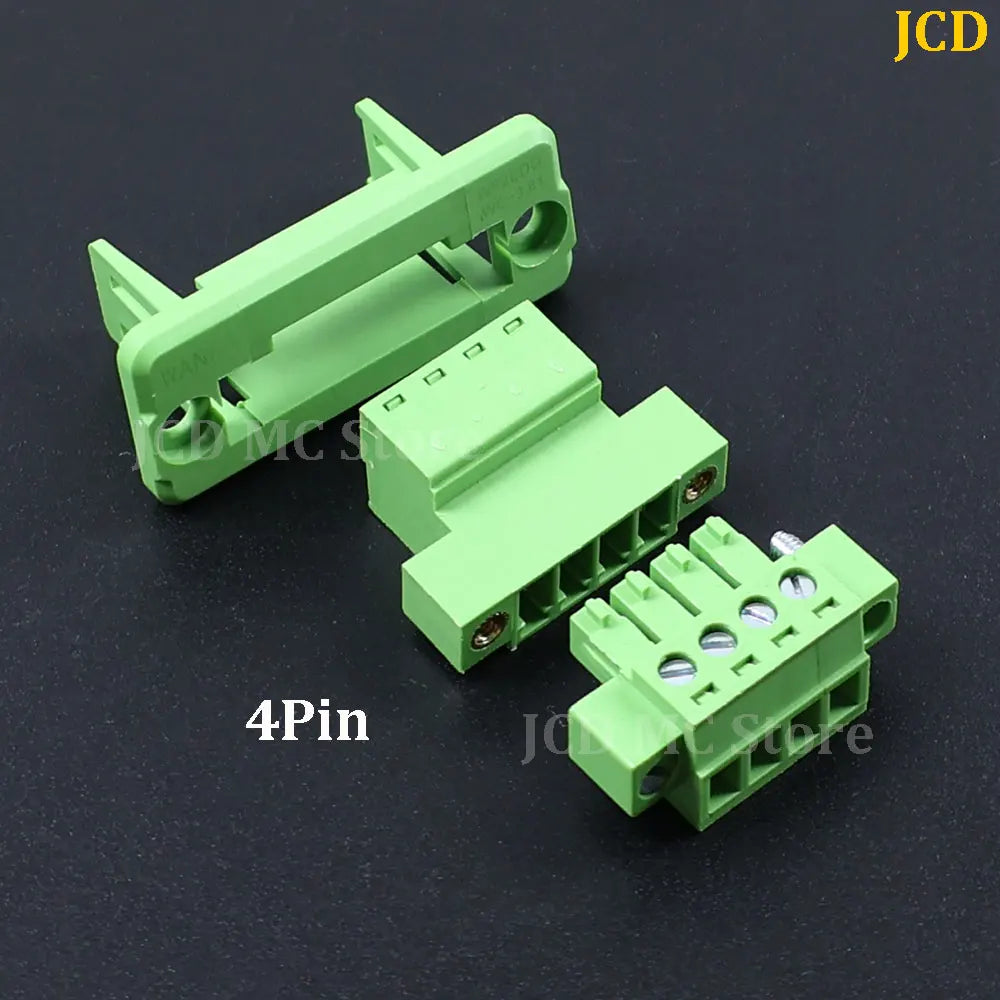

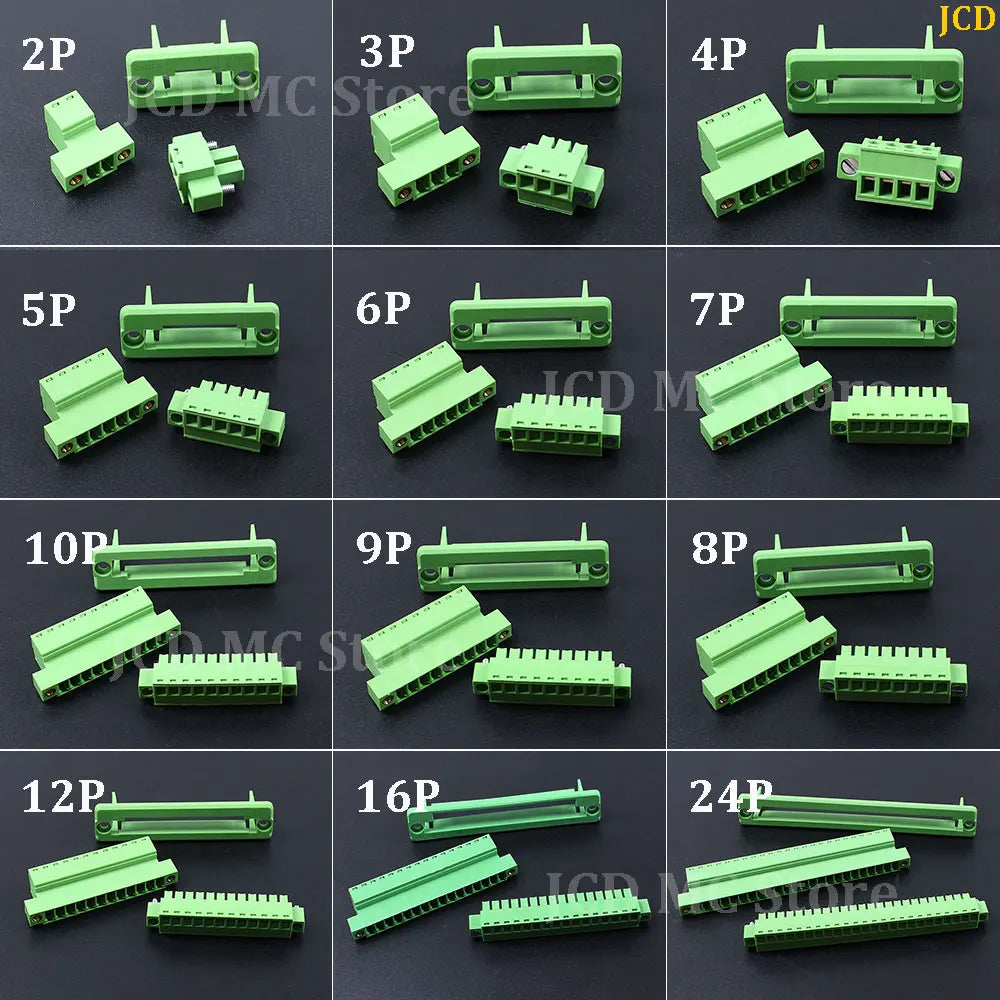

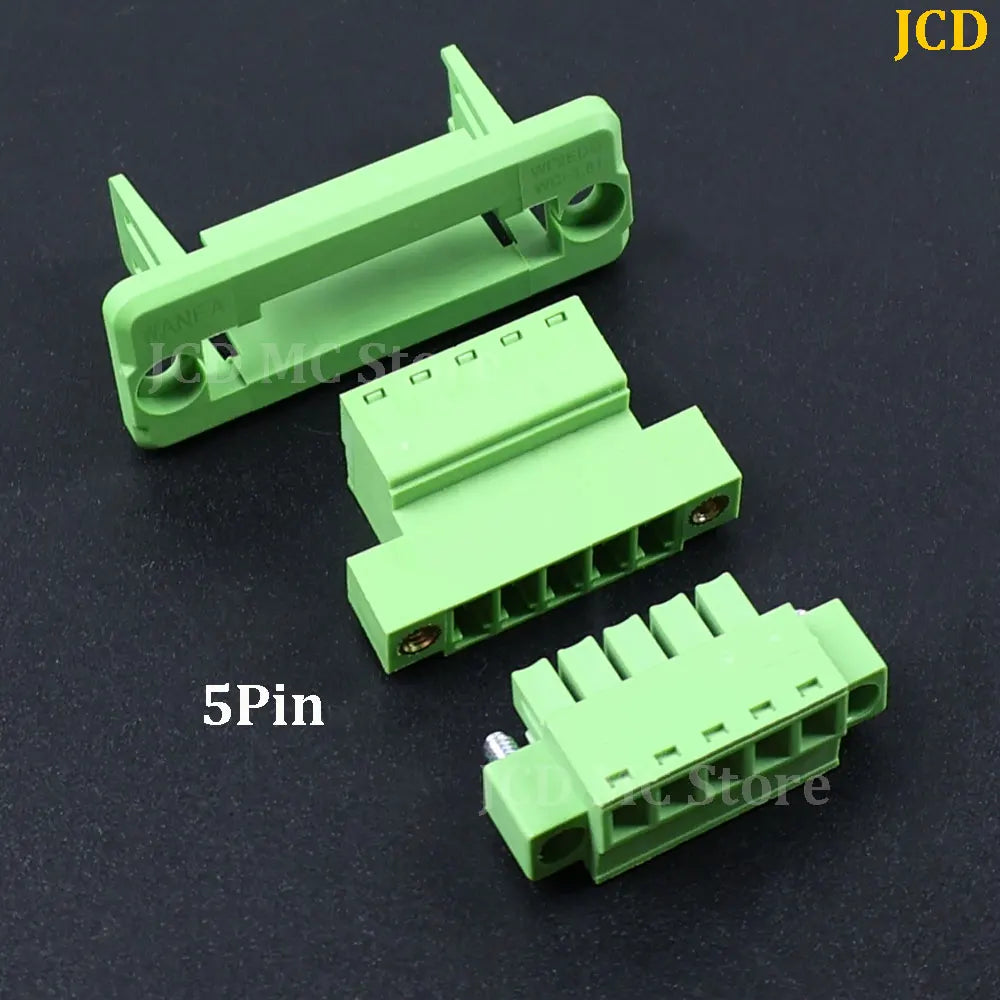

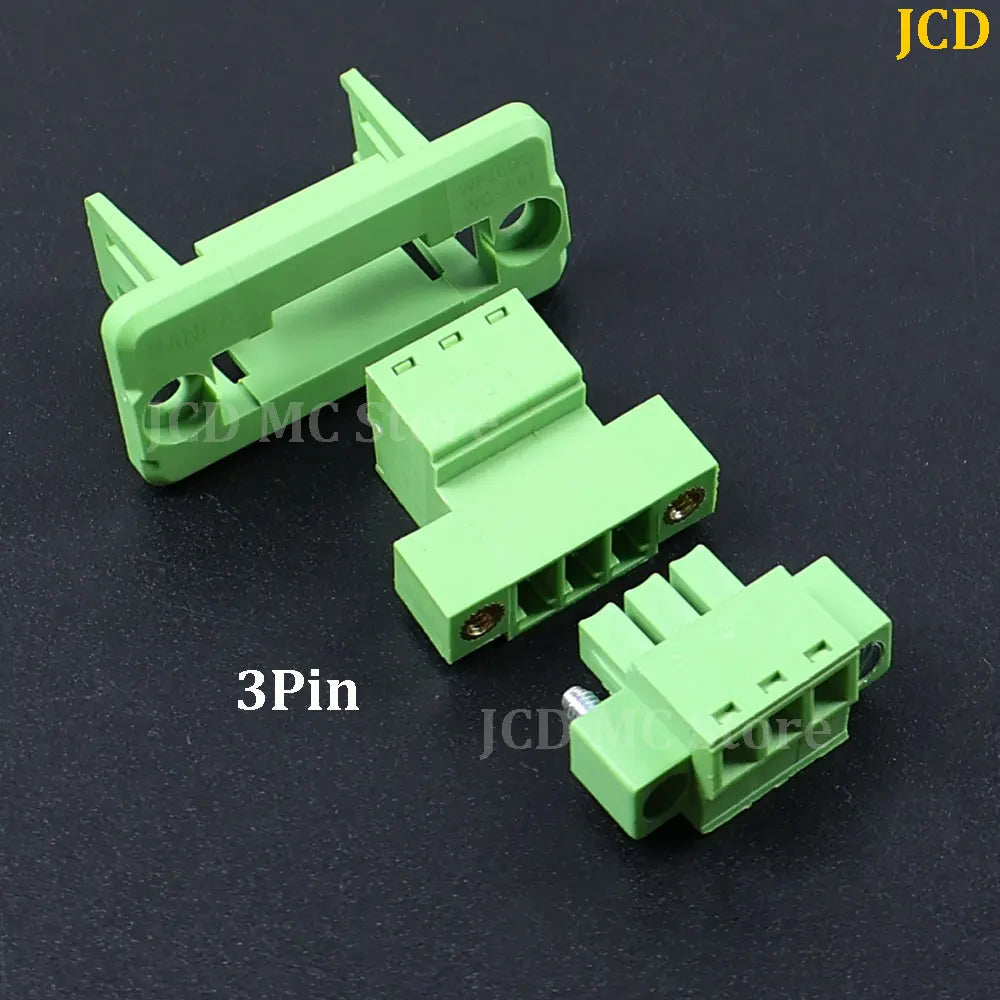

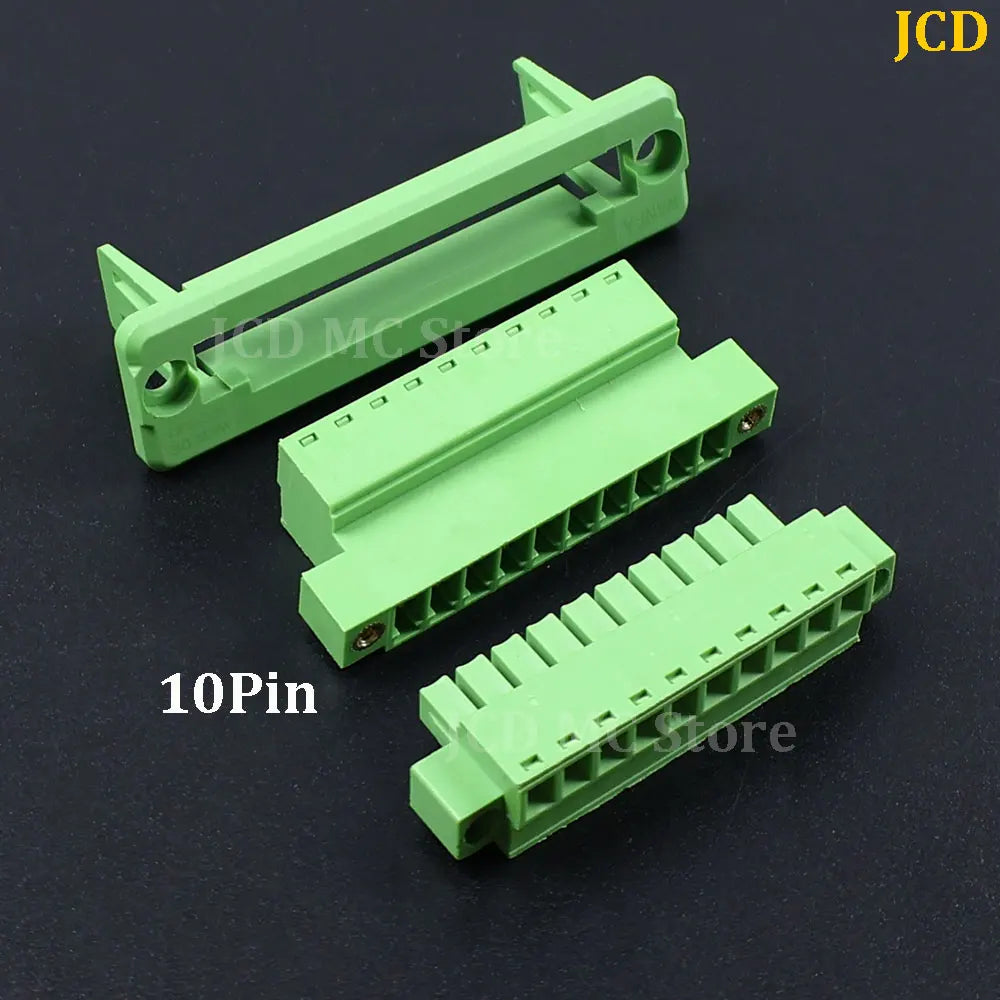

• The number of terminals (holes): 2P/3P/4P/5P/6P/7P/8P/9P/10P/12P/16P/24P

Pro Tips:

• For
  stranded wire: Strip wire to appointed length, mate with corresponding
  type of ferrule or lug. Alternatively tin ends with solder.

• Tighten by hand, do not use power tools.
