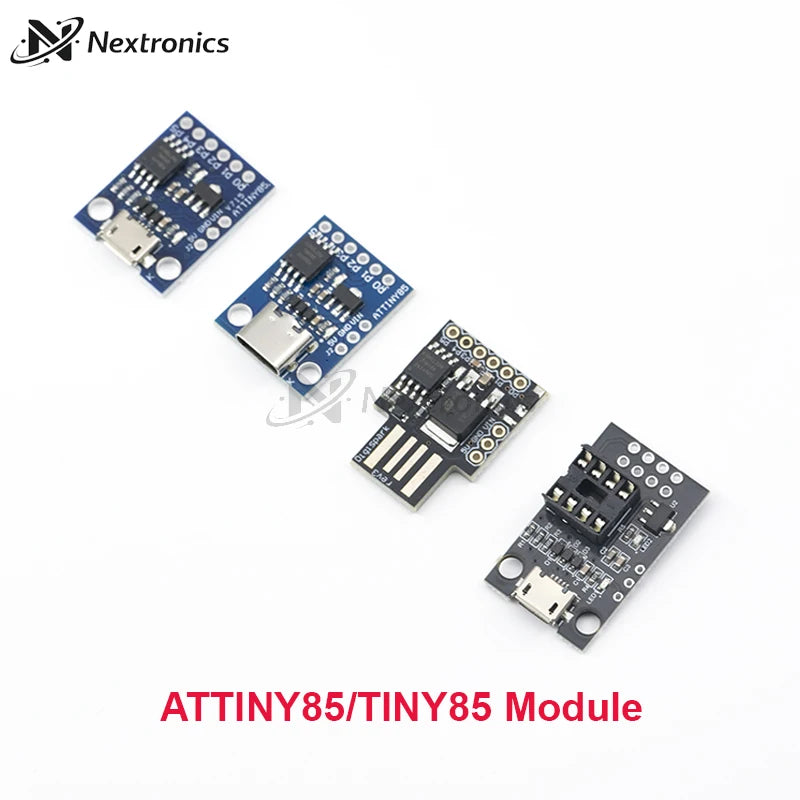

1/3/5PCS Digispark TINY85/ATTINY85 USB Development Board Micro Type-C Module for Arduino Kickstarter AVR
ATTINY85 Connector / 5PCS
$16.70
Sale price
$16.70
Regular price
$0.00
Skip to product information
1/3/5PCS Digispark TINY85/ATTINY85 USB Development Board Micro Type-C Module for Arduino Kickstarter AVR
$16.70
Sale price
$16.70
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: XYCJJCXL
Choice: yes
Condition: New
High-concerned chemical: none
Operating Temperature: -40-+85
Origin: Mainland China
Package: SMD
Type: Module
semi_Choice: yes

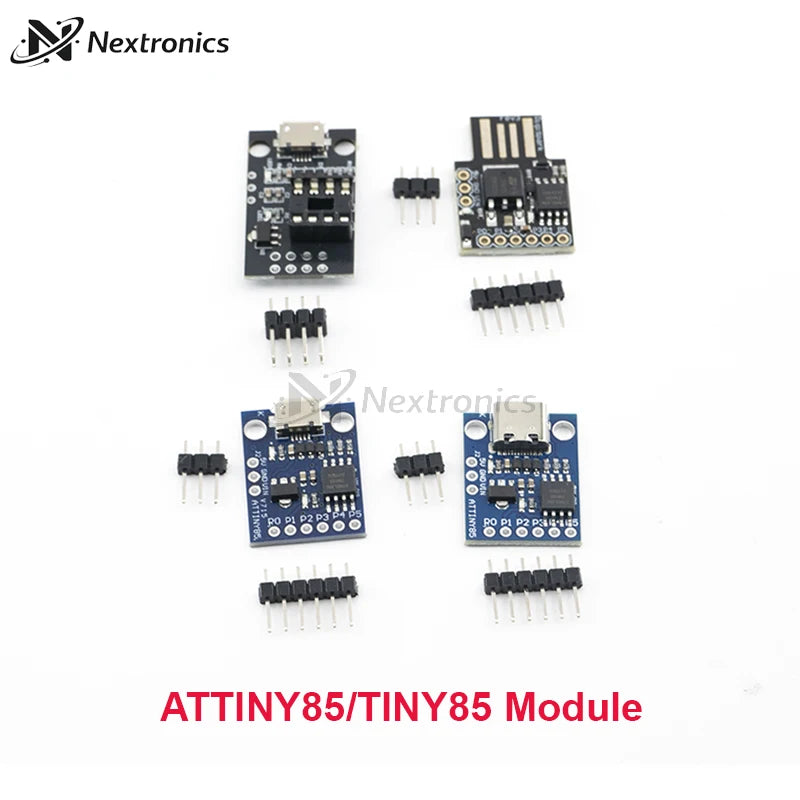

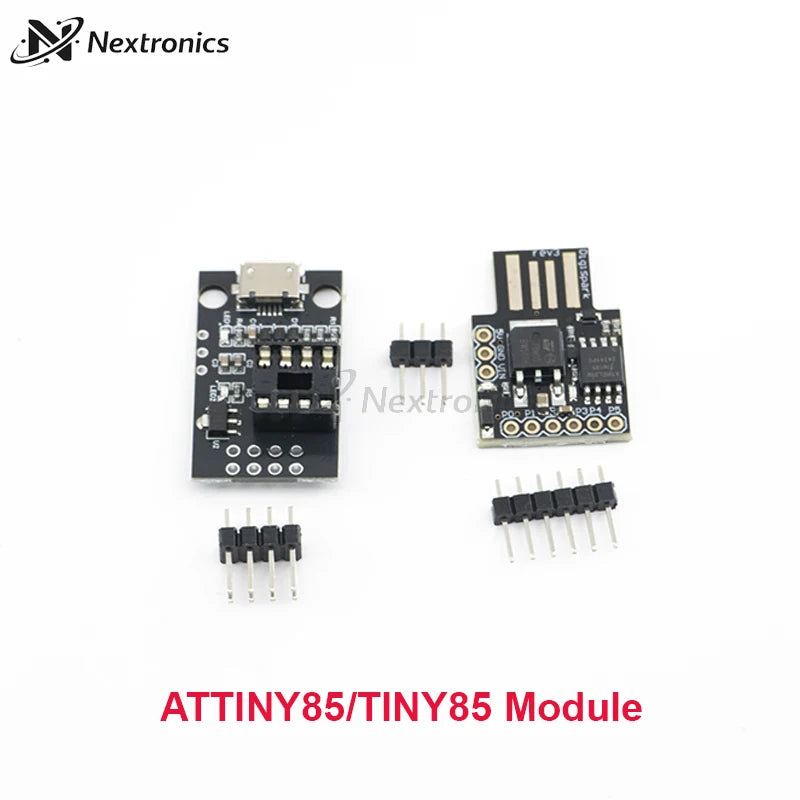

ATTINY85 Digispark Micro Development Board

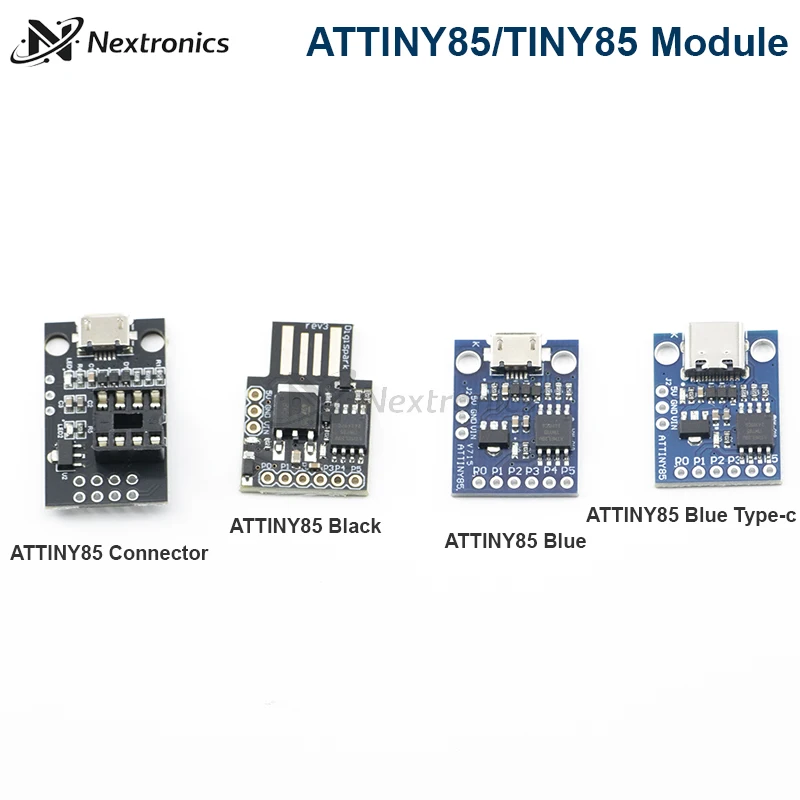

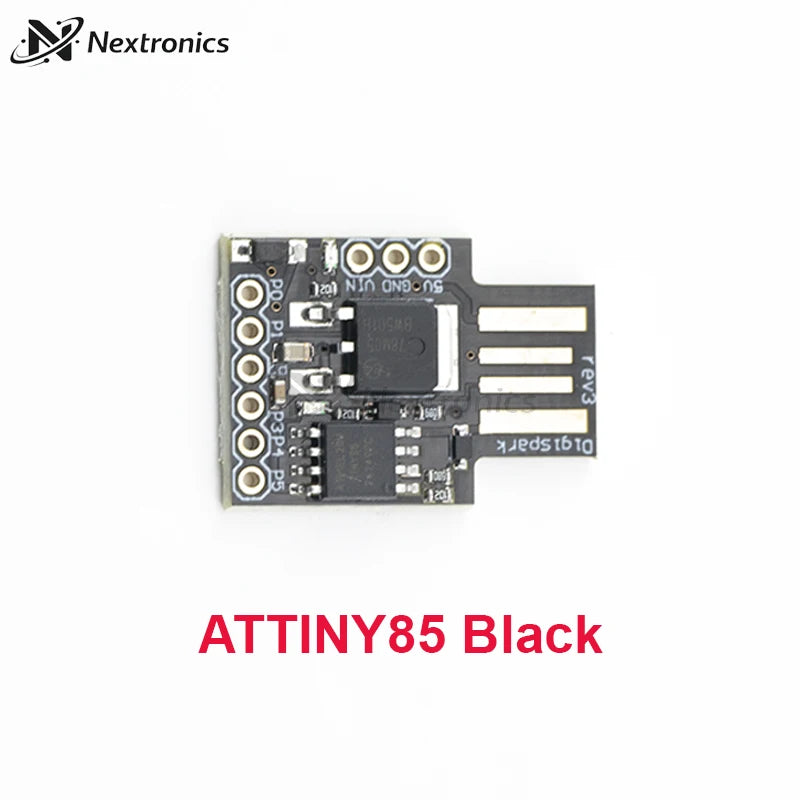

Black / Blue / Connector Version
Description
1. Support for the Arduino IDE 1.0+ (OSX / Windows / Linux).
2. Power via USB or External Source 5V or 7-16V (automatic selection).
3. On-board 150mA 5V regulator.
4. Built-in USB and serial debugging.
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8K Flash Memory (about 6K after bootloader).
7. I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.
10. Power LED and Test / Status LEDs.
The Specs
1. Support for the Arduino IDE 1.0+ (OSX / Win / Linux).
2. Power via USB or External Source - 5V or 7-16V (automatic selection).
3. On-board 150mA 5V regulator.
4. Built-in USB (and serial debugging).
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8K Flash Memory (about 6K after bootloader).
7. I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.

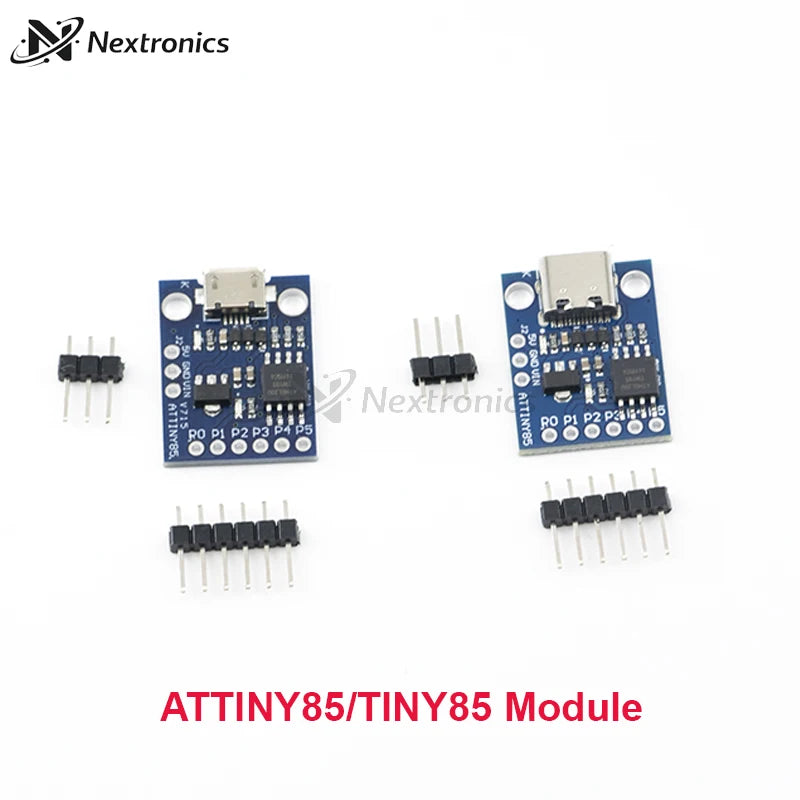

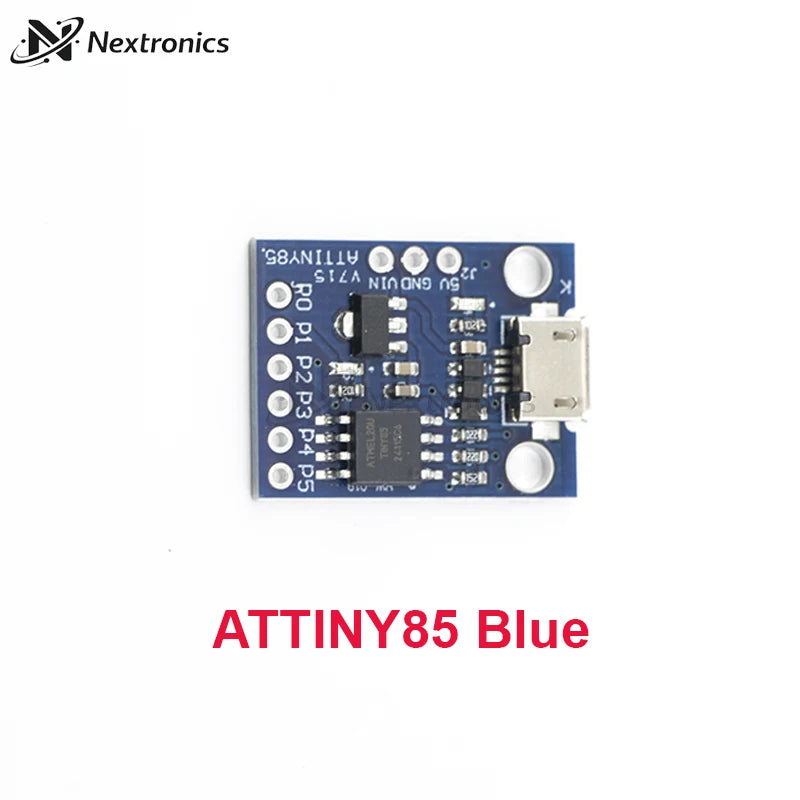

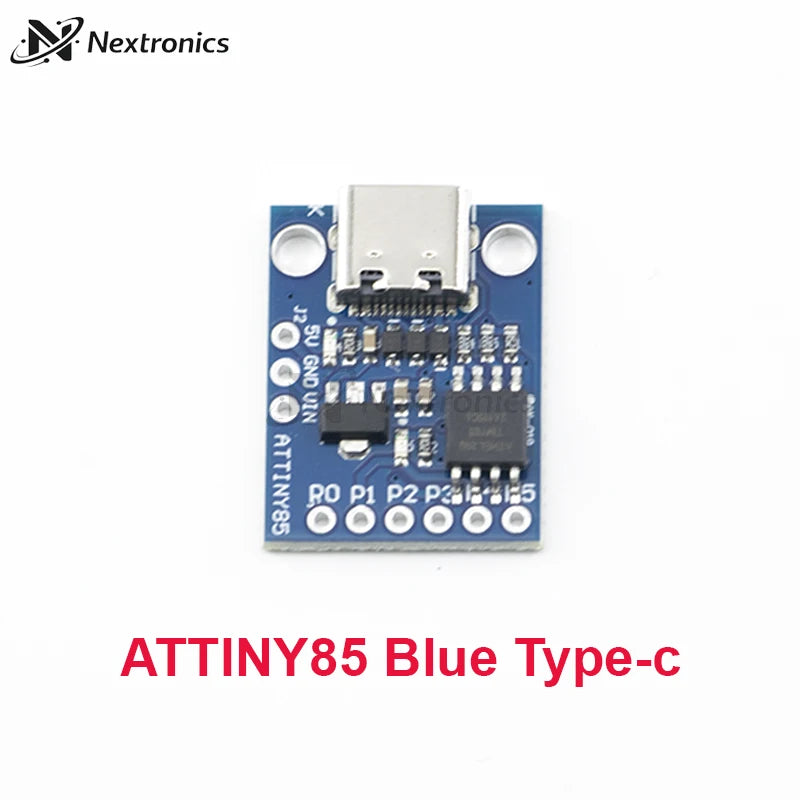

ATTINY85 Module Blue
1. Support for the Arduino IDE 1.0+ (OSX / Win / Linux).
2. Power via USB or External Source - 5V or 7-16V (automatic selection).
3. On-board 150mA 5V regulator.
4. Built-in USB (and serial debugging).
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8K Flash Memory (about 6K after bootloader).
7. I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.
10. Power LED and Test / Status LED.

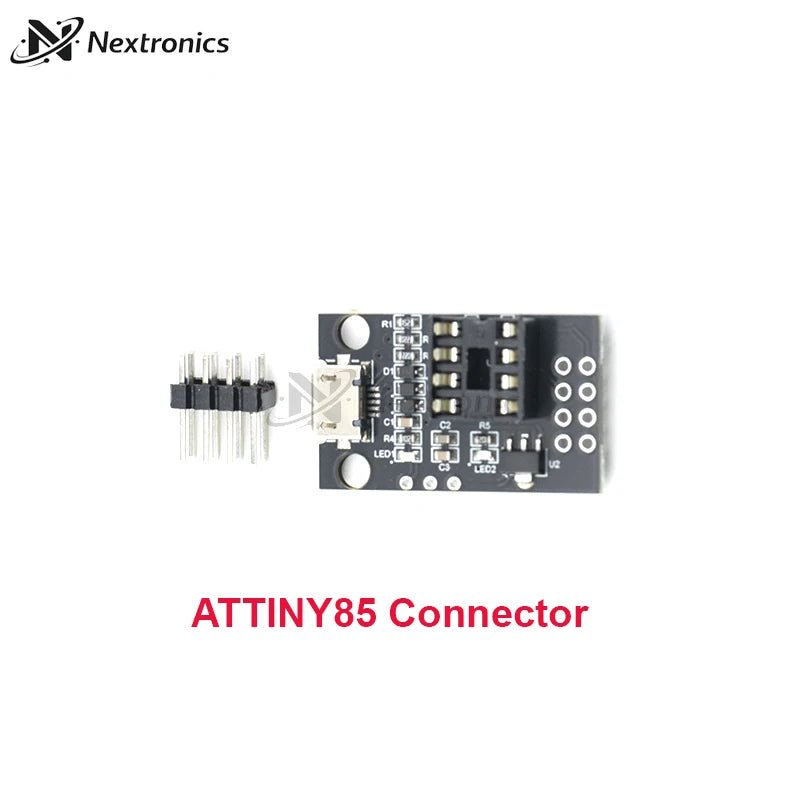

ATTINY85 Connector
Pluggable Development Board Programming Editor Micro USB Power Connector
Support the chip:
ATtiny13A
ATtiny25
ATtiny45
ATtiny85

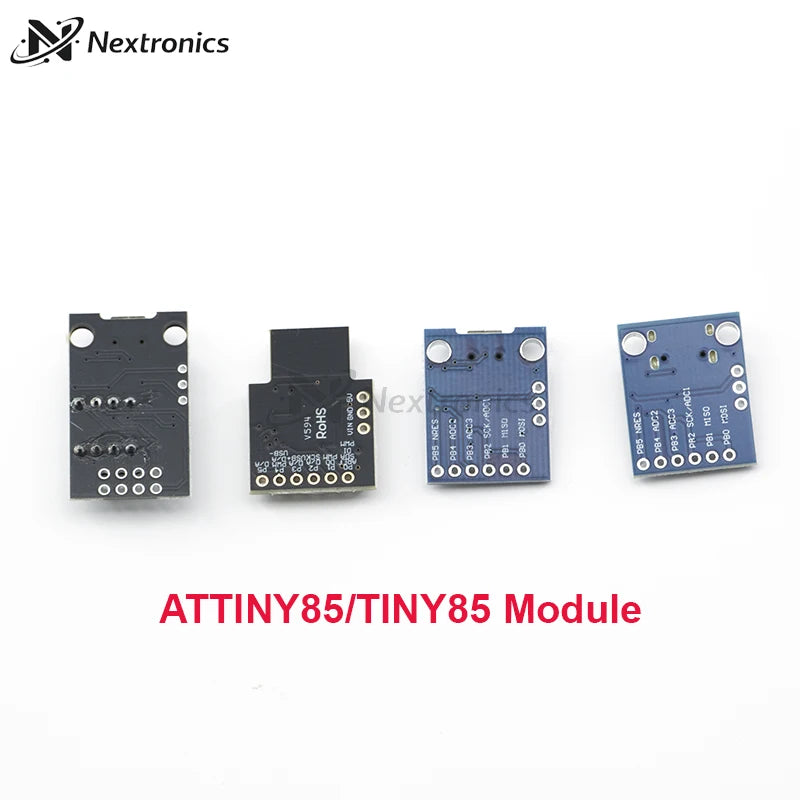

Pinout Information
Pin |
Function |
PB5 |
ADC0 / RESET |
PB4 |
ADC2 / USB- / PWM4 |
PB3 |
ADC3 / USB+ |
PB2 |
ADC1 / SCK / SCL / INT0 |
PB1 |
PWM1 / MISO |
PB0 |
PWM0 / MOSI / SDA |
Power Input
USB power supply supported
External input: 5V or 7-16V automatic selection
5V output available
GND available
Connector Version Supported Chips
Supported MCU |
ATtiny13A / ATtiny25 / ATtiny45 / ATtiny85 |
Size & Weight
Board Size: 19.2mm x 26.4mm
Weight: 3.3g
Applications
Arduino DIY projects
USB micro controller development
Small automation devices
Sensor control modules
Learning and prototyping
Package Includes
1/3/5/10PCS Digispark ATTINY85 Development Boar
