1.3MP Global shutter Machine Vision MIPI CSI-2 Camera, RAW-MIPI-SC132M for all Raspberry Pi and Jetson NX and Nano

1.3MP Global shutter Machine Vision MIPI CSI-2 Camera, RAW-MIPI-SC132M for all Raspberry Pi and Jetson NX and Nano

$149.48

$149.48 $0.00

Description

SPECIFICATIONS

Accessory Type: Camera Module

Battery Included: no

Brand Name: PixPlore

Compatible With: Raspberry Pi , Jetson Nano, NX

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Smart Cameras and Vision Hardware

Brief

RAW-MIPI-SC132M is a 1.3 million MONO industrial camera with MIPI interface.

This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.

Features

1/2.7'' 1.3M Pixel SmartGS® SC130GS-M CMOS SENSOR
MIPI CSI-2 Interface
Mono-8、Mono-10 Data Format
Video streaming mode（Free Running），Trigger mode
Hardware and Software trigger source
Support trigger frame number, interval, delay, trigger filter function
Strobe synchronization
ROI
USER Output
Flexible frame rate settings

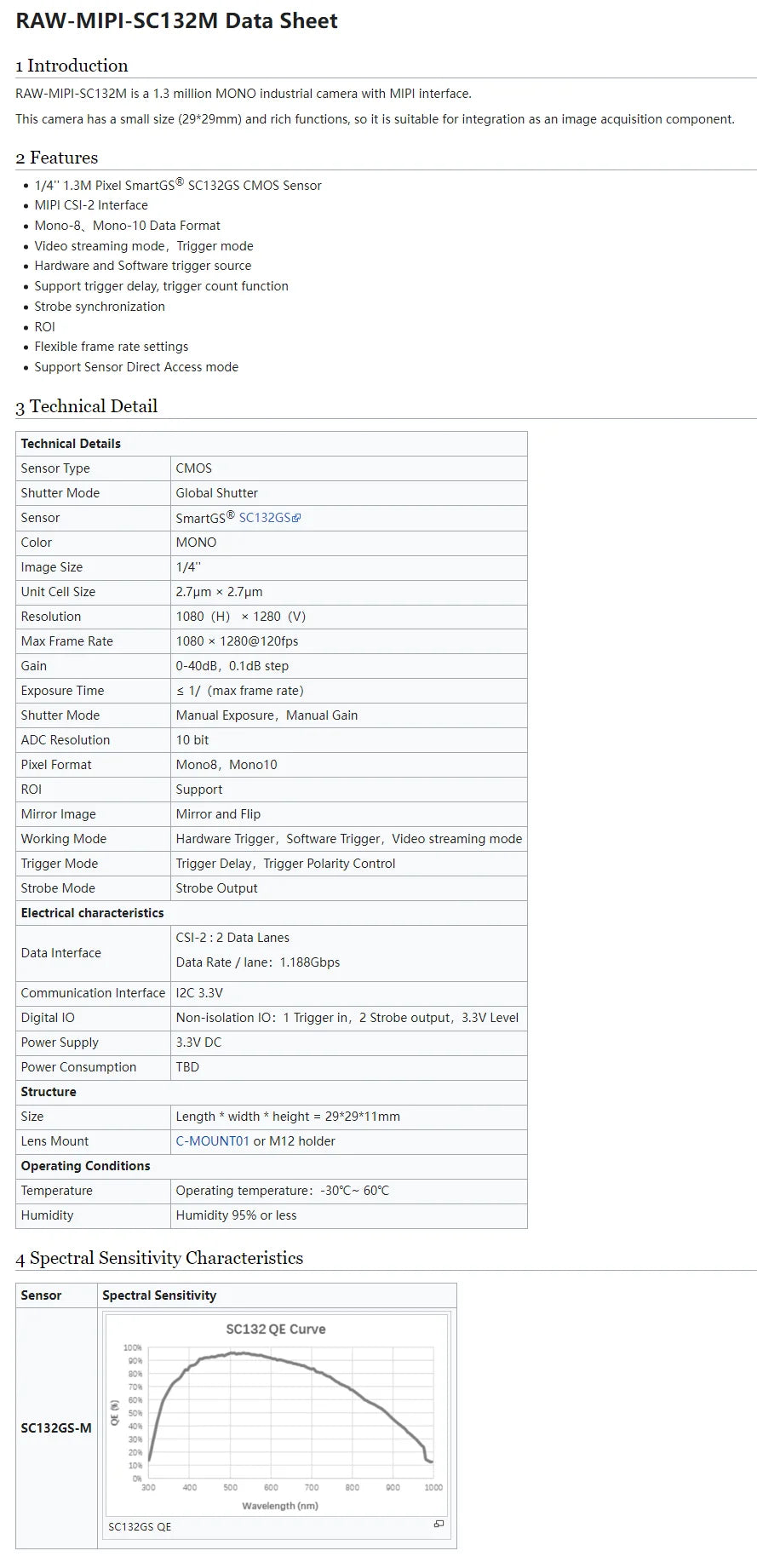

Thechnical Details

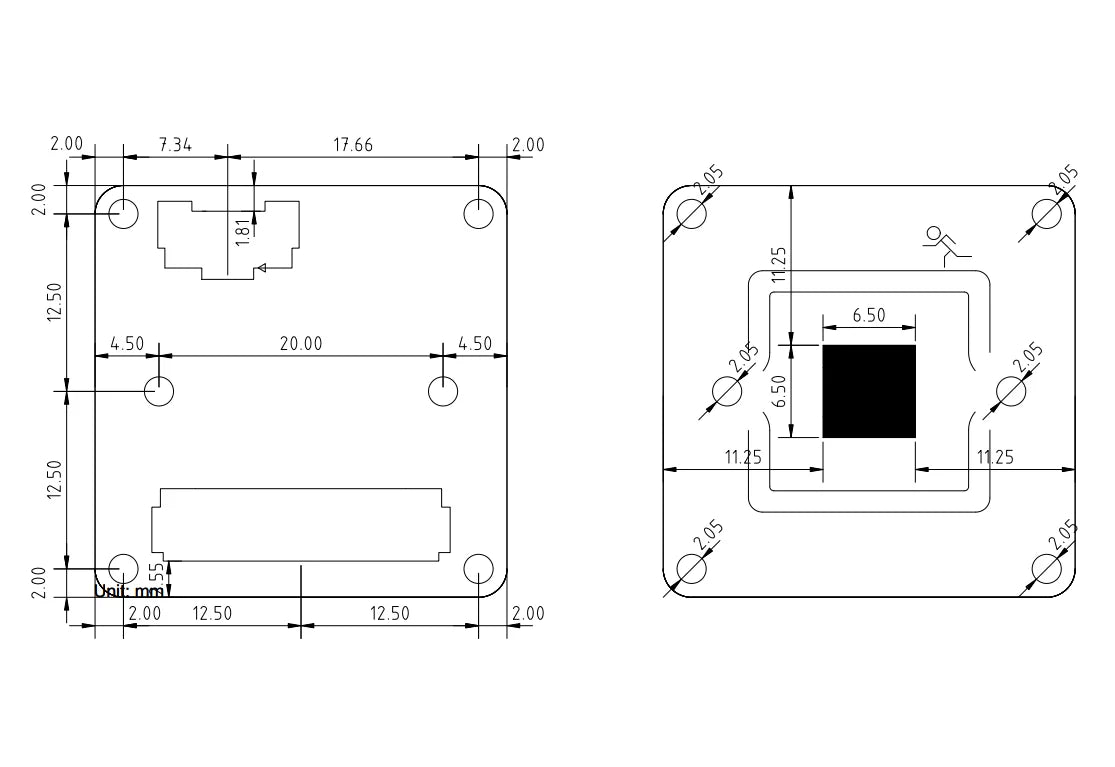

CAD drawing

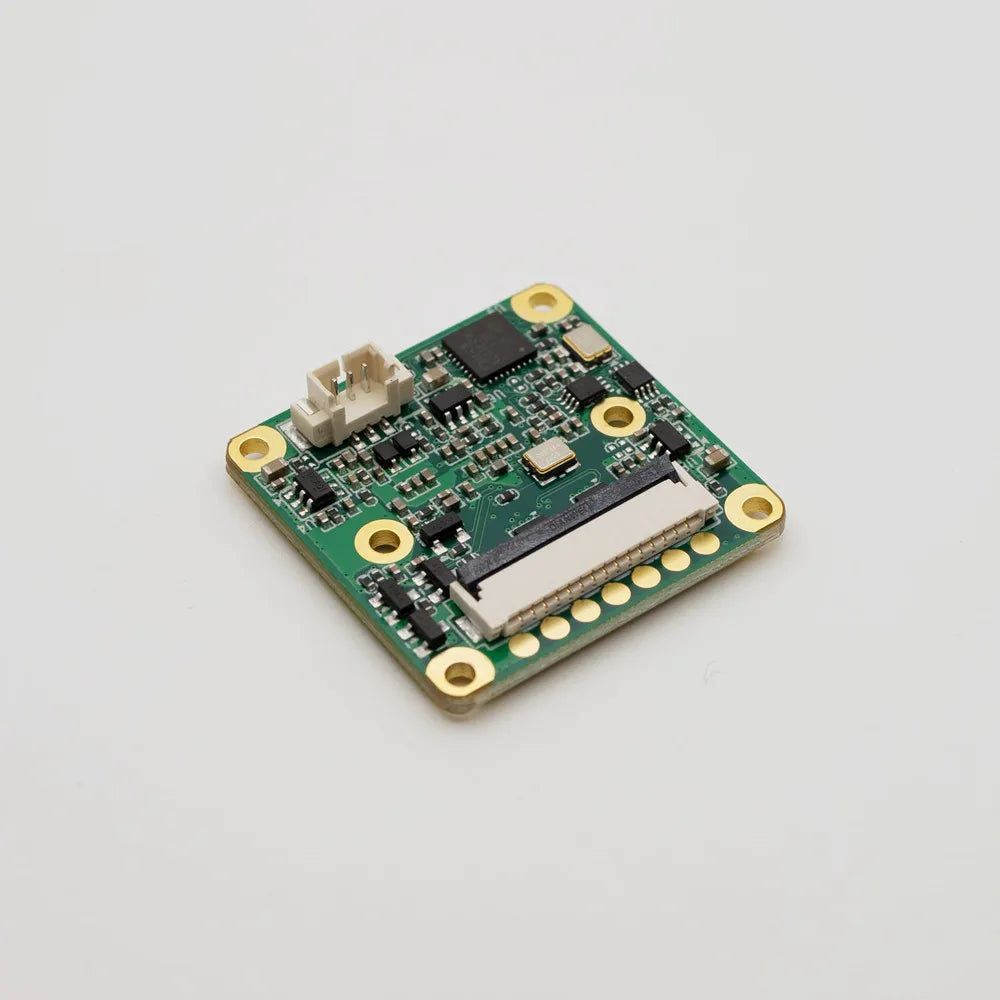

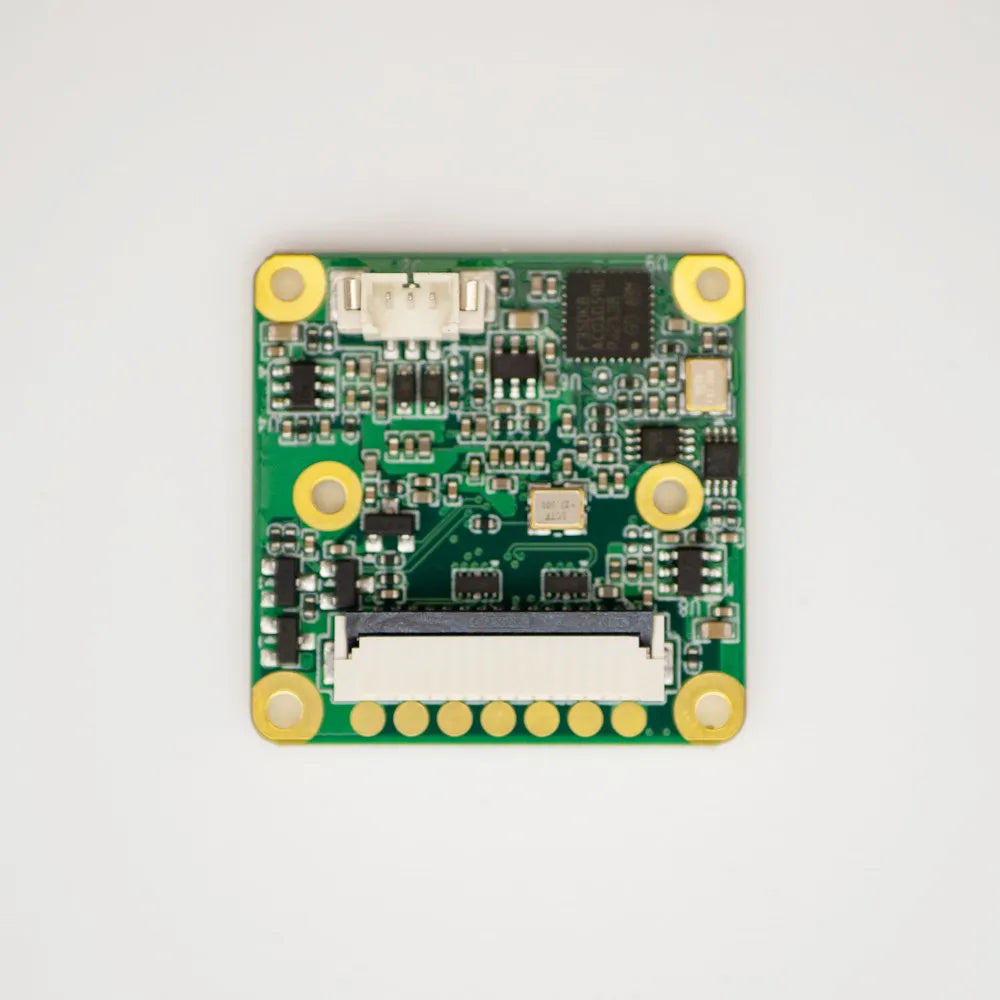

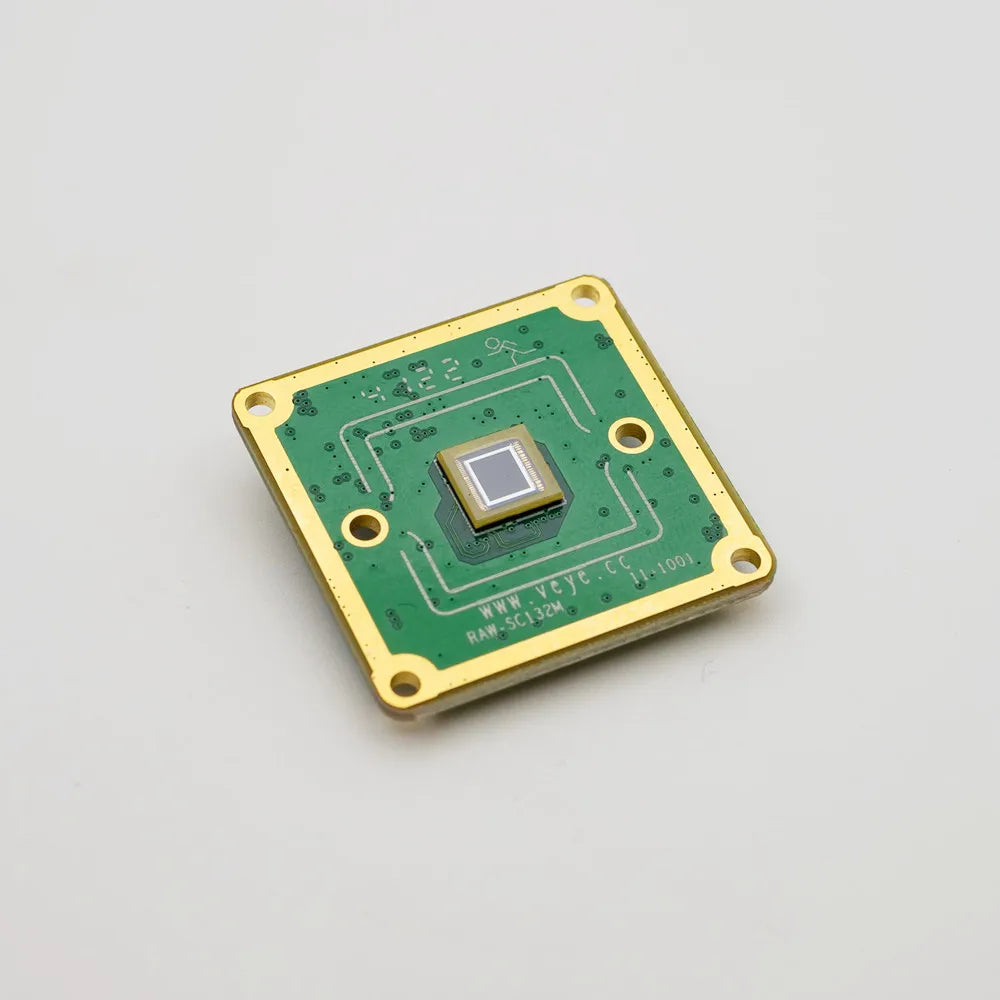

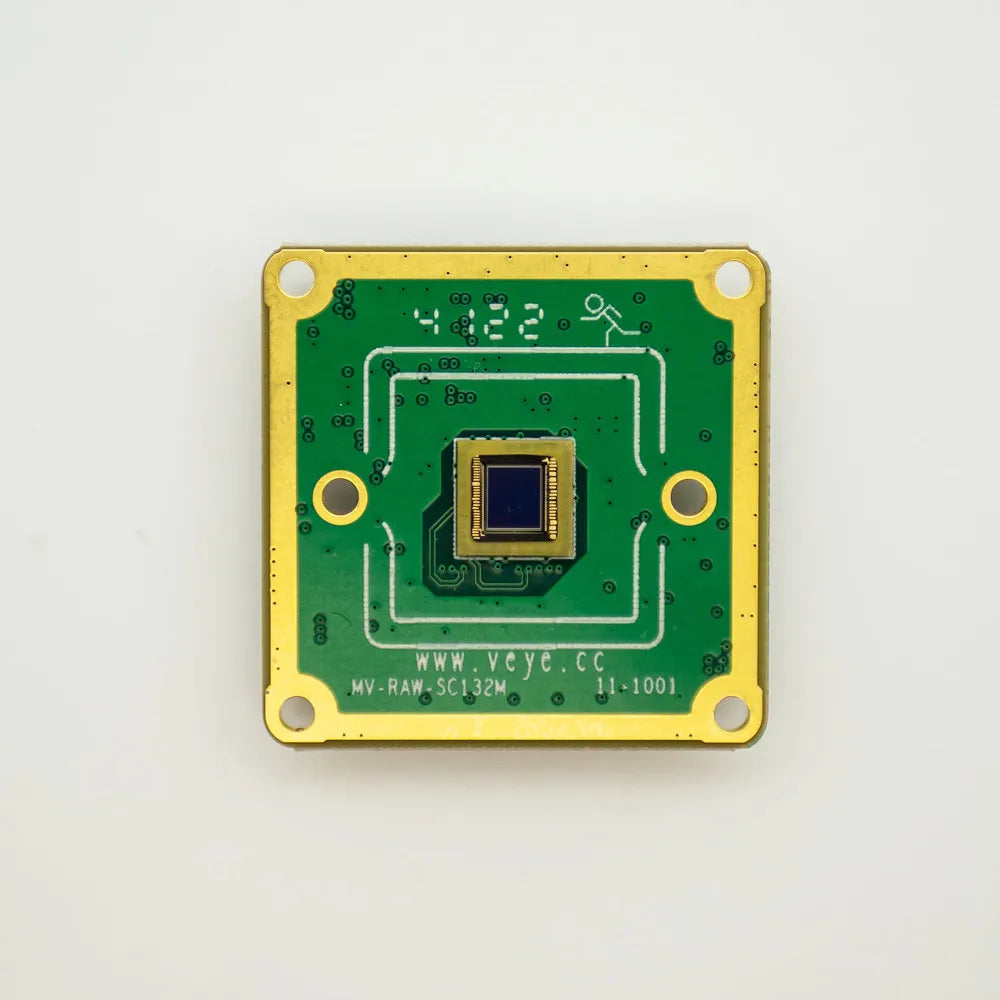

Sensor Board

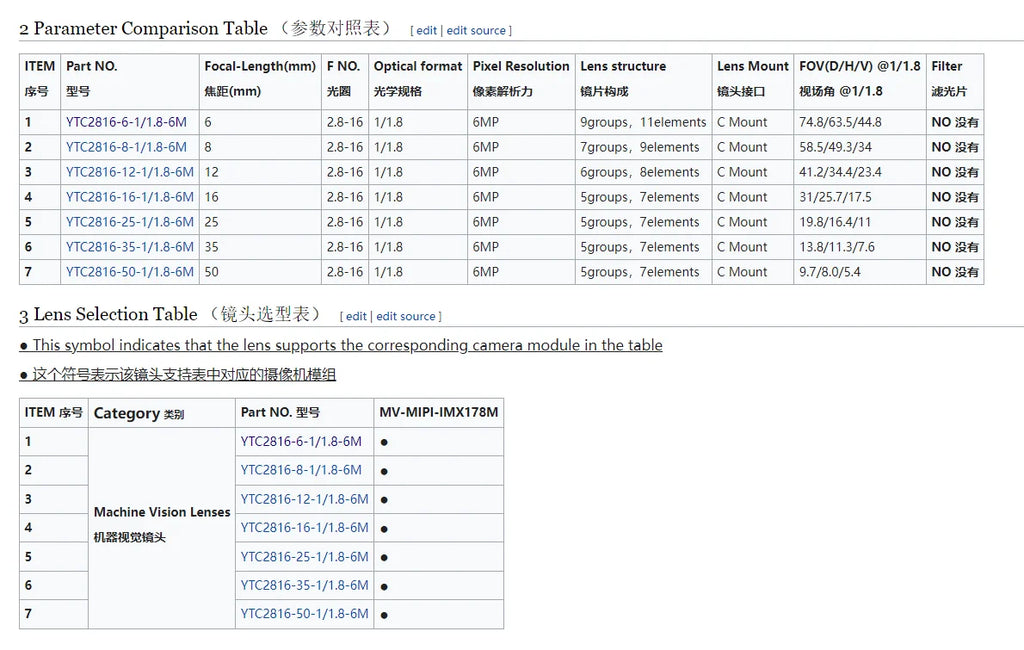

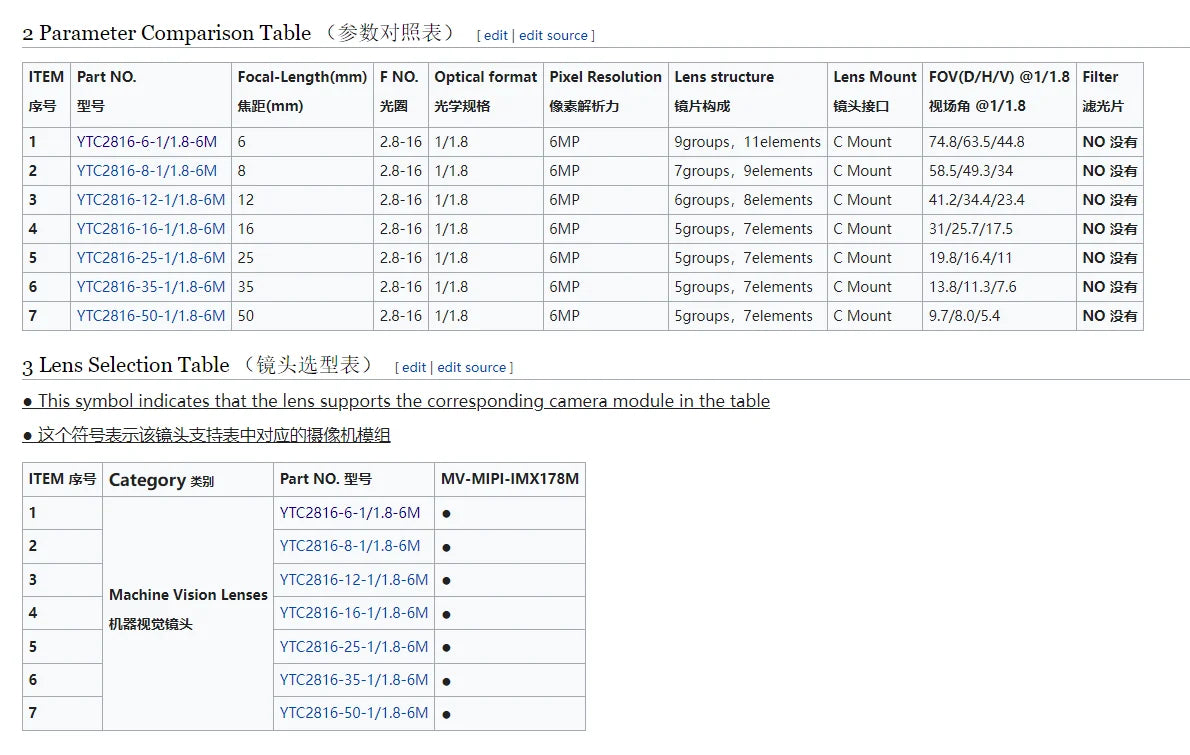

Lens select

http://wiki.veye.cc/index.php/Machine_Vision_Lenses

Important references links

+ wiki MV-MIPI-SC130M
http://wiki.veye.cc/index.php/MV-MIPI-SC130M_Index

+ How to use MV series camera module on Raspberry Pi
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi

+ How to use MV series camera module on NVIDIA Jetson Platform
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_jetson

+ github
https://github.com/veyeimaging

+ website
www.veye.cc

+ Forum
http://forum.veye.cc

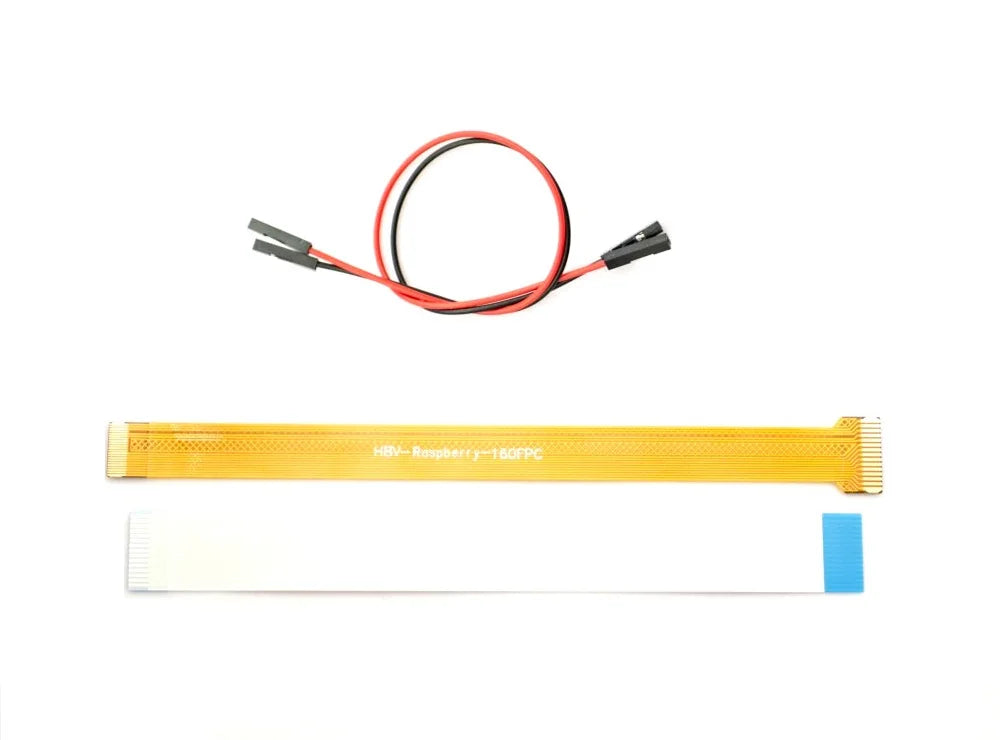

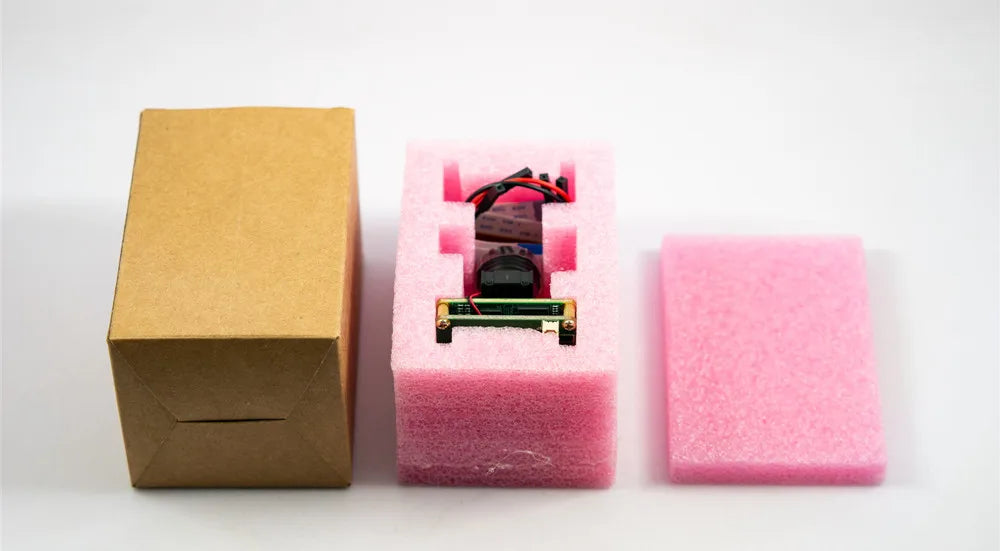

Packaging and accessories

We provide all the needed accessories and install them according to your purchase options and reliable packaging. Below is the schematic.

FAQ

Q:Why does the tracking system show no update after I've received my tracking number?

A:Usually China Post will update the tracking information to www.17track.net after 8-10 days.

Q:Should I bear the shipping cost?

A:We will provide “free shipping” by China Post. Alternatively, you could also pay for express shipping, and your package will arrive within 1 week.

Q:Where can I check the tracking information for my package?

A:You can check your tracking information from www.17track.net. The website supports multiple-languages.

Q:How long will it take for my package to arrive?

A:You can refer to this detailed data-table. Please note that the statistical data is only for reference, the specific time is subject to dynamically changing conditions.

Q:What should we do when we encounter technical problems?

A:You can submit your questions directly to our forum, and our engineers will reply to you as soon as possible.
http://ask.veye.cc

Q:Where can I find ways to use the camera module?

A:For software usage or product details, please visit http://wiki.veye.cc/

Q:Do you support product customization?

A：Yes，please contact sales@veye.cc
