SPECIFICATIONS

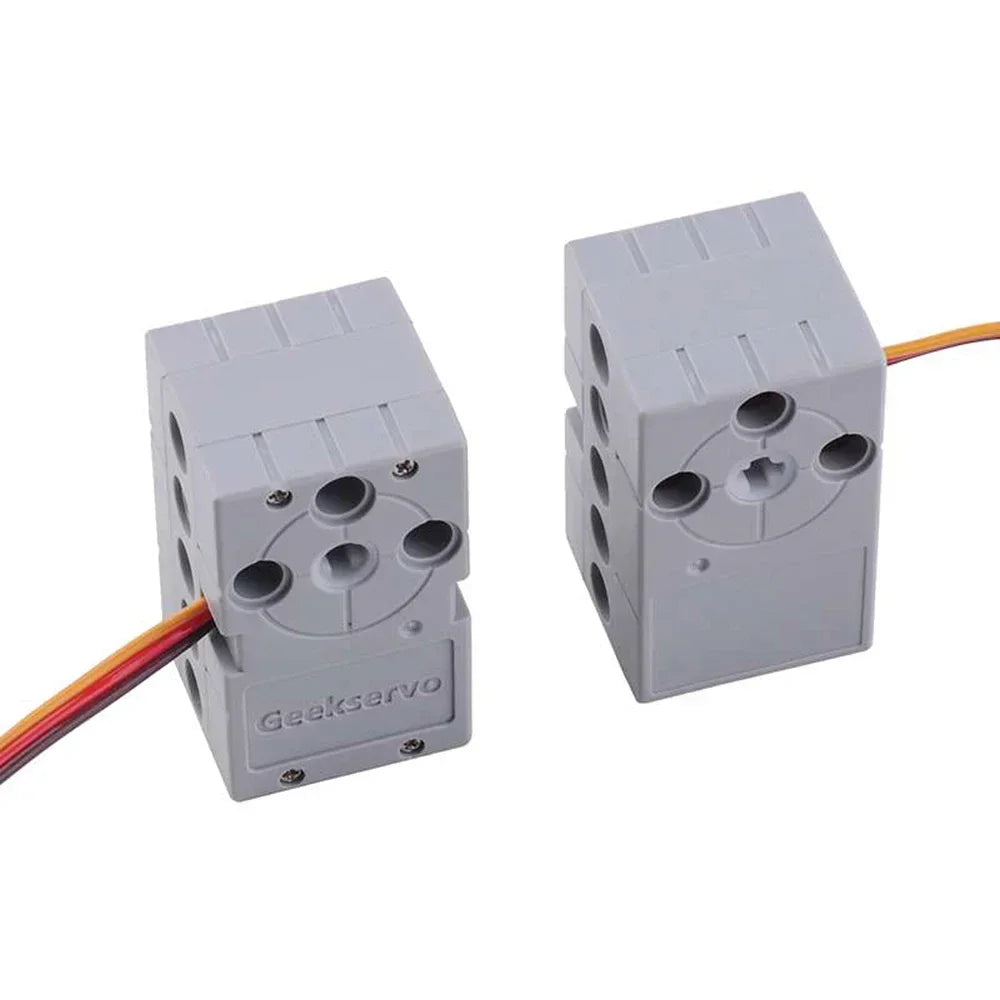

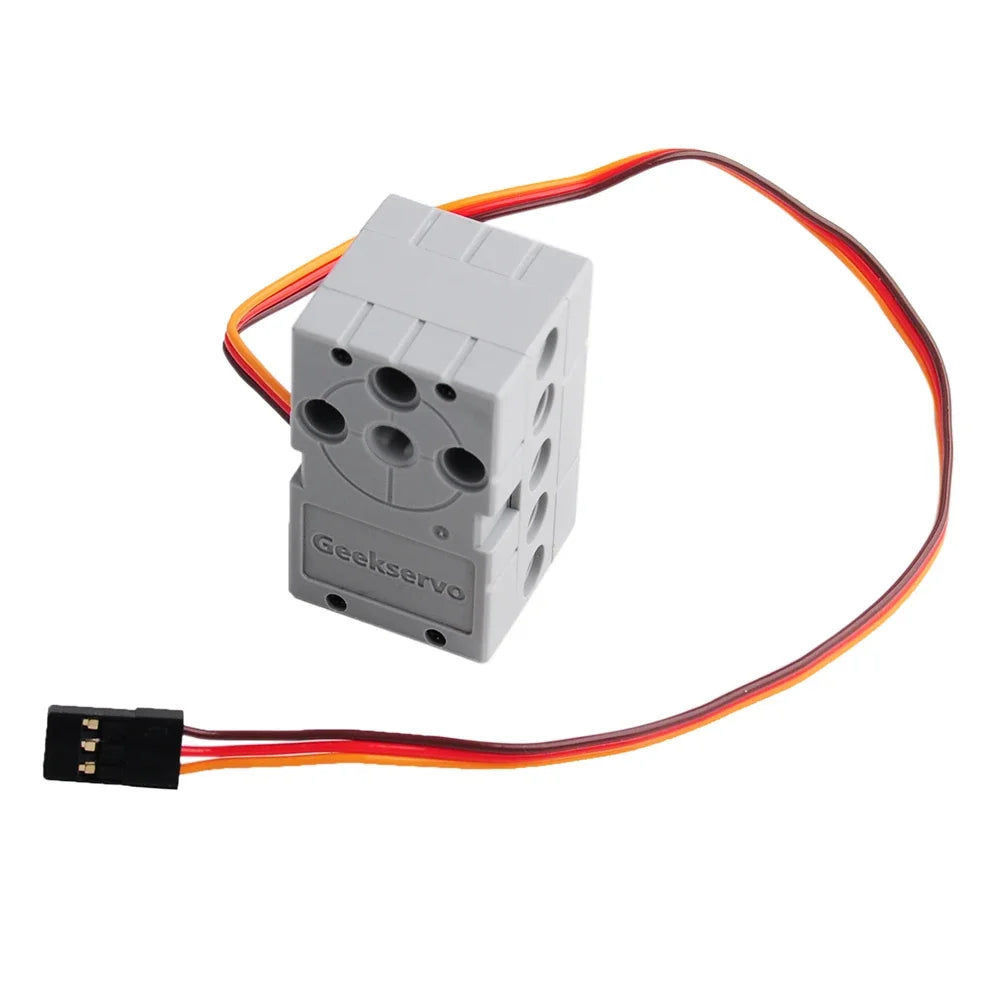

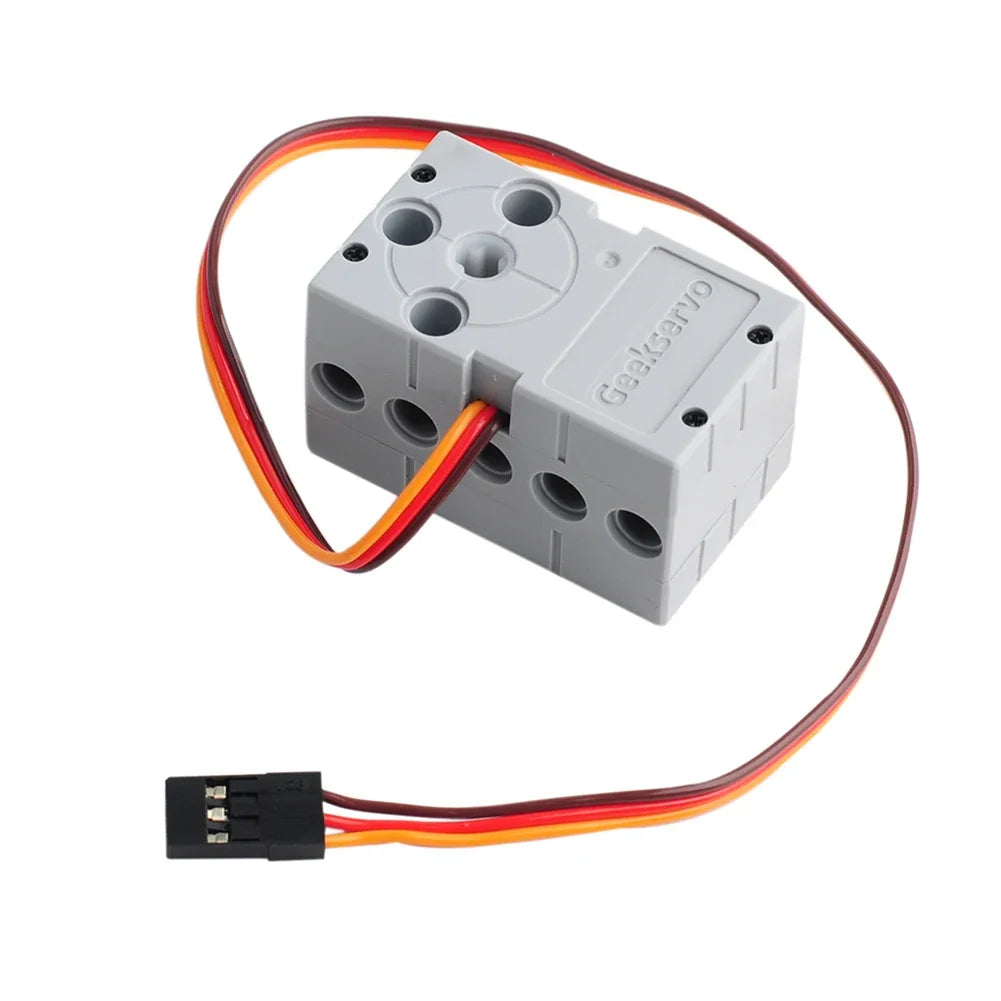

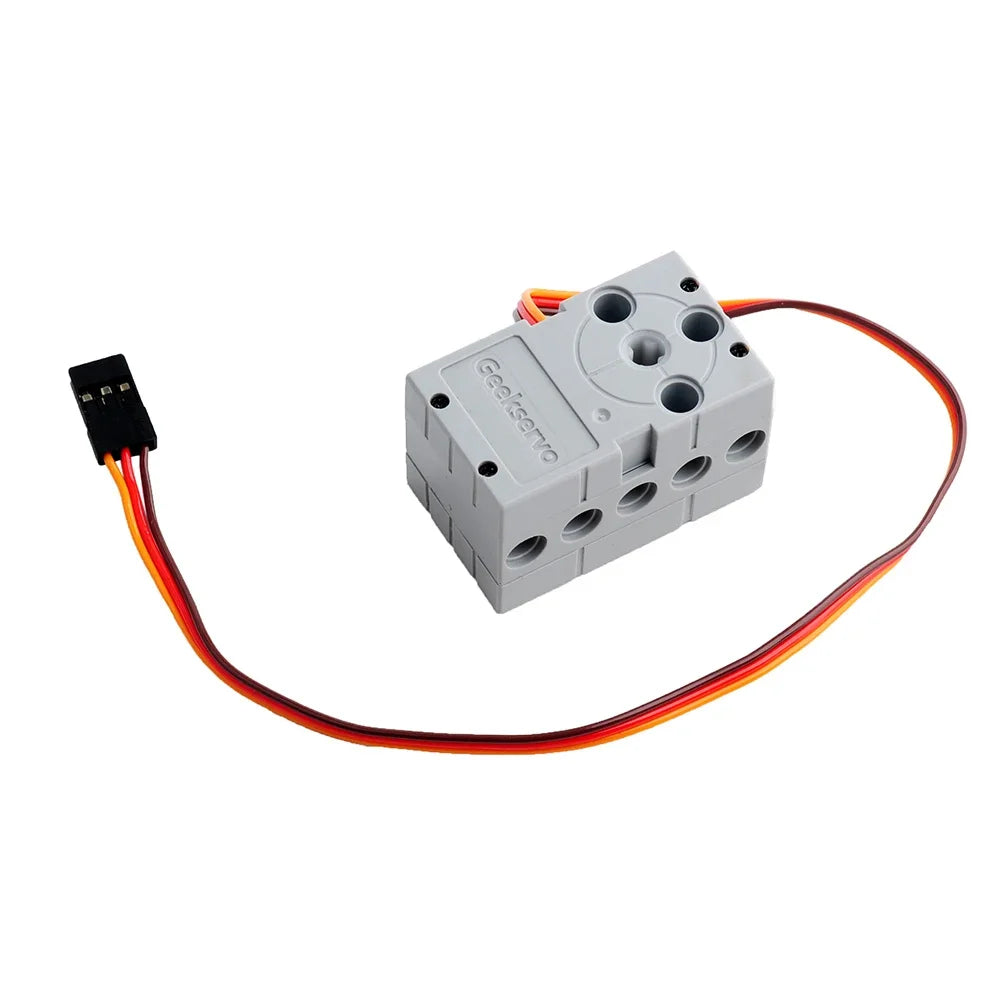

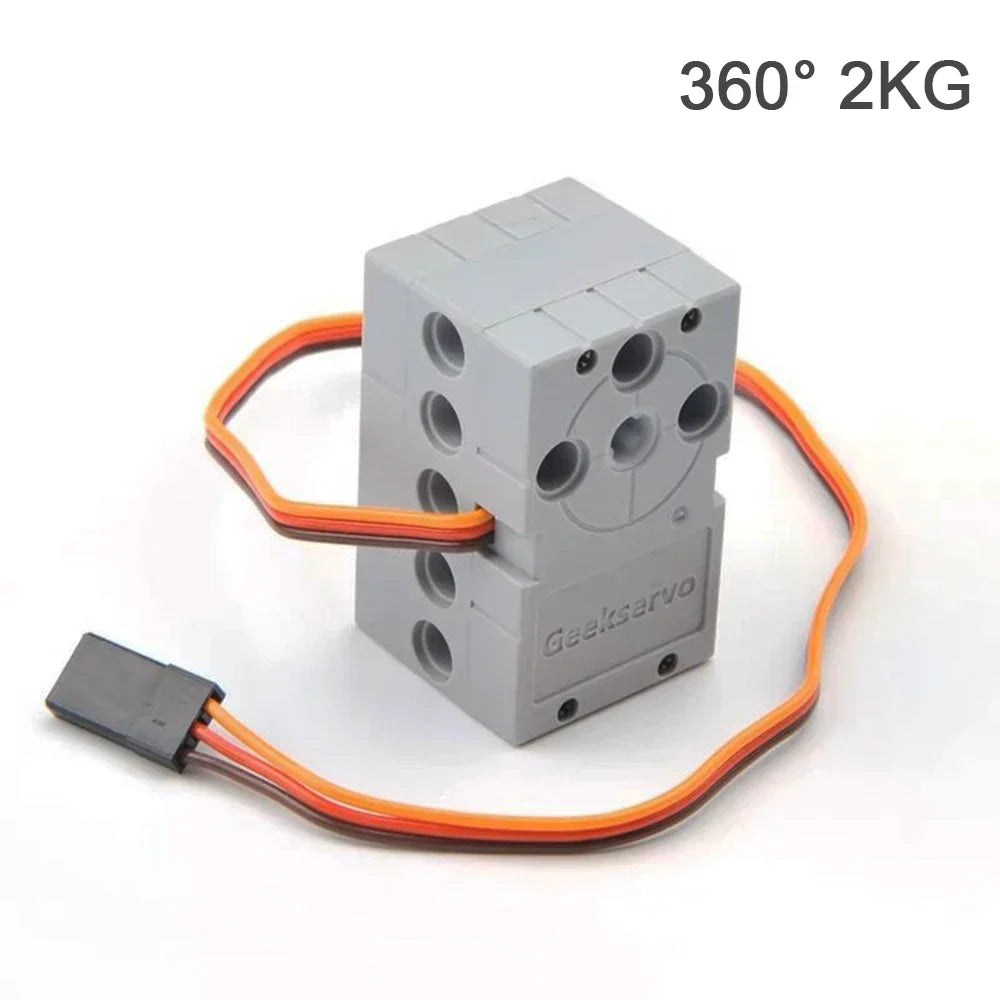

360° 2KG Grey Geek Servo Motor Remote Control for Geekservo 2kg 360 4.8V～6V for Micro:bit Raspberry Pi

Specification
Storage Temperature Range: -20℃～60℃
Operating Temperature Range: -10℃～50℃
Operating Voltage Range: 4.8V～6V

Standard Test Environment
Every test under normal temperature and humidity(temperature:25 ± 5℃, relative humidity: 65 ± 10％), and characteristics are determined under the condition of standard test.

Electrical Specification (Function of the Performance):
Item 4.8V6.0V
Operating speed (at no load) 0.14±0.01sec/60° 0.12±0.01sec/60°
Running current (at no load)70±20mA90±20mA
Stall torque (at locked) 1.8±0.2kg-cm 2±0.2kg-cm
Stall current (at locked) 0.8±0.1A 0.9±0.1A
Idle current (at stopped) 7±1mA 7±1mA
Running life(at no load) >50000 times>40000 times
Temperature drift(at 25°C)≤1° ≤1°

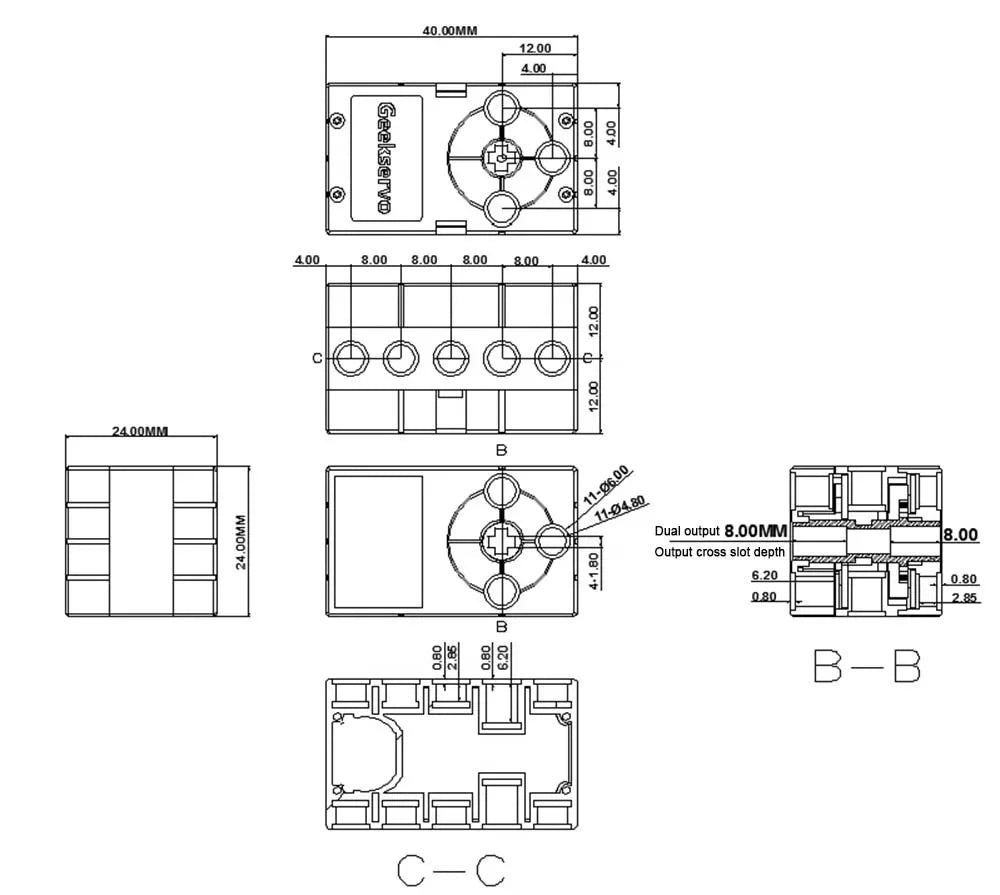

Mechanical Specification:
Limit angle: 360°
Weight :20± 1g
Horn gear spline:Cross hole double output (1 Lego unit deep)
Reduction ratio:1/300
excessive play: ≤1°
Control system: Change the pulse width
Amplifier type: Digital controller
Operating travel: 360°±10° (in 500→2500 μsec)
Left&Right travelling: ≤10°
Centering deviation: ≤ 2°
Neutral position:1500μsec
Dead band width: ≤4μsec
Rotating direction: counter Clockwise (1500→500μsec)
Pulse width range: 500→2500 μsec
Maximum travel 360°(500→2500 μsec)
Shockresistance:250±30g

Package Includes:

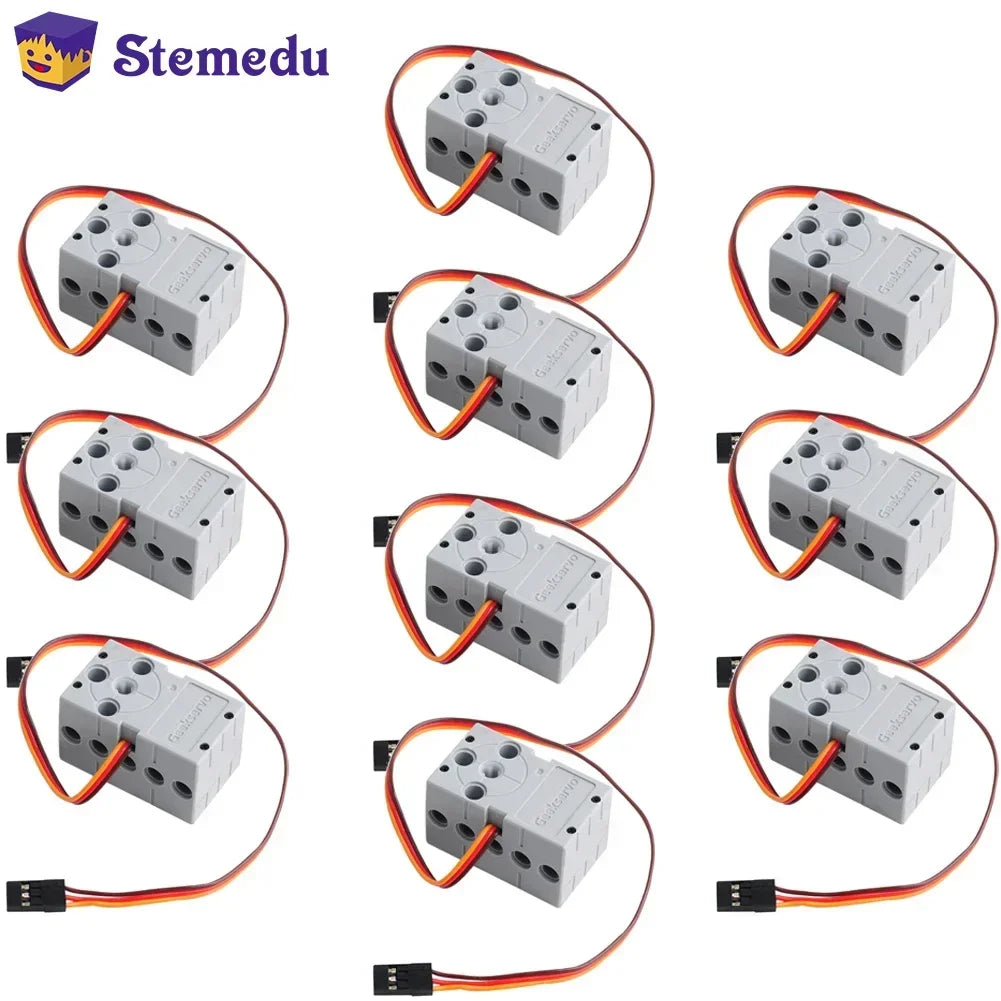

1 X 360° 2KG Servo for Micro:bit Raspberry Pi
OR

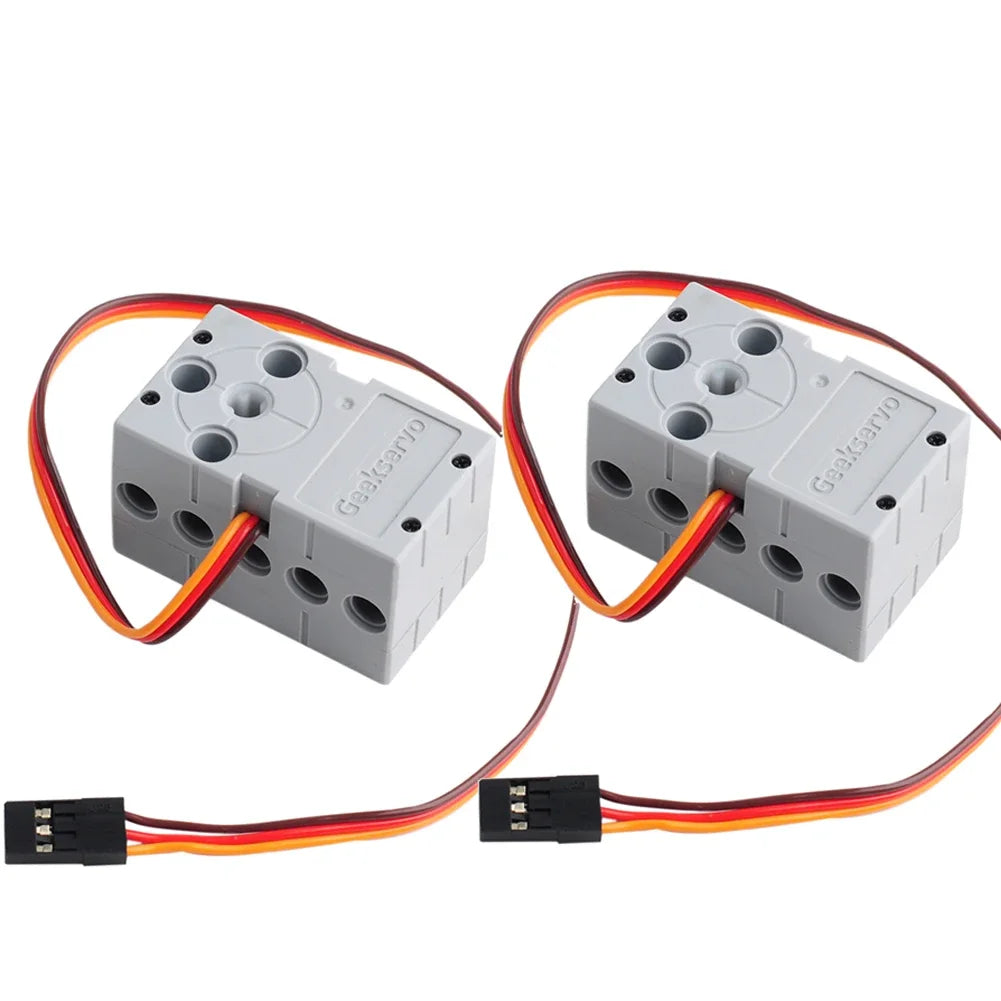

2 X 360° 2KG Servo for Micro:bit Raspberry Pi
OR

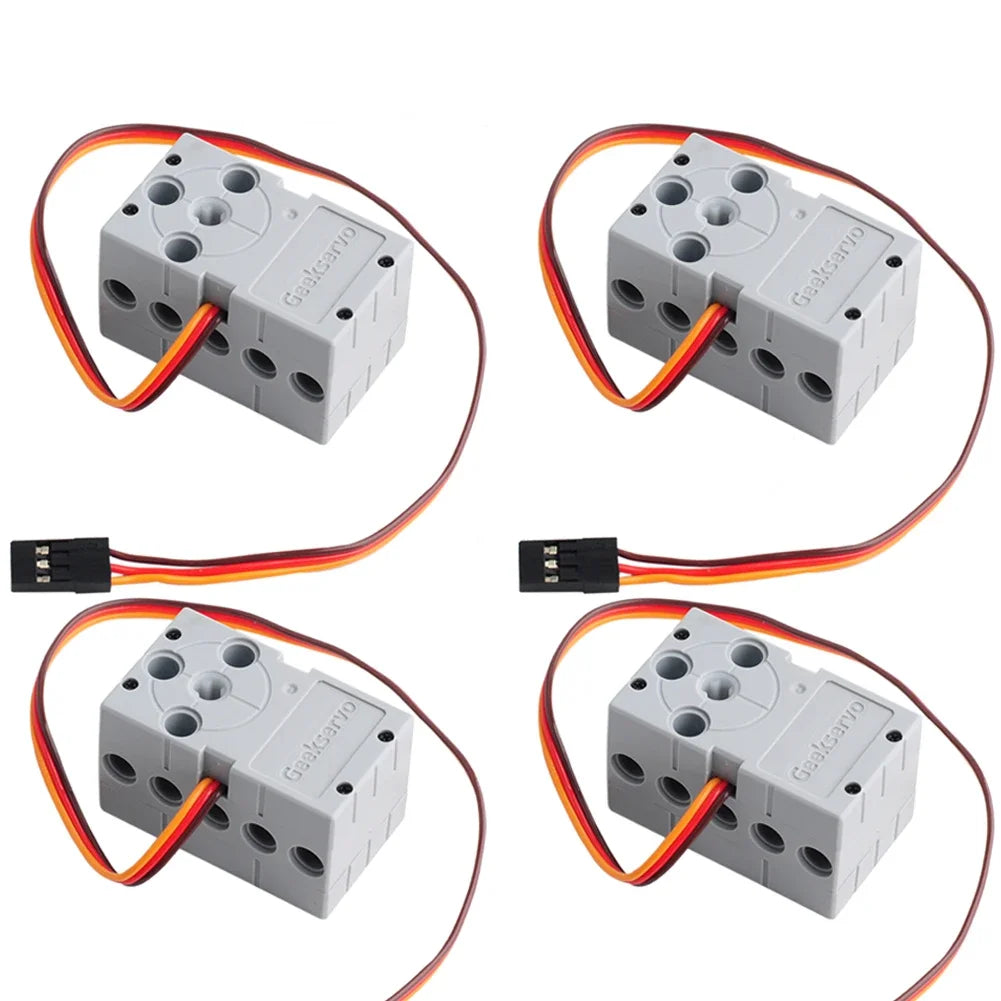

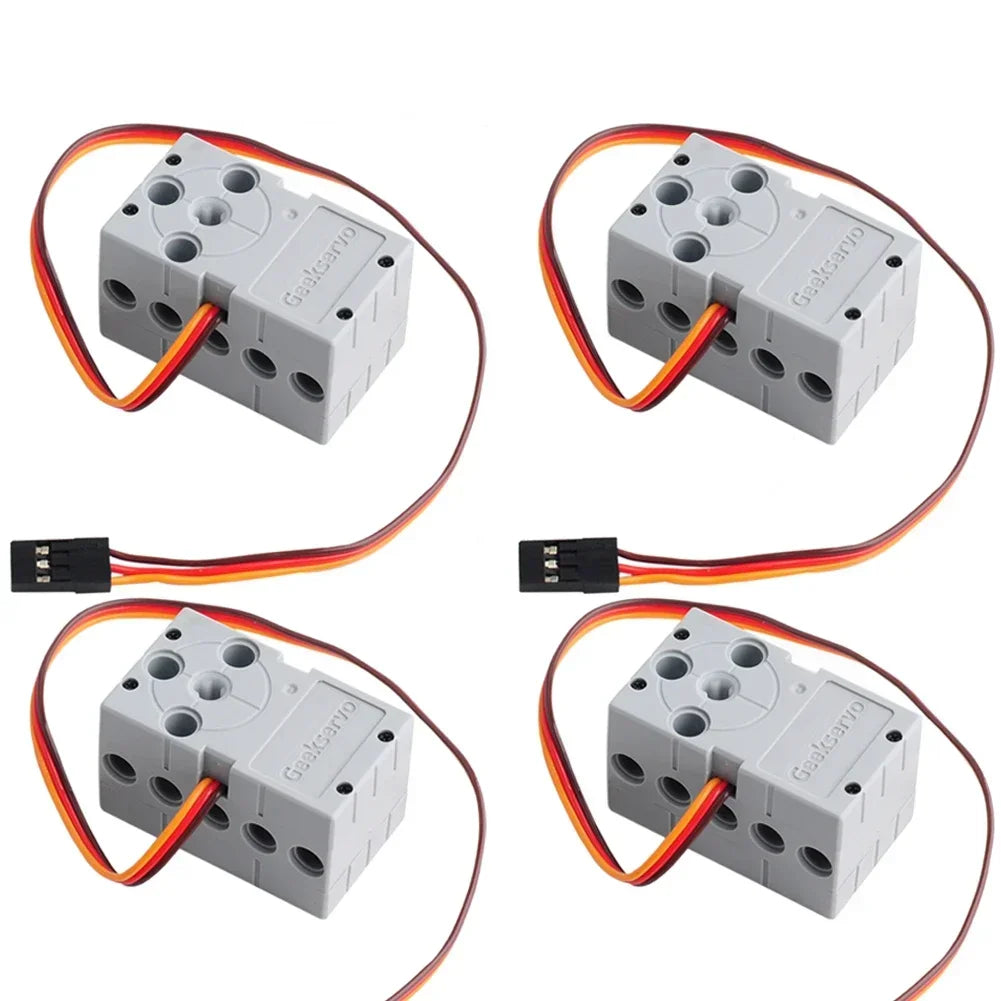

4 X 360° 2KG Servo for Micro:bit Raspberry Pi
OR

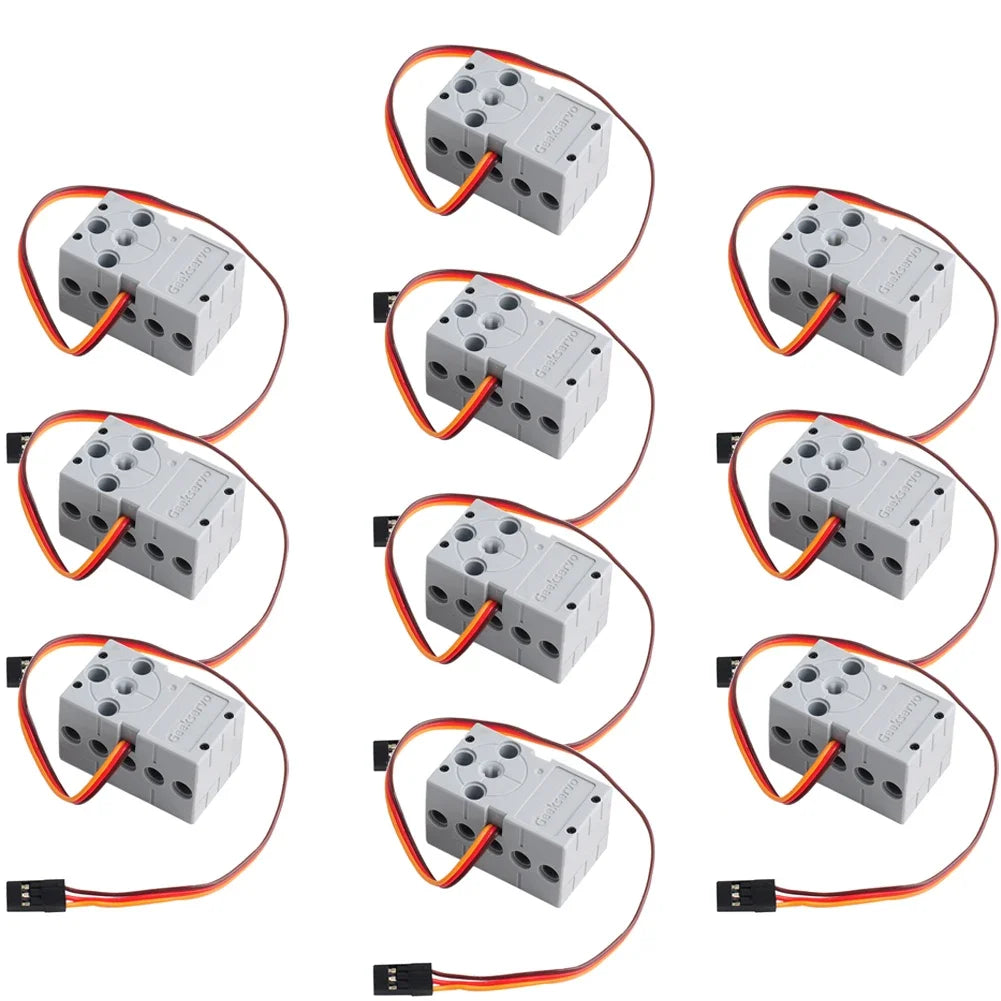

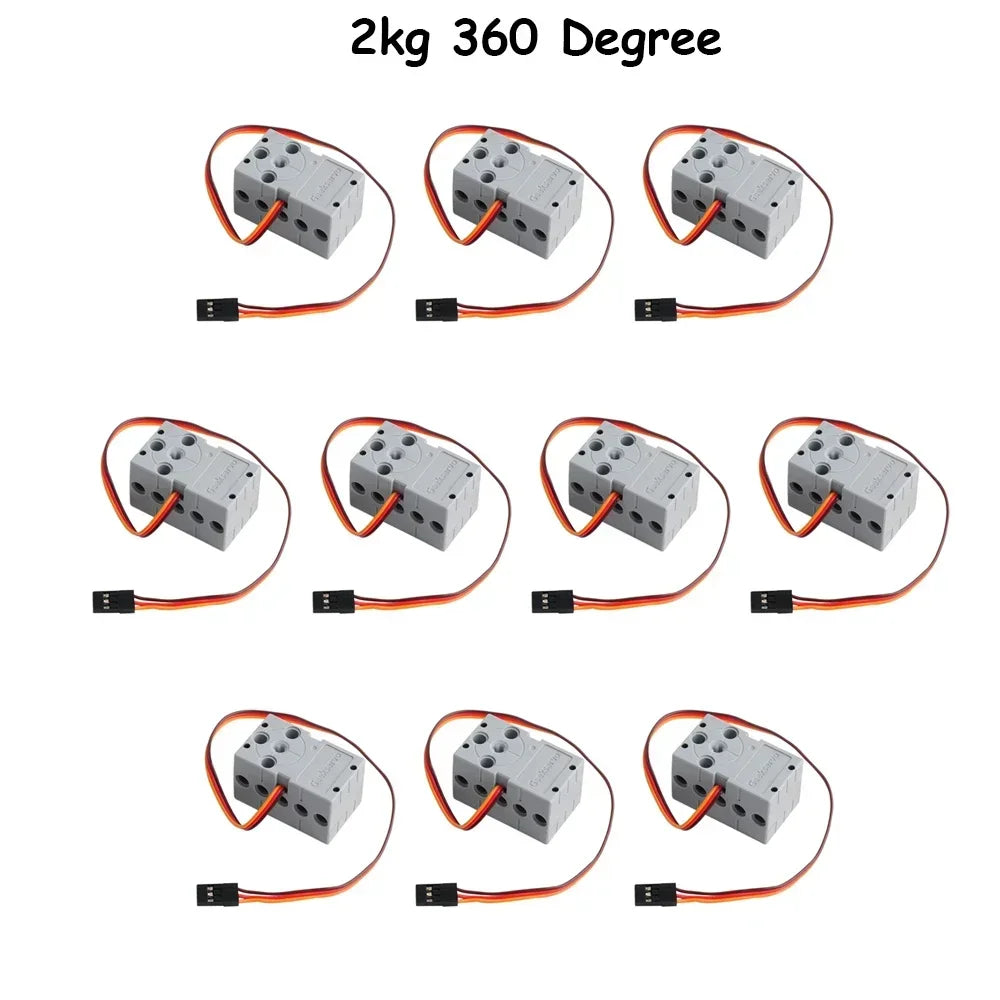

10 X 360° 2KG Servo for Micro:bit Raspberry Pi

FAQ
Q: hello! can this servo rotate to 180° like lego servo?
A: Yes, it can, you can set the PWM from 1000 to 2000
