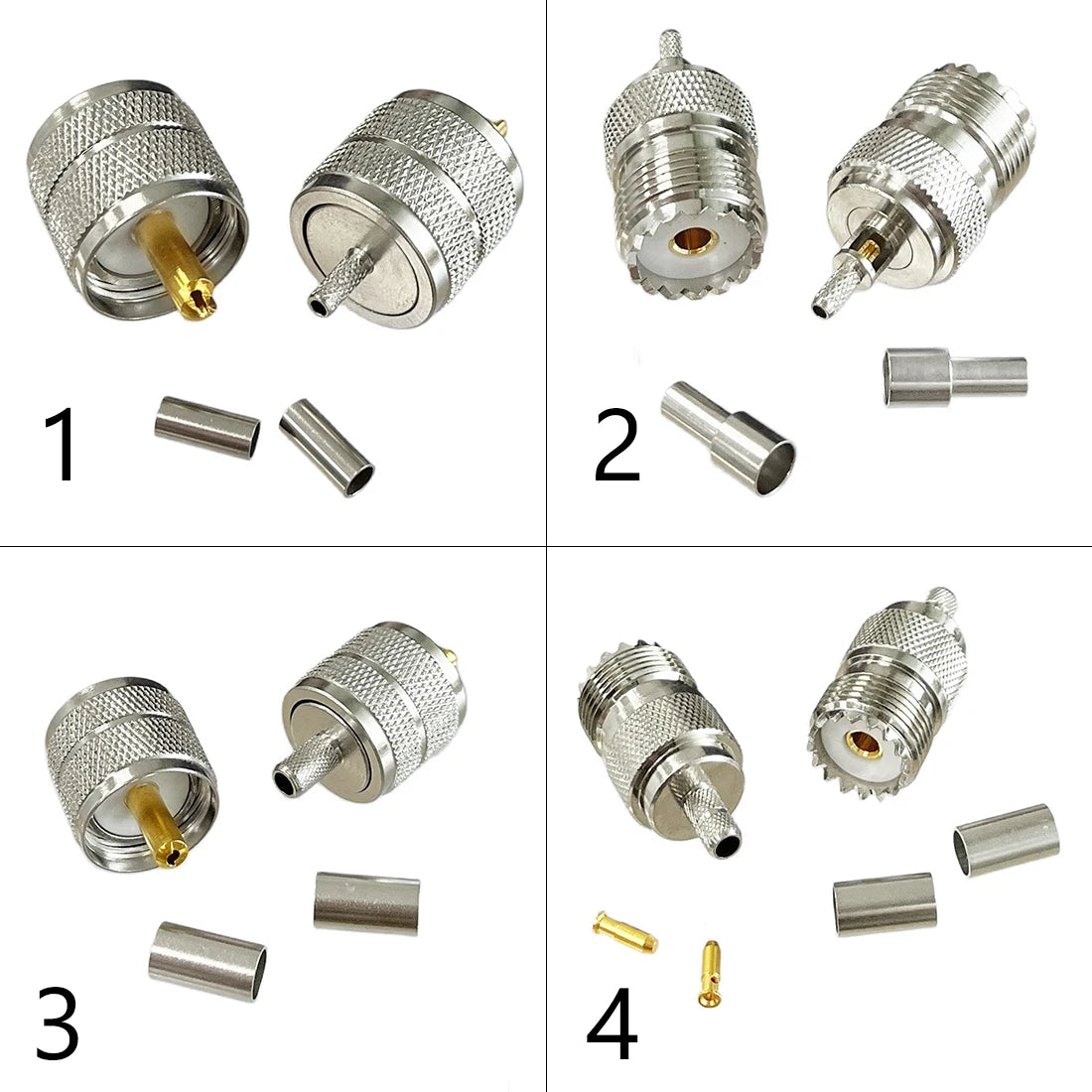

1-4PC UHF Male Female Plug Jack PL259 SO239 RF Coax Connector Crimp RG316 RG174 RG58 RG142 Copper Nickelplated With Drawing
Type4 / 4PC
$38.92
Sale price
$38.92
Regular price
$0.00
Skip to product information
1-4PC UHF Male Female Plug Jack PL259 SO239 RF Coax Connector Crimp RG316 RG174 RG58 RG142 Copper Nickelplated With Drawing
$38.92
Sale price
$38.92
Regular price
$0.00
Description
SPECIFICATIONS
Body Plating: Nickelplated
Brand Name: DexMRtiC

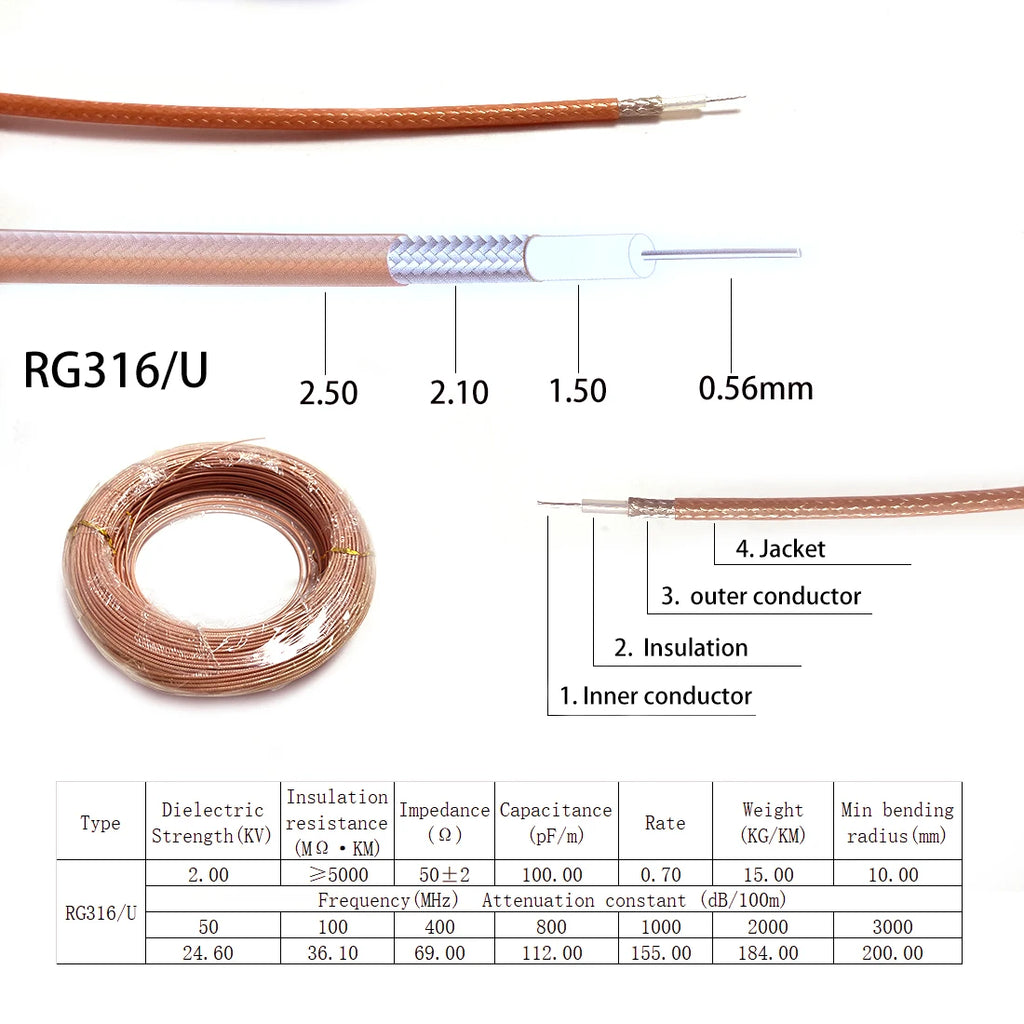

Cable Type: RG58 RG142 RG316 RG174
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Gender: male female
High-concerned chemical: none
Impedance: 50 Ohm
Material: Brass
Model Number: N Male Connector
Mounting: Cable mount
Origin: Mainland China
Product type: UHF RF connector
Style: Straight
Voltage: 24V
semi_Choice: yes
1PC /4PC UHF Crimp Plug male Jack Female SO239 PL259 RF coax connector crimp for LMR195 RG58 RG316 RG174 straight Copper with drawing wholesale
TECHNICAL CHARACTERISTICS
Temp.range -65~+155°C (PE Cable -40~+85°C)
Impedance 50Ω
Frequency Range DC~3GHz
Working Voltage 500V max
Withstand Voltage 1000V rms
Contact resistance
Center Contact ≤ 10 mΩ
Outer Contact ≤ 5 mΩ
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤ 0.15 dB/2GHz
VSWR Straight ≤ 1.20
Right angle ≤ 1.25
Durability(mating) ≥500(cycles)
