SPECIFICATIONS

Note:

1. Color maybe slightly different due to different monitor.

The above size is measured by hand, please allow slightly difference.

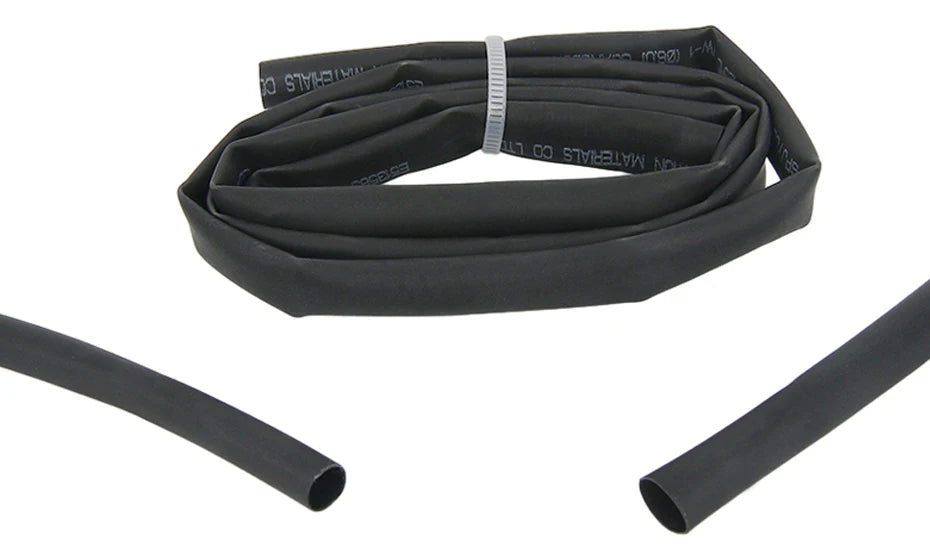

Product:Heat Shrink Tube With Glue

HEAT ACTIVATED ADHESIVE

Features:

* Creates a waterproof seal

* Greater tensile strength

* Resistant to stretch and vibration

* Zero halogen, polyolefin cross linking

*Flame retardant

*Low smoke generation if burning

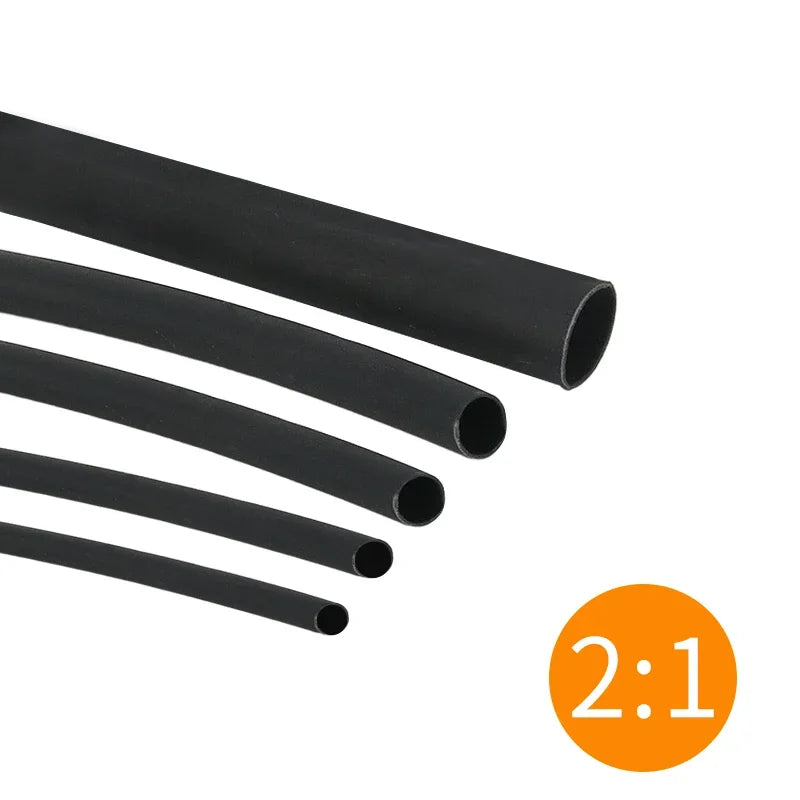

2:1 SHRINK RATIO

* Recovers to 1/2 of its original diameter

* Stays flexible

WATERPROOF

* Connection is sealed from the elements

* Protection against wire corrosion

* Can be submerged under water

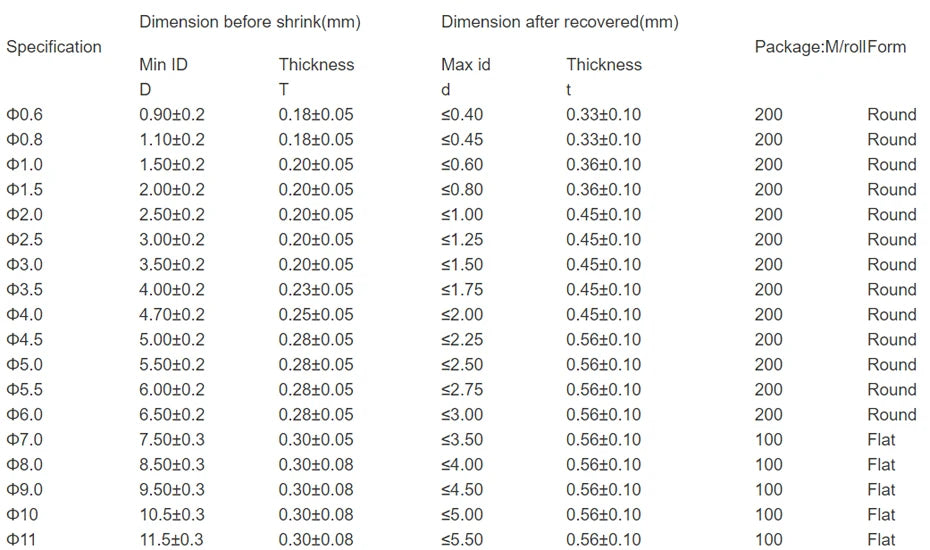

Specification:

Product Name: Heat Shrinkable Sleeve

Color: Black

Length:1/5/10/25/50/100/200meters

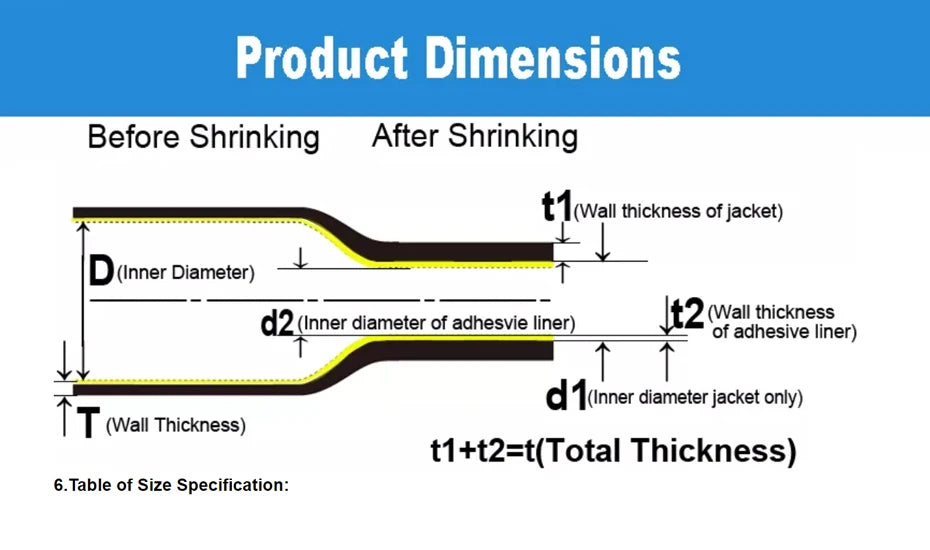

Heat shrink ratio: 2:1(will maximum shrink to 1/2 its supplied diameter)

Material: PE/Polyolefin

Operation Temperation: -55℃ to +125℃

Minimum shrink temperature: 70°C

Minimum fully recovery temperature: 100°C

Cadmium content: < 5 ppm

Lead content: < 10 ppm

Full Shrinkage Temp:230℉ maximum

Tensil strength: 10.4Mpa

Dielectric strength: 15 kV/mm

Rated Voltage: 220V

Pressure: 1(KV)

Flammability : VW-1

Feature:Durable/ Flexible

Adhesive: Hot Melt Adhesive Coated

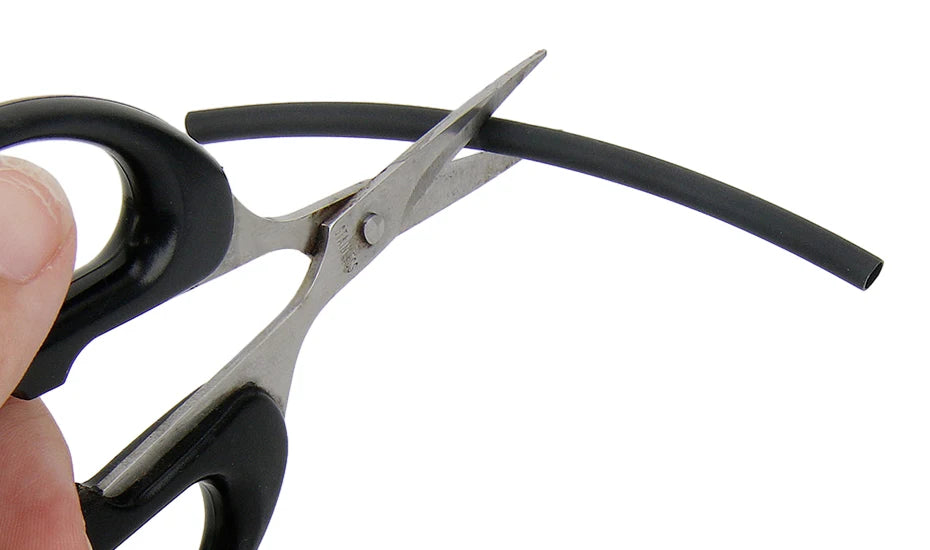

Cutting method: Scissors or sharp knife

Usage: Insulating and protecting for components,interconnections,terminals,wire harness,Machine tool,machine building,electric control system etc.

Area: Electronic equipment,Household appliances,machine building,communication

Package:

1/5/10/25/50/100/200meters Heat Shrink Tube
