SPECIFICATIONS

Brand Name: RCmall

Choice: yes

Connector: 1.00mm spacing between the 4pins patch seat

Data Level: TTL or RS-232, Default TTL level

Drones Accessories Type: GPS

High-concerned chemical: none

Item: BN-220 GPS Module

Model Number: FZ2918

Note: Original Beitian, but no beitian logo.

Origin: Mainland China

Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Size: 22mm*20mm*6mm

Weight: 10g

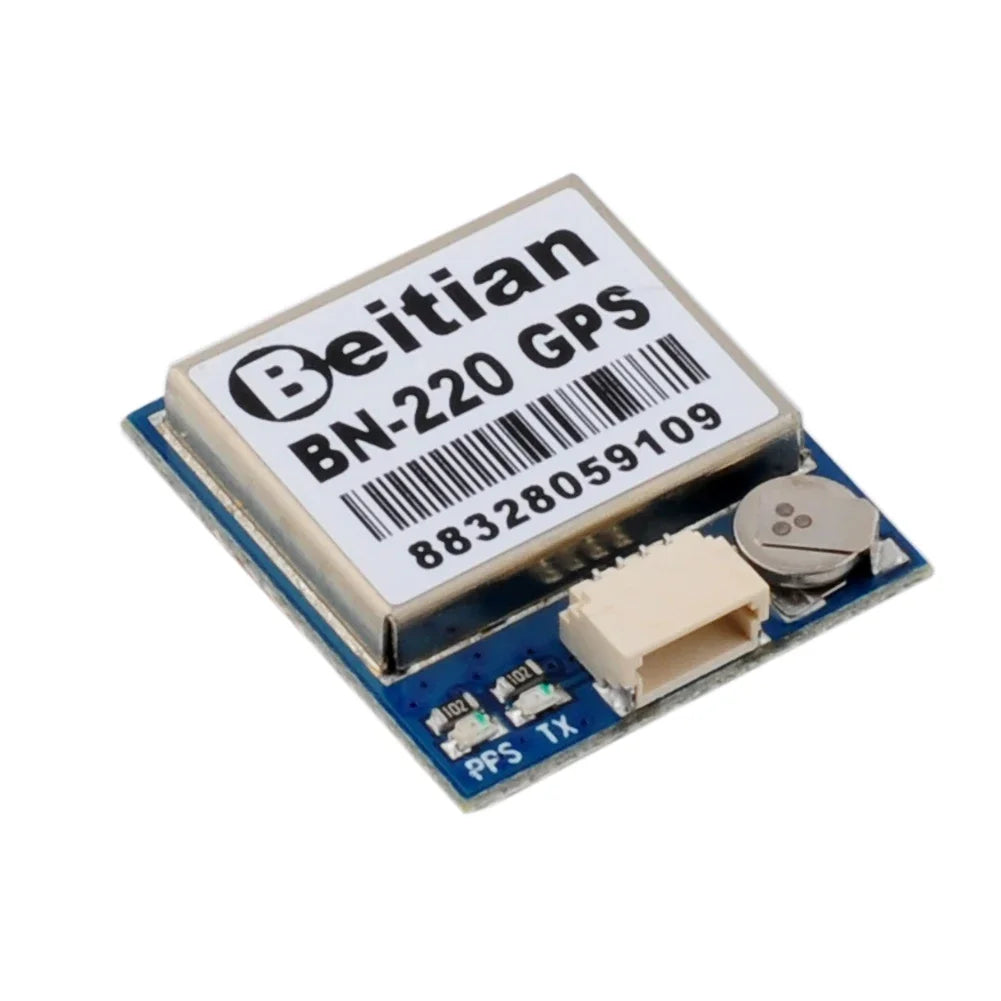

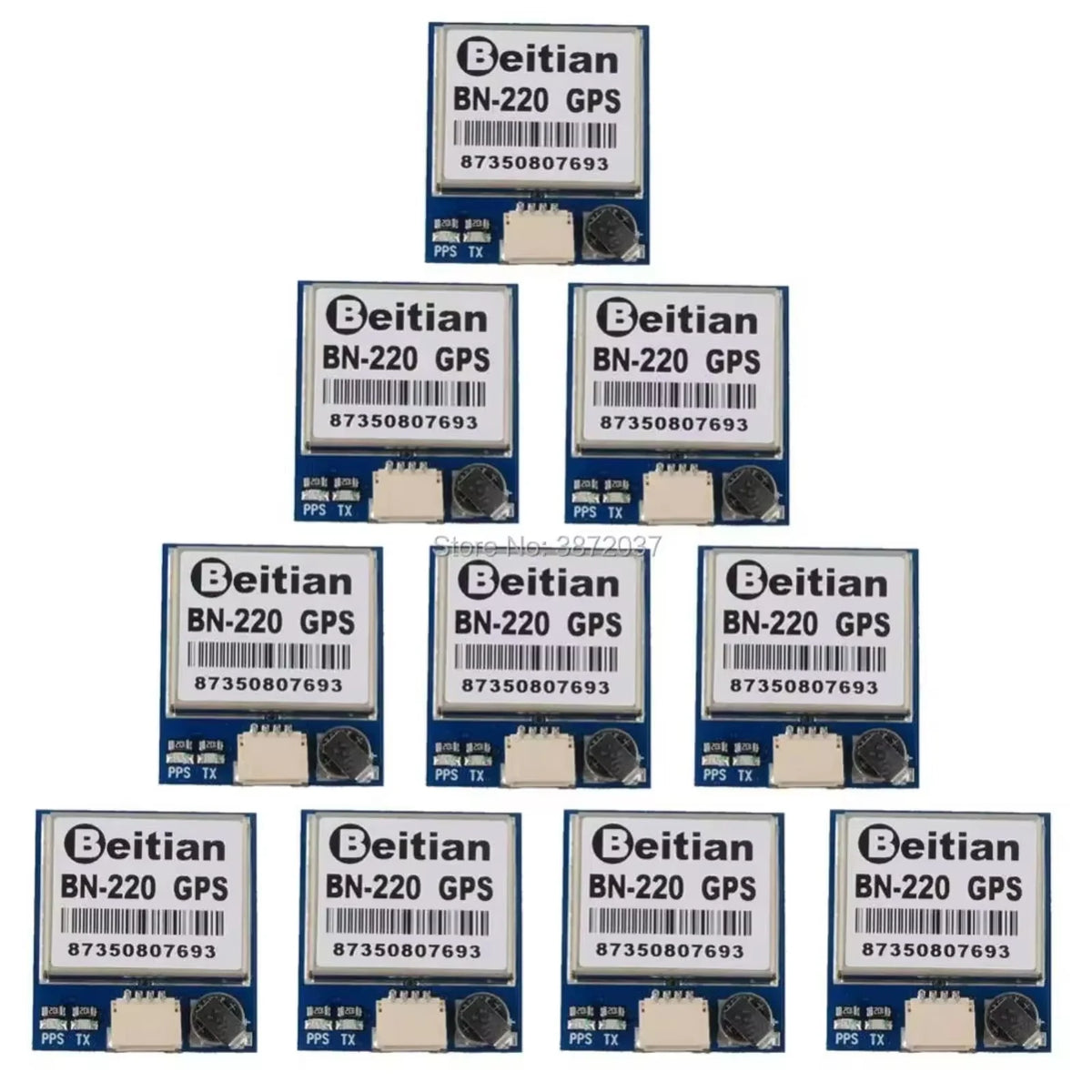

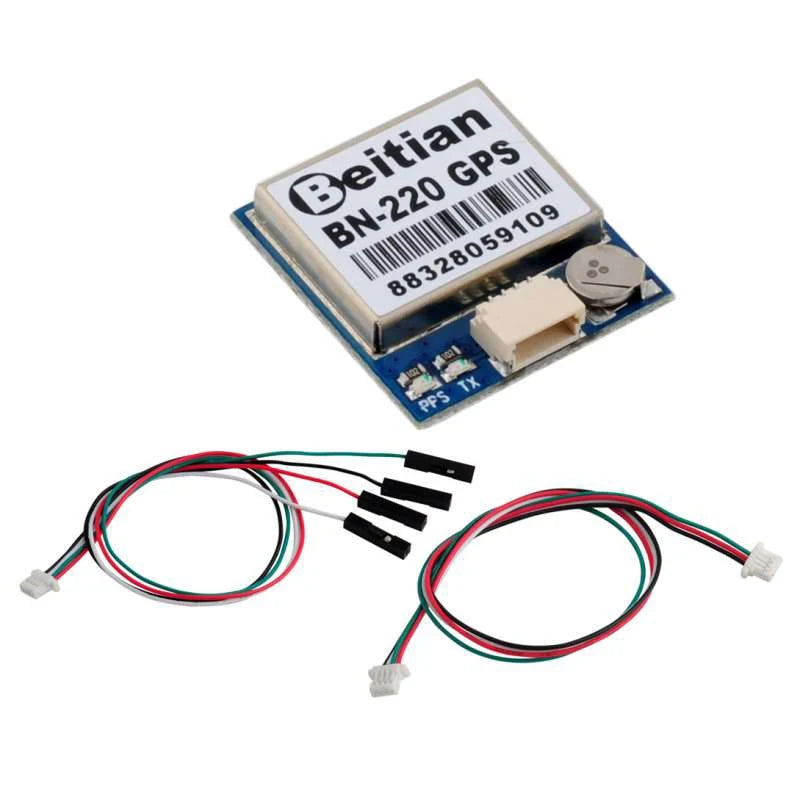

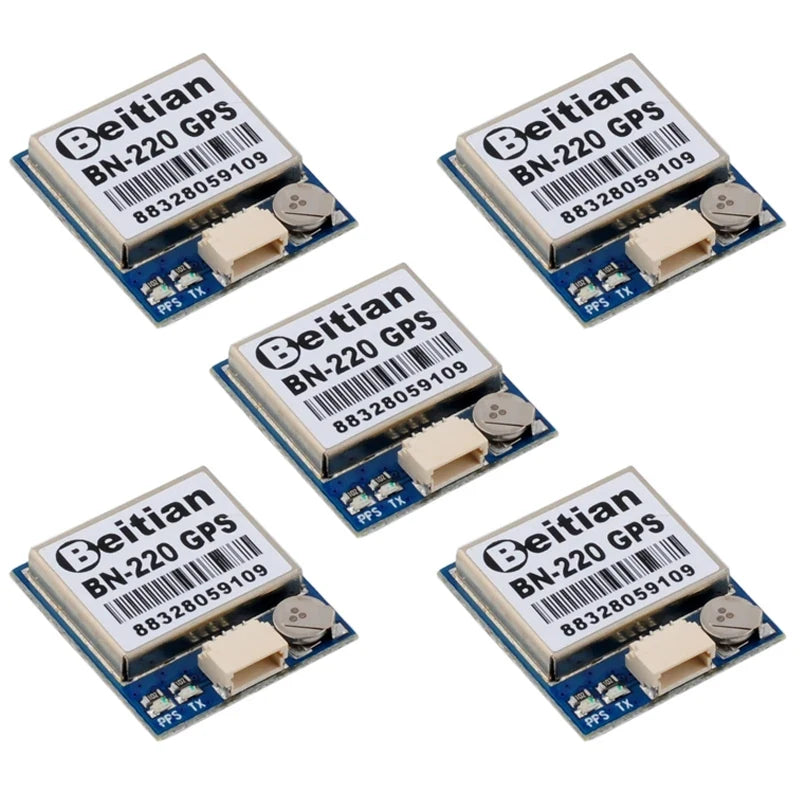

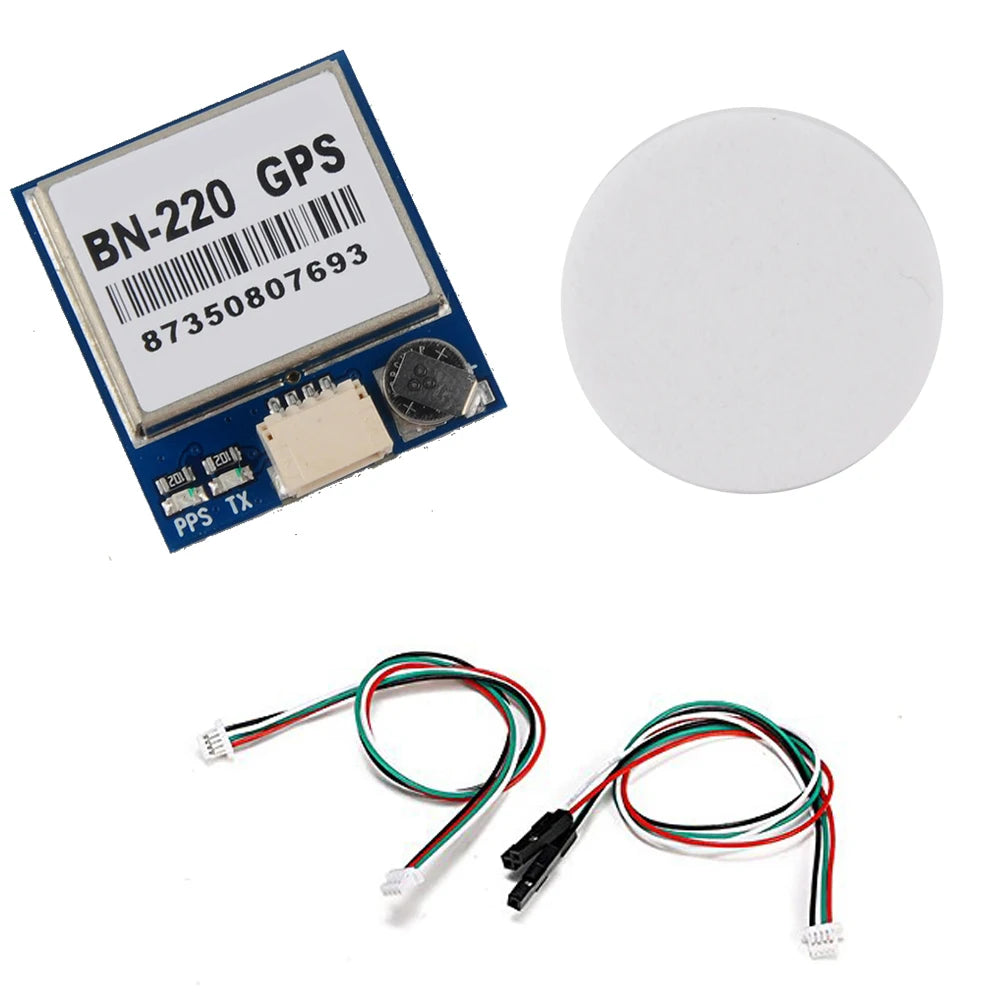

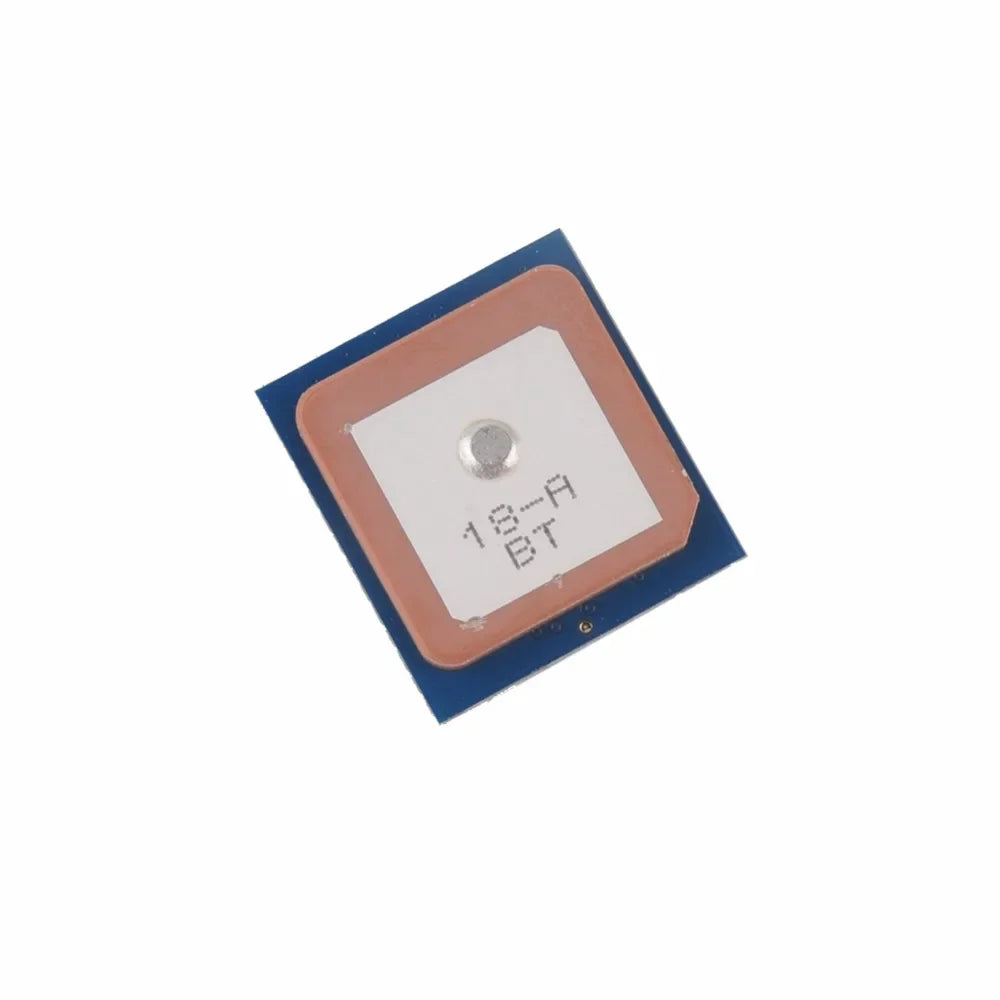

1/5/10 PCS Beitian BN-220 GPS Module GLONASS Antenna Module TTL Level for Flight Controller RCmall FZ2918



Description:

Dimension :　22mm*20mm*6mm

Module Weight : 5.3g

Connector : 1.00mm spacing between the 4pins patch seat



Specification

Electrical Characteristics

Receiving Format :　GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel



Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm



Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time



Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s



Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183 or UBX, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz



Operational Limits

Altitude : 50,000m Max

Velocity : 515m/s Max

Acceleration : Less than 4g



Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp :　-40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C



Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

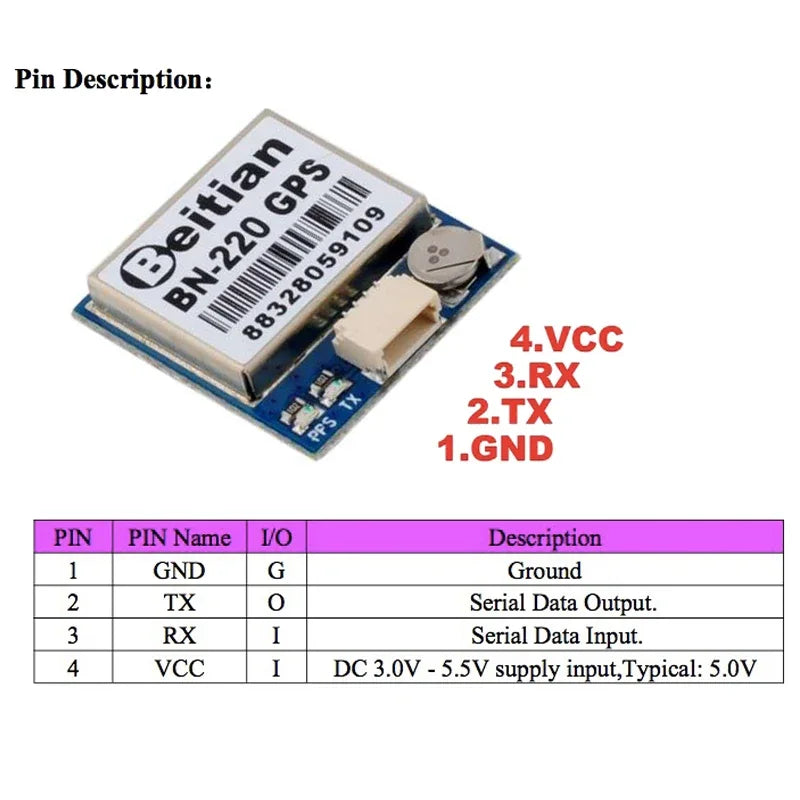

Wiring:

GND,TX output,RX input,VCC(3.0v-5.5v)
